Model Fisher &amp; Paykel OR36SDPWGX1-81000-A Freestanding Range – Common Parts &amp; Diagrams

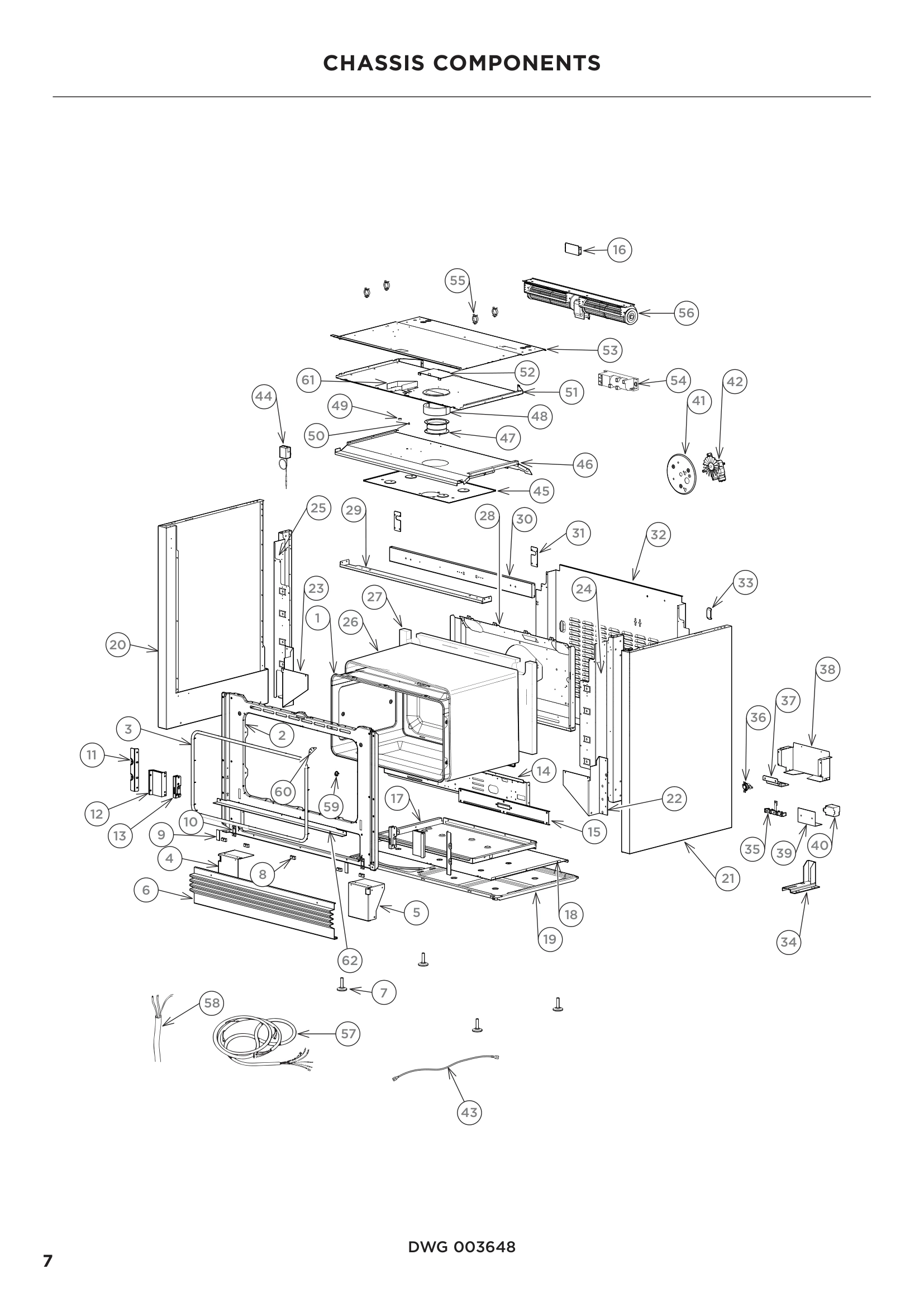

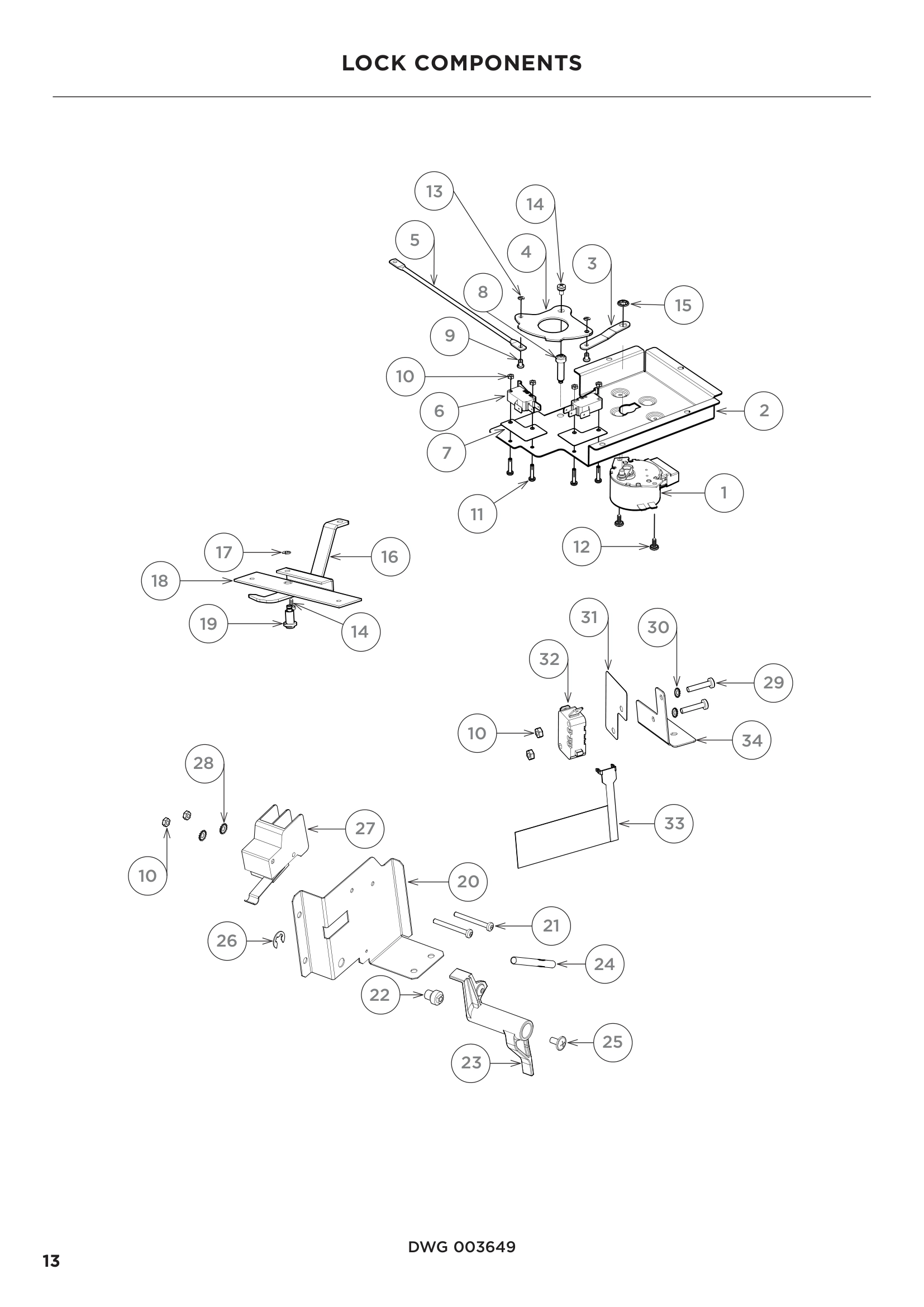

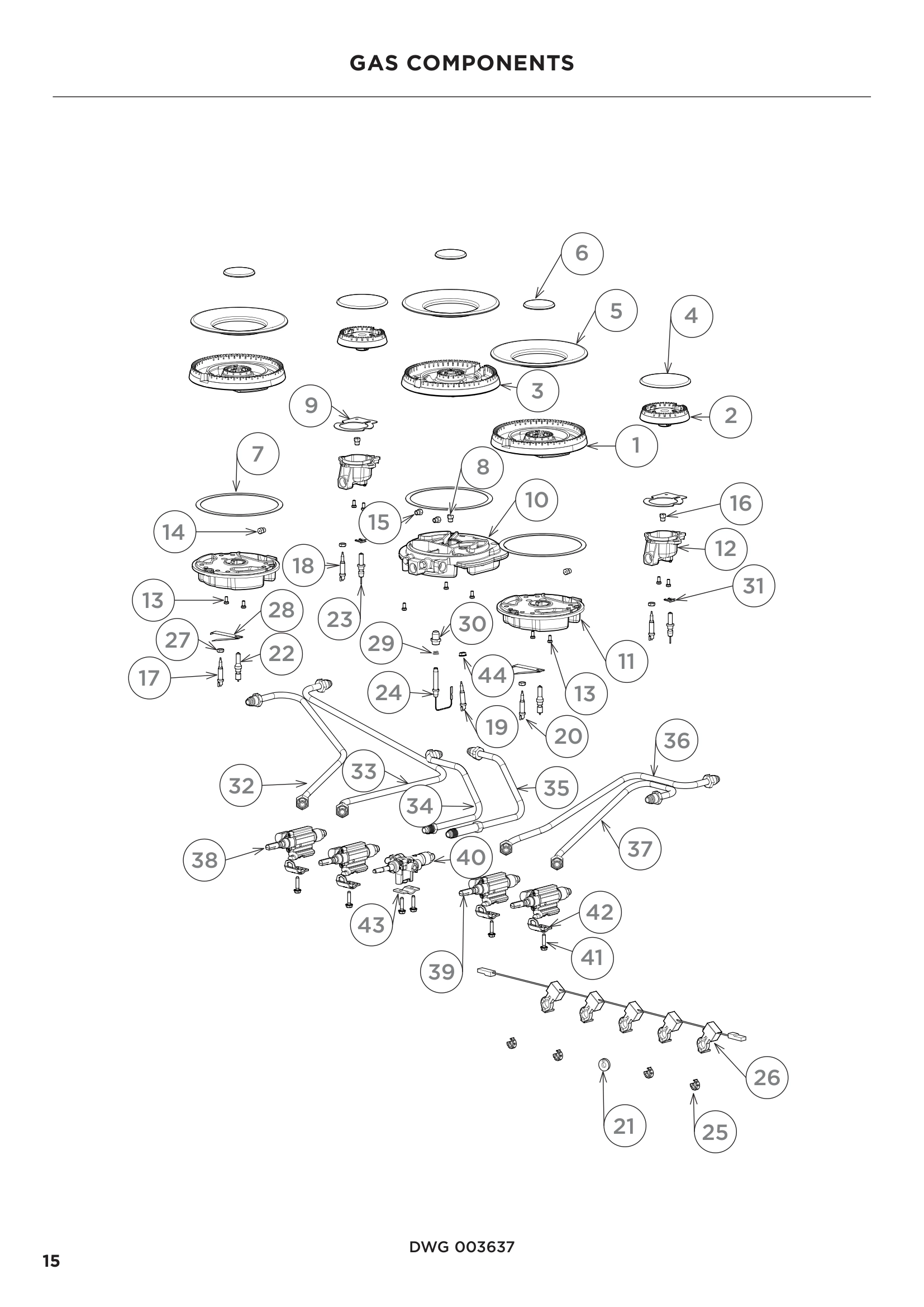

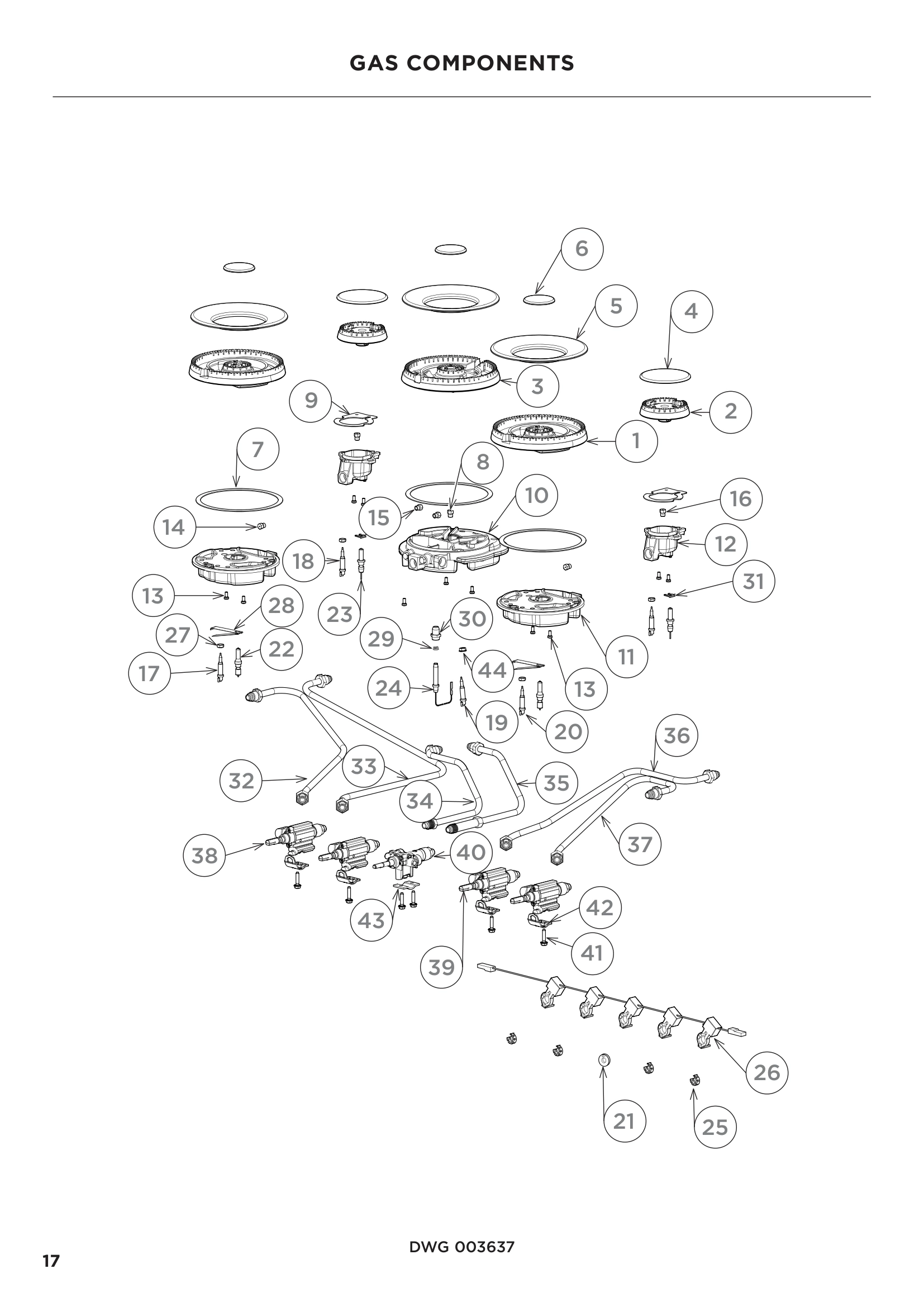

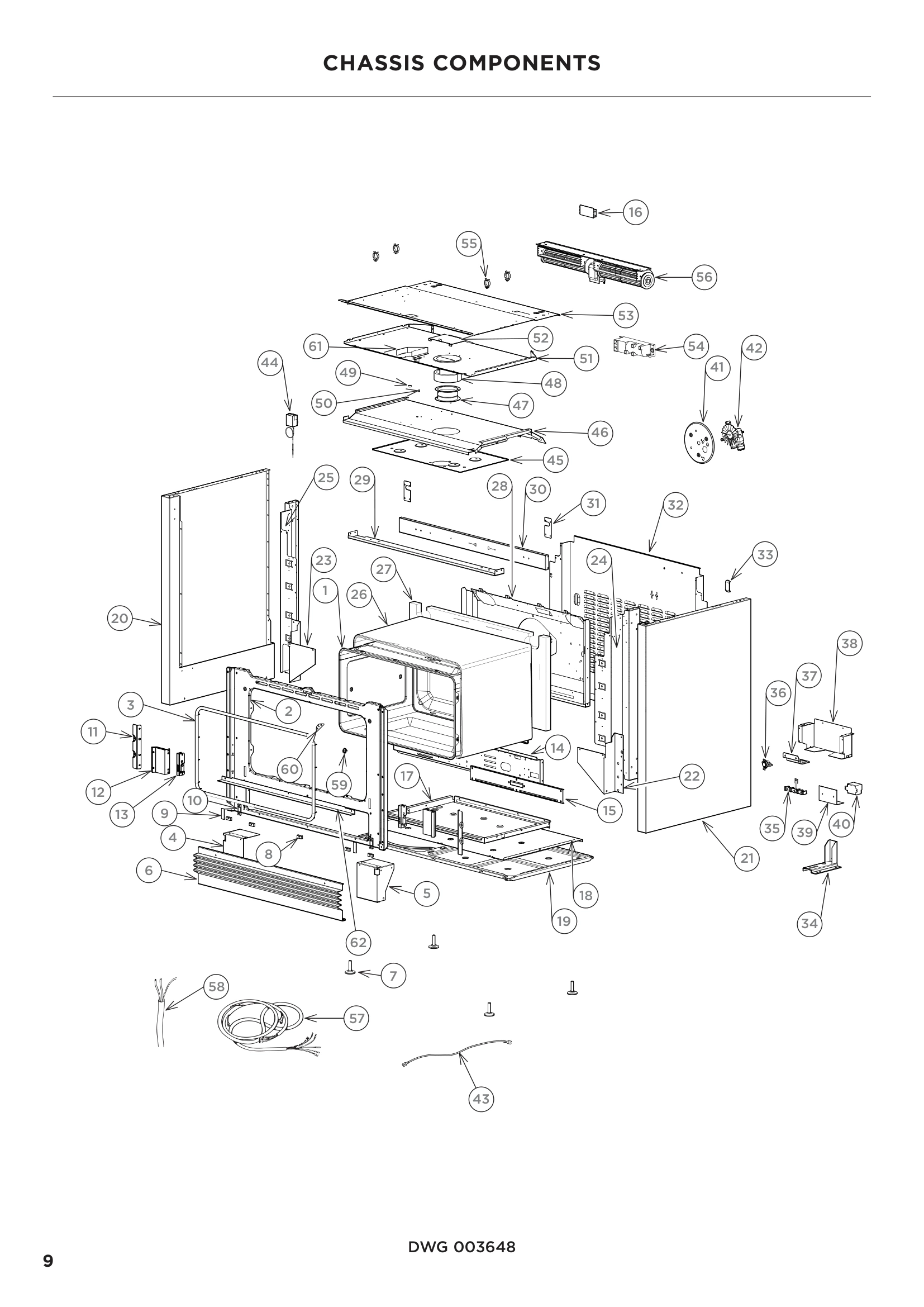

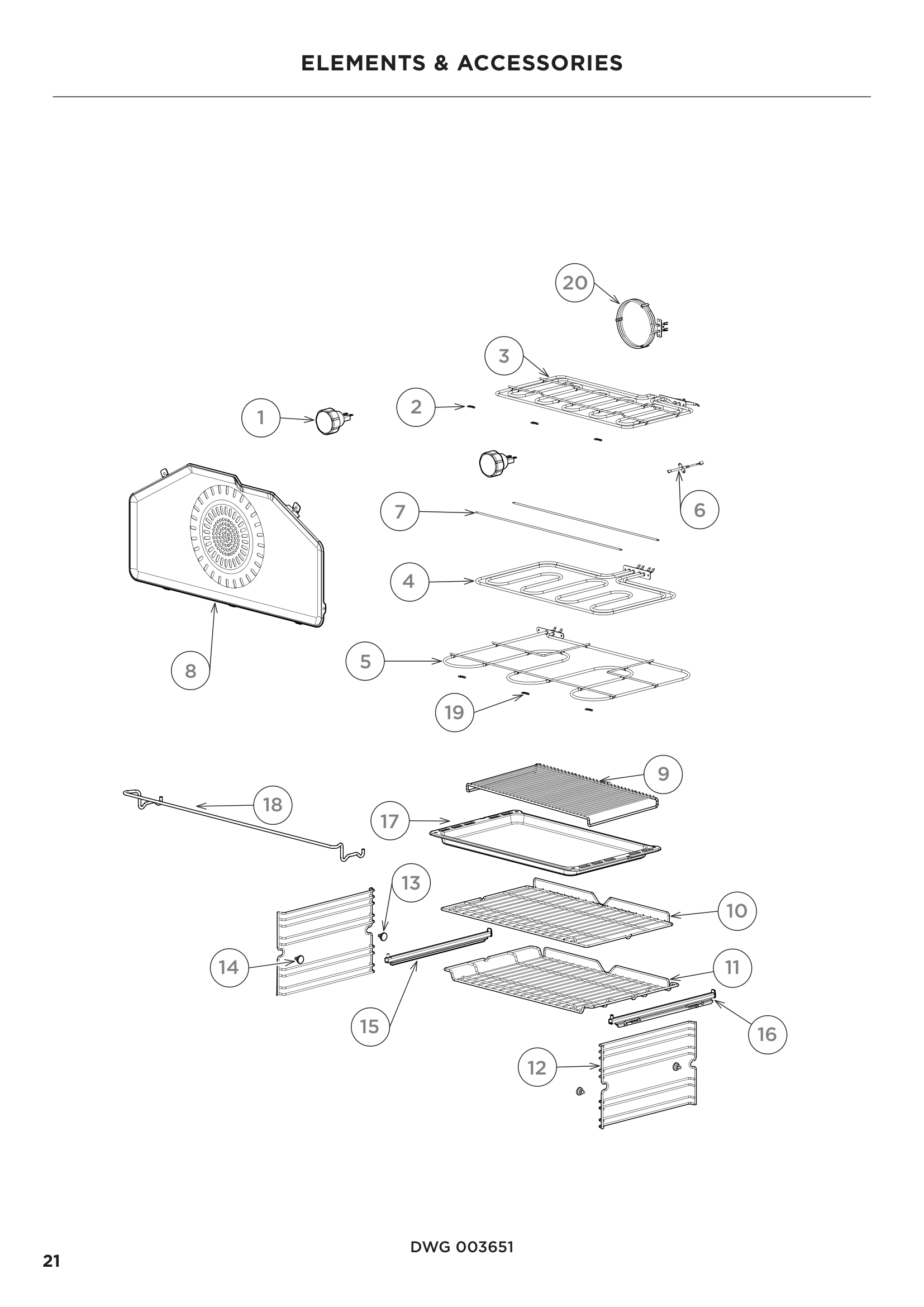

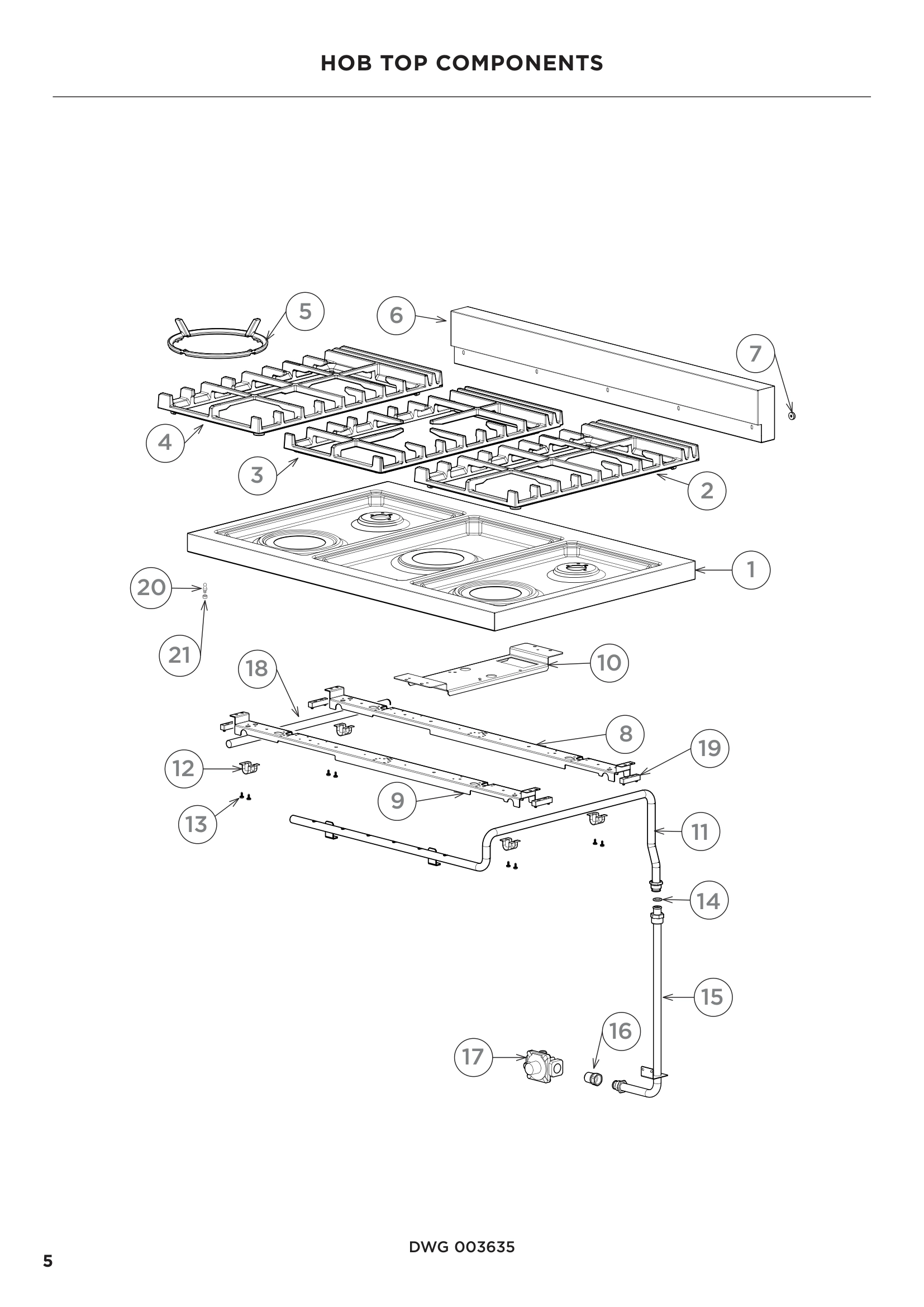

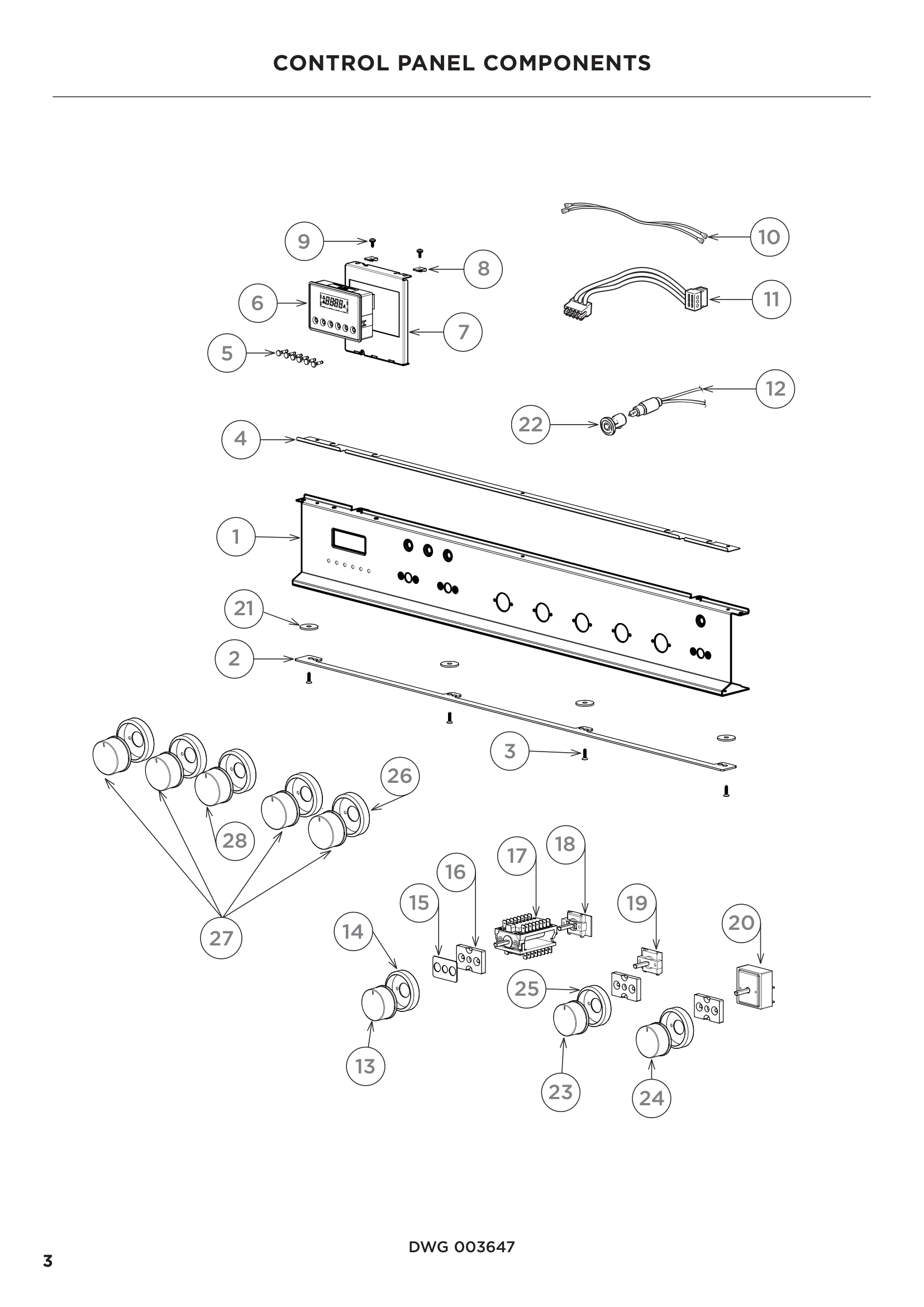

1

575699 Fisher & Paykel Range Burner Spreader Backorder FPA 575699 $57.78

1

577014 Fisher & Paykel Range Lamp Assembly Backorder FPA 577014 $19.54

1

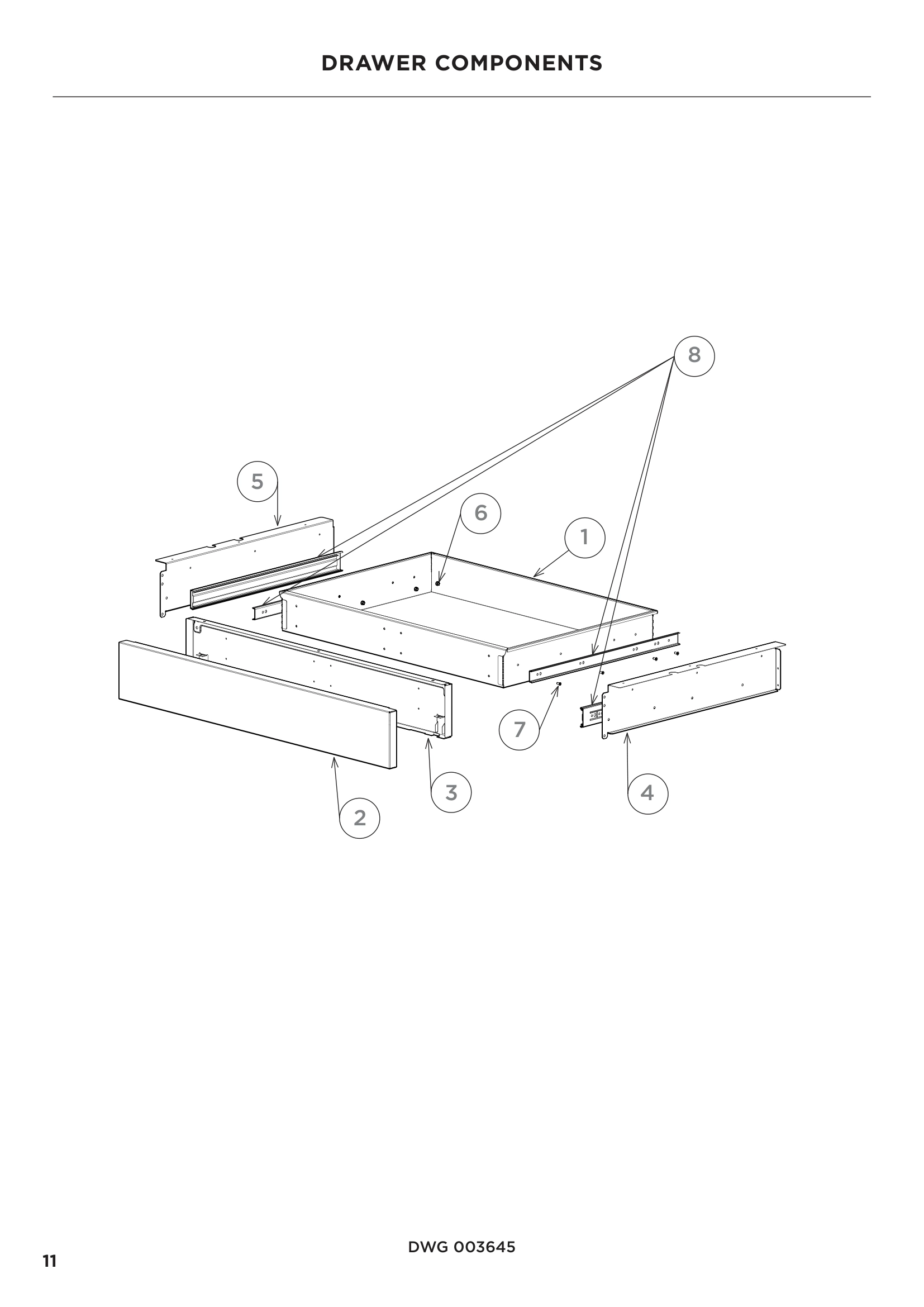

DRAWER FPA 577288 Contact Us For Availability

1

WASHER INNER DOOR (PKT 2) FPA 573580P Contact Us For Availability

2

577259 Fisher & Paykel Right Trivet Backorder FPA 577259 $182.88

2

SPREADER BURNER SR FPA 575701 Contact Us For Availability

2

PANEL LOWER FPA 575855 Contact Us For Availability

2

BRACKET SUPPORT FPA 575828 Contact Us For Availability

2

WASHER ZINC CHROME (PKT 2) FPA 575325P Contact Us For Availability

2

SPIRE NUT (PKT 10) FPA 574144P Contact Us For Availability

3

574874P Fisher & Paykel Cooking Handle Spacer Backorder FPA 574874P $7.37

3

577087 Fisher & Paykel Range Element Backorder FPA 577087 $107.01

3

PANEL INSIDE FPA 575849 Contact Us For Availability

3

LINKAGE LOCK FPA 546620 Contact Us For Availability

3

SPREADER BURNER DUAL FPA 575700 Contact Us For Availability

4

534262 Fisher & Paykel Cooking Burner Cap Gas Backorder FPA 534262 $6.83

4

574724P Fisher & Paykel Cooking Glass Door Mi Backorder FPA 574724P $194.46

4

TRIM LOWER FPA 575673 Contact Us For Availability

4

ROCKER LOCK FPA 574743 Contact Us For Availability

4

ELEMENT BAKE FPA 577089 Contact Us For Availability

5

575906 Fisher & Paykel Range Control Button Backorder FPA 575906 $6.20

5

577068P Fisher & Paykel Range Inner Door Glas In Stock FPA 577068P $127.22

5

577315 Fisher & Paykel Range Warmer Element In Stock FPA 577315 $72.58

5

TRIM LOWER LH FPA 575889 Contact Us For Availability

5

ROD ACTUATOR FPA 575872 Contact Us For Availability

5

BURNER CAP DU OUTSIDE BLACK MATT FPA 534345 Contact Us For Availability

6

545259 Fisher & Paykel Oven Cooking Sensor Te In Stock FPA 545259 $48.00

6

556160P Fisher & Paykel Range M4 Nyloc Nut Pa Backorder FPA 556160P $7.17

6

575880 Fisher & Paykel Dishwasher Switch Backorder FPA 575880 $8.99

6

577262 Fisher & Paykel Rear Trim Backorder FPA 577262 $138.79

6

577303P Fisher & Paykel Kit Glass Door OR36 Backorder FPA 577303P $217.62

6

PROGRAMMER 6 BUTTON FPA 577016 Contact Us For Availability

6

BURNER CAP DU INSIDE BLACK MATT FPA 534346 Contact Us For Availability

7

573890 Fisher & Paykel Range Foot Backorder FPA 573890 $12.61

7

575697 Fisher & Paykel Range Burner Bowl Gask Backorder FPA 575697 $6.20

7

SCREW (PKT 10) FPA 575873P Contact Us For Availability

7

HANDLE D4 ASSY 780 FPA 575798 Contact Us For Availability

7

SUPPORT ELEMENT BAKE FPA 574989 Contact Us For Availability

8

573891 Fisher & Paykel Range Telescopic Rail Backorder FPA 573891 $97.20

8

575706 Fisher & Paykel Range Dual 0.80 Inject Backorder FPA 575706 $6.31

8

PIN PIVOT LOCK OB90 FPA 574807 Contact Us For Availability

8

SPACER RUBBER (PKT 10) FPA 574185P Contact Us For Availability

8

SHROUD FAN FPA 577139 Contact Us For Availability

9

PIN LINKAGE FPA 545827 Contact Us For Availability

9

GASKET BURNER BOWL SR FPA 575698 Contact Us For Availability

9

GROMMET BRACKET SPACER (PKT 10) FPA 574480P Contact Us For Availability

9

RACK GRILL INSERT OB90 FPA 574821P Contact Us For Availability

575862P Fisher & Paykel Range Nut M3 Pack Backorder FPA 575862P $9.28

577008 Fisher & Paykel Glass Seal Backorder FPA 577008 $73.79

577242 Fisher & Paykel Short Flat Shelf Backorder FPA 577242 $48.81

BURNER BOWL DUAL FPA 575696 Contact Us For Availability

11

577009 Fisher & Paykel Range Door Seal Backorder FPA 577009 $130.37

11

BURNER BOWL TR FPA 575695 Contact Us For Availability

11

SHELF STEP DOWN SHORT FPA 577243 Contact Us For Availability

534355 Fisher & Paykel Burner Bowl Standard Backorder FPA 534355 $7.34

573965P Fisher & Paykel Range Hobtop Screw Sp Backorder FPA 573965P $26.90

574457 Fisher & Paykel Range Neon Pyro Unit Backorder FPA 574457 $6.31

574725 Fisher & Paykel Cooking Hinge Assembly Backorder FPA 574725 $64.85

575745 Fisher & Paykel Range Side Rack Backorder FPA 575745 $16.09

556634P Fisher & Paykel Cooking Screw, St 7x3 Backorder FPA 556634P $20.13

574767 Fisher & Paykel Range Counter Support Backorder FPA 574767 $7.81

SCREW (PKT10) FPA 575716P Contact Us For Availability

BLOCK DOOR LOCK FPA 577070 Contact Us For Availability

STUD RUNNER OB60 REAR FPA 574544 Contact Us For Availability

533119P Fisher & Paykel Washer Elbow Cooking In Stock FPA 533119P $21.52

556640P Fisher & Paykel Range M4 x 6.5 Pan Sc Backorder FPA 556640P $12.15

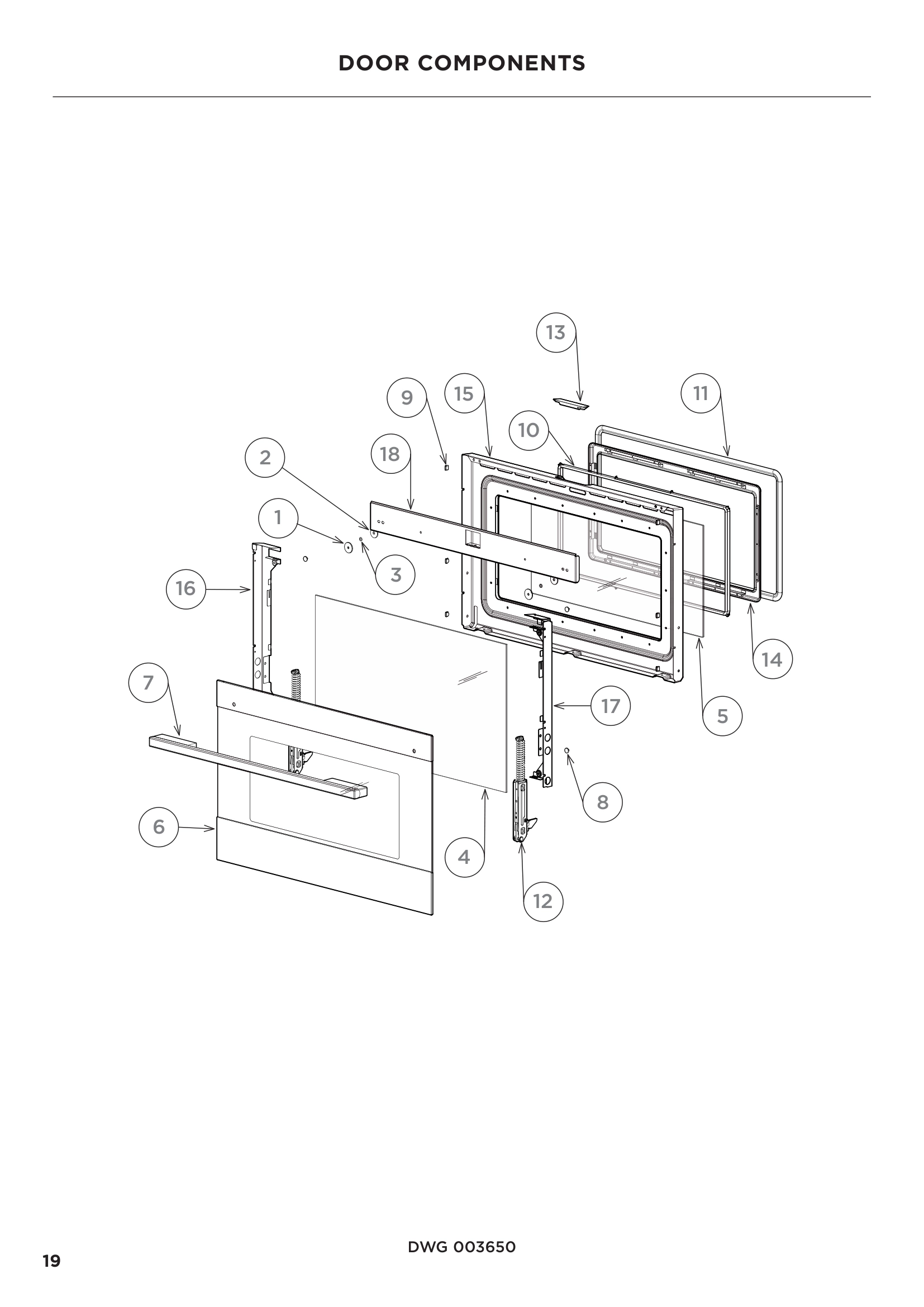

577118 Fisher & Paykel Door Panel Frame Backorder FPA 577118 $212.66

577293 Fisher & Paykel Injector 1.70 Backorder FPA 577293 $6.20

NUT RUNNER OB60 FRONT FPA 574546 Contact Us For Availability

577119 Fisher & Paykel Door Panel Backorder FPA 577119 $115.75

STARLOCK WASHER 11.5 X 5X0.2 FPA 546628 Contact Us For Availability

INJECTOR 1.43 FPA 577294 Contact Us For Availability

RUNNER TELESCOPIC LH SHORT FPA 577241 Contact Us For Availability

574210 Fisher & Paykel Cooking Spacer, Plasti Backorder FPA 574210 $6.31

575052 Fisher & Paykel Range Gas Inlet Adapte In Stock FPA 575052 $9.83

577043 Fisher & Paykel Injector 1.39 SR Backorder FPA 577043 $6.20

577145 Fisher & Paykel Trim Support Left Backorder FPA 577145 $30.82

HOOK FPA 577313 Contact Us For Availability

RUNNER TELESCOPIC RH SHORT FPA 577240 Contact Us For Availability

544455P Fisher & Paykel Range Bake Tray OB90S Backorder FPA 544455P $75.13

575142 Fisher & Paykel Range 1/2" NG Regulato Backorder FPA 575142 $69.58

575718 Fisher & Paykel Range Thermocouple TR Backorder FPA 575718 $12.19

575913 Fisher & Paykel Range Function Switch Backorder FPA 575913 $92.78

577146 Fisher & Paykel Trim Support Right Backorder FPA 577146 $30.82

RETAINING RING E 2 - 3 FPA 545544 Contact Us For Availability

574788 Fisher & Paykel Mounting Hook Bracket Backorder FPA 574788 $8.71

575717 Fisher & Paykel Range Thermocouple Ass Backorder FPA 575717 $11.97

ENCODER FUNCTION FPA 575910 Contact Us For Availability

BRACKET HANDLE FPA 577162 Contact Us For Availability

GUARD FRONT FPA 577071 Contact Us For Availability

534365 Fisher & Paykel Range Dual L.600 Therm Backorder FPA 534365 $12.81

574281 Fisher & Paykel Cooking Grill Element Backorder FPA 574281 $6.20

ENCODER TEMP FPA 575907 Contact Us For Availability

PIN PIVOT HOOK FPA 574789 Contact Us For Availability

575883 Fisher & Paykel Range Thermocouple TR Backorder FPA 575883 $13.69

577088 Fisher & Paykel Range Fan Element 30 In Stock FPA 577088 $36.09

577270 Fisher & Paykel Right Side Panel Backorder FPA 577270 $217.62

581276 Fisher & Paykel Range 240V Energy Regu Backorder FPA 581276 $42.38

BRACKET SUPPORT SWITCH FPA 575829 Contact Us For Availability

21

574292P Fisher & Paykel Cooking Washer M6-24 In Stock FPA 574292P $6.02

21

575876P Fisher & Paykel Range Screw M3x30 (Pa Backorder FPA 575876P $7.59

21

577001 Fisher & Paykel Retaining Ring Backorder FPA 577001 $6.20

22

574207 Fisher & Paykel Red Neon Bezel Backorder FPA 574207 $6.31

22

575870 Fisher & Paykel Range Door Switch Pin Backorder FPA 575870 $7.06

22

577295 Fisher & Paykel Electrode Tr L.500 Backorder FPA 577295 $6.37

23

577296 Fisher & Paykel Electrode SR L.500 Backorder FPA 577296 $6.20

23

TRIGGER DOOR SENSOR FPA 575837 Contact Us For Availability

24

534362 Fisher & Paykel Range Electrode Dual Backorder FPA 534362 $10.47

24

574815 Fisher & Paykel Range Spring Trigger E Backorder FPA 574815 $6.20

25

544349P Fisher & Paykel Cooking Control Panel Backorder FPA 544349P $7.72

25

RETAINING RING FPA 577297 Contact Us For Availability

26

573972 Fisher & Paykel Range Circlip Washer M Backorder FPA 573972 $6.31

26

577298 Fisher & Paykel Ignition Switches Backorder FPA 577298 $32.28

27

577301 Fisher & Paykel Dishwasher Single Valv In Stock FPA 577301 $85.40

27

NUT THERMOCOUPLE FPA 534366 Contact Us For Availability

27

SWITCH OR90 FPA 575881 Contact Us For Availability

28

575724 Fisher & Paykel Range Spring Clip Backorder FPA 575724 $6.20

28

577302 Fisher & Paykel Dual Valve Knob In Stock FPA 577302 $85.40

29

575875P Fisher & Paykel Screw M3X15 (Pack of Backorder FPA 575875P $6.81

29

SPRING DUAL FPA 534370 Contact Us For Availability

30

WASHER Ø 3 (PKT 10) FPA 575901P Contact Us For Availability

30

NUT ELECTRODE DUAL FPA 534368 Contact Us For Availability

31

534369 Fisher & Paykel Range Electrode Spring Backorder FPA 534369 $6.31

31

575025 Fisher & Paykel Range Insulation Micro Backorder FPA 575025 $6.31

32

574474 Fisher & Paykel Range Cooling Fan Micr In Stock FPA 574474 $6.20

32

TUBE NUT ASSY TR FL FPA 575897 Contact Us For Availability

33

574475 Fisher & Paykel Blade Microswitch Backorder FPA 574475 $6.20

33

TUBE NUT ASSY SR RL FPA 575895 Contact Us For Availability

34

577029 Fisher & Paykel Dishwasher Switch Supp Backorder FPA 577029 $9.50

34

TUBE NUT ASSY DU INNER FPA 577299 Contact Us For Availability

35

575036 Fisher & Paykel Terminal Block Backorder FPA 575036 $6.20

35

TUBE NUT ASSY DU OUTER FPA 577300 Contact Us For Availability

36

544250 Fisher & Paykel Range Thermodisc 60°F Backorder FPA 544250 $36.23

36

TUBE NUT ASSY SR RR FPA 575896 Contact Us For Availability

37

TUBE NUT ASSY TR FR FPA 575898 Contact Us For Availability

38

577199 Fisher & Paykel Range Valve Defrost 06 Backorder FPA 577199 $67.40

39

577200 Fisher & Paykel Range Valve Assembly 0 Backorder FPA 577200 $50.16

40

574458 Fisher & Paykel Range Pyro Relay OR30/ In Stock FPA 574458 $176.04

40

577050 Fisher & Paykel Dual Gascock X 0.33 Backorder FPA 577050 $159.01

41

SCREW BRACKET GASCOCK (PKT 10) FPA 575525P Contact Us For Availability

42

577020 Fisher & Paykel Fan Bake Backorder FPA 577020 $93.69

42

BRACKET GASCOCK FFD FPA 575523 Contact Us For Availability

43

BRACKET FPA 577024 Contact Us For Availability

44

NUT THERMOCOUPLE DUAL FPA 534367 Contact Us For Availability

51

SHELTER MIDDLE FPA 575860 Contact Us For Availability

52

BRACKET FPA 577032 Contact Us For Availability

53

PANEL UPPER FPA 577309 Contact Us For Availability

54

575071 Fisher & Paykel 6-Burner Range Ignitio Backorder FPA 575071 $33.05

55

CLIP CABLE STANDOFF (PKT 2) FPA 574148P Contact Us For Availability

56

577019 Fisher & Paykel Range Tangential Fan Backorder FPA 577019 $225.49

57

WIRING OR36SDPWGX1 FPA 577310 Contact Us For Availability

58

FLEX MAINS FPA 575043 Contact Us For Availability

59

COVER ROTISSERIE HOLE FPA 574350 Contact Us For Availability

60

PLUG HOLE SENSOR FPA 577311 Contact Us For Availability

61

BRACKET PIPE FPA 575825 Contact Us For Availability

62

FRONT TRIM FPA 577312 Contact Us For Availability

577324 Fisher & Paykel Kit High Altitude LP 3 Backorder FPA 577324 $18.67

BACKGUARD ISL 36IN (ACCESSORY ONLY) FPA 81117 Contact Us For Availability

BK USR OR36SDPWGX FP FPA 590723 Contact Us For Availability

BK INSTL OR36SDPWGX FP FPA 590959 Contact Us For Availability

KIT HI ALT NG 3-6K OR36SDPWGX1 FPA 577320 Contact Us For Availability

KIT HI ALT NG 6-9K OR36SDPWGX1 FPA 577321 Contact Us For Availability

KIT CONVERSION LPG OR36SDPWGX1 FPA 577314 Contact Us For Availability

KIT HI ALT LP 6-9K OR36SDPWGX1 FPA 577325 Contact Us For Availability
