Model Fisher &amp; Paykel OR36SDI6X1-81710-B Freestanding Range – Common Parts &amp; Diagrams

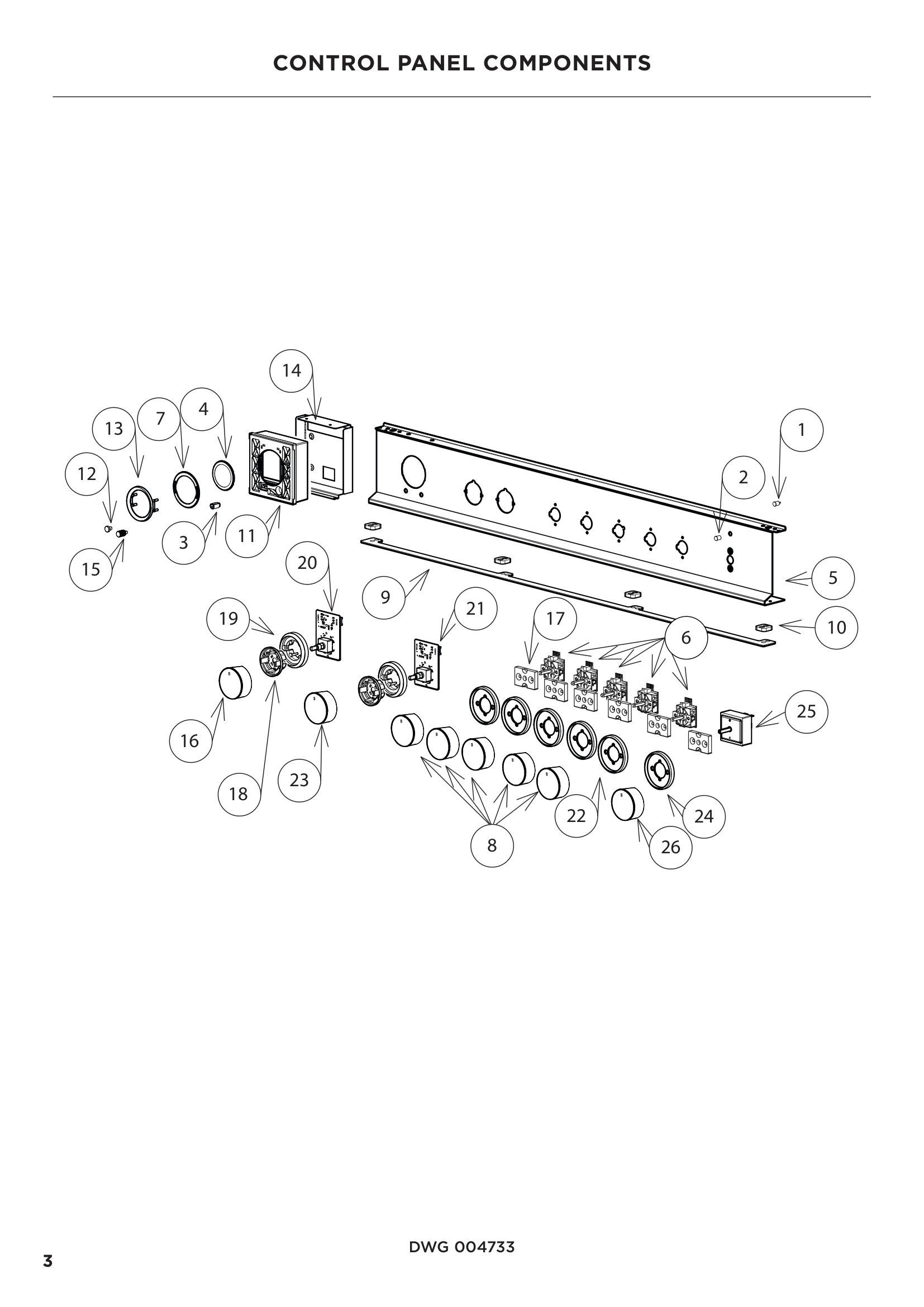

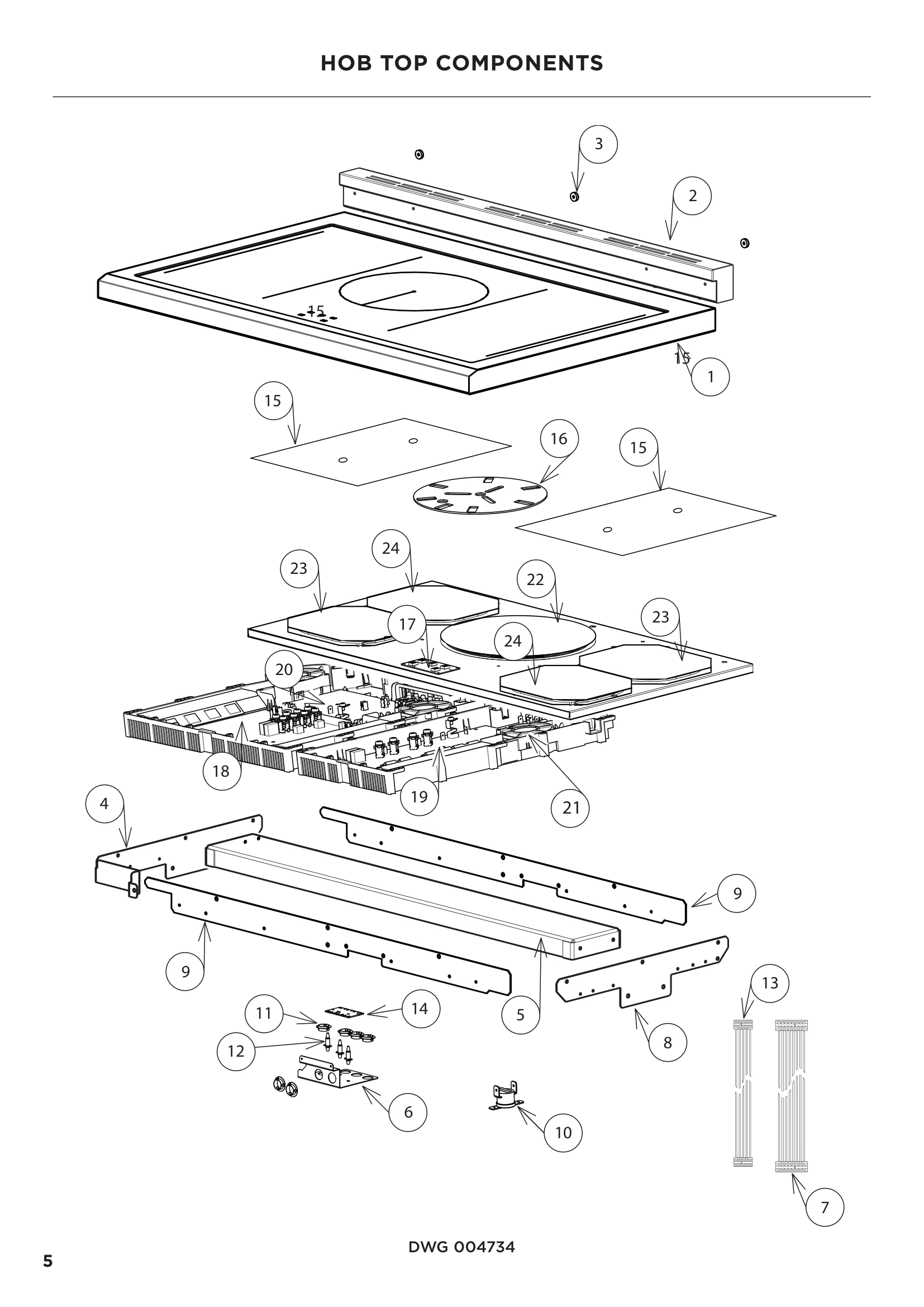

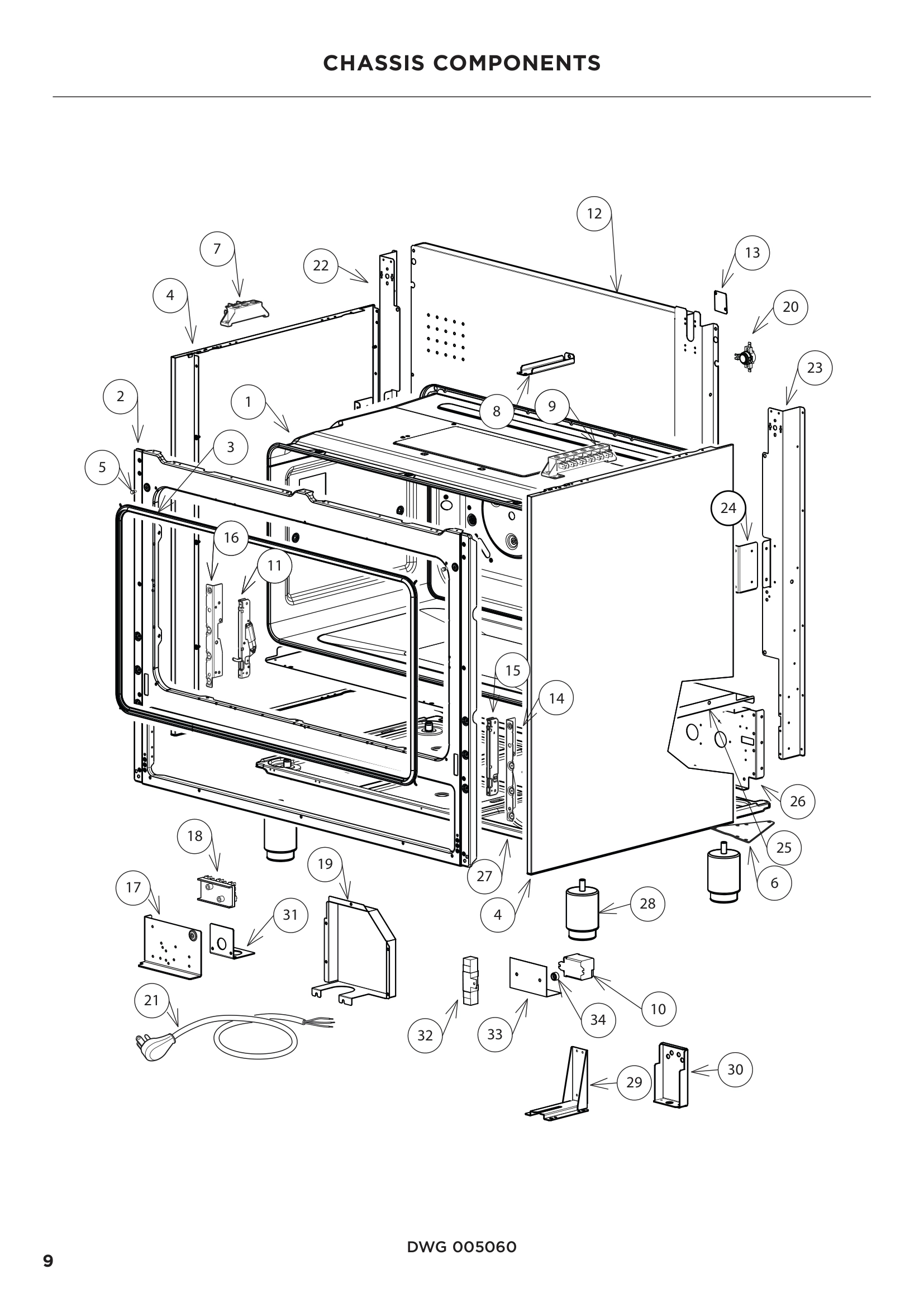

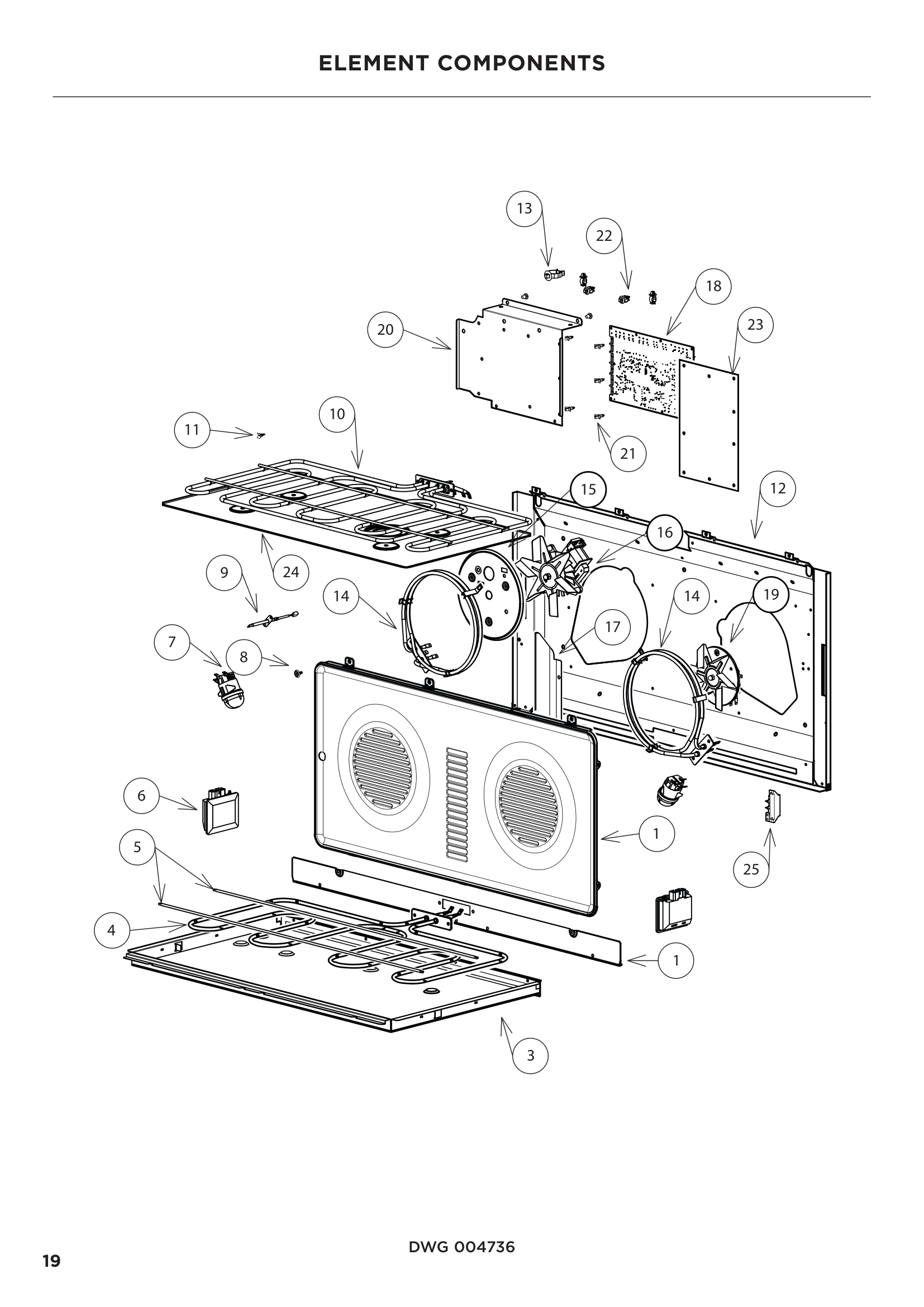

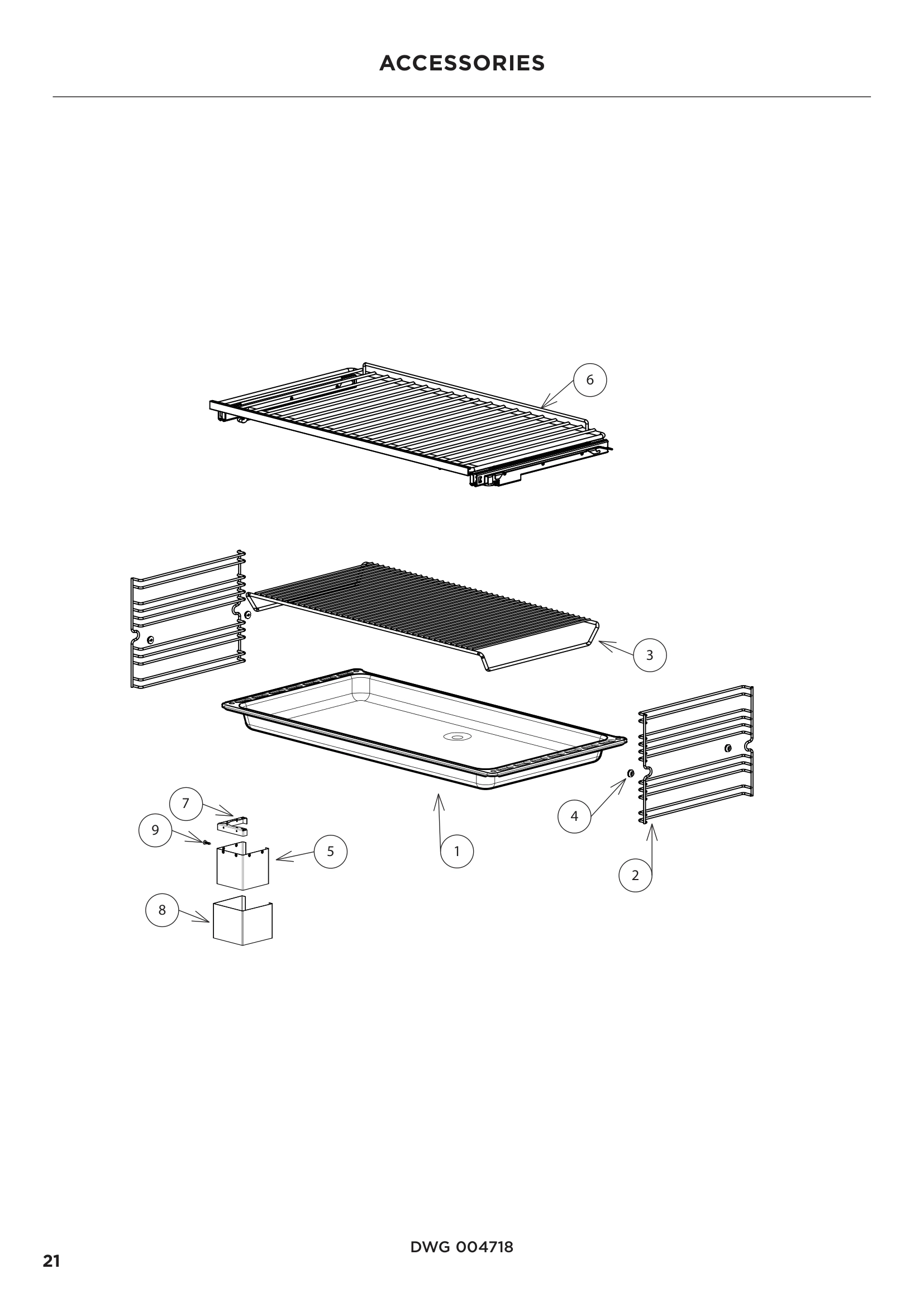

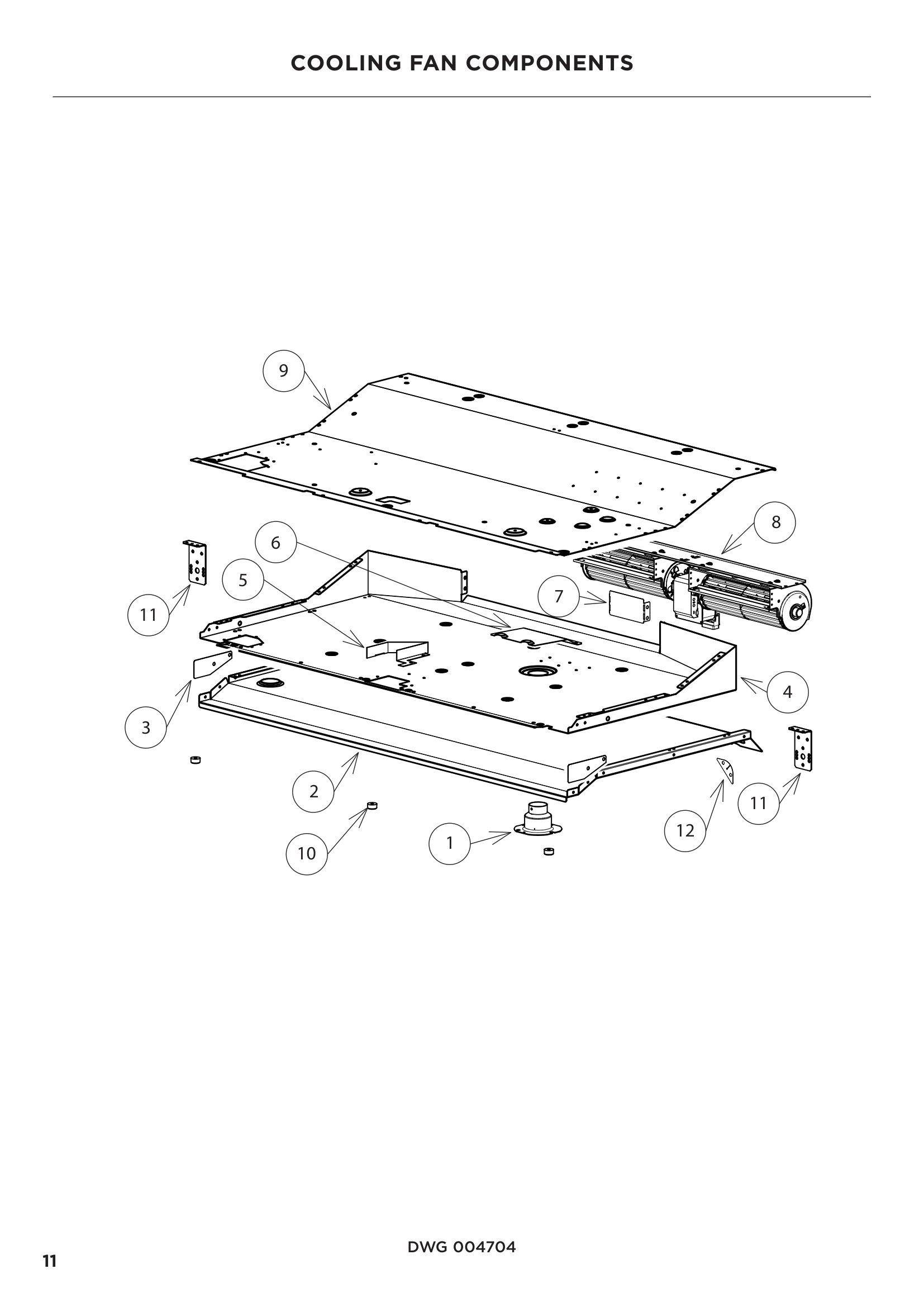

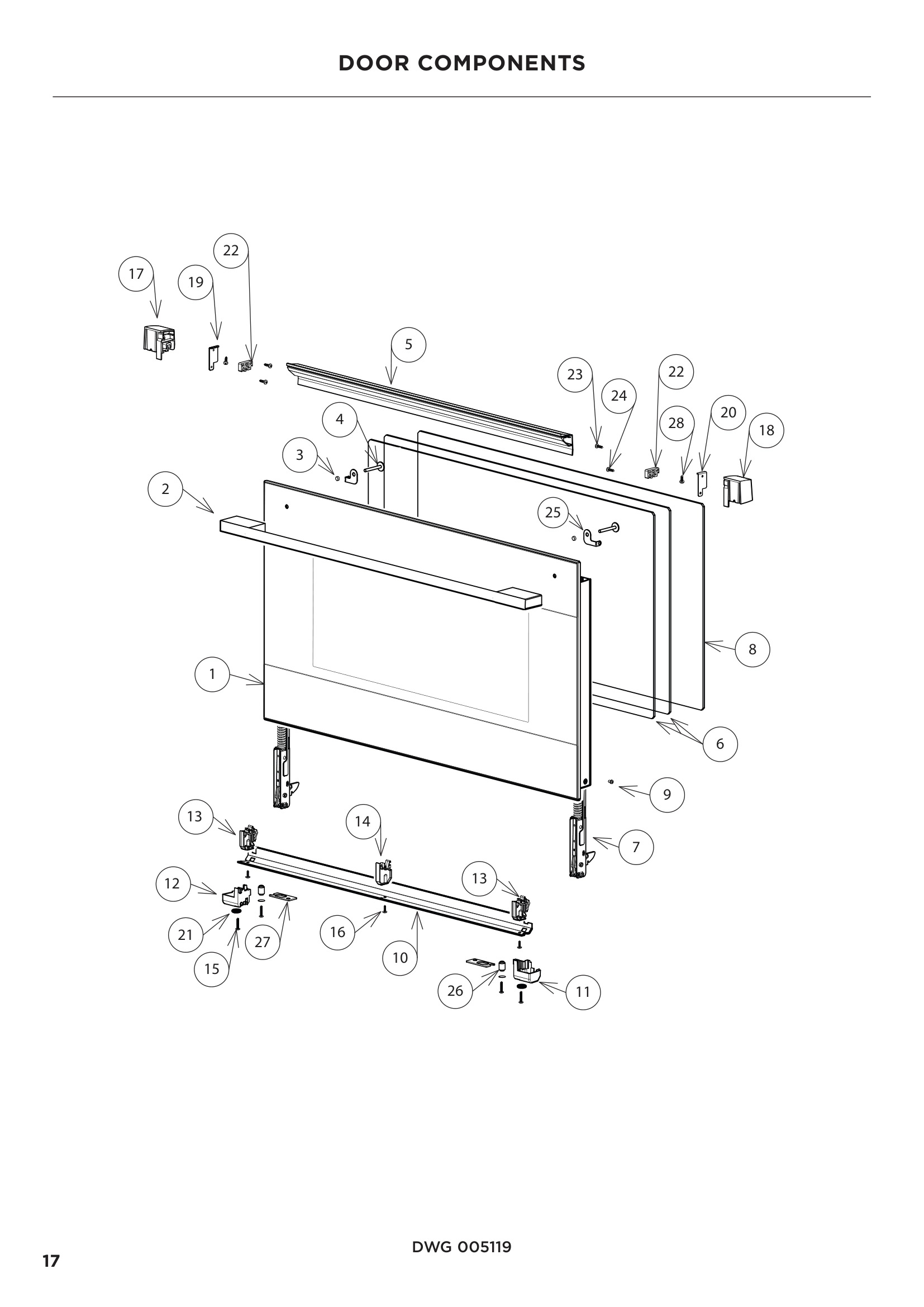

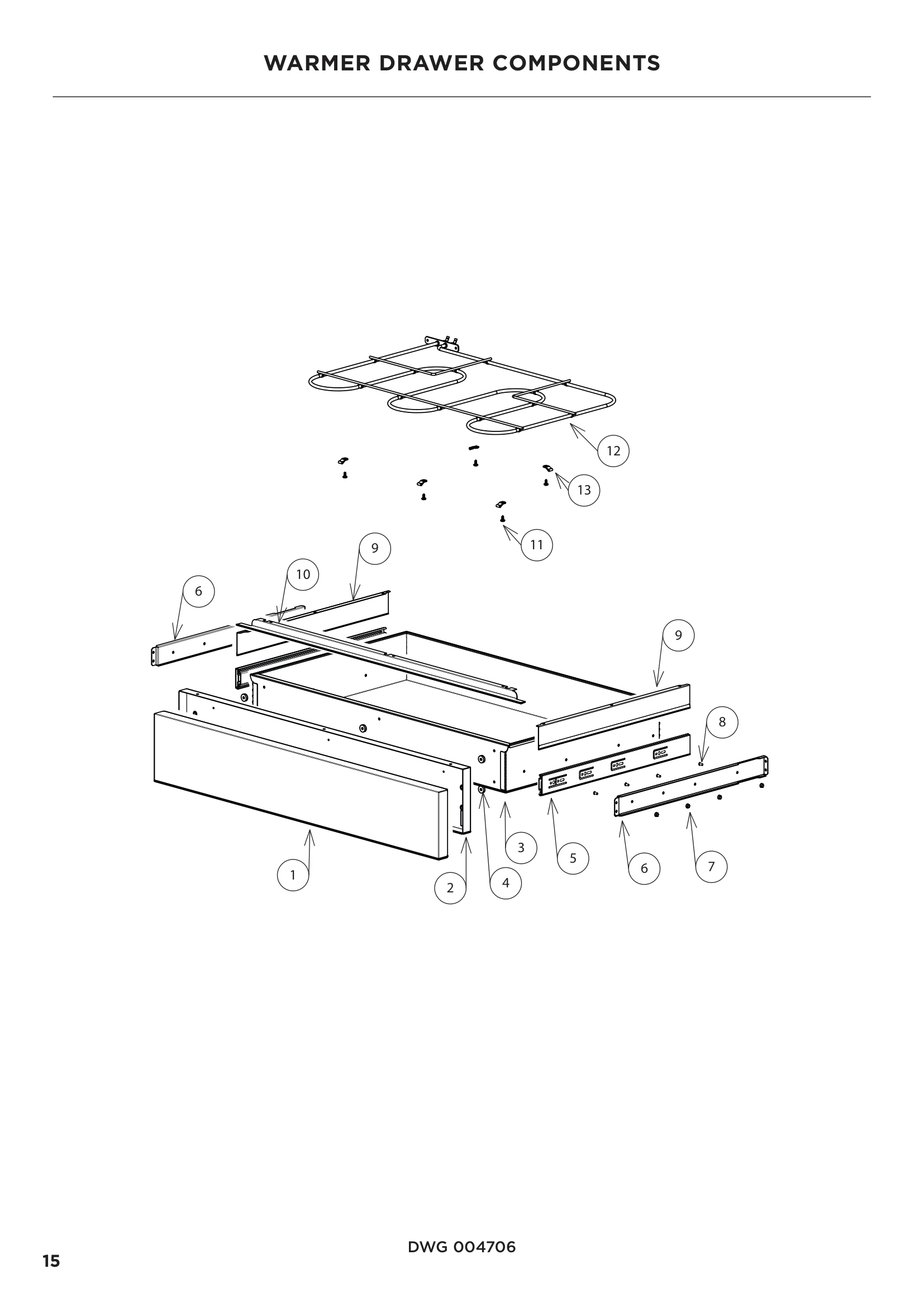

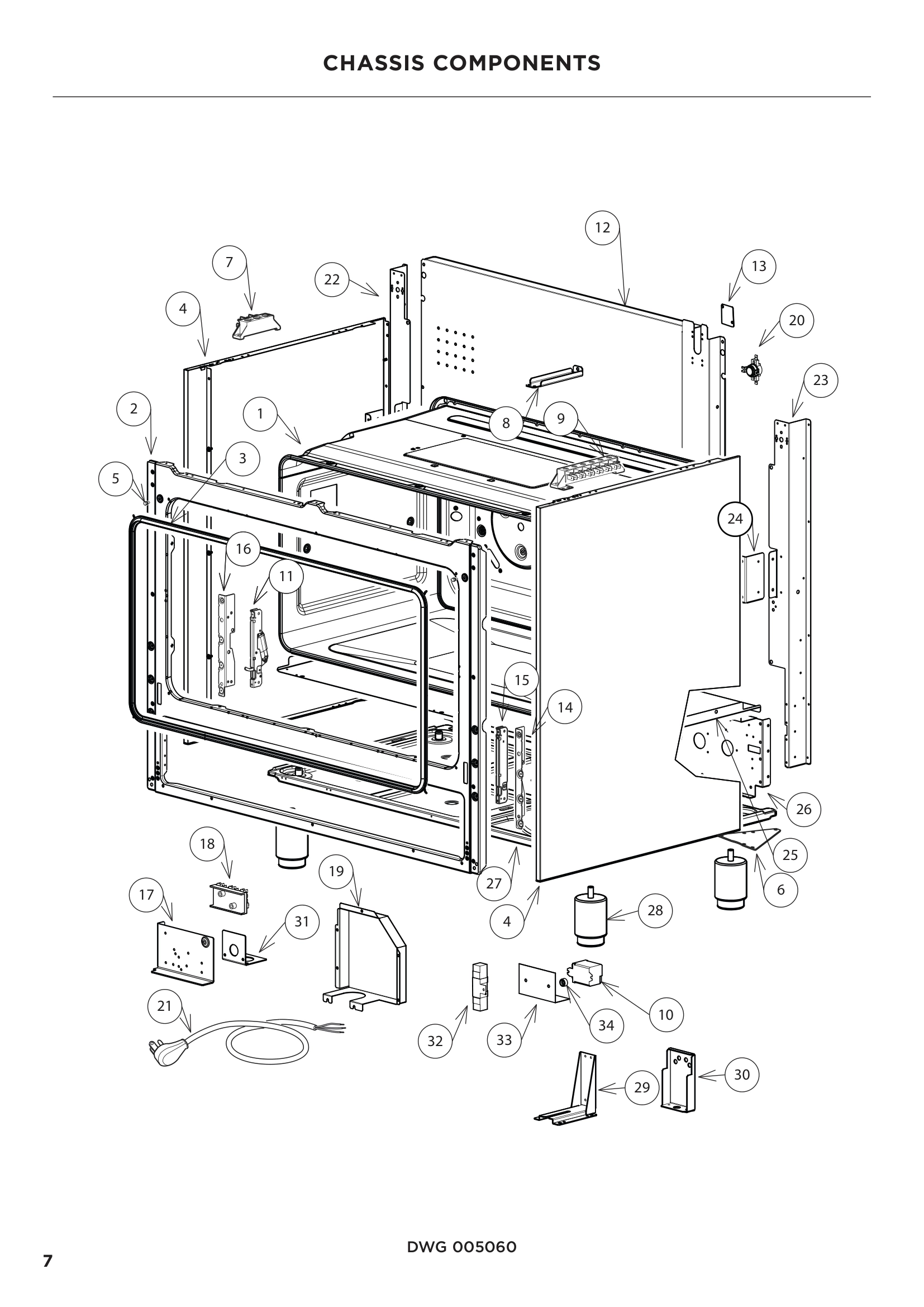

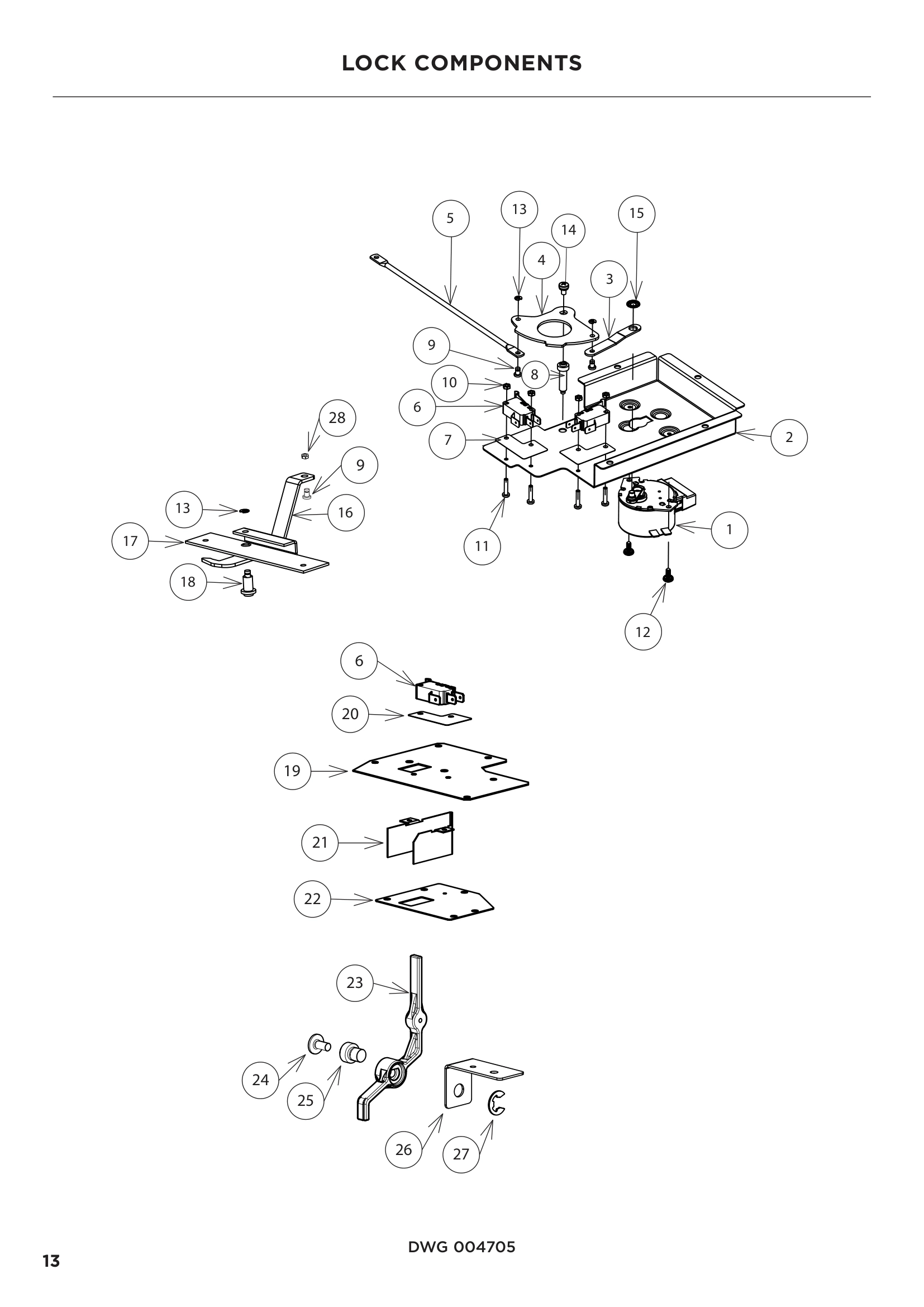

1

578462P Fisher & Paykel Range Door Assembly 3 Backorder FPA 578462P $269.67

1

578580 Fisher & Paykel Oven Tray Range Backorder FPA 578580 $128.62

1

578597P Fisher & Paykel Range Stainless Steel Backorder FPA 578597P $131.08

1

578894 Fisher & Paykel Range Motor Lock Backorder FPA 578894 $41.21

1

GLASS & FRAME ASSY OR36 FPA 578946P Contact Us For Availability

1

CATALYST FPA 578854 Contact Us For Availability

1

DIFFUSER FAN FPA 578585 Contact Us For Availability

2

577391 Fisher & Paykel Range Ladder Assembly Backorder FPA 577391 $191.96

2

578245 Fisher & Paykel Range Handle D4 Assemb Backorder FPA 578245 $190.29

2

AIR CONVEYOR LOWER FPA 578855 Contact Us For Availability

2

BRACKET MOUNTING LOCK PYRO FPA 575828 Contact Us For Availability

2

PANEL INNER FPA 578598 Contact Us For Availability

2

TRIM ELEMENT BAKE FPA 578883 Contact Us For Availability

3

574874P Fisher & Paykel Cooking Handle Spacer Backorder FPA 574874P $7.37

3

578232 Fisher & Paykel Range Encoder Adapter In Stock FPA 578232 $6.31

3

BRACKET FPA 578856 Contact Us For Availability

3

LINKAGE LOCK ACTUATOR FPA 546620 Contact Us For Availability

3

DRAWER 36-90 REPON FPA 581294 Contact Us For Availability

3

TRAY ELEMENT LOWER FPA 578587 Contact Us For Availability

3

GRILL RACK INSERT OR90 FPA 574821 Contact Us For Availability

4

516606 Fisher & Paykel Range Side Panel OR36 Backorder FPA 516606 $217.40

4

574197P Fisher & Paykel Handle Screw M5X15 PK Backorder FPA 574197P $8.14

4

578891P Fisher & Paykel Range Side Runner Nut Backorder FPA 578891P $46.34

4

578913 Fisher & Paykel Range Lower Bake Eleme Backorder FPA 578913 $69.36

4

PANEL AIR CONVEYOR FPA 578857 Contact Us For Availability

4

ROCKER LOCK FPA 574743 Contact Us For Availability

4

SPACER CLSC FPA 578747 Contact Us For Availability

5

581286 Fisher & Paykel Cooking Warmer Drawer In Stock FPA 581286 $32.81

5

BRACKET LOCK SURROUND FPA 575825 Contact Us For Availability

5

ROD ACTUATOR FPA 575872 Contact Us For Availability

5

TRIM UPPER DOOR FPA 578879 Contact Us For Availability

5

SUPPORT ELEMENT FPA 578589 Contact Us For Availability

5

COVER OUTER 36 US FPA 578209 Contact Us For Availability

6

255305 Fisher & Paykel Range Induction Encode Backorder FPA 255305 $62.50

6

551169 Fisher & Paykel Range Cherry Switch D4 In Stock FPA 551169 $26.66

6

578744 Fisher & Paykel Range Sliding Shelf As Backorder FPA 578744 $216.55

6

578880P Fisher & Paykel Range Glass Door Midd Backorder FPA 578880P $165.84

6

COVER CATALYST FPA 578858 Contact Us For Availability

6

BRACKET SLIDE DRAWER 36 REPON FPA 581290 Contact Us For Availability

6

LIGHT SIDE LFT 230V 25W HALO FPA 578914 Contact Us For Availability

7

544248 Fisher & Paykel Cooking Fan Bracket Backorder FPA 544248 $6.20

7

556160P Fisher & Paykel Range M4 Nyloc Nut Pa Backorder FPA 556160P $7.17

7

577402 Fisher & Paykel Range Induction Splitt Backorder FPA 577402 $26.02

7

578723 Fisher & Paykel Oven Door Hinge Range Backorder FPA 578723 $43.94

7

578733 Fisher & Paykel Lamp Holder Backorder FPA 578733 $26.94

7

BRACKET FEET 36 FPA 578206 Contact Us For Availability

8

577537P Fisher & Paykel Cooking Glass Inner D Backorder FPA 577537P $222.69

8

Backorder FPA 578911P-includeCORE $258.60

8

PIN PIVOT LOCK OB90 FPA 574807 Contact Us For Availability

8

SCREW (PKT 10) FPA 575873P Contact Us For Availability

8

SCREW ST 7X13 TAB CSKW PKT 10 FPA 556632P Contact Us For Availability

8

COVER INNER FPA 578207 Contact Us For Availability

9

545259 Fisher & Paykel Oven Cooking Sensor Te In Stock FPA 545259 $48.00

9

573935 Fisher & Paykel Range Terminal Block 4 Backorder FPA 573935 $27.47

9

PANEL TOP AV FPA 579788 Contact Us For Availability

9

PIN BRACKET MOUNTING FPA 578895 Contact Us For Availability

9

TRIM SIDE LOWER FPA 578869 Contact Us For Availability

9

SCREW M5X6 TC CROSS NERA FPA 578882P Contact Us For Availability

9

SCREW SD 3.9X13 PAN PN NP PK10 FPA 551164P Contact Us For Availability

574339 Fisher & Paykel Cooking Limiter 55°C In Stock FPA 574339 $11.88

574458 Fisher & Paykel Range Pyro Relay OR30/ In Stock FPA 574458 $176.04

575862P Fisher & Paykel Range Nut M3 Pack Backorder FPA 575862P $9.28

SPACER REAR 7.5MM FPA 579150 Contact Us For Availability

TRIM DRIP TRAY FPA 578599 Contact Us For Availability

TRIM BOTTOM DOOR FPA 578575 Contact Us For Availability

ELEMENT TOP GRILL FPA 578915 Contact Us For Availability

556634P Fisher & Paykel Cooking Screw, St 7x3 Backorder FPA 556634P $20.13

575176 Fisher & Paykel Range Clip Backorder FPA 575176 $6.20

575875P Fisher & Paykel Screw M3X15 (Pack of Backorder FPA 575875P $6.81

578257P-includeCORE Fisher & Paykel 578257P R Backorder FPA 578257P-includeCORE $207.11

BRACKET FPA 578862 Contact Us For Availability

DOOR CAP LOWER RH FPA 578249 Contact Us For Availability

573965P Fisher & Paykel Range Hobtop Screw Sp Backorder FPA 573965P $26.90

577315 Fisher & Paykel Range Warmer Element In Stock FPA 577315 $72.58

578755 Fisher & Paykel Range Button Stem Asse Backorder FPA 578755 $14.84

PLUG HOLE SENSOR FPA 577311 Contact Us For Availability

DOOR CAP LOWER LH FPA 578250 Contact Us For Availability

PANEL REAR FPA 578885 Contact Us For Availability

574281 Fisher & Paykel Cooking Grill Element Backorder FPA 574281 $6.20

578950 Fisher & Paykel Range Encoder Splitter Backorder FPA 578950 $19.95

RETAINING RING E2-3 PKT 10 FPA 545544P Contact Us For Availability

RETAINER DOOR GLASS FPA 574832 Contact Us For Availability

STANDOFF (PKT10) FPA 573857P Contact Us For Availability

556640P Fisher & Paykel Range M4 x 6.5 Pan Sc Backorder FPA 556640P $12.15

575657 Fisher & Paykel Range PCB EGO Backorder FPA 575657 $6.81

578916 Fisher & Paykel Range 36 Element Fan Backorder FPA 578916 $33.84

SUPPORT DOOR GLASS FPA 574828 Contact Us For Availability

578225P Fisher & Paykel Cooking Tft Dial Enco Backorder FPA 578225P $7.01

578683 Fisher & Paykel Range Female Hinge Backorder FPA 578683 $6.20

WASHER STARLOCK 11.5 X 5 X 0.2 FPA 546628 Contact Us For Availability

SCREW 7PX32 TC CROSS PKT10 FPA 578576P Contact Us For Availability

MOTOR SUPPORT FPA 544792 Contact Us For Availability

16

575847 Fisher & Paykel Hook Backorder FPA 575847 $16.63

16

SCREW DOOR PANEL (PKT 2) FPA 573958P Contact Us For Availability

16

FAN MOTOR LARGE FPA 578917 Contact Us For Availability

574788 Fisher & Paykel Mounting Hook Bracket Backorder FPA 574788 $8.71

579024 Fisher & Paykel Range 5 Burner Control Backorder FPA 579024 $279.91

CORNER DOOR UPPER LH FPA 578724 Contact Us For Availability

BRACKET PARTITION MOTOR FPA 578595 Contact Us For Availability

578907 Fisher & Paykel Range Terminal Block E Backorder FPA 578907 $20.42

579025 Fisher & Paykel Range 4 Burner Generat In Stock FPA 579025 $509.80

MOD POWER OB24C FPA 565139 Contact Us For Availability

PIN PIVOT HOOK FPA 579068 Contact Us For Availability

CORNER DOOR UPPER RH FPA 578725 Contact Us For Availability

574792 Fisher & Paykel Range Left Door Bracke Backorder FPA 574792 $6.31

578863 Fisher & Paykel Switch Bracket Backorder FPA 578863 $6.31

579026 Fisher & Paykel Range Burner Generator In Stock FPA 579026 $420.64

COVER TERMINAL BLOCK FPA 578666 Contact Us For Availability

FAN MOTOR SMALL FPA 578918 Contact Us For Availability

544250 Fisher & Paykel Range Thermodisc 60°F Backorder FPA 544250 $36.23

574793 Fisher & Paykel Range Right Door Brack Backorder FPA 574793 $6.31

575025 Fisher & Paykel Range Insulation Micro Backorder FPA 575025 $6.31

579027 Fisher & Paykel Range Filter Board In Stock FPA 579027 $366.34

BRACKET POWER BOARD FPA 578888 Contact Us For Availability

578909 Fisher & Paykel Range Power Cord Backorder FPA 578909 $158.85

FAN FPA 579028 Contact Us For Availability

AIR FLOW DEVIATOR FPA 578864 Contact Us For Availability

WASHER (PKT 10) FPA 578579P Contact Us For Availability

STANDOFF CONTROLLER BOARD PKT6 FPA 574180P Contact Us For Availability

TRIM REAR OVEN SUPPORT LH FPA 578643 Contact Us For Availability

BRACKET FPA 578865 Contact Us For Availability

RUBBER RETAINER GLASS FPA 574736 Contact Us For Availability

CLIP CABLE STANDOFF PKT 2 FPA 574148P Contact Us For Availability

578866 Fisher & Paykel Range Door Sensor Leve Backorder FPA 578866 $30.93

579030 Fisher & Paykel Range Octagonal Induct In Stock FPA 579030 $322.26

TRIM REAR OVEN SUPPORT RH FPA 578644 Contact Us For Availability

SCREW 4.2PX16 TC CROS ZN PKT10 FPA 579418P Contact Us For Availability

INSULATION SHEET FPA 578889 Contact Us For Availability

544349P Fisher & Paykel Cooking Control Panel Backorder FPA 544349P $7.72

546696P Fisher & Paykel Cooking Screw ST 8X12 Backorder FPA 546696P $7.56

579031 Fisher & Paykel Range Octa Inductor Co In Stock FPA 579031 $322.26

REAR COUPLER FPA 578645 Contact Us For Availability

REFLECTOR GRILL FPA 578890 Contact Us For Availability

575035 Fisher & Paykel Range 40A-3P Terminal Backorder FPA 575035 $18.67

578867 Fisher & Paykel Range Switch Assembly Backorder FPA 578867 $6.20

581276 Fisher & Paykel Range 240V Energy Regu Backorder FPA 581276 $42.38

PANEL LOWER FPA 578845 Contact Us For Availability

BRACKET GROUNDING HANDLE FPA 578969 Contact Us For Availability

26

578896 Fisher & Paykel Range Sensor Bracket Backorder FPA 578896 $6.55

26

TRIM REAR OVEN LOWER FPA 578846 Contact Us For Availability

26

BUSH FPA 578762 Contact Us For Availability

27

573831 Fisher & Paykel Panel Element Cover Backorder FPA 573831 $158.95

27

573972 Fisher & Paykel Range Circlip Washer M Backorder FPA 573972 $6.31

27

BRACKET FPA 578763 Contact Us For Availability

28

578649 Fisher & Paykel Range Foot Assembly OR In Stock FPA 578649 $44.40

28

NUT SELF LOCKING (PKT 10) FPA 578868P Contact Us For Availability

28

SCREW ST 7X3/8 FLT PH (PK10) FPA 556642P Contact Us For Availability

29

579682P Fisher & Paykel Kit Anti-Tip 30/36 Backorder FPA 579682P $56.73

31

BRACKET POWER CORD FPA 579424 Contact Us For Availability

32

578908 Fisher & Paykel Range Cooling Fan Resi Backorder FPA 578908 $70.46

33

INSULATION RELAY FPA 575024 Contact Us For Availability

563195 Fisher & Paykel Range Ui Interconnect Backorder FPA 563195 $6.37

578137 Fisher & Paykel Range Pyro Selve OR90/ Backorder FPA 578137 $46.28

578138 Fisher & Paykel Range Power Harness OR Backorder FPA 578138 $18.12

578953 Fisher & Paykel Induction Hobtop Harne Backorder FPA 578953 $162.12

KIT EARTH WIRE/CUPPED WASHER FPA 579057 Contact Us For Availability

INSULATION SIDE LAMP FPA 544327 Contact Us For Availability

INSULATION OVEN FPA 578848 Contact Us For Availability

INSULATION REAR FPA 578849 Contact Us For Availability

INSULATION FPA 578850 Contact Us For Availability

INSULATION FPA 578851 Contact Us For Availability

HARNESS OR36 WARMER DRAWER FPA 578500 Contact Us For Availability

WIRING WARMER DRAWER FPA 578853 Contact Us For Availability

HARNESS OR36 PYRO MAINS IND FPA 578559 Contact Us For Availability

FERRITE HINGED 210R 19MM FPA 579062 Contact Us For Availability

FERRITE HINGED 348R 10MM FPA 579063 Contact Us For Availability

GROMMET RETAINER GLASS FPA 575736 Contact Us For Availability

SPACER PLASTIC PYRO FPA 579075 Contact Us For Availability

TRIM TKOR366X1 (ACCESSORY ONLY) FPA 81807 Contact Us For Availability

TRIM KICKOR36X1 (ACCESSORY ONLY) FPA 81812 Contact Us For Availability

BK USR OR30/36 INDUCT FP FPA 591502 Contact Us For Availability

BK USR OR30/36 INDUCT FP CA FR FPA 591503 Contact Us For Availability

BK INSTL OR36 ELECTRIC FP FPA 591509 Contact Us For Availability
