Model Fisher & Paykel OR36SCG6R1-81709-B Freestanding Range – Common Parts & Diagrams

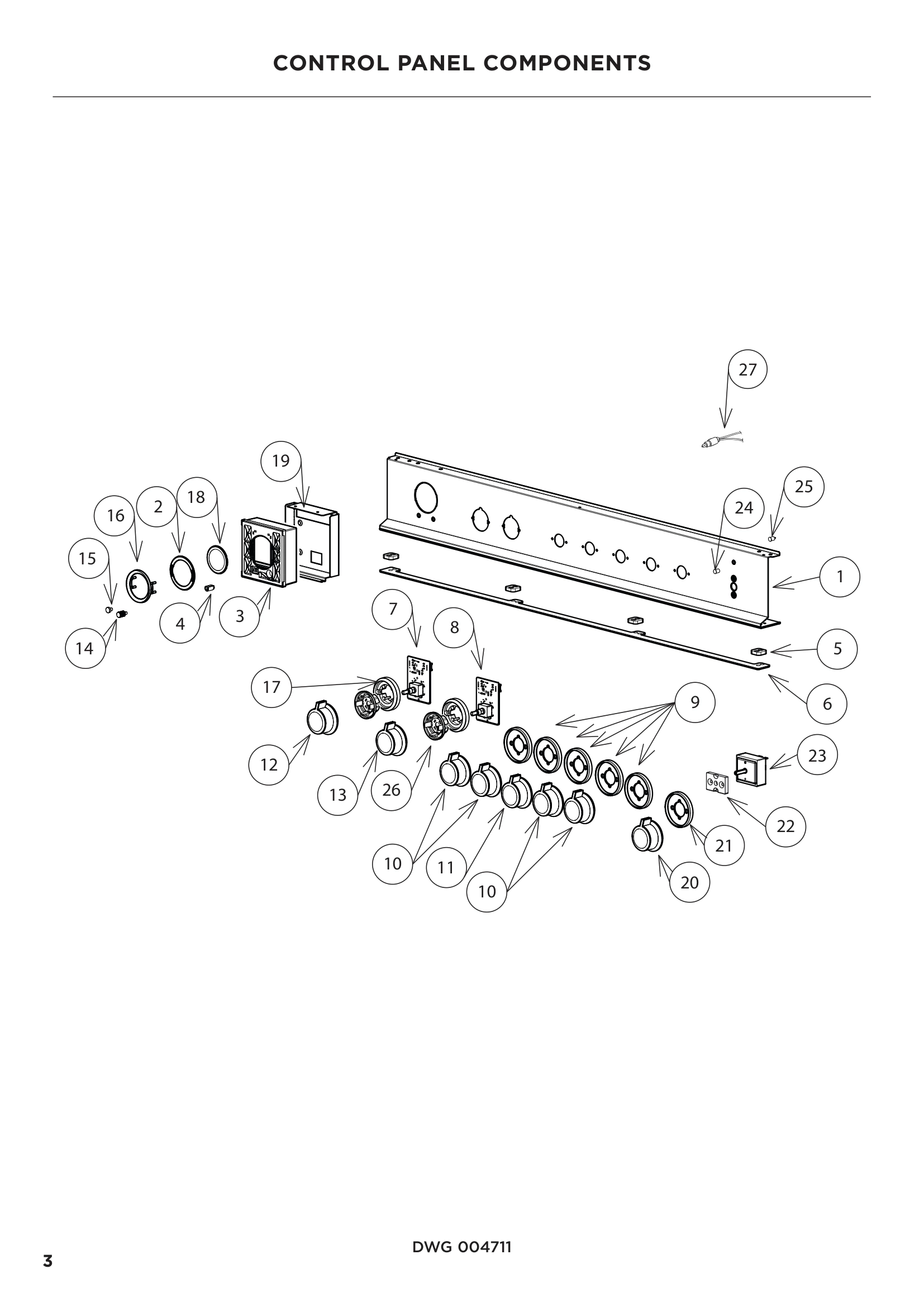

CONTROL PANEL COMPONENTS

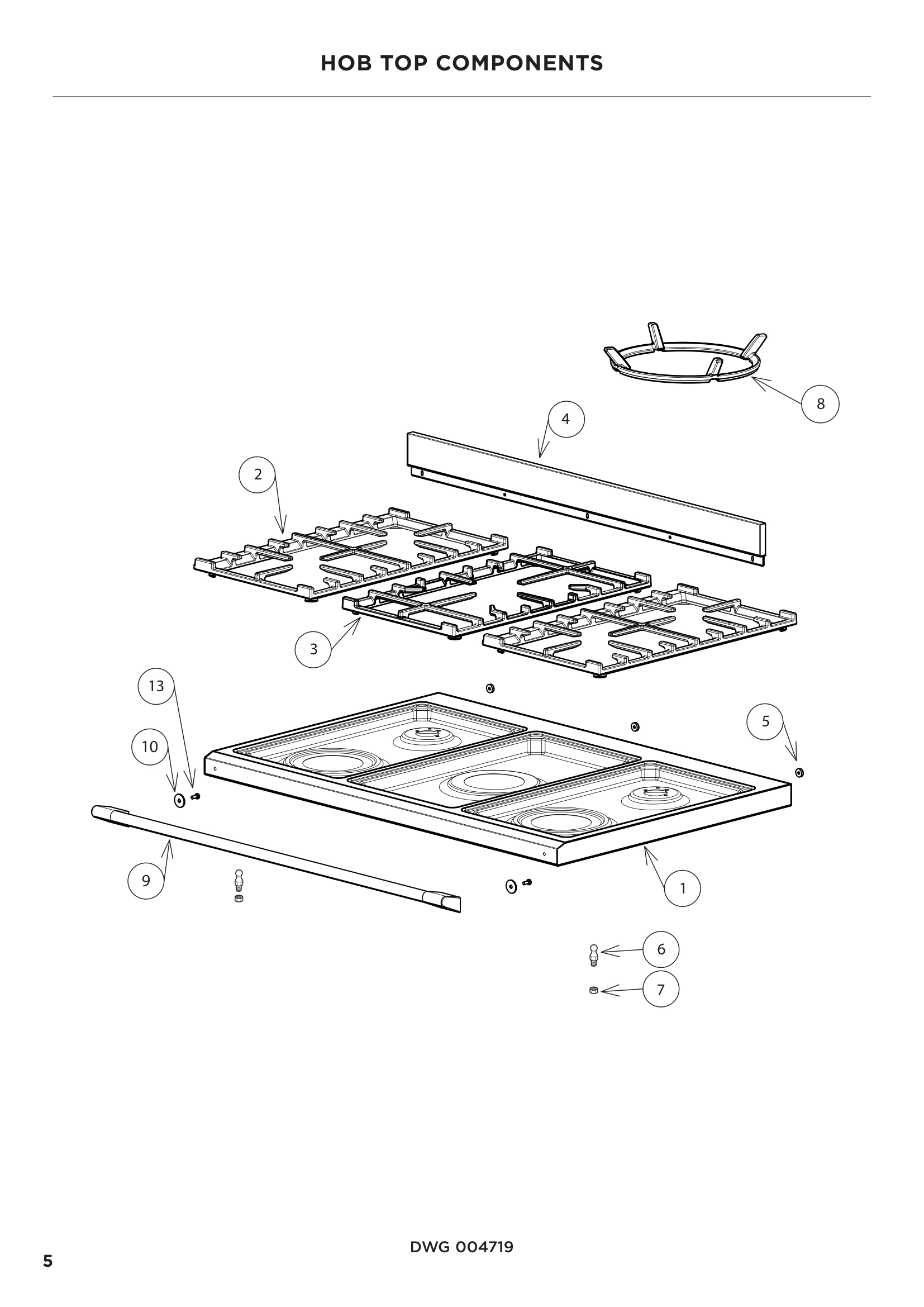

HOBTOP COMPONENTS
CHASSIS COMPONENTS
CHASSIS COMPONENTS
COOLING FAN COMPONENTS
LOCK COMPONENTS
WARMER DRAWER COMPONENTS
GAS COMPONENTS
GAS COMPONENTS
DOOR COMPONENTS
ELEMENT COMPONENTS
ACCESSORIES
Common parts from model Fisher & Paykel OR36SCG6R1-81709-B Freestanding Range
1
MOTOR LOCK FPA 578894 Contact Us For Availability
1
CATALYST FPA 578854 Contact Us For Availability
1
PANEL FRONT DRAWER RED SP FPA 578752P Contact Us For Availability
1
BRACKET BURNER SUPPORT FPA 573853 Contact Us For Availability
1
OUTER DR ASSY CLC 36 90 RED SP FPA 578351P Contact Us For Availability
1
DIFFUSER FAN FPA 578585 Contact Us For Availability
1
OVEN TRAY FPA 578580 Contact Us For Availability
2
HANDLE ASSY OR36 CLASSIC FPA 578128 Contact Us For Availability
2
TRIVET OR36 CL3 SIDE ASSY SP FPA 578120P Contact Us For Availability
2
AIR CONVEYOR LOWER FPA 578855 Contact Us For Availability
2
BRACKET MOUNTING LOCK PYRO FPA 575828 Contact Us For Availability
2
PANEL INNER FPA 578598 Contact Us For Availability
2
BRACKET BURNERS FPA 575302 Contact Us For Availability
2
TRIM ELEMENT BAKE FPA 578883 Contact Us For Availability
2
LADDER ASSY OR90 FPA 577391 Contact Us For Availability
3
TRIVET OR35 CL3 CTR ASSY SP FPA 578121P Contact Us For Availability
3
SPACER ELBA HANDLE (PKT 2) FPA 574874P Contact Us For Availability
3
BRACKET FPA 578856 Contact Us For Availability
3
LINKAGE LOCK ACTUATOR FPA 546620 Contact Us For Availability
3
DRAWER 36-90 REPON FPA 581294 Contact Us For Availability
3
BRACKET BURNER SUPPORT CENTRE FPA 575652 Contact Us For Availability
3
TRAY ELEMENT LOWER FPA 578587 Contact Us For Availability
3
GRILL RACK INSERT OR90 FPA 574821 Contact Us For Availability
4
ENCODER ADAPTOR TFT FPA 578232 Contact Us For Availability
4
PANEL AIR CONVEYOR FPA 578857 Contact Us For Availability
4
ROCKER LOCK FPA 574743 Contact Us For Availability
4
SPACER CLSC FPA 578719 Contact Us For Availability
4
SPACER FPA 578610 Contact Us For Availability
4
SCREW HANDLE M5X15 PKT2 FPA 574197P Contact Us For Availability
4
ELEMENT LOWER BAKE FPA 578913 Contact Us For Availability
4
NUT SIDE RUNNER (PKT 4) FPA 578891P Contact Us For Availability
5
BRACKET LOCK SURROUND FPA 575825 Contact Us For Availability
5
ROD ACTUATOR FPA 575872 Contact Us For Availability
5
SLIDE WARMER DRAWER REPON FPA 581286 Contact Us For Availability
5
SPACER FPA 578611 Contact Us For Availability
5
TRIM DOOR UPPER FPA 578879 Contact Us For Availability
5
SUPPORT ELEMENT FPA 578589 Contact Us For Availability
5
COVER OUTER 36 US FPA 578209 Contact Us For Availability
6
SLIDING SHELF ASSY OR90GC FPA 578744 Contact Us For Availability
6
COVER CATALYST FPA 578858 Contact Us For Availability
6
BRACKET SLIDE DRAWER 36 REPON FPA 581290 Contact Us For Availability
6
MANIFOLD 36G50 USA FE FPA 579188 Contact Us For Availability
6
GLASS MIDDLE DOOR FPA 578880P Contact Us For Availability
6
LIGHT SIDE LFT 230V 25W HALO FPA 578914 Contact Us For Availability
7
NUT M4 NYLOC (PKT 10) FPA 556160P Contact Us For Availability
7
BRACKET FAN FPA 544248 Contact Us For Availability
7
BRACKET FIXING FPA 575824 Contact Us For Availability
7
HINGE DOOR OVEN FPA 578723 Contact Us For Availability
7
LAMP HOLDER FPA 578733 Contact Us For Availability
7
BRACKET FEET 36 FPA 578206 Contact Us For Availability
8
CAP INNER DUAL WOK BRASS FPA 578252 Contact Us For Availability
8
PIN PIVOT LOCK OB90 FPA 574807 Contact Us For Availability
8
SCREW (PKT 10) FPA 575873P Contact Us For Availability
8
SCREW ST 7X13 TAB CSKW PKT 10 FPA 556632P Contact Us For Availability
8
COVER INNER FPA 578207 Contact Us For Availability
9
SENSOR OVEN TEMP CYNTEC 3 FPA 545259 Contact Us For Availability
9
CAP INNER BURNER DUAL WOK FPA 533890 Contact Us For Availability
9
TERMINAL BLOCK 40A-3P FPA 573935 Contact Us For Availability
9
HOB RAIL ASSY OR36 CLASSIC FPA 578130 Contact Us For Availability
9
PANEL TOP AV FPA 579788 Contact Us For Availability
9
PIN BRACKET MOUNTING FPA 578895 Contact Us For Availability
9
TRIM SIDE LOWER FPA 578869 Contact Us For Availability
9
SCREW M5X6 TC CROSS NERA FPA 578882P Contact Us For Availability
9
SCREW SD 3.9X13 PAN PN NP PK10 FPA 551164P Contact Us For Availability
10
ADAPTOR GAS INLET FPA 575052 Contact Us For Availability
10
REIGNITION BOX RI 130FB FPA 253844 Contact Us For Availability
10
NUT M3 (PKT 10) FPA 575862P Contact Us For Availability
10
SPACER REAR 7.5MM FPA 579150 Contact Us For Availability
10
TRIM DRIP TRAY FPA 578599 Contact Us For Availability
10
TRIM BOTTOM DOOR FPA 578575 Contact Us For Availability
10
ELEMENT TOP GRILL FPA 578915 Contact Us For Availability
11
VALVE DEF SR US FPA 579183 Contact Us For Availability
11
SCREW M3X15 (PKT 10) FPA 575875P Contact Us For Availability
11
SCREW ST 7X3/8 TAB MSHW (PK10) FPA 556634P Contact Us For Availability
11
BRACKET FPA 578862 Contact Us For Availability
11
DOOR CAP LOWER RH FPA 578249 Contact Us For Availability
11
CLIP FPA 575176 Contact Us For Availability
12
VALVE COP RAP US FPA 579184 Contact Us For Availability
12
ELEMENT WARMER FPA 577315 Contact Us For Availability
12
PLUG HOLE SENSOR FPA 577311 Contact Us For Availability
12
SCREW SPACER HOBTOP (PKT10) FPA 573965P Contact Us For Availability
12
DOOR CAP LOWER LH FPA 578250 Contact Us For Availability
12
PANEL REAR FPA 578885 Contact Us For Availability
13
PYRO GRILL ELEMENT CLIP FPA 574281 Contact Us For Availability
13
RETAINING RING E2-3 PKT 10 FPA 545544P Contact Us For Availability
13
BRACKET GASCOCK FPA 575524 Contact Us For Availability
13
RETAINER DOOR GLASS FPA 574832 Contact Us For Availability
13
STANDOFF (PKT 10) FPA 573857P Contact Us For Availability
14
SCREW MC M4X6.5 PAN/W PN PKT10 FPA 556640P Contact Us For Availability
14
SCREW BRACKET GASCOCK (PK10) FPA 575525P Contact Us For Availability
14
SUPPORT DOOR GLASS FPA 574828 Contact Us For Availability
14
ELEMENT FAN 36 FPA 578916 Contact Us For Availability
15
VALVE COP DW US FPA 579185 Contact Us For Availability
15
SOFT CLOSE FEMALE HINGE FPA 578683 Contact Us For Availability
15
BUTTON STEM ASSY FPA 578755 Contact Us For Availability
15
WASHER STARLOCK 11.5 X 5 X 0.2 FPA 546628 Contact Us For Availability
15
SCREW 7PX32 TC CROSS PKT10 FPA 578576P Contact Us For Availability
15
MOTOR SUPPORT FPA 544792 Contact Us For Availability
16
HOOK FPA 575847 Contact Us For Availability
16
BRACKET VALVE FPA 577024 Contact Us For Availability
16
SCREW DOOR PANEL (PKT 2) FPA 573958P Contact Us For Availability
16
FAN MOTOR LARGE FPA 578917 Contact Us For Availability
17
BRACKET MTG HOOK FPA 574788 Contact Us For Availability
17
SCREW GASCOCK DUAL (PKT 10) FPA 573910P Contact Us For Availability
17
CORNER DOOR UPPER LH FPA 578724 Contact Us For Availability
17
BRACKET PARTITION MOTOR FPA 578595 Contact Us For Availability
18
PIN PIVOT HOOK FPA 579068 Contact Us For Availability
18
PIPE INLET TR LEFT FPA 578701 Contact Us For Availability
18
CORNER DOOR UPPER RH FPA 578725 Contact Us For Availability
19
RELAY PYRO US FPA 574458 Contact Us For Availability
19
BRACKET SWITCH FPA 578863 Contact Us For Availability
19
PIPE INLET SR LEFT FPA 578702 Contact Us For Availability
19
BRACKET DOOR LH FPA 574792 Contact Us For Availability
19
FAN MOTOR SMALL FPA 578918 Contact Us For Availability
20
THERMODISC 60F24 X-11303A L140 FPA 544250 Contact Us For Availability
20
INSUL MICROSWITCH FPA 575025 Contact Us For Availability
20
PIPE INLET INNER DU FPA 578703 Contact Us For Availability
20
BRACKET DOOR RH FPA 574793 Contact Us For Availability
20
BRACKET POWER BOARD FPA 578888 Contact Us For Availability
21
AIR FLOW DEVIATOR FPA 578864 Contact Us For Availability
21
PIPE INLET OUTER DU FPA 578704 Contact Us For Availability
21
WASHER (PKT 10) FPA 578579P Contact Us For Availability
21
STANDOFF CONTROLLER BOARD PKT6 FPA 574180P Contact Us For Availability
22
BRACKET FPA 578865 Contact Us For Availability
22
PIPE INLET SR RIGHT FPA 578705 Contact Us For Availability
22
RUBBER RETAINER GLASS FPA 574736 Contact Us For Availability
22
CLIP CABLE STANDOFF PKT2 FPA 574148P Contact Us For Availability
23
LEVER DOOR SENSOR FPA 578866 Contact Us For Availability
23
PIPE INLET TR RIGHT FPA 578706 Contact Us For Availability
23
SCREW 4.2PX16 TC CROS ZN PKT10 FPA 579418P Contact Us For Availability
23
INSULATION SHEET FPA 578889 Contact Us For Availability
24
SCREW ST 8X12MM TAB MTS PKT10 FPA 546696P Contact Us For Availability
24
SCREW CONTROL PANEL (PKT 10) FPA 544349P Contact Us For Availability
24
BURNER BOWL SR FPA 578707 Contact Us For Availability
24
REFLECTOR GRILL FPA 578890 Contact Us For Availability
25
BURNER BOWL TR FPA 578708 Contact Us For Availability
25
NEON ADAPTER DIA6-DIA9 OB60C FPA 562423 Contact Us For Availability
25
SPACER FPA 578867 Contact Us For Availability
25
BRACKET GROUNDING HANDLE FPA 578969 Contact Us For Availability
25
TERMINAL BLOCK 40A-3P FPA 575035 Contact Us For Availability
26
BURNER BOWL DU FPA 578709 Contact Us For Availability
26
BRACKET SENSOR FPA 578896 Contact Us For Availability
26
BUSH FPA 578762 Contact Us For Availability
27
NEON PYRO US FPA 574457 Contact Us For Availability
27
CIRCLIP SWITCH IGNITION FPA 573972 Contact Us For Availability
27
GASKET SR FPA 578710 Contact Us For Availability
27
BRACKET FPA 578763 Contact Us For Availability
28
GASKET BURNER BOWL TR & DUAL FPA 575697 Contact Us For Availability
28
NUT SELF LOCKING (PKT 10) FPA 578868P Contact Us For Availability
28
SCREW ST 7X3/8 FLT PH (PK10) FPA 556642P Contact Us For Availability
29
PIPE ANCHORAGE FPA 578623 Contact Us For Availability
30
SPREADER SR AR FPA 578228 Contact Us For Availability
31
SPREADER TR AR DEF FPA 578240 Contact Us For Availability
32
RESISTOR COOLING FAN FPA 578908 Contact Us For Availability
32
SPREADER DUAL WOK BRASS FPA 534287 Contact Us For Availability
33
CAP SEMI RAPID FPA 578227 Contact Us For Availability
34
CAP OUTER BURNER DUAL WOK FPA 533889 Contact Us For Availability
34
POWER CORD FPA 578909 Contact Us For Availability
35
CAP INNER TR DEF FPA 578241 Contact Us For Availability
35
BRACKET POWER CORD FPA 578910 Contact Us For Availability
36
BRACKET FPA 578691 Contact Us For Availability
36
NUT IGNITER FPA 533896 Contact Us For Availability
37
REGULATOR 1/2” NG FPA 575142 Contact Us For Availability
38
ELECTRODE + CLIP SR AR 800 FPA 578312 Contact Us For Availability
39
SPRING FIX ELECTRODE FPA 534369 Contact Us For Availability
40
SPRING CLIP TR FPA 575724 Contact Us For Availability
41
ELECTRODE + CLIP TR AR 800 FPA 578314 Contact Us For Availability
42
INLET PIPE EXTENSION FPA 578716 Contact Us For Availability
43
INJECTOR DUAL 0.80 (INNER) FPA 575706 Contact Us For Availability
44
JET DEFENDI 1.35 FPA 534589 Contact Us For Availability
45
INJECTOR 1.36 FPA 578713 Contact Us For Availability
46
INJECTOR 1.80 FPA 578714 Contact Us For Availability
47
SPRING IGNITER FPA 533897 Contact Us For Availability
48
ELECTRODE DUAL FPA 534362 Contact Us For Availability
49
BRACKET INLET PIPE EXTENSION FPA 578715 Contact Us For Availability
50
BRACKET INLET PIPE EXTENSION FPA 578717 Contact Us For Availability
NI
WASHER ELBOW (PKT10) FPA 533119P Contact Us For Availability
NI
KIT CON H/ALT OR36 6-9K FT LPG FPA 579014 Contact Us For Availability
NI
KIT CONV H/ALT OR36 3-6K FT NG FPA 579011 Contact Us For Availability
NI
HARNESS RANGE UI INTERCONNECT FPA 563195 Contact Us For Availability
NI
INSULATION SIDE LAMP FPA 544327 Contact Us For Availability
NI
INSULATION OVEN FPA 578848 Contact Us For Availability
NI
INSULATION REAR FPA 578849 Contact Us For Availability
NI
INSULATION FPA 578850 Contact Us For Availability
NI
INSULATION FPA 578851 Contact Us For Availability
NI
HARNESS OR36 PYRO MAINS FPA 578135 Contact Us For Availability
NI
WIRING FPA 578695 Contact Us For Availability
NI
HARNESS OR90 OR36 PYRO SELV FPA 578137 Contact Us For Availability
NI
HARNESS OR90 OR36 PYRO CLOCK PO FPA 578138 Contact Us For Availability
NI
FERRITE HINGED 22OR 9MM FPA 579072 Contact Us For Availability
NI
HARNESS OR36 WARMER DRAWER FPA 578500 Contact Us For Availability
NI
WIRING WARMER DRAWER FPA 578853 Contact Us For Availability
NI
WIRING VALVE SWITCH FPA 578694 Contact Us For Availability
NI
GROMMET RETAINER GLASS FPA 575736 Contact Us For Availability
NI
SPACER PLASTIC PYRO FPA 579075 Contact Us For Availability
NI
TRIM TKOR366X1 (ACCESSORY ONLY) FPA 81807 Contact Us For Availability
NI
TRIM KICKOR36R1 (ACCESSORY ONLY) FPA 81816 Contact Us For Availability
NI
BK USR OR30/36 DUAL FP FPA 591500 Contact Us For Availability
NI
BK USR OR30/36 DUAL FP FR FPA 591501 Contact Us For Availability
NI
BK INSTL OR36 GAS FP FPA 591508 Contact Us For Availability
NI
KIT CONV H/ALT OR36 6-9K FT NG FPA 579013 Contact Us For Availability
NI
KIT CONVERSION LPG OR36 US FPA 578919 Contact Us For Availability
NI
KIT CON H/ALT OR36 3-6K FT LPG FPA 579012 Contact Us For Availability
× ![]()
