Model Fisher &amp; Paykel OR36SCG4B1-81702-A Freestanding Range – Common Parts &amp; Diagrams

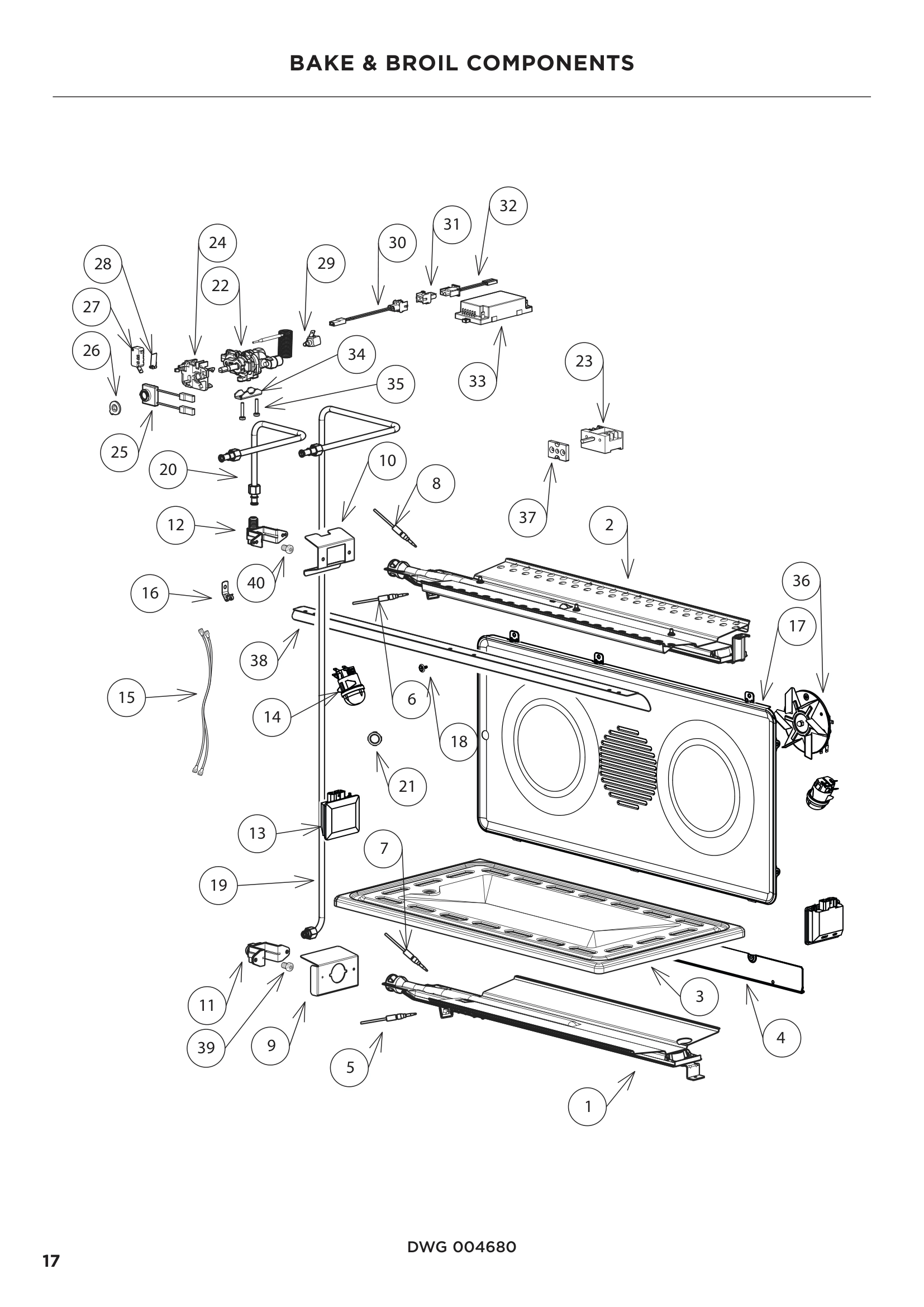

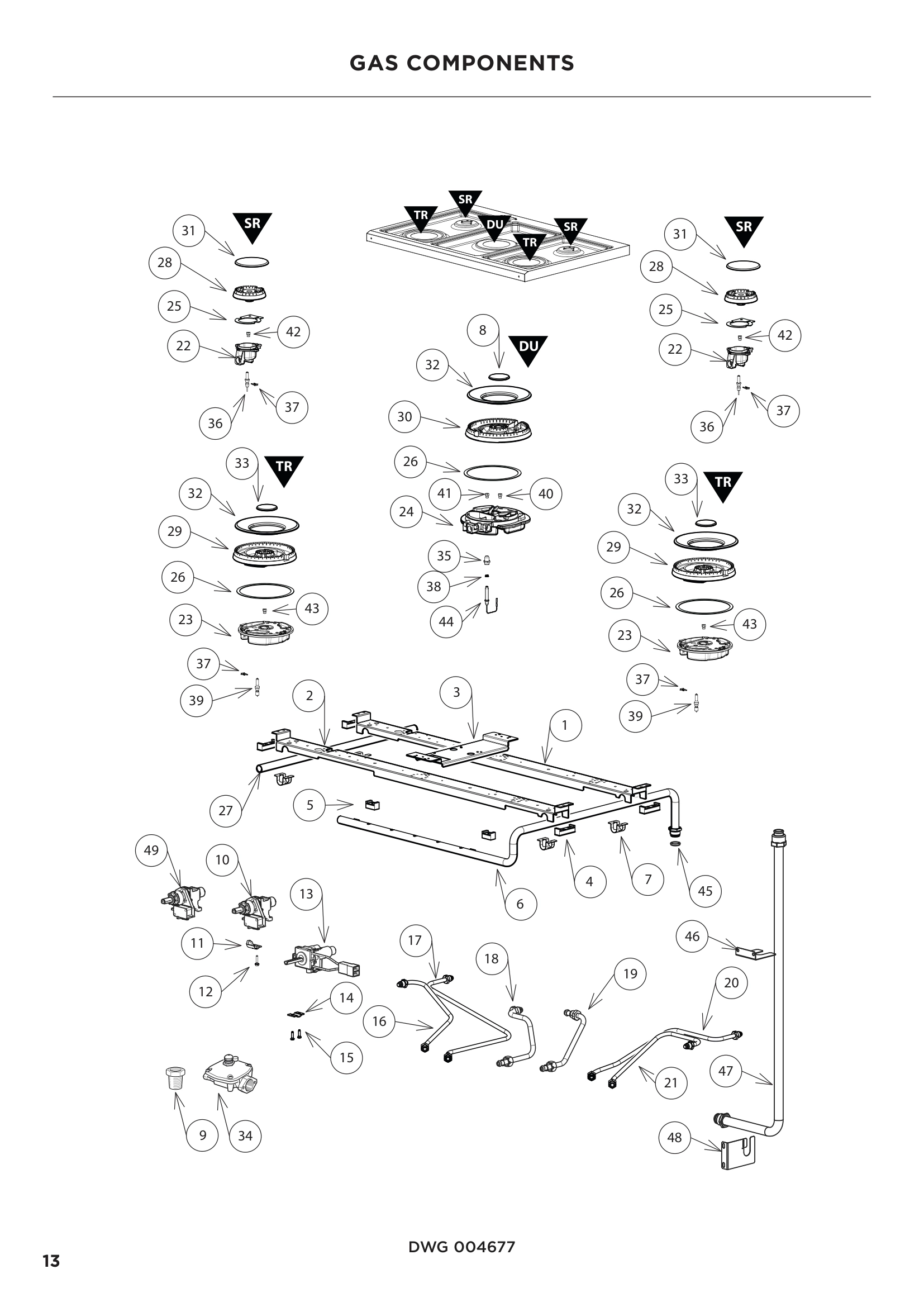

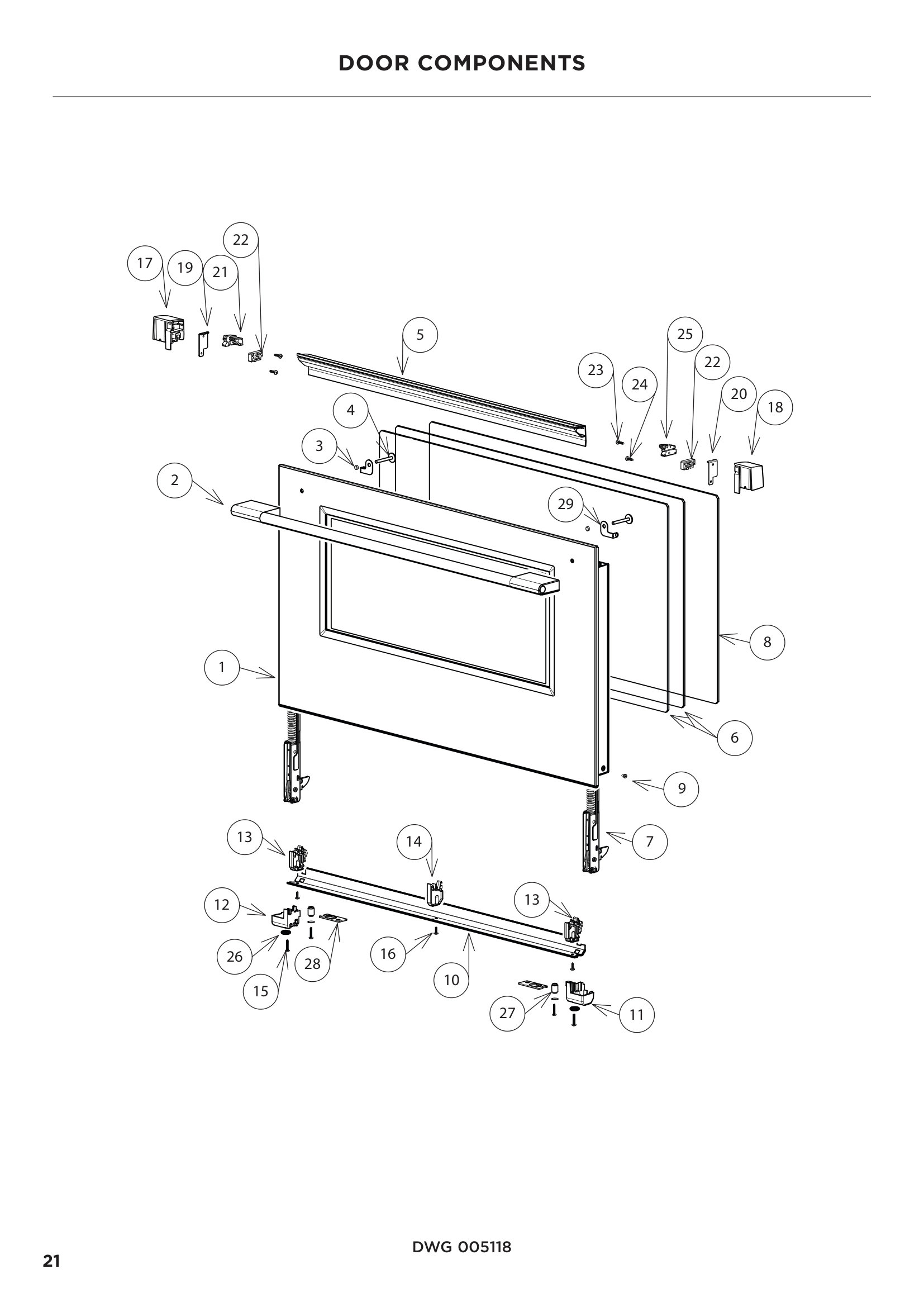

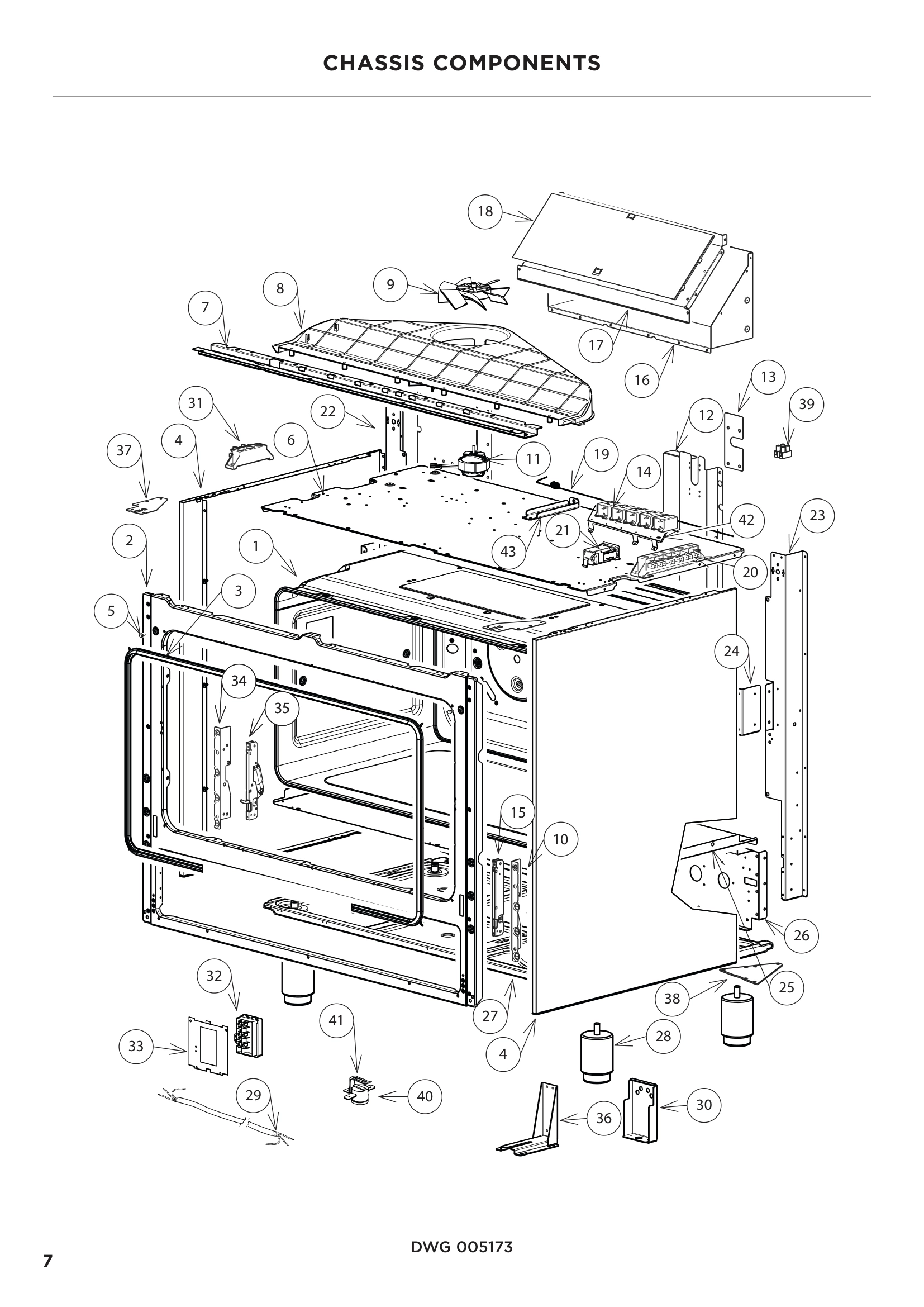

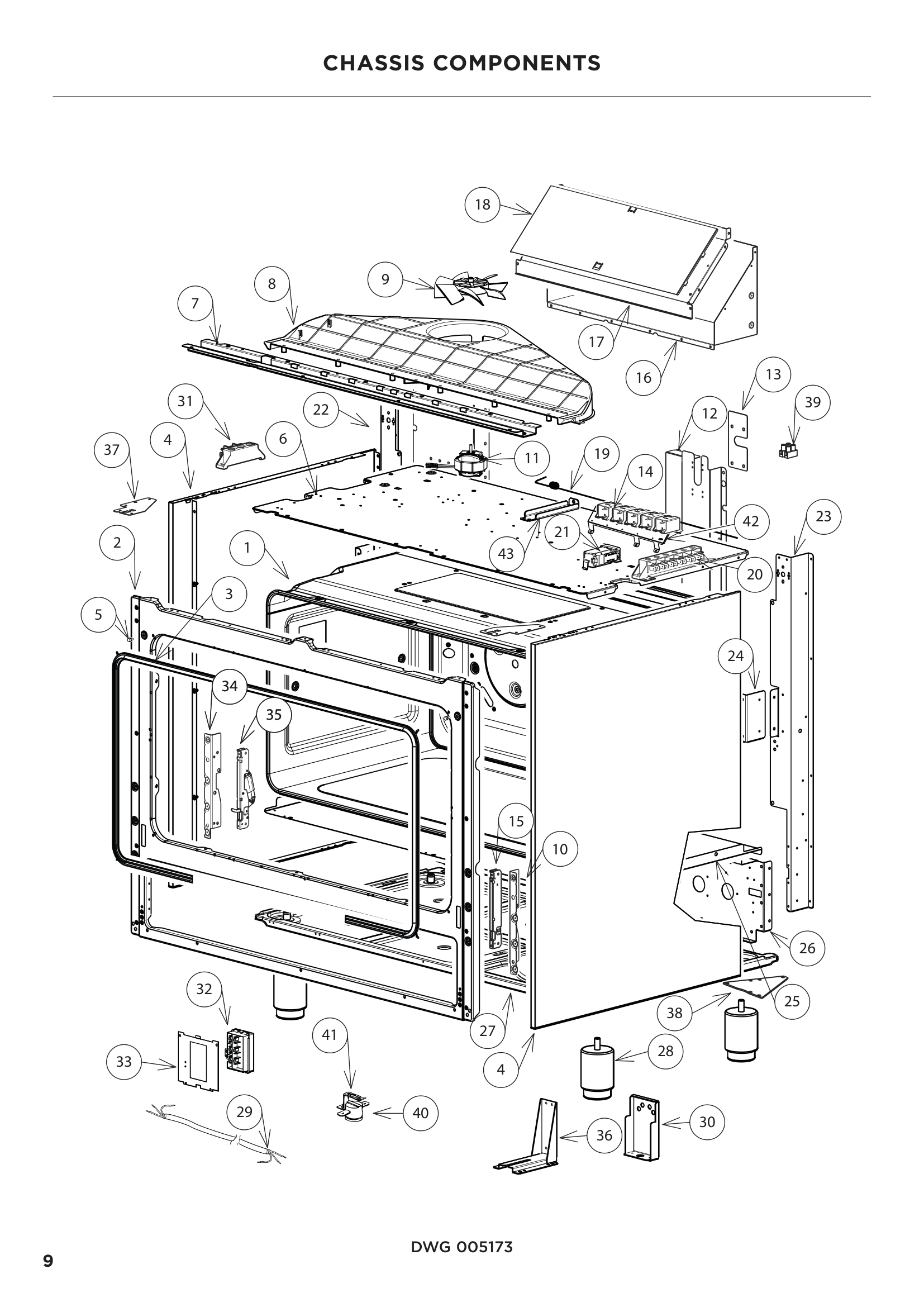

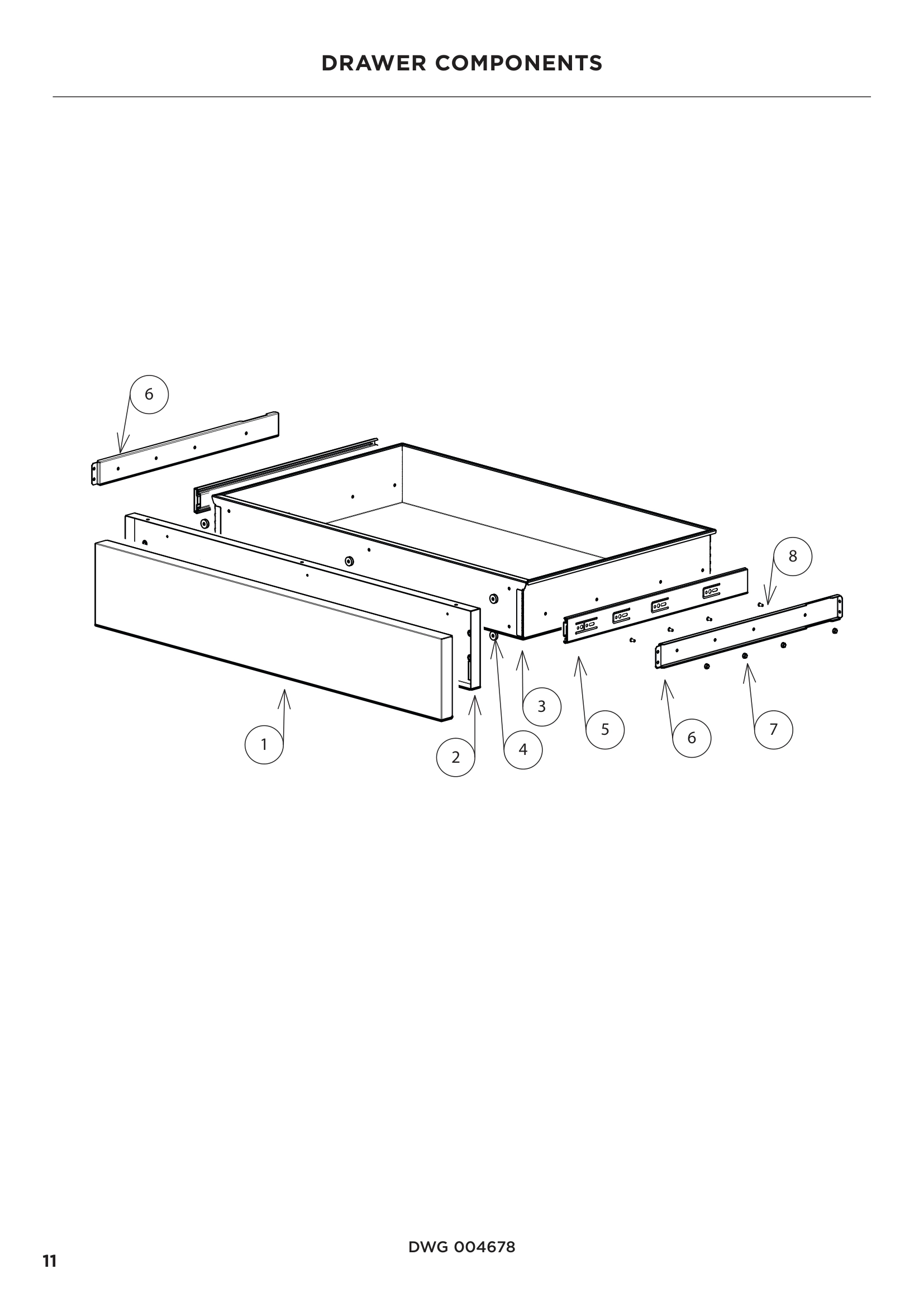

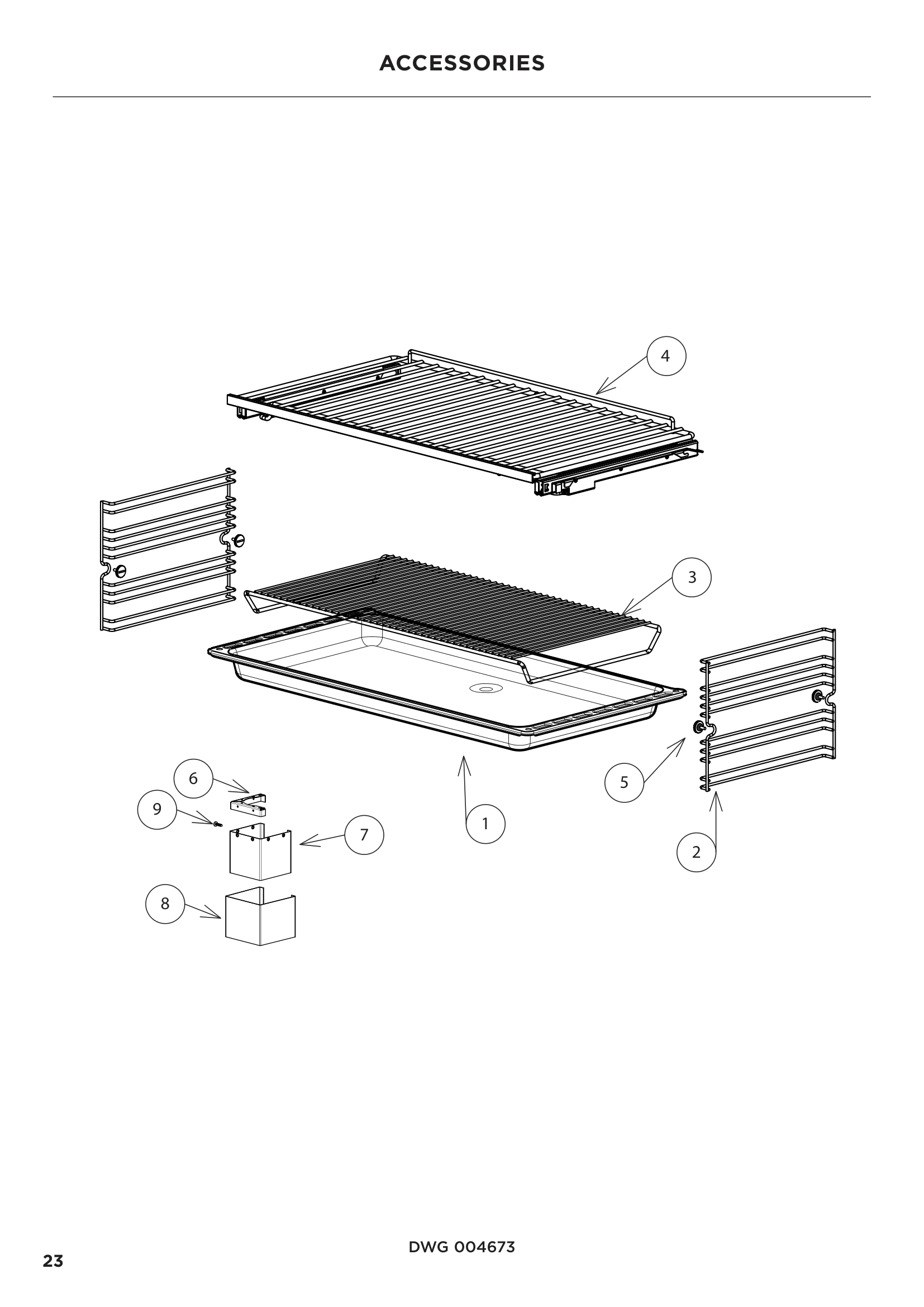

1

578580 Fisher & Paykel Oven Tray Range Backorder FPA 578580 $128.62

1

578726 Fisher & Paykel Oven Burner Range Backorder FPA 578726 $58.73

1

578746P Fisher & Paykel Range Black Drawer Fr Backorder FPA 578746P $65.78

1

BRACKET BURNER SUPPORT FPA 573853 Contact Us For Availability

2

578120P Fisher & Paykel Range Side Assembly T In Stock FPA 578120P $213.10

2

578128 Fisher & Paykel Range Handle Assembly Backorder FPA 578128 $210.97

2

578581 Fisher & Paykel Range Support Shelf In Stock FPA 578581 $26.94

2

BRACKET BURNERS FPA 575302 Contact Us For Availability

2

BURNER GRILL FPA 578727 Contact Us For Availability

3

574874P Fisher & Paykel Cooking Handle Spacer Backorder FPA 574874P $7.37

3

577140 Fisher & Paykel Range Oven Floor Backorder FPA 577140 $100.40

3

578121P Fisher & Paykel Range Trivet OR36 CL3 Backorder FPA 578121P $182.58

3

578676 Fisher & Paykel Oven Range Gasket Backorder FPA 578676 $36.64

3

BRACKET BURNER SUPPORT CENTRE FPA 575652 Contact Us For Availability

3

SHELF DROP DOWN FPA 574821 Contact Us For Availability

4

574197P Fisher & Paykel Handle Screw M5X15 PK Backorder FPA 574197P $8.14

4

578586 Fisher & Paykel Range Bake Element Tri Backorder FPA 578586 $32.43

4

578744 Fisher & Paykel Range Sliding Shelf As Backorder FPA 578744 $216.55

4

SPACER CLSC FPA 578719 Contact Us For Availability

4

SPACER FPA 578610 Contact Us For Availability

5

573891 Fisher & Paykel Range Telescopic Rail Backorder FPA 573891 $97.20

5

574141P Fisher & Paykel Cooking Wire Rack Sid Backorder FPA 574141P $21.06

5

578268 Fisher & Paykel Range Classic Light Di In Stock FPA 578268 $96.45

5

578728 Fisher & Paykel Range Oven Thermocoupl Backorder FPA 578728 $41.71

5

SPACER FPA 578611 Contact Us For Availability

5

TRIM DOOR UPPER FPA 578721 Contact Us For Availability

6

578699 Fisher & Paykel Range Manifold Backorder FPA 578699 $86.55

6

578729 Fisher & Paykel Range Grill Thermocoup Backorder FPA 578729 $41.38

6

BRACKET TRIM RAIL FPA 578720 Contact Us For Availability

6

GLASS MIDDLE DOOR SP FPA 578722P Contact Us For Availability

6

BRACKET FEET 36 FPA 578206 Contact Us For Availability

7

556160P Fisher & Paykel Range M4 Nyloc Nut Pa Backorder FPA 556160P $7.17

7

575073 Fisher & Paykel Range Oven Burner Igni Backorder FPA 575073 $7.05

7

HOB RAIL ASSY OR36 CLASSIC FPA 578130 No Longer Available

7

578723 Fisher & Paykel Oven Door Hinge Range Backorder FPA 578723 $43.94

7

BRACKET FIXING FPA 575824 Contact Us For Availability

7

COVER OUTER 36 US FPA 578209 Contact Us For Availability

8

533890 Fisher & Paykel Cooking Dual Wok Inner In Stock FPA 533890 $13.74

8

575074 Fisher & Paykel Range Broil Igniter In Stock FPA 575074 $6.88

8

SCREW (PKT 10) FPA 575873P Contact Us For Availability

8

GLASS INNER DOOR FPA 578573P Contact Us For Availability

8

COVER INNER FPA 578207 Contact Us For Availability

9

575052 Fisher & Paykel Range Gas Inlet Adapte In Stock FPA 575052 $9.83

9

BRACKET OVEN FPA 578730 Contact Us For Availability

9

SCREW M5X6 TC CROSS NERA FPA 578882P Contact Us For Availability

9

SCREW SD 3.9X13 PAN PN NP PK10 FPA 551164P Contact Us For Availability

10

579183 Fisher & Paykel Range Valve Defrost Backorder FPA 579183 $52.54

10

BRACKET GRILL FPA 578731 Contact Us For Availability

10

TRIM BOTTOM DOOR FPA 578575 Contact Us For Availability

575053 Fisher & Paykel Bake Burner Elbow Backorder FPA 575053 $8.14

578680 Fisher & Paykel Range Tangential Fan M Backorder FPA 578680 $68.45

BRACKET GASCOCK FPA 575524 Contact Us For Availability

CORNER DOOR LOWER RH FPA 578249 Contact Us For Availability

12

ELBOW BROIL BURNER FPA 577011 Contact Us For Availability

12

CORNER DOOR LOWER LH FPA 578250 Contact Us For Availability

13

578732 Fisher & Paykel Lamp Holder Side Backorder FPA 578732 $30.73

13

579185 Fisher & Paykel Range Valve Cop Dw Us In Stock FPA 579185 $115.77

13

RETAINER DOOR GLASS FPA 574832 Contact Us For Availability

253844 Fisher & Paykel Range Reignition Box In Stock FPA 253844 $93.11

578733 Fisher & Paykel Lamp Holder Backorder FPA 578733 $26.94

BRACKET THERMOSTAT OVEN BURNER FPA 578700 Contact Us For Availability

SUPPORT DOOR GLASS FPA 574828 Contact Us For Availability

573910P Fisher & Paykel Screw Dual Gas Cock ( Backorder FPA 573910P $6.20

578683 Fisher & Paykel Range Female Hinge Backorder FPA 578683 $6.20

HARNESS SIDE LAMP FPA 578734 Contact Us For Availability

SCREW 7PX32 TC CROSS PKT 10 FPA 578576P Contact Us For Availability

16

PIPE INLET TR LEFT FPA 578701 Contact Us For Availability

16

CLIP THERMST TUBE HINGED ELMNT FPA 574214 Contact Us For Availability

16

SCREW DOOR PANEL (PKT 2) FPA 573958P Contact Us For Availability

17

PIPE INLET SR LEFT FPA 578702 Contact Us For Availability

17

DIFFUSER FAN FPA 578735 Contact Us For Availability

17

CORNER DOOR UPPER LH FPA 578724 Contact Us For Availability

18

578703 Fisher & Paykel Tube Assembly Inner OR In Stock FPA 578703 $11.75

18

SCREW ST 7X13 TAB CSKW PKT 10 FPA 556632P Contact Us For Availability

18

CORNER DOOR UPPER RH FPA 578725 Contact Us For Availability

19

578704 Fisher & Paykel Outer Tube Assembly, D In Stock FPA 578704 $8.89

19

PIPE OVEN INLET FPA 578736 Contact Us For Availability

19

BRACKET CORNER LEFT FPA 575740 Contact Us For Availability

573935 Fisher & Paykel Range Terminal Block 4 Backorder FPA 573935 $27.47

PIPE INLET SR RIGHT FPA 578705 Contact Us For Availability

PIPE GRILL BURNER FPA 578737 Contact Us For Availability

BRACKET CORNER RIGHT FPA 575739 Contact Us For Availability

533272 Fisher & Paykel Range Ignition Box Ult In Stock FPA 533272 $90.37

PIPE INLET TR RIGHT FPA 578706 Contact Us For Availability

COVER ROTISSERIE HOLE FPA 574350 Contact Us For Availability

CORNER INSIDE DOOR LH FPA 575735 Contact Us For Availability

22

578707 Fisher & Paykel Range Burner Bowl, Sr Backorder FPA 578707 $8.07

22

581297 Fisher & Paykel Range Gas Thermostat 3 In Stock FPA 581297 $157.83

22

RUBBER RETAINER GLASS FPA 574736 Contact Us For Availability

23

575032 Fisher & Paykel Range Light Fan Switch Backorder FPA 575032 $20.08

23

578708 Fisher & Paykel Range Burner Bowl Backorder FPA 578708 $59.60

23

SCREW 4.2PX16 TC CROS ZN PKT10 FPA 579418P Contact Us For Availability

24

546696P Fisher & Paykel Cooking Screw ST 8X12 Backorder FPA 546696P $7.56

24

575144 Fisher & Paykel Range Switch Bracket Backorder FPA 575144 $7.69

24

578709 Fisher & Paykel Range Burner Bowl Dupl In Stock FPA 578709 $167.30

25

575609 Fisher & Paykel Range Oven/Brisket Ign In Stock FPA 575609 $66.63

25

GASKET SR FPA 578710 Contact Us For Availability

25

CORNER INSIDE DOOR RH FPA 575734 Contact Us For Availability

26

575697 Fisher & Paykel Range Burner Bowl Gask Backorder FPA 575697 $6.20

26

578739 Fisher & Paykel Range Micro Switch Cam Backorder FPA 578739 $6.20

26

WASHER (PKT 10) FPA 578579P Contact Us For Availability

27

575064 Fisher & Paykel Microswitch Backorder FPA 575064 $6.20

27

PIPE ANCHORAGE FPA 578623 Contact Us For Availability

27

BUSH FPA 578762 Contact Us For Availability

28

578228 Fisher & Paykel Range Spreader Assembl In Stock FPA 578228 $20.88

28

578740 Fisher & Paykel Range Microswitch Blad Backorder FPA 578740 $7.08

28

BRACKET FPA 578763 Contact Us For Availability

29

577292 Fisher & Paykel Range Thermocouple/The Backorder FPA 577292 $28.27

29

578240 Fisher & Paykel Range Trivet Assembly Backorder FPA 578240 $51.99

29

BRACKET GROUNDING HANDLE FPA 578969 Contact Us For Availability

30

534628 Fisher & Paykel Wok Deflector Spreader Backorder FPA 534628 $73.50

30

577219 Fisher & Paykel Range Ignition Box The In Stock FPA 577219 $16.52

31

578227 Fisher & Paykel Semi Rapid Range Cap In Stock FPA 578227 $15.15

31

CONNECTOR WIRING FEMALE FPA 575033 Contact Us For Availability

32

533889 Fisher & Paykel Cooking Cap Outer Burn In Stock FPA 533889 $33.53

32

577220 Fisher & Paykel Range Ignition Cable f In Stock FPA 577220 $9.28

33

575628 Fisher & Paykel Range Electronic Ignit In Stock FPA 575628 $224.98

33

578241 Fisher & Paykel Range Inner Trivet Cap Backorder FPA 578241 $8.05

34

575142 Fisher & Paykel Range 1/2" NG Regulato Backorder FPA 575142 $69.58

34

BRACKET VALVE FPA 577024 Contact Us For Availability

35

533896 Fisher & Paykel Igniter Cooking Nut Backorder FPA 533896 $6.20

35

SCREW BRACKET GASCOCK (PK10) FPA 575525P Contact Us For Availability

36

575068 Fisher & Paykel Range Fan Motor 120V Backorder FPA 575068 $90.36

36

578312 Fisher & Paykel Range Sr Electrode and In Stock FPA 578312 $13.05

37

534369 Fisher & Paykel Range Electrode Spring Backorder FPA 534369 $6.31

37

577049 Fisher & Paykel Range Plastic Spacer 7 Backorder FPA 577049 $6.20

38

533897 Fisher & Paykel Cooking Igniter Spring Backorder FPA 533897 $6.31

38

DEFLECTOR GRILL FPA 578741 Contact Us For Availability

39

578314 Fisher & Paykel Range Electrode and Cl In Stock FPA 578314 $20.79

39

578742 Fisher & Paykel Range Injector, D/208 Backorder FPA 578742 $9.04

40

573669 Fisher & Paykel Range Limiter Backorder FPA 573669 $14.60

40

575706 Fisher & Paykel Range Dual 0.80 Inject Backorder FPA 575706 $6.31

40

INJECTOR D/184 FPA 578743 Contact Us For Availability

41

534589 Fisher & Paykel Cooking Jet Defendi 1. Backorder FPA 534589 $6.55

42

578713 Fisher & Paykel Range Injector 1.36 Backorder FPA 578713 $6.20

43

578714 Fisher & Paykel Range Injector 1.80 Backorder FPA 578714 $6.31

44

534362 Fisher & Paykel Range Electrode Dual Backorder FPA 534362 $10.47

45

533119P Fisher & Paykel Washer Elbow Cooking In Stock FPA 533119P $21.52

46

578715 Fisher & Paykel Inlet Pipe Extension B Backorder FPA 578715 $6.61

47

578716 Fisher & Paykel Range 36-Inch Extensio In Stock FPA 578716 $41.21

48

578717 Fisher & Paykel Inlet Pipe Extension B Backorder FPA 578717 $6.61

49

VALVE COP RAP US FPA 579184 Contact Us For Availability

578745 Fisher & Paykel Range Conversion Kit O Backorder FPA 578745 $36.27

579011 Fisher & Paykel Range Conversion Kit H Backorder FPA 579011 $24.92

579014 Fisher & Paykel Range Kit Conversion f Backorder FPA 579014 $19.47

TRIM TKOR364X1 (ACCESSORY ONLY) FPA 81808 Contact Us For Availability

TRIM KICKOR36B1 (ACCESSORY ONLY) FPA 81815 Contact Us For Availability

BK USR OR30/36 GAS FP FPA 591498 Contact Us For Availability

BK USR OR30/36 GAS FP FR FPA 591499 Contact Us For Availability

BK INSTL OR36 GAS FP FPA 591508 Contact Us For Availability

KIT CONV H/ALT OR36 6-9K FT NG FPA 579013 Contact Us For Availability

KIT CON H/ALT OR36 3-6K FT LPG FPA 579012 Contact Us For Availability
