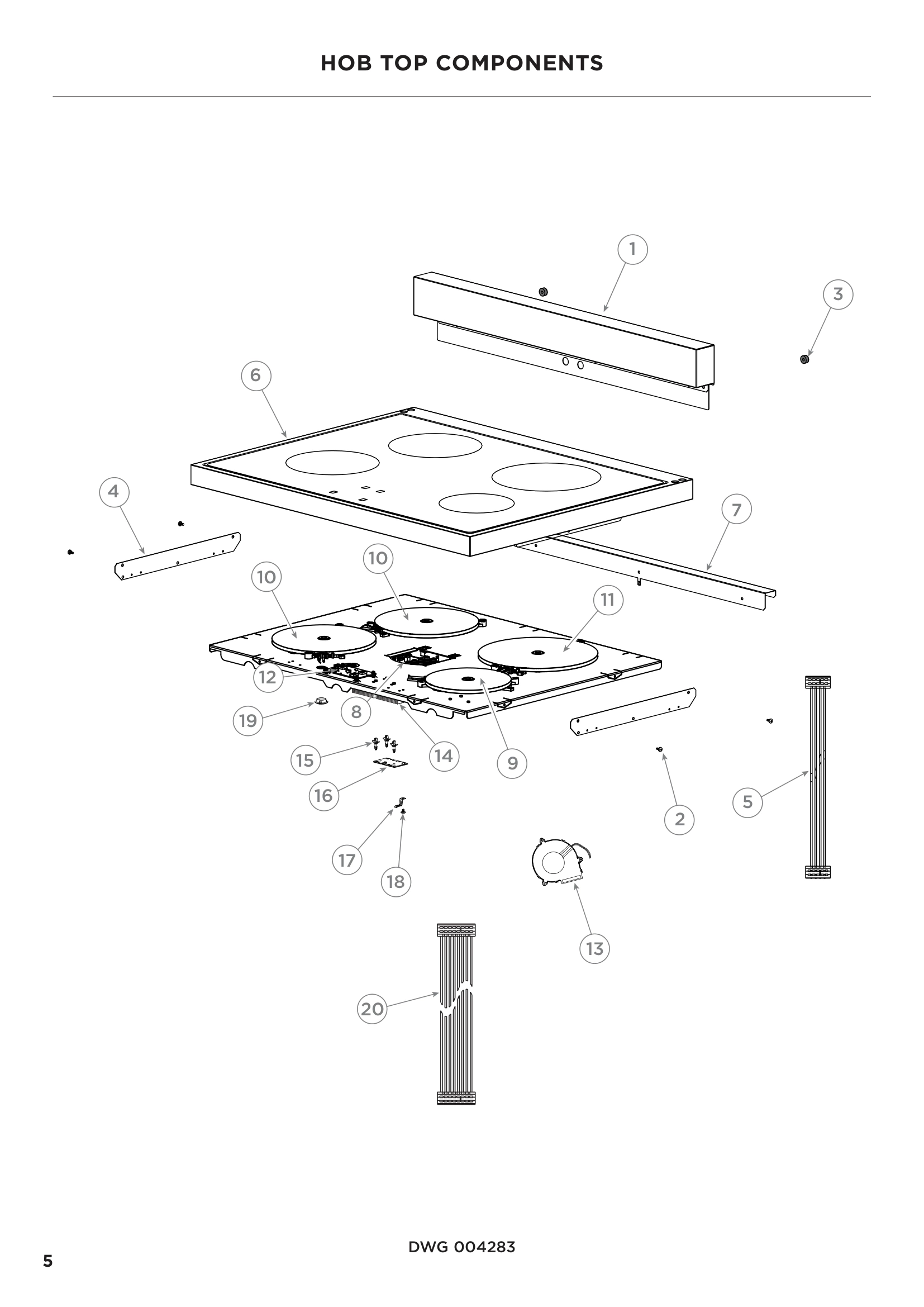

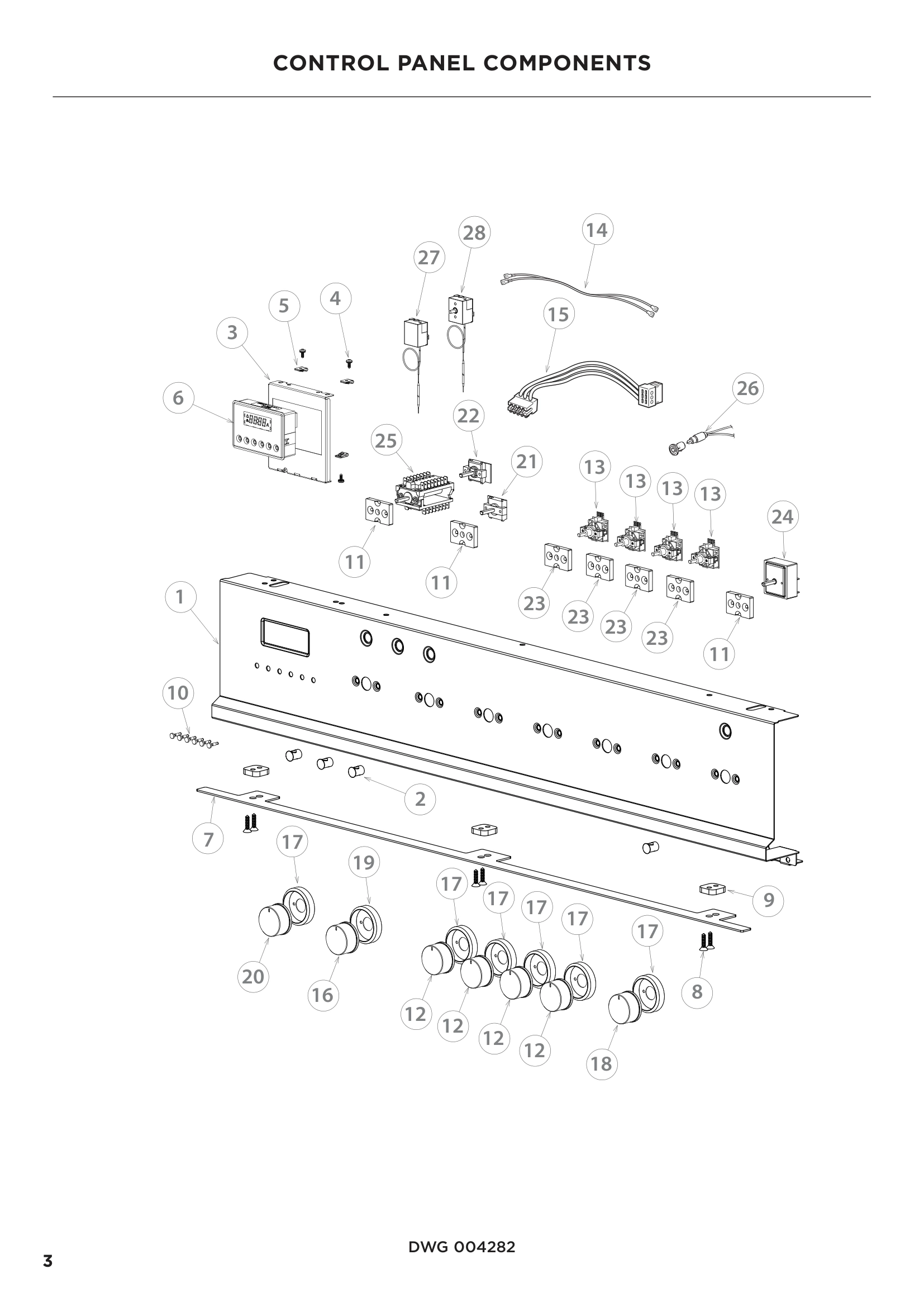

Model Fisher &amp; Paykel OR30SDPWIX2-81143-A Freestanding Range – Common Parts &amp; Diagrams

1

575997P Fisher & Paykel Screw Pack (10) Backorder FPA 575997P $6.20

1

577014 Fisher & Paykel Range Lamp Assembly Backorder FPA 577014 $19.54

1

577093 Fisher & Paykel Rear Trim Backorder FPA 577093 $214.61

1

WASHER INNER DOOR (PKT 2) FPA 573580P Contact Us For Availability

2

573891 Fisher & Paykel Range Telescopic Rail Backorder FPA 573891 $97.20

2

574207 Fisher & Paykel Red Neon Bezel Backorder FPA 574207 $6.31

2

574292P Fisher & Paykel Cooking Washer M6-24 In Stock FPA 574292P $6.02

2

BRACKET SUPPORT FPA 575828 Contact Us For Availability

2

SHROUD FAN FPA 577139 Contact Us For Availability

3

556160P Fisher & Paykel Range M4 Nyloc Nut Pa Backorder FPA 556160P $7.17

3

LINKAGE LOCK FPA 546620 Contact Us For Availability

3

O RING 9X6X2 (PKT 10) FPA 574147P Contact Us For Availability

3

WARMER ELEMENT FPA 577090 Contact Us For Availability

4

556634P Fisher & Paykel Cooking Screw, St 7x3 Backorder FPA 556634P $20.13

4

574281 Fisher & Paykel Cooking Grill Element Backorder FPA 574281 $6.20

4

574724P Fisher & Paykel Cooking Glass Door Mi Backorder FPA 574724P $194.46

4

ROCKER LOCK FPA 574743 Contact Us For Availability

4

RACK WARMING DRAWER FPA 577055 Contact Us For Availability

5

577068P Fisher & Paykel Range Inner Door Glas In Stock FPA 577068P $127.22

5

577087 Fisher & Paykel Range Element Backorder FPA 577087 $107.01

5

ROD ACTUATOR FPA 575872 Contact Us For Availability

5

WASHER (PKT 10) FPA 577000P Contact Us For Availability

6

575880 Fisher & Paykel Dishwasher Switch Backorder FPA 575880 $8.99

6

577088 Fisher & Paykel Range Fan Element 30 In Stock FPA 577088 $36.09

6

577401P Fisher & Paykel Range Assembly Glass Backorder FPA 577401P $339.35

6

PROGRAMMER 6 BUTTON FPA 577016 Contact Us For Availability

6

GLASS OVEN DOOR FPA 577080P Contact Us For Availability

7

577094 Fisher & Paykel Range Handle Assembly Backorder FPA 577094 $149.84

7

577121 Fisher & Paykel Drawer Front Panel Backorder FPA 577121 $90.70

7

577159 Fisher & Paykel Rear Trim Backorder FPA 577159 $80.42

7

ELEMENT BAKE FPA 577089 Contact Us For Availability

8

575998P Fisher & Paykel Screw Packet (10) Backorder FPA 575998P $6.20

8

577407 Fisher & Paykel Range Power Board G5 Backorder FPA 577407 $506.16

8

PIN PIVOT LOCK OB90 FPA 574807 Contact Us For Availability

8

DRAWER FPA 577123 Contact Us For Availability

8

SPACER RUBBER (PKT 10) FPA 574185P Contact Us For Availability

8

SUPPORT ELEMENT BAKE FPA 574989 Contact Us For Availability

9

545259 Fisher & Paykel Oven Cooking Sensor Te In Stock FPA 545259 $48.00

9

577409 Fisher & Paykel Range Inductor Coil 14 Backorder FPA 577409 $220.49

9

PIN LINKAGE FPA 545827 Contact Us For Availability

9

PANEL INNER DRAWER FPA 577126 Contact Us For Availability

9

GROMMET BRACKET SPACER (PKT 10) FPA 574480P Contact Us For Availability

575906 Fisher & Paykel Range Control Button Backorder FPA 575906 $6.20

577008 Fisher & Paykel Glass Seal Backorder FPA 577008 $73.79

577142 Fisher & Paykel Support Trim Panel Backorder FPA 577142 $41.21

577410 Fisher & Paykel Range 180mm Inductor C Backorder FPA 577410 $220.49

STUD RUNNER OB60 REAR FPA 574544 Contact Us For Availability

573890 Fisher & Paykel Range Foot Backorder FPA 573890 $12.61

574210 Fisher & Paykel Cooking Spacer, Plasti Backorder FPA 574210 $6.31

577009 Fisher & Paykel Range Door Seal Backorder FPA 577009 $130.37

577411 Fisher & Paykel Range 210mm Inductor C Backorder FPA 577411 $220.49

SCREW HANDLE DRAWER M5X10 (PKT 10) FPA 573889P Contact Us For Availability

NUT RUNNER OB60 FRONT FPA 574546 Contact Us For Availability

573965P Fisher & Paykel Range Hobtop Screw Sp Backorder FPA 573965P $26.90

574725 Fisher & Paykel Cooking Hinge Assembly Backorder FPA 574725 $64.85

577412 Fisher & Paykel Range Control Display Backorder FPA 577412 $288.11

RUNNER TELESCOPIC RH SHORT Q3 FPA 577352 Contact Us For Availability

255305 Fisher & Paykel Range Induction Encode Backorder FPA 255305 $62.50

534839 Fisher & Paykel Fan Cooking Backorder FPA 534839 $262.26

BLOCK DOOR LOCK FPA 577070 Contact Us For Availability

RUNNER TELESCOPIC LH SHORT Q3 FPA 577353 Contact Us For Availability

14

577118 Fisher & Paykel Door Panel Frame Backorder FPA 577118 $212.66

14

577408 Fisher & Paykel Range G5 Filter Backorder FPA 577408 $376.39

14

SHELF STEP DOWN SHORT FPA 577243 Contact Us For Availability

15

577119 Fisher & Paykel Door Panel Backorder FPA 577119 $115.75

15

STARLOCK WASHER 11.5 X 5X0.2 FPA 546628 Contact Us For Availability

15

RACK GRILL INSERT OB90 FPA 574821P Contact Us For Availability

575657 Fisher & Paykel Range PCB EGO Backorder FPA 575657 $6.81

577145 Fisher & Paykel Trim Support Left Backorder FPA 577145 $30.82

577242 Fisher & Paykel Short Flat Shelf Backorder FPA 577242 $48.81

HOOK FPA 577030 Contact Us For Availability

17

575745 Fisher & Paykel Range Side Rack Backorder FPA 575745 $16.09

17

577146 Fisher & Paykel Trim Support Right Backorder FPA 577146 $30.82

17

RETAINING RING E 2 - 3 FPA 545544 Contact Us For Availability

18

544455P Fisher & Paykel Range Bake Tray OB90S Backorder FPA 544455P $75.13

18

574788 Fisher & Paykel Mounting Hook Bracket Backorder FPA 574788 $8.71

18

BRACKET HANDLE FPA 577162 Contact Us For Availability

19

PIN PIVOT HOOK FPA 574789 Contact Us For Availability

20

556640P Fisher & Paykel Range M4 x 6.5 Pan Sc Backorder FPA 556640P $12.15

20

577402 Fisher & Paykel Range Induction Splitt Backorder FPA 577402 $26.02

21

ENCODER TEMP FPA 575907 Contact Us For Availability

21

BRACKET SUPPORT SWITCH FPA 577028 Contact Us For Availability

22

575876P Fisher & Paykel Range Screw M3x30 (Pa Backorder FPA 575876P $7.59

22

ENCODER FUNCTION FPA 575910 Contact Us For Availability

23

575870 Fisher & Paykel Range Door Switch Pin Backorder FPA 575870 $7.50

24

574749 Fisher & Paykel Range Door Sensor Trig Backorder FPA 574749 $6.20

24

581276 Fisher & Paykel Range 240V Energy Regu Backorder FPA 581276 $42.38

25

574815 Fisher & Paykel Range Spring Trigger E Backorder FPA 574815 $6.58

25

575913 Fisher & Paykel Range Function Switch Backorder FPA 575913 $92.78

26

544349P Fisher & Paykel Cooking Control Panel Backorder FPA 544349P $7.72

26

574457 Fisher & Paykel Range Neon Pyro Unit Backorder FPA 574457 $6.31

27

573972 Fisher & Paykel Range Circlip Washer M Backorder FPA 573972 $6.31

28

577018 Fisher & Paykel Switch Backorder FPA 577018 $16.31

31

574767 Fisher & Paykel Range Counter Support Backorder FPA 574767 $7.81

31

575875P Fisher & Paykel Screw M3X15 (Pack of Backorder FPA 575875P $6.81

32

WASHER Ø 3 (PKT 10) FPA 575901P Contact Us For Availability

33

575025 Fisher & Paykel Range Insulation Micro Backorder FPA 575025 $6.31

34

574474 Fisher & Paykel Range Cooling Fan Micr In Stock FPA 574474 $6.20

35

574475 Fisher & Paykel Blade Microswitch Backorder FPA 574475 $6.20

36

577029 Fisher & Paykel Dishwasher Switch Supp Backorder FPA 577029 $9.50

36

577117 Fisher & Paykel Left Side Panel Backorder FPA 577117 $176.26

37

NUT M3 FPA 575862 Contact Us For Availability

41

SHELTER MIDDLE FPA 575860 Contact Us For Availability

42

BRACKET ELEMENT LOWER FPA 574996 Contact Us For Availability

43

FLEX MAINS FPA 575043 Contact Us For Availability

44

WIRING MAIN INDUCTION G5 FPA 577403 Contact Us For Availability

45

PANEL WARMER FPA 577129 Contact Us For Availability

46

PROTECTION LOWER FPA 575856 Contact Us For Availability

47

REFLECTOR GRILL FPA 575918 Contact Us For Availability

48

TRIM REAR FPA 577153 Contact Us For Availability

49

577019 Fisher & Paykel Range Tangential Fan Backorder FPA 577019 $225.49

50

544248 Fisher & Paykel Cooking Fan Bracket Backorder FPA 544248 $6.20

51

577020 Fisher & Paykel Fan Bake Backorder FPA 577020 $93.69

52

MOTOR SUPPORT FPA 574979 Contact Us For Availability

53

575036 Fisher & Paykel Terminal Block Backorder FPA 575036 $6.20

54

574458 Fisher & Paykel Range Pyro Relay OR30/ In Stock FPA 574458 $176.04

55

574339 Fisher & Paykel Cooking Limiter 55°C In Stock FPA 574339 $11.88

56

BRACKET FLEX MAINS FPA 577025 Contact Us For Availability

57

579682P Fisher & Paykel Kit Anti-Tip 30/36 Backorder FPA 579682P $56.73

574132 Fisher & Paykel Clip Limiter Backorder FPA 574132 $6.31

590619 Fisher & Paykel US Range Installation Backorder FPA 590619 $6.20

SCREW ST 6X1/4TAB PAN PH BK (PKT 10) FPA 556639P Contact Us For Availability

BACKGUARD ISL 3X30IN FPA 88667 Contact Us For Availability

BACKGUARD 3X30IN TALL OR30 FPA 88668 Contact Us For Availability

BK USR OR30SDPWIX (FR) FP US CA FPA 590651 Contact Us For Availability

SHT SERVICE & WARR’TY FP USA FPA 590635 Contact Us For Availability

BOOK SERVICE & WARR’TY FP/EL FPA 590256 Contact Us For Availability
