Model Fisher &amp; Paykel OR30SDPWGX1-88659-A Freestanding Range – Common Parts &amp; Diagrams

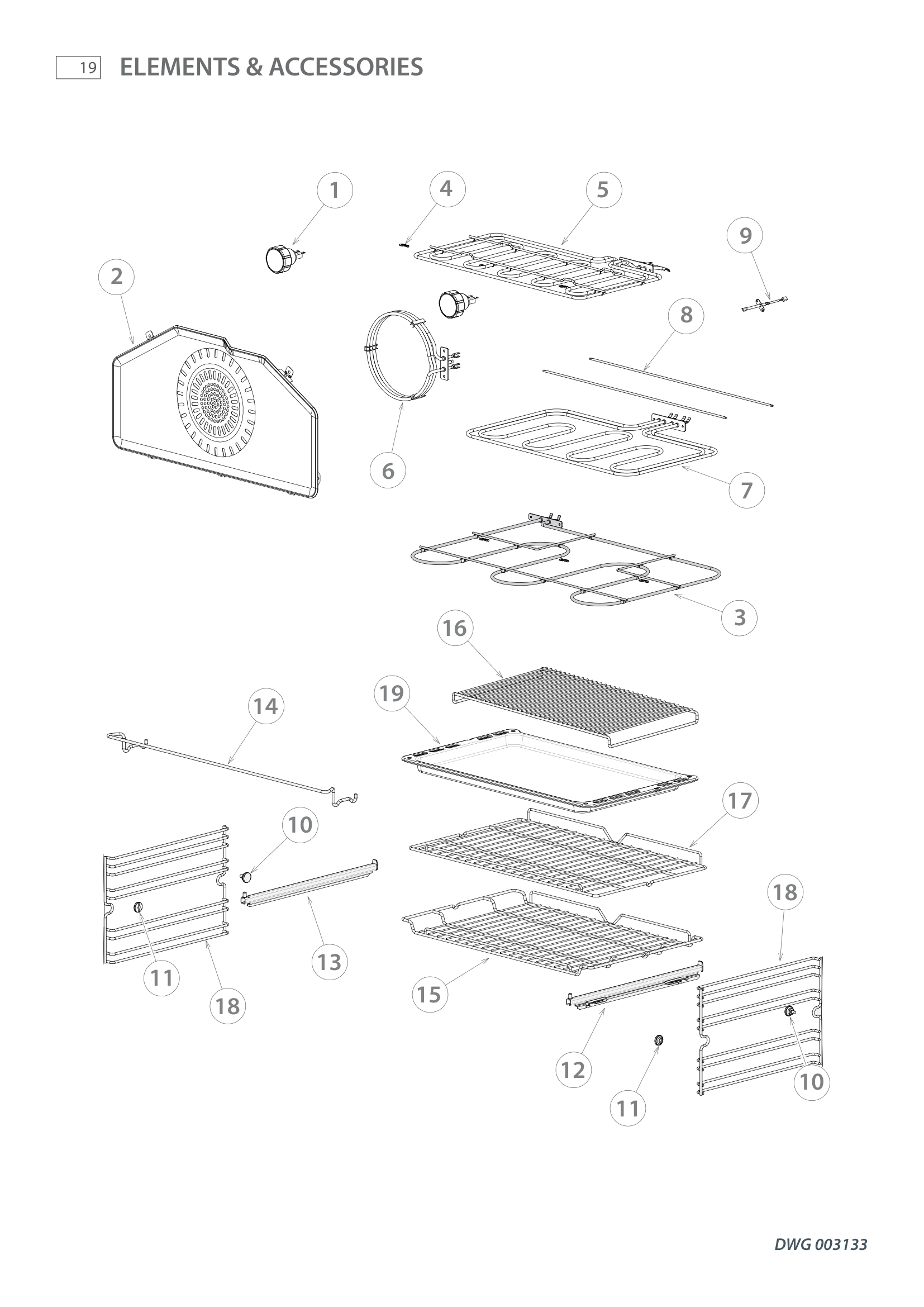

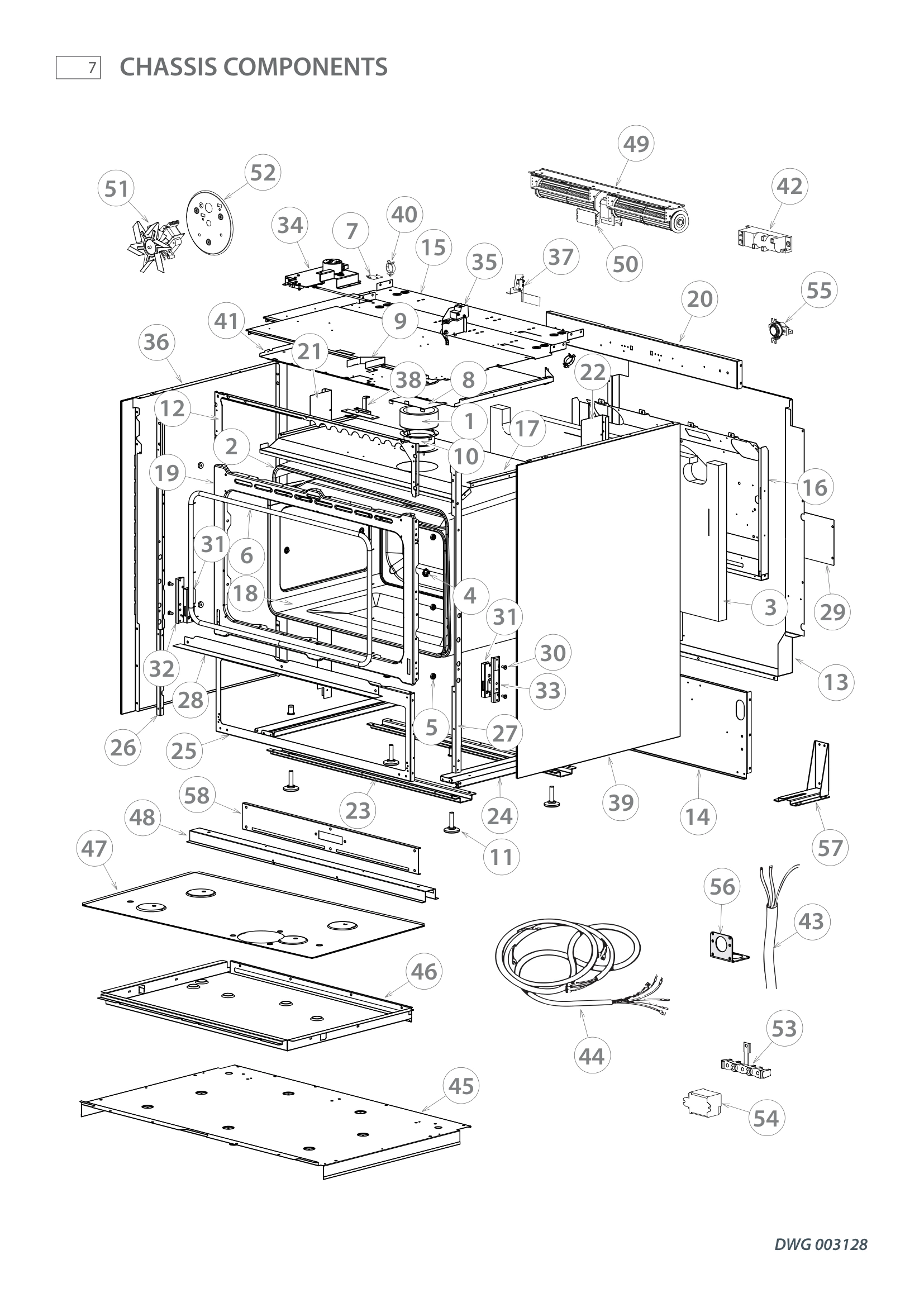

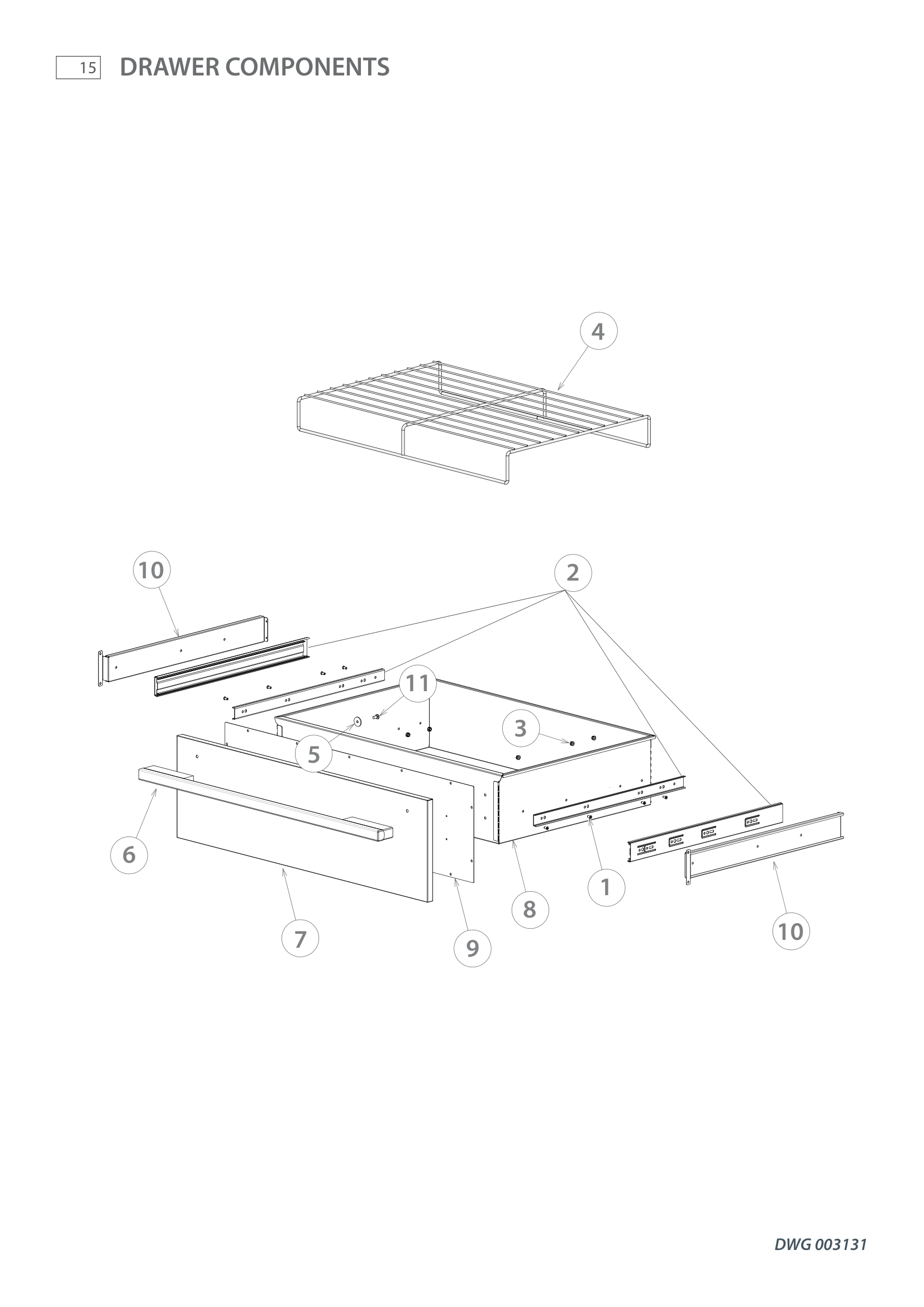

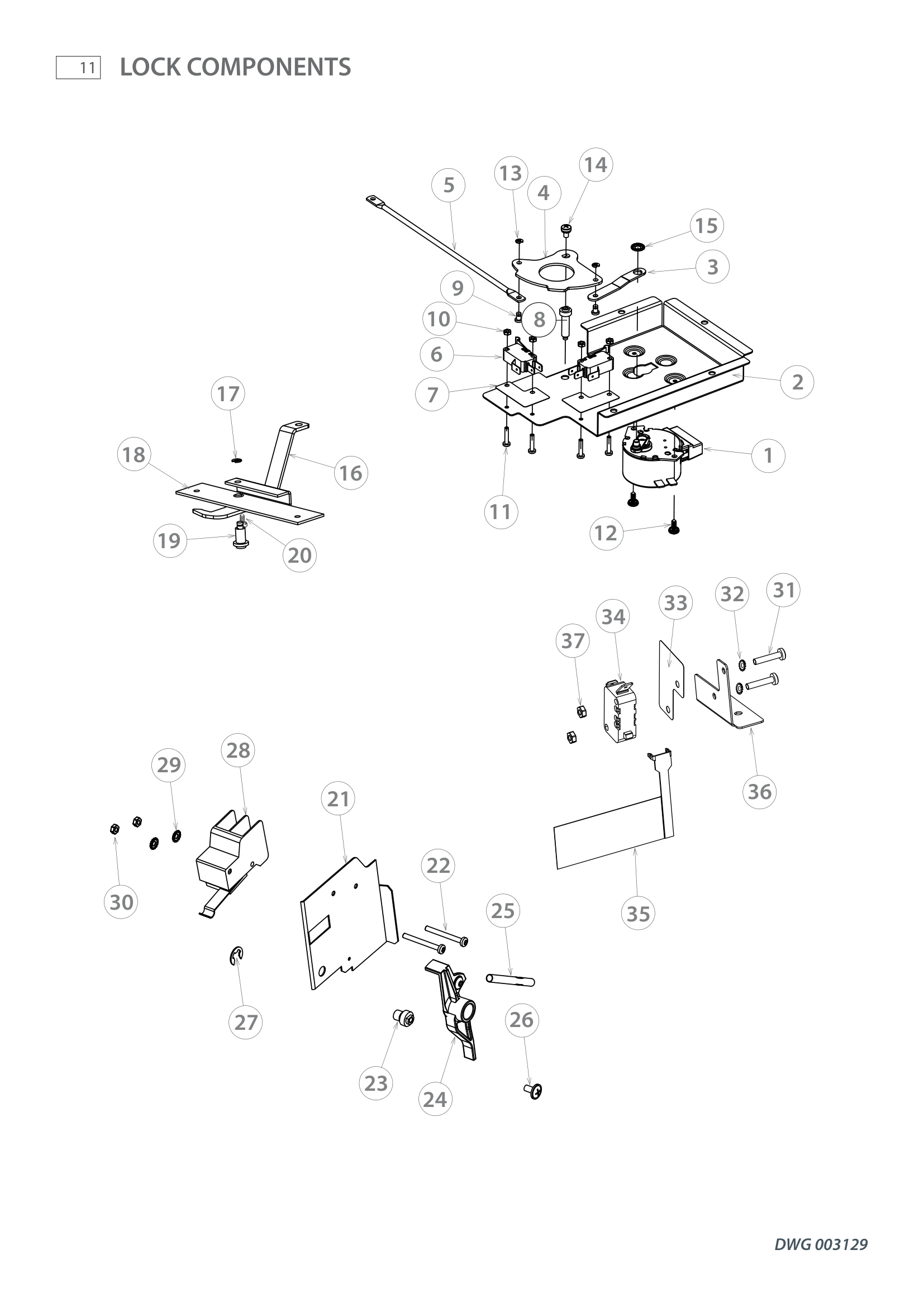

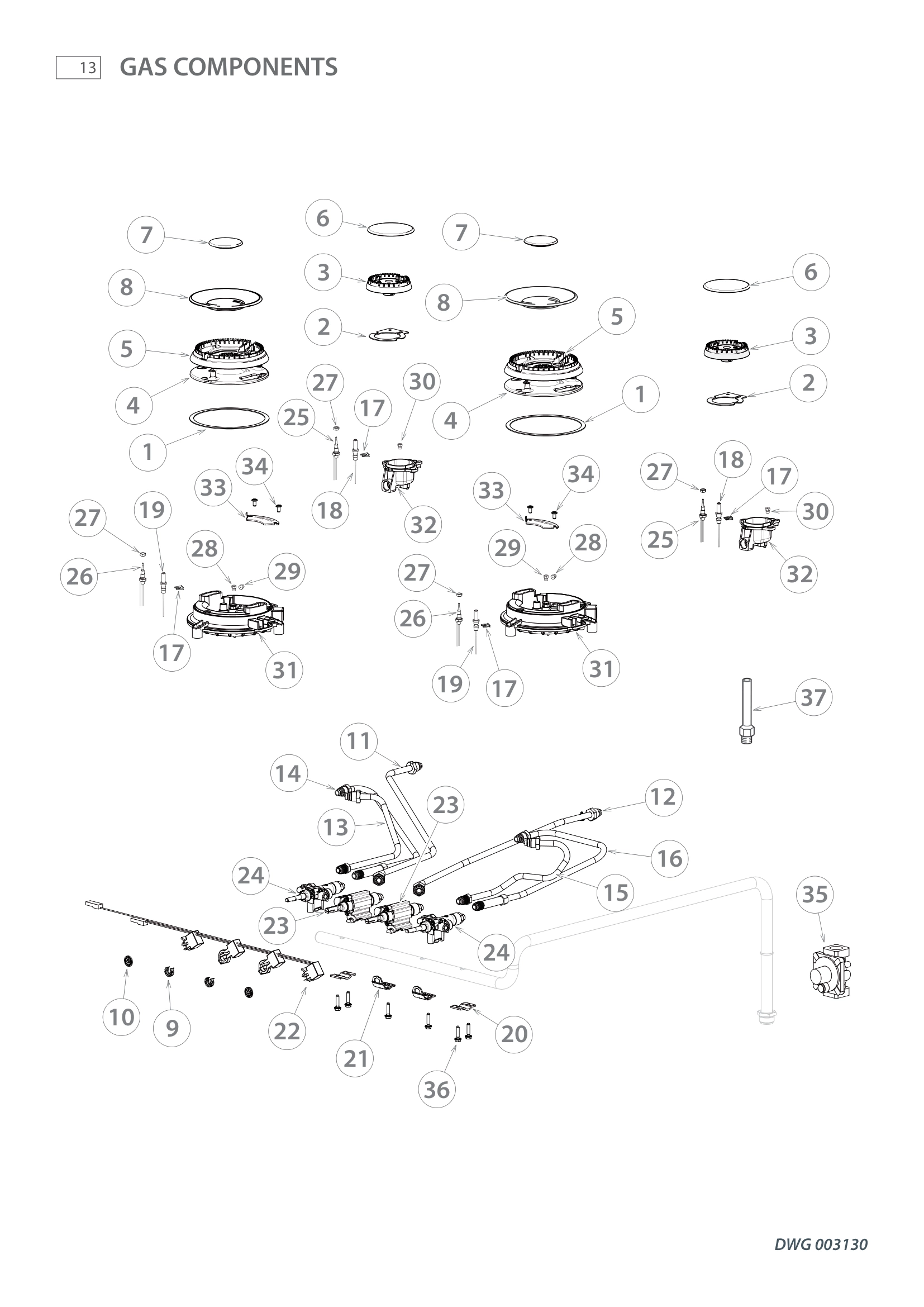

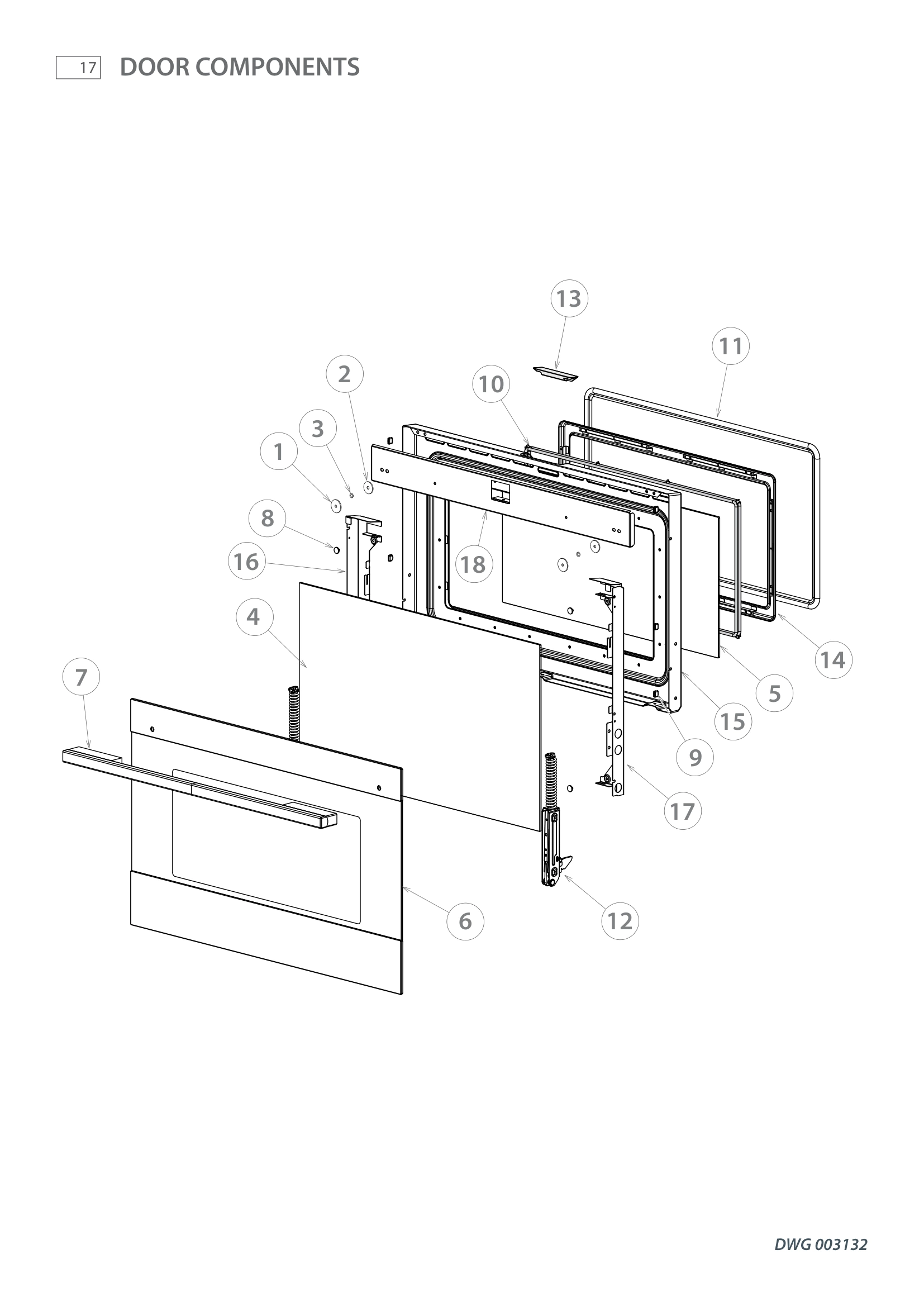

1

575997P Fisher & Paykel Screw Pack (10) Backorder FPA 575997P $6.20

1

577014 Fisher & Paykel Range Lamp Assembly Backorder FPA 577014 $19.54

1

577109 Fisher & Paykel Hob Top Backorder FPA 577109 $219.33

1

WASHER INNER DOOR (PKT 2) FPA 573580P Contact Us For Availability

2

573891 Fisher & Paykel Range Telescopic Rail Backorder FPA 573891 $97.20

2

574207 Fisher & Paykel Red Neon Bezel Backorder FPA 574207 $6.31

2

574292P Fisher & Paykel Cooking Washer M6-24 Backorder FPA 574292P $6.02

2

GASKET BURNER BOWL SR Backorder FPA 575698 $6.31

2

SHROUD FAN Backorder FPA 577139 $79.66

3

556160P Fisher & Paykel Range M4 Nyloc Nut Pa Backorder FPA 556160P $7.17

3

SPREADER BURNER SR FPA 575701 Contact Us For Availability

3

O RING 9X6X2 (PKT 10) FPA 574147P Contact Us For Availability

3

WARMER ELEMENT FPA 577090 Contact Us For Availability

4

574281 Fisher & Paykel Cooking Grill Element Backorder FPA 574281 $6.20

4

574724P Fisher & Paykel Cooking Glass Door Mi Backorder FPA 574724P $194.46

4

ROCKER LOCK Backorder FPA 574743 $15.04

4

BURNER-HEAD INNER FPA 577012 Contact Us For Availability

4

RACK WARMING DRAWER FPA 577055 Contact Us For Availability

5

ROD ACTUATOR Backorder FPA 575872 $13.63

5

WASHER PKT 10 Backorder FPA 577000P $6.20

5

577013 Fisher & Paykel Range Outer Burner Hea Backorder FPA 577013 $39.07

5

577068P Fisher & Paykel Range Inner Door Glas In Stock FPA 577068P $127.22

5

577087 Fisher & Paykel Range Element Backorder FPA 577087 $107.01

5

577093 Fisher & Paykel Rear Trim Backorder FPA 577093 $214.61

6

534262 Fisher & Paykel Cooking Burner Cap Gas Backorder FPA 534262 $6.83

6

575880 Fisher & Paykel Dishwasher Switch Backorder FPA 575880 $8.99

6

577088 Fisher & Paykel Range Fan Element 30 In Stock FPA 577088 $36.09

6

PROGRAMMER 6 BUTTON FPA 577016 Contact Us For Availability

6

GLASS OVEN DOOR FPA 577080P Contact Us For Availability

7

577094 Fisher & Paykel Range Handle Assembly Backorder FPA 577094 $149.84

7

577098 Fisher & Paykel Burner Cap Inner Backorder FPA 577098 $12.63

7

577121 Fisher & Paykel Drawer Front Panel Backorder FPA 577121 $90.70

7

ELEMENT BAKE FPA 577089 Contact Us For Availability

8

PIN PIVOT LOCK OB90 Backorder FPA 574807 $6.20

8

575998P Fisher & Paykel Screw Packet (10) Backorder FPA 575998P $6.20

8

577104 Fisher & Paykel Burner Outer Cap Backorder FPA 577104 $25.75

8

DRAWER FPA 577123 Contact Us For Availability

8

SPACER RUBBER (PKT 10) FPA 574185P Contact Us For Availability

8

SUPPORT ELEMENT BAKE FPA 574989 Contact Us For Availability

9

545259 Fisher & Paykel Oven Cooking Sensor Te In Stock FPA 545259 $52.95

9

575543P Fisher & Paykel Range Circlip Packet Backorder FPA 575543P $10.58

9

PANEL INNER DRAWER Backorder FPA 577126 $27.25

9

PIN LINKAGE FPA 545827 Contact Us For Availability

9

GROMMET BRACKET SPACER (PKT 10) FPA 574480P Contact Us For Availability

STUD RUNNER OB60 REAR Backorder FPA 574544 $14.57

575906 Fisher & Paykel Range Control Button Backorder FPA 575906 $6.20

577001 Fisher & Paykel Retaining Ring Backorder FPA 577001 $6.20

577008 Fisher & Paykel Glass Seal Backorder FPA 577008 $73.79

577142 Fisher & Paykel Support Trim Panel Backorder FPA 577142 $41.21

573890 Fisher & Paykel Range Foot Backorder FPA 573890 $12.61

577009 Fisher & Paykel Range Door Seal Backorder FPA 577009 $130.37

TUBE NUT ASSY SR RL FPA 577060 Contact Us For Availability

SCREW HANDLE DRAWER M5X10 (PKT 10) FPA 573889P Contact Us For Availability

NUT RUNNER OB60 FRONT FPA 574546 Contact Us For Availability

573965P Fisher & Paykel Range Hobtop Screw Sp Backorder FPA 573965P $26.90

574725 Fisher & Paykel Cooking Hinge Assembly Backorder FPA 574725 $64.85

TUBE NUT ASSY SR RR Backorder FPA 577061 $7.48

577100 Fisher & Paykel Single Valve Knob Backorder FPA 577100 $85.40

BRACKET MANIFOLD EXTENSION FPA 575081 Contact Us For Availability

RUNNER TELESCOPIC RH SHORT FPA 577240 Contact Us For Availability

575052 Fisher & Paykel Range Gas Inlet Adapte In Stock FPA 575052 $9.83

TUBE NUT ASSY DUAL INNER FL Backorder FPA 577062 $6.81

BLOCK DOOR LOCK Backorder FPA 577070 $45.09

577106 Fisher & Paykel Dual Valve Knob Backorder FPA 577106 $85.40

RUNNER TELESCOPIC LH SHORT FPA 577241 Contact Us For Availability

533119P Fisher & Paykel Washer Elbow Cooking In Stock FPA 533119P $21.52

577118 Fisher & Paykel Door Panel Frame Backorder FPA 577118 $212.66

TUBE NUT ASSY DUAL OUTER FL FPA 577063 Contact Us For Availability

GUARD FRONT FPA 577071 Contact Us For Availability

573584 Fisher & Paykel Range Connection NG Backorder FPA 573584 $7.37

577064 Fisher & Paykel Refrigerator Dual Inne Backorder FPA 577064 $7.59

577119 Fisher & Paykel Door Panel Backorder FPA 577119 $115.75

STARLOCK WASHER 11.5 X 5X0.2 FPA 546628 Contact Us For Availability

SHELF STEP DOWN SHORT FPA 577243 Contact Us For Availability

577065 Fisher & Paykel Dual Outer Tube Nut As Backorder FPA 577065 $7.72

577082 Fisher & Paykel Inlet Pipe Extension 3 Backorder FPA 577082 $27.36

577145 Fisher & Paykel Trim Support Left Backorder FPA 577145 $30.82

HOOK FPA 577030 Contact Us For Availability

RACK GRILL INSERT OB90 FPA 574821P Contact Us For Availability

534369 Fisher & Paykel Range Electrode Spring Backorder FPA 534369 $6.31

577146 Fisher & Paykel Trim Support Right Backorder FPA 577146 $30.82

577242 Fisher & Paykel Short Flat Shelf Backorder FPA 577242 $48.81

RETAINING RING E 2 - 3 FPA 545544 Contact Us For Availability

574788 Fisher & Paykel Mounting Hook Bracket Backorder FPA 574788 $8.71

575721 Fisher & Paykel Range Left Electrode S Backorder FPA 575721 $6.31

575745 Fisher & Paykel Range Side Rack Backorder FPA 575745 $16.09

BRACKET HANDLE FPA 577162 Contact Us For Availability

544455P Fisher & Paykel Range Bake Tray OB90S Backorder FPA 544455P $75.13

556634P Fisher & Paykel Cooking Screw, St 7x3 Backorder FPA 556634P $20.13

577023 Fisher & Paykel Range Dual Electrode L Backorder FPA 577023 $14.48

PIN PIVOT HOOK FPA 574789 Contact Us For Availability

20

556640P Fisher & Paykel Range M4 x 6.5 Pan Sc Backorder FPA 556640P $12.15

20

BRACKET FPA 577024 Contact Us For Availability

21

BRACKET GASCOCK FFD Backorder FPA 575523 $6.31

21

ENCODER TEMP FPA 575907 Contact Us For Availability

21

BRACKET SUPPORT SWITCH FPA 577028 Contact Us For Availability

22

575876P Fisher & Paykel Range Screw M3x30 (Pa Backorder FPA 575876P $7.59

22

577069 Fisher & Paykel Ignition Switches Backorder FPA 577069 $26.13

22

ENCODER FUNCTION FPA 575910 Contact Us For Availability

23

574210 Fisher & Paykel Cooking Spacer, Plasti Backorder FPA 574210 $6.31

23

575870 Fisher & Paykel Range Door Switch Pin Backorder FPA 575870 $7.06

23

577200 Fisher & Paykel Range Valve Assembly 0 Backorder FPA 577200 $50.16

24

574749 Fisher & Paykel Range Door Sensor Trig Backorder FPA 574749 $6.20

24

577050 Fisher & Paykel Dual Gascock X 0.33 Backorder FPA 577050 $159.01

24

581276 Fisher & Paykel Range 240V Energy Regu In Stock FPA 581276 $42.38

25

574815 Fisher & Paykel Range Spring Trigger E Backorder FPA 574815 $6.20

25

575717 Fisher & Paykel Range Thermocouple Ass Backorder FPA 575717 $11.97

25

575913 Fisher & Paykel Range Function Switch Backorder FPA 575913 $92.78

26

544349P Fisher & Paykel Cooking Control Panel Backorder FPA 544349P $7.72

26

574457 Fisher & Paykel Range Neon Pyro Unit Backorder FPA 574457 $6.31

26

577051 Fisher & Paykel Thermocouple Dual L.45 Backorder FPA 577051 $19.07

27

573972 Fisher & Paykel Range Circlip Washer M Backorder FPA 573972 $6.31

27

NUT THERMOCOUPLE FPA 534366 Contact Us For Availability

28

577018 Fisher & Paykel Switch Backorder FPA 577018 $16.31

28

577044 Fisher & Paykel Dual Outer Injector 2. Backorder FPA 577044 $6.31

29

575926 Fisher & Paykel Range Injector 070 Backorder FPA 575926 $6.02

30

577043 Fisher & Paykel Injector 1.39 SR Backorder FPA 577043 $6.20

31

574767 Fisher & Paykel Range Counter Support Backorder FPA 574767 $7.81

31

575875P Fisher & Paykel Screw M3X15 (Pack of Backorder FPA 575875P $6.81

31

577052 Fisher & Paykel Dual Burner Bowl Backorder FPA 577052 $108.19

32

534355 Fisher & Paykel Burner Bowl Standard Backorder FPA 534355 $7.34

32

WASHER ø 3 (PKT 10) FPA 575901P Contact Us For Availability

33

575025 Fisher & Paykel Range Insulation Micro Backorder FPA 575025 $6.31

33

BRACKET AIR FPA 577072 Contact Us For Availability

34

574474 Fisher & Paykel Range Cooling Fan Micr Backorder FPA 574474 $6.20

34

575999P Fisher & Paykel Screw Packet (10) Backorder FPA 575999P $6.31

35

574475 Fisher & Paykel Blade Microswitch Backorder FPA 574475 $6.20

35

575142 Fisher & Paykel Range 1/2" NG Regulato Backorder FPA 575142 $69.58

36

SCREW BRACKET GASCOCK PKT10 Backorder FPA 575525P $7.16

36

577029 Fisher & Paykel Dishwasher Switch Supp Backorder FPA 577029 $9.50

36

577117 Fisher & Paykel Left Side Panel Backorder FPA 577117 $176.26

37

575336 Fisher & Paykel Oven/Range Test Point Backorder FPA 575336 $8.53

37

NUT M3 FPA 575862 Contact Us For Availability

49

577019 Fisher & Paykel Range Tangential Fan Backorder FPA 577019 $225.49

51

577020 Fisher & Paykel Fan Bake Backorder FPA 577020 $93.69

53

575036 Fisher & Paykel Terminal Block Backorder FPA 575036 $6.20

54

574458 Fisher & Paykel Range Pyro Relay OR30/ In Stock FPA 574458 $176.04

55

544250 Fisher & Paykel Range Thermodisc 60°F Backorder FPA 544250 $36.23

NI

KIT CONVERSION LPG Backorder FPA 577091 $16.63

NI

590598 Fisher & Paykel Installation OR30SDPWG Backorder FPA 590598 $7.81

NI

BOOK USR OR30 FP US CA FPA 590583 Contact Us For Availability
