Model Fisher &amp; Paykel OR30SCG6B1-81318-A Freestanding Range – Common Parts &amp; Diagrams

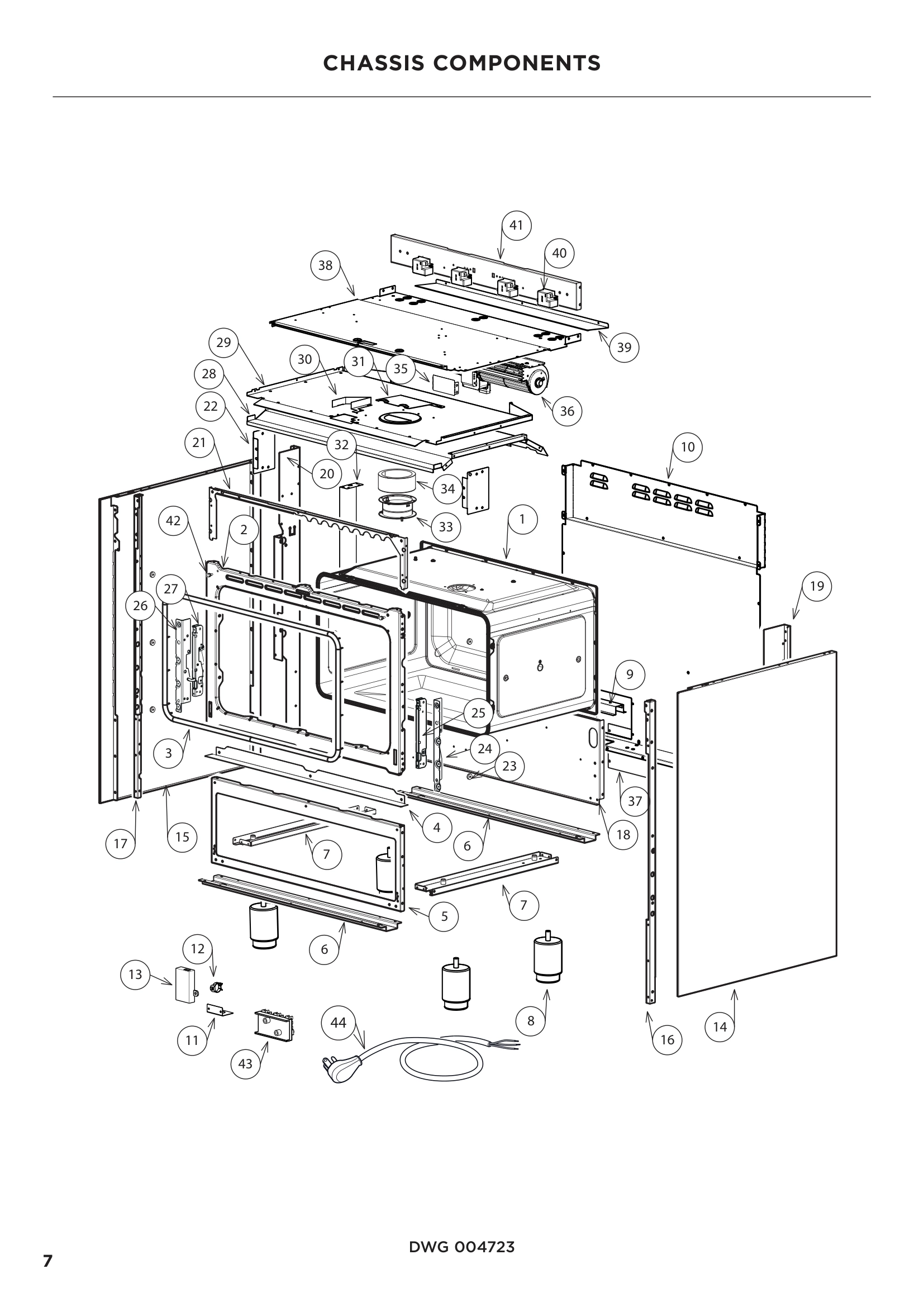

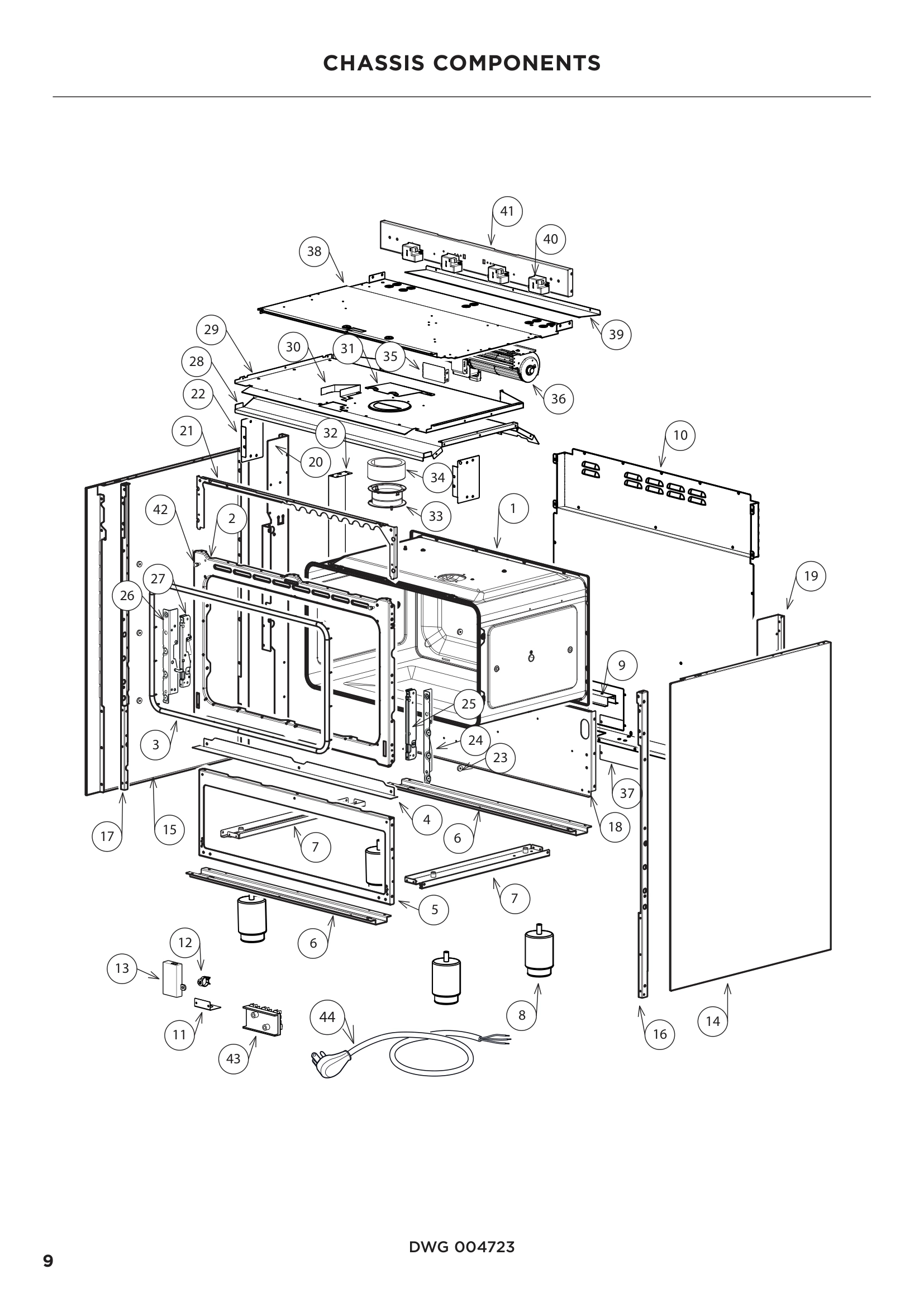

1

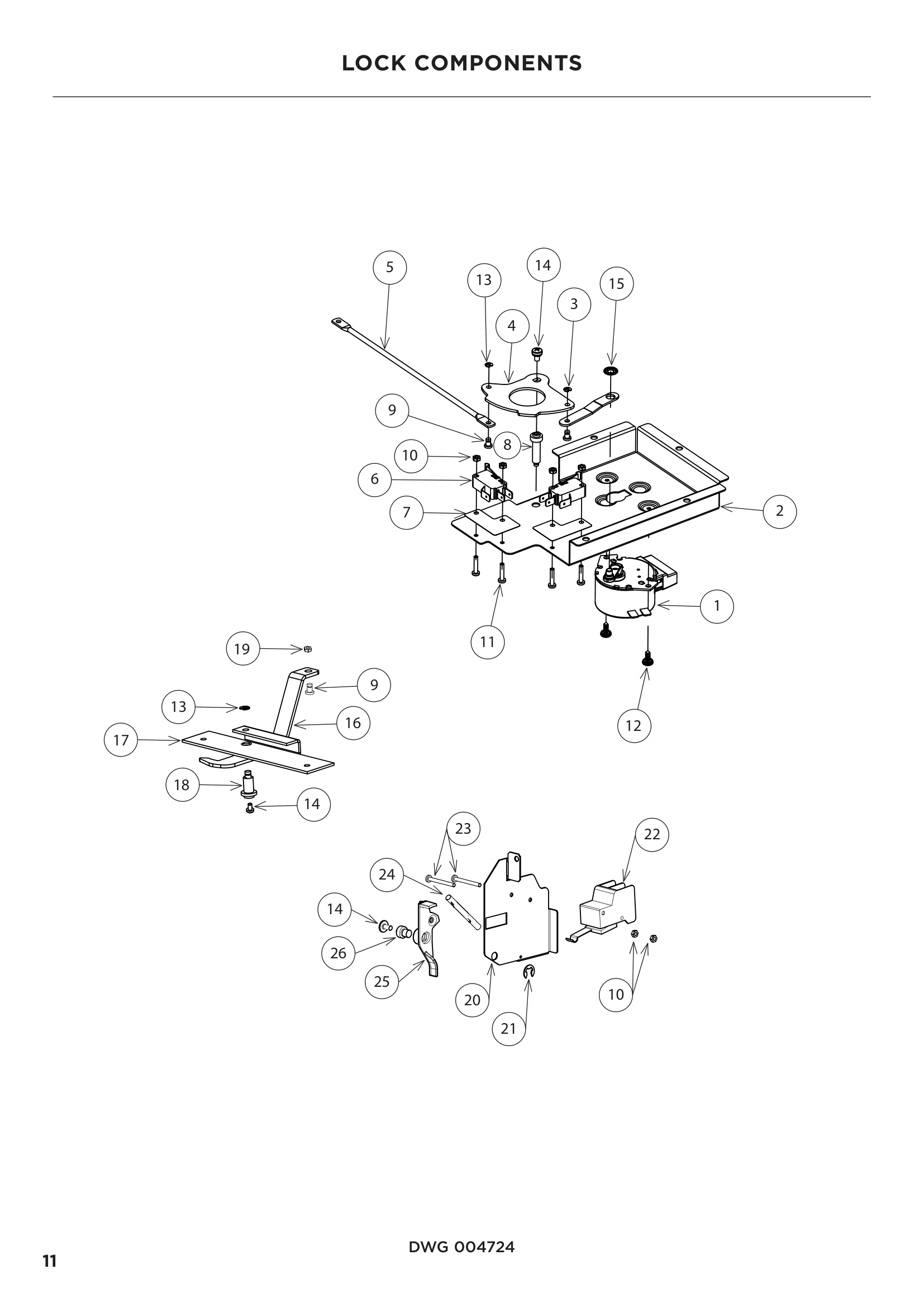

578894 Fisher & Paykel Range Motor Lock Backorder FPA 578894 $41.21

1

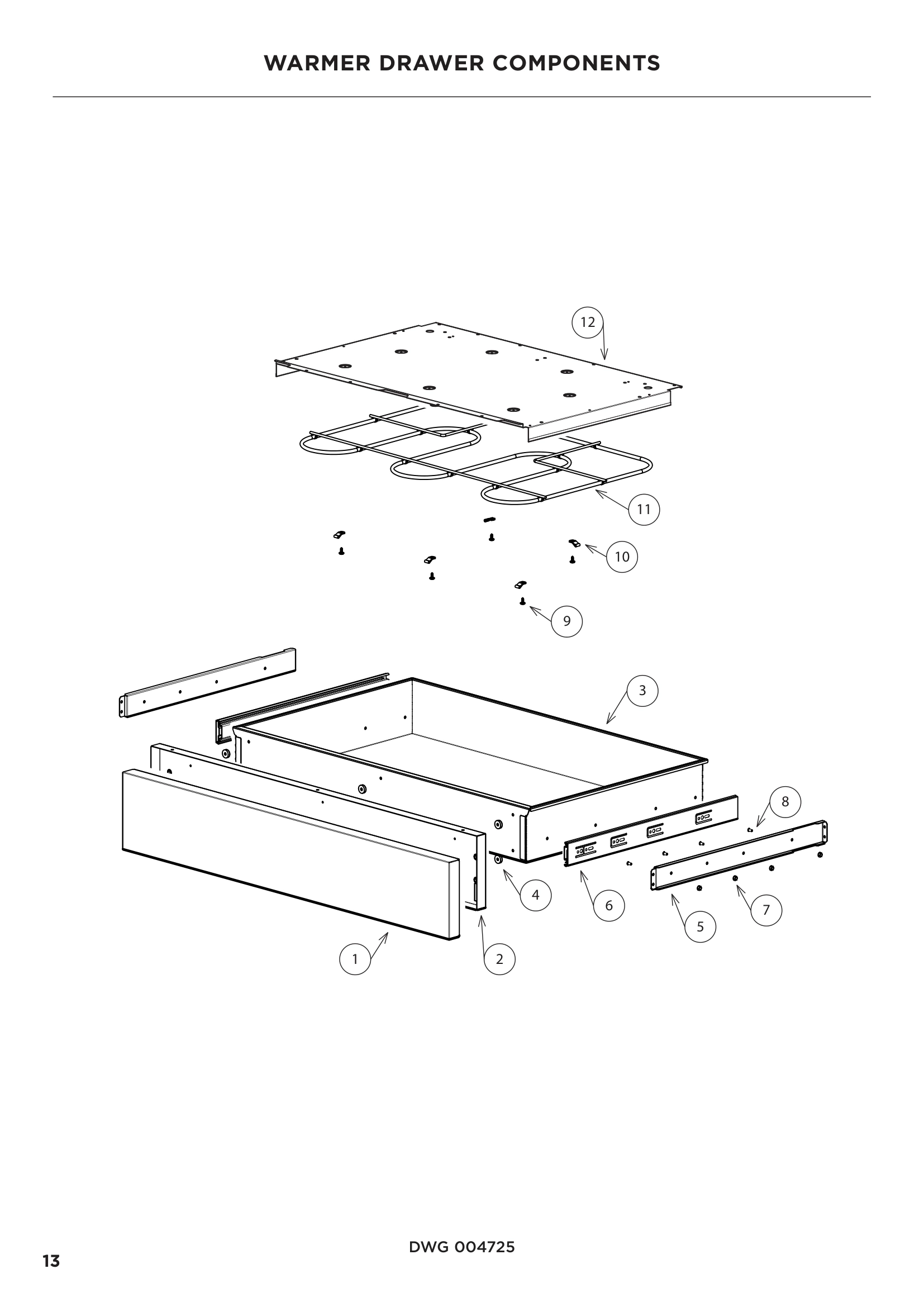

PANEL DRAWER FRONT BLACK FPA 578825 Contact Us For Availability

1

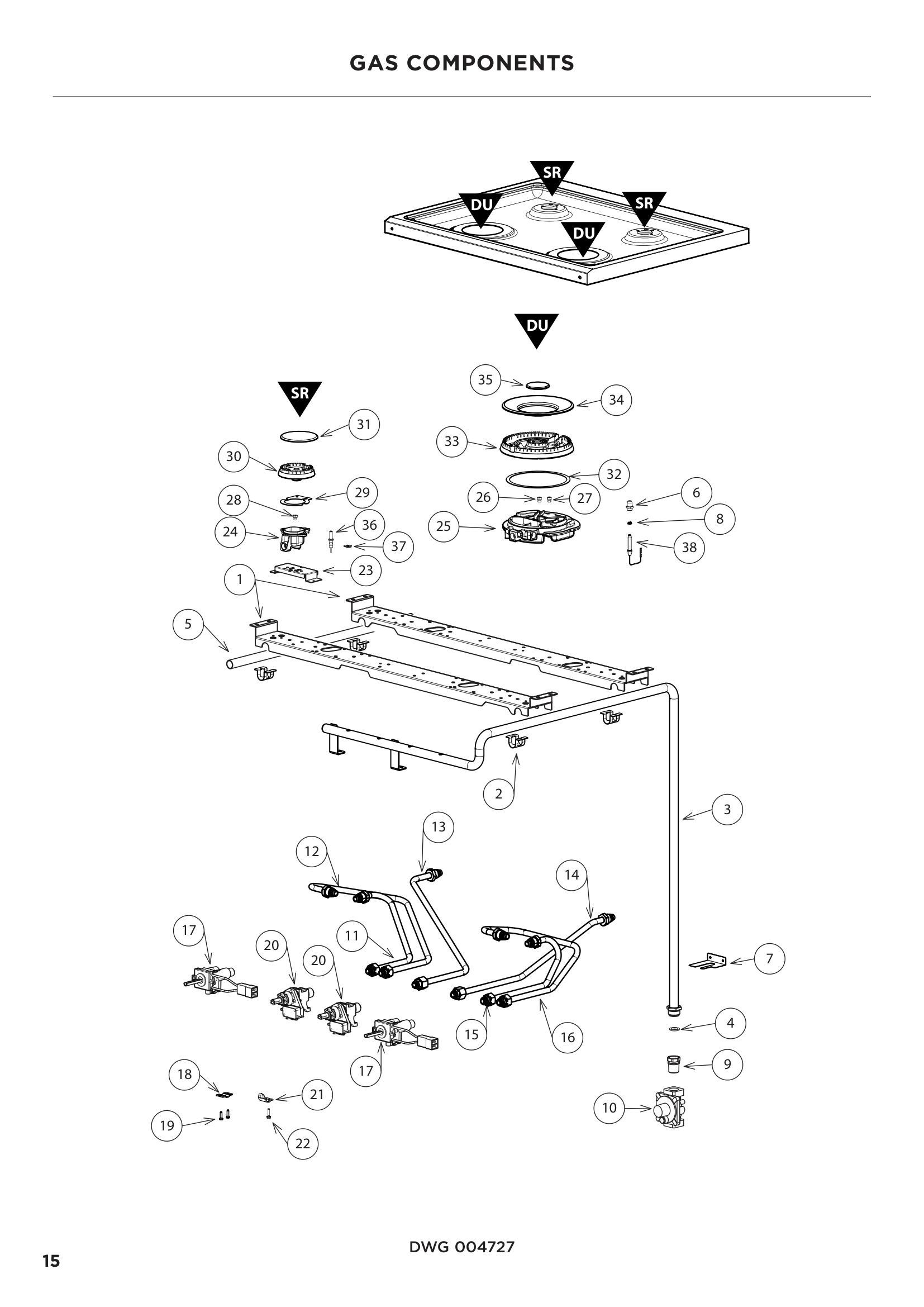

SUPPORT BURNER FPA 577143 Contact Us For Availability

1

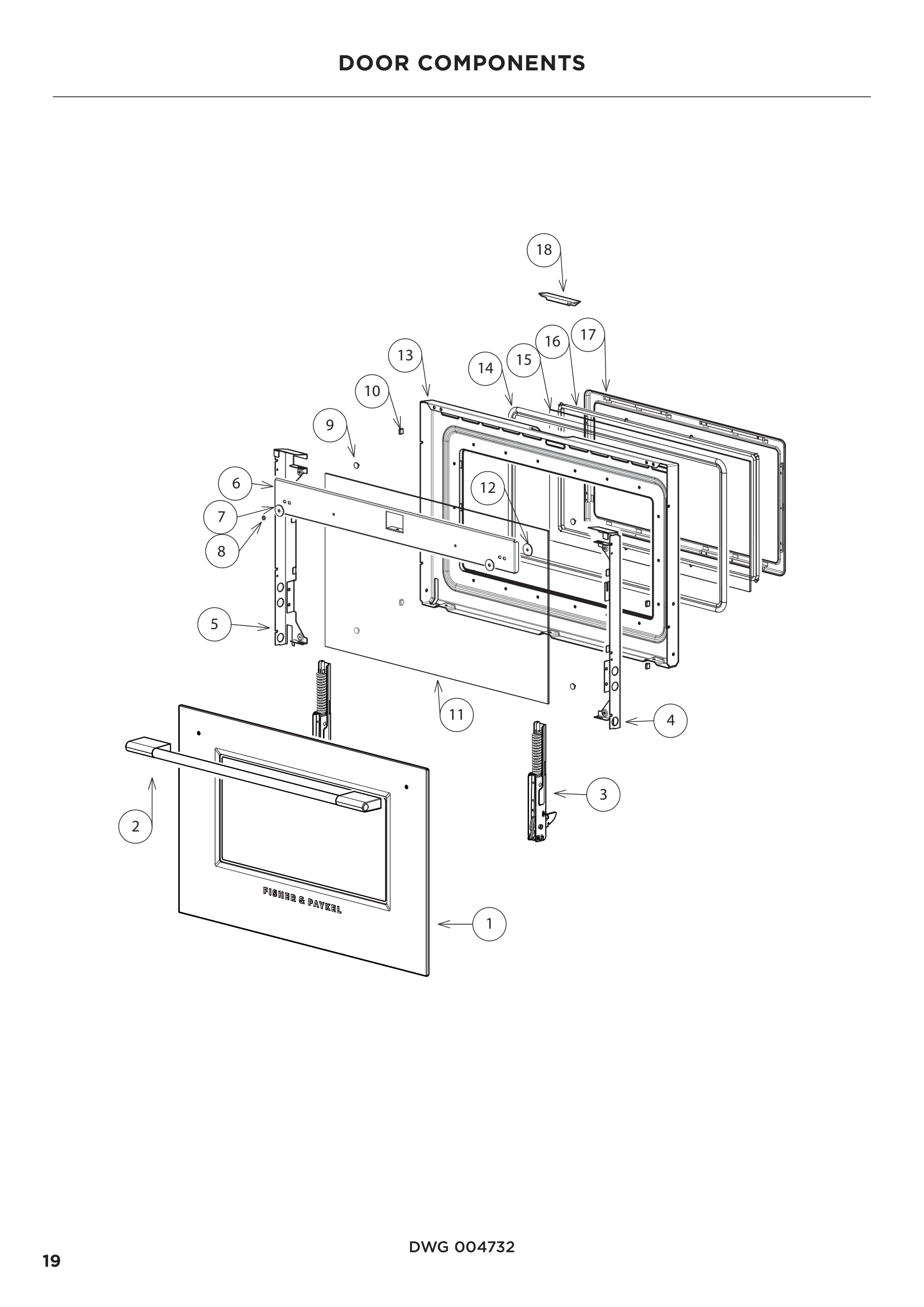

OUTER DOOR ASSY CL 30 BLACK SP FPA 578336 Contact Us For Availability

1

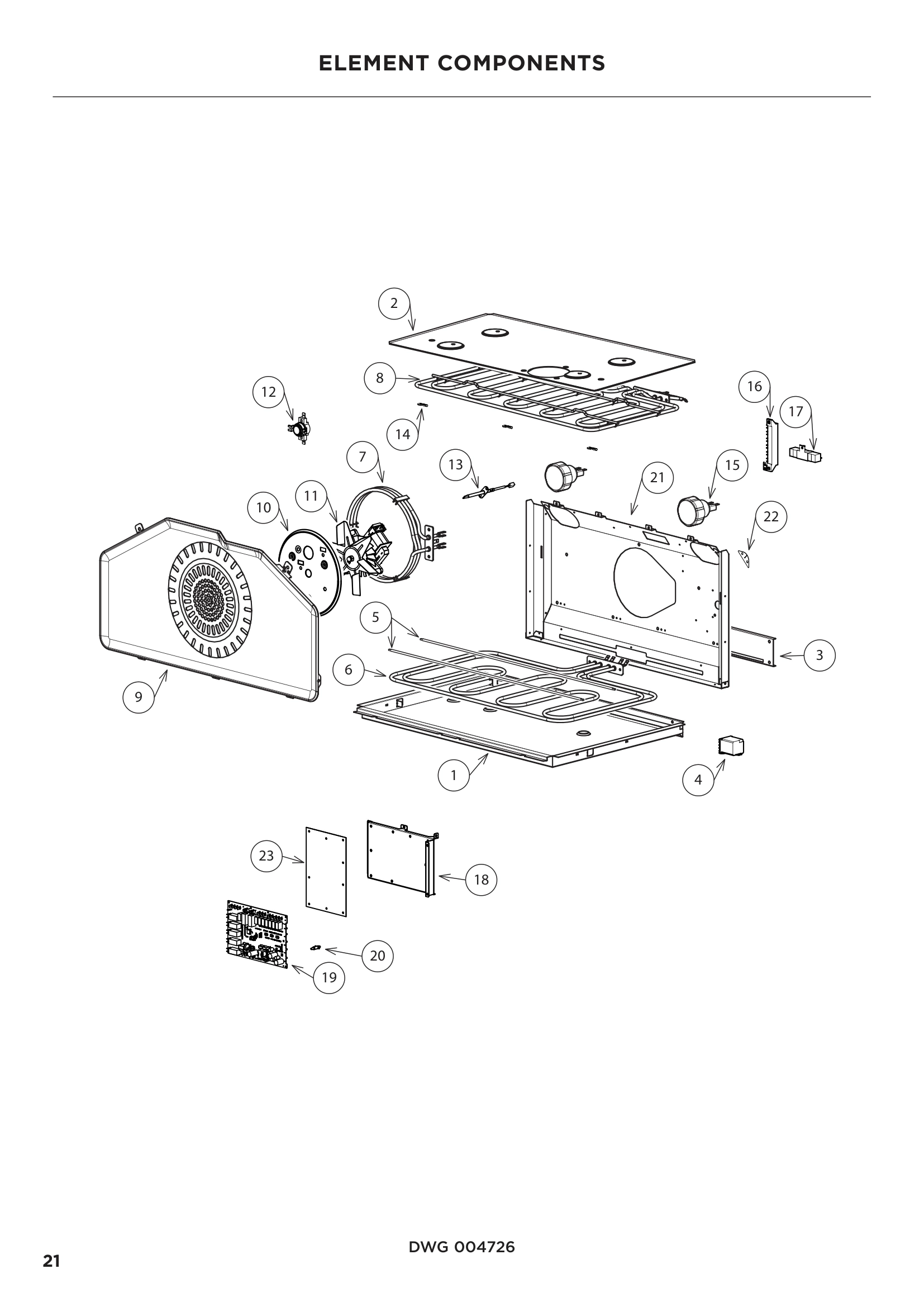

PANEL ELEMENT BAKE FPA 575856 Contact Us For Availability

2

578773 Fisher & Paykel Range Drawer Slide Pan Backorder FPA 578773 $55.37

2

578891P Fisher & Paykel Range Side Runner Nut Backorder FPA 578891P $46.34

2

578923 Fisher & Paykel Range Island Trim 30 P Backorder FPA 578923 $145.50

2

BRACKET SUPPORT OR90 FPA 575828 Contact Us For Availability

2

BRACKET FIXING FPA 575824 Contact Us For Availability

2

HANDLE ASSY OR30 CLASSIC FPA 578127 Contact Us For Availability

2

REFLECTOR GRILL FPA 575918 Contact Us For Availability

3

578774 Fisher & Paykel Range Drawer 30 Backorder FPA 578774 $219.17

3

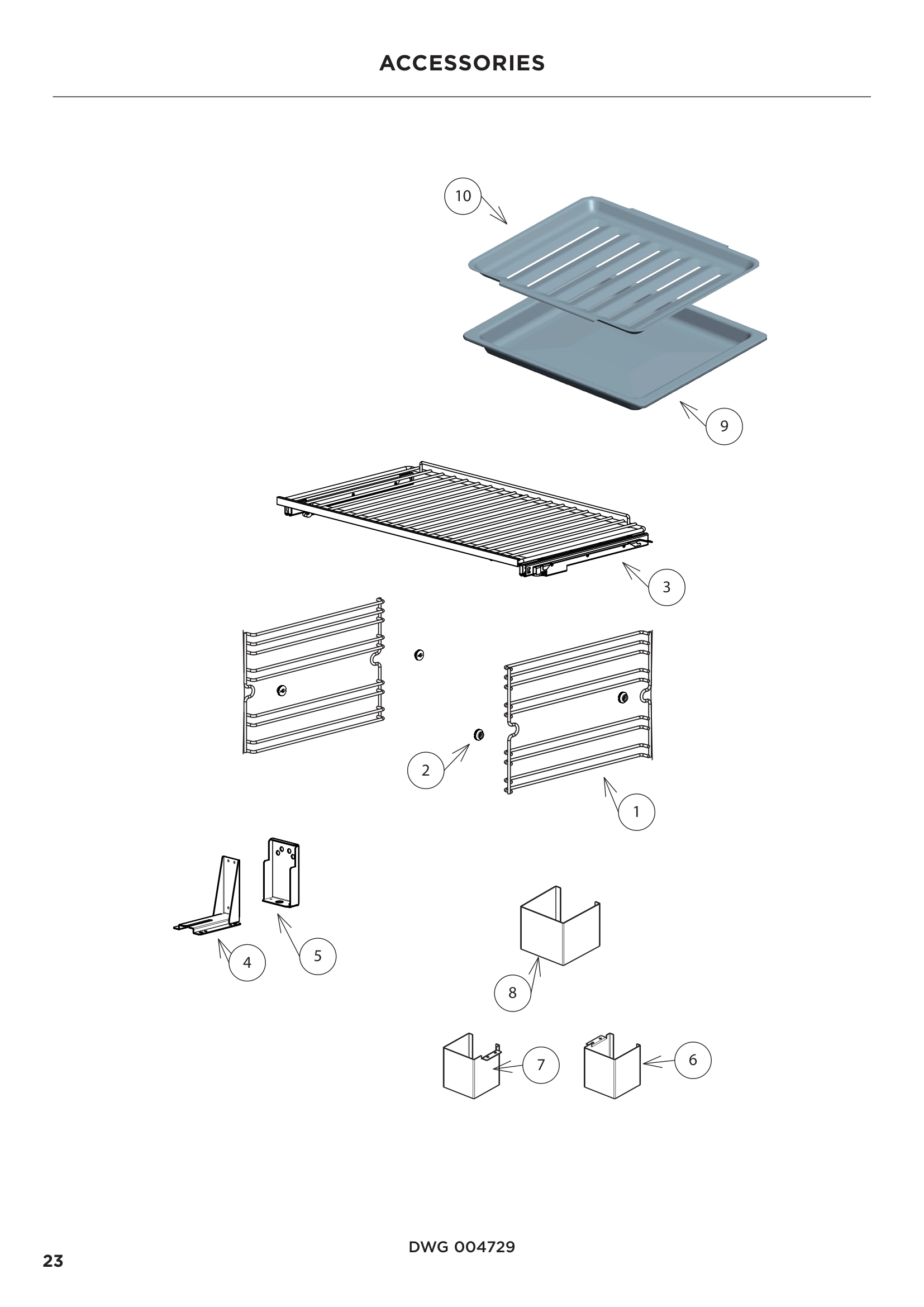

578776 Fisher & Paykel Range Sliding Shelf As Backorder FPA 578776 $197.03

3

578834 Fisher & Paykel Range Soft Close Pyro In Stock FPA 578834 $43.88

3

578936 Fisher & Paykel Range Manifold Backorder FPA 578936 $77.40

3

LINKAGE LOCK ACTUATOR FPA 546620 Contact Us For Availability

3

PANEL SUPPORT OB90 PYRO FPA 574996 Contact Us For Availability

4

533119P Fisher & Paykel Washer Elbow Cooking In Stock FPA 533119P $21.52

4

574458 Fisher & Paykel Range Pyro Relay OR30/ In Stock FPA 574458 $176.04

4

578527 Fisher & Paykel Range Trivet OR30 CL4 Backorder FPA 578527 $161.96

4

579682P Fisher & Paykel Kit Anti-Tip 30/36 Backorder FPA 579682P $56.73

4

ROCKER LOCK FPA 574743 Contact Us For Availability

4

SPACER CLSC FPA 578719 Contact Us For Availability

4

BRACKET GLASS INNER RH FPA 578769 Contact Us For Availability

5

578775 Fisher & Paykel Range Drawer Slide Bra Backorder FPA 578775 $29.59

5

ROD ACTUATOR FPA 575872 Contact Us For Availability

5

PIPE ANCHORAGE FPA 575211 Contact Us For Availability

5

BRACKET GLASS INNER LH FPA 578770 Contact Us For Availability

5

ELEMENT SUPPORT FPA 574989 Contact Us For Availability

6

551169 Fisher & Paykel Range Cherry Switch D4 In Stock FPA 551169 $26.66

6

562423 Fisher & Paykel Cooking Neon Adapter D Backorder FPA 562423 $6.31

6

573891 Fisher & Paykel Range Telescopic Rail Backorder FPA 573891 $97.20

6

578938 Fisher & Paykel Range Bake Element Backorder FPA 578938 $50.40

6

NUT ELECTRODE DUAL FPA 534368 Contact Us For Availability

6

BRACKET HANDLE FPA 577162 Contact Us For Availability

6

COVER OUTER 30 R US FPA 578216 Contact Us For Availability

7

556160P Fisher & Paykel Range M4 Nyloc Nut Pa Backorder FPA 556160P $7.17

7

574457 Fisher & Paykel Range Neon Pyro Unit Backorder FPA 574457 $6.31

7

575025 Fisher & Paykel Range Insulation Micro Backorder FPA 575025 $6.31

7

577088 Fisher & Paykel Range Fan Element 30 In Stock FPA 577088 $36.09

7

BRACKET FPA 578786 Contact Us For Availability

7

WASHER INNER DOOR (PKT 2) FPA 573580P Contact Us For Availability

7

COVER OUTER 30 L US FPA 578215 Contact Us For Availability

8

575997P Fisher & Paykel Screw Pack (10) Backorder FPA 575997P $6.20

8

577087 Fisher & Paykel Range Element Backorder FPA 577087 $107.01

8

578257P-includeCORE Fisher & Paykel 578257P R Backorder FPA 578257P-includeCORE $207.11

8

PIN PIVOT LOCK OB90 FPA 574807 Contact Us For Availability

8

SPRING FIX ELECTRODE DUAL FPA 534370 Contact Us For Availability

8

O RING 9X6X2 FPA 574147 Contact Us For Availability

8

COVER INNER FPA 578207 Contact Us For Availability

9

544453 Fisher & Paykel Range Shroud Fan Assem Backorder FPA 544453 $67.89

9

556634P Fisher & Paykel Cooking Screw, St 7x3 Backorder FPA 556634P $20.13

9

575052 Fisher & Paykel Range Gas Inlet Adapte In Stock FPA 575052 $9.83

9

PIN BRACKET MTG FPA 578895 Contact Us For Availability

9

SPACER RUBBER PKT7 FPA 574185P Contact Us For Availability

9

DISH DEEP OB60C COATED FPA 562359 Contact Us For Availability

575142 Fisher & Paykel Range 1/2" NG Regulato Backorder FPA 575142 $69.58

GROMMET DOOR BRACKET PKT10 FPA 574480P Contact Us For Availability

MOTOR SUPPORT ASSY FPA 574979 Contact Us For Availability

GRID GRILL OB60C COATED FPA 562360 Contact Us For Availability

574724P Fisher & Paykel Cooking Glass Door Mi Backorder FPA 574724P $194.46

575875P Fisher & Paykel Screw M3X15 (Pack of Backorder FPA 575875P $6.81

577020 Fisher & Paykel Fan Bake Backorder FPA 577020 $93.69

577315 Fisher & Paykel Range Warmer Element In Stock FPA 577315 $72.58

578232 Fisher & Paykel Range Encoder Adapter In Stock FPA 578232 $6.31

PIPE INLET DU LH INNER FPA 578787 Contact Us For Availability

544250 Fisher & Paykel Range Thermodisc 60°F Backorder FPA 544250 $36.23

573965P Fisher & Paykel Range Hobtop Screw Sp Backorder FPA 573965P $26.90

PANEL WARMER FPA 577129 Contact Us For Availability

PIPE INLET DU LH OUTER FPA 578788 Contact Us For Availability

WASHER (PKT 2) FPA 578768P Contact Us For Availability

545259 Fisher & Paykel Oven Cooking Sensor Te In Stock FPA 545259 $48.00

578937 Fisher & Paykel Range Door Panel 30" P Backorder FPA 578937 $171.75

RETAINING RING E2-3 PKT 10 FPA 545544P Contact Us For Availability

PIPE INLET SR LH FPA 578789 Contact Us For Availability

556640P Fisher & Paykel Range M4 x 6.5 Pan Sc Backorder FPA 556640P $12.15

574281 Fisher & Paykel Cooking Grill Element Backorder FPA 574281 $6.20

577009 Fisher & Paykel Range Door Seal Backorder FPA 577009 $130.37

578225P Fisher & Paykel Cooking Tft Dial Enco Backorder FPA 578225P $7.01

PIPE INLET SR RH FPA 578790 Contact Us For Availability

577068P Fisher & Paykel Range Inner Door Glas In Stock FPA 577068P $127.22

578755 Fisher & Paykel Range Button Stem Asse Backorder FPA 578755 $14.84

578784 Fisher & Paykel Range Lamp Holder Backorder FPA 578784 $18.59

WASHER STARLOCK 11.5 X 5 X 0.2 FPA 546628 Contact Us For Availability

PIPE INLET DU RH OUTER FPA 578792 Contact Us For Availability

573935 Fisher & Paykel Range Terminal Block 4 Backorder FPA 573935 $27.47

577008 Fisher & Paykel Glass Seal Backorder FPA 577008 $73.79

578798 Fisher & Paykel Range Front Right Trim Backorder FPA 578798 $37.39

HOOK FPA 578933 Contact Us For Availability

PIPE INLET DU RH INNER FPA 578791 Contact Us For Availability

574788 Fisher & Paykel Mounting Hook Bracket Backorder FPA 574788 $8.71

577118 Fisher & Paykel Door Panel Frame Backorder FPA 577118 $212.66

578264 Fisher & Paykel Range Valve Copper DW In Stock FPA 578264 $124.26

578795 Fisher & Paykel Range Front Left Trim Backorder FPA 578795 $37.39

578908 Fisher & Paykel Range Cooling Fan Resi Backorder FPA 578908 $70.46

581276 Fisher & Paykel Range 240V Energy Regu Backorder FPA 581276 $42.38

PIN PIVOT HOOK FPA 574789 Contact Us For Availability

BRACKET FPA 577024 Contact Us For Availability

BLOCK DOOR LOCK FPA 577070 Contact Us For Availability

BRACKET POWER BOARD FPA 578939 Contact Us For Availability

19

573910P Fisher & Paykel Screw Dual Gas Cock ( Backorder FPA 573910P $6.20

19

MOD POWER OB24C FPA 565139 Contact Us For Availability

19

NUT SELF LOCKING (PKT 10) FPA 578868P Contact Us For Availability

20

575661 Fisher & Paykel Range Standoff Backorder FPA 575661 $6.42

20

VALVE DEF SR US FPA 578360 Contact Us For Availability

20

BRACKET LOCK FPA 578934 Contact Us For Availability

21

573972 Fisher & Paykel Range Circlip Washer M Backorder FPA 573972 $6.31

21

BRACKET GASCOCK FPA 575524 Contact Us For Availability

21

PANEL INNER REAR FPA 574998 Contact Us For Availability

22

578935 Fisher & Paykel Range Door Lock Switch In Stock FPA 578935 $20.51

22

SCREW BRACKET GASCOCK (PK10) FPA 575525P Contact Us For Availability

22

PLUG HOLE SENSOR FPA 577311 Contact Us For Availability

23

SCREW M3X30 TC CROSS (PKT 10) FPA 579397P Contact Us For Availability

23

BRACKET FPA 577027 Contact Us For Availability

23

INSULATION SHEET FPA 578889 Contact Us For Availability

24

574815 Fisher & Paykel Range Spring Trigger E Backorder FPA 574815 $6.58

24

578707 Fisher & Paykel Range Burner Bowl, Sr Backorder FPA 578707 $8.07

25

574749 Fisher & Paykel Range Door Sensor Trig Backorder FPA 574749 $6.20

25

578683 Fisher & Paykel Range Female Hinge Backorder FPA 578683 $6.20

25

578709 Fisher & Paykel Range Burner Bowl Dupl In Stock FPA 578709 $167.30

26

574210 Fisher & Paykel Cooking Spacer, Plasti Backorder FPA 574210 $6.31

26

575706 Fisher & Paykel Range Dual 0.80 Inject Backorder FPA 575706 $6.31

26

575870 Fisher & Paykel Range Door Switch Pin Backorder FPA 575870 $7.50

27

578815 Fisher & Paykel Range Left Soft Close Backorder FPA 578815 $101.85

27

INJECTOR 1.35 FPA 578712 Contact Us For Availability

28

578713 Fisher & Paykel Range Injector 1.36 Backorder FPA 578713 $6.20

29

GASKET SR FPA 578710 Contact Us For Availability

30

578228 Fisher & Paykel Range Spreader Assembl In Stock FPA 578228 $20.88

31

578227 Fisher & Paykel Semi Rapid Range Cap In Stock FPA 578227 $15.15

32

575697 Fisher & Paykel Range Burner Bowl Gask Backorder FPA 575697 $6.20

33

534287 Fisher & Paykel Cooking Dual Wok Brass In Stock FPA 534287 $215.42

34

CAP OUTER TR DEF FPA 578242 Contact Us For Availability

35

578252 Fisher & Paykel Range Inner Dual Wok B In Stock FPA 578252 $71.51

36

578312 Fisher & Paykel Range Sr Electrode and In Stock FPA 578312 $13.05

36

Backorder FPA 578911P-includeCORE $258.60

37

534369 Fisher & Paykel Range Electrode Spring Backorder FPA 534369 $6.31

37

PLATE TERM BLOCK FPA 575298 Contact Us For Availability

38

534362 Fisher & Paykel Range Electrode Dual Backorder FPA 534362 $10.47

38

PANEL UPPER SHELTER FPA 578928 Contact Us For Availability

39

PANEL REAR FPA 578929 Contact Us For Availability

40

252542-includeCORE Fisher & Paykel 252542 Mod Backorder FPA 252542-includeCORE $135.15

41

TRIM REAR FPA 578930 Contact Us For Availability

42

GROMMET TRIM FRONT FPA 574597 Contact Us For Availability

43

578907 Fisher & Paykel Range Terminal Block E Backorder FPA 578907 $20.42

44

578909 Fisher & Paykel Range Power Cord Backorder FPA 578909 $158.85

544238 Fisher & Paykel Insulation Wrap Backorder FPA 544238 $293.09

563195 Fisher & Paykel Range Ui Interconnect Backorder FPA 563195 $6.37

575862P Fisher & Paykel Range Nut M3 Pack Backorder FPA 575862P $9.28

578373 Fisher & Paykel Range Harness OR30 Pyr Backorder FPA 578373 $0.00

578374 Fisher & Paykel Range Power Harness OR Backorder FPA 578374 $0.00

578777 Fisher & Paykel Range Conversion Kit f Backorder FPA 578777 $37.83

579010 Fisher & Paykel Range Conversion Kit f Backorder FPA 579010 $27.16

KIT EARTH WIRE/CUPPED WASHER FPA 579057 Contact Us For Availability

INSULATION REAR FPA 577004 Contact Us For Availability

HARNESS RE-IGNITION SWITCHES FPA 578931 Contact Us For Availability

HARNESS OR30 PYRO MAINS FPA 578372 Contact Us For Availability

HARNESS HOB TOP FPA 578932 Contact Us For Availability

HARNESS MULTI WIFI FPA 578439 Contact Us For Availability

FERRITE HINGED 22OR 9MM FPA 579072 Contact Us For Availability

HARNESS OR30 WARMER DRAWER FPA 578495 Contact Us For Availability

WIRING WARMER DRAWER FPA 578853 Contact Us For Availability

TRIM TKOR306X1 (ACCESSORY ONLY) FPA 81656 Contact Us For Availability

TRIM KICKOR30B1 (ACCESSORY ONLY) FPA 81763 Contact Us For Availability

BK USR OR30/36 DUAL FP FPA 591500 Contact Us For Availability

BK USR OR30/36 DUAL FP FR FPA 591501 Contact Us For Availability

BK INSTL OR30 GAS FP FPA 591506 Contact Us For Availability

KIT CONV H/ALT OR30 3-6K FT NG FPA 579007 Contact Us For Availability

KIT CONV H/ALT OR30 6-9K FT NG FPA 579009 Contact Us For Availability

KIT CON H/ALT OR30 3-6K FT LPG FPA 579008 Contact Us For Availability
