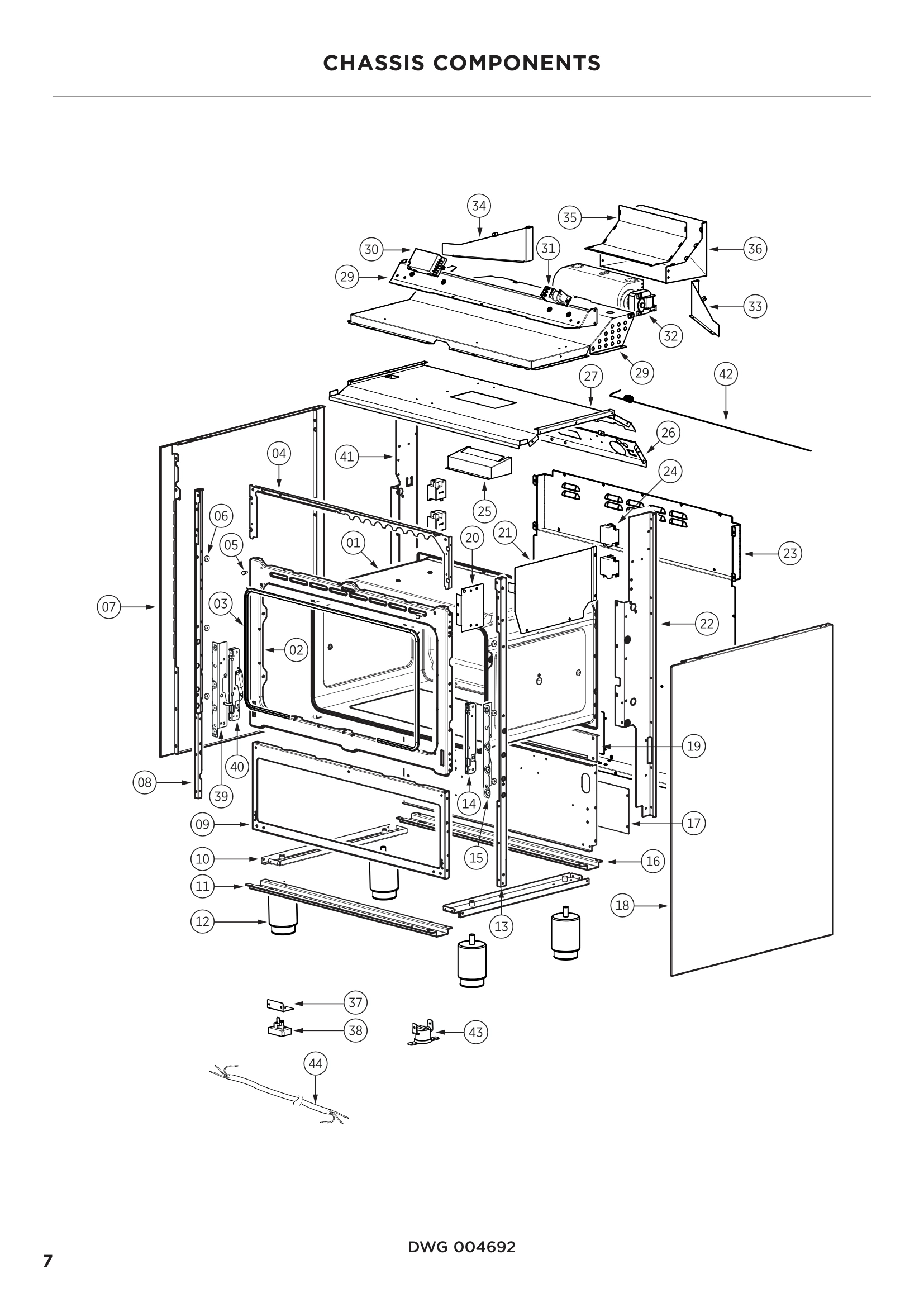

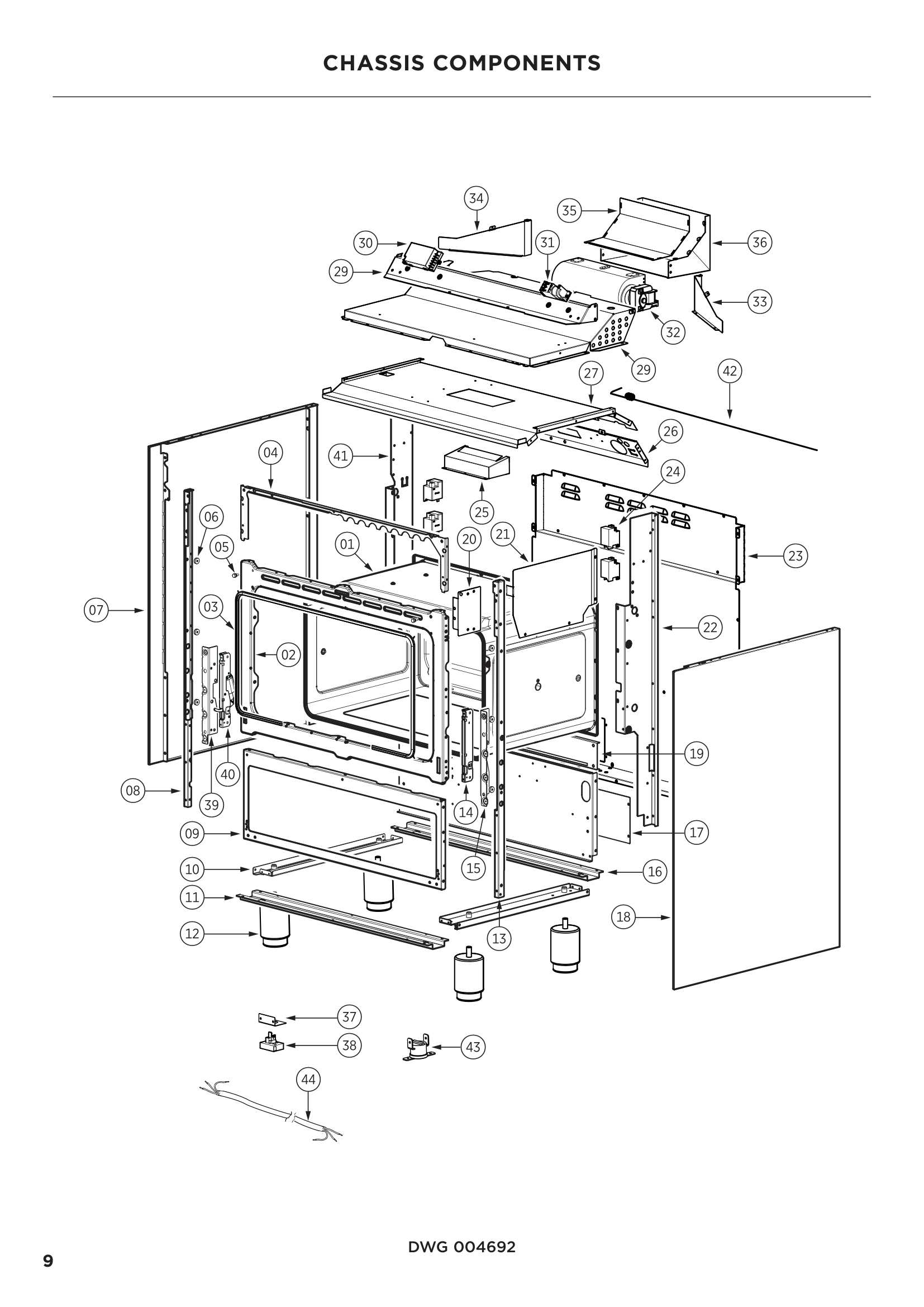

Model Fisher &amp; Paykel OR30SCG4B1-81713-A Freestanding Range – Common Parts &amp; Diagrams

1

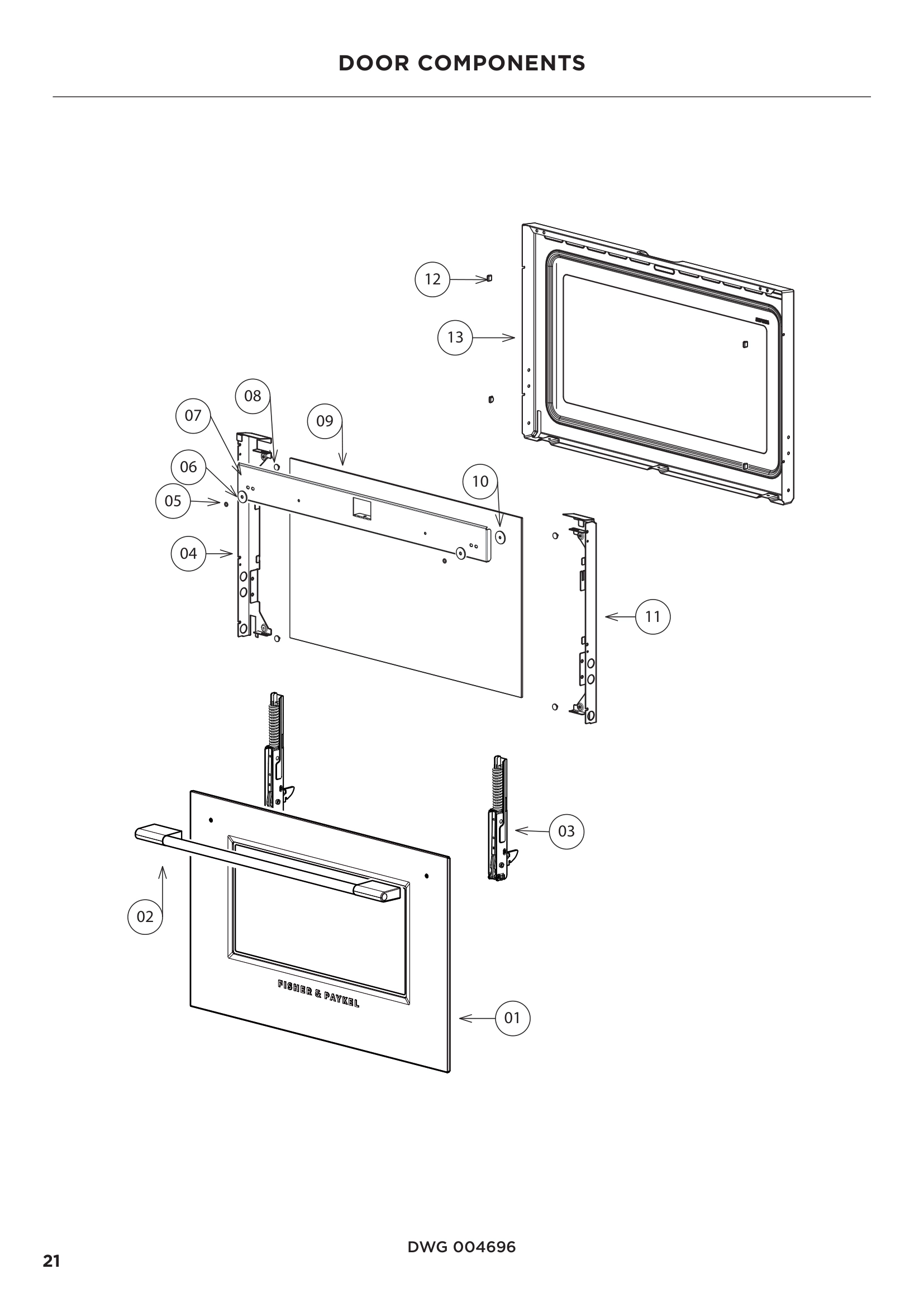

578336P Fisher & Paykel Range Black Outer Doo Backorder FPA 578336P $242.46

1

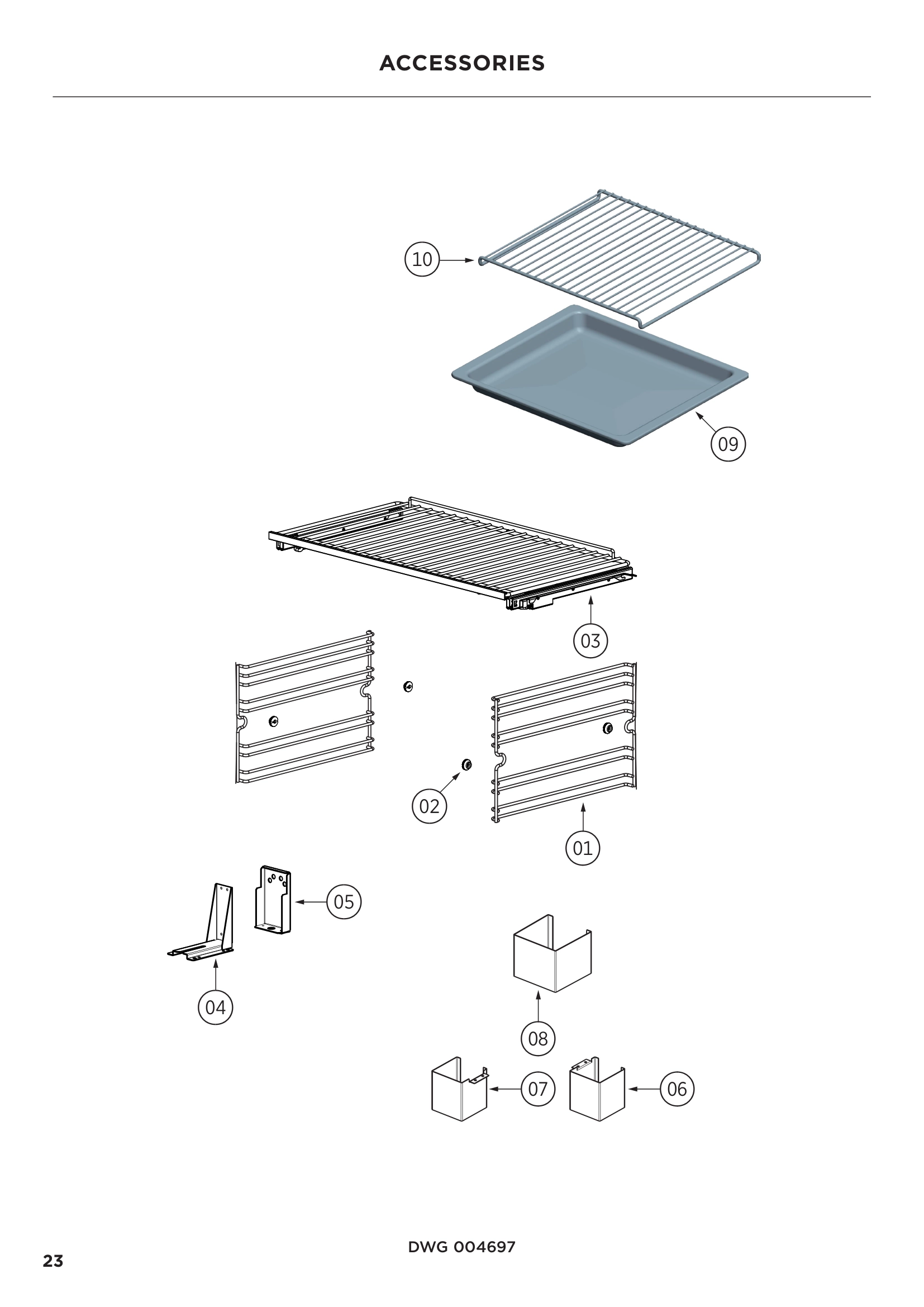

578581 Fisher & Paykel Range Support Shelf In Stock FPA 578581 $26.94

1

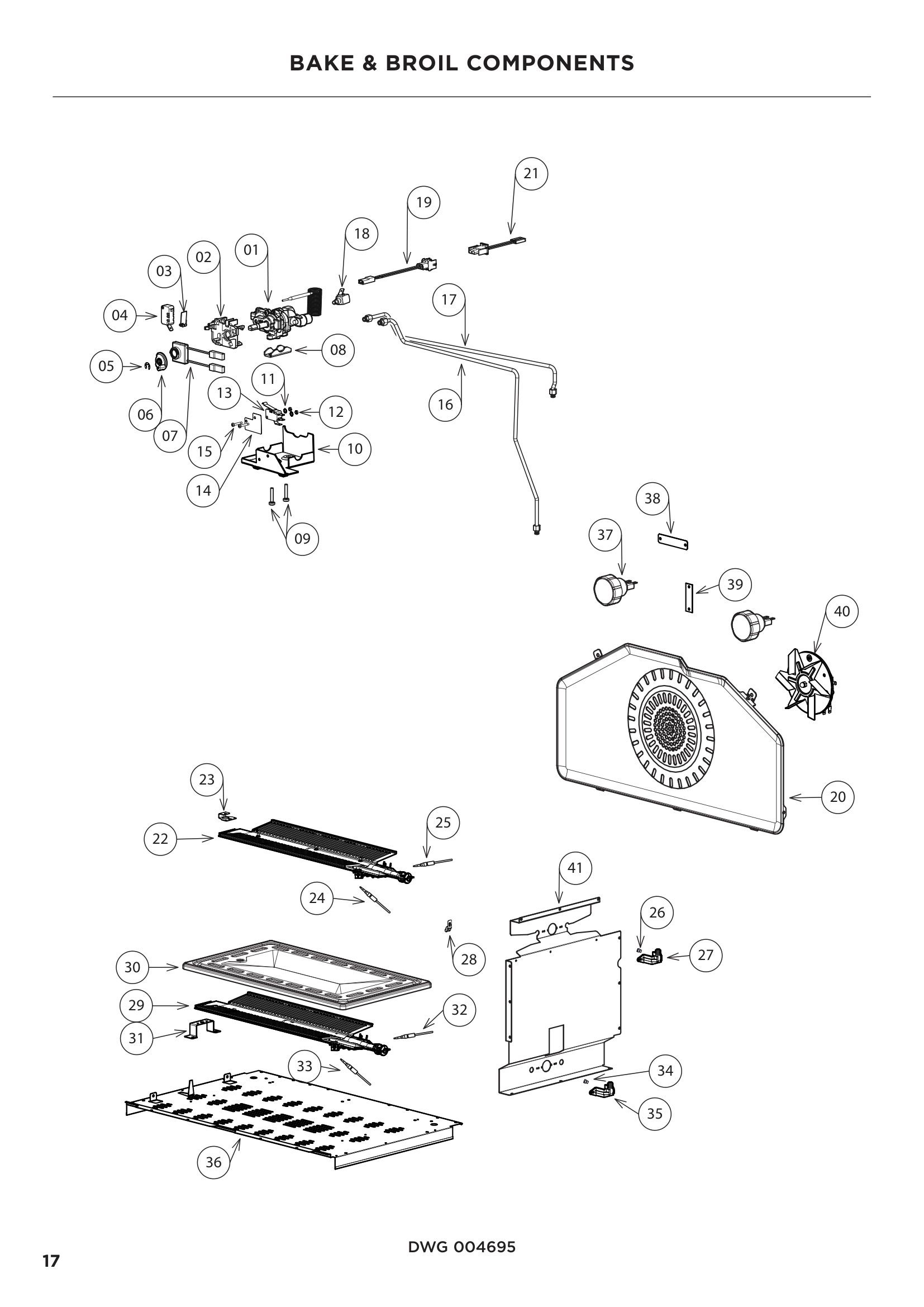

581296 Fisher & Paykel Oven Burner Thermostat In Stock FPA 581296 $164.10

1

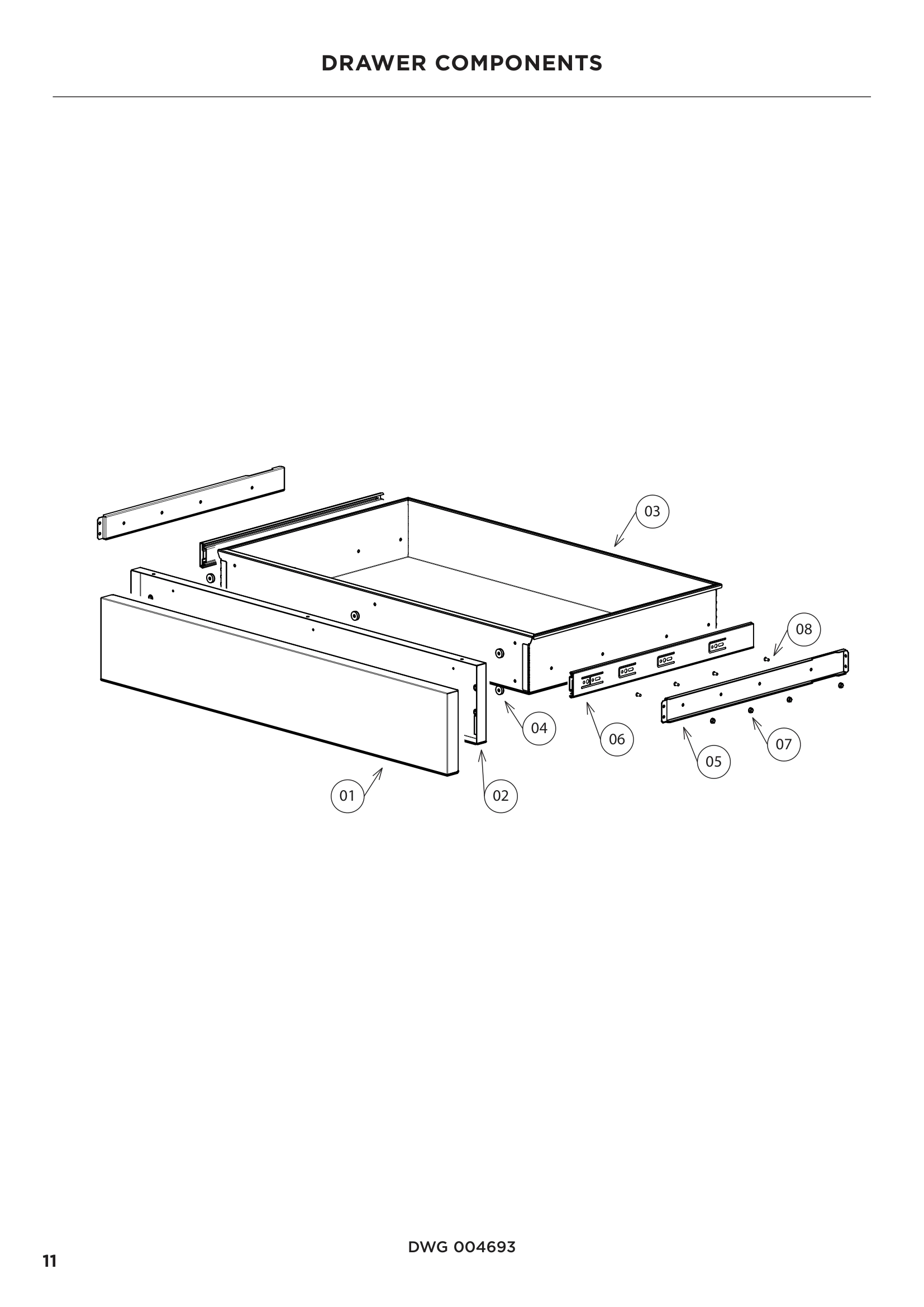

PANEL FRONT DRAWER BLACK SP FPA 578825P Contact Us For Availability

2

574141P Fisher & Paykel Cooking Wire Rack Sid Backorder FPA 574141P $21.06

2

575144 Fisher & Paykel Range Switch Bracket Backorder FPA 575144 $7.69

2

BRACKET FIXING Backorder FPA 575824 $6.20

2

578773 Fisher & Paykel Range Drawer Slide Pan Backorder FPA 578773 $55.37

2

HANDLE ASSY OR30 CLASSIC FPA 578127 Contact Us For Availability

3

575101 Fisher & Paykel Range Microswitch Blad Backorder FPA 575101 $13.29

3

577007 Fisher & Paykel Range Oven Gasket Backorder FPA 577007 $24.58

3

578774 Fisher & Paykel Range Drawer 30 Backorder FPA 578774 $219.17

3

578776 Fisher & Paykel Range Sliding Shelf As Backorder FPA 578776 $197.03

3

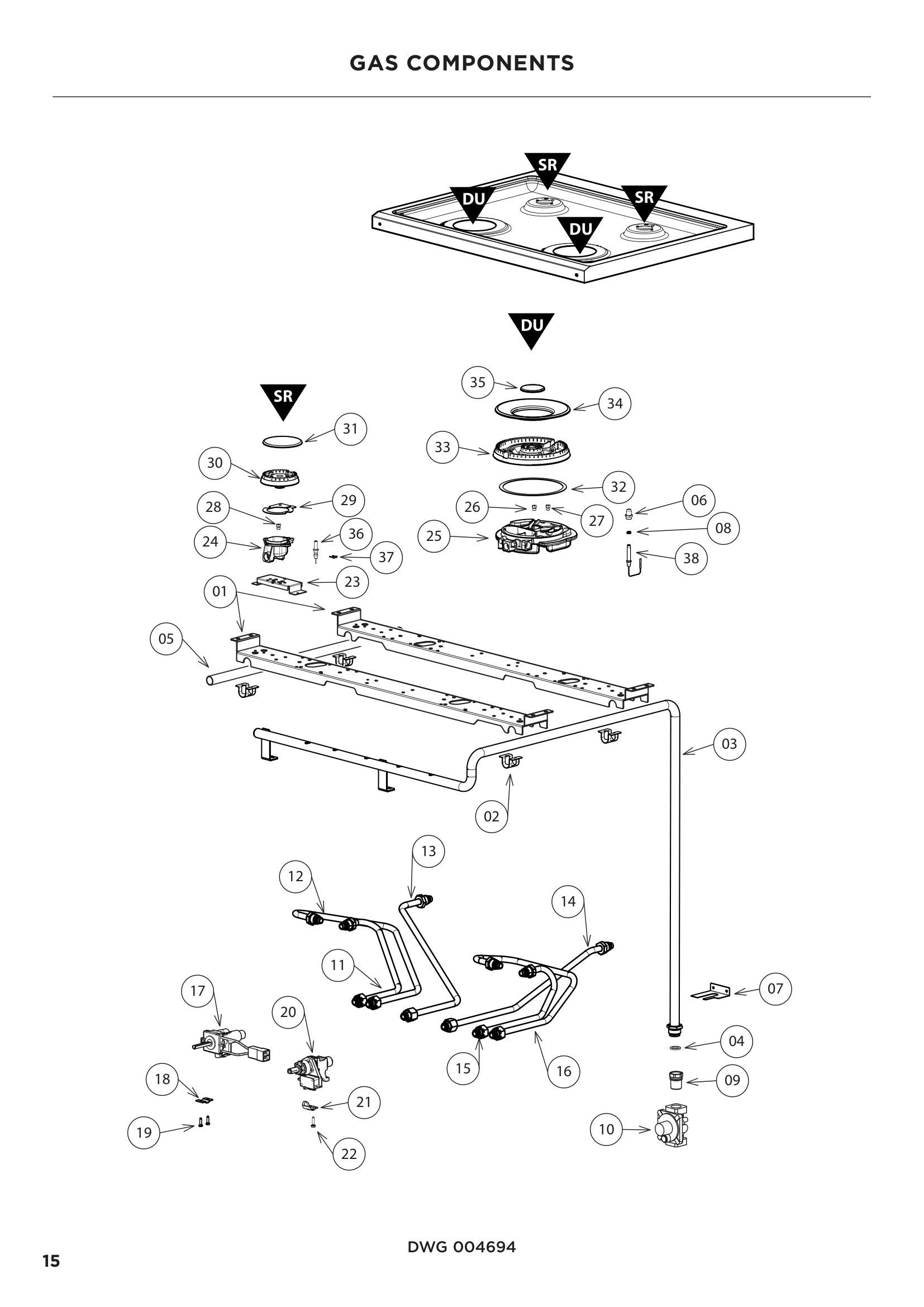

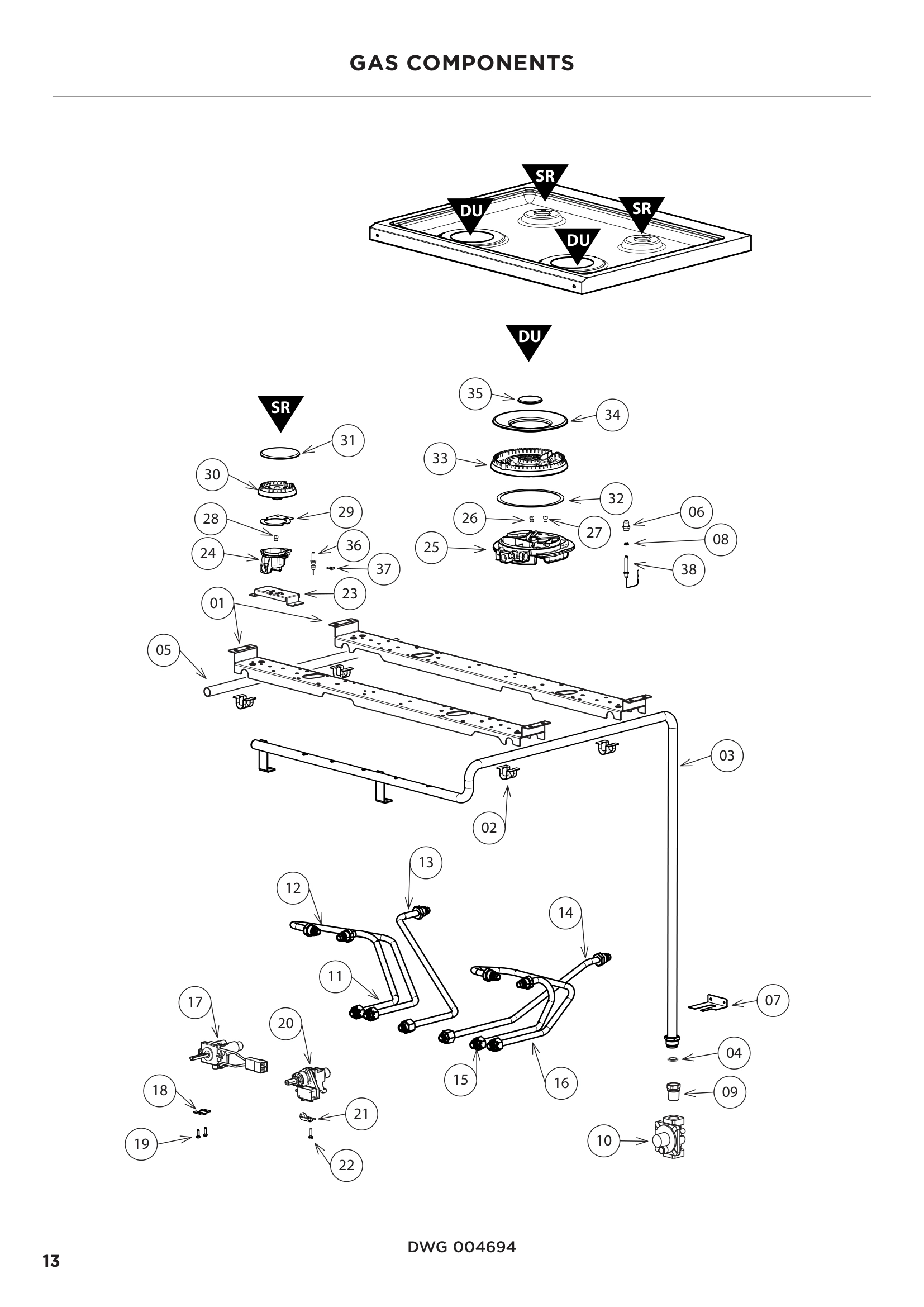

578785 Fisher & Paykel Range Manifold Backorder FPA 578785 $81.40

3

578834 Fisher & Paykel Range Soft Close Pyro In Stock FPA 578834 $43.88

4

533119P Fisher & Paykel Washer Elbow Cooking In Stock FPA 533119P $21.52

4

577017 Fisher & Paykel Range Tangential Micro Backorder FPA 577017 $6.20

4

579682P Fisher & Paykel Kit Anti-Tip 30/36 Backorder FPA 579682P $56.73

4

SPACER FPA 578719 Contact Us For Availability

4

BRACKET GLASS INNER LH FPA 578770 Contact Us For Availability

5

573972 Fisher & Paykel Range Circlip Washer M Backorder FPA 573972 $6.31

5

578775 Fisher & Paykel Range Drawer Slide Bra Backorder FPA 578775 $29.59

5

PIPE ANCHORAGE FPA 575211 Contact Us For Availability

5

O RING 9X6X2 PKT10 FPA 574147P Contact Us For Availability

6

573891 Fisher & Paykel Range Telescopic Rail Backorder FPA 573891 $97.20

6

578778 Fisher & Paykel Range Cam Valve Motor Backorder FPA 578778 $6.20

6

NUT ELECTRODE DUAL FPA 534368 Contact Us For Availability

6

WASHER INNER DOOR (PKT 2) FPA 573580P Contact Us For Availability

6

COVER OUTER 30 R US FPA 578216 Contact Us For Availability

7

556160P Fisher & Paykel Range M4 Nyloc Nut Pa Backorder FPA 556160P $7.17

7

575609 Fisher & Paykel Range Oven/Brisket Ign In Stock FPA 575609 $66.63

7

BRACKET FPA 578786 Contact Us For Availability

7

BRACKET HANDLE FPA 577162 Contact Us For Availability

7

COVER OUTER 30 L US FPA 578215 Contact Us For Availability

8

533897 Fisher & Paykel Cooking Igniter Spring Backorder FPA 533897 $6.31

8

578508 Fisher & Paykel Range Classic Oven Gas Backorder FPA 578508 $97.61

8

578795 Fisher & Paykel Range Front Left Trim Backorder FPA 578795 $37.39

8

SCREW ST 7X3/8 TAB MSH (PKT10) FPA 556637P Contact Us For Availability

8

BRACKET THERMOSTAT OVEN BURNER FPA 578700 Contact Us For Availability

8

SPACER RUBBER PKT7 FPA 574185P Contact Us For Availability

8

COVER INNER FPA 578207 Contact Us For Availability

9

574724P Fisher & Paykel Cooking Glass Door Mi Backorder FPA 574724P $194.46

9

575052 Fisher & Paykel Range Gas Inlet Adapte In Stock FPA 575052 $9.83

9

578268 Fisher & Paykel Range Classic Light Di In Stock FPA 578268 $96.45

9

DISH DEEP OB60C COATED FPA 562359 Contact Us For Availability

561580 Fisher & Paykel Grill Rack Backorder FPA 561580 $45.13

575142 Fisher & Paykel Range 1/2" NG Regulato Backorder FPA 575142 $69.58

BRACKET THERMOSTAT FPA 578779 Contact Us For Availability

WASHER (PKT 2) FPA 578768P Contact Us For Availability

11

PIPE INLET DU LH INNER FPA 578787 Contact Us For Availability

11

WASHER O3 (PKT 10) FPA 575901P Contact Us For Availability

11

BRACKET GLASS INNER RH FPA 578769 Contact Us For Availability

12

575862P Fisher & Paykel Range Nut M3 Pack Backorder FPA 575862P $9.28

12

PIPE INLET DU LH OUTER FPA 578788 Contact Us For Availability

12

GROMMET DOOR BRACKET PKT10 FPA 574480P Contact Us For Availability

575032 Fisher & Paykel Range Light Fan Switch Backorder FPA 575032 $20.08

575880 Fisher & Paykel Dishwasher Switch Backorder FPA 575880 $8.99

PANEL INNER DOOR Backorder FPA 578771 $169.12

578798 Fisher & Paykel Range Front Right Trim Backorder FPA 578798 $37.39

PIPE INLET SR LH FPA 578789 Contact Us For Availability

14

578683 Fisher & Paykel Range Female Hinge Backorder FPA 578683 $6.20

14

PIPE INLET SR RH FPA 578790 Contact Us For Availability

14

INSUL MICROSWITCH FPA 575023 Contact Us For Availability

15

PIPE INLET DU RH INNER FPA 578791 Contact Us For Availability

15

SCREW M3X19 TC ROSS PKT 10 FPA 578780P Contact Us For Availability

16

577066 Fisher & Paykel Oven Bake Tube Assembl Backorder FPA 577066 $11.84

16

PIPE INLET DU RH OUTER FPA 578792 Contact Us For Availability

17

578264 Fisher & Paykel Range Valve Copper DW In Stock FPA 578264 $124.26

17

578781 Fisher & Paykel Range Oven Grill Tube Backorder FPA 578781 $9.79

18

577292 Fisher & Paykel Range Thermocouple/The Backorder FPA 577292 $28.27

18

BRACKET VALVE FPA 577024 Contact Us For Availability

19

573910P Fisher & Paykel Screw Dual Gas Cock ( Backorder FPA 573910P $6.20

19

577219 Fisher & Paykel Range Ignition Box The In Stock FPA 577219 $16.52

20

544453 Fisher & Paykel Range Shroud Fan Assem Backorder FPA 544453 $67.89

20

VALVE SINGLE DEF SR FPA 578360 Contact Us For Availability

21

577220 Fisher & Paykel Range Ignition Cable f In Stock FPA 577220 $9.28

21

BRACKET GASCOCK FPA 575524 Contact Us For Availability

22

SCREW BRACKET GASCOCK PKT10 Backorder FPA 575525P $7.16

22

577054 Fisher & Paykel Broil Burner Backorder FPA 577054 $147.24

23

BRACKET BURNER BOWL SR Backorder FPA 577027 $29.04

23

SUPPORT BROIL BURNER FPA 577036 Contact Us For Availability

24

252542-includeCORE Fisher & Paykel 252542 Mod Backorder FPA 252542-includeCORE $135.15

24

578707 Fisher & Paykel Range Burner Bowl, Sr Backorder FPA 578707 $8.07

24

578782 Fisher & Paykel Range Thermocouple T.1 Backorder FPA 578782 $37.44

25

578709 Fisher & Paykel Range Burner Bowl Dupl In Stock FPA 578709 $167.30

26

575706 Fisher & Paykel Range Dual 0.80 Inject Backorder FPA 575706 $6.31

26

577041 Fisher & Paykel Injector 170 Backorder FPA 577041 $6.28

27

INJECTOR 1.35 FPA 578712 Contact Us For Availability

28

578713 Fisher & Paykel Range Injector 1.36 Backorder FPA 578713 $6.20

28

CLIP FPA 573746 Contact Us For Availability

29

577053 Fisher & Paykel Range Bake Burner Backorder FPA 577053 $62.37

29

GASKET SR FPA 578710 Contact Us For Availability

30

575628 Fisher & Paykel Range Electronic Ignit In Stock FPA 575628 $224.98

30

577140 Fisher & Paykel Range Oven Floor Backorder FPA 577140 $100.40

30

578228 Fisher & Paykel Range Spreader Assembl In Stock FPA 578228 $20.88

31

533272 Fisher & Paykel Range Ignition Box Ult In Stock FPA 533272 $90.37

31

578227 Fisher & Paykel Semi Rapid Range Cap Backorder FPA 578227 $15.15

31

SUPPORT BAKE BURNER FPA 577035 Contact Us For Availability

32

575067 Fisher & Paykel Pyro Cooling Fan for O In Stock FPA 575067 $105.27

32

575074 Fisher & Paykel Range Broil Igniter In Stock FPA 575074 $6.88

32

575697 Fisher & Paykel Range Burner Bowl Gask Backorder FPA 575697 $6.20

33

534628 Fisher & Paykel Wok Deflector Spreader Backorder FPA 534628 $73.50

33

578783 Fisher & Paykel Range T.150 Thermocoup In Stock FPA 578783 $41.58

34

533889 Fisher & Paykel Cooking Cap Outer Burn Backorder FPA 533889 $33.53

34

INJECTOR 190 Backorder FPA 577042 $6.28

35

533890 Fisher & Paykel Cooking Dual Wok Inner Backorder FPA 533890 $13.74

35

ELBOW BROIL BURNER Backorder FPA 577011 $7.98

36

577131 Fisher & Paykel Lower Panel Backorder FPA 577131 $92.78

36

578312 Fisher & Paykel Range Sr Electrode and Backorder FPA 578312 $13.05

37

534369 Fisher & Paykel Range Electrode Spring Backorder FPA 534369 $6.31

37

578784 Fisher & Paykel Range Lamp Holder Backorder FPA 578784 $18.59

38

534362 Fisher & Paykel Range Electrode Dual Backorder FPA 534362 $10.47

38

COVER ELEMENT HOLE FPA 573867 Contact Us For Availability

39

COVER FAN ELEMENT HOLE FPA 544454 Contact Us For Availability

40

575068 Fisher & Paykel Range Fan Motor 120V Backorder FPA 575068 $90.36

40

578815 Fisher & Paykel Range Left Soft Close Backorder FPA 578815 $101.85

41

PANEL INJECTOR SUPPORT FPA 577133 Contact Us For Availability

43

574339 Fisher & Paykel Cooking Limiter 55°C In Stock FPA 574339 $11.88

556634P Fisher & Paykel Cooking Screw, St 7x3 Backorder FPA 556634P $20.13

578777 Fisher & Paykel Range Conversion Kit f Backorder FPA 578777 $37.83

579010 Fisher & Paykel Range Conversion Kit f Backorder FPA 579010 $27.16

INSULATION OVEN FPA 578818 Contact Us For Availability

HARNESS RE-IGNITION FPA 578819 Contact Us For Availability

HARNESS HOBTOP FPA 578820 Contact Us For Availability

HARNESS GAS OVEN FPA 578821 Contact Us For Availability

SCREW ST 6X1/4 TAB PAN (PKT10) FPA 556639P Contact Us For Availability

CLIP CABLE STANDOFF PKT2 FPA 574148P Contact Us For Availability

STANDOFF (PKT 10) FPA 573857P Contact Us For Availability

TRIM TKOR304X1 (ACCESSORY ONLY) FPA 81810 Contact Us For Availability

TRIM KICKOR30B1 (ACCESSORY ONLY) FPA 81818 Contact Us For Availability

BKSET OR30S4 GAS FP US CA FPA 591876 Contact Us For Availability

KIT CONV H/ALT OR30 3-6K FT NG FPA 579007 Contact Us For Availability

KIT CONV H/ALT OR30 6-9K FT NG FPA 579009 Contact Us For Availability

KIT CON H/ALT OR30 3-6K FT LPG FPA 579008 Contact Us For Availability
