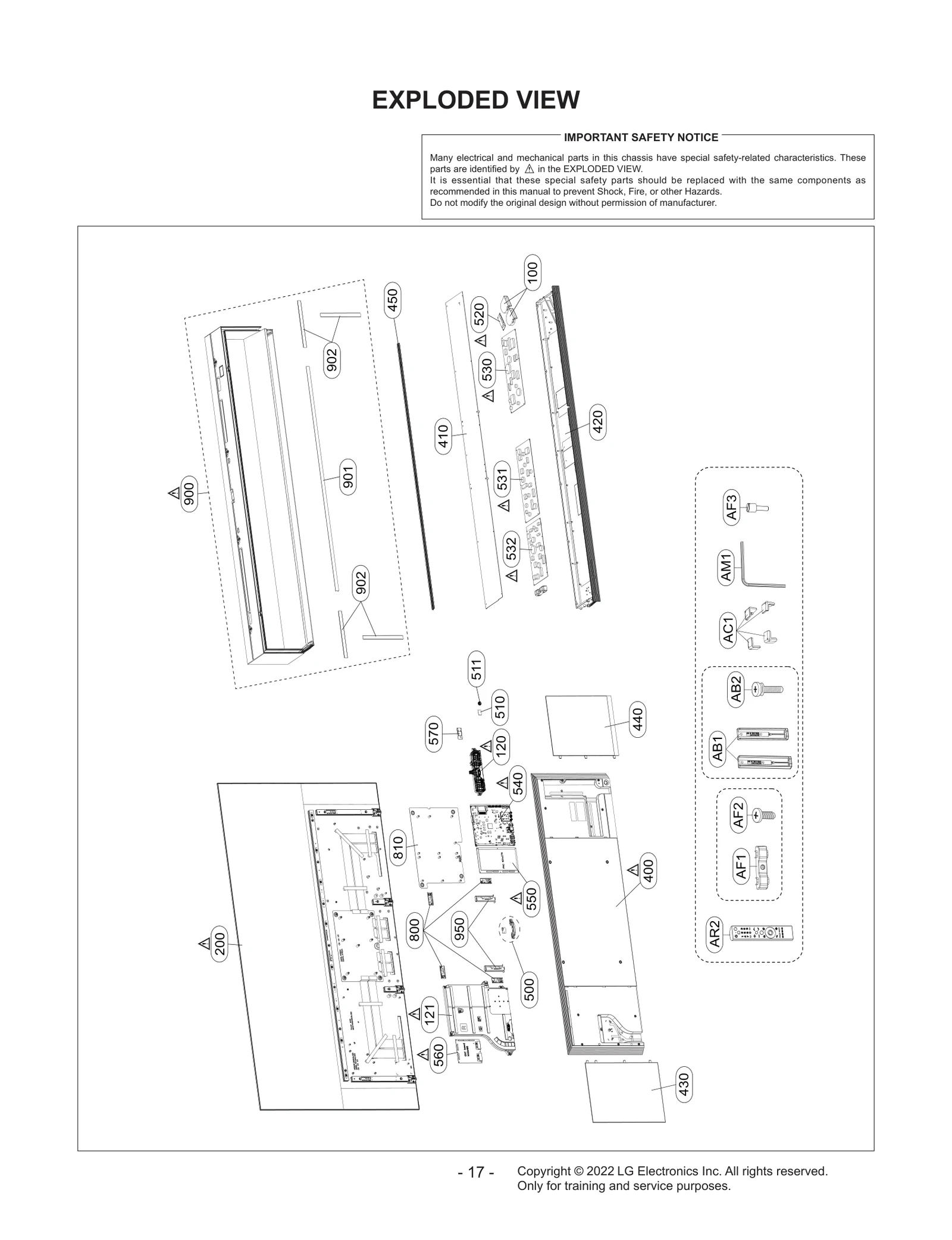

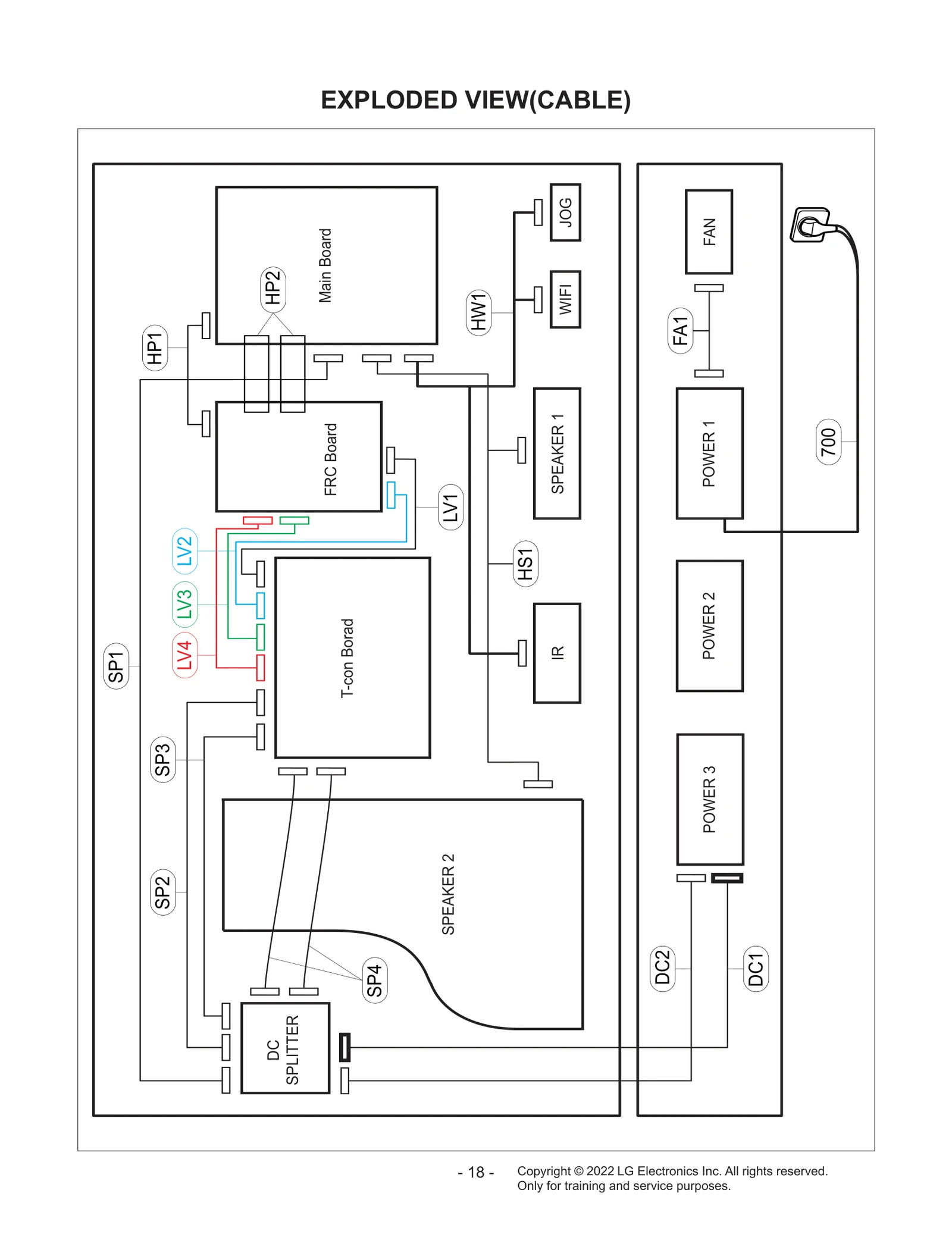

Model LG OLED88Z2PUA – Common Parts & Diagrams

120
Speaker Assembly
Speaker Assembly LGE EAB65508303 Contact Us For Availability
View on Model
121
Speaker Assembly
Speaker Assembly LGE EAB65508304 Contact Us For Availability
View on Model
200
OLED,Module-AM
OLED,Module-AM LGE EAJ64811501 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ91331133 Contact Us For Availability
View on Model
410
Cover Assembly
Cover Assembly LGE ACQ91291001 Contact Us For Availability
View on Model
420
Cover Assembly
Cover Assembly LGE ACQ91311001 Contact Us For Availability
View on Model
430
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ91310708 Contact Us For Availability
View on Model
440
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ91310709 Contact Us For Availability
View on Model
450
Cover Assembly,Accessory
Cover Assembly,Accessory LGE ACQ91545902 Contact Us For Availability
View on Model
500
PCB Assembly,IR Key
PCB Assembly,IR Key LGE EBR89471504 Contact Us For Availability
View on Model
510
PCB Assembly,IR Key
PCB Assembly,IR Key LGE EBR85661103 Contact Us For Availability
View on Model
511
Cover
Cover LGE MCK69948903 Contact Us For Availability
View on Model
530
Power Supply Assembly
Power Supply Assembly LGE EAY65170305 Contact Us For Availability
View on Model
531
Power Supply Assembly
Power Supply Assembly LGE EAY65170306 Contact Us For Availability
View on Model
532
Power Supply Assembly
Power Supply Assembly LGE EAY65170303 Contact Us For Availability
View on Model
540
Mainboard,BPR Total Assembly,SVC
Mainboard,BPR Total Assembly,SVC LGE EBU67041601 Contact Us For Availability
View on Model
550
sub PCBA,BPR Total Assembly,SVC
sub PCBA,BPR Total Assembly,SVC LGE EBU67041701 Contact Us For Availability
View on Model
800
Supporter,VESA
Supporter,VESA LGE MJH65573501 Contact Us For Availability
View on Model
810
Plate,Metal
Plate,Metal LGE MGJ66481202 Contact Us For Availability
View on Model
900
Base Assembly
Base Assembly LGE AAN77189104 Contact Us For Availability
View on Model
901
Cover
Cover LGE MCK70564501 Contact Us For Availability
View on Model
902
Cover
Cover LGE MCK70564502 Contact Us For Availability
View on Model
AC1
Bracket
Bracket LGE MAZ66507401 Contact Us For Availability
View on Model
AF1
Cover
Cover LGE MCK70545110 Contact Us For Availability
View on Model
AF2
Screw,Taptite
Screw,Taptite LGE FAB31639801 Contact Us For Availability
View on Model
AF3
Supporter
Supporter LGE MJH63633305 Contact Us For Availability
View on Model
AM1
Supporter
Supporter LGE MJH63513702 Contact Us For Availability
View on Model
AR2
Remote Controller Assembly
Remote Controller Assembly LGE AKB76040102 Contact Us For Availability
View on Model
DC1
Cable,Assembly
Cable,Assembly LGE EAD00926147 Contact Us For Availability
View on Model
DC2
Cable,Assembly
Cable,Assembly LGE EAD00926148 Contact Us For Availability
View on Model
FA1
Harness,Single
Harness,Single LGE EAD65611901 Contact Us For Availability
View on Model
HP2
Cable,FFC
Cable,FFC LGE EAD63285744 Contact Us For Availability
View on Model
HS1
Harness,Multi
Harness,Multi LGE EAD65628802 Contact Us For Availability
View on Model
HW1
Harness,Multi
Harness,Multi LGE EAD65835301 Contact Us For Availability
View on Model
LV1
Cable,FFC
Cable,FFC LGE EAD63285734 Contact Us For Availability
View on Model
LV3
Cable,FFC
Cable,FFC LGE EAD63285736 Contact Us For Availability
View on Model
SP1
Harness,Single
Harness,Single LGE EAD63727116 Contact Us For Availability
View on Model
SP2
Harness,Single
Harness,Single LGE EAD63046217 Contact Us For Availability
View on Model
SP3
Harness,Single
Harness,Single LGE EAD63026106 Contact Us For Availability
View on Model
