  • LG OLED55B4AUA Parts List

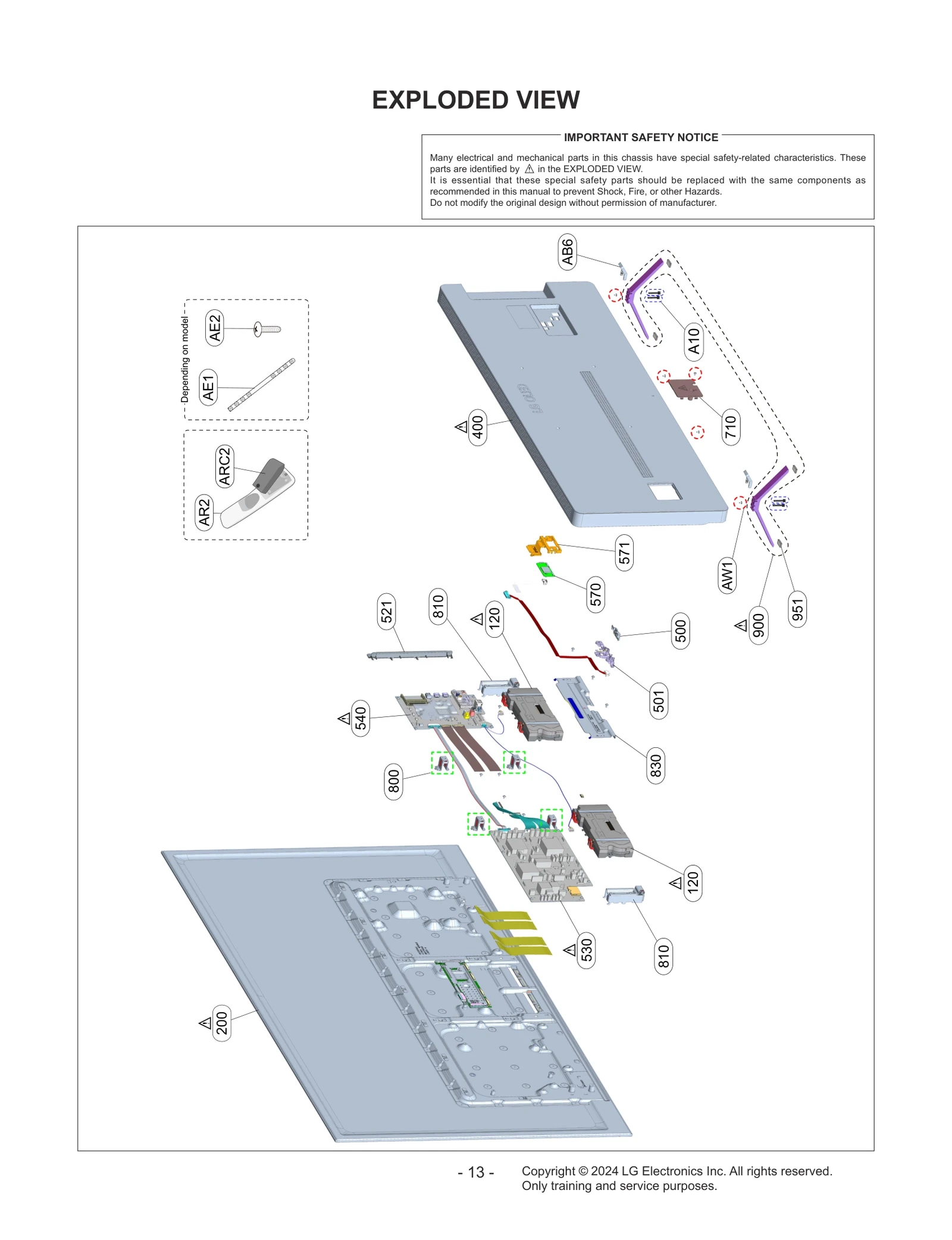

Model LG OLED55B4AUA – Common Parts & Diagrams

120
Speaker Assembly
Speaker Assembly LGE EAB64370908 Contact Us For Availability
View on Model
200
OLED Module Assembly
OLED Module Assembly LGE EAJ65900103 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ30651119 Contact Us For Availability
View on Model
501
Bracket
Bracket LGE MAZ67571205 Contact Us For Availability
View on Model
521
Bracket
Bracket LGE MAZ67571015 Contact Us For Availability
View on Model
540
Mainboard,BPR Total Assembly,SVC
Mainboard,BPR Total Assembly,SVC LGE EBU67745399 Contact Us For Availability
View on Model
700
Power Cord,Attach
Power Cord,Attach LGE EAD65887402 Contact Us For Availability
View on Model
800
Bracket,Mount
Bracket,Mount LGE MAZ66347903 Contact Us For Availability
View on Model
810
Bracket
Bracket LGE MAZ67577101 Contact Us For Availability
View on Model
A10
Screw Assembly
Screw Assembly LGE FAB30016137 Contact Us For Availability
View on Model
AW1
Screw,Machine
Screw,Machine LGE FAB31843211 Contact Us For Availability
View on Model

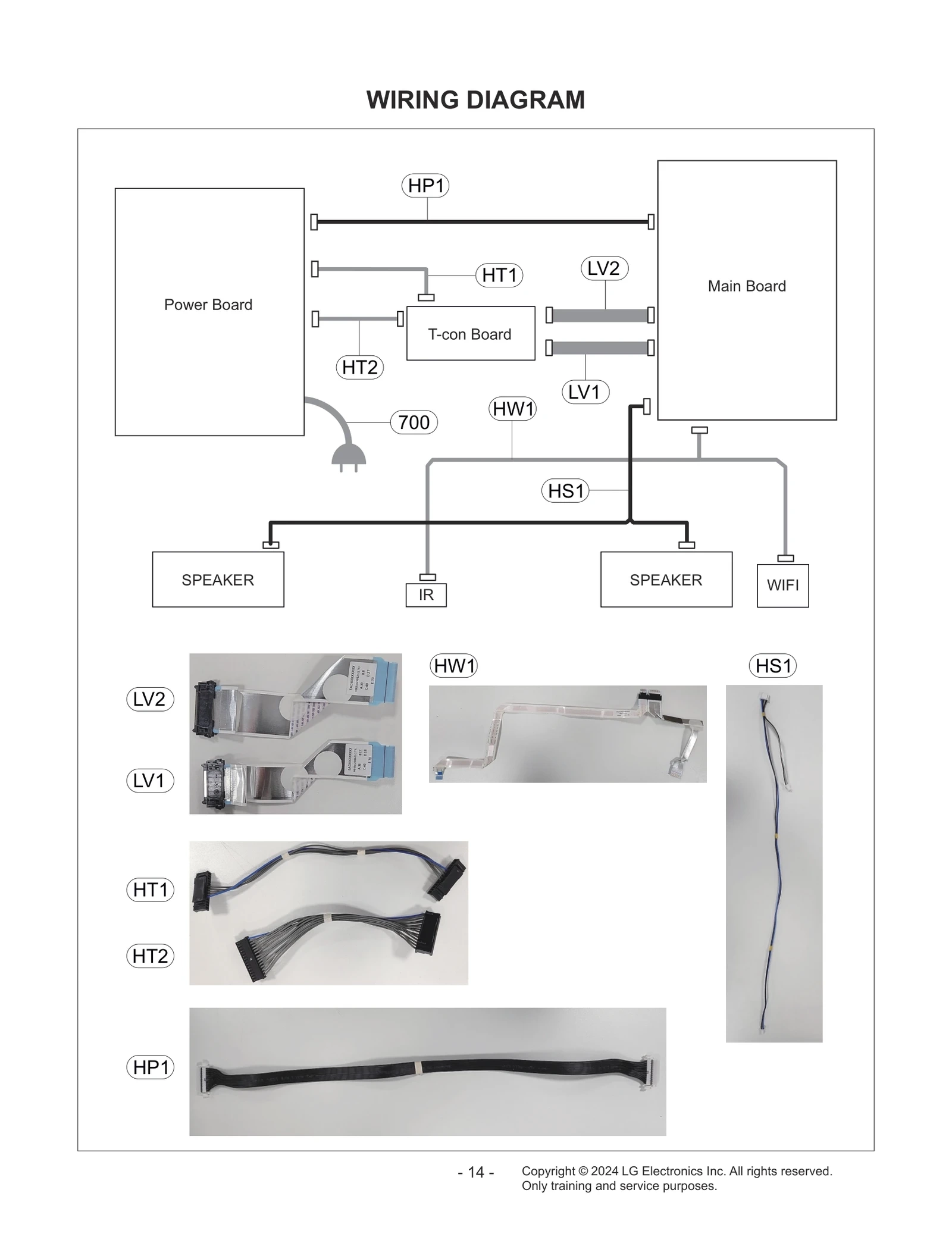

HP1
Harness,Single
Harness,Single LGE EAD65305508 Contact Us For Availability
View on Model
HS1
Harness,Multi
Harness,Multi LGE EAD63727361 Contact Us For Availability
View on Model
HT2
Harness,Single
Harness,Single LGE EAD63046220 Contact Us For Availability
View on Model
