Model LG OK75 – Common Parts & Diagrams

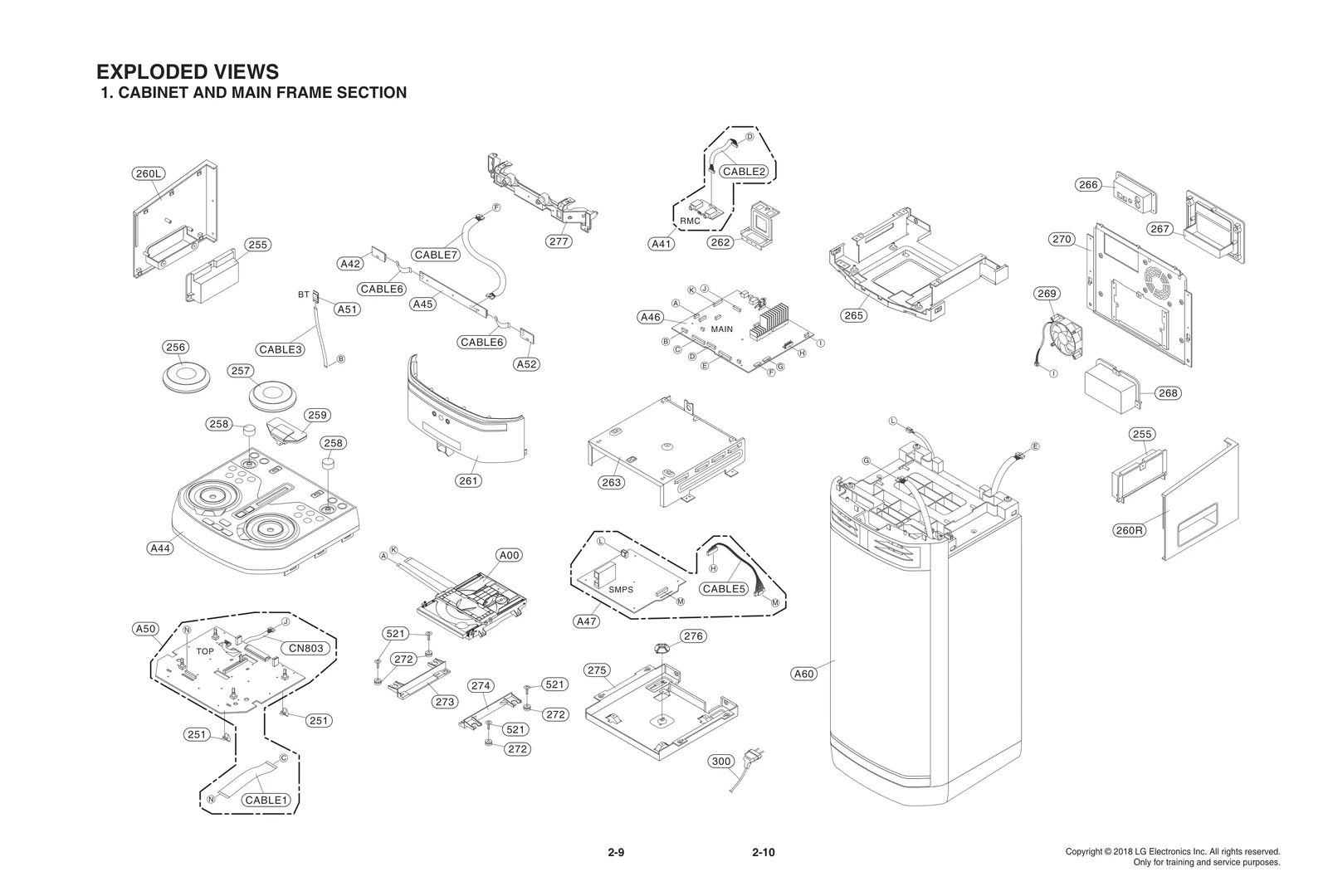

Diagram 0

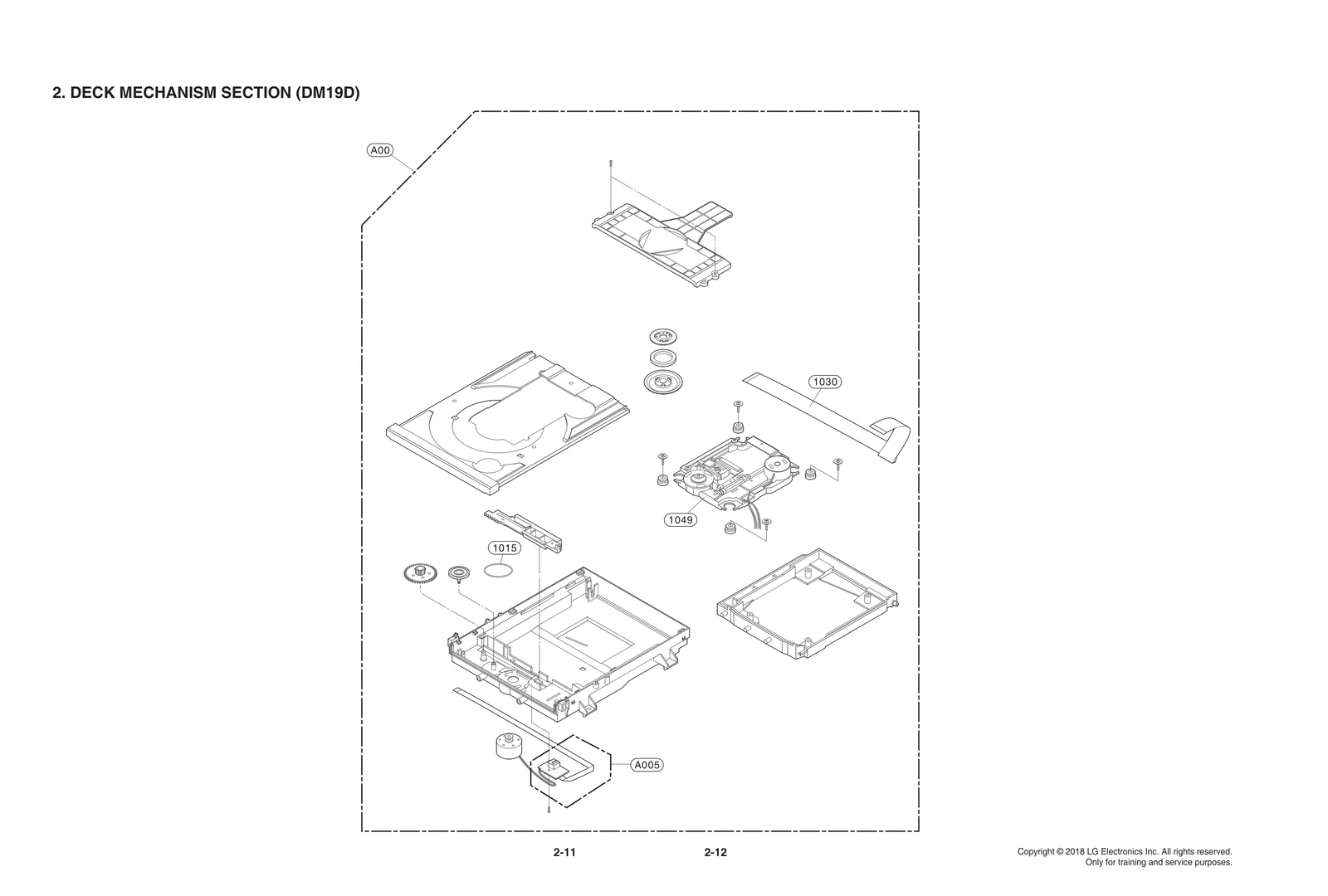

Diagram 1
Diagram 2
Diagram 3
Common parts from model LG OK75
251
Plate,Ground LGE MGJ65381401 Contact Us For Availability
255
Cover LGE MCK70036002 Contact Us For Availability
256
Knob Assembly LGE AEZ75253401 Contact Us For Availability
257
Knob Assembly LGE AEZ75253501 Contact Us For Availability
258
Knob LGE MEY64574401 Contact Us For Availability
259
Knob Assembly LGE AEZ75253301 Contact Us For Availability
260L
Cover LGE MCK69956602 Contact Us For Availability
260R
Cover LGE MCK69996302 Contact Us For Availability
261
Panel Assembly,Front LGE AGL76373612 Contact Us For Availability
262
Bracket LGE MAZ66091401 Contact Us For Availability
263
Bracket LGE MAZ65993001 Contact Us For Availability
265
Bracket LGE MAZ66091301 Contact Us For Availability
266
Cover LGE MCK69996204 Contact Us For Availability
267
Cover LGE MCK70055301 Contact Us For Availability
268
Cover LGE MCK70055402 Contact Us For Availability
269
Fan Module LGE EAL60700914 Contact Us For Availability
270
Panel,Rear LGE MGC65200001 Contact Us For Availability
272
Damper LGE MCQ68386802 Contact Us For Availability
273
Holder LGE MEG65020201 Contact Us For Availability
274
Holder LGE MEG65020301 Contact Us For Availability
275
Bracket LGE MAZ65992901 Contact Us For Availability
276
Holder LGE MEG63540502 Contact Us For Availability
277
Holder LGE MEG65400401 Contact Us For Availability
521
Screw,Customized LGE 353-100AAAD Contact Us For Availability
825
Antenna,T LGE EAA56671906 Contact Us For Availability
826
Filter,Ferrite Core LGE 6210VH0004C Contact Us For Availability
900
Remote Controller Assembly LGE AKB74955361 Contact Us For Availability
1015
BELT LGE 4400R-0010A Contact Us For Availability
1030
Cable,FFC LGE EAD62056614 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ60673606 Contact Us For Availability
A00
Deck Assembly,DVD LGE EAZ62761493 Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR82255101 Contact Us For Availability
A42
PCB Assembly LGE EBR85334301 Contact Us For Availability
A44
Frame Assembly LGE ADV76787017 Contact Us For Availability
A45
PCB Assembly LGE EBR85405101 Contact Us For Availability
A46
Option Code Assembly LGE EBR85801212 Contact Us For Availability
A47
PCB Assembly LGE EBR86132601 Contact Us For Availability
A50
PCB Assembly LGE EBR85350501 Contact Us For Availability
A51
Module,Bluetooth LGE EAT62833602 Contact Us For Availability
A52
PCB Assembly LGE EBR85296401 Contact Us For Availability
A60
Speaker System Total LGE TCG36928203 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD63565003 Contact Us For Availability
CABLE2
Harness,Single LGE EAD63947302 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD62130037 Contact Us For Availability
CABLE5
Harness,Single LGE EAD63925702 Contact Us For Availability
CABLE6
Cable,FFC LGE EAD61049030 Contact Us For Availability
CABLE7
Harness,Single LGE EAD64767302 Contact Us For Availability
CN803
Harness,Single LGE EAD42004424 Contact Us For Availability
IC111A
S/W,System Program LGE SAA39952401 Contact Us For Availability
IC503A
S/W,System Program LGE SAA39952301 Contact Us For Availability
IC504A
S/W,System Program LGE SAA39952501 Contact Us For Availability
× ![]()
