Model Fisher & Paykel OD30WDX2-84711-A Warming Drawer – Common Parts & Diagrams

Common parts from model Fisher & Paykel OD30WDX2-84711-A Warming Drawer

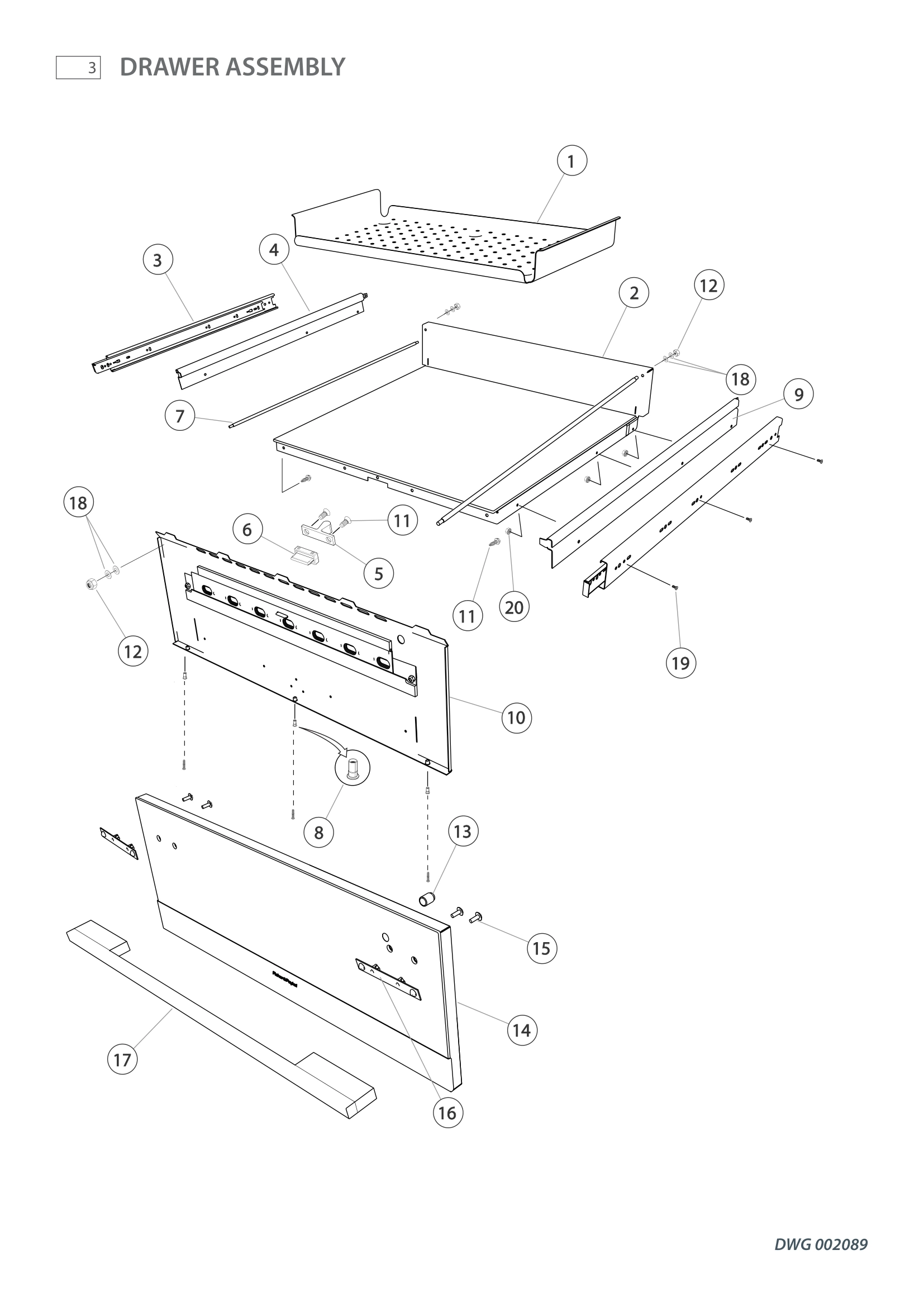

DRAWER ASSEMBLY

Print

• This Diagram
• All Diagrams

1

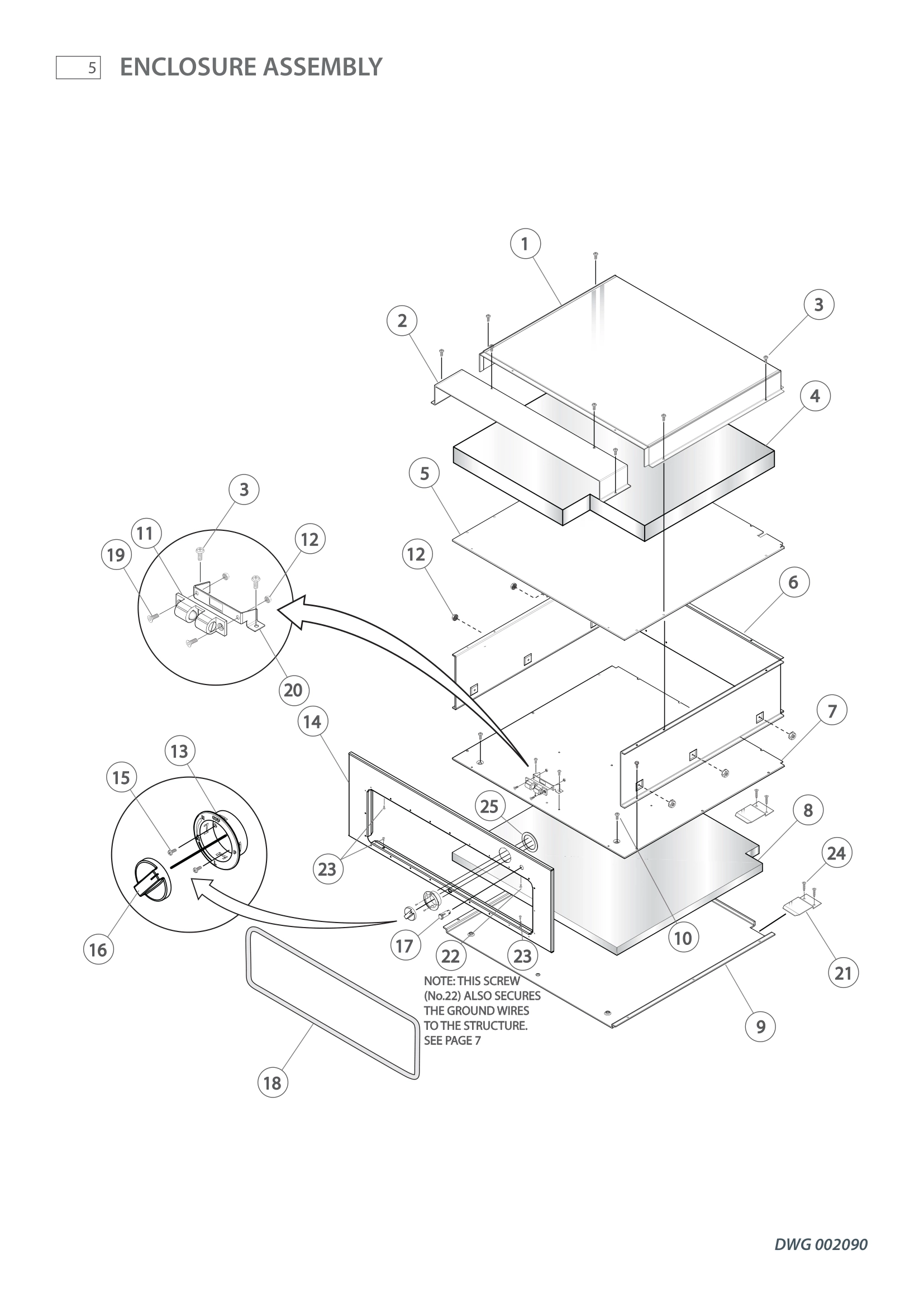

BODY TOP FPA 241290 Contact Us For Availability

View on Model

1

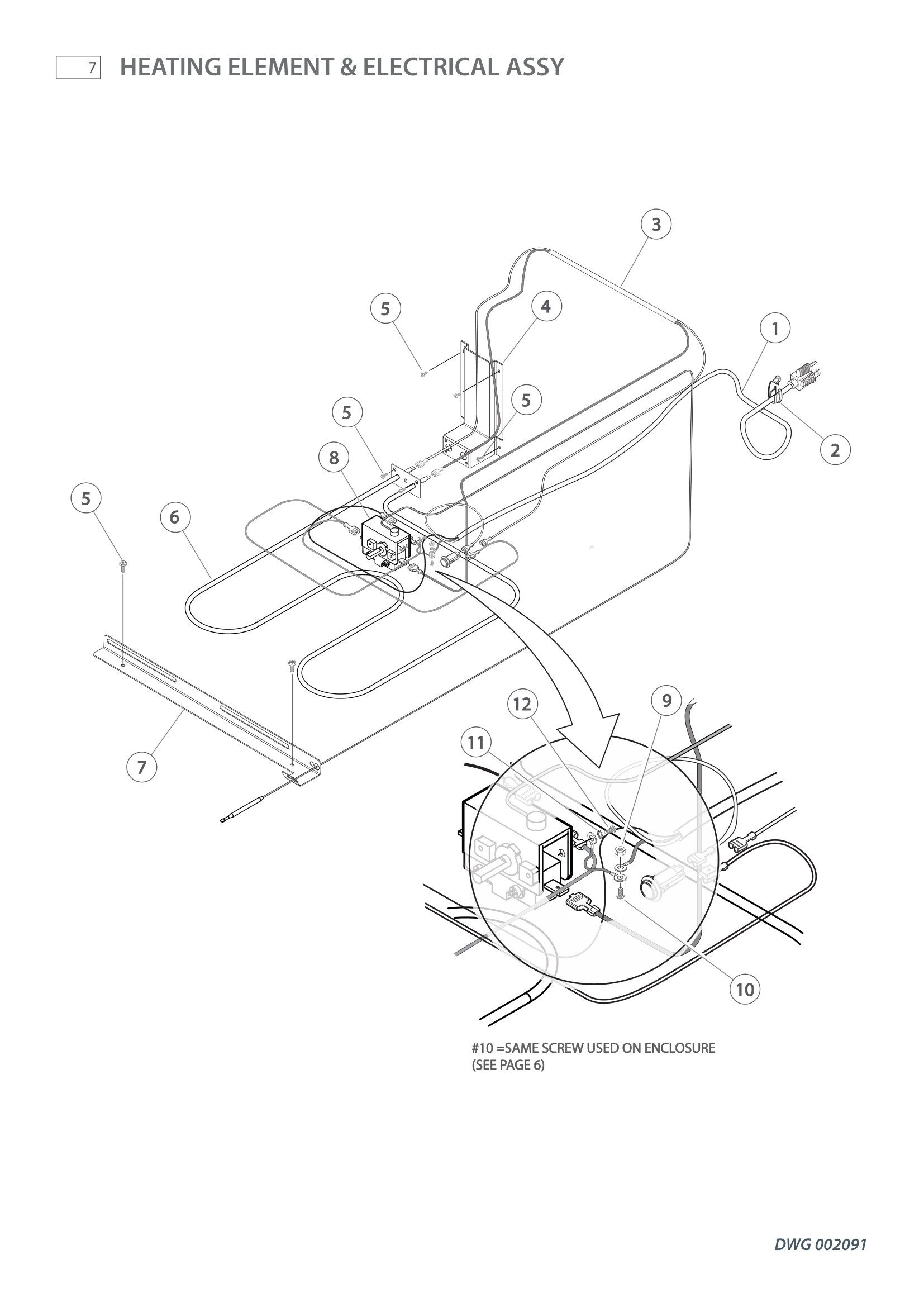

POWER CORD, WARMING DRAWER FPA 240930 Contact Us For Availability

View on Model

2

COVER, CONTROLS FPA 241481 Contact Us For Availability

View on Model

2

BUSHING 90 DEG FPA 221038 Contact Us For Availability

View on Model

3

WIRE ASSEMBLY FPA 211771 Contact Us For Availability

View on Model

4

FIBERGLASS, 2” FPA 241482 Contact Us For Availability

View on Model

4

ELEMENT MOUNT FPA 241283 Contact Us For Availability

View on Model

5

211263P Fisher & Paykel SMS8-32X1/2PHD TYF St Backorder FPA 211263P View Details $6.31

View on Model

5

TOP/MIDDLE BODY FPA 241288 Contact Us For Availability

View on Model

6

211766 Fisher & Paykel Heating Element Backorder FPA 211766 View Details $140.89

View on Model

6

SIDES / REAR FPA 241281 Contact Us For Availability

View on Model

7

BOTTOM BODY MIDDLE FPA 241284 Contact Us For Availability

View on Model

7

BRACKET T’STAT BULB FPA 241278 Contact Us For Availability

View on Model

8

210914 Fisher & Paykel Thermostat Backorder FPA 210914 View Details $141.92

View on Model

8

FIBERGLASS 1 WARMING DRAWER FPA 231391 Contact Us For Availability

View on Model

9

BOTTOM FPA 241264 Contact Us For Availability

View on Model

10

211306P Fisher & Paykel Ms 3-32X3/8 Ph Pan He Backorder FPA 211306P View Details $8.56

View on Model

10

SM 10X 1.5PH HD TY A ZN (10 PK) FPA 211239P Contact Us For Availability

View on Model

11

211098 Fisher & Paykel Drawer Catch In Stock FPA 211098 View Details $76.87

View on Model

11

211361P Fisher & Paykel Washer Eth #10 Pack Backorder FPA 211361P View Details $12.81

View on Model

12

211359P Fisher & Paykel BBQ Nylon Lock Nut He In Stock FPA 211359P View Details $9.53

View on Model

12

8-32X1/4 PHIL PN F-410SS (10 PK) FPA 211259P Contact Us For Availability

View on Model

13

LIGHT PIPE F&P WD FPA 242279 Contact Us For Availability

View on Model

13

BEZEL, TEMPERATURE FPA 241294 Contact Us For Availability

View on Model

14

241280 Fisher & Paykel BBQ Front Face Plate Backorder FPA 241280 View Details $73.69

View on Model

14

247430 Fisher & Paykel Door Panel Assembly F& Backorder FPA 247430 View Details $182.74

View on Model

15

220774P Fisher & Paykel Stainless Steel Sm 6- Backorder FPA 220774P View Details $6.20

View on Model

15

MS M5 X 0.8 X 14MM PH PAN ZN FPA 243194 Contact Us For Availability

View on Model

16

241293 Fisher & Paykel Temperature Control Kn Backorder FPA 241293 View Details $6.20

View on Model

16

GASKET HANDLE FPA 243193 Contact Us For Availability

View on Model

17

221111 Fisher & Paykel Light Indicator Backorder FPA 221111 View Details $53.56

View on Model

17

547406P Fisher & Paykel Handle D3 727 Brushed In Stock FPA 547406P View Details $129.82

View on Model

18

WASHER FLT SS #10 .43 OD (10 PK) FPA 211373P Contact Us For Availability

View on Model

18

GASKET, WARMING DRAWER FPA 241300 Contact Us For Availability

View on Model

19

211303P Fisher & Paykel Range Torx Screw 8-32 In Stock FPA 211303P View Details $13.56

View on Model

20

211480P Fisher & Paykel Stainless Steel Nut 8 Backorder FPA 211480P View Details $10.12

View on Model

20

BRACKET LATCH FPA 232352 Contact Us For Availability

View on Model

21

MOUNTING KIT WD FPA 216567 Contact Us For Availability

View on Model

24

SM 10X 3/4 PH TR HD TY A ZI (10 PK) FPA 211234P Contact Us For Availability

View on Model

25

RING, BEZEL PRELOAD FPA 242895 Contact Us For Availability

View on Model

NI

F&P INSTALL INSTRUC & USER GUIDE FPA 242594 Contact Us For Availability
