Model Accelerated Cooking Products OC24-P2000301M Amana Menumaster OC24 – Common Parts & Diagrams

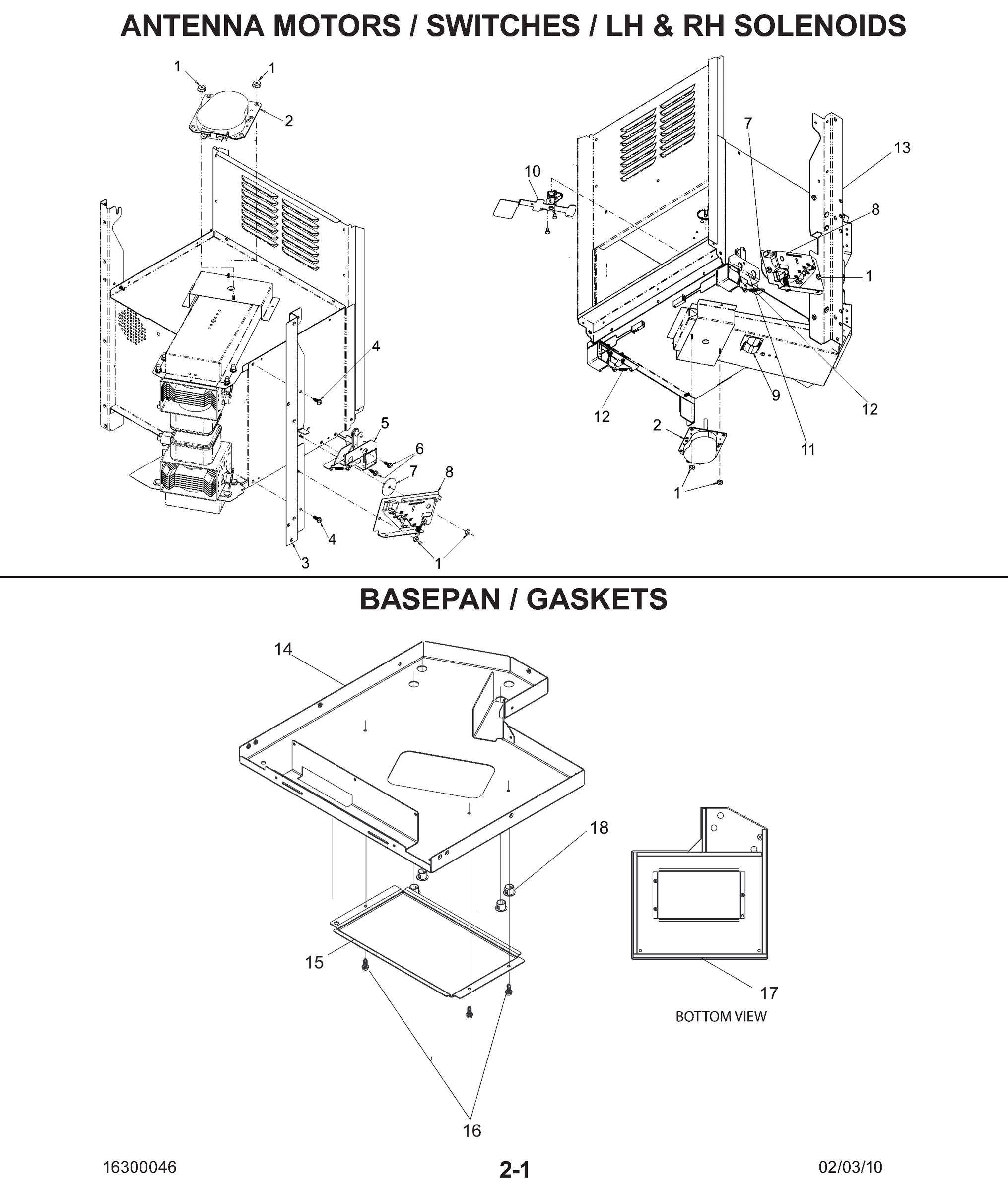

ANTENNA MOTORS / SWITCHES / LH & RH SOLENOIDS / BASEPAN / GASKETS

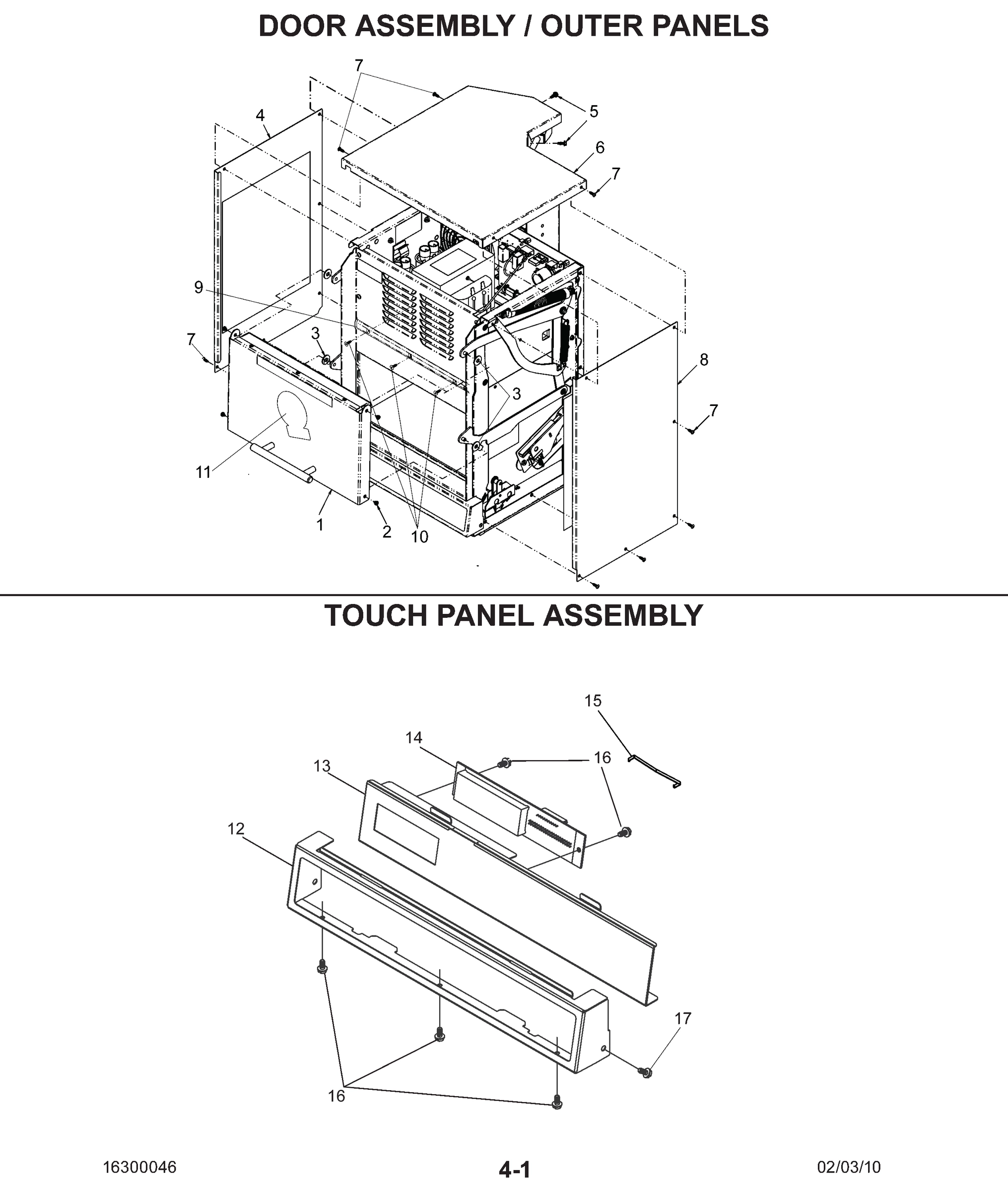

DOOR ASSEMBLY / OUTER PANELS / TOUCH PANEL ASSEMBLY

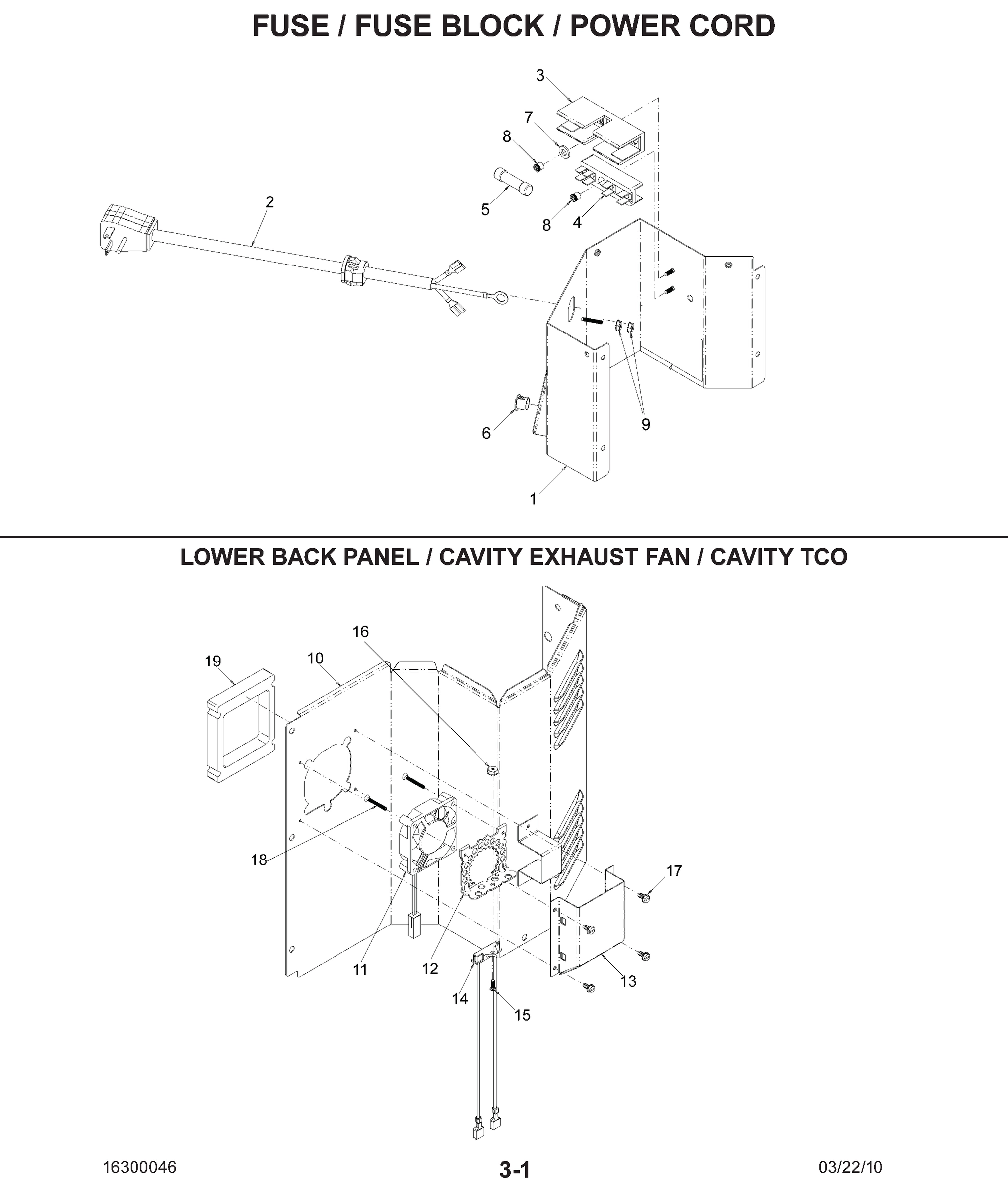

FUSE BLOCK / POWER CORD / LOWER BACK PANEL / EXHAUST / CAVITY TCO

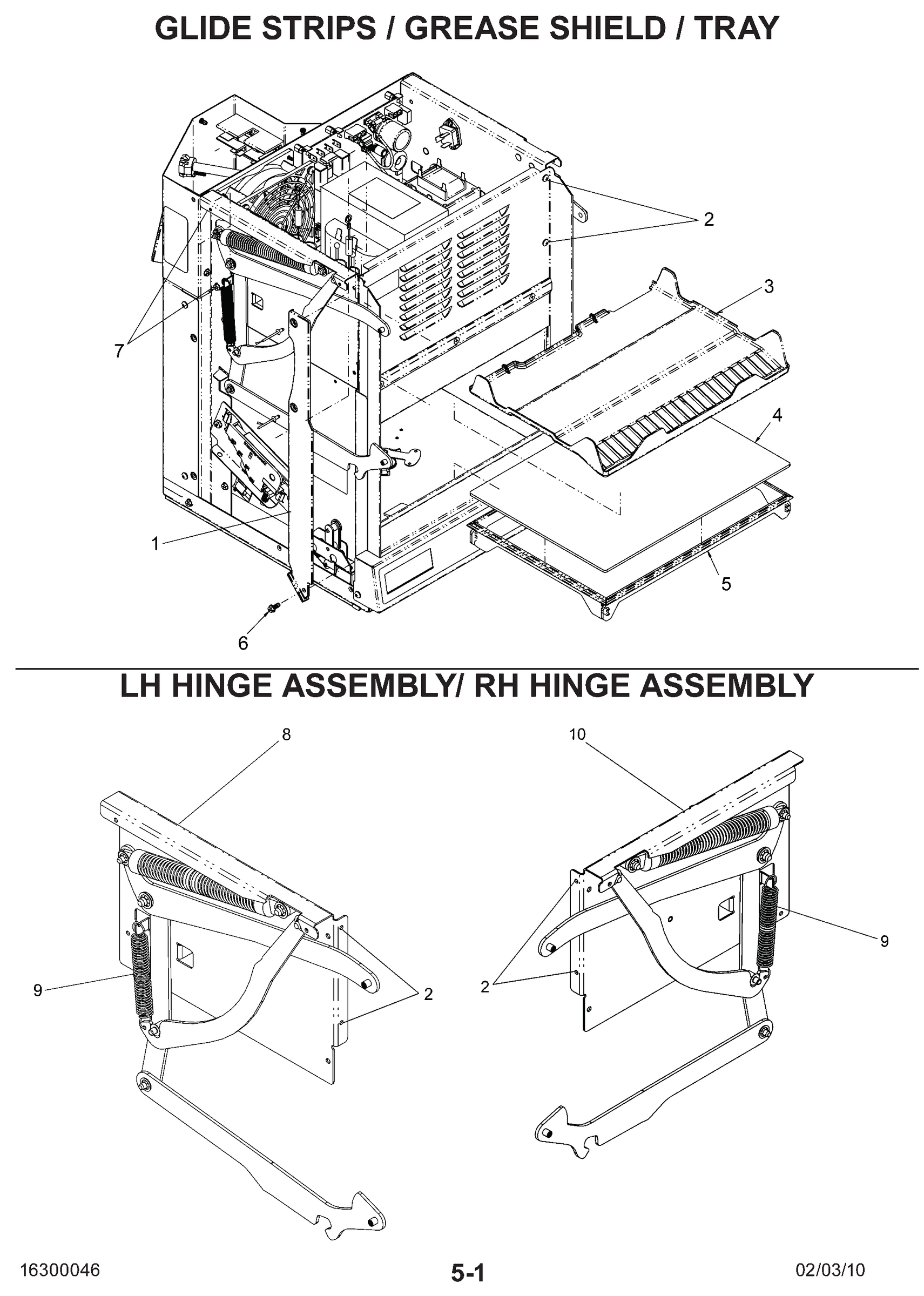

GLIDE STRIPS / GREASE SHIELD / TRAY / LH & RH HINGE ASSEMBLY

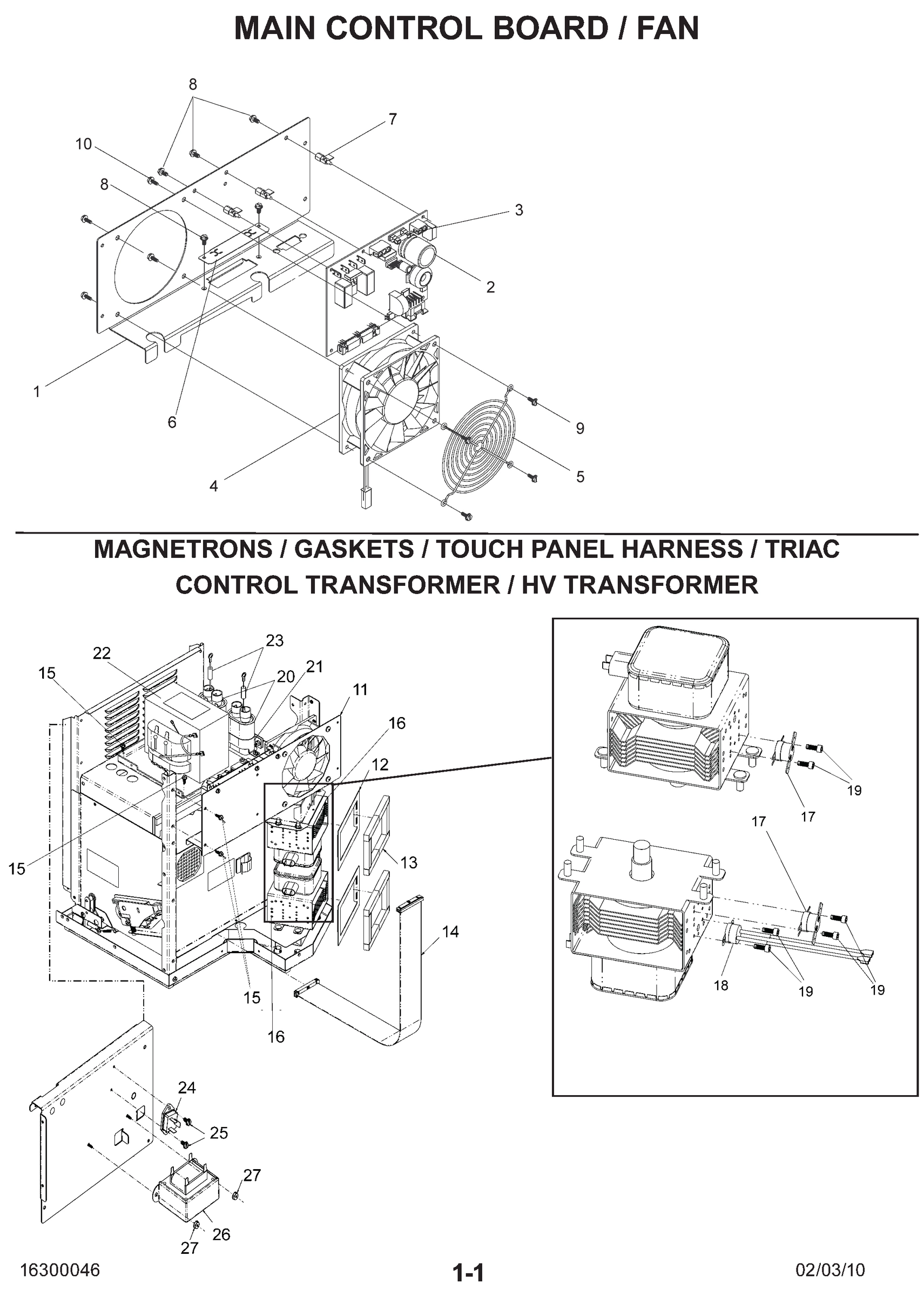

MAIN CONTROL BOARD / FAN / MAGNETRON / GASKETS / TOUCH PANEL HARNESS / HV TRANSFORMER

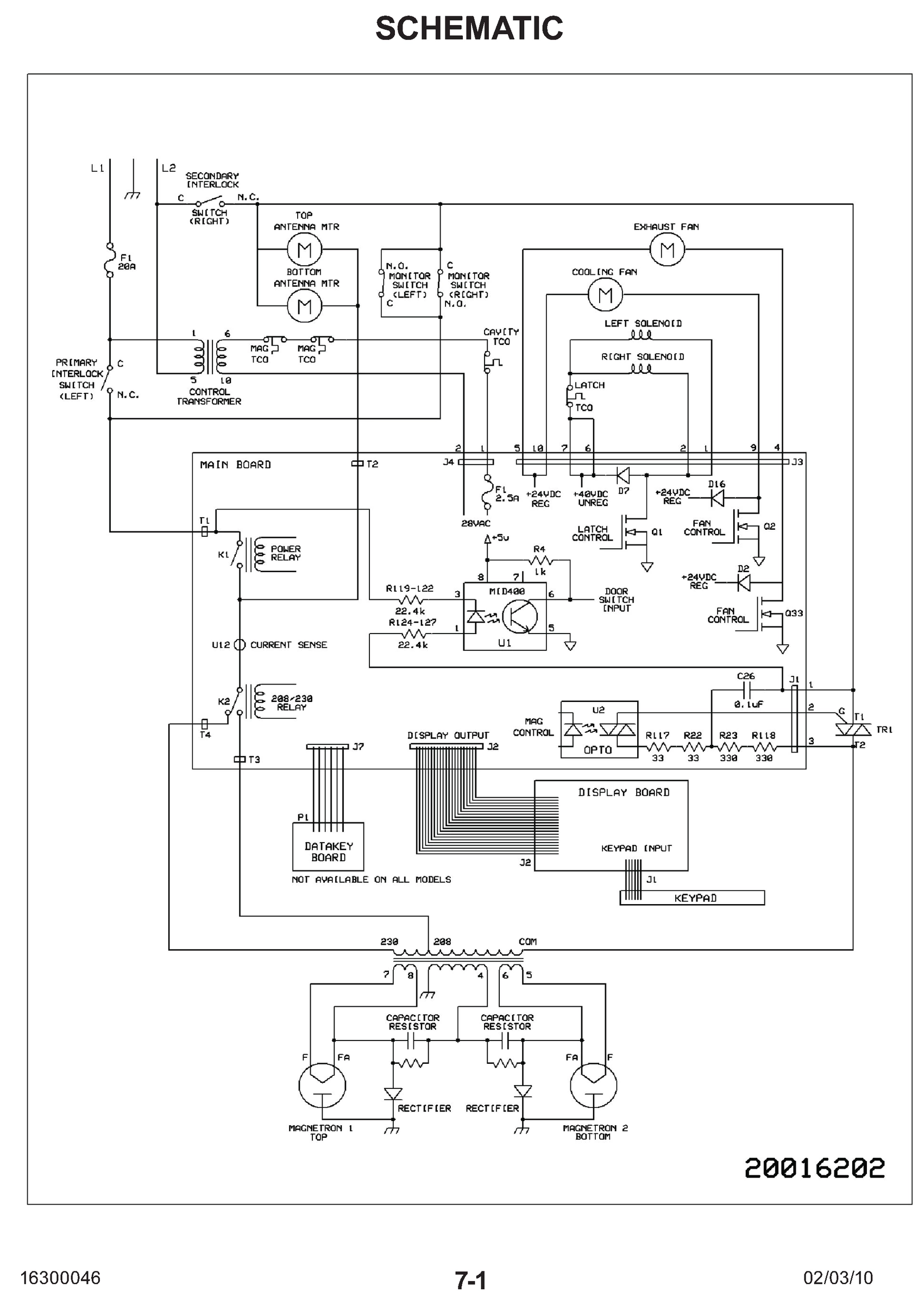

SCHEMATIC
Common parts from model Accelerated Cooking Products OC24-P2000301M Amana Menumaster OC24
1
UP MAG SHROUD ASSY ACP 20017201 Contact Us For Availability
1
KIT, GLIDE STRIPS & RIVETS ACP 14090025 Contact Us For Availability
1
REAR MC BRKT-E CT ACP 20011404 Contact Us For Availability
1
WIRE, JUMPER ACP 13017716 Contact Us For Availability
2
POWER CORD- 62.5 in (1.58 m) ACP 59002112 Contact Us For Availability
2
BOARD, MAIN CONTROL ACP 59004084 Contact Us For Availability
2
SCREW-TC/PAN TORX RoHS ACP 13074001 Contact Us For Availability
2
HARNESS, HV ACP 20017801 Contact Us For Availability
3
ANTENNA SHIELD ACP 59184614 Contact Us For Availability
3
BLOCK-FUSE ACP 10091101 Contact Us For Availability
3
FUSE, 2.5A ACP 20031701 Contact Us For Availability
3
HARNESS, MAIN ACP 20216601 Contact Us For Availability
4
MOTOR, COOLING FAN ACP 14149088 Contact Us For Availability
4
KIT, CERAMIC TRAY & SEALER ACP 14179117 Contact Us For Availability
4
BLOCK-TERMINAL ACP B5677203 Contact Us For Availability
4
STRAP-OVEN ACP 21009501 Contact Us For Availability
5
FUSE-20A ACP M0805203 Contact Us For Availability
5
SUPPORT, TRAY ACP 59004098 Contact Us For Availability
5
GUARD-FAN ACP 20013701 Contact Us For Availability
6
PLUG, HOLE ACP 59184622 Contact Us For Availability
6
BRKT-40 PIN HEADER ACP 20023501 Contact Us For Availability
7
WASHER ACP 12546101 Contact Us For Availability
7
SCREW-TC/PAN ACP 13041802 Contact Us For Availability
7
SUPPORT-PCB ACP M0590609 Contact Us For Availability
8
KIT, SWITCHES & FUSE ACP 14090031 Contact Us For Availability
8
KIT, HINGE- LH ACP 14090026 Contact Us For Availability
9
STRIP, ANTI INTRUSION ACP 20013601 Contact Us For Availability
9
SPRING, HINGE ACP 20020601 Contact Us For Availability
9
SCREW TF/HEX RoHS ACP 12992306 Contact Us For Availability
10
KIT, ANTENNA ASSY & RIVETS ACP 14189146 Contact Us For Availability
10
SCREW-TC/FLAT ACP 13047404 Contact Us For Availability
10
LWR OC BACK WELD-E CT ACP 20015502 Contact Us For Availability
10
KIT, HINGE- RH ACP 14090027 Contact Us For Availability
10
SCREW-SM/PAN ACP 12990608 Contact Us For Availability
11
KIT, CAVITY EXH MOTOR & GASKET ACP 59004092 Contact Us For Availability
11
REAR MC BRKT-E CT ACP 20011402 Contact Us For Availability
12
ESCUTCHEON-CONTROL ACP 21021202 Contact Us For Availability
12
GRILLE-EXH FAN ACP 20009701 Contact Us For Availability
13
TOUCH PANEL ASSY ACP 59224799 Contact Us For Availability
13
HOOD-CAVITY FAN ACP 21020302 Contact Us For Availability
13
GASKET-MAG SEAL ACP 59194708 Contact Us For Availability
14
THERMAL CUTOUT ASSY- CAVITY ACP 59004115 Contact Us For Availability
14
BOARD, DISPLAY ACP 59004085 Contact Us For Availability
14
KIT, HARNESS- PC BD TO TP ACP 14090028 Contact Us For Availability
15
BASE COVER-E CT ACP 20173001 Contact Us For Availability
15
CLIP, RETAINER ACP 20023301 Contact Us For Availability
15
SCREW ACP 12991605 Contact Us For Availability
15
STUD-#8 SC ACP 14179138 Contact Us For Availability
16
MAGNETRON ACP 59004013 Contact Us For Availability
16
NUT ACP 13045502 Contact Us For Availability
17
GASKET, BASEPAN - 90 in (228 cm) ACP R0000413 Contact Us For Availability
17
THERMAL CUTOUT- MAG TCO ACP 20241404 Contact Us For Availability
18
SEALER, RTV- ALUMINUM ACP 20021804 Contact Us For Availability
18
SCREW-SM/FLAT ACP 20021703 Contact Us For Availability
18
THERMAL CUTOUT - LATCH TCO ACP B5684135 Contact Us For Availability
19
GASKET-CAV FAN ACP 20095601 Contact Us For Availability
19
SCREW-TC ACP 20095801 Contact Us For Availability
20
CAPACITOR- .85 ACP 59174540 Contact Us For Availability
20
GROMMET-RUBBER ACP 20095701 Contact Us For Availability
21
BRKT- CAPACITOR ACP 13069001 Contact Us For Availability
22
TRANSFORMER, HV ACP 59004089 Contact Us For Availability
23
DIODE ACP 20057401 Contact Us For Availability
24
TRIAC (40A) ACP 59174520 Contact Us For Availability
25
SCREW-SM/HEX RoHS ACP 12990522 Contact Us For Availability
26
TRANSFORMER, CONTROL ACP 59004119 Contact Us For Availability
27
NUT-#6 KEPS ACP 13045501 Contact Us For Availability
× ![]()
