Model Fisher & Paykel OB24SDPX4-88649-A Built-In Oven – Common Parts & Diagrams

2

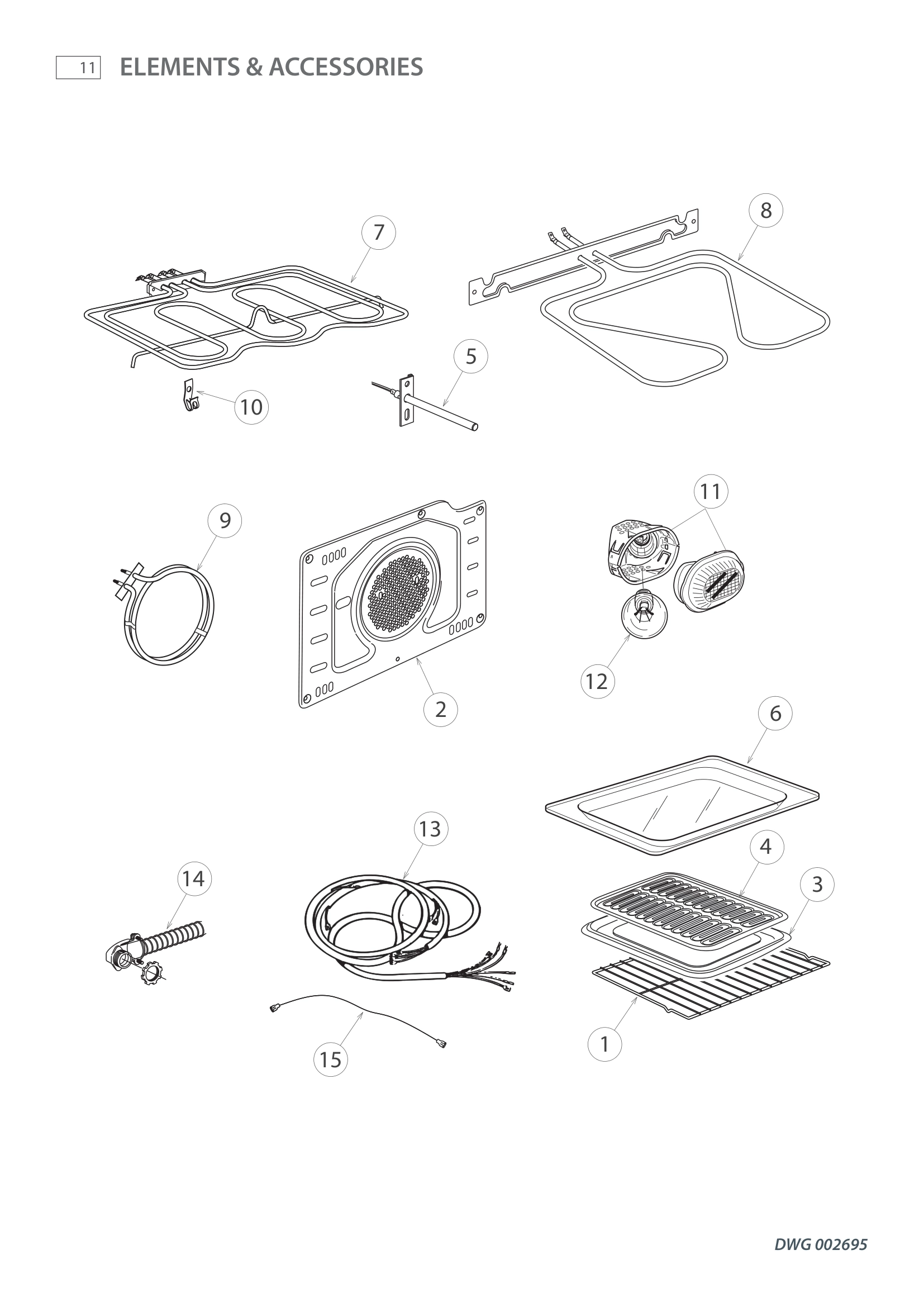

SHROUD FAN OB60 PYRO
SHROUD FAN OB60 PYRO FPA 574413 Contact Us For Availability
View on Model
3

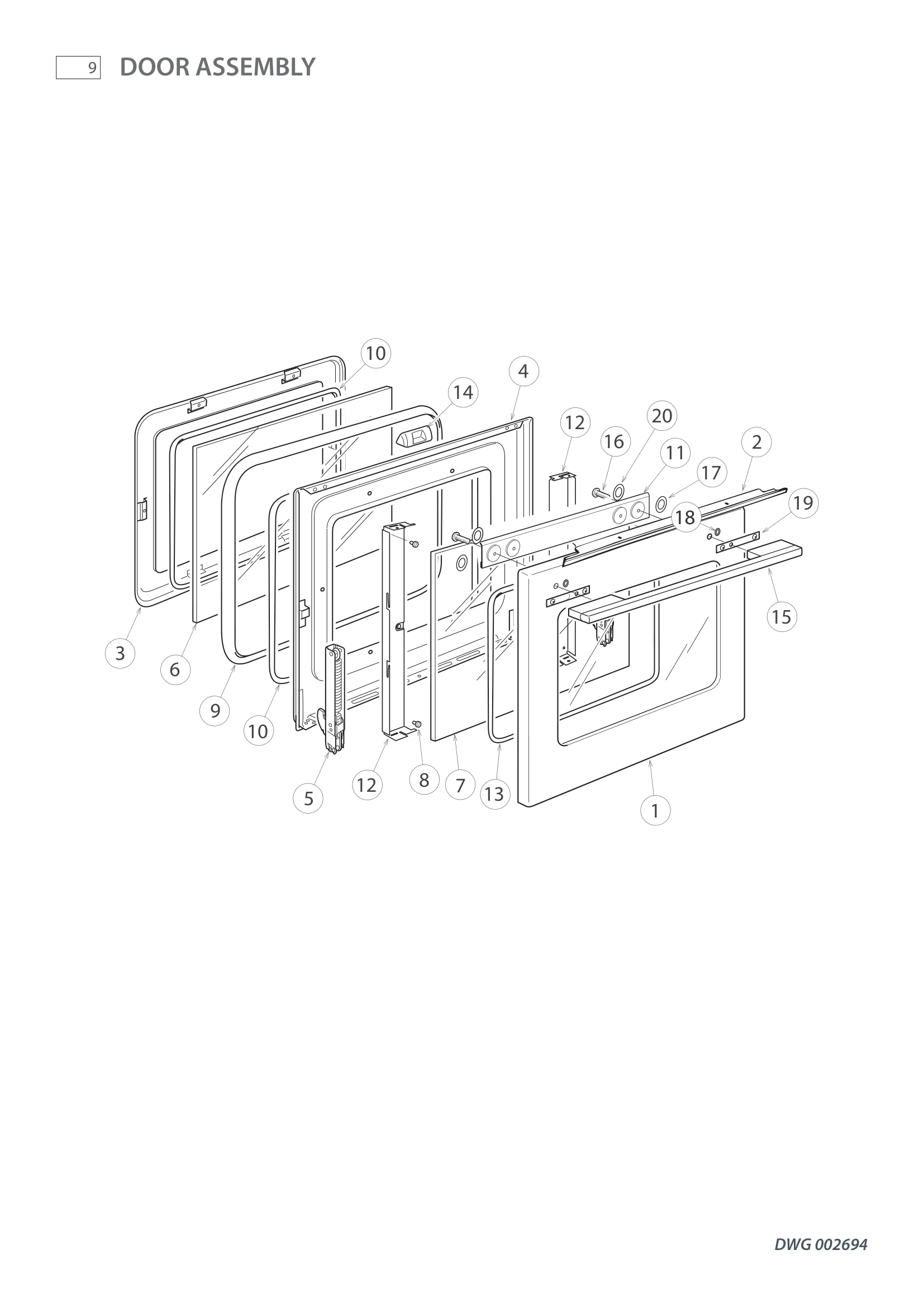

DOOR INNER FRAME ASSY PYRO EU
DOOR INNER FRAME ASSY PYRO EU FPA 574412 Contact Us For Availability
View on Model
4
DOOR INNER PANEL PYRO US
DOOR INNER PANEL PYRO US FPA 574454 Contact Us For Availability
View on Model
4
RACK BROILER PAN US
RACK BROILER PAN US FPA 574467 Contact Us For Availability
View on Model
6
GLASS DOOR INNER OB60 PYRO (SP)
GLASS DOOR INNER OB60 PYRO (SP) FPA 574297P Contact Us For Availability
View on Model
6
TRAY GLASS (SP)
TRAY GLASS (SP) FPA 574198P Contact Us For Availability
View on Model
7
GLASS DOOR MIDDLE OB60 PYRO (SP)
GLASS DOOR MIDDLE OB60 PYRO (SP) FPA 574298P Contact Us For Availability
View on Model
8
GROMMET RUBBER (PKT 12)
GROMMET RUBBER (PKT 12) FPA 574145P Contact Us For Availability
View on Model
9
SWITCH JOG
SWITCH JOG FPA 574282 Contact Us For Availability
View on Model
11
BRACKET DOOR TOP PYRO
BRACKET DOOR TOP PYRO FPA 574306 Contact Us For Availability
View on Model
11
LAMP ASSY REAR 77.717 (40W) (SP)
LAMP ASSY REAR 77.717 (40W) (SP) FPA 574460P Contact Us For Availability
View on Model
12
LAMP FLOODLIGHT 230V (40W)
LAMP FLOODLIGHT 230V (40W) FPA 574461 Contact Us For Availability
View on Model
12
BRACKET DOOR INNER PYRO
BRACKET DOOR INNER PYRO FPA 574307 Contact Us For Availability
View on Model
13
WIRING PYRO US
WIRING PYRO US FPA 574469 Contact Us For Availability
View on Model
14
CONDUIT PYRO US
CONDUIT PYRO US FPA 574473 Contact Us For Availability
View on Model
15
LATCH ASSY DOOR LOCK PYRO US
LATCH ASSY DOOR LOCK PYRO US FPA 574471 Contact Us For Availability
View on Model
15
HANDLE D2 ASSY 565 BRUSHED
HANDLE D2 ASSY 565 BRUSHED FPA 574420 Contact Us For Availability
View on Model
15
LOOM WIRING ELECT BOARD PYRO
LOOM WIRING ELECT BOARD PYRO FPA 574286 Contact Us For Availability
View on Model
16
SCREW MC M5X16 PAN PH MS ZP (PKT 2)
SCREW MC M5X16 PAN PH MS ZP (PKT 2) FPA 556650P Contact Us For Availability
View on Model
18
PANEL SIDE LEFT
PANEL SIDE LEFT FPA 574087 Contact Us For Availability
View on Model
18
O RING 9X6X2 (PKT 2)
O RING 9X6X2 (PKT 2) FPA 574147P Contact Us For Availability
View on Model
19
TRIM ASSY OVEN FRNT LH PYRO US
TRIM ASSY OVEN FRNT LH PYRO US FPA 574449 Contact Us For Availability
View on Model
21
PANEL VENTING UPPER PYRO US
PANEL VENTING UPPER PYRO US FPA 574450 Contact Us For Availability
View on Model
22
PANEL VENTING LOWER
PANEL VENTING LOWER FPA 574081 Contact Us For Availability
View on Model
23
PANEL VENTING MIDDLE PYRO
PANEL VENTING MIDDLE PYRO FPA 574301 Contact Us For Availability
View on Model
25

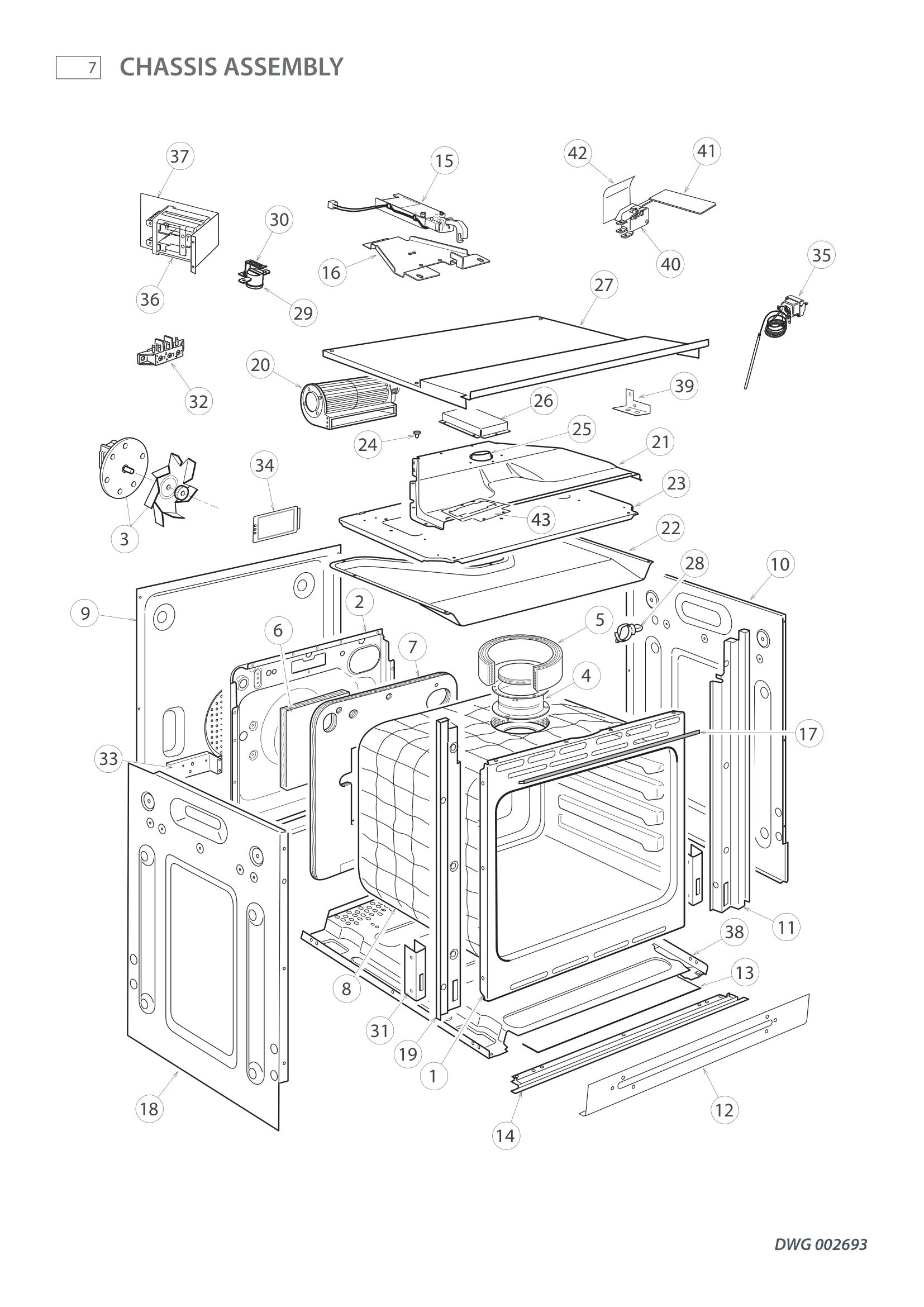

CHIMNEY FUME
CHIMNEY FUME FPA 574315 Contact Us For Availability
View on Model
26
DEFLECTOR FUME
DEFLECTOR FUME FPA 574316 Contact Us For Availability
View on Model
27
PANEL TOP
PANEL TOP FPA 574215 Contact Us For Availability
View on Model
28
CLIP CABLE STANDOFF (PKT 2)
CLIP CABLE STANDOFF (PKT 2) FPA 574148P Contact Us For Availability
View on Model
33
BRACKET TERMINAL BLOCK
BRACKET TERMINAL BLOCK FPA 574355 Contact Us For Availability
View on Model
34
COVER TERMINAL BLOCK
COVER TERMINAL BLOCK FPA 574352 Contact Us For Availability
View on Model
37
BRACKET RELAY PYRO US
BRACKET RELAY PYRO US FPA 574459 Contact Us For Availability
View on Model
38
PANEL BASE
PANEL BASE FPA 574078 Contact Us For Availability
View on Model
39
BRACKET MICROSWITCH PYRO US
BRACKET MICROSWITCH PYRO US FPA 574445 Contact Us For Availability
View on Model
42
INSUL MICROSWITCH PYRO US
INSUL MICROSWITCH PYRO US FPA 574476 Contact Us For Availability
View on Model
43
BRACKET TRANSFORMER US
BRACKET TRANSFORMER US FPA 574446 Contact Us For Availability
View on Model
NI
BOOK USER/INSTAL OB24 PYRO
BOOK USER/INSTAL OB24 PYRO FPA 599406 Contact Us For Availability
