Model Fisher & Paykel OB24SCD11PB1-82150-A Built In Oven – Common Parts & Diagrams

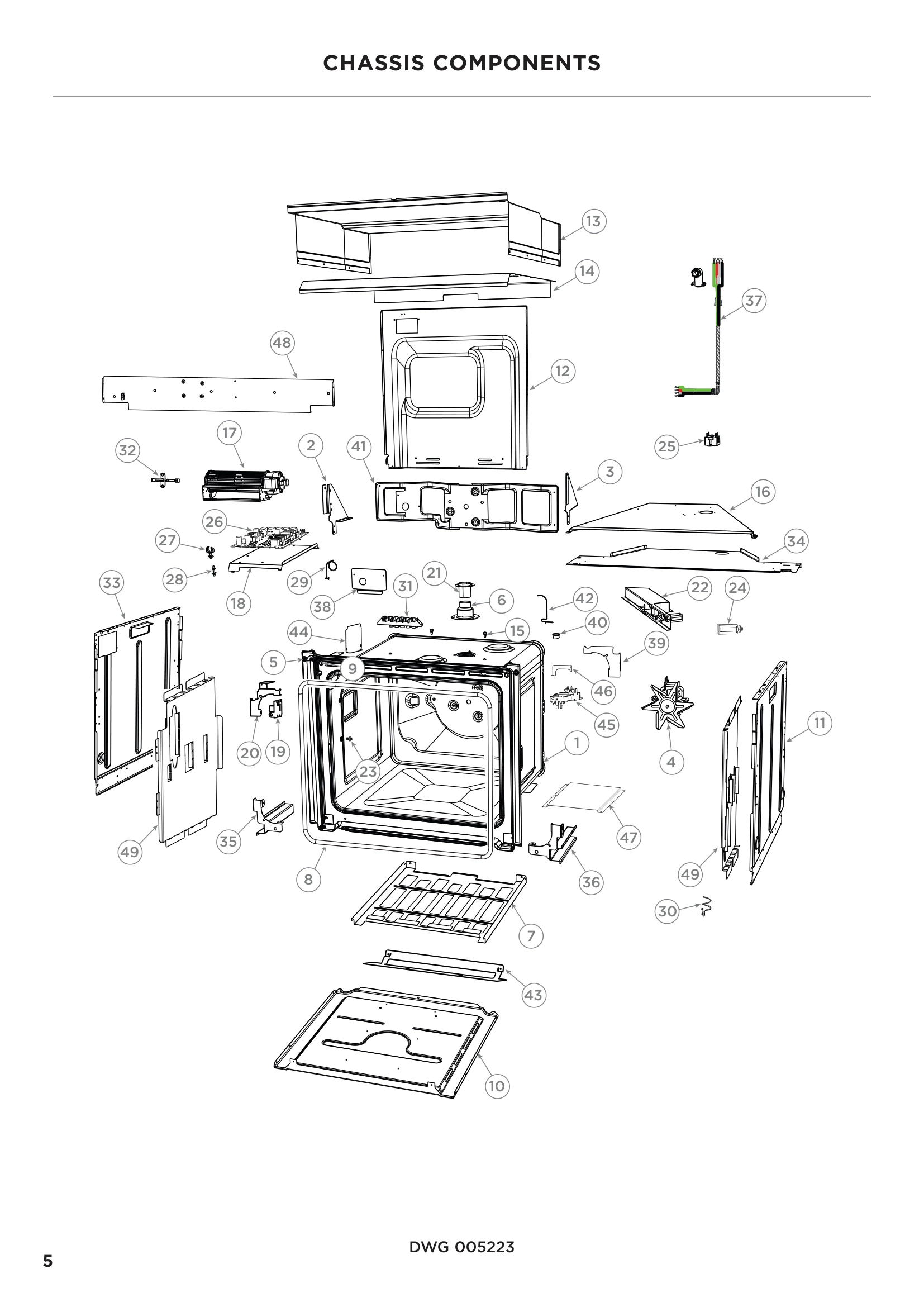

CHASSIS COMPONENTS

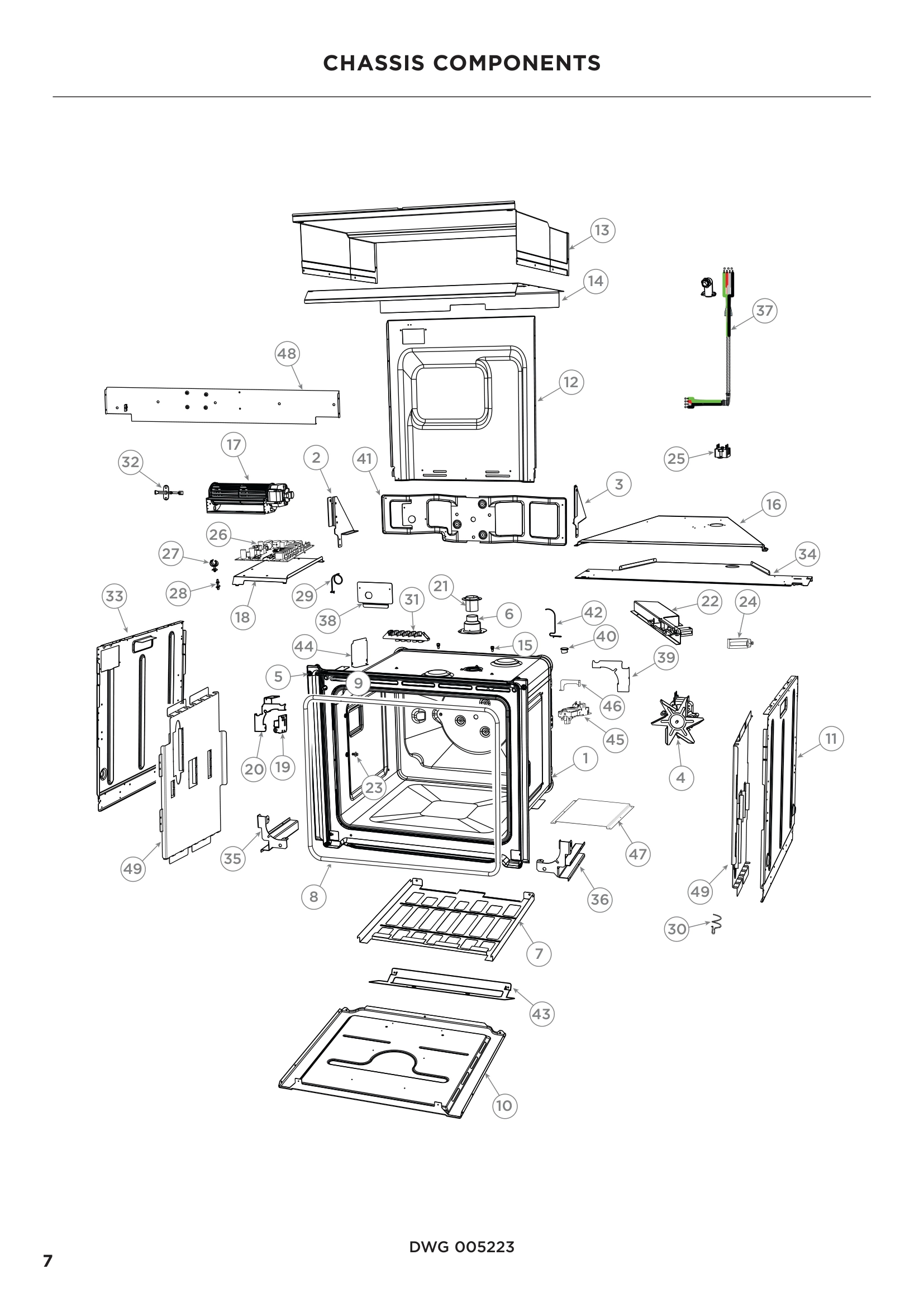

CHASSIS COMPONENTS
CHASSIS COMPONENTS
DOOR COMPONENTS
ELEMENTS & ACCESSORIES
Common parts from model Fisher & Paykel OB24SCD11PB1-82150-A Built In Oven
1
KIT DOOR GLASS BKT US BLK FPA 565325 Contact Us For Availability
1
LADDER PYRO OB24C FPA 565112 Contact Us For Availability
2
SHELF FLAT FPA 561147 Contact Us For Availability
3
GLASS DOOR MID OB24C (SP) FPA 565084P Contact Us For Availability
3
SHELF DROPDOWN FPA 561609 Contact Us For Availability
4
TRIM TOP DOOR OB24C FPA 565126 Contact Us For Availability
4
DISH DEEP COATED OB2 FPA 550933 Contact Us For Availability
5
BUFFER GLASS MID LOWER FPA 562595 Contact Us For Availability
5
GRID GRILL COATED OB2 FPA 550934 Contact Us For Availability
6
BRACKET G2 HINGE FG DOOR LH FPA 565169 Contact Us For Availability
6
RACK GRILL OB2 FPA 550572 Contact Us For Availability
7
BRACKET G2 HINGE FG DOOR RH FPA 565170 Contact Us For Availability
7
LIGHT SIDE LFT 120V 25W HALO FPA 565388 Contact Us For Availability
8
RETAINER DOOR GLASS MID FPA 565142 Contact Us For Availability
8
LIGHT SIDE RHT 120V 25W HALO FPA 565389 Contact Us For Availability
9
SHROUD FAN OB60C ENAM PYRO FPA 562047 Contact Us For Availability
10
ELEMENT GRILL FIXED FPA 561445 Contact Us For Availability
11
CLIP ELEMENT SH FPA 562869 Contact Us For Availability
12
SPACER HANDLE D5 565 (PKT2) FPA 563751P Contact Us For Availability
13
ELEMENT BAKE FPA 561914 Contact Us For Availability
16
HINGE G2 3P FG UNDAMPED 20K FPA 565188 Contact Us For Availability
17
HINGE G2 3P FG DAMPED 20K FPA 565187 Contact Us For Availability
18
GASKET DOOR FIBREGLASS FPA 565079 Contact Us For Availability
19
DOOR SWITCH FPA 565057 Contact Us For Availability
19
RETAINER GASKET DOOR FPA 565075 Contact Us For Availability
20
BRKET MOUNT SWITCH ASM FPA 565244 Contact Us For Availability
23
STUD KIT OB60C FPA 562521 Contact Us For Availability
24
ACTUATOR ELTEK 10033142 FPA 550547 Contact Us For Availability
25
LIMITER TWO POLE TY62R 160C FPA 565249 Contact Us For Availability
29
WIRE STANDOFF COIL FPA 545874 Contact Us For Availability
30
PIGTAIL SHORT FPA 551022 Contact Us For Availability
33
PANEL SIDE LH FPA 565200 Contact Us For Availability
34
DUCT COOLING INLET FPA 565165 Contact Us For Availability
35
BRKT HINGE ASM LH FPA 565242 Contact Us For Availability
36
BRKT HINGE ASM RH FPA 565243 Contact Us For Availability
37
CONDUIT OB24C UL FPA 565150 Contact Us For Availability
38
PANEL CONDUIT MOUNTING FPA 565063 Contact Us For Availability
39
BRKET MOUNT TOP RH FPA 565245 Contact Us For Availability
40
COVER ACCESS HOLE 14MM FPA 565226 Contact Us For Availability
41
RETAINER CAVITY FPA 561608 Contact Us For Availability
42
SPRING WIRE FPA 561869 Contact Us For Availability
43
PANEL COVER BASE SLOTS FPA 565039 Contact Us For Availability
44
COVER DOOR SENSOR FPA 565213 Contact Us For Availability
46
BKT LOCK DOOR ELTEK V2 FPA 565129 Contact Us For Availability
47
BRACE BASE FPA 565364 Contact Us For Availability
49
RETAINER INSUL SIDE FPA 565368 Contact Us For Availability
NI
INSULATION BACK PYRO FPA 561916 Contact Us For Availability
NI
SCREW M4 X 25 TC (10PK) FPA 550925P Contact Us For Availability
NI
SCREW SD 3.9X13 PAN PN NP PK10 FPA 562839P Contact Us For Availability
NI
SCREW ST 8X10 TAB MTS BK PKT10 FPA 556620P Contact Us For Availability
NI
HARNESS 24CSTD PYRO4E00003U5 FPA 565153 Contact Us For Availability
NI
HARNESS FAN SENSOR FPA 565151 Contact Us For Availability
NI
HARNESS MEAT PROBE AND TEMP SENSOR FPA 565157 Contact Us For Availability
NI
HARNESS LOCK AND DOOR OB24 FPA 565156 Contact Us For Availability
NI
HARNESS MEATPROBE FPA 565228 Contact Us For Availability
NI
MS 6-32 X 5/8 PH PAN (PKT10) FPA 211271P Contact Us For Availability
NI
SCREW ST 7X6.5 TAB FLTPH (PKT 10) FPA 550961P Contact Us For Availability
NI
BULB SPARES KIT OB24C FPA 565275 Contact Us For Availability
NI
KIT MEAT PROBE HARNESS&SOCKET FPA 565302 Contact Us For Availability
NI
BOOKSET OB24SC FP FPA 591804 Contact Us For Availability
NI
KIT SCREWS INSTALL (2PK) FPA 562192 Contact Us For Availability
NI
BOOK INSTALL OB24SC FP FPA 591362 Contact Us For Availability
× ![]()
