Model Alliance NU035M Dryer – Common Parts & Diagrams

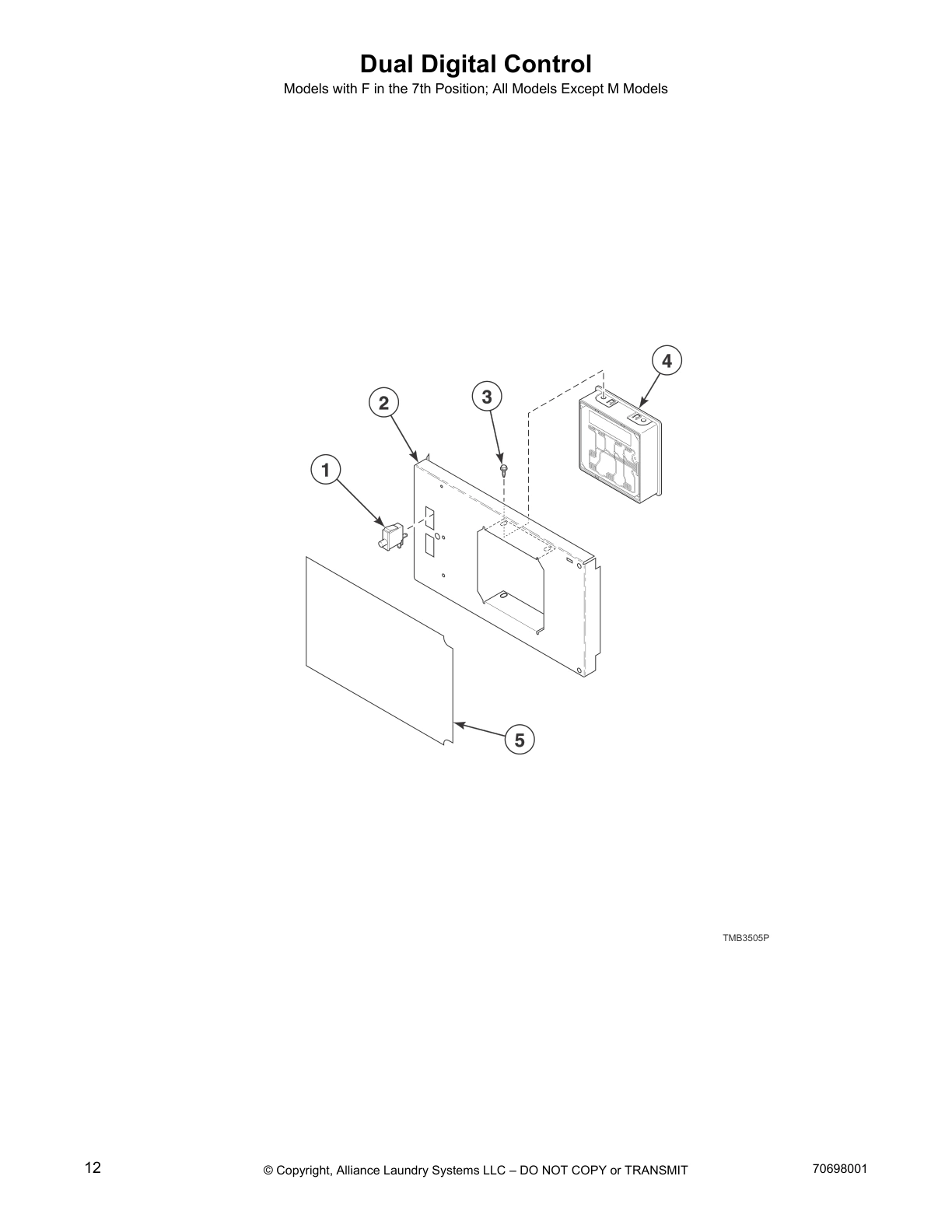

Dual Digital Control

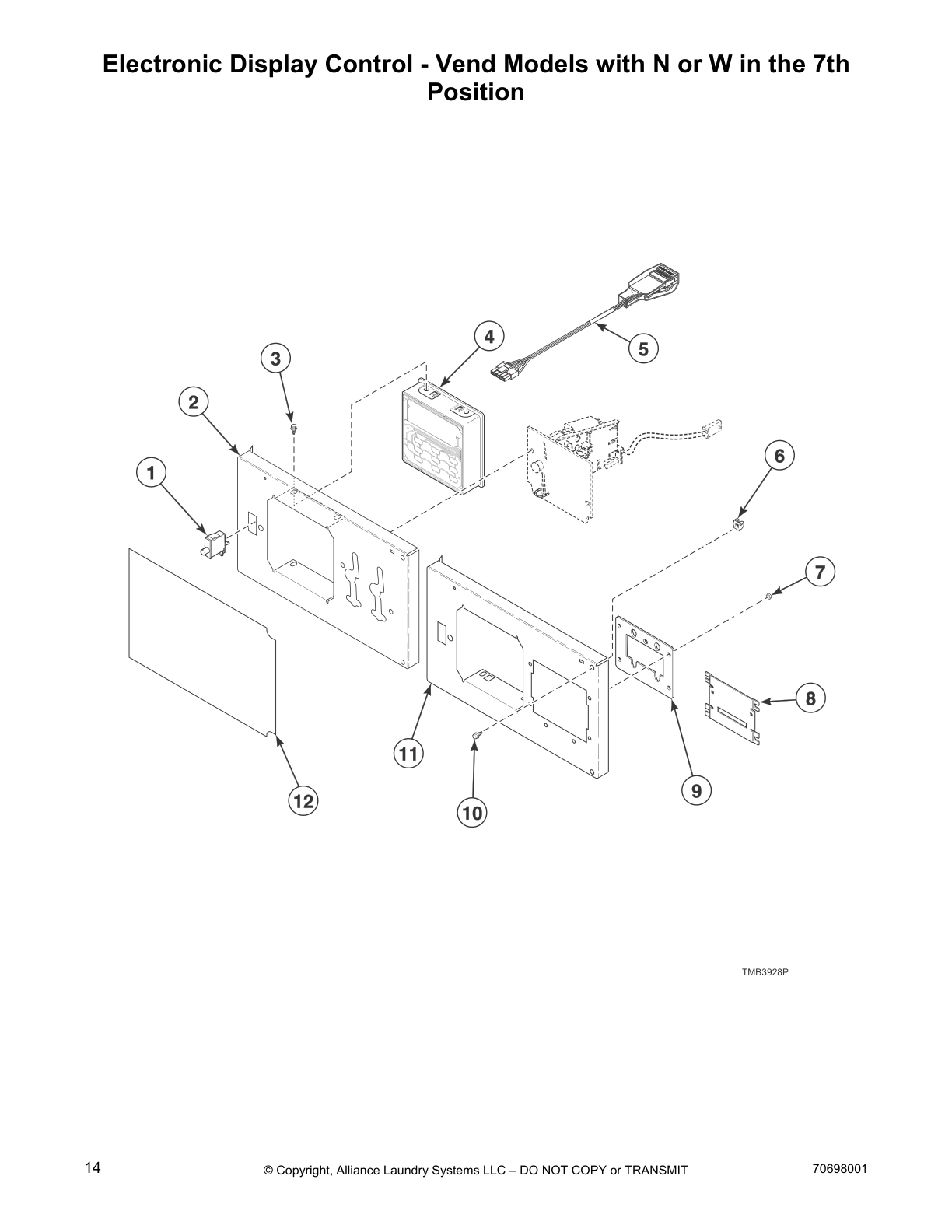

Electronic Display Control - Vend Models with N or W in the 7th
Position

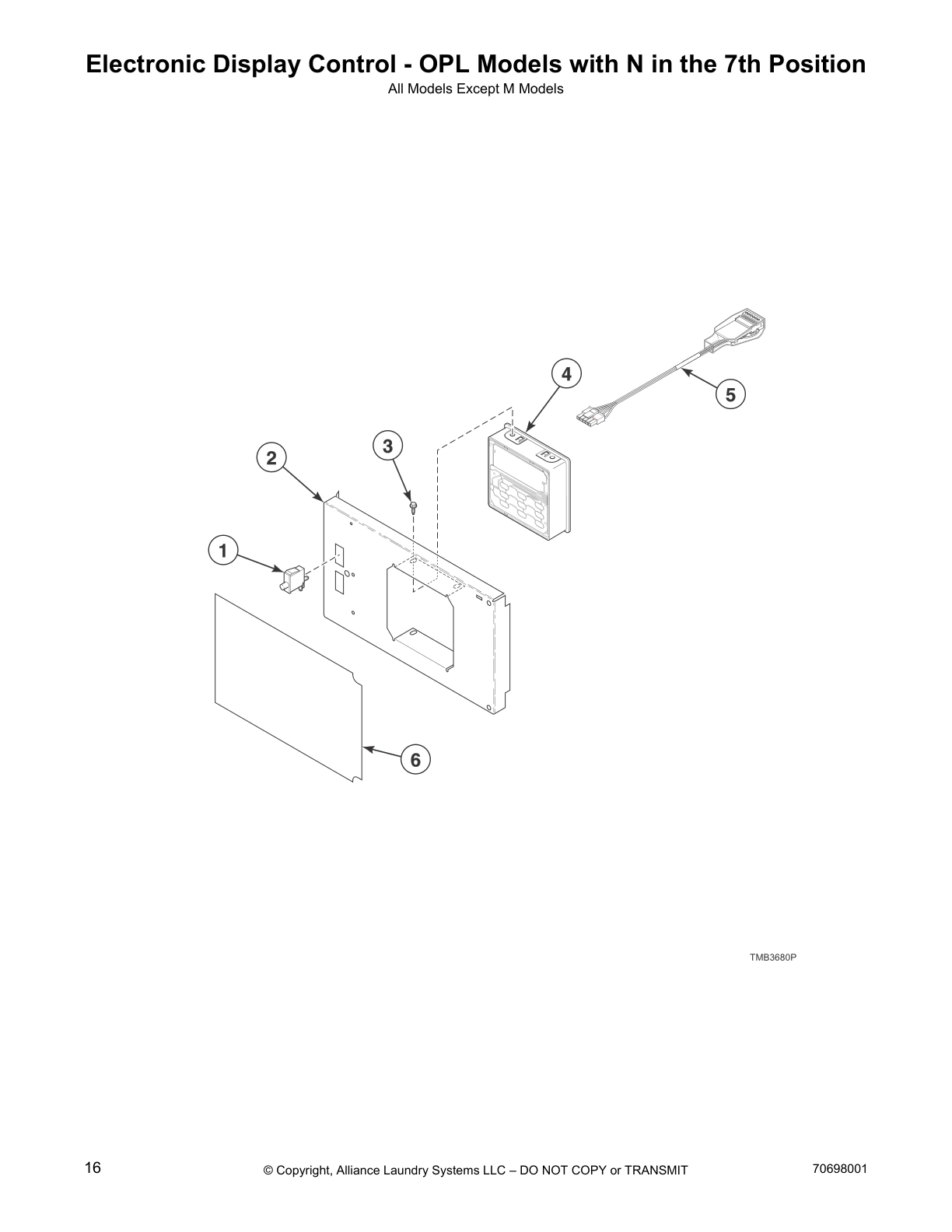

Electronic Display Control - OPL Models with N in the 7th Position

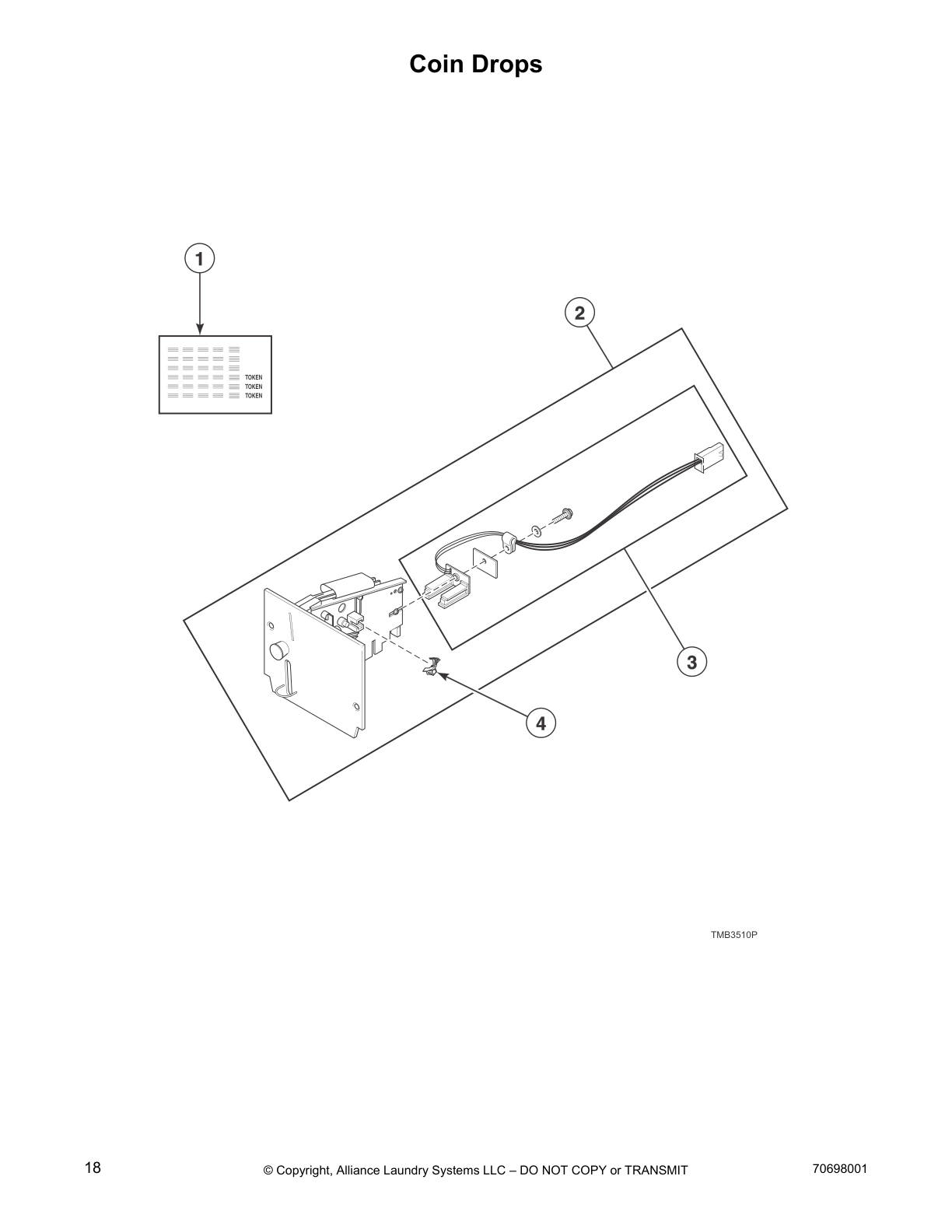

Coin Drops

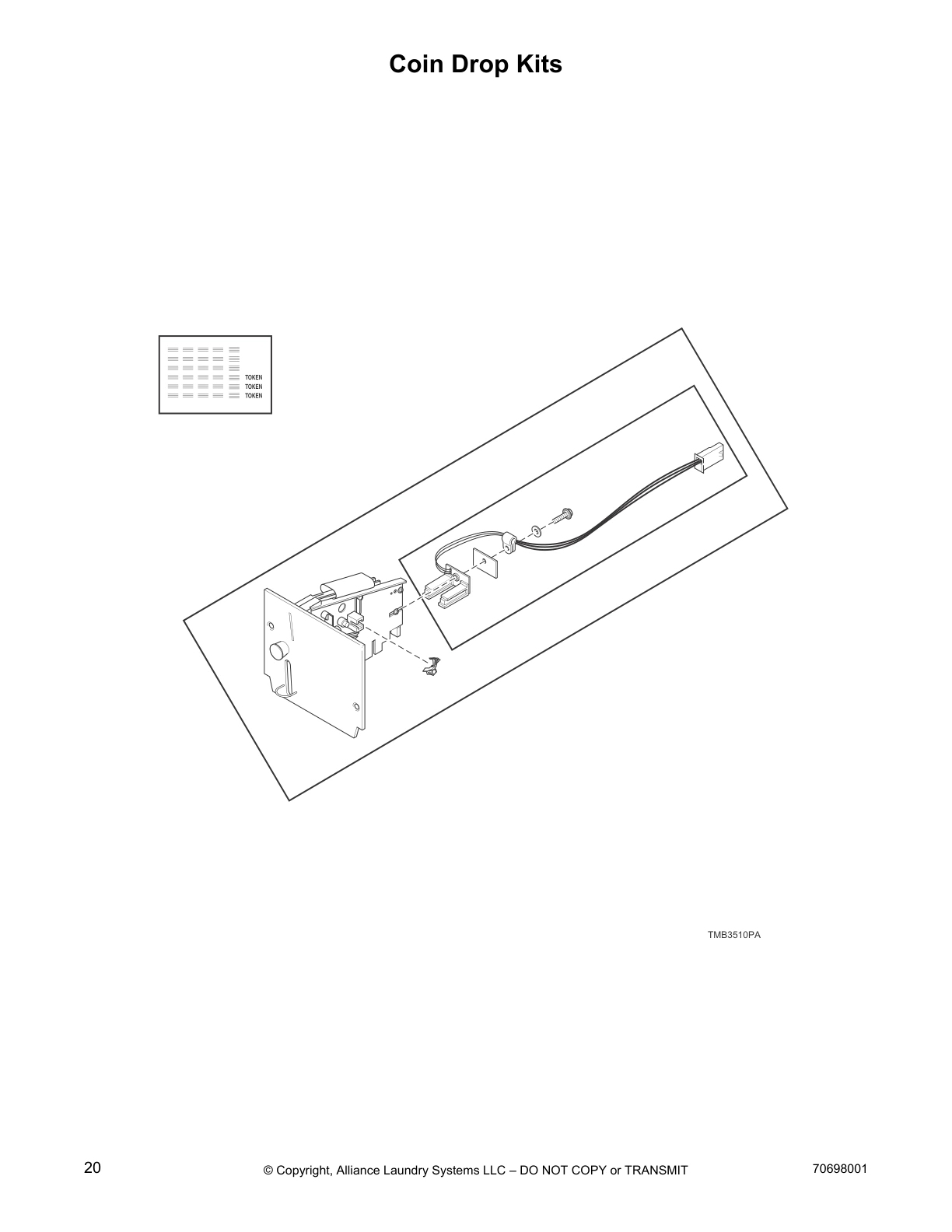

Coin Drop Kits

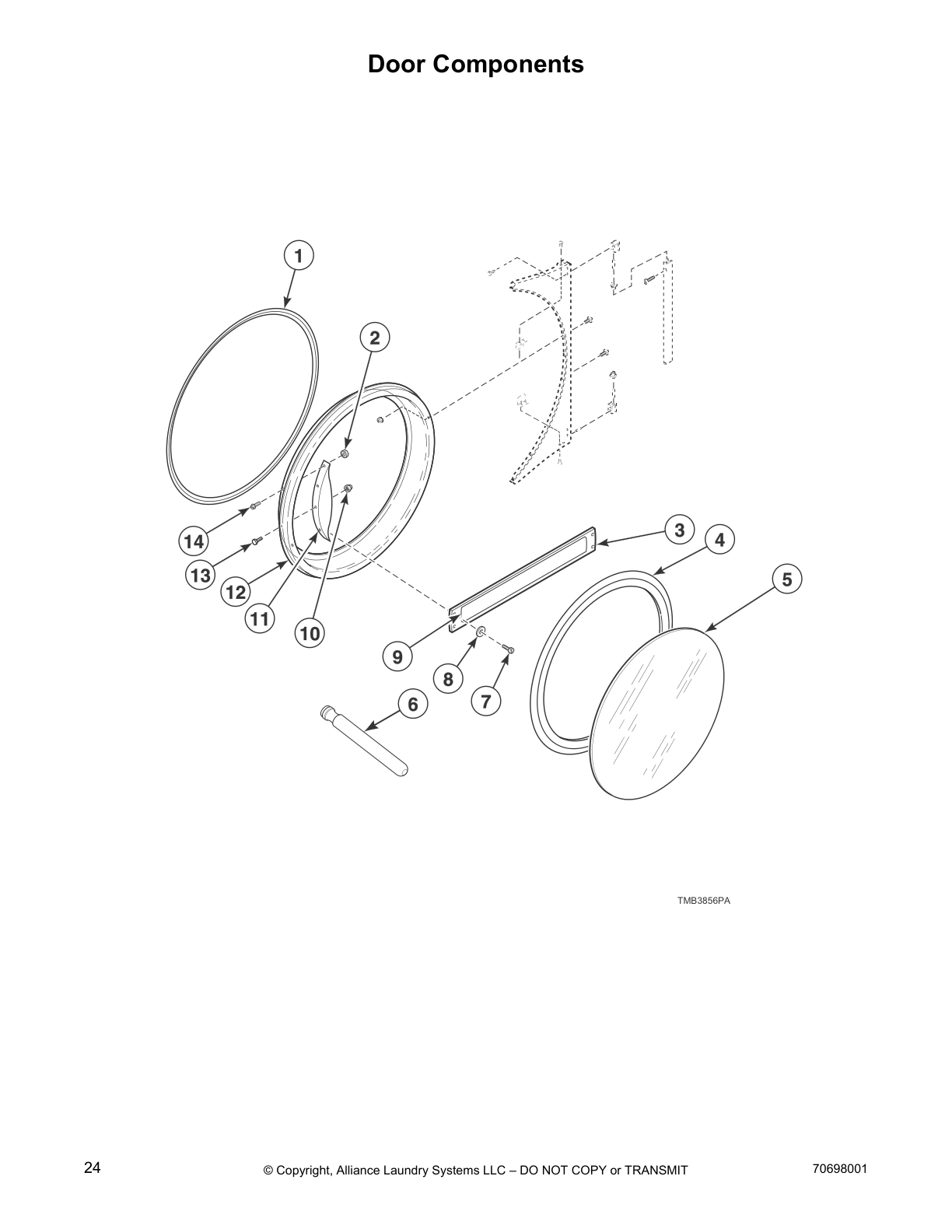

Door Components

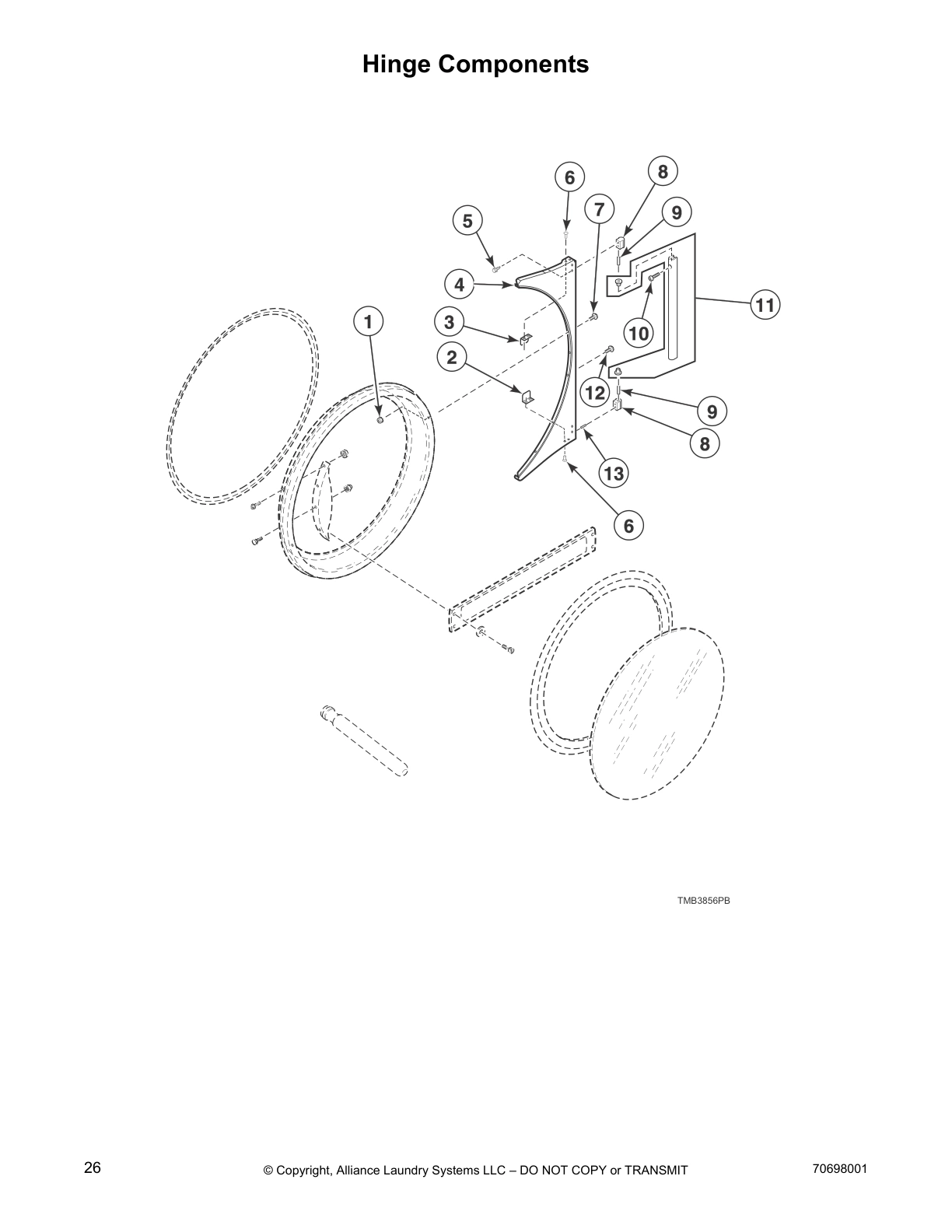

Hinge Components

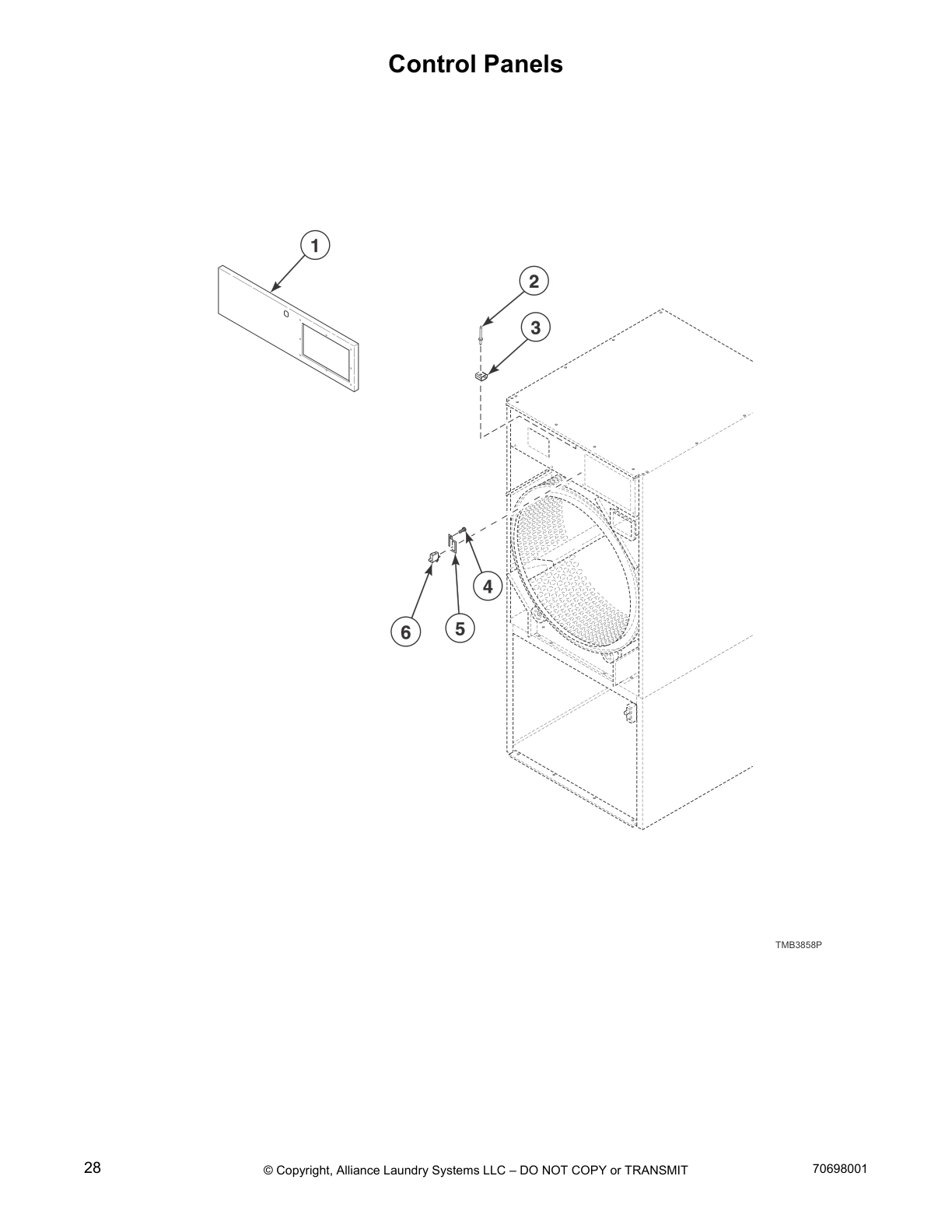

Control Panels

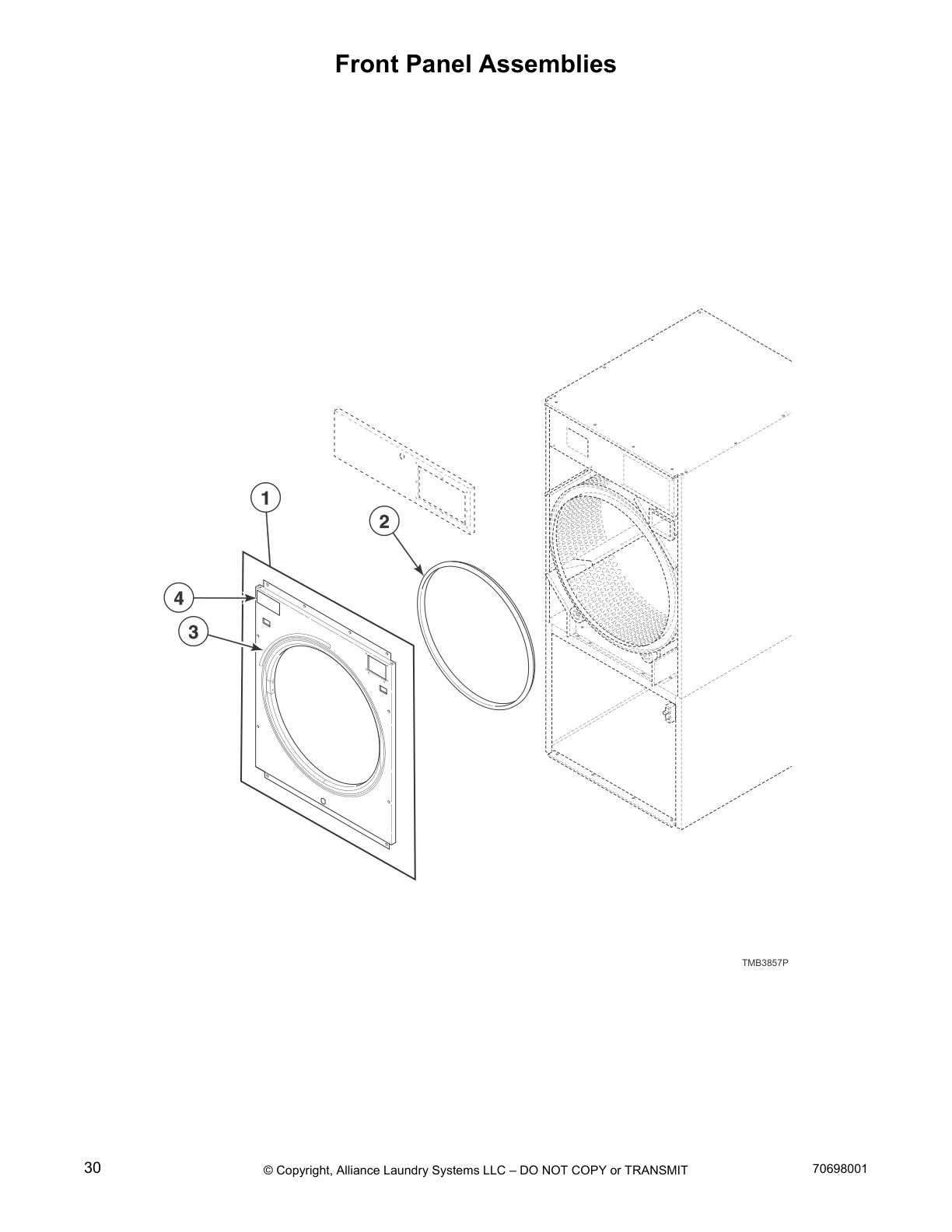

Front Panel Assemblies

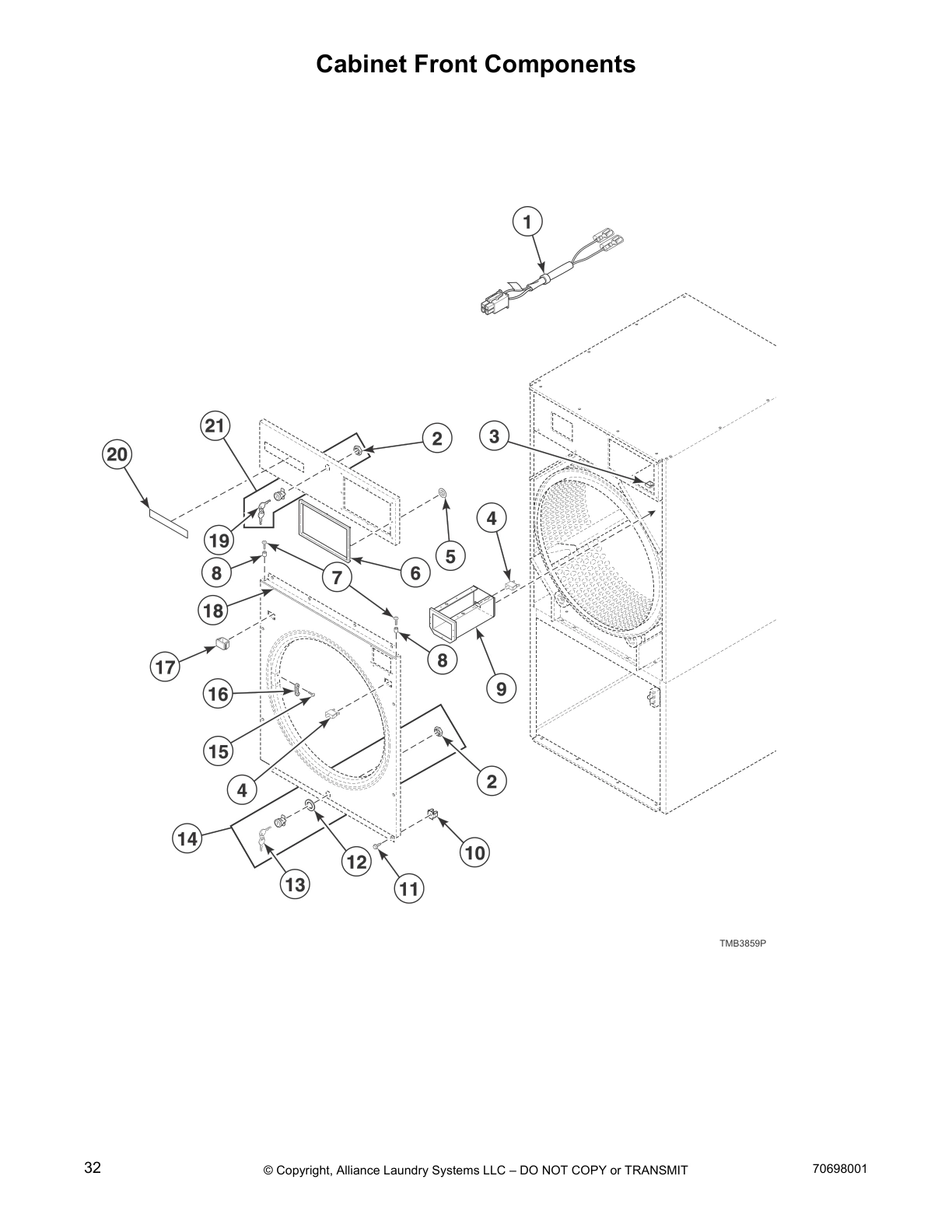

Cabinet Front Components

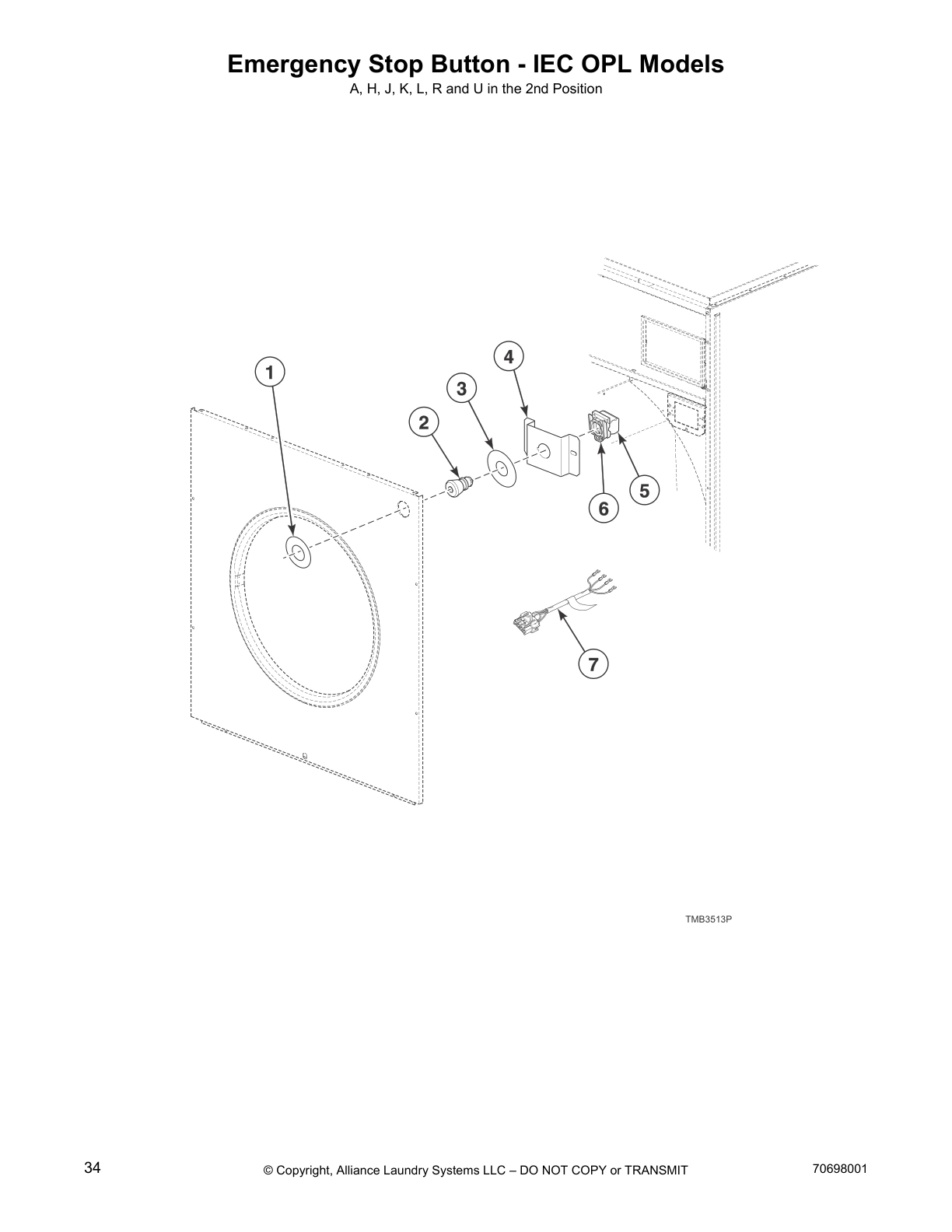

Emergency Stop Button - IEC OPL Models

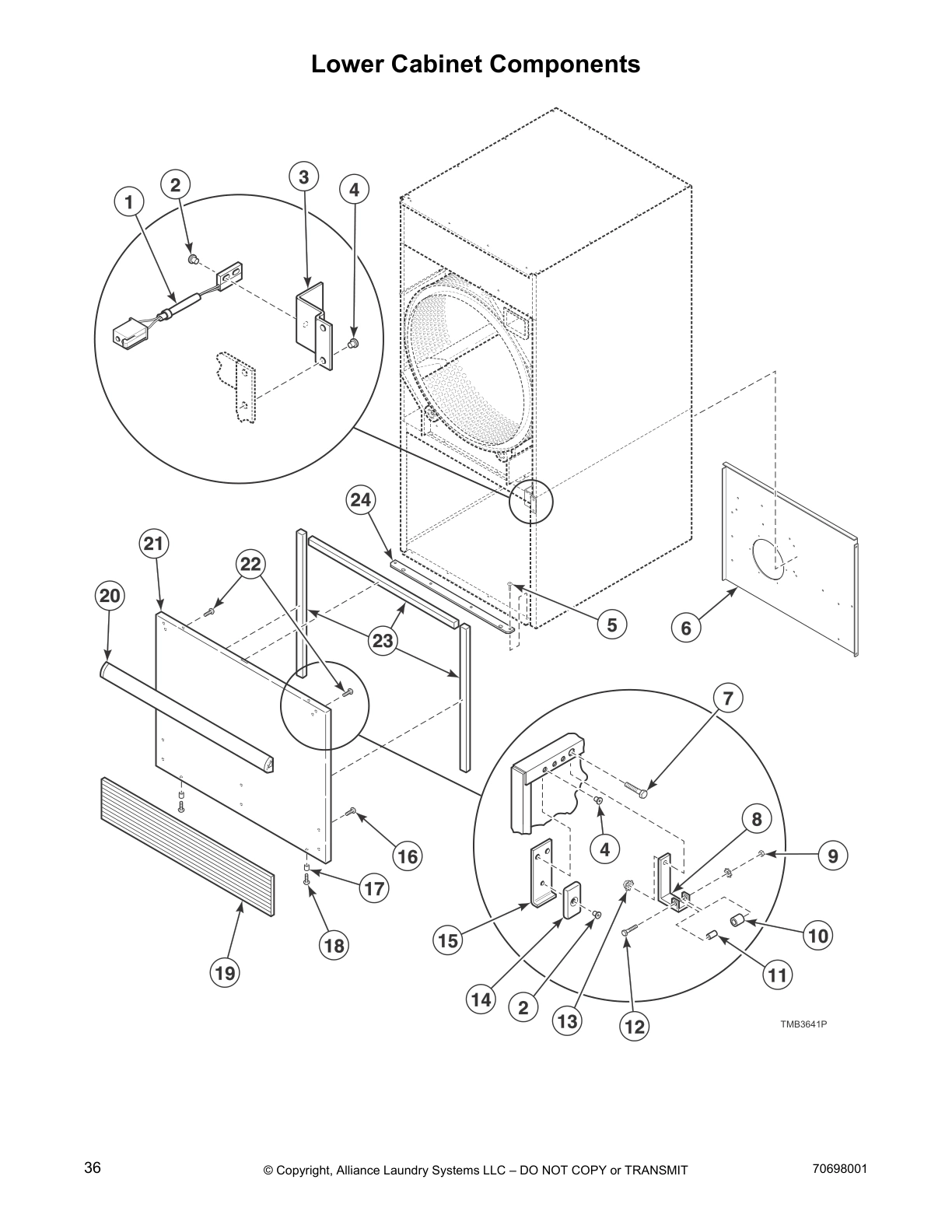

Lower Cabinet Components

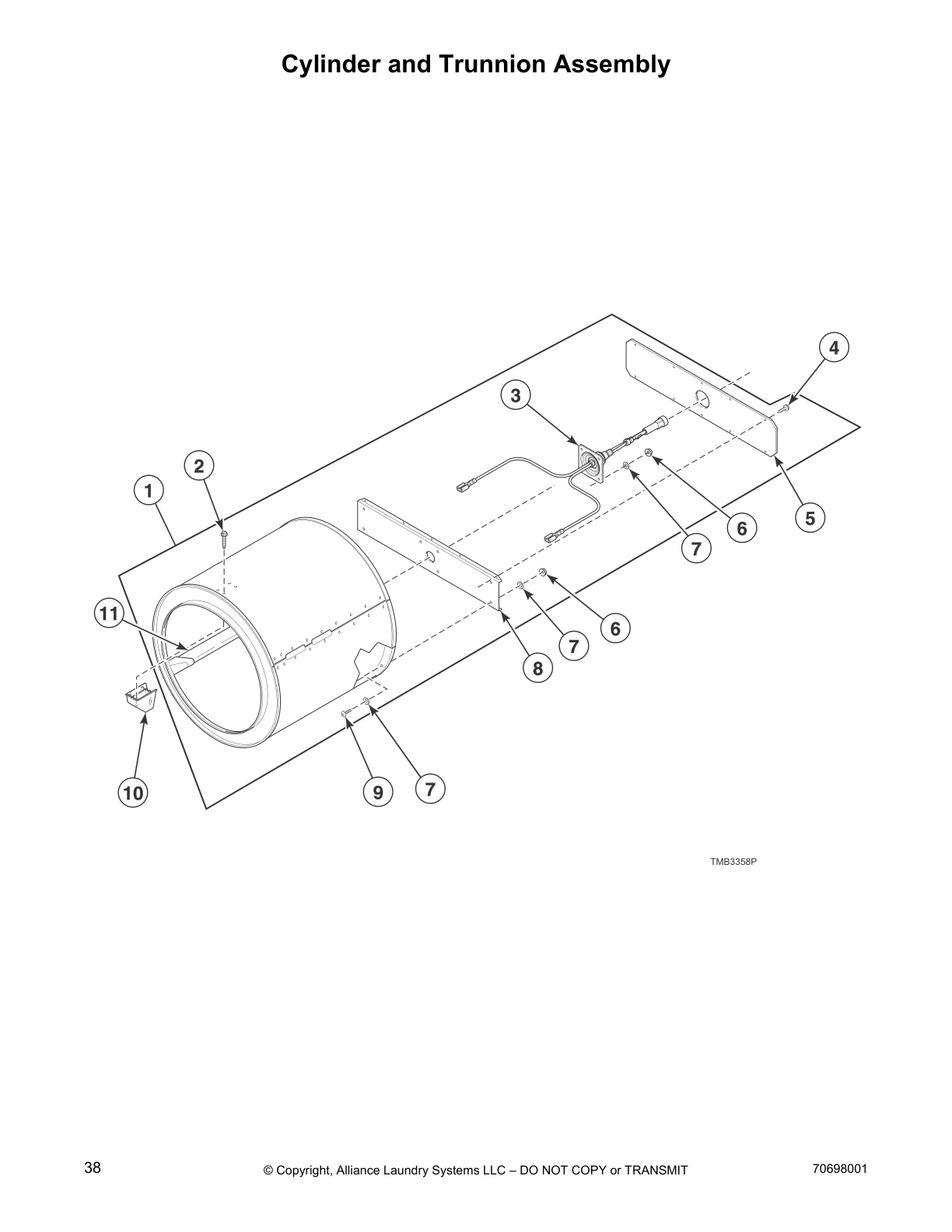

Cylinder and Trunnion Assembly

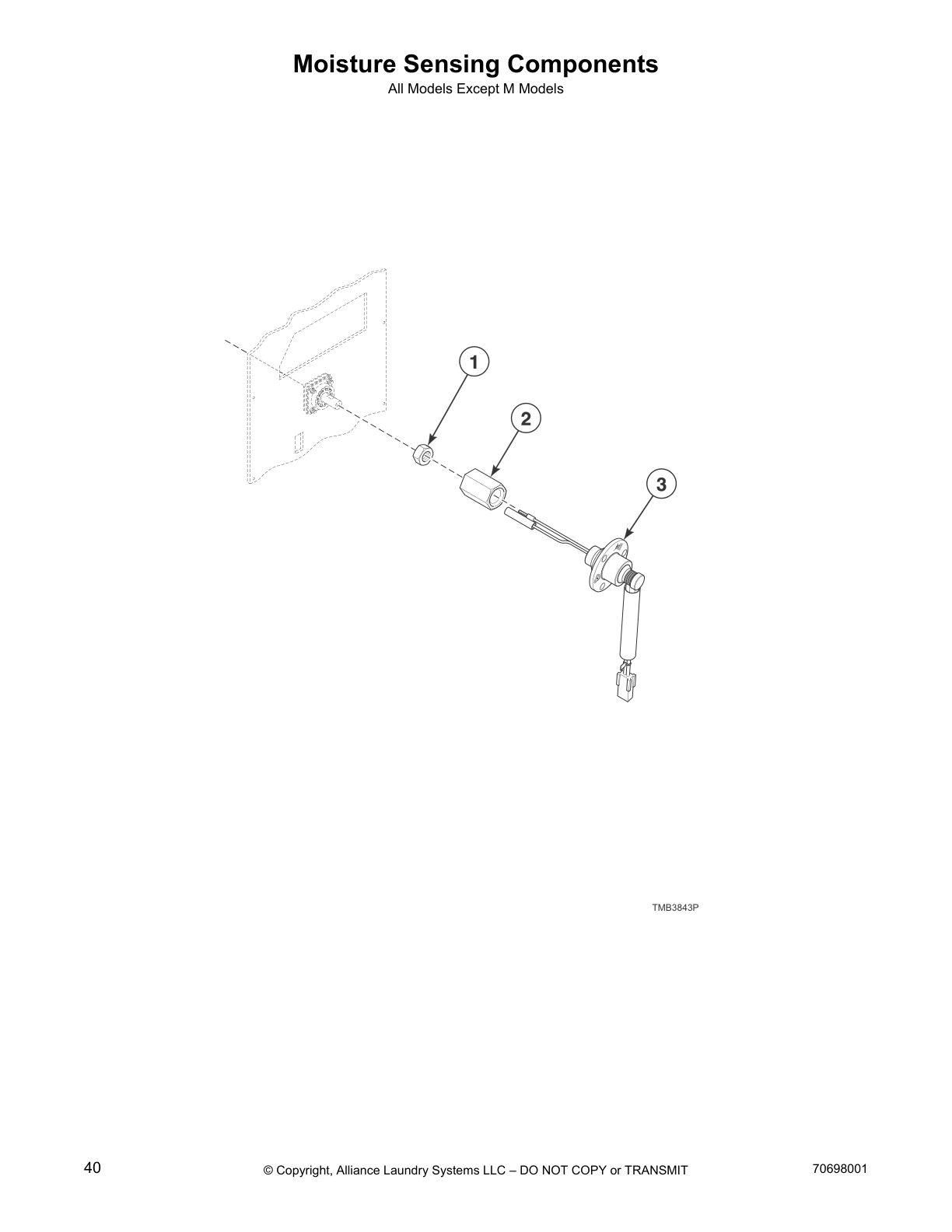

Moisture Sensing Components

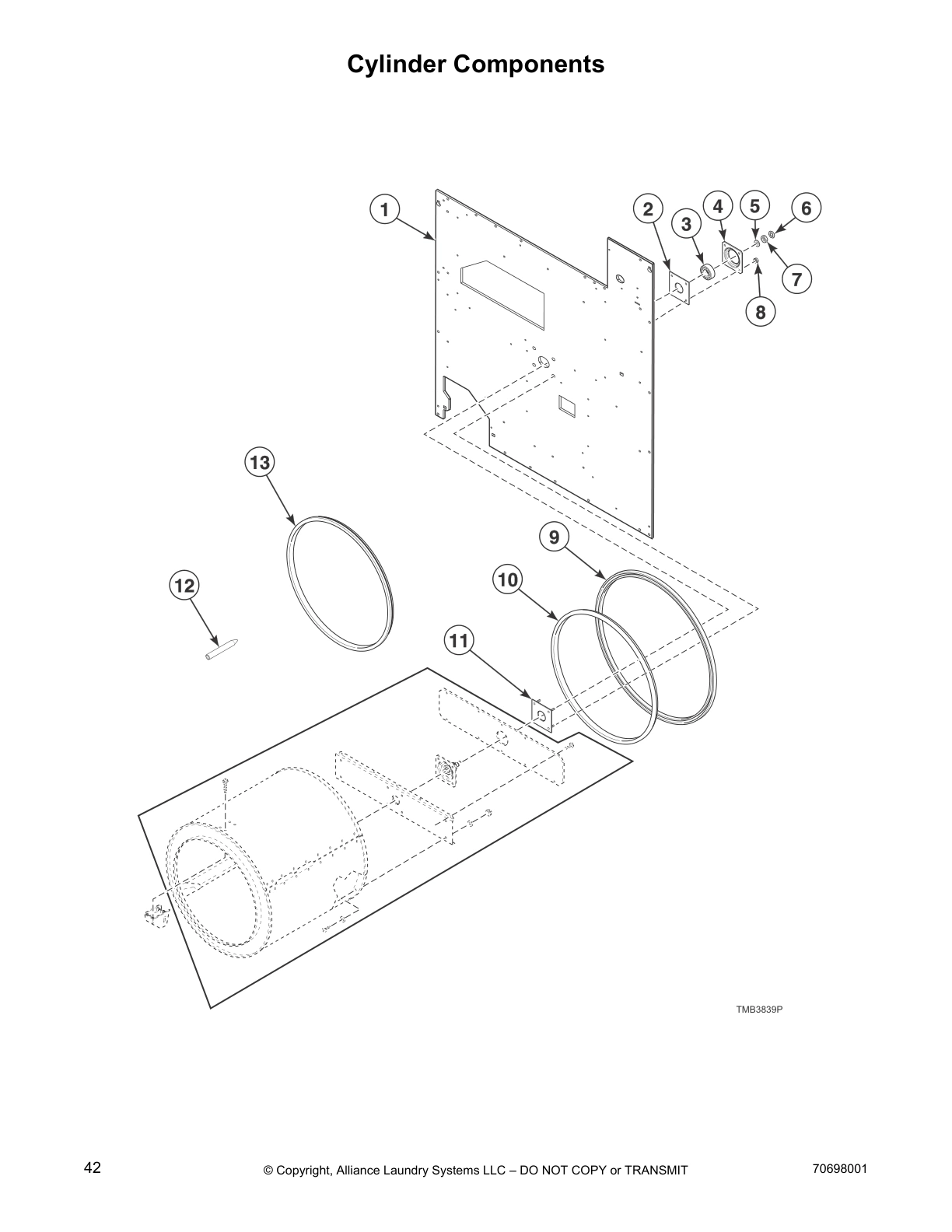

Cylinder Components

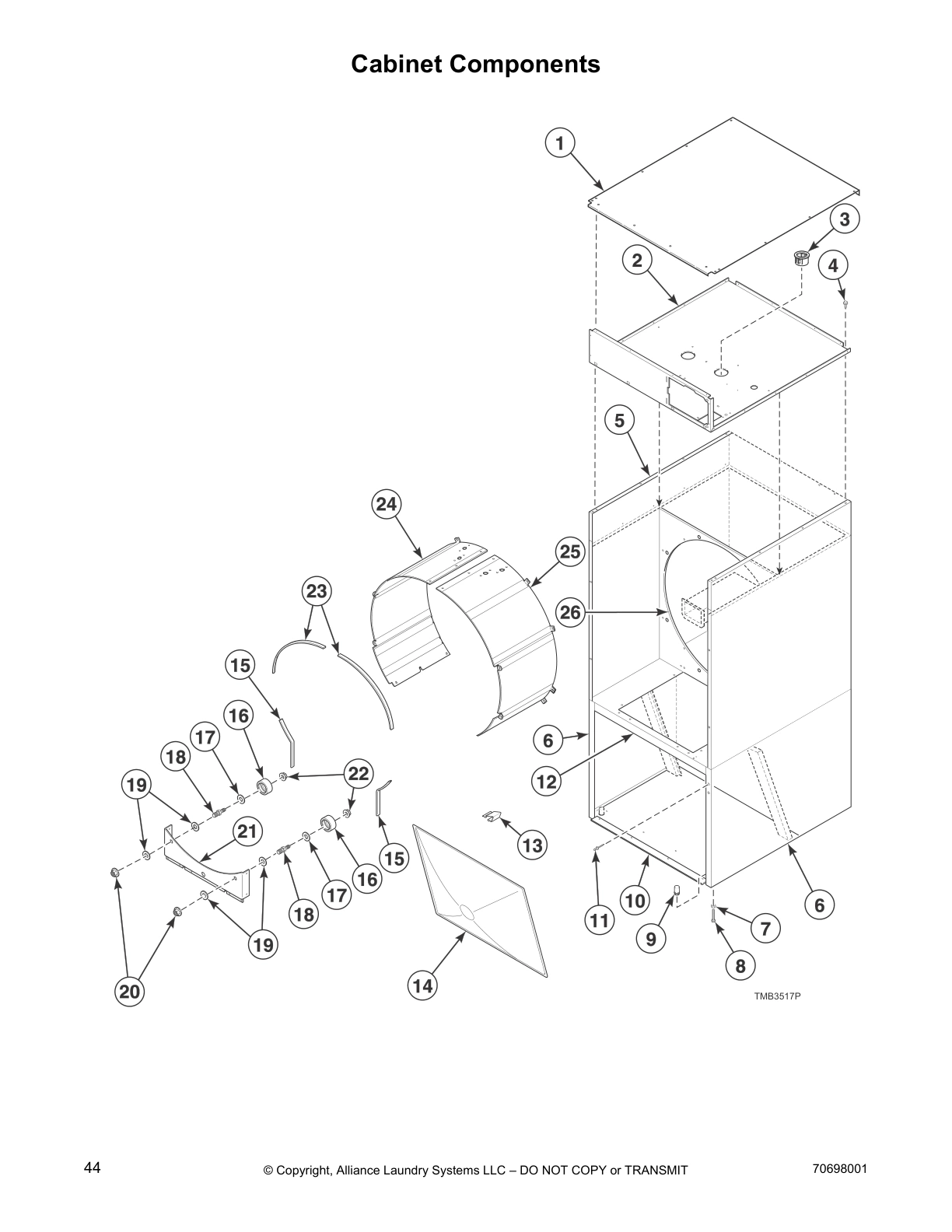

Cabinet Components

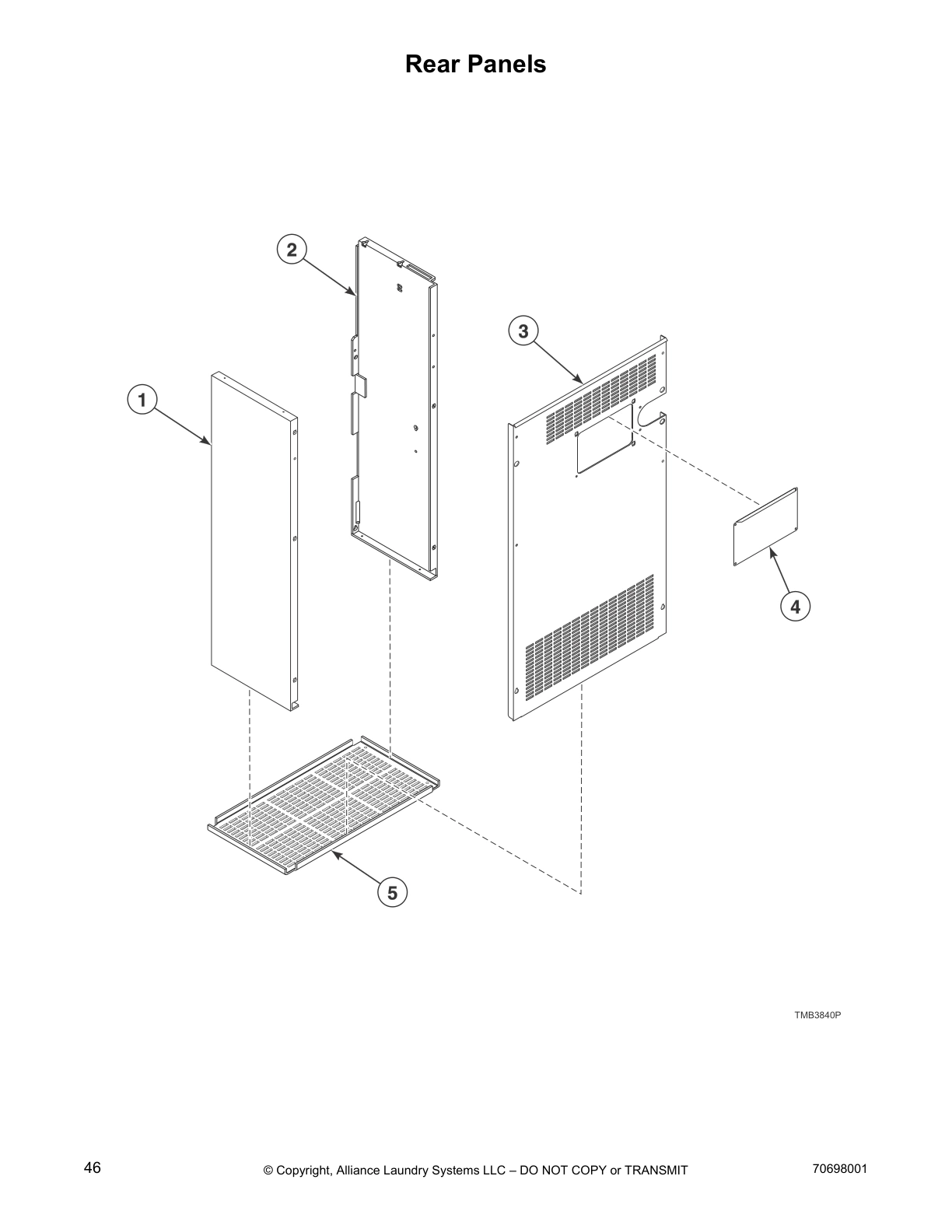

Rear Panels

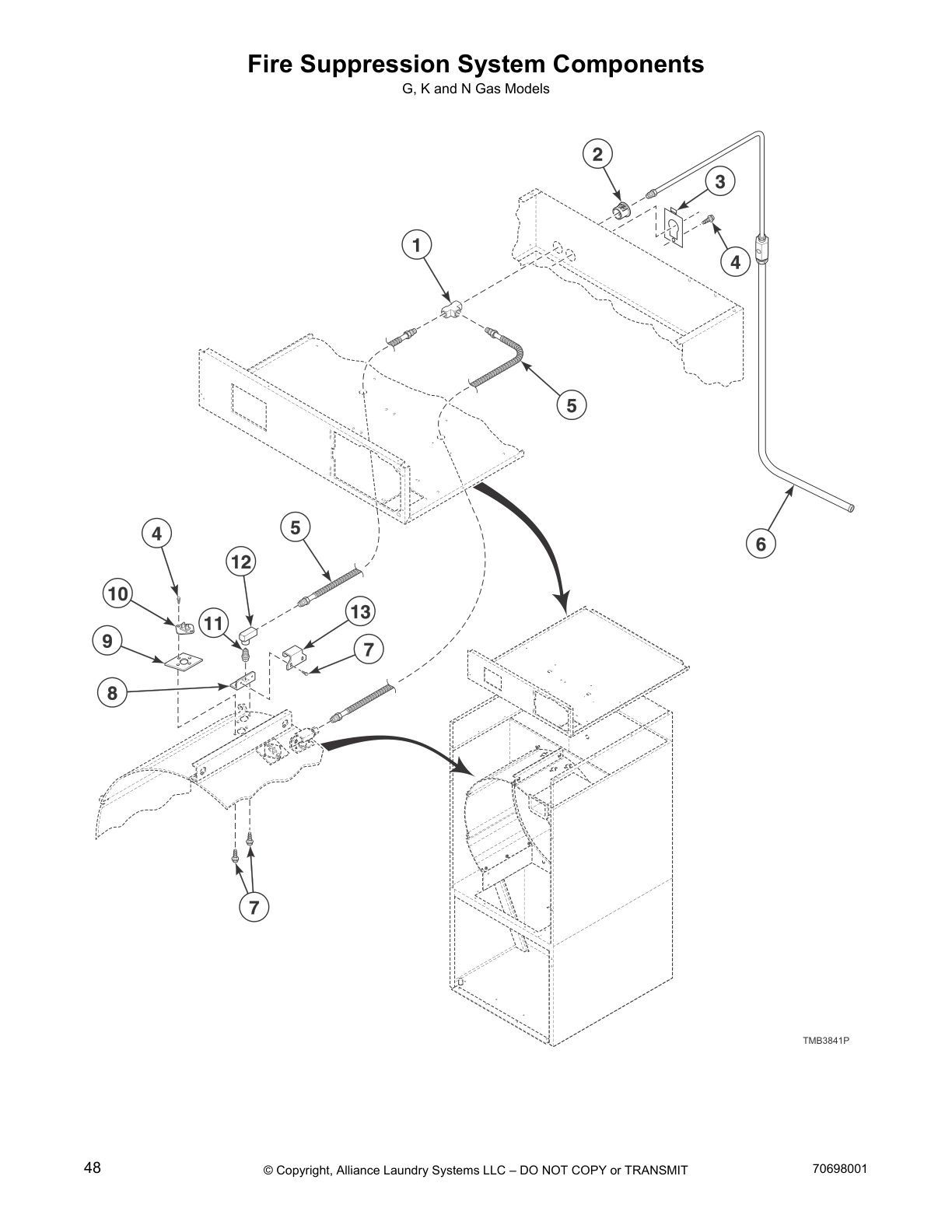

Fire Suppression System Components

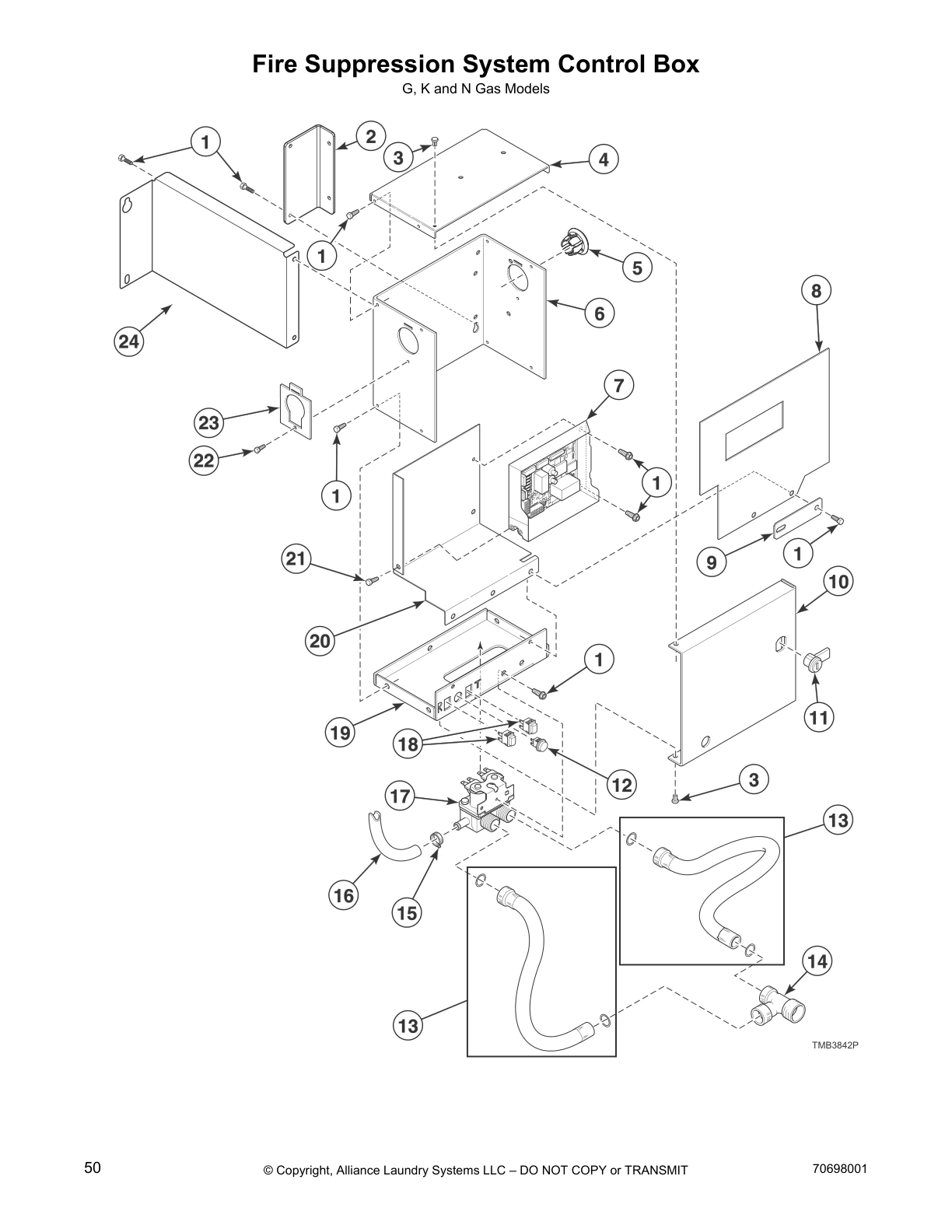

Fire Suppression System Control Box

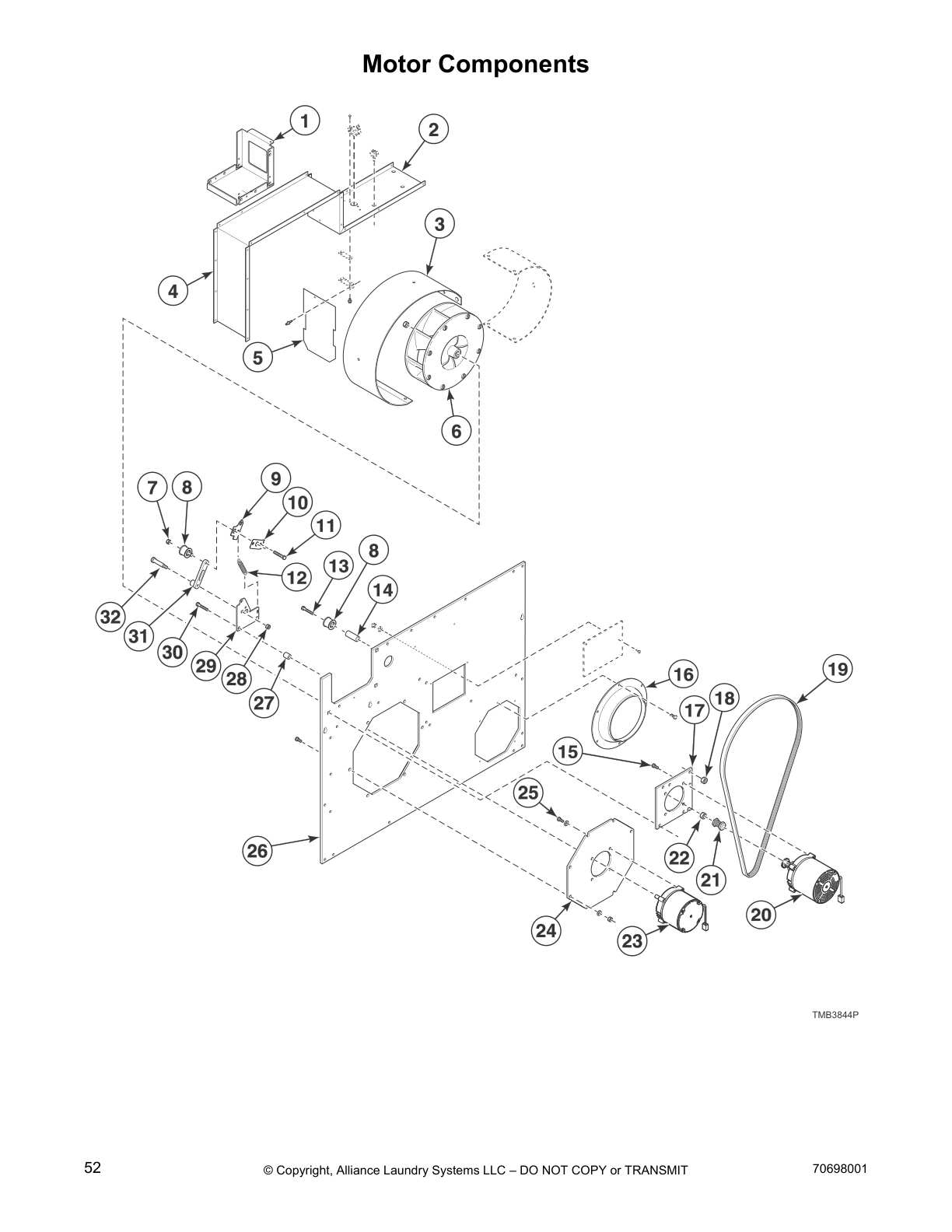

Motor Components

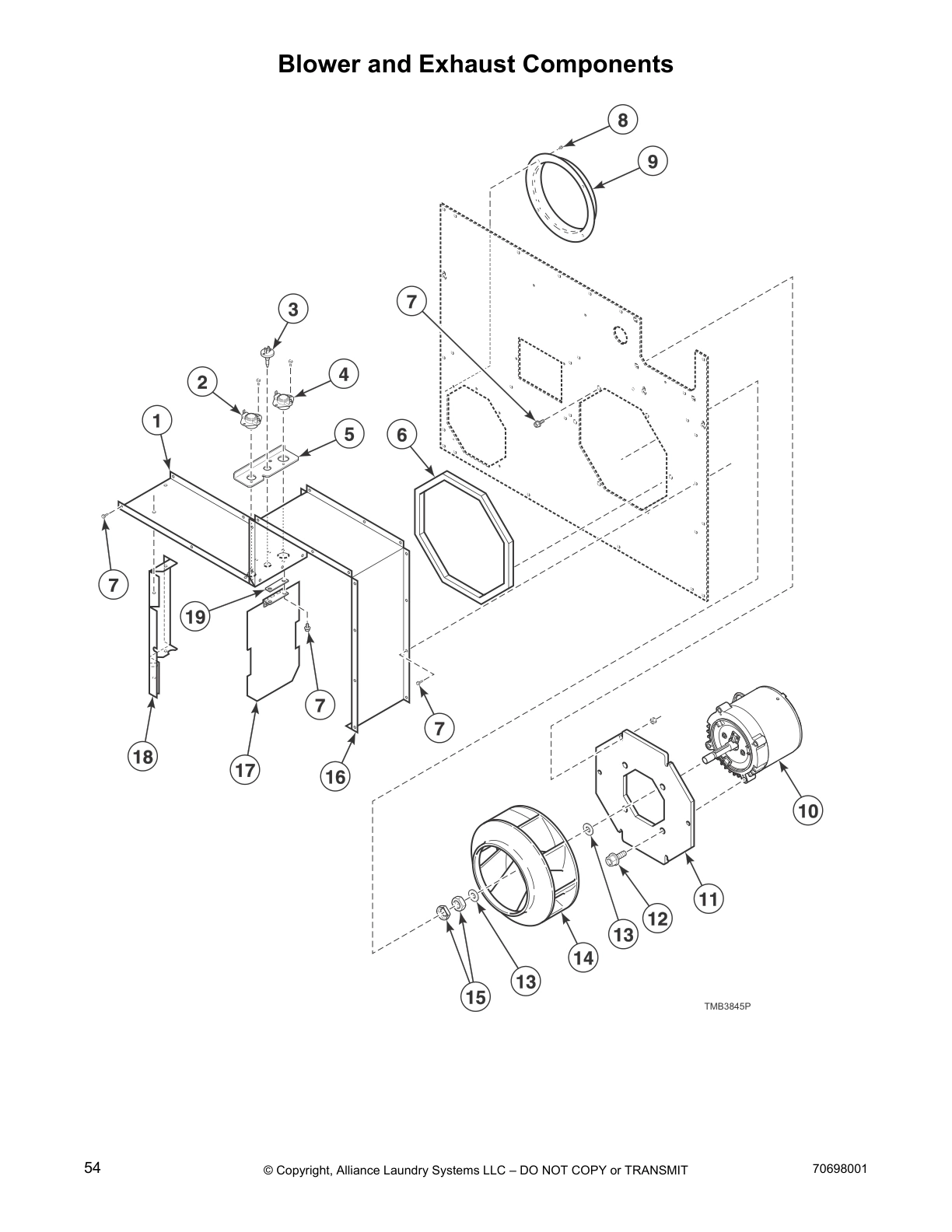

Blower and Exhaust Components

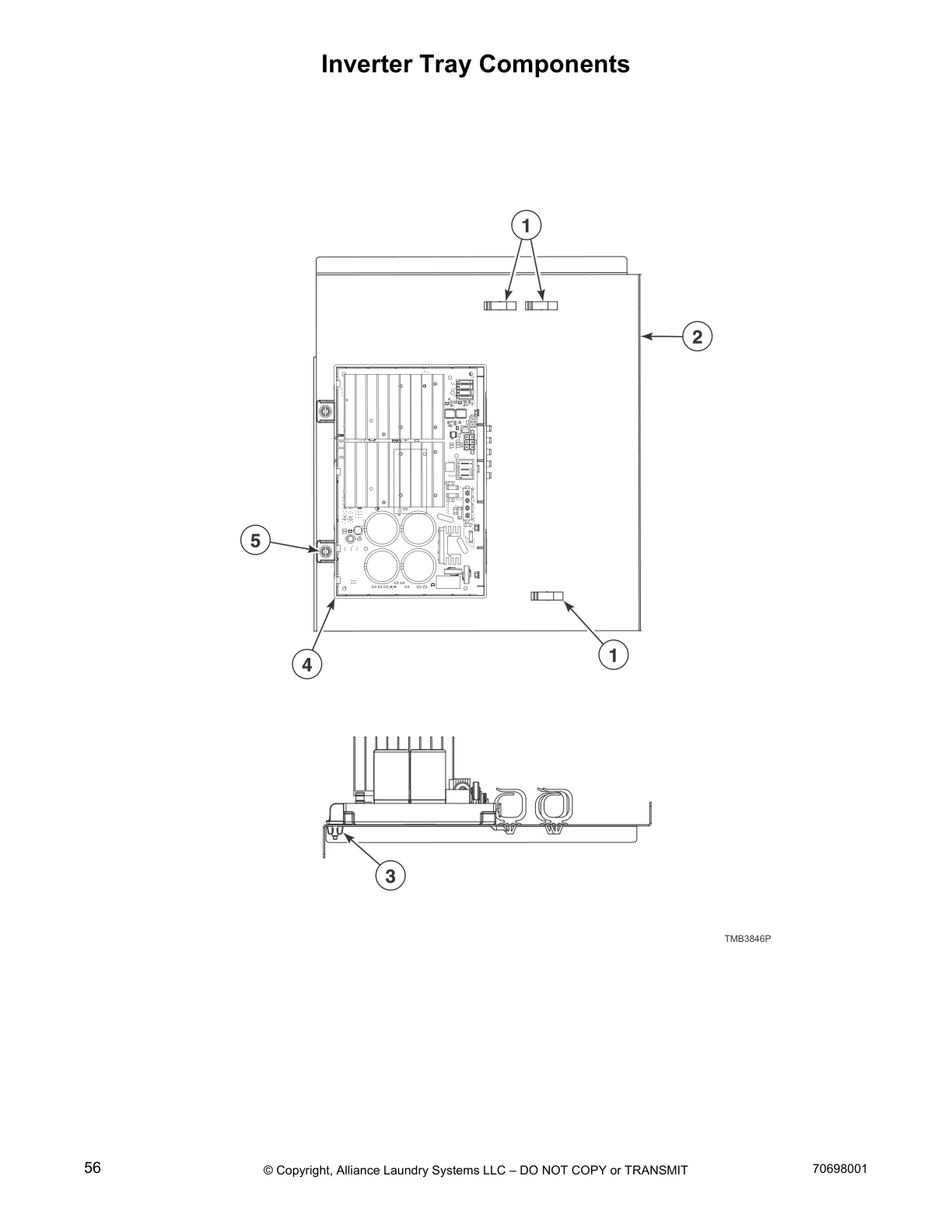

Inverter Tray Components

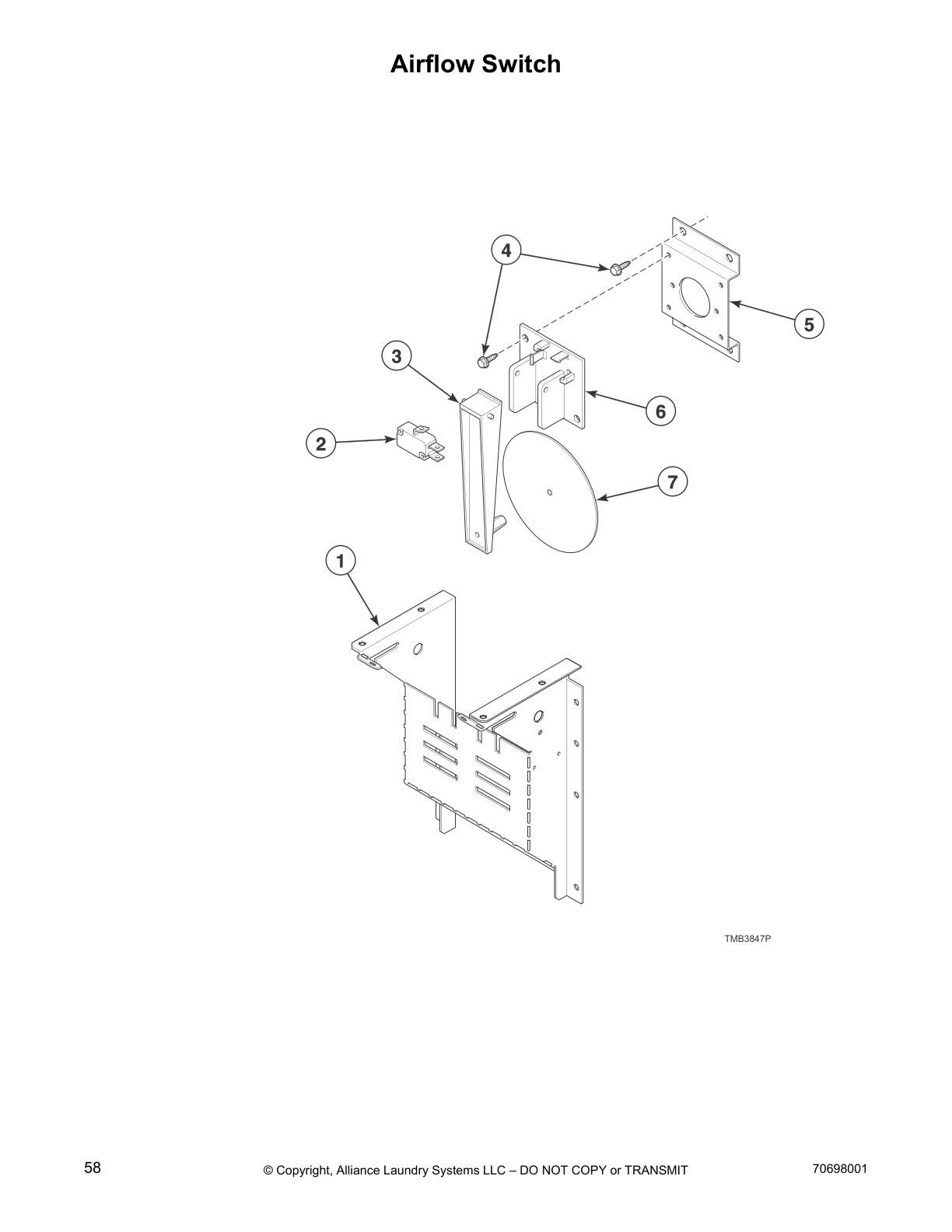

Airflow Switch

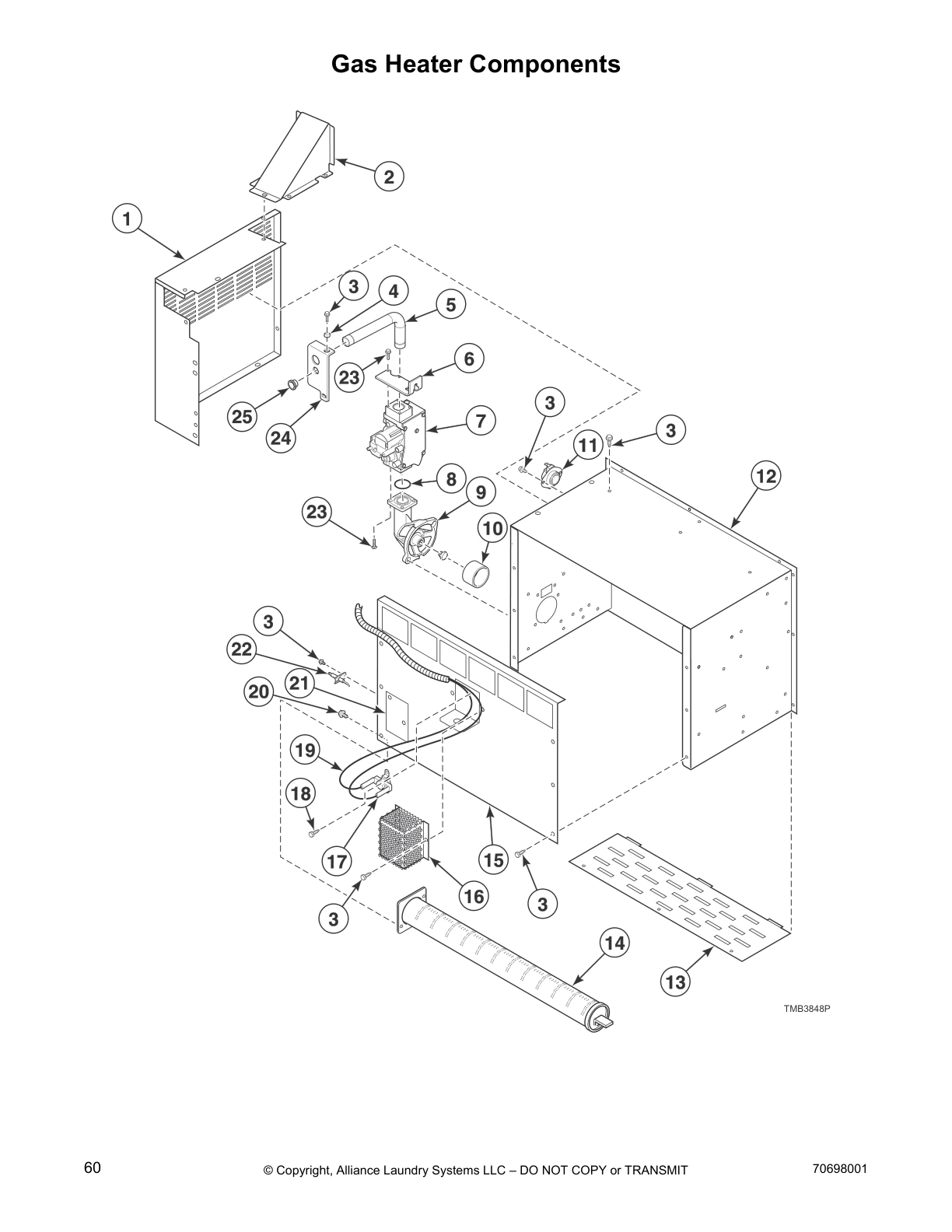

Gas Heater Components

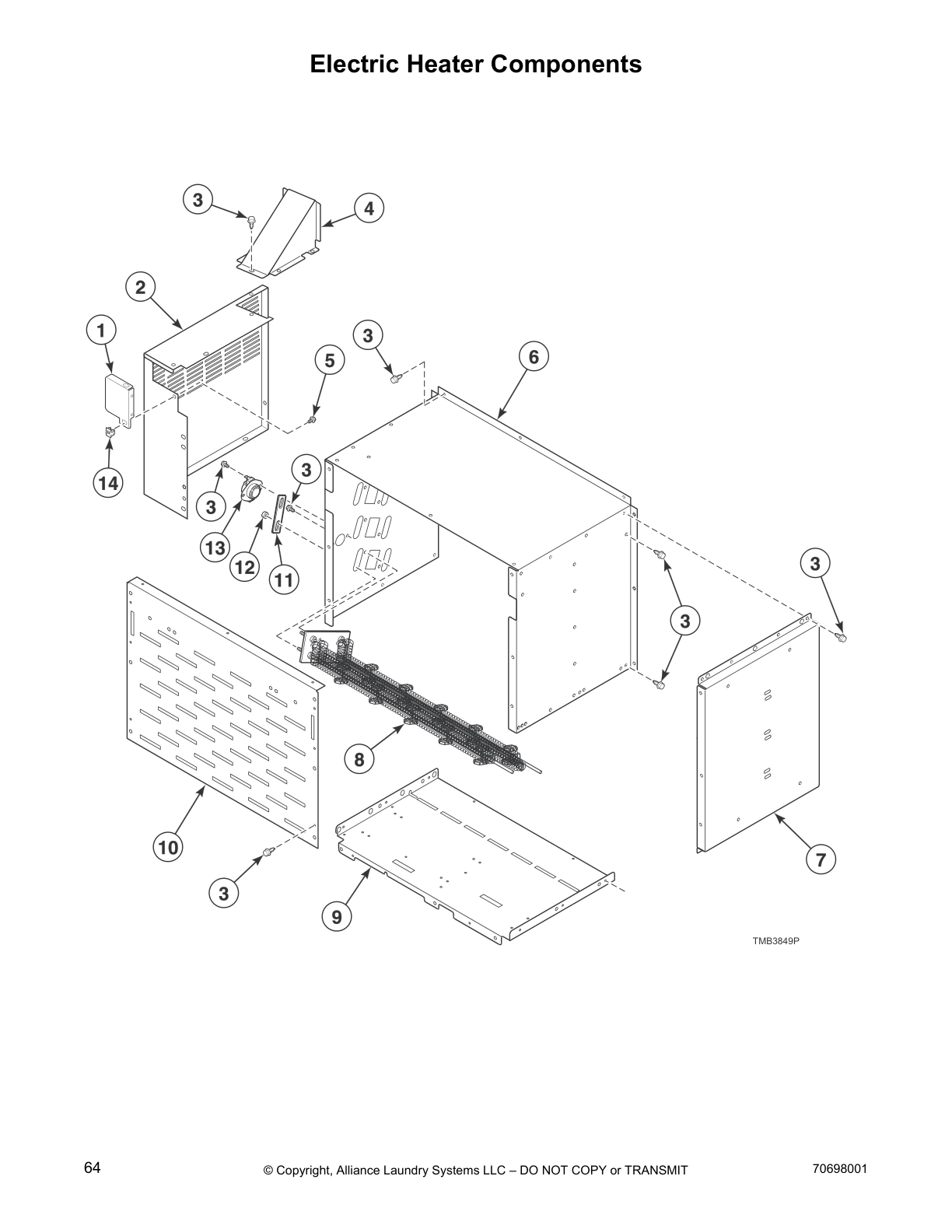

Electric Heater Components

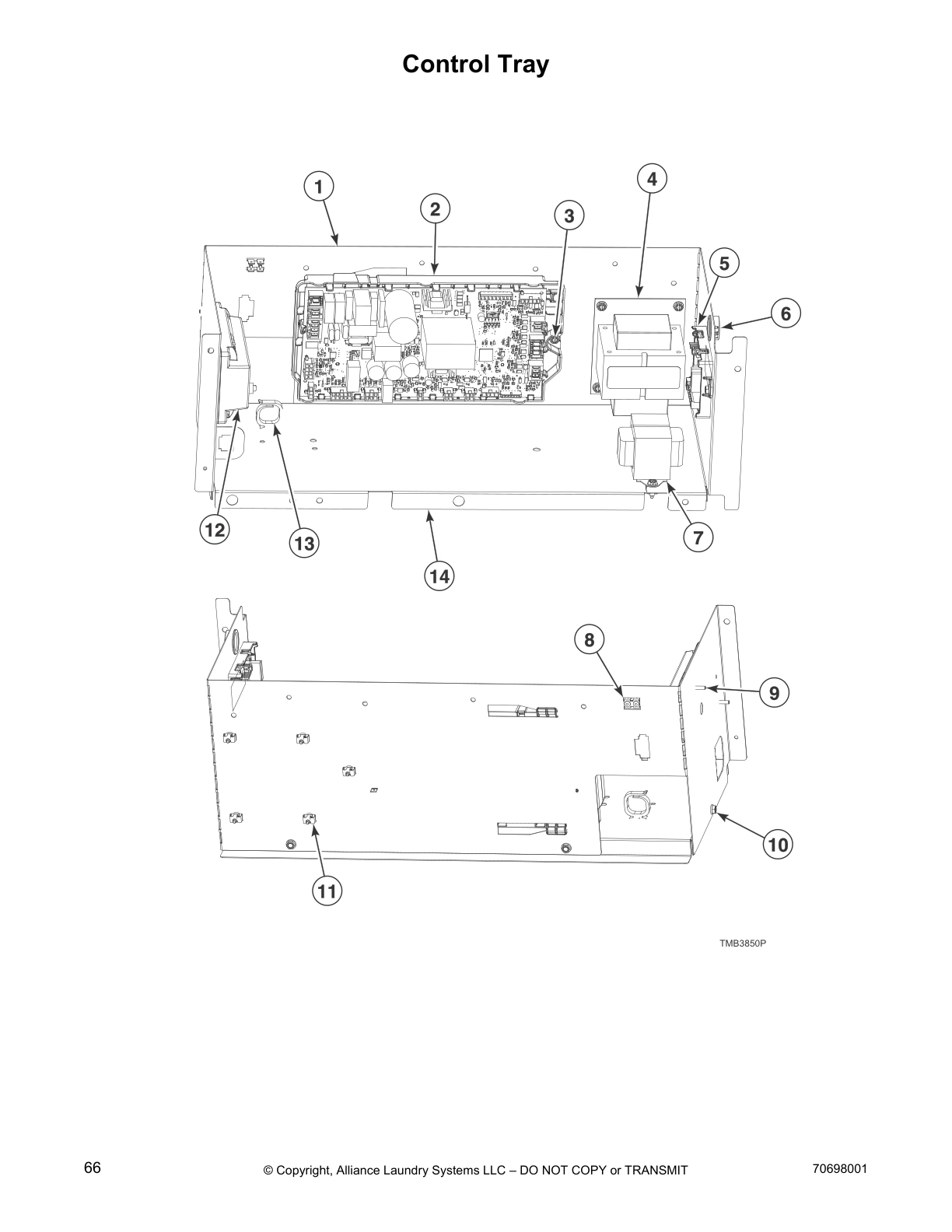

Control Tray

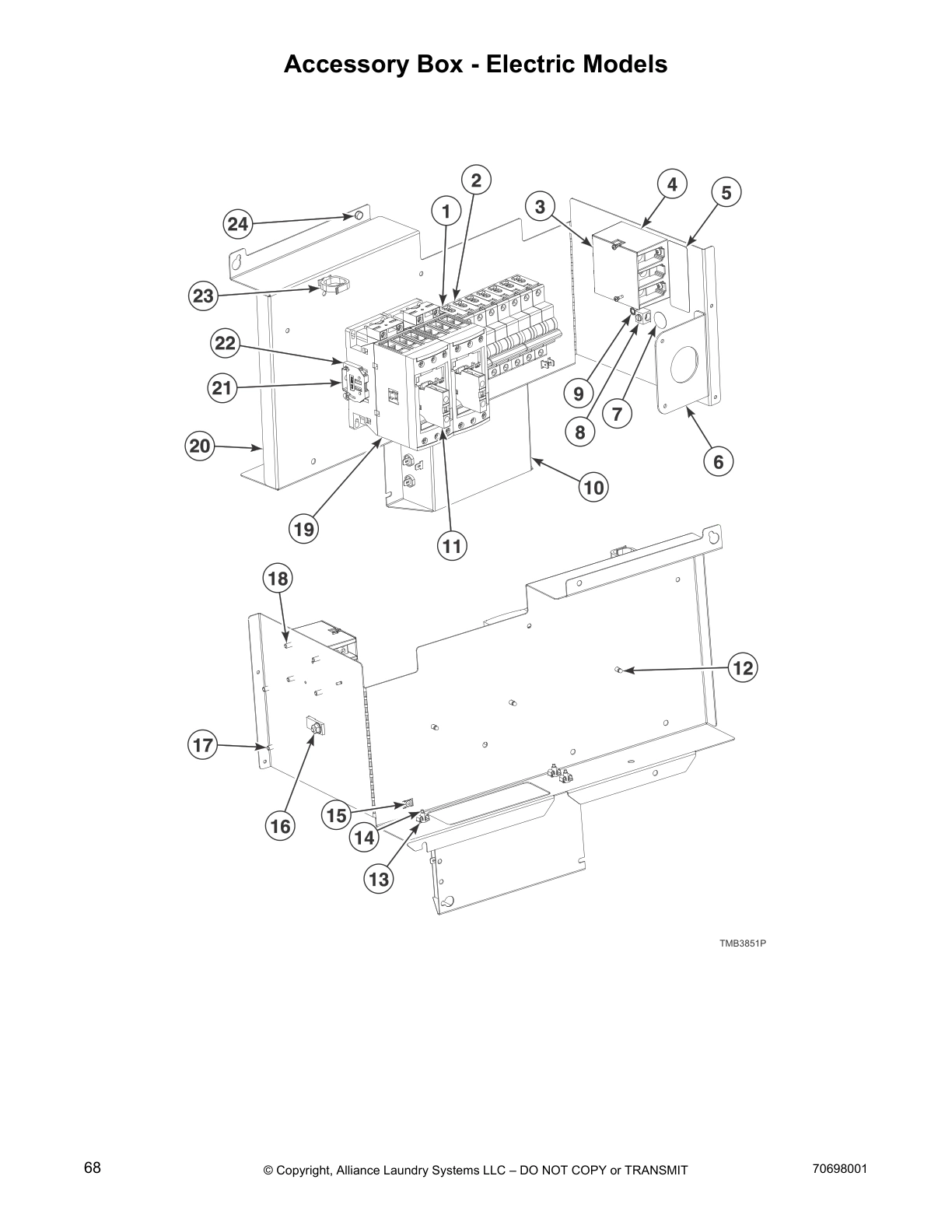

Accessory Box - Electric Models

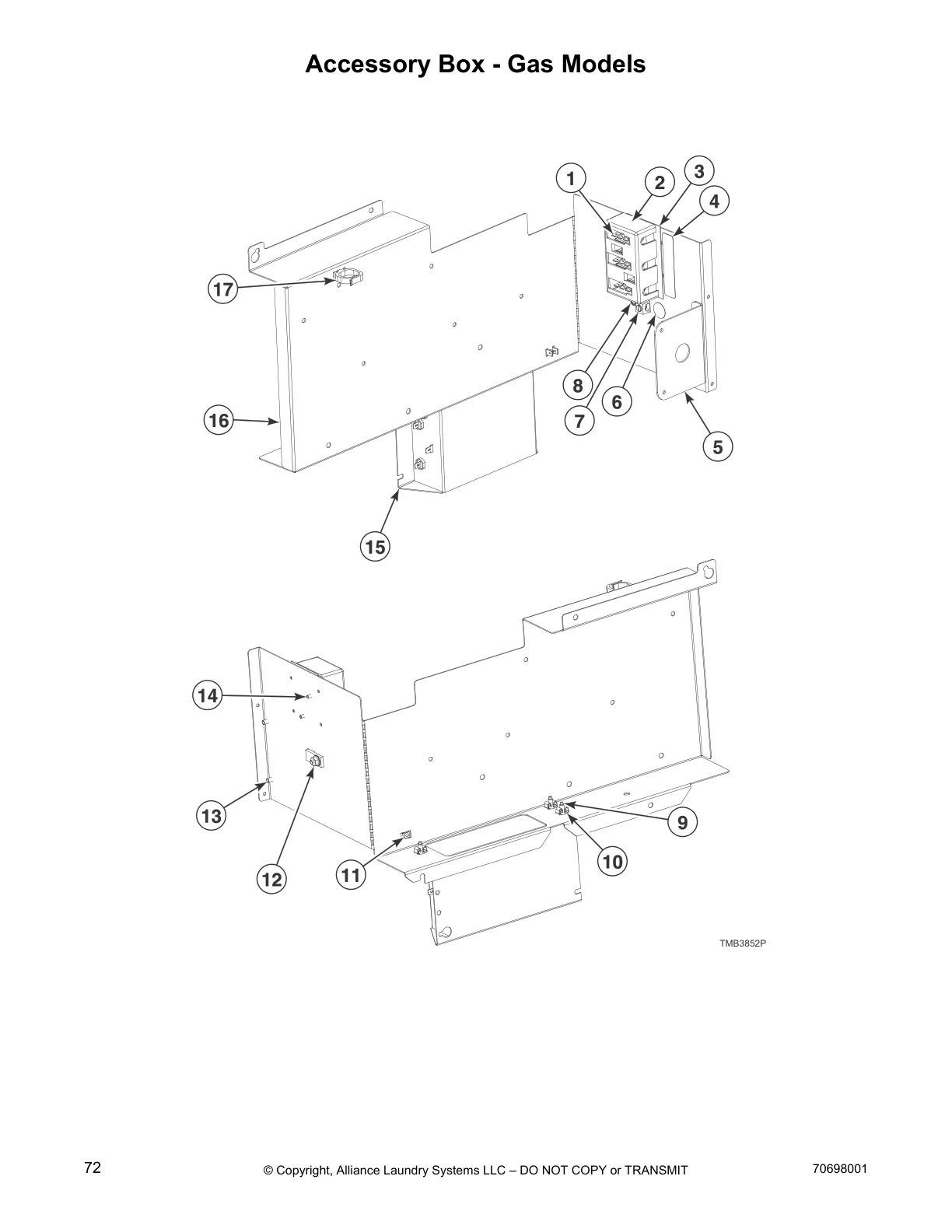

Accessory Box - Gas Models
Common parts from model Alliance NU035M Dryer
Coin Drop Kit SPQ CK108 Contact Us For Availability
SPQ CK100 SPQ CK100 Contact Us For Availability
SPQ CK122 SPQ CK122 Contact Us For Availability
SPQ CK120 SPQ CK120 Contact Us For Availability
SPQ CK117 SPQ CK117 Contact Us For Availability
SPQ 70411301 SPQ 70411301 Contact Us For Availability
SPQ 70257102 SPQ 70257102 Contact Us For Availability
SPQ 298P4P SPQ 298P4P Contact Us For Availability
SPQ 70034405P SPQ 70034405P Contact Us For Availability
SPQ 70034411 SPQ 70034411 Contact Us For Availability
SPQ 70696801 SPQ 70696801 Contact Us For Availability
1
Door Ring Gasket SPQ 70296801 Contact Us For Availability
1
Terminal Block SPQ 430642 Contact Us For Availability
1
Control Panel SPQ 70273416W Contact Us For Availability
1
Front Panel Assembly SPQ 44116802W Contact Us For Availability
1
Cylinder Assembly SPQ 70372602P Contact Us For Availability
1
Side Guard SPQ 70648201 Contact Us For Availability
1
Blower Housing SPQ 70554701 Contact Us For Availability
1
Airflow Switch Wrapper SPQ 70356101 Contact Us For Availability
1
Bracket SPQ 70653703 Contact Us For Availability
1
Circuit Breaker SPQ 70488102 Contact Us For Availability
2
Rear Bearing Shim SPQ 70355001 Contact Us For Availability
2
Pop Rivet SPQ 70273414 Contact Us For Availability
2
Front Panel Seal SPQ 70622601 Contact Us For Availability
2
Emergency Stop Pushbutton SPQ F200233500 Contact Us For Availability
2
Handle and Caps Assembly SPQ 70117603 Contact Us For Availability
2
Cylinder Rib Assembly SPQ 70435201 Contact Us For Availability
2
Slip Ring Holder SPQ 70455401 Contact Us For Availability
2
Rear Guard SPQ 70648102 Contact Us For Availability
2
Switch SPQ 70411901 Contact Us For Availability
2
I/O Control Assembly SPQ 70671701 Contact Us For Availability
2
Insulator SPQ 70333001 Contact Us For Availability
3
Support Bearing SPQ 70448701 Contact Us For Availability
3
Emergency Stop Label SPQ 44012901 Contact Us For Availability
3
Screw SPQ 70070101 Contact Us For Availability
3
Slip Ring Assembly SPQ 44222702 Contact Us For Availability
3
Spray Paint SPQ 70432305 Contact Us For Availability
3
Rear Cover SPQ 70652802 Contact Us For Availability
3
Gasket SPQ 70220901 Contact Us For Availability
3
Airflow Switch Arm SPQ 70319401 Contact Us For Availability
3
SPQ 44014901P SPQ 44014901P Contact Us For Availability
3
Ground Lug Connector SPQ M413862 Contact Us For Availability
4
Rear Cylinder Bearing Housing SPQ 70013901 Contact Us For Availability
4
SPQ M413865 SPQ M413865 Contact Us For Availability
4
Door Glass SPQ 70211901P Contact Us For Availability
4
Pop Rivet SPQ 70595510W Contact Us For Availability
4
Screw SPQ 431318 Contact Us For Availability
4
Panel Locator SPQ 70296401 Contact Us For Availability
4
SPQ 70289101P SPQ 70289101P Contact Us For Availability
4
Trunnion and Seal Kit SPQ 70070102 Contact Us For Availability
4
Porcelain Touch-Up Paint SPQ 70252601 Contact Us For Availability
4
Bottom Guard SPQ 70652801 Contact Us For Availability
4
SPQ 70653801 SPQ 70653801 Contact Us For Availability
4
Inverter Control Assembly SPQ 70603201 Contact Us For Availability
5
Door Glass Installation Tool SPQ M400784P Contact Us For Availability
5
Hinge Cam Kit SPQ 70576101 Contact Us For Availability
5
Coin Box SPQ 70413301 Contact Us For Availability
5
Contact Switch SPQ F8069501 Contact Us For Availability
5
SPQ 70016701 SPQ 70016701 Contact Us For Availability
5
Rear Cylinder Channel Plate SPQ 70433001 Contact Us For Availability
5
SPQ 70650901 SPQ 70650901 Contact Us For Availability
5
SPQ 70180001 SPQ 70180001 Contact Us For Availability
5
SPQ 70501301 SPQ 70501301 Contact Us For Availability
5
Screw SPQ 70603001 Contact Us For Availability
5
Switch Bracket SPQ 70356301 Contact Us For Availability
5
Snap Bushing SPQ 204779 Contact Us For Availability
6
SPQ M4221P4 SPQ M4221P4 Contact Us For Availability
6
Door Catch Kit SPQ M400977 Contact Us For Availability
6
Contact Base SPQ F8538101 Contact Us For Availability
6
Transformer SPQ 70178701 Contact Us For Availability
6
SPQ 70554901 SPQ 70554901 Contact Us For Availability
6
Airflow Switch and Arm Bracket SPQ 70319602 Contact Us For Availability
7
SPQ 44349101 SPQ 44349101 Contact Us For Availability
7
Jumper Harness SPQ 44016401 Contact Us For Availability
7
Emergency Stop Harness SPQ 44272401 Contact Us For Availability
7
Washer SPQ 70564804 Contact Us For Availability
7
Nut SPQ M400022 Contact Us For Availability
7
Tumbler Dolly Kit SPQ 70346501 Contact Us For Availability
7
SPQ 70392701P SPQ 70392701P Contact Us For Availability
7
Airflow Switch Vane SPQ 70319201 Contact Us For Availability
7
SPQ M411283 SPQ M411283 Contact Us For Availability
8
Rear Cylinder Channel SPQ 70564803 Contact Us For Availability
8
SPQ M4773P3 SPQ M4773P3 Contact Us For Availability
8
Heater Element SPQ 70654001 Contact Us For Availability
8
SPQ 685837 SPQ 685837 Contact Us For Availability
9
Drywall Screw Magnet Kit SPQ 70506402 Contact Us For Availability
9
SPQ 70071401 SPQ 70071401 Contact Us For Availability
9
SPQ 70132301 SPQ 70132301 Contact Us For Availability
9
SPQ F8206901 SPQ F8206901 Contact Us For Availability
10
Rear Cylinder Seal SPQ 70013701P Contact Us For Availability
10
Cylinder and Trunnion Assembly SPQ 70372601P Contact Us For Availability
10
Nut SPQ M414215 Contact Us For Availability
10
Screw SPQ 70407301 Contact Us For Availability
10
Roller Catch Wheel SPQ 70297601 Contact Us For Availability
10
Lower Pan SPQ 70326601 Contact Us For Availability
10
Fan Motor SPQ 44354903 Contact Us For Availability
10
Stove Grill SPQ 70214901 Contact Us For Availability
11
Door Handle SPQ 44007902P Contact Us For Availability
11
Door Hinge Lug Assembly SPQ 44035002 Contact Us For Availability
11
Pop Rivet SPQ M400003 Contact Us For Availability
11
Lock, Key and Nut Kit SPQ 44089301P Contact Us For Availability
11
Screw SPQ M411072 Contact Us For Availability
11
Roller Catch Spacer SPQ 70030201 Contact Us For Availability
11
End Cap SPQ 70435202 Contact Us For Availability
11
Screw SPQ 70508301 Contact Us For Availability
11
Blower Motor Mounting Plate SPQ 44354901 Contact Us For Availability
11
Jumper Strip SPQ M400869 Contact Us For Availability
11
Auxiliary Contact Block SPQ 44313201 Contact Us For Availability
12
Nut SPQ 44088001 Contact Us For Availability
12
Lock Shim SPQ 70342401 Contact Us For Availability
12
Screw SPQ 70072801 Contact Us For Availability
12
Screw SPQ 70349601 Contact Us For Availability
12
Jumper Bar SPQ 70066501 Contact Us For Availability
13
Key SPQ 70155602 Contact Us For Availability
13
Screw SPQ M400661 Contact Us For Availability
13
Door Hinge SPQ 70436301 Contact Us For Availability
13
Center Cylinder Seal SPQ 70066003 Contact Us For Availability
13
Exhaust Thimble SPQ F430144 Contact Us For Availability
13
Washer SPQ 70126101 Contact Us For Availability
14
Lock, Key and Nut Kit SPQ 44089302P Contact Us For Availability
14
Blower Assembly SPQ M400991 Contact Us For Availability
14
Lint Screen SPQ 70325601 Contact Us For Availability
14
Nut SPQ 70442101 Contact Us For Availability
14
Magnet SPQ 70343101 Contact Us For Availability
14
Wire Clip SPQ 51783 Contact Us For Availability
15
Pop Rivet SPQ 44166601 Contact Us For Availability
15
Sheet Metal Edge Gasket SPQ 70015711 Contact Us For Availability
16
Door Latch SPQ M401223 Contact Us For Availability
16
Pop Rivet SPQ 70126401 Contact Us For Availability
16
Roller and Seal Kit SPQ 70616701 Contact Us For Availability
16
Nut SPQ 70017801 Contact Us For Availability
17
Switch Hole Plug SPQ 44057801W Contact Us For Availability
17
Panel Locator SPQ 70126301 Contact Us For Availability
17
Roller Seal SPQ 70443601 Contact Us For Availability
17
Damper Spacer SPQ 70215101 Contact Us For Availability
17
Terminal Block Shield SPQ F8449502 Contact Us For Availability
18
Roller Shaft SPQ 70249501 Contact Us For Availability
18
Thermistor SPQ 70209501 Contact Us For Availability
19
Washer SPQ 70261401 Contact Us For Availability
19
Nut SPQ 44057801B Contact Us For Availability
19
Blower Housing SPQ 70655102 Contact Us For Availability
19
Limit Access Bracket SPQ 70020301 Contact Us For Availability
19
Wire Clip SPQ 70482801 Contact Us For Availability
20
Lint Panel SPQ F8245101 Contact Us For Availability
20
Motor Pulley SPQ 44355002 Contact Us For Availability
21
Pushbutton Switch SPQ 44088801 Contact Us For Availability
21
Gasket SPQ 70154403 Contact Us For Availability
21
Roller Support Bracket SPQ 70328301 Contact Us For Availability
21
Fan Motor SPQ 44355001 Contact Us For Availability
21
Power Distribution Block Cover SPQ 44229701 Contact Us For Availability
22
Lint Panel Pivot Plate SPQ 70515503W Contact Us For Availability
22
Blower Motor Mounting Plate SPQ 70559101 Contact Us For Availability
22
Power Distribution Block SPQ F8449801 Contact Us For Availability
23
Roller Catch Arm SPQ 70515504W Contact Us For Availability
23
Center Partition SPQ 70015710 Contact Us For Availability
23
Blower Housing Scroll SPQ 44333202 Contact Us For Availability
24
Bushing SPQ 70347002 Contact Us For Availability
25
Screw SPQ 70432306 Contact Us For Availability
26
Hole Plug SPQ 70347001 Contact Us For Availability
32
SPQ 70016301 SPQ 70016301 Contact Us For Availability
NI
SPQ 70173401P SPQ 70173401P Contact Us For Availability
NI
SPQ 70155601 SPQ 70155601 Contact Us For Availability
NI
SPQ 70482901 SPQ 70482901 Contact Us For Availability
NI
SPQ 70513309 SPQ 70513309 Contact Us For Availability
NI
SPQ 70513306 SPQ 70513306 Contact Us For Availability
NI
SPQ 70513303 SPQ 70513303 Contact Us For Availability
NI
SPQ 70471601 SPQ 70471601 Contact Us For Availability
NI
Electronic Coin Drop Kit SPQ CK109 Contact Us For Availability
NI
SPQ CK101 SPQ CK101 Contact Us For Availability
NI
SPQ CK099 SPQ CK099 Contact Us For Availability
NI
SPQ CK121 SPQ CK121 Contact Us For Availability
NI
SPQ CK119 SPQ CK119 Contact Us For Availability
NI
SPQ CK116 SPQ CK116 Contact Us For Availability
NI
SPQ 70622501 SPQ 70622501 Contact Us For Availability
NI
SPQ F160673P SPQ F160673P Contact Us For Availability
NI
SPQ D511476 SPQ D511476 Contact Us For Availability
NI
SPQ 70030301 SPQ 70030301 Contact Us For Availability
NI
SPQ 70257201 SPQ 70257201 Contact Us For Availability
NI
SPQ 70257101 SPQ 70257101 Contact Us For Availability
NI
SPQ 70391101 SPQ 70391101 Contact Us For Availability
NI
Support Housing Bearing Assembly SPQ 70343101P Contact Us For Availability
NI
SPQ 430260P SPQ 430260P Contact Us For Availability
NI
SPQ 70247701 SPQ 70247701 Contact Us For Availability
NI
SPQ 70063201 SPQ 70063201 Contact Us For Availability
NI
SPQ M4379P4 SPQ M4379P4 Contact Us For Availability
NI
SPQ 70661101 SPQ 70661101 Contact Us For Availability
NI
SPQ 70050401P SPQ 70050401P Contact Us For Availability
NI
SPQ 70014101 SPQ 70014101 Contact Us For Availability
NI
SPQ 70635404 SPQ 70635404 Contact Us For Availability
NI
SPQ 70635403 SPQ 70635403 Contact Us For Availability
NI
Heater Element SPQ 70034412P Contact Us For Availability
NI
Stove Limit Harness SPQ 70034406P Contact Us For Availability
NI
SPQ 70034404P SPQ 70034404P Contact Us For Availability
NI
SPQ 70034410P SPQ 70034410P Contact Us For Availability
NI
SPQ 70564303 SPQ 70564303 Contact Us For Availability
NI
SPQ 70696805 SPQ 70696805 Contact Us For Availability
NI
SPQ 70631201 SPQ 70631201 Contact Us For Availability
× ![]()
