Model Maytag NTW4755EW0 LAUNDRY, WASHER – Common Parts & Diagrams
01 - COVER SHEET

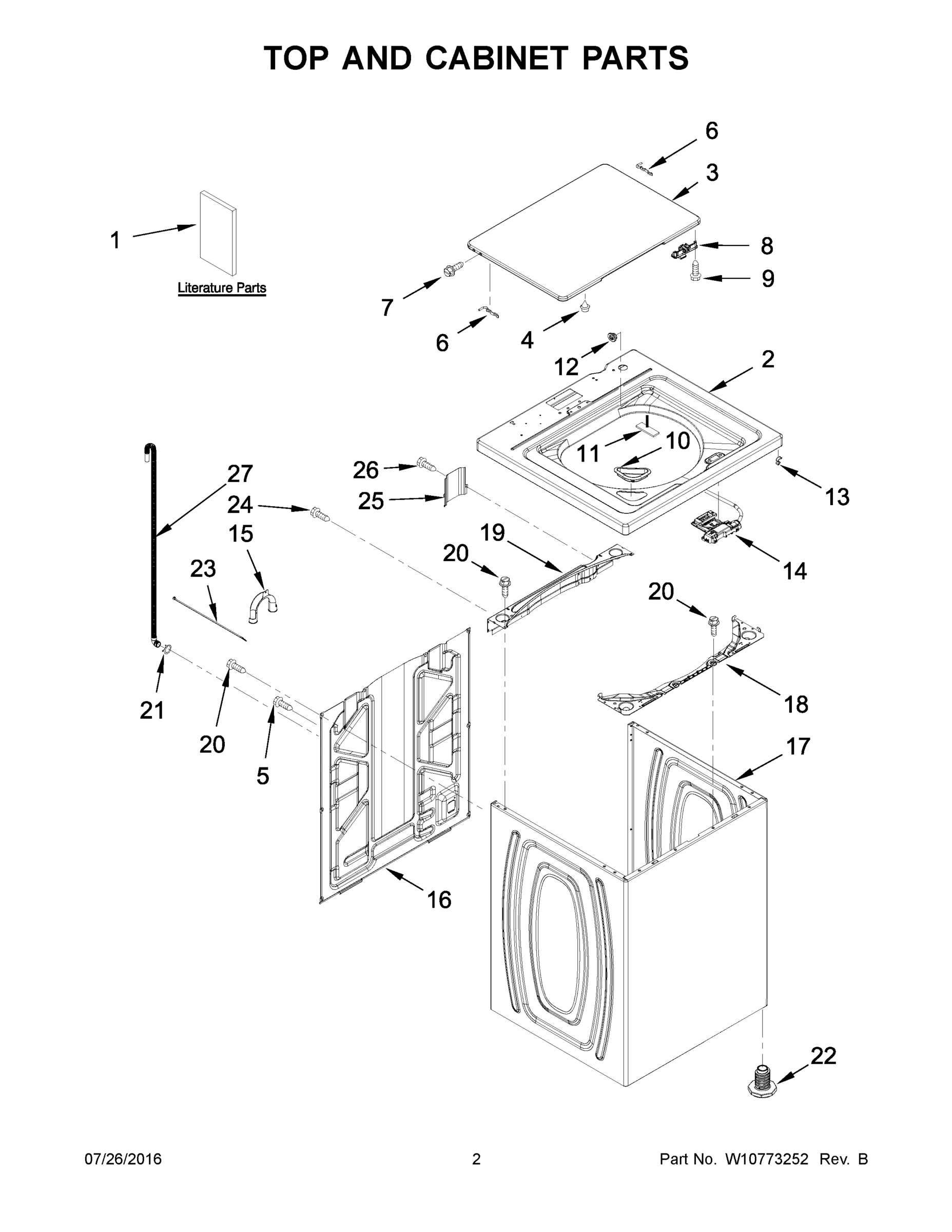

02 - TOP AND CABINET PARTS
03 - CONTROLS AND WATER INLET PARTS
04 - BASKET AND TUB PARTS
05 - GEARCASE, MOTOR AND PUMP PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag NTW4755EW0 LAUNDRY, WASHER
1
MAY W10240509 MAY W10240509 Contact Us For Availability
1
MAY W10692532 MAY W10692532 Contact Us For Availability
1
MAY W10777969 MAY W10777969 Contact Us For Availability
1
MAY W10215134 MAY W10215134 Contact Us For Availability
1A
MAY W10740547 MAY W10740547 Contact Us For Availability
1B
MAY W10740573 MAY W10740573 Contact Us For Availability
1C
MAY W10063033 MAY W10063033 Contact Us For Availability
2
MAY W10686446 MAY W10686446 Contact Us For Availability
2
CLIP, SPRING MAY 8536939 Contact Us For Availability
2
SCREW AND WASHER MAY W10003790 Contact Us For Availability
2
SCREW MAY W10004910 Contact Us For Availability
3
LID (WHITE) MAY W10027624 Contact Us For Availability
3
MAY 8312709 MAY 8312709 Contact Us For Availability
3
MAY 3949550 MAY 3949550 Contact Us For Availability
3
MAY W10444123 MAY W10444123 Contact Us For Availability
4
BUMPER, LID MAY 9724509 Contact Us For Availability
4
MAY W10711020 MAY W10711020 Contact Us For Availability
4
MAY W10521298 MAY W10521298 Contact Us For Availability
4
MAY 8317496 MAY 8317496 Contact Us For Availability
5
SCREW MAY 9740848 Contact Us For Availability
5
MAY W10409320 MAY W10409320 Contact Us For Availability
5
MAY W10556325 MAY W10556325 Contact Us For Availability
5
MAY W10795113 MAY W10795113 Contact Us For Availability
6
HINGE, LID (LEFT) MAY 91770 Contact Us For Availability
6
MAY 1157158 MAY 1157158 Contact Us For Availability
6
MAY W10680215 MAY W10680215 Contact Us For Availability
6
SCREW MAY W10249633 Contact Us For Availability
6A
HINGE, LID (RIGHT) MAY 54583 Contact Us For Availability
7
SCREW MAY W10119872 Contact Us For Availability
7
MAY W10414411 MAY W10414411 Contact Us For Availability
7
SCREW MAY 8533953 Contact Us For Availability
7
MAY W10677719 MAY W10677719 Contact Us For Availability
8
MAY W10714899 MAY W10714899 Contact Us For Availability
8
MAY W10213953 MAY W10213953 Contact Us For Availability
8
MAY W10396887 MAY W10396887 Contact Us For Availability
8
SCREW MAY W10094780 Contact Us For Availability
9
SCREW MAY W10273971 Contact Us For Availability
9
MAY W10711784 MAY W10711784 Contact Us For Availability
9
MAY W10402178 MAY W10402178 Contact Us For Availability
9
SPRING, SPLUTCH MAY W10006382 Contact Us For Availability
10
MAY W10192089 MAY W10192089 Contact Us For Availability
10
SCREW MAY 3400076 Contact Us For Availability
10
TUB MAY W10238301 Contact Us For Availability
10
MAY W10239971 MAY W10239971 Contact Us For Availability
11
MAY W10684258 MAY W10684258 Contact Us For Availability
11
KNOB, TIMER (WHITE) MAY W10711289 Contact Us For Availability
11
MAY W10006371 MAY W10006371 Contact Us For Availability
11
CAM RING, SPLUTCH MAY W10006353 Contact Us For Availability
12
BEARING, LID HINGE MAY 21258 Contact Us For Availability
12
KNOB, CONTROL (WHITE) MAY W10453947 Contact Us For Availability
12
MAY W10215093 MAY W10215093 Contact Us For Availability
12
CAM, SPLUTCH MAY W10006354 Contact Us For Availability
13
MAY 90016 MAY 90016 Contact Us For Availability
13
MAY W10414397 MAY W10414397 Contact Us For Availability
13
SCREW MAY 8533928 Contact Us For Availability
13
MAY W10239973 MAY W10239973 Contact Us For Availability
14
MAY W10682535 MAY W10682535 Contact Us For Availability
14
MAY W10694671 MAY W10694671 Contact Us For Availability
14
MAY W10821954 MAY W10821954 Contact Us For Availability
14
NUT MAY W10604214 Contact Us For Availability
15
MAY W10280024 MAY W10280024 Contact Us For Availability
15
MAY W10701459 MAY W10701459 Contact Us For Availability
15
MAY W10680216 MAY W10680216 Contact Us For Availability
15
MAY W10006384 MAY W10006384 Contact Us For Availability
16
PANEL, REAR MAY W10250884 Contact Us For Availability
16
TIE, CABLE MAY W10339879 Contact Us For Availability
16
SCREW MAY 8533943 Contact Us For Availability
16
MAY W10815026 MAY W10815026 Contact Us For Availability
17
MAY W10478060 MAY W10478060 Contact Us For Availability
17
MAY W10678671 MAY W10678671 Contact Us For Availability
17
MAY W10678688 MAY W10678688 Contact Us For Availability
17
SCREW MAY 9741052 Contact Us For Availability
18
MAY W10215098 MAY W10215098 Contact Us For Availability
18
MAY W10414398 MAY W10414398 Contact Us For Availability
18
MAY W10520039 MAY W10520039 Contact Us For Availability
18
MAY W10625046 MAY W10625046 Contact Us For Availability
19
BRACE, CABINET TOP - REAR MAY W10512626 Contact Us For Availability
19
CLAMP, CABLE MAY W10005430 Contact Us For Availability
19
SCREW MAY 357640 Contact Us For Availability
20
MAY W10339680 MAY W10339680 Contact Us For Availability
20
MAY W10550173 MAY W10550173 Contact Us For Availability
21
MAY 356138 MAY 356138 Contact Us For Availability
22
MAY W10556332 MAY W10556332 Contact Us For Availability
24
SCREW MAY W10142728 Contact Us For Availability
25
MAY W10676061 MAY W10676061 Contact Us For Availability
27
HOSE, OUTER DRAIN ASSEMBLY MAY W10221546 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4) MAY 285448A Contact Us For Availability
NI
ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2) MAY 285452A Contact Us For Availability
NI
MAY 285834 MAY 285834 Contact Us For Availability
NI
WATER SYSTEM PARTS, ADAPTER, STANDPIPE 2" DIA MAY 3363920 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
WATER SYSTEM PARTS, DRAIN PROTECTOR MAY 367031 Contact Us For Availability
NI
COUPLING, HOSE EXTENSION KIT MAY 384496 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MAY 8212487 MAY 8212487 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, DRIP TRAY MAY 8212526 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED MAY 8212545RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLAC MAY 8212546RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BLAC MAY 8212637RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT (TWO BRAID MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BLAC MAY 8212641RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 10 FT. (TWO BLA MAY 8212656RP Contact Us For Availability
NI
WATER SYSTEM PARTS, DRAIN HOSE MAY DRNEXT4 Contact Us For Availability
NI
MAY W10135699 MAY W10135699 Contact Us For Availability
NI
MAY W10355010 MAY W10355010 Contact Us For Availability
× ![]()
