Model Maytag NTW4516FW0 LAUNDRY, WASHER – Common Parts & Diagrams
01 - COVER SHEET
02 - TOP AND CABINET PARTS

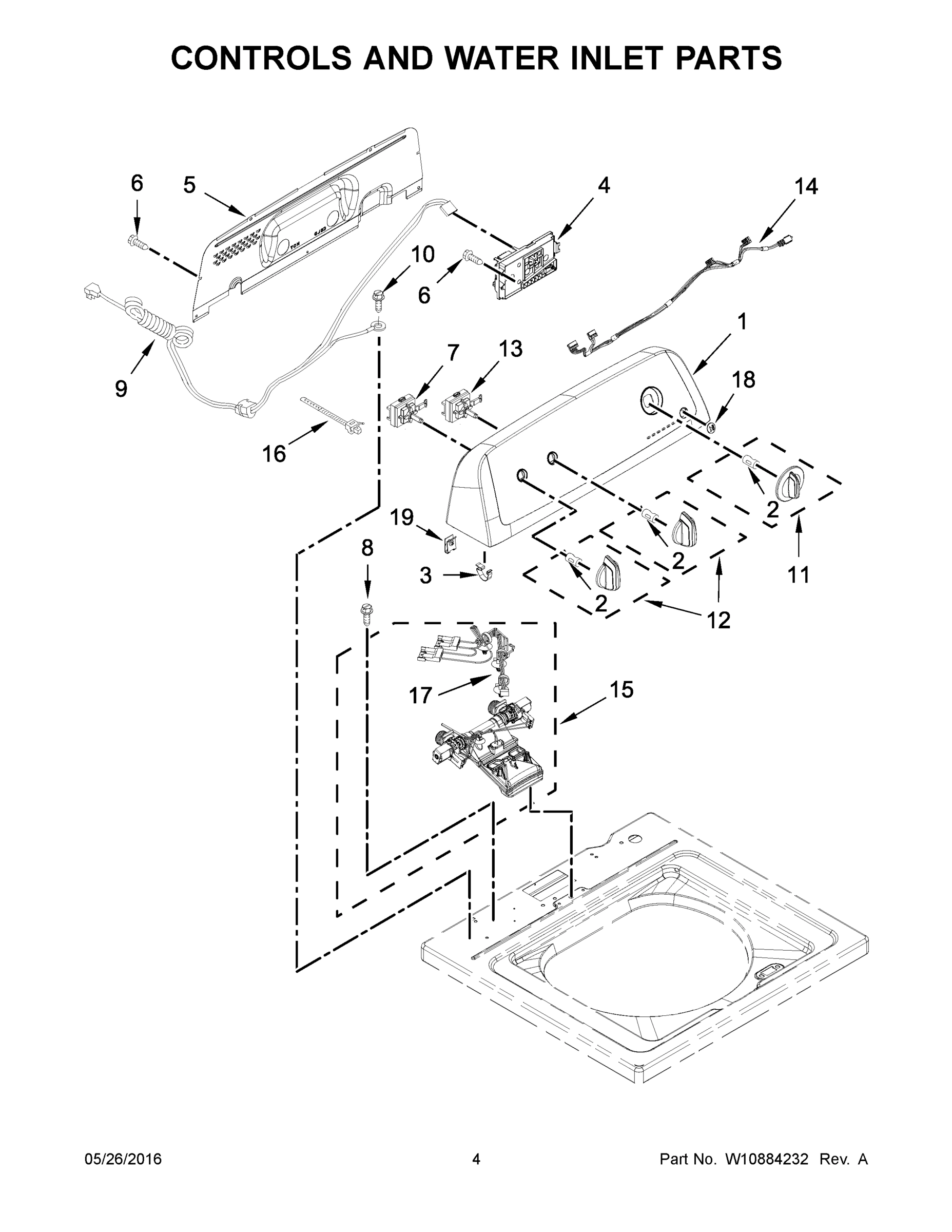

03 - CONTROLS AND WATER INLET PARTS

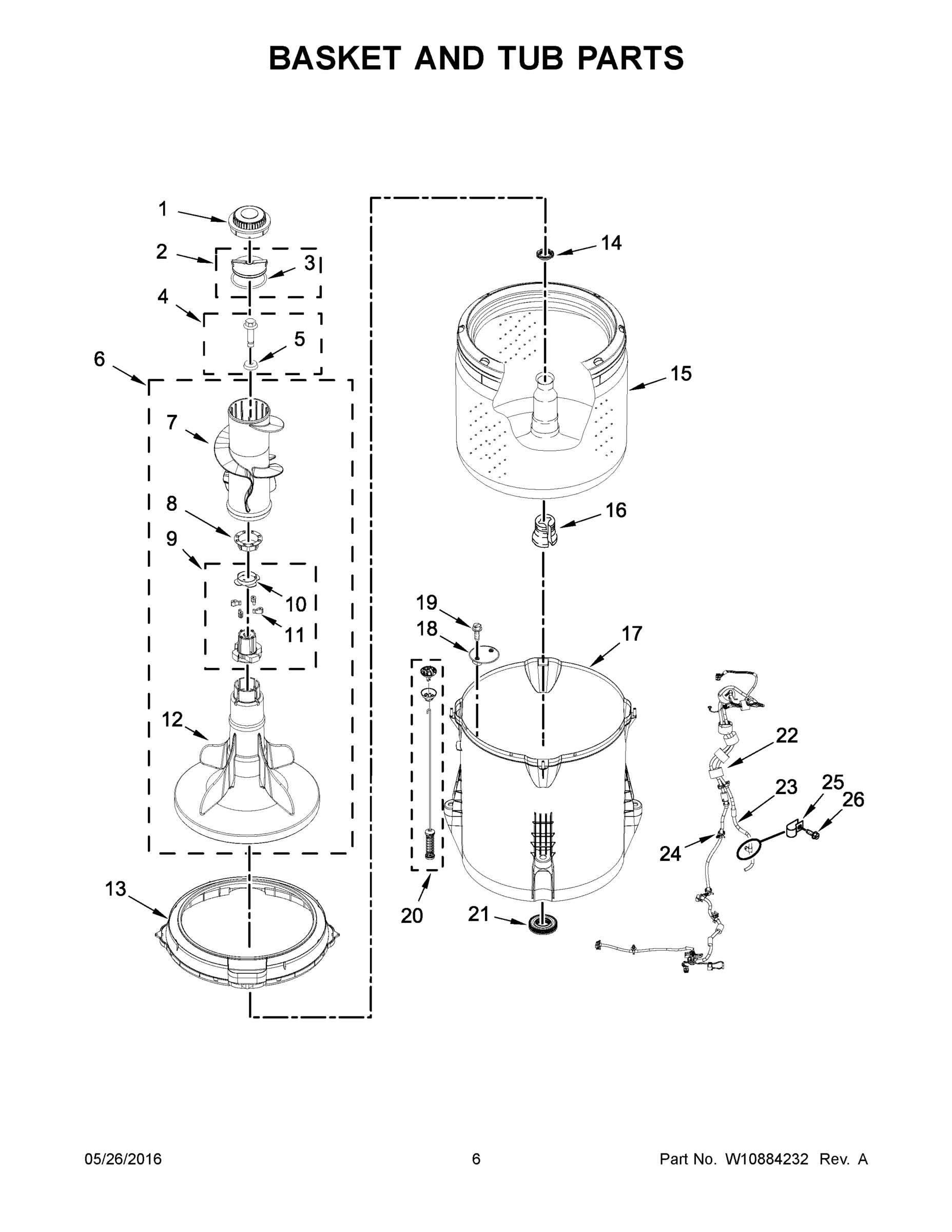

04 - BASKET AND TUB PARTS

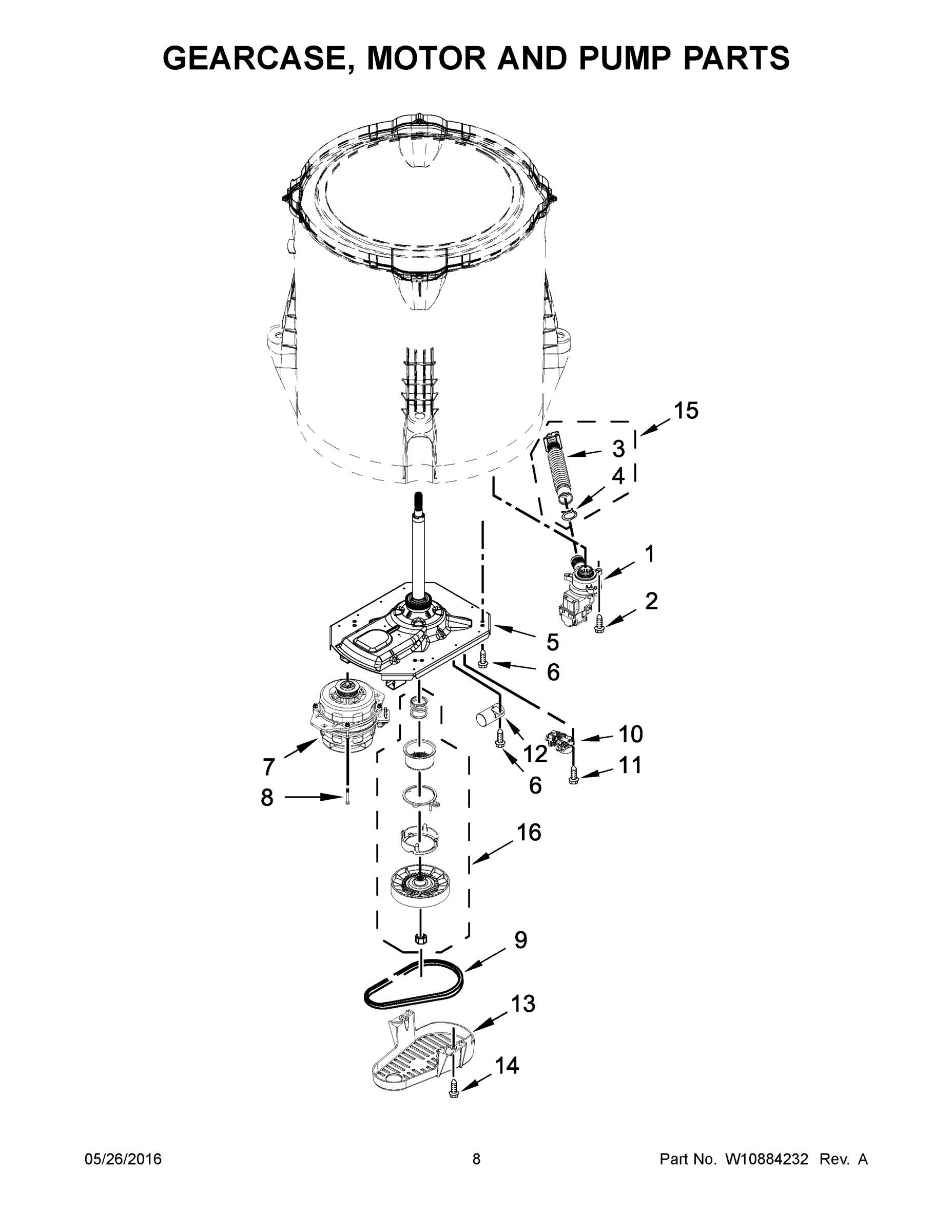

05 - GEARCASE, MOTOR AND PUMP PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag NTW4516FW0 LAUNDRY, WASHER
1
MAY W10240509 MAY W10240509 Contact Us For Availability
1
MAY W10866219 MAY W10866219 Contact Us For Availability
1
MAY 3355758 MAY 3355758 Contact Us For Availability
1
MAY W10661045 MAY W10661045 Contact Us For Availability
1A
MAY W10867906 MAY W10867906 Contact Us For Availability
1B
MAY W10740573 MAY W10740573 Contact Us For Availability
1C
MAY W10877525 MAY W10877525 Contact Us For Availability
1D
MAY W10864126 MAY W10864126 Contact Us For Availability
2
MAY W10686433 MAY W10686433 Contact Us For Availability
2
CLIP, SPRING MAY 8536939 Contact Us For Availability
2
MAY 3354733 MAY 3354733 Contact Us For Availability
2
SCREW MAY W10004910 Contact Us For Availability
3
ASSEMBLY, LID (WHITE) MAY W10251302 Contact Us For Availability
3
MAY 8312709 MAY 8312709 Contact Us For Availability
3
MAY W10072840 MAY W10072840 Contact Us For Availability
3
MAY W10763078 MAY W10763078 Contact Us For Availability
4
BUMPER, LID MAY 9724509 Contact Us For Availability
4
MAY W10868064 MAY W10868064 Contact Us For Availability
4
SCREW AND WASHER MAY W10003790 Contact Us For Availability
4
MAY 8317496 MAY 8317496 Contact Us For Availability
5
SCREW MAY 9740848 Contact Us For Availability
5
MAY W10409320 MAY W10409320 Contact Us For Availability
5
MAY 3949550 MAY 3949550 Contact Us For Availability
5
MAY W10473144 MAY W10473144 Contact Us For Availability
6
HINGE, LID MAY 91770 Contact Us For Availability
6
MAY 1157158 MAY 1157158 Contact Us For Availability
6
MAY 3348117 MAY 3348117 Contact Us For Availability
6
SCREW MAY W10249633 Contact Us For Availability
7
SCREW MAY W10119872 Contact Us For Availability
7
MAY W10414398 MAY W10414398 Contact Us For Availability
7
MOVER, CLOTHES MAY 3348752 Contact Us For Availability
7
MAY W10623547 MAY W10623547 Contact Us For Availability
8
MAY W10714899 MAY W10714899 Contact Us For Availability
8
MAY W10213953 MAY W10213953 Contact Us For Availability
8
SPACER, THRUST MAY 3350389 Contact Us For Availability
8
SCREW MAY W10094780 Contact Us For Availability
9
SCREW MAY W10273971 Contact Us For Availability
9
MAY W10711784 MAY W10711784 Contact Us For Availability
9
MAY 3948431 MAY 3948431 Contact Us For Availability
9
MAY W10006384 MAY W10006384 Contact Us For Availability
10
MAY W10192089 MAY W10192089 Contact Us For Availability
10
SCREW MAY 3400076 Contact Us For Availability
10
BEARING, CAM MAY 3363661 Contact Us For Availability
10
MAY W10597177 MAY W10597177 Contact Us For Availability
11
HOSE, OUTER DRAIN ASSEMBLY MAY W10221546 Contact Us For Availability
11
MAY W10711289 MAY W10711289 Contact Us For Availability
11
DOG, AGITATOR CLUTCH MAY 3366877 Contact Us For Availability
11
SCREW MAY 9741052 Contact Us For Availability
12
BEARING, LID HINGE MAY 21258 Contact Us For Availability
12
MAY W10453947 MAY W10453947 Contact Us For Availability
12
MAY 3347288 MAY 3347288 Contact Us For Availability
12
MAY W10625045 MAY W10625045 Contact Us For Availability
13
MAY 90016 MAY 90016 Contact Us For Availability
13
MAY W10414411 MAY W10414411 Contact Us For Availability
13
MAY W10531289 MAY W10531289 Contact Us For Availability
13
MAY W10427633 MAY W10427633 Contact Us For Availability
14
MAY W10682535 MAY W10682535 Contact Us For Availability
14
MAY W10694679 MAY W10694679 Contact Us For Availability
14
MAY 21366 MAY 21366 Contact Us For Availability
14
SCREW MAY 357640 Contact Us For Availability
15
MAY W10280024 MAY W10280024 Contact Us For Availability
15
MAY W10701459 MAY W10701459 Contact Us For Availability
15
MAY W10554251 MAY W10554251 Contact Us For Availability
15
MAY W10444123 MAY W10444123 Contact Us For Availability
16
PANEL, REAR MAY W10250884 Contact Us For Availability
16
TIE, CABLE MAY W10339879 Contact Us For Availability
16
MAY 389140 MAY 389140 Contact Us For Availability
16
MAY W10721967 MAY W10721967 Contact Us For Availability
17
MAY W10478060 MAY W10478060 Contact Us For Availability
17
MAY W10678671 MAY W10678671 Contact Us For Availability
17
TUB (INCLUDES TUB SEAL) MAY W10238320 Contact Us For Availability
18
MAY W10215098 MAY W10215098 Contact Us For Availability
18
MAY W10726817 MAY W10726817 Contact Us For Availability
18
MAY W10215093 MAY W10215093 Contact Us For Availability
19
BRACE, CABINET TOP - REAR MAY W10512626 Contact Us For Availability
19
MAY W10298336 MAY W10298336 Contact Us For Availability
19
SCREW MAY 8533928 Contact Us For Availability
20
MAY W10821951 MAY W10821951 Contact Us For Availability
21
MAY W10006371 MAY W10006371 Contact Us For Availability
22
MAY W10397994 MAY W10397994 Contact Us For Availability
22
MAY W10678690 MAY W10678690 Contact Us For Availability
23
MAY 356138 MAY 356138 Contact Us For Availability
23
MAY W10520039 MAY W10520039 Contact Us For Availability
24
MAY W10267532 MAY W10267532 Contact Us For Availability
25
MAY W10676061 MAY W10676061 Contact Us For Availability
25
CLAMP, CABLE MAY W10005430 Contact Us For Availability
26
SCREW MAY 8533943 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4) MAY 285448A Contact Us For Availability
NI
ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2) MAY 285452A Contact Us For Availability
NI
MAY 285834 MAY 285834 Contact Us For Availability
NI
WATER SYSTEM PARTS, ADAPTER, STANDPIPE 2" DIA MAY 3363920 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
COUPLING, HOSE EXTENSION KIT MAY 384496 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MAY 8212487 MAY 8212487 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, DRIP TRAY MAY 8212526 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED MAY 8212545RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLAC MAY 8212546RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BLAC MAY 8212637RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BRAI MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BLAC MAY 8212641RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 10 FT. (TWO BLA MAY 8212656RP Contact Us For Availability
NI
WATER SYSTEM PARTS, DRAIN HOSE EXTENSION KIT MAY DRNEXT4 Contact Us For Availability
NI
ACCESSORY PARTS, AFFRESH OD MAY W10135699 Contact Us For Availability
NI
MAY W10355010 MAY W10355010 Contact Us For Availability
× ![]()
