Model Maytag NTC3500FW0 LAUNDRY, WASHER, COMPACT – Common Parts & Diagrams
01 - COVER SHEET

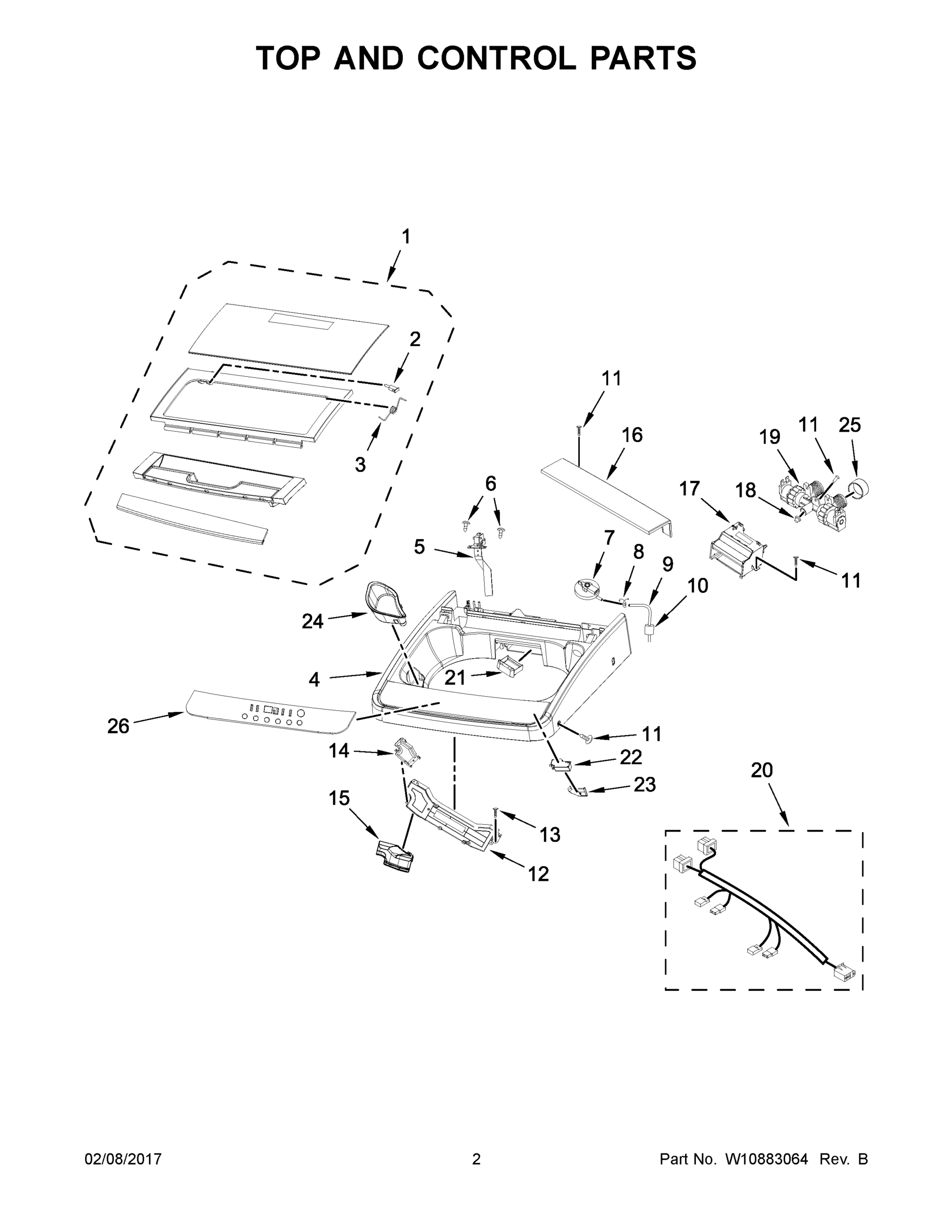

02 - TOP AND CONTROL PARTS
03 - CABINET PARTS
04 - BASKET AND GEAR PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag NTC3500FW0 LAUNDRY, WASHER, COMPACT
1
LID MAY W10869483 Contact Us For Availability
1
IMPELLER (COMPLETE) MAY W10882346 Contact Us For Availability
2
HINGE MAY W10869489 Contact Us For Availability
2
SCREW, IMPELLER MAY W10882362 Contact Us For Availability
3
SPRING MAY W10869493 Contact Us For Availability
3
WASHER, LOCK MAY W10881983 Contact Us For Availability
3
WASHER, LOCK MAY W10882370 Contact Us For Availability
4
TOP MAY W10869494 Contact Us For Availability
4
STRAIN RELIEF MAY W10883615 Contact Us For Availability
4
WASHER, IMPELLER MAY W10882372 Contact Us For Availability
5
SWITCH, OFF BALANCE MAY W10869495 Contact Us For Availability
5
TUB RING MAY W10882109 Contact Us For Availability
6
SCREW MAY W10869499 Contact Us For Availability
6
CAPACITOR MAY W10882004 Contact Us For Availability
7
SWITCH, PRESSURE MAY W10869500 Contact Us For Availability
7
SHIELD, CAPACITOR MAY W10882108 Contact Us For Availability
7
BASKET ASSEMBLY MAY W10882110 Contact Us For Availability
8
POWER CORD MAY W10882052 Contact Us For Availability
8
RETAINER, LINT FILTER MAY W10883756 Contact Us For Availability
9
RETAINER, HARNESS MAY W10883617 Contact Us For Availability
9
FILTER, LINT MAY W10882130 Contact Us For Availability
10
SCREW MAY W10869512 Contact Us For Availability
10
SCREW MAY W10883753 Contact Us For Availability
11
SCREW MAY W10869502 Contact Us For Availability
11
PANEL, REAR MAY W10882056 Contact Us For Availability
11
HOSE, OVERFLOW MAY W10883781 Contact Us For Availability
12
MACHINE CONTROL UNIT MAY W10869503 Contact Us For Availability
12
FOIL, ALUMINUM (HANDLE) MAY W10882403 Contact Us For Availability
12
SUSPENSION DAMPER ASSEMBLY (INCLUDES 3 STANDA MAY W10882240 Contact Us For Availability
13
SCREW MAY W10869504 Contact Us For Availability
13
FOIL, ALUMINUM (LEFT & RIGHT BASE) MAY W10882402 Contact Us For Availability
13
TUB MAY W10882132 Contact Us For Availability
14
COVER, CONTROL (UPPER) MAY W10869508 Contact Us For Availability
14
HANDLE MAY W10882059 Contact Us For Availability
14
BOLT MAY W10883768 Contact Us For Availability
15
CLAMP, HOSE MAY W10883610 Contact Us For Availability
15
COVER, CONTROL (LOWER) MAY W10869509 Contact Us For Availability
15
PLUG, CABINET MAY W10883709 Contact Us For Availability
16
HOSE, PRESSURE SWITCH MAY W10882407 Contact Us For Availability
16
COVER, REAR MAY W10883612 Contact Us For Availability
16
SOUND ABSORBER (CABINET) MAY W10883704 Contact Us For Availability
17
SLEEVE, HOSE MAY W10882410 Contact Us For Availability
17
HOUSING, DETERGENT DISPENSER MAY W10869510 Contact Us For Availability
17
CLAMP, HOSE MAY W10883714 Contact Us For Availability
18
CONNECTOR, WATER VALVE MAY W10883613 Contact Us For Availability
18
WIRE, GROUND MAY W10869829 Contact Us For Availability
18
HOSE (TUB TO PUMP) MAY W10882096 Contact Us For Availability
19
VALVE, WATER INLET MAY W10869511 Contact Us For Availability
19
SCREW MAY W10869822 Contact Us For Availability
19
CLAMP, HOSE MAY W10883717 Contact Us For Availability
20
MAIN HARNESS MAY W10869513 Contact Us For Availability
20
BASE MAY W10882101 Contact Us For Availability
20
CABLE TIE MAY W10883819 Contact Us For Availability
21
DRAWER, DETERGENT MAY W10869787 Contact Us For Availability
21
GEARCASE MAY W10883783 Contact Us For Availability
22
LATCH, LID LOCK MAY W10869789 Contact Us For Availability
22
PUMP, DRAIN MAY W10882103 Contact Us For Availability
22
SCREW MAY W10883787 Contact Us For Availability
23
COVER, LID LOCK MAY W10881968 Contact Us For Availability
23
SCREW MAY W10883733 Contact Us For Availability
23
ACTUATOR, SHIFT MAY W10883801 Contact Us For Availability
24
BEZEL, BLEACH DISPENSER MAY W10883614 Contact Us For Availability
24
WHEEL CASTER (RIGHT) MAY W10882106 Contact Us For Availability
24
SCREW MAY W10883805 Contact Us For Availability
25
CAP, INLET VALVE MAY W10869792 Contact Us For Availability
25
WHEEL CASTER (LEFT) MAY W10882107 Contact Us For Availability
25
BRACKET, ACTUATOR MAY W10883809 Contact Us For Availability
26
MAY W11093615 MAY W11093615 Contact Us For Availability
26
SCREW MAY W10882000 Contact Us For Availability
26
SCREW MAY W10869507 Contact Us For Availability
27
CUP, OVERFLOW HOPPER MAY W10883747 Contact Us For Availability
27
SPACER (MOTOR) MAY W10883812 Contact Us For Availability
28
CLAMP, WIRE MAY W10883737 Contact Us For Availability
28
SCREW MAY W10883817 Contact Us For Availability
29
SOUND ABSORBER (BASE) MAY W10883740 Contact Us For Availability
29
MOTOR, DRIVE MAY W10882137 Contact Us For Availability
30
FOIL, ALUMINUM (FRONT BASE) MAY W10882401 Contact Us For Availability
30
PULLEY, MOTOR MAY W10882138 Contact Us For Availability
31
ABSORBER, IMPACT MAY W10883743 Contact Us For Availability
31
BELT, DRIVE MAY W10882141 Contact Us For Availability
32
HOSE COUPLER ASSEMBLY MAY W10849761 Contact Us For Availability
32
BRACKET, MOTOR SUPPORT MAY W10882148 Contact Us For Availability
33
BRACKET, DRAIN HOSE MAY W10883751 Contact Us For Availability
33
SCREW MAY W10883826 Contact Us For Availability
34
CLAMP, HOSE MAY W10883711 Contact Us For Availability
35
PIN, SUSPENSION RETAINER MAY W10882237 Contact Us For Availability
36
FEET, LEVELING (SET OF 4) MAY W10882121 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4) MAY 285448A Contact Us For Availability
NI
ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2) MAY 285452A Contact Us For Availability
NI
WATER SYSTEM PARTS, SIPHON BREAK KIT MAY 285834 Contact Us For Availability
NI
WATER SYSTEM PARTS, ADAPTER, STANDPIPE 2" DIA MAY 3363920 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
COUPLING, HOSE EXTENSION KIT MAY 384496 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAI MAY 8212487 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, DRIP TRAY MAY 8212526 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED MAY 8212545RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLAC MAY 8212546RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BLAC MAY 8212637RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BRAI MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BLAC MAY 8212641RP Contact Us For Availability
NI
MAY 8212656RP MAY 8212656RP Contact Us For Availability
NI
MAY DRNEXT4 MAY DRNEXT4 Contact Us For Availability
NI
MAY W10135699 MAY W10135699 Contact Us For Availability
NI
MAY W10355010 MAY W10355010 Contact Us For Availability
× ![]()
