Model Whirlpool NT21L9A REFRIGERATOR – Common Parts & Diagrams
02 - FREEZER COMPARTMENT

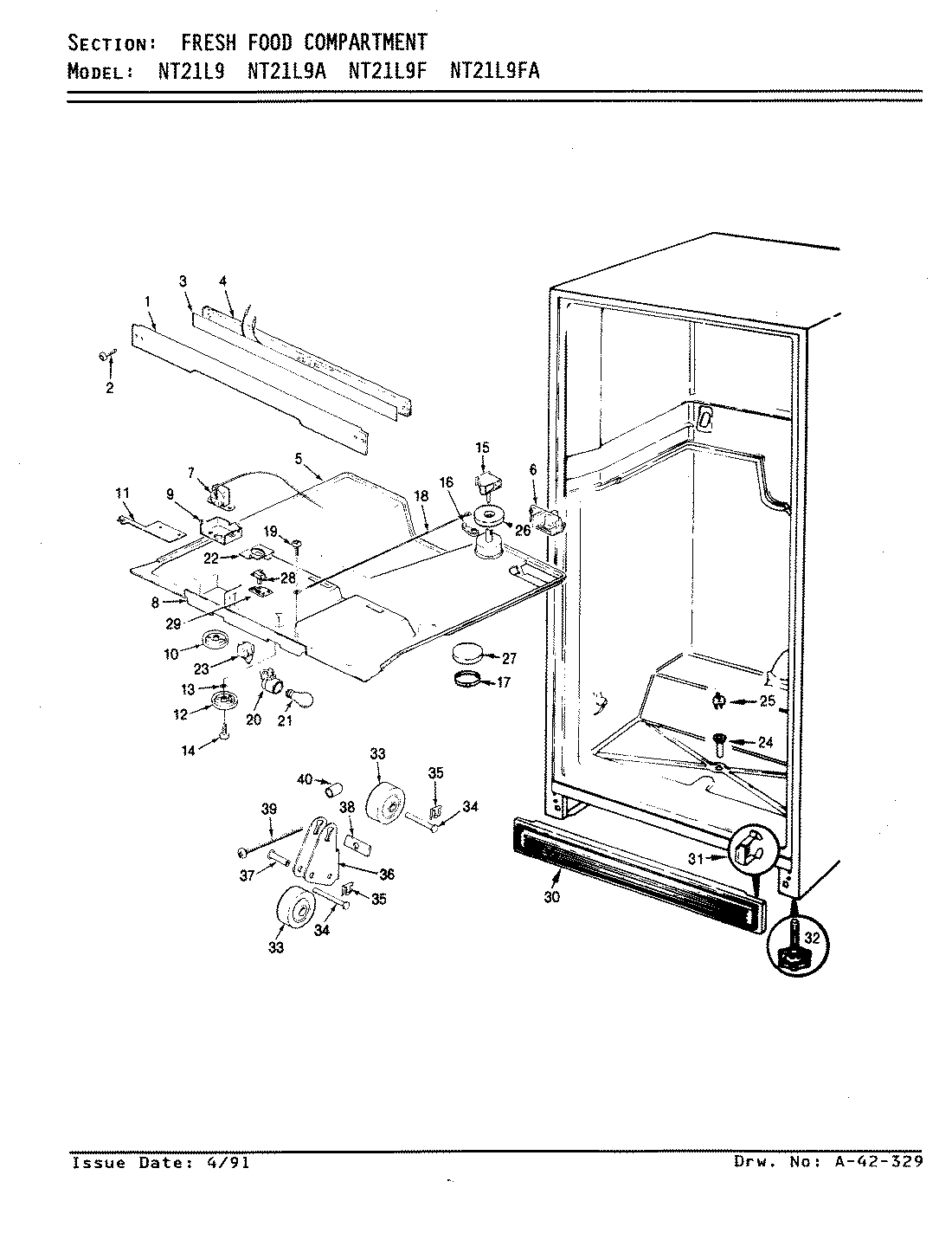

04 - FRESH FOOD COMPARTMENT
05 - FRESH FOOD DOOR

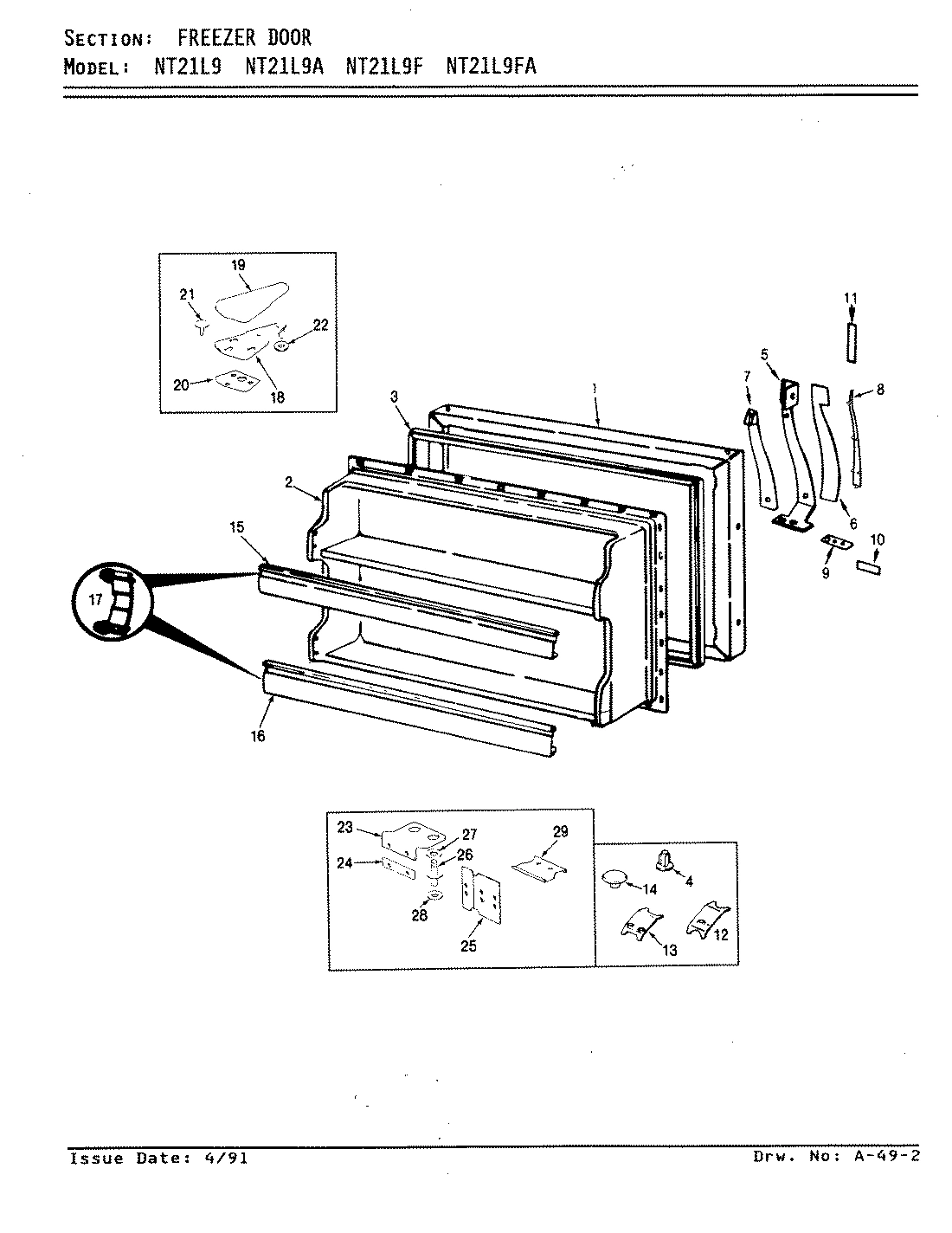

03 - FREEZER DOOR
06 - ICE MAKER

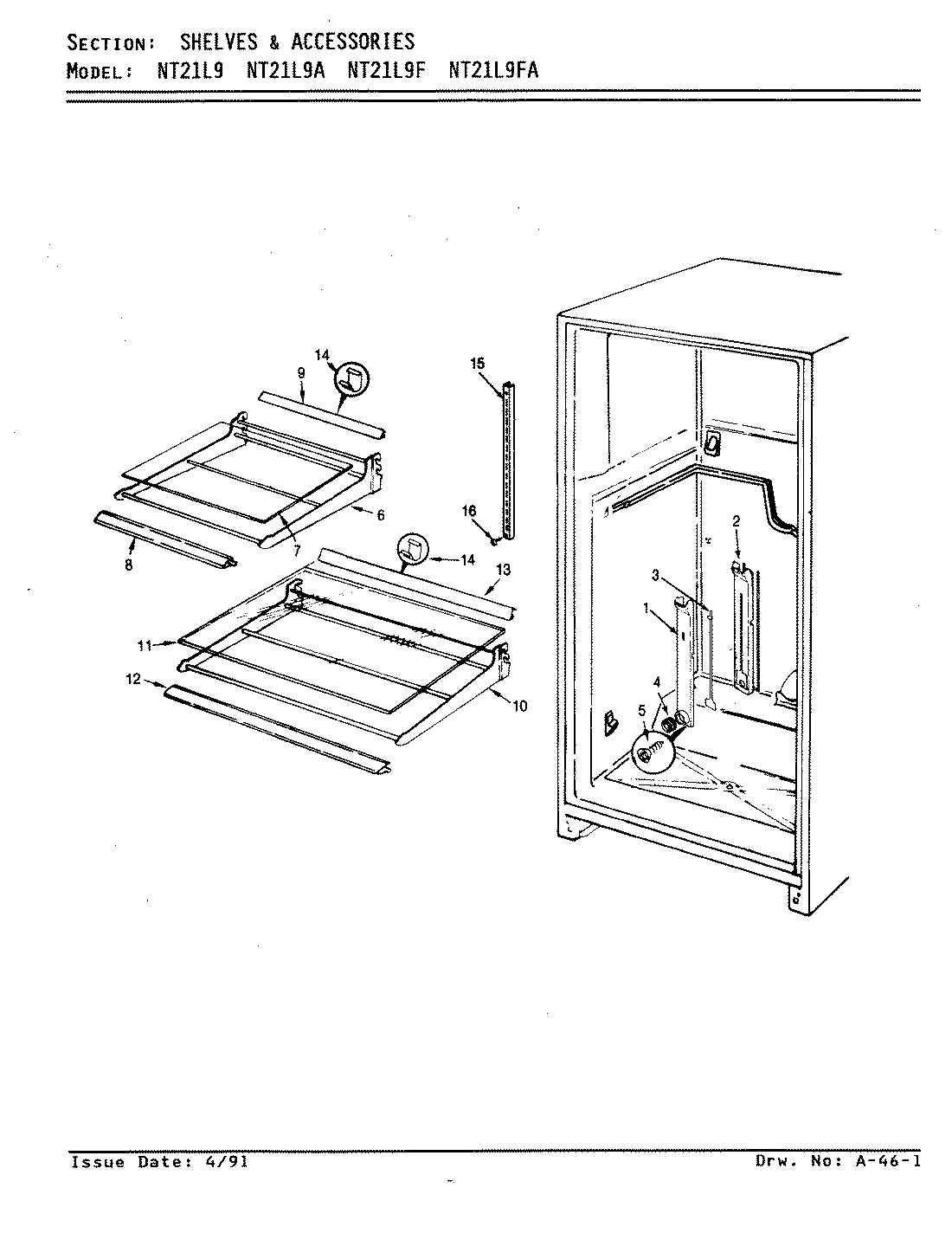

07 - SHELVES & ACCESSORIES

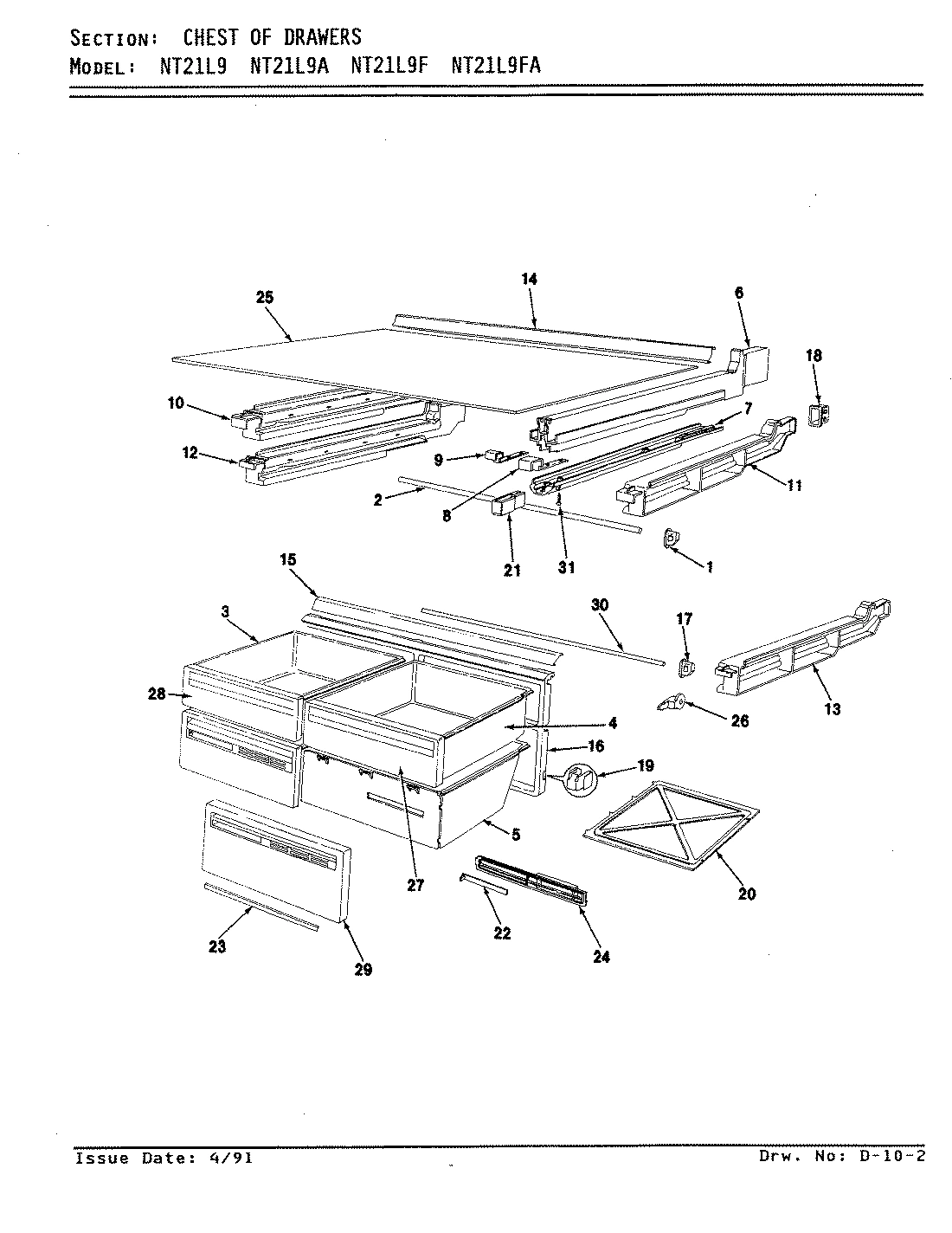

01 - CHEST OF DRAWERS

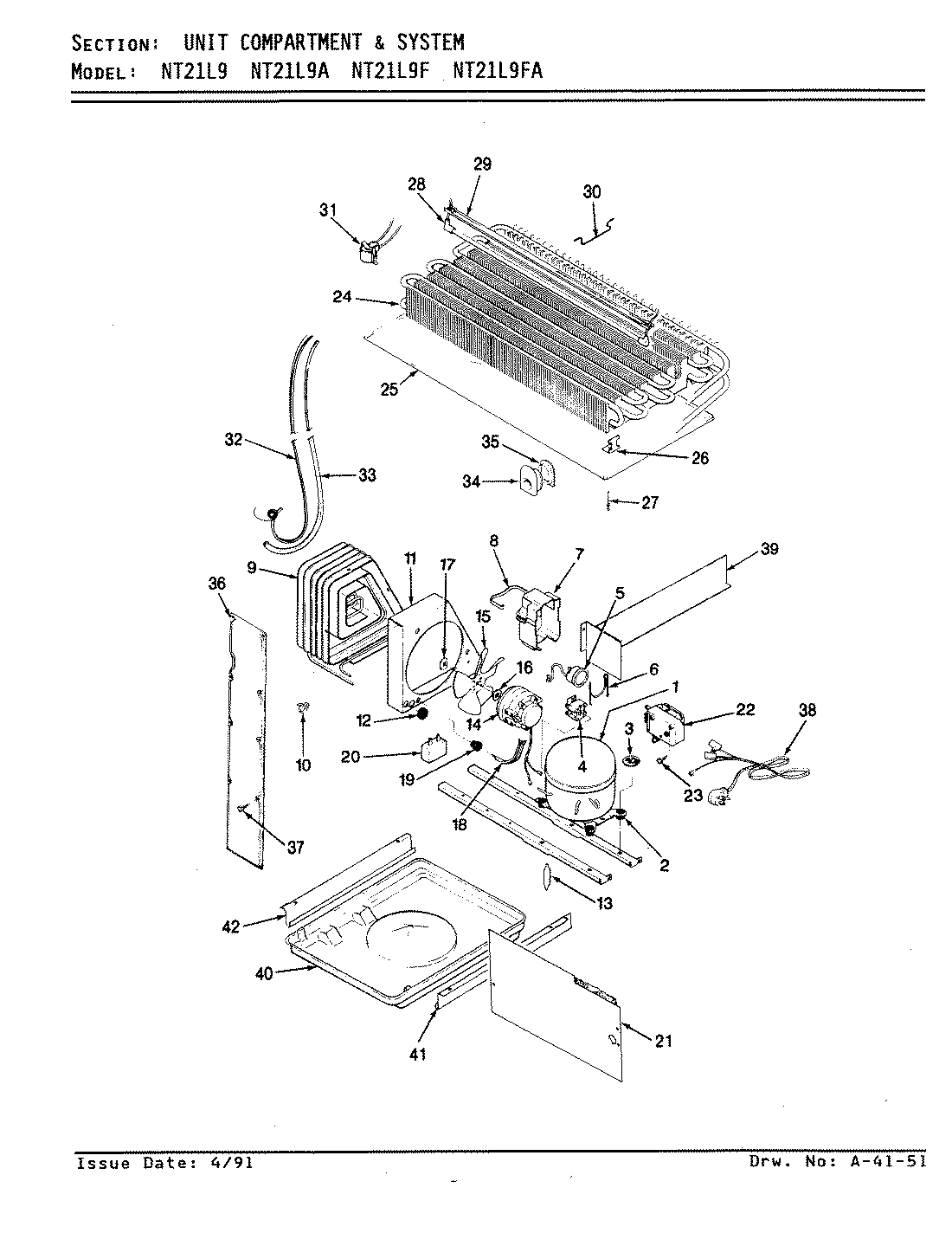

08 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool NT21L9A REFRIGERATOR
1
FOAM TRAY WPL 675202 Contact Us For Availability
1
DIVIDER, MULLION (ALM) WPL 684342AM Contact Us For Availability
1
PANEL, F.F. DOOR (ALM) WPL 684733AM Contact Us For Availability
1
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 684743AM Contact Us For Availability
1
COVER, AIR TUNNEL WPL 682853 Contact Us For Availability
1
SEAL, CLOSED CELL WPL 684181 Contact Us For Availability
1
CUP, U-RAIL SUPPORT WPL 687571 Contact Us For Availability
2
SEAL, FRONT CORNER WPL 677301 Contact Us For Availability
2
FOAM SEAL WPL 688663 Contact Us For Availability
2
SCREW WPL 6527523 Contact Us For Availability
2
SCREW WPL 652755 Contact Us For Availability
2
LINER, F.F. DOOR WPL 687191 Contact Us For Availability
2
LINER, FRZ. DOOR WPL 659285 Contact Us For Availability
2
INSULATION, AIR TUNNEL WPL 682892 Contact Us For Availability
2
CRISPER SHELF ROD WPL 687561 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
HEATER WPL 688292 Contact Us For Availability
3
GASKET, F.F. DOOR WPL 661996 Contact Us For Availability
3
GASKET, FRZ. DOOR WPL 661995 Contact Us For Availability
3
DAMPER, AIR TUNNEL WPL 682903 Contact Us For Availability
3
PAN, MEAT----NA WPL 685132 Contact Us For Availability
3
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
INSULATION WPL 601402 Contact Us For Availability
4
WIRE HARNESS WPL 686852 Contact Us For Availability
4
PLUG BUTTON, HDLE & DOOR STOP WPL 5578210 Contact Us For Availability
4
PLUG BUTTON (ALMOND) WPL 557826 Contact Us For Availability
4
BELLOWS, AIR TUNNEL WPL 682821 Contact Us For Availability
4
PAN, MEAT WPL 685135 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
SCREW WPL 40001531 Contact Us For Availability
5
TOP, F.F. COMPARTMENT WPL 685322 Contact Us For Availability
5
DOOR HANDLE WPL 662554 Contact Us For Availability
5
DOOR HANDLE WPL 662553 Contact Us For Availability
5
PAN, CRISPER WPL 685142 Contact Us For Availability
5
OVERLOAD WPL 6329410 Contact Us For Availability
6
DEFLECTOR WPL 601202 Contact Us For Availability
6
HANDLE INSERT, FRONT WPL 680166 Contact Us For Availability
6
HANDLE INSERT, FRONT WPL 680165 Contact Us For Availability
6
FRAME, SHELF WPL 6057010 Contact Us For Availability
6
UPPER RAIL WPL 685153 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
SCREW WPL 4060131 Contact Us For Availability
7
CONTROL, TEMPERATURE WPL 665451 Contact Us For Availability
7
INSERT, HANDLE (BACK) WPL 604454 Contact Us For Availability
7
GLASS, CANTILEVER SHELF WPL 6660425 Contact Us For Availability
7
RAIL WPL 682681 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
8
SEAL, TUNNEL WPL 6632529 Contact Us For Availability
8
TUNNEL, AIR WPL 685923 Contact Us For Availability
8
INSERT TEMP CONTROL WPL 6057178 Contact Us For Availability
8
INSERT, VINYL CLAD WPL 680173 Contact Us For Availability
8
SCREW WPL 9986112 Contact Us For Availability
8
SHELF TRIM WPL 6813645 Contact Us For Availability
8
BRACKET, CENTER RAIL WPL 682691 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
9
SCREW WPL 4050121 Contact Us For Availability
9
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
9
SHIM HANDLE----NA WPL 687761 Contact Us For Availability
9
TRIM, MEAT SHELF (REAR) WPL 652764 Contact Us For Availability
9
BRACKET, CENTER RAIL WPL 682692 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
10
KNOB, TEMP. CONTROL WPL 686003 Contact Us For Availability
10
INSERT, HANDLE WPL 6060313 Contact Us For Availability
10
INSERT, HANDLE WPL 6060314 Contact Us For Availability
10
FRAME, SHELF WPL 6057027 Contact Us For Availability
10
RAIL, SIDE (LT-UPPER) WPL 685161 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664781 Contact Us For Availability
11
SEAL WPL 689462 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
11
HANDLE TRIM EXTENSION WPL 6045321 Contact Us For Availability
11
HANDLE TRIM EXTENSION WPL 6045322 Contact Us For Availability
11
GLASS, CANTILEVER SHELF WPL 6660424 Contact Us For Availability
11
RAIL, SIDE (RT-UPPER) WPL 685162 Contact Us For Availability
11
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
12
SHELF, WIRE WPL 6043816 Contact Us For Availability
12
KNOB WPL 686004 Contact Us For Availability
12
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
12
TRIM, SHELF WPL 6813652 Contact Us For Availability
12
RAIL, SIDE (LH LOWER) WPL 685165 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
13
WASHER, SPRING WPL 420092900 Contact Us For Availability
13
SCREW WPL 4000191 Contact Us For Availability
13
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
13
TRIM, SHELF (FULL REAR) WPL 6527621 Contact Us For Availability
13
RAIL, SIDE (RT-LOWER) WPL 685166 Contact Us For Availability
14
ICE CUBE TRAY WPL 601121 Contact Us For Availability
14
SCREW WPL 405016103 Contact Us For Availability
14
TRAY, BUTTER WPL 299362 Contact Us For Availability
14
PLUG BUTTON, HINGE CUP (WHT) WPL 676342 Contact Us For Availability
14
PLUG BUTTON, HINGE CUP (ALM) WPL 676343 Contact Us For Availability
14
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
14
TRIM, REAR SHELF WPL 682712 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 675601 Contact Us For Availability
15
PAN, ICE WPL 606531 Contact Us For Availability
15
DAMPER ASSY WPL 675585 Contact Us For Availability
15
DOOR, DAIRY WPL 66184365 Contact Us For Availability
15
TRIM, SHELF WPL 6837517 Contact Us For Availability
15
RAIL, CANTILEVER SHELF WPL 682381 Contact Us For Availability
15
RAIL, CANTILEVER SHELF WPL 682382 Contact Us For Availability
15
RAIL, CANTILEVER SHELF WPL 682383 Contact Us For Availability
15
FRONT SHELF TRIM WPL 687878 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
16
TRIM, HANDLE PAN WPL 60132100 Contact Us For Availability
16
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
16
DOOR, DAIRY WPL 66184366 Contact Us For Availability
16
TRIM, SHELF WPL 6837511 Contact Us For Availability
16
SCREW WPL 40003728 Contact Us For Availability
16
FRONT, FOUR DRAWER WPL 682734 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
17
CUP, SHELF WPL 603131 Contact Us For Availability
17
COVER, CRANK WPL 674931 Contact Us For Availability
17
TRAY, EGG WPL 600661 Contact Us For Availability
17
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
17
SUPPORT ROD CUP WPL 687581 Contact Us For Availability
17
SPEEDNUT WPL 199141 Contact Us For Availability
18
COVER, PLENUM WPL 664805 Contact Us For Availability
18
ROD WPL 674994 Contact Us For Availability
18
TRIM, FRESH FOOD SHELF WPL 6837512 Contact Us For Availability
18
HINGE, UPPER WPL 5370920 Contact Us For Availability
18
CUP, REAR RAIL SUPPORT WPL 682752 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
19
CLIP WPL 655171 Contact Us For Availability
19
SHELF TRIM WPL 6813647 Contact Us For Availability
19
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
19
SCREW WPL 6527513 Contact Us For Availability
19
COVER, UPPER HINGE (ALM) WPL 650033 Contact Us For Availability
19
COVER, UPPER HINGE (WHT) WPL 650036 Contact Us For Availability
19
CLIP, FRONT BOTTOM WPL 682771 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
20
PLUG BUTTON WPL 669202 Contact Us For Availability
20
PLUG BUTTON WPL 675571 Contact Us For Availability
20
SOCKET, LIGHT WPL 605771 Contact Us For Availability
20
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
20
COVER, PAN WPL 682782 Contact Us For Availability
20
CAPACITOR, RUN WPL 658892 Contact Us For Availability
21
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
21
ORGANIZER, SHELF WPL 6409711 Contact Us For Availability
21
PLUG BUTTON, UPPER HINGE (WHT) WPL 5614413 Contact Us For Availability
21
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
21
GUIDE, CENTER RAIL WPL 682802 Contact Us For Availability
21
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
21
SCREW WPL 998645 Contact Us For Availability
22
CAP, CONNECTOR WPL 681871 Contact Us For Availability
22
RIVET WPL 263972 Contact Us For Availability
22
GROUND WIRE WPL 2967528 Contact Us For Availability
22
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
22
HINGE, LOWER WPL 677146 Contact Us For Availability
22
WASHER WPL 542331 Contact Us For Availability
22
SCREW WPL 998687 Contact Us For Availability
22
CONTROL, CRISPER SLIDE WPL 685824 Contact Us For Availability
22
TIMER, DEFROST WPL 665562 Contact Us For Availability
23
CAP, GROMMET WPL 683871 Contact Us For Availability
23
SWITCH, LIGHT WPL 557321 Contact Us For Availability
23
SCREW WPL 4000171 Contact Us For Availability
23
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
23
HINGE, CENTER WPL 688112 Contact Us For Availability
23
HANDLE INSERT TRIM WPL 6858310 Contact Us For Availability
23
HANDLE INSERT TRIM WPL 6858312 Contact Us For Availability
23
TRIM, HANDLE INSERT WPL 685838 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
24
GROMMET WPL 545318 Contact Us For Availability
24
HINGE PIN WPL 687881 Contact Us For Availability
24
SHIM, CENTER HINGE WPL 688121 Contact Us For Availability
24
RETAINER, SLIDE CONTROL WPL 682884 Contact Us For Availability
24
EVAPORATOR WPL RA4362011 Contact Us For Availability
25
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
25
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
25
SCREW WPL 6527524 Contact Us For Availability
25
TAPPING PLATE, CENTER HINGE WPL 683771 Contact Us For Availability
25
COVER, GLASS WPL 682925 Contact Us For Availability
25
TRAY, DRIP WPL 601018 Contact Us For Availability
26
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
26
SCREW WPL 4031001 Contact Us For Availability
26
TAPPING PLATE WPL 657903 Contact Us For Availability
26
PIN, CENTER HINGE WPL 673221 Contact Us For Availability
26
STUD, FRONT CLIP WPL 683391 Contact Us For Availability
26
BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability
27
DISC, CRANK COVER WPL 690371 Contact Us For Availability
27
DOOR STOP WPL 6041910 Contact Us For Availability
27
SCREW WPL 9986108 Contact Us For Availability
27
WASHER, CENTER HINGE (UPPER) WPL 674831 Contact Us For Availability
27
RIVET WPL 263979 Contact Us For Availability
28
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
28
WASHER WPL 542332 Contact Us For Availability
28
FRONT ASSY. WPL 686394 Contact Us For Availability
28
HEATER, DEFROST WPL 6010635 Contact Us For Availability
29
SCREW WPL 4020131 Contact Us For Availability
29
BRACKET, SWITCH WPL 605831 Contact Us For Availability
29
SCREW WPL 9986122 Contact Us For Availability
29
DOOR STOP WPL 600301 Contact Us For Availability
29
COVER, AIR INLET WPL 683911 Contact Us For Availability
29
SCREW, ANCHOR WPL 683981 Contact Us For Availability
29
CRISPER ASSEMBLY FRONT WPL 686404 Contact Us For Availability
29
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
30
KICKPLATE WPL 601387 Contact Us For Availability
30
SCREW WPL 4000161 Contact Us For Availability
30
U-RAIL, CRISPER SHELF SUPPORT WPL 687562 Contact Us For Availability
30
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
31
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
31
NOT REQUIRED PART OR SEE NOTE OPTIONAL ICE MA WPL W10124350 Contact Us For Availability
31
SCREW WPL 4050031 Contact Us For Availability
31
PIN, FRAME GUIDE WPL 683931 Contact Us For Availability
31
CUP, FRAME MOUNT WPL 683941 Contact Us For Availability
31
THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability
32
LEG, LEVELING WPL 686641 Contact Us For Availability
32
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
33
WHEEL WPL 298342 Contact Us For Availability
33
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
33
WIRE TIE WPL 662231 Contact Us For Availability
34
PIN, WHEEL WPL 298352 Contact Us For Availability
34
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
35
CLIP WPL 602161 Contact Us For Availability
35
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
35
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
35
WIRE HARNESS WPL 688393 Contact Us For Availability
36
BRACKET, WHEEL WPL 675301 Contact Us For Availability
36
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
37
PIN, WHEEL WPL 649651 Contact Us For Availability
37
SCREW WPL 6527550 Contact Us For Availability
38
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
38
CORD, POWER WPL 528902 Contact Us For Availability
39
SCREW, WHEEL ADJUSTMENT WPL 4060831 Contact Us For Availability
39
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
40
TIP, ADJUSTMENT SCREW WPL 245804 Contact Us For Availability
40
PAN, DRAIN WPL 682361 Contact Us For Availability
41
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
42
MANUAL, USE & CARE WPL 1069022 Contact Us For Availability
42
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
× ![]()
Login and Registration Form
