Model Whirlpool NT21L6H REFRIGERATOR – Common Parts & Diagrams

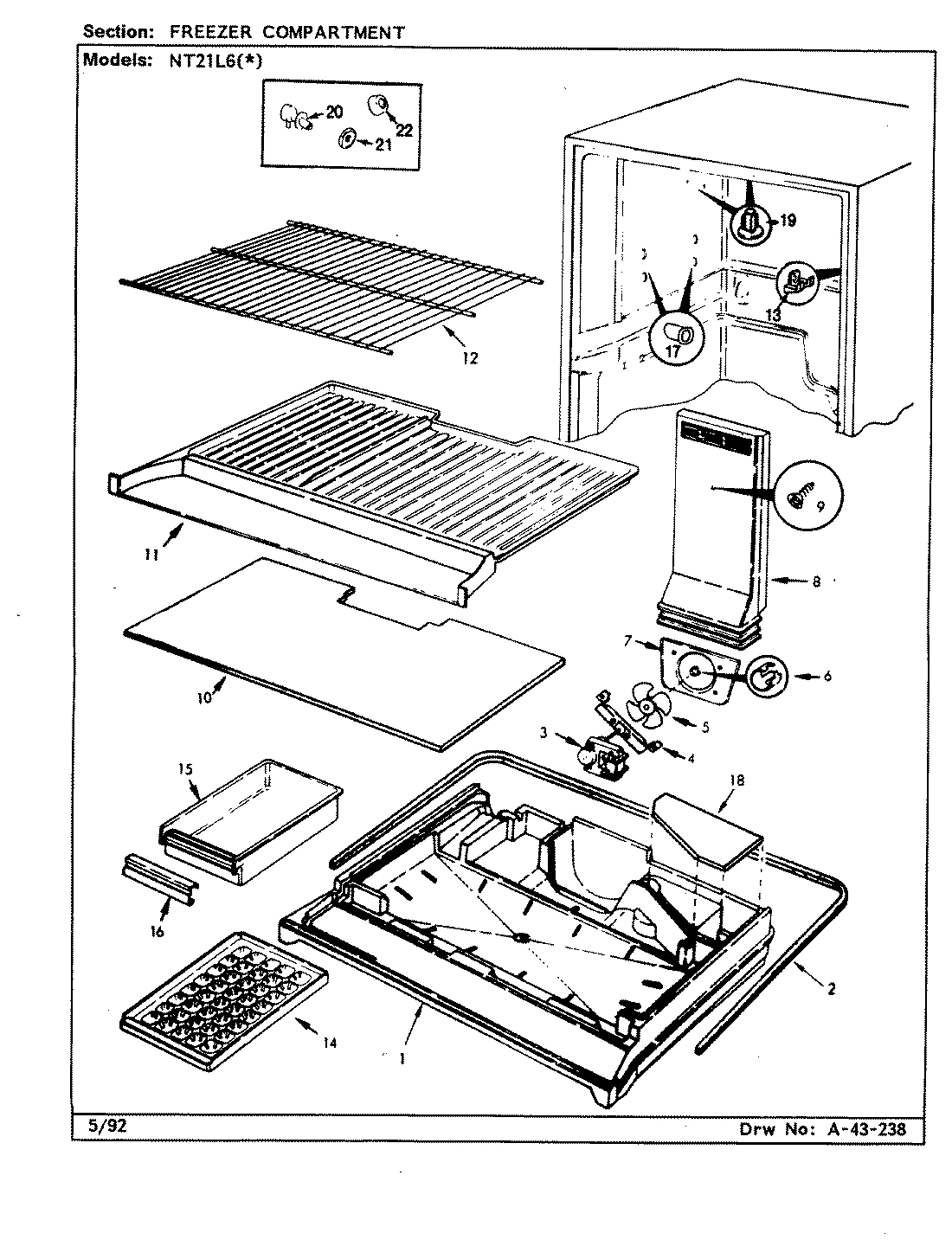

01 - FREEZER COMPARTMENT

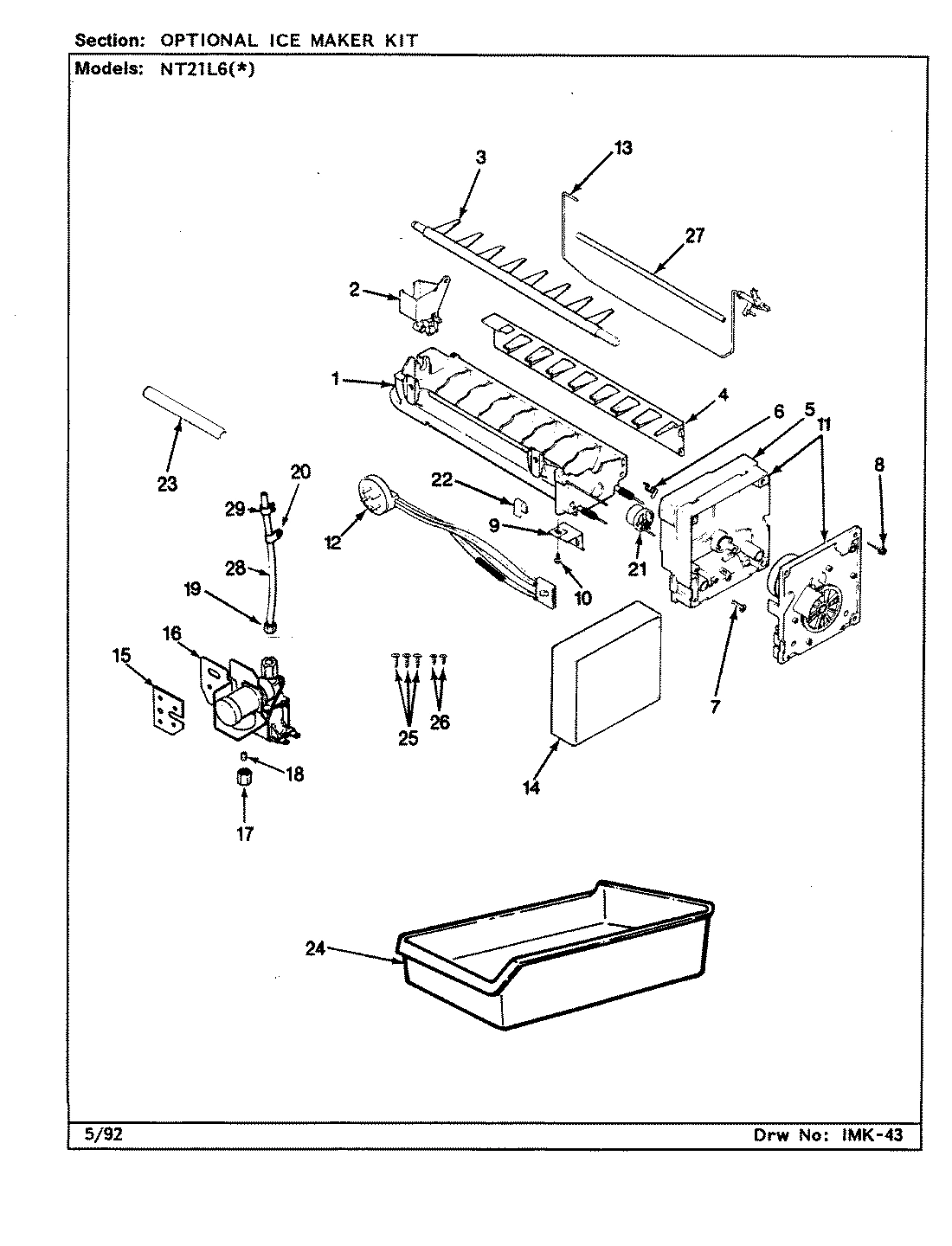

02 - OPTIONAL ICE MAKER KIT

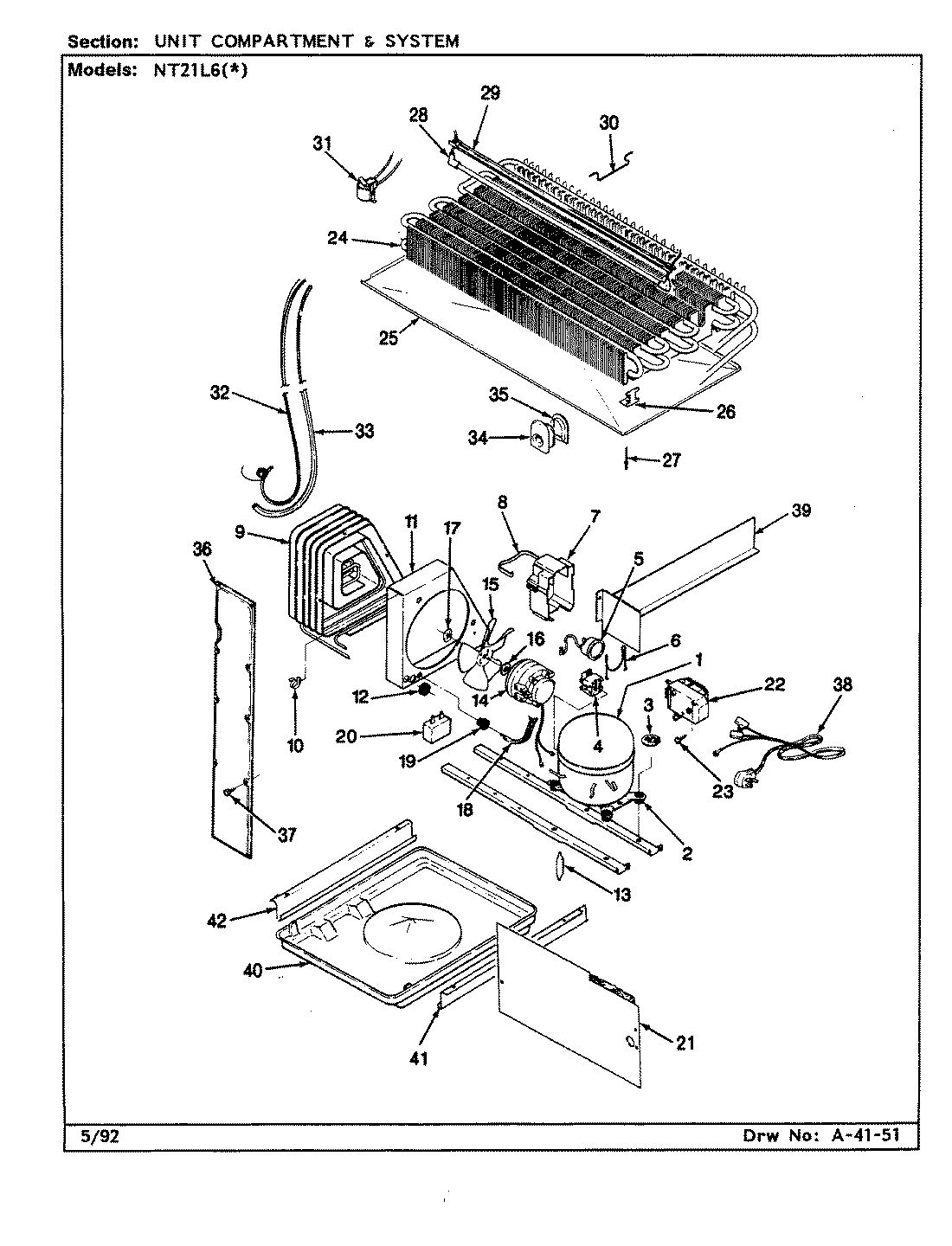

04 - UNIT COMPARTMENT & SYSTEM

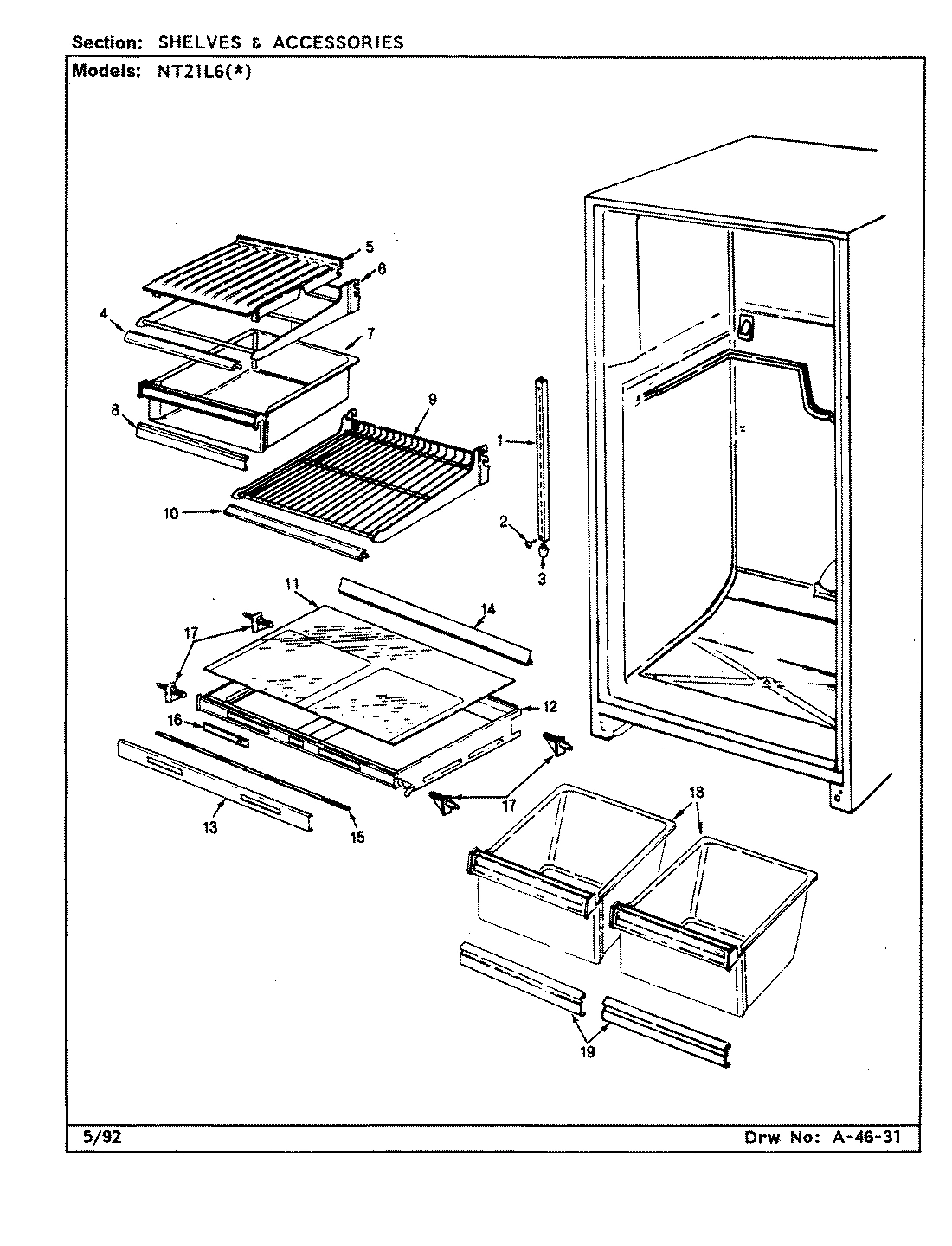

03 - SHELVES & ACCESSORIES
Common parts from model Whirlpool NT21L6H REFRIGERATOR
1
FOAM TRAY WPL 675202 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
1
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
1
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
2
SEAL, FRONT CORNER WPL 677301 Contact Us For Availability
2
FOAM SEAL WPL 688663 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SCREW WPL 40003728 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
3
CLIP WPL 527782 Contact Us For Availability
3
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
RELAY, START WPL 688572 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
5
OVERLOAD WPL 691052 Contact Us For Availability
5
COVER, MEAT PAN WPL 600758 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
FRAME, MEAT SHELF WPL 6041615 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
SCREW WPL 951051 Contact Us For Availability
7
COVER, TERMINAL WPL 697541 Contact Us For Availability
7
PAN, MEAT WPL 6652422 Contact Us For Availability
8
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
8
TUNNEL, AIR WPL 685923 Contact Us For Availability
8
SCREW WPL 951061 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 595961 Contact Us For Availability
8
TRIM WPL 6623013 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
SHELF, SPLIT WPL 6041723 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
TRIM WPL 6041462 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664781 Contact Us For Availability
11
SEAL WPL 689462 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
SCREW,MOTOR TO MODULE ASSEMBLY WPL 951101 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
CRISPER, GLASS WPL 6874314 Contact Us For Availability
12
SHELF WPL 6043833 Contact Us For Availability
12
WIRE HARNESS WPL 679101 Contact Us For Availability
12
SHELF, CRISPER WPL 690572 Contact Us For Availability
13
SCREW WPL 4000191 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
13
TRIM WPL 687444 Contact Us For Availability
14
ICE CUBE TRAY WPL 601121 Contact Us For Availability
14
COVER, ICE MAKER WPL 683282 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 675601 Contact Us For Availability
14
TRIM, CRISPER SHELF (REAR) WPL 687981 Contact Us For Availability
15
PAN, ICE WPL 606531 Contact Us For Availability
15
BRACKET, WATER VALVE WPL 693631 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
SEAL WPL 687971 Contact Us For Availability
16
HANDLE ICE CUBE PAN WPL 662309 Contact Us For Availability
16
VALVE, WATER WPL 693641 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
SLIDE, CONTROL WPL 695421 Contact Us For Availability
17
CUP, SHELF WPL 603131 Contact Us For Availability
17
SPEEDNUT WPL 199141 Contact Us For Availability
17
STUD, CRISPER SUPPORT WPL 688361 Contact Us For Availability
18
COVER, PLENUM WPL 664805 Contact Us For Availability
18
SLEEVE, BRASS WPL 694311 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
PAN, CRISPER WPL 68163540 Contact Us For Availability
19
PLUG BUTTON WPL 675571 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
TRIM WPL 6623014 Contact Us For Availability
20
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
20
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
20
SCREW WPL 4000161 Contact Us For Availability
20
CLAMP, TUBING WPL 535168 Contact Us For Availability
20
CAPACITOR, RUN WPL 658894 Contact Us For Availability
21
CAP, CONNECTOR WPL 681871 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
21
SCREW WPL 998645 Contact Us For Availability
22
CAP, GROMMET WPL 683871 Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
22
TIMER, DEFROST WPL 695434 Contact Us For Availability
23
TUBE, WATER ENTRY WPL 676665 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
24
PAN, ICE WPL 683271 Contact Us For Availability
24
EVAPORATOR WPL RA4362011 Contact Us For Availability
25
SCREW WPL 4000211 Contact Us For Availability
25
TRAY, DRIP WPL 601018 Contact Us For Availability
26
SCREW WPL 4010171 Contact Us For Availability
26
BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability
27
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
27
RIVET WPL 263979 Contact Us For Availability
28
TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability
28
HEATER, DEFROST WPL 6010635 Contact Us For Availability
29
CLAMP, SPRING WPL 603334 Contact Us For Availability
29
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
30
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
31
THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability
32
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
33
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
33
WIRE TIE WPL 662231 Contact Us For Availability
34
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
35
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
35
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
35
WIRE HARNESS, MAIN WPL 691612 Contact Us For Availability
36
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
37
SCREW WPL 6527550 Contact Us For Availability
38
CORD, POWER WPL 528902 Contact Us For Availability
39
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
40
PAN, DRAIN WPL 682361 Contact Us For Availability
41
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
42
SCREW WPL 4000171 Contact Us For Availability
42
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
43
MANUAL, USE & CARE WPL 1070994 Contact Us For Availability
× ![]()
