Model Whirlpool NT21H8H REFRIGERATOR – Common Parts & Diagrams

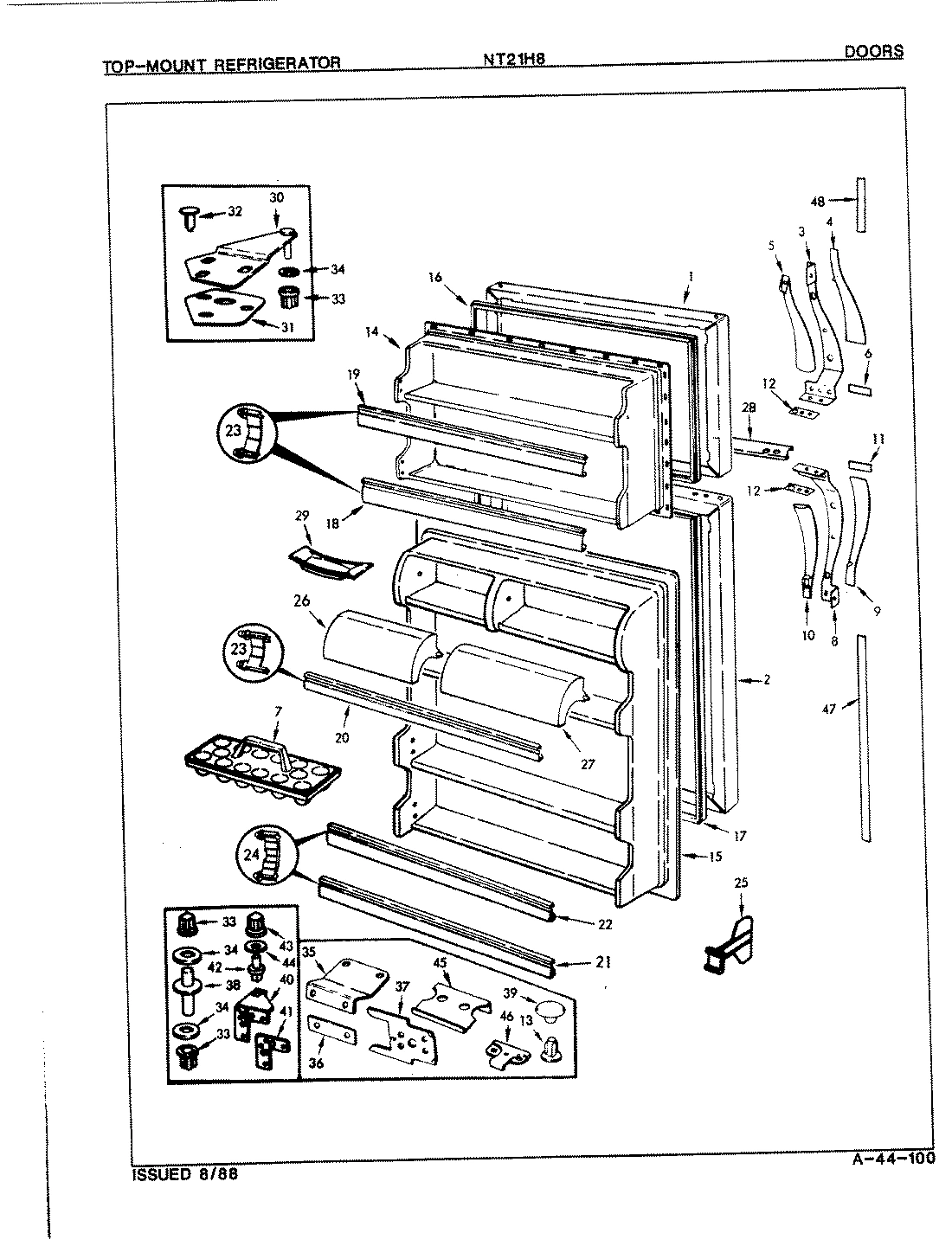

01 - DOORS

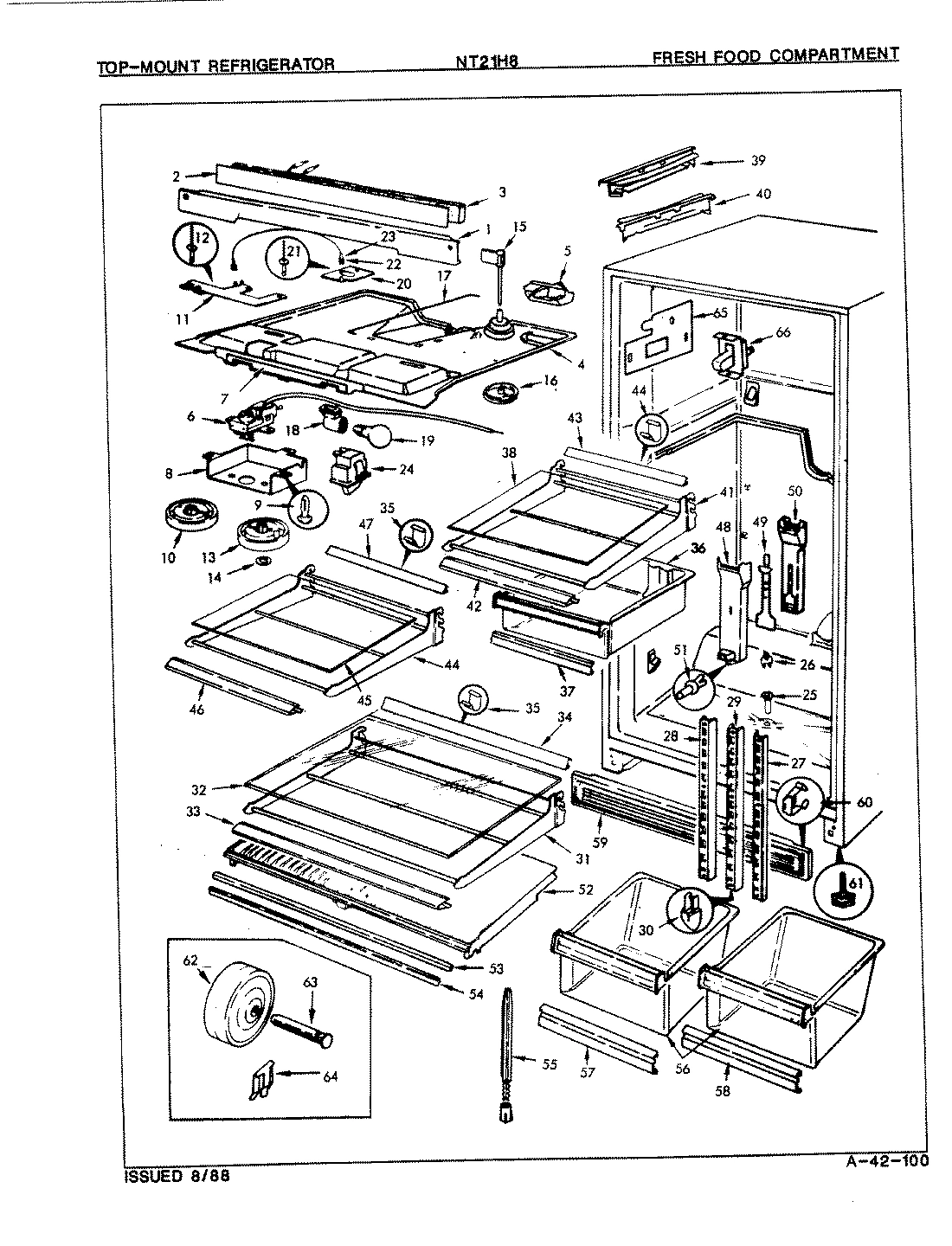

03 - FRESH FOOD COMPARTMENT

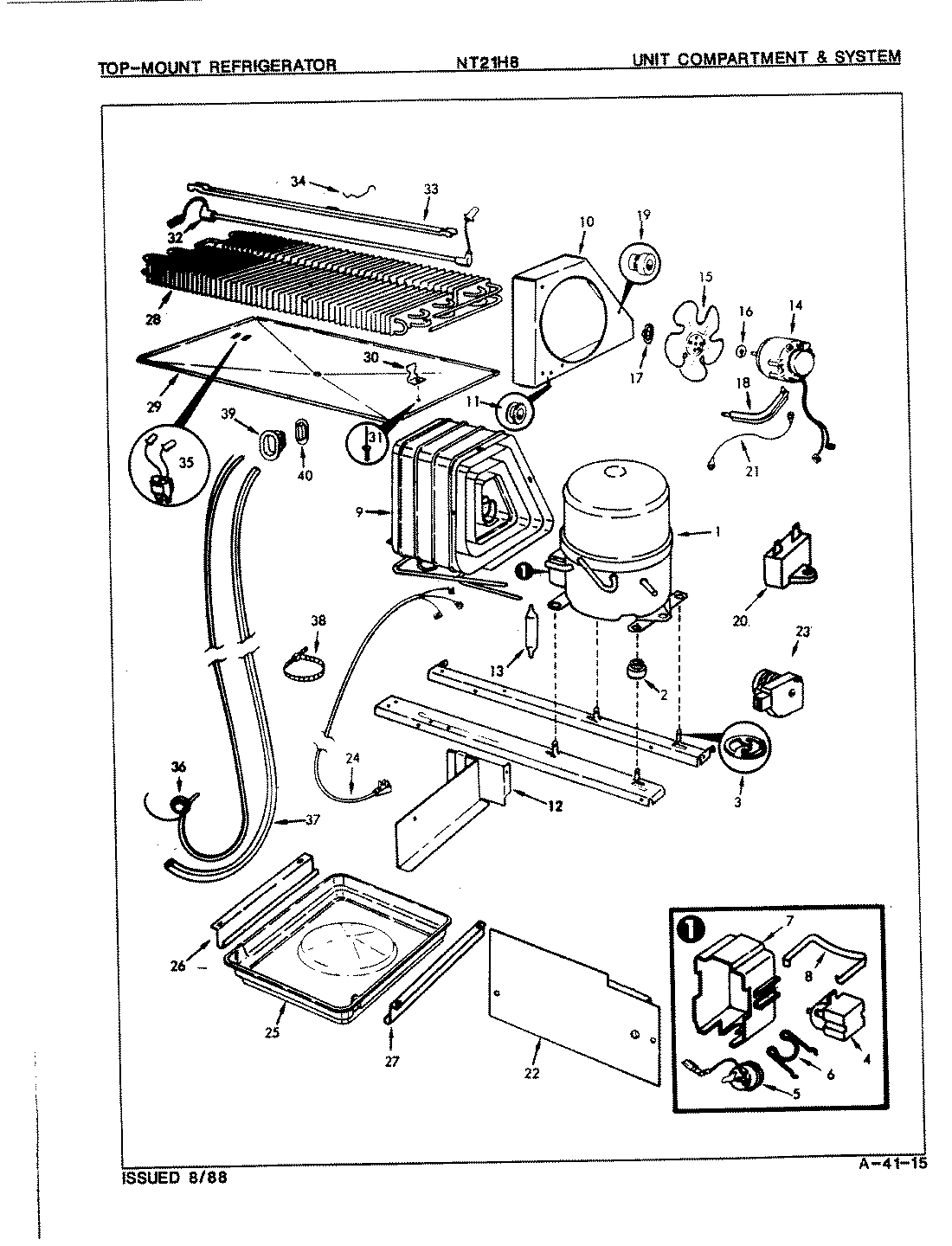

04 - UNIT COMPARTMENT & SYSTEM

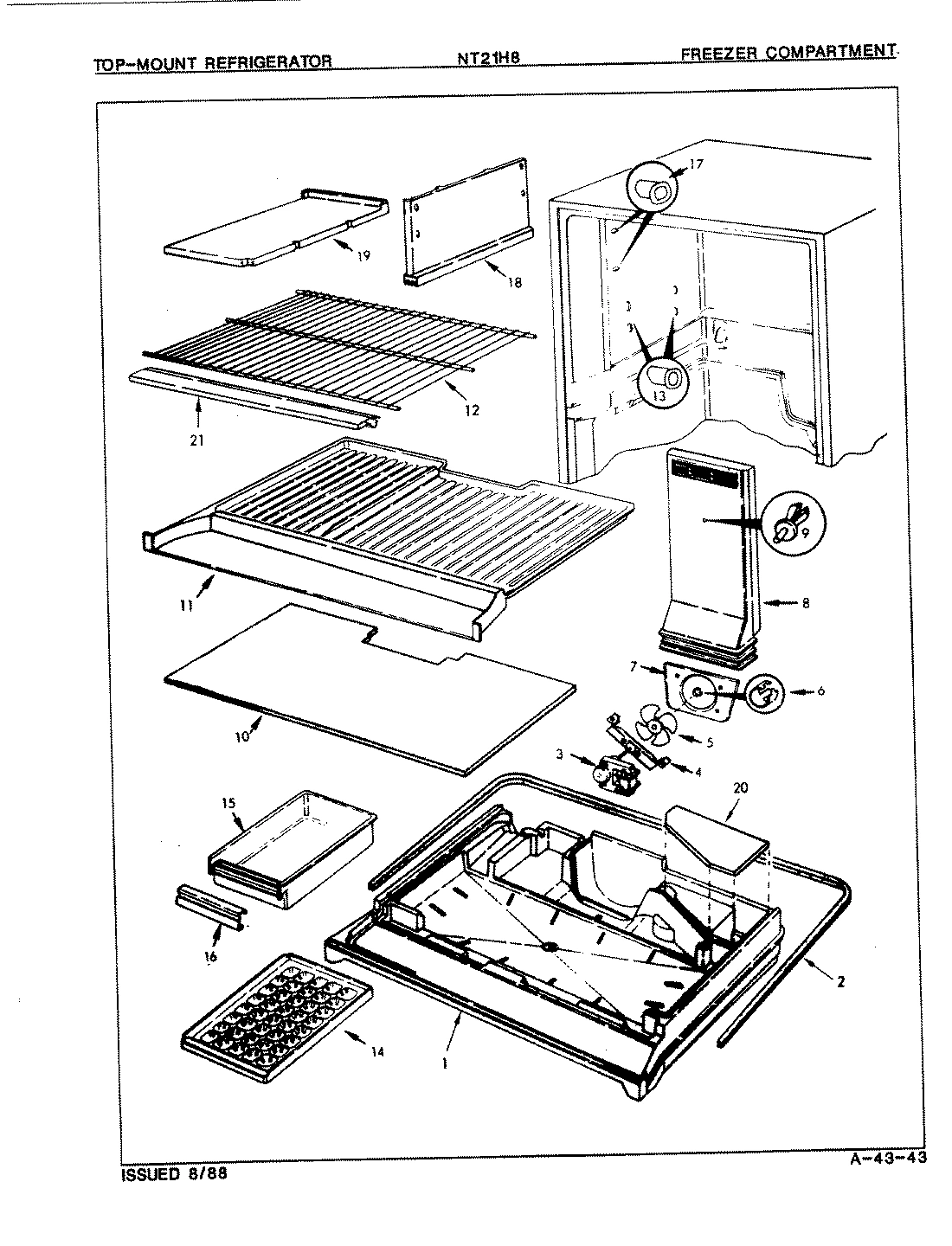

02 - FREEZER COMPARTMENT
Common parts from model Whirlpool NT21H8H REFRIGERATOR
1
SCREW WPL 9986117 Contact Us For Availability
1
TRAY, STYROFOAM MULLION WPL 666071 Contact Us For Availability
2
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
2
HEATER WIRE WPL 601058 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SEAL WPL 663257 Contact Us For Availability
3
HANDLE WPL 604435 Contact Us For Availability
3
INSULATION WPL 601402 Contact Us For Availability
3
WIRE HARNESS WPL 605602 Contact Us For Availability
3
SCREW WPL 4140011 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
4
INSERT, HANDLE WPL 680161 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 6008544 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
GROUND WIRE WPL 2967530 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
WIRE HARNESS WPL 605651 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
5
DEFLECTOR WPL 601202 Contact Us For Availability
5
OVERLOAD WPL 6329411 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
6
INSERT, HANDLE WPL 6060312 Contact Us For Availability
6
SCREW WPL 4060131 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 665452 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
7
TRAY, EGG WPL 600668 Contact Us For Availability
7
INSERT WPL 6057146 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
8
DOOR HANDLE WPL 662554 Contact Us For Availability
8
SCREW WPL 9986122 Contact Us For Availability
8
SCREW WPL 4050121 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
TUNNEL, AIR WPL 660443 Contact Us For Availability
9
INSERT, VINYL WPL 680171 Contact Us For Availability
9
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
9
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
9
INSERT, HANDLE----NA WPL 680162 Contact Us For Availability
9
SCREW WPL 9986112 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
10
INSERT WPL 604451 Contact Us For Availability
10
KNOB WPL 600611 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
11
INSERT, HANDLE WPL 6060311 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
BOTTOM, FRZ. WPL 604743 Contact Us For Availability
12
SHIM WPL 604561 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
12
SHELF WPL 6032327 Contact Us For Availability
13
KNOB WPL 600613 Contact Us For Availability
13
FREEZER SHELF CUP WPL 655701 Contact Us For Availability
14
LINER, DOOR WPL 6592812 Contact Us For Availability
14
FAN MOTOR WPL 2805613 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
ICE CUBE TRAY WPL 601121 Contact Us For Availability
15
SCREW WPL 652755 Contact Us For Availability
15
INNER PANEL WPL 666011 Contact Us For Availability
15
DAMPER WPL 681581 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
PAN, ICE WPL 606531 Contact Us For Availability
16
GASKET, FRZ. DOOR WPL 661995 Contact Us For Availability
16
CRANK, FRZR CONTROL WPL 600823 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
HANDLE WPL 6013282 Contact Us For Availability
17
GASKET, F.F. DOOR WPL 661996 Contact Us For Availability
17
ROD, FRZR CONTROL WPL 600784 Contact Us For Availability
17
CLIP WPL 199140 Contact Us For Availability
17
CUP, SHELF WPL 603131 Contact Us For Availability
17
PLUG WPL 603211 Contact Us For Availability
18
TRIM, DOOR SHELF WPL 65151258 Contact Us For Availability
18
SOCKET, LIGHT WPL 605771 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
DIVIDER WPL 601166 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
SHELF WPL 606551 Contact Us For Availability
20
TRIM, DOOR SHELF WPL 65151256 Contact Us For Availability
20
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
20
CAPACITOR, RUN WPL 658892 Contact Us For Availability
20
COVER, PLENUM WPL 664802 Contact Us For Availability
21
TRIM, DOOR SHELF WPL 65151257 Contact Us For Availability
21
RIVET WPL 263972 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
TRIM WPL 6041410 Contact Us For Availability
22
SHELF TRIM WPL 6663623 Contact Us For Availability
22
GROUND WIRE WPL 2967528 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
23
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
23
GROUND WIRE WPL 2967522 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 665562 Contact Us For Availability
24
RETAINER WPL 652461 Contact Us For Availability
24
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
24
SWITCH, LIGHT WPL 557321 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
25
ORGANIZER, SHELF WPL 665223 Contact Us For Availability
25
GROMMET WPL 545318 Contact Us For Availability
25
MOISTROL PAN WPL 298395 Contact Us For Availability
26
DOOR, DAIRY WPL 66184428 Contact Us For Availability
26
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
27
DOOR, DAIRY WPL 66184429 Contact Us For Availability
27
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
TRIM, DOOR WPL 666512 Contact Us For Availability
28
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
28
EVAPORATOR WPL RA4362011 Contact Us For Availability
29
TRAY, BUTTER WPL 299362 Contact Us For Availability
29
SCREW WPL 40003728 Contact Us For Availability
29
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
29
TRAY, DRIP WPL 601018 Contact Us For Availability
30
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
30
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
31
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
31
FRAME, SHELF WPL 6057027 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
32
SHELF, GLASS WPL 666041 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
33
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
33
TRIM WPL 605242 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
34
WASHER WPL 521851 Contact Us For Availability
34
SCREW WPL 998687 Contact Us For Availability
34
TRIM WPL 6527633 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
35
DOOR HINGE, CENTER WPL 600312 Contact Us For Availability
35
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
36
SPACER, CENTER HINGE WPL 600341 Contact Us For Availability
36
PAN, MEAT WPL 6663624 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
37
TAPPING PLATE WPL 606221 Contact Us For Availability
37
SCREW WPL 9986107 Contact Us For Availability
37
HANDLE WPL 6013283 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
38
PIN, CENTER HINGE WPL 600354 Contact Us For Availability
38
WIRE TIE WPL 662231 Contact Us For Availability
39
RAIL, MEAT PAN (LT) WPL 668131 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
40
SCREW WPL 4030625 Contact Us For Availability
40
DOOR HINGE, LOWER WPL 606308 Contact Us For Availability
40
RAIL, MEAT PAN (RT) WPL 668141 Contact Us For Availability
40
SCREW WPL 4000171 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
40
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
40
WIRE HARNESS WPL 663312 Contact Us For Availability
41
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
42
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
43
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
44
WASHER WPL 542332 Contact Us For Availability
44
FRAME, SHELF WPL 6057010 Contact Us For Availability
45
DOOR STOP WPL 600301 Contact Us For Availability
45
SHELF, GLASS WPL 666042 Contact Us For Availability
46
DOOR STOP WPL 604191 Contact Us For Availability
46
SCREW WPL 9986108 Contact Us For Availability
46
TRIM WPL 605243 Contact Us For Availability
47
TRIM WPL 667023 Contact Us For Availability
47
TRIM WPL 652763 Contact Us For Availability
48
PLUG WPL 495039900 Contact Us For Availability
48
TRIM WPL 667024 Contact Us For Availability
48
TUNNEL WPL 6009419 Contact Us For Availability
49
DAMPER, AIR TUNNEL WPL 600932 Contact Us For Availability
50
FOAM INSULATOR, AIR TUNNEL WPL 600921 Contact Us For Availability
52
SHELF, CRISPER WPL 666431 Contact Us For Availability
53
TRIM WPL 604542 Contact Us For Availability
54
SEAL, CRISPER SHELF WPL 601485 Contact Us For Availability
55
SUPPORT, CRISPER SHELF WPL 661054 Contact Us For Availability
56
PAN, CRISPER WPL 60457484 Contact Us For Availability
58
HANDLE WPL 6013285 Contact Us For Availability
59
KICKPLATE WPL 601387 Contact Us For Availability
60
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
61
LEG, LEVELING WPL 60128 Contact Us For Availability
62
WHEEL WPL 298342 Contact Us For Availability
63
PIN, WHEEL WPL 298352 Contact Us For Availability
64
GROUND WIRE WPL 2967532 Contact Us For Availability
64
CLIP WPL 602161 Contact Us For Availability
65
BRACKET, SWITCH WPL 605831 Contact Us For Availability
66
SCREW WPL 4020131 Contact Us For Availability
66
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
× ![]()
Login and Registration Form
