Model Whirlpool NT19L8A REFRIGERATOR – Common Parts & Diagrams

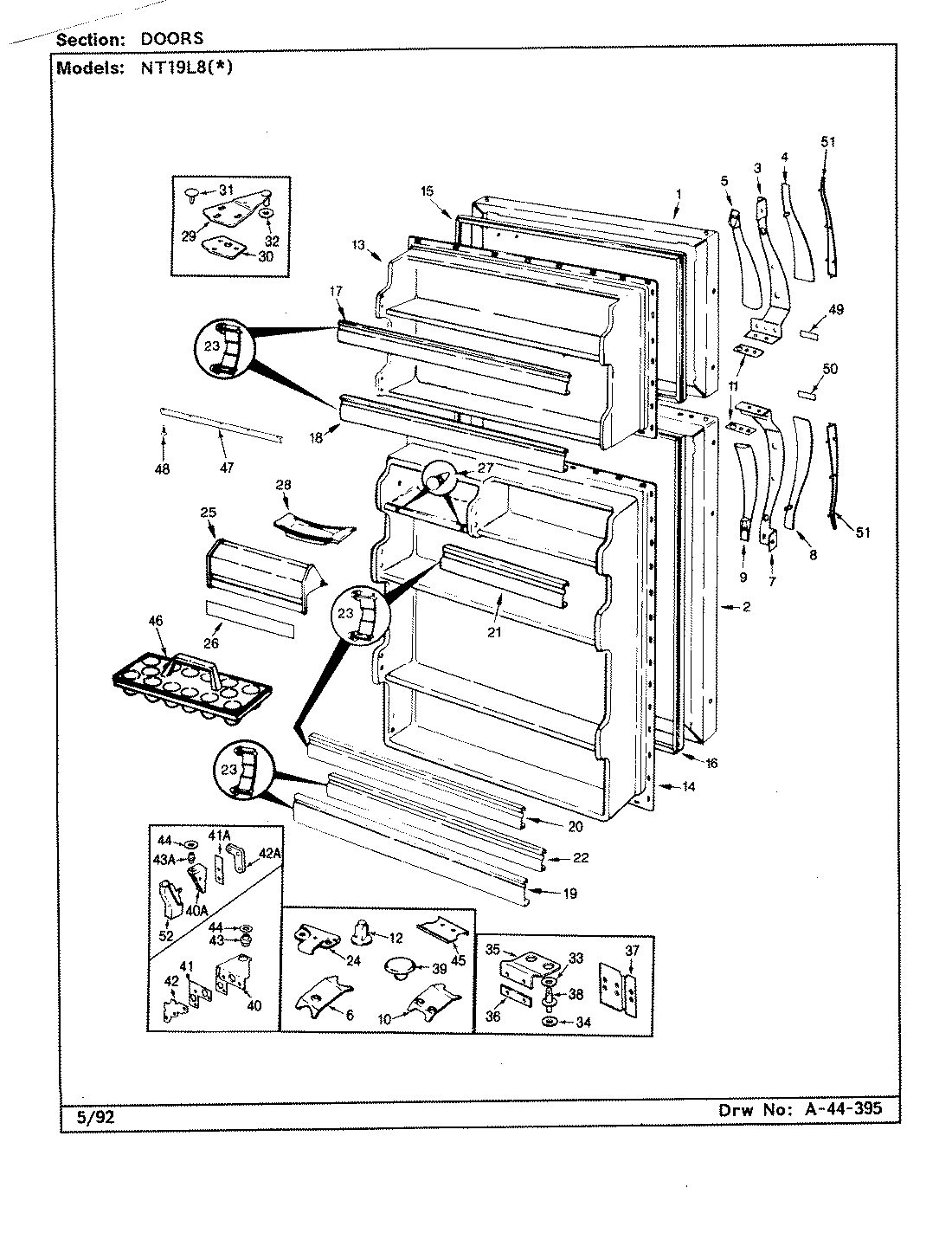

01 - DOORS
03 - FRESH FOOD COMPARTMENT

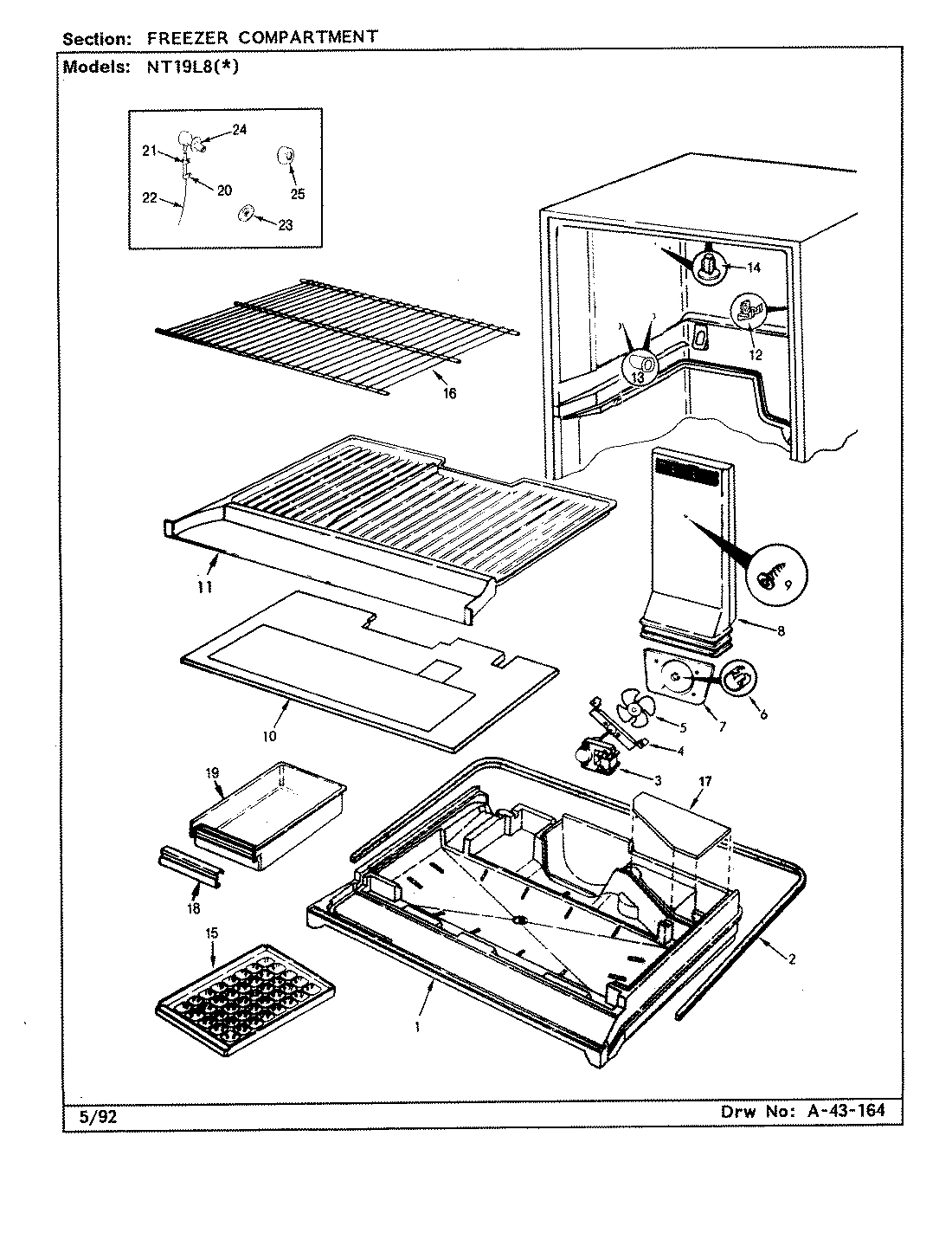

02 - FREEZER COMPARTMENT

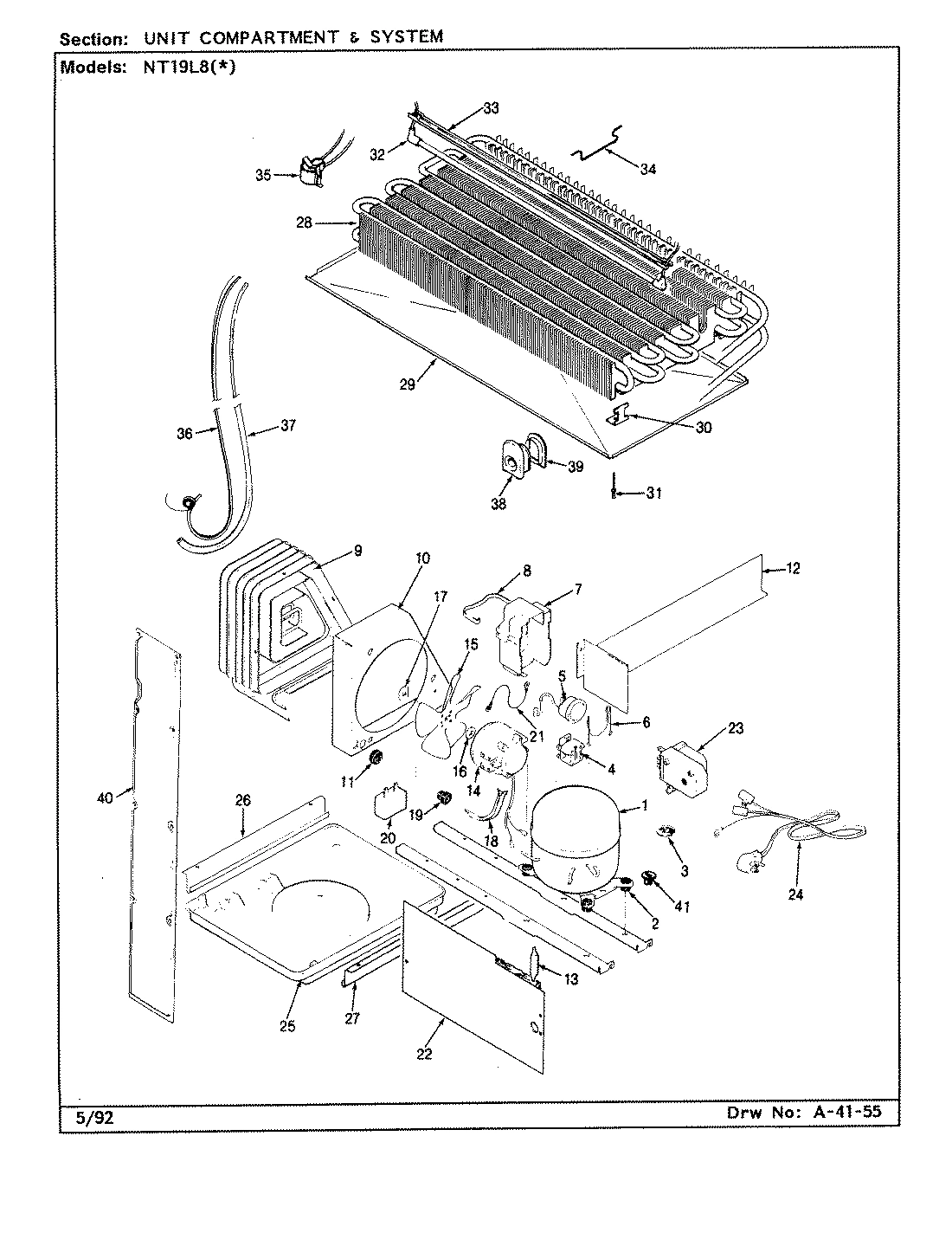

04 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool NT19L8A REFRIGERATOR
1
SCREW WPL 6527554 Contact Us For Availability
1
DIVIDER, MULLION (ALM) WPL 684342AM Contact Us For Availability
1
FOAM TRAY WPL 675193 Contact Us For Availability
2
PANEL, F.F. DOOR (ALM) WPL 684731AM Contact Us For Availability
2
PANEL, F.F. DOOR (WHT) WPL 684731WW Contact Us For Availability
2
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
2
HEATER WIRE WPL 688311 Contact Us For Availability
2
SEAL, FRONT CORNER WPL 677301 Contact Us For Availability
2
SEAL WPL 688666 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
DOOR HANDLE WPL 662553 Contact Us For Availability
3
INSULATION WPL 601402 Contact Us For Availability
3
INSULATION WPL 685772 Contact Us For Availability
3
WIRE HARNESS WPL 689031 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
4
INSERT, HANDLE WPL 680161 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 685312 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
5
DEFLECTOR WPL 601202 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
OVERLOAD WPL 6329417 Contact Us For Availability
6
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
6
SCREW WPL 4060131 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 681192 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
7
SCREW WPL 6527557 Contact Us For Availability
7
DOOR HANDLE WPL 662554 Contact Us For Availability
7
LEG, LEVELING WPL 686641 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
8
INSERT, HANDLE----NA WPL 680162 Contact Us For Availability
8
SCREW WPL 4050121 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
8
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
8
TUNNEL, AIR WPL 685923 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
9
INSERT WPL 604451 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
10
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
10
SCREW WPL 6527553 Contact Us For Availability
10
KNOB, TEMP. CONTROL WPL 686003 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
11
SHIM HANDLE----NA WPL 687761 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664791 Contact Us For Availability
11
SEAL WPL 689462 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
PLUG BUTTON (ALMOND) WPL 557826 Contact Us For Availability
12
SCREW WPL 4000191 Contact Us For Availability
12
BAFFLE WPL 664932 Contact Us For Availability
13
LINER, DOOR WPL 6592818 Contact Us For Availability
13
SCREW WPL 405016103 Contact Us For Availability
13
KNOB WPL 686004 Contact Us For Availability
13
CUP, SHELF WPL 603131 Contact Us For Availability
14
SCREW WPL 652755 Contact Us For Availability
14
INNER PANEL WPL 688871 Contact Us For Availability
14
PLUG BUTTON WPL 669202 Contact Us For Availability
14
PLUG BUTTON WPL 675571 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 675607 Contact Us For Availability
15
GASKET WPL 675582 Contact Us For Availability
15
GASKET, FRZ. DOOR WPL 661995 Contact Us For Availability
15
ICE CUBE TRAY WPL 601121 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
16
GASKET, F.F. DOOR WPL 661996 Contact Us For Availability
16
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
16
SHELF WPL 6043825 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
17
TRIM, SHELF WPL 688327 Contact Us For Availability
17
COVER, CRANK WPL 674931 Contact Us For Availability
17
COVER, PLENUM WPL 664805 Contact Us For Availability
18
ROD, FREEZER CONTROL WPL 674993 Contact Us For Availability
18
HANDLE, ICE CUBE PAN WPL 60132101 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
19
SHELF TRIM WPL 6883221 Contact Us For Availability
19
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
19
SCREW WPL 6527513 Contact Us For Availability
19
PAN, ICE WPL 606531 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
20
SHELF TRIM WPL 688324 Contact Us For Availability
20
SOCKET, LIGHT WPL 605771 Contact Us For Availability
20
CLAMP, TUBING WPL 535168 Contact Us For Availability
20
SCREW WPL 652751 Contact Us For Availability
20
CAPACITOR, RUN WPL 658892 Contact Us For Availability
21
TRIM, SHELF WPL 688328 Contact Us For Availability
21
CLAMP, SPRING WPL 603334 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
22
SHELF TRIM WPL 6663639 Contact Us For Availability
22
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
22
TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
23
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
23
RIVET WPL 263972 Contact Us For Availability
23
CAP, CONNECTOR WPL 681871 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 665562 Contact Us For Availability
24
DOOR STOP WPL 6041910 Contact Us For Availability
24
GROUND WIRE WPL 2967528 Contact Us For Availability
24
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
25
DOOR, DAIRY WPL 604065 Contact Us For Availability
25
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
25
SWITCH, LIGHT WPL 557321 Contact Us For Availability
25
CAP, GROMMET WPL 683871 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
26
TRIM WPL 6812825 Contact Us For Availability
26
GROMMET WPL 545318 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
27
BUMPER, DOOR WPL 282726 Contact Us For Availability
27
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
TRAY, BUTTER WPL 299362 Contact Us For Availability
28
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
28
EVAPORATOR WPL RA4362011 Contact Us For Availability
29
HINGE, UPPER WPL 5370920 Contact Us For Availability
29
SCREW WPL 6527552 Contact Us For Availability
29
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
29
TRAY, DRIP WPL 601018 Contact Us For Availability
30
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
30
SCREW WPL 40003728 Contact Us For Availability
30
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
30
BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability
31
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
31
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
32
WASHER WPL 542331 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
33
WASHER, CENTER HINGE (UPPER) WPL 674831 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
34
WASHER WPL 542332 Contact Us For Availability
34
CLIP WPL 688251 Contact Us For Availability
35
SCREW WPL 6527555 Contact Us For Availability
35
HINGE, CENTER WPL 688112 Contact Us For Availability
35
SHELF WPL 6660430 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability
36
SHIM, CENTER HINGE WPL 688121 Contact Us For Availability
36
PAN, MEAT WPL 6663637 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
37
TAPPING PLATE, CENTER HINGE WPL 683771 Contact Us For Availability
37
HANDLE, MEAT KEEPER WPL 60132102 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
WIRE TIE WPL 662231 Contact Us For Availability
38
PIN, CENTER HINGE WPL 673221 Contact Us For Availability
38
RAIL, MEAT PAN (RT) WPL 668141 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
39
PLUG BUTTON, HINGE CUP (ALM) WPL 676343 Contact Us For Availability
39
RAIL, MEAT PAN (LT) WPL 668131 Contact Us For Availability
39
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
39
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
39
WIRE HARNESS WPL 688391 Contact Us For Availability
40
HINGE, LOWER WPL 677146 Contact Us For Availability
40
GLASS, CANTILEVER SHELF WPL 6660422 Contact Us For Availability
40
SCREW WPL 4000171 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
41
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
41
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
41
TRIM,SHELF (FULL FRONT) WPL 6052428 Contact Us For Availability
42
SCREW WPL 4031001 Contact Us For Availability
42
TAPPING PLATE WPL 657903 Contact Us For Availability
42
TRIM, SHELF (FULL REAR) WPL 6527621 Contact Us For Availability
42
MANUAL, USE & CARE WPL 1070993 Contact Us For Availability
43
HINGE PIN WPL 687881 Contact Us For Availability
43
FRAME, SHELF WPL 6057029 Contact Us For Availability
44
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
44
GLASS, CANTILEVER SPLIT SHELF WPL 6660423 Contact Us For Availability
45
DOOR STOP WPL 600301 Contact Us For Availability
45
SCREW WPL 9986108 Contact Us For Availability
45
FRAME, SHELF WPL 6057015 Contact Us For Availability
46
TRAY, EGG WPL 600661 Contact Us For Availability
46
TRIM, MEAT SHELF (FRONT) WPL 605246 Contact Us For Availability
47
GASKET, SECONDARY WPL 685442 Contact Us For Availability
47
TRIM, MEAT SHELF (REAR) WPL 652764 Contact Us For Availability
48
CLIP WPL 524474 Contact Us For Availability
48
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
49
INSERT WPL 6060323 Contact Us For Availability
49
SHELF, CRISPER WPL 6874313 Contact Us For Availability
50
INSERT WPL 6060324 Contact Us For Availability
50
SHELF, CRISPER WPL 687351 Contact Us For Availability
51
INSERT, VINYL CLAD WPL 680173 Contact Us For Availability
51
TRIM WPL 687442 Contact Us For Availability
52
TRIM, CRISPER SHELF (REAR) WPL 687981 Contact Us For Availability
53
SEAL WPL 687971 Contact Us For Availability
54
SLIDE, CONTROL WPL 687421 Contact Us For Availability
55
PAN, CRISPER WPL 68222136 Contact Us For Availability
56
HANDLE WPL 60132106 Contact Us For Availability
57
INS WPL 6057178 Contact Us For Availability
58
WPL 601387 WPL 601387 Contact Us For Availability
59
WPL 601001 WPL 601001 Contact Us For Availability
60
WPL 605831 WPL 605831 Contact Us For Availability
61
WPL 4020131 WPL 4020131 Contact Us For Availability
61
WPL 605851 WPL 605851 Contact Us For Availability
62
WPL 298342 WPL 298342 Contact Us For Availability
63
WPL 298352 WPL 298352 Contact Us For Availability
64
WPL 602161 WPL 602161 Contact Us For Availability
65
WPL 688361 WPL 688361 Contact Us For Availability
× ![]()
Login and Registration Form
