Model Whirlpool NT19G7 REFRIGERATOR – Common Parts & Diagrams

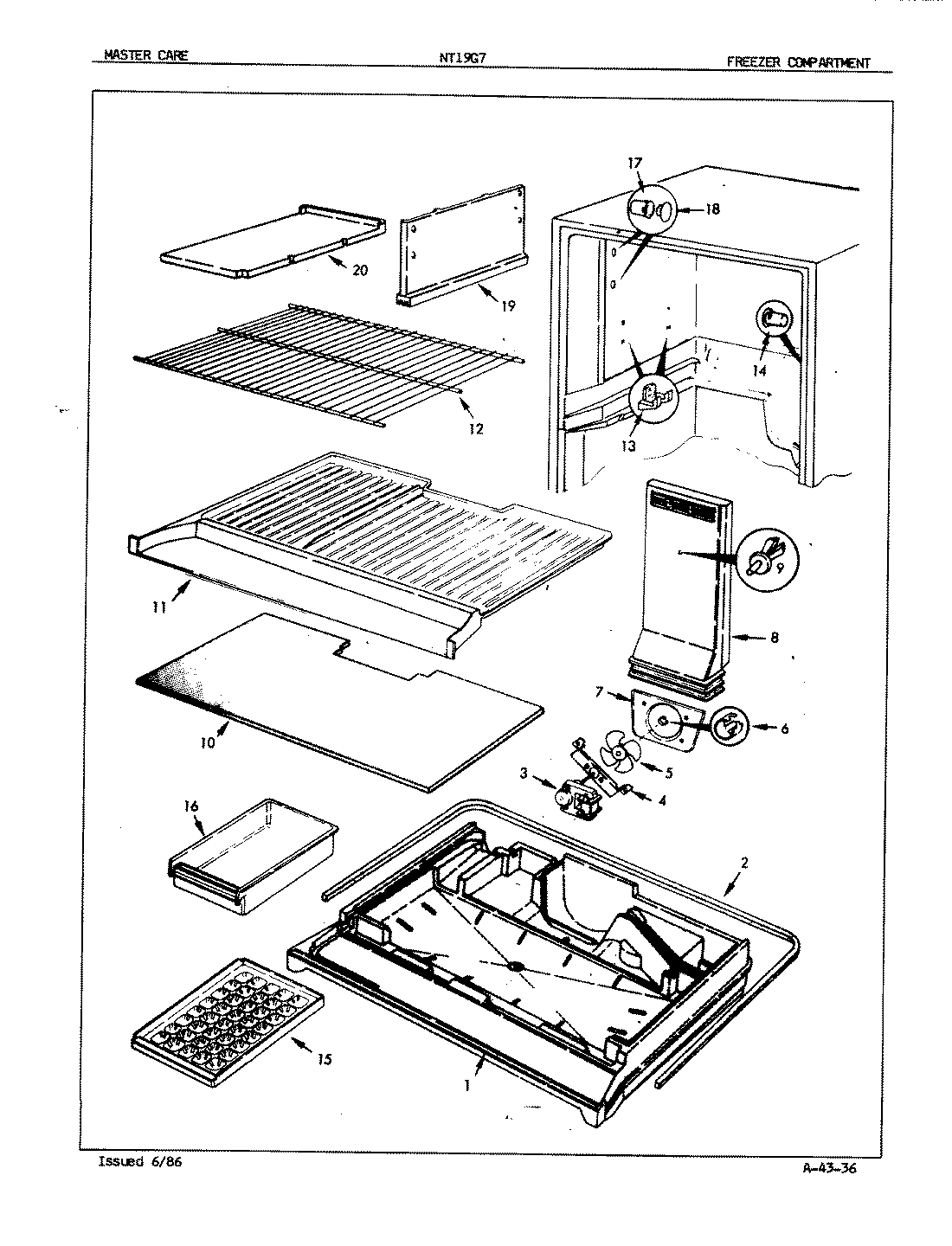

01 - FREEZER COMPARTMENT

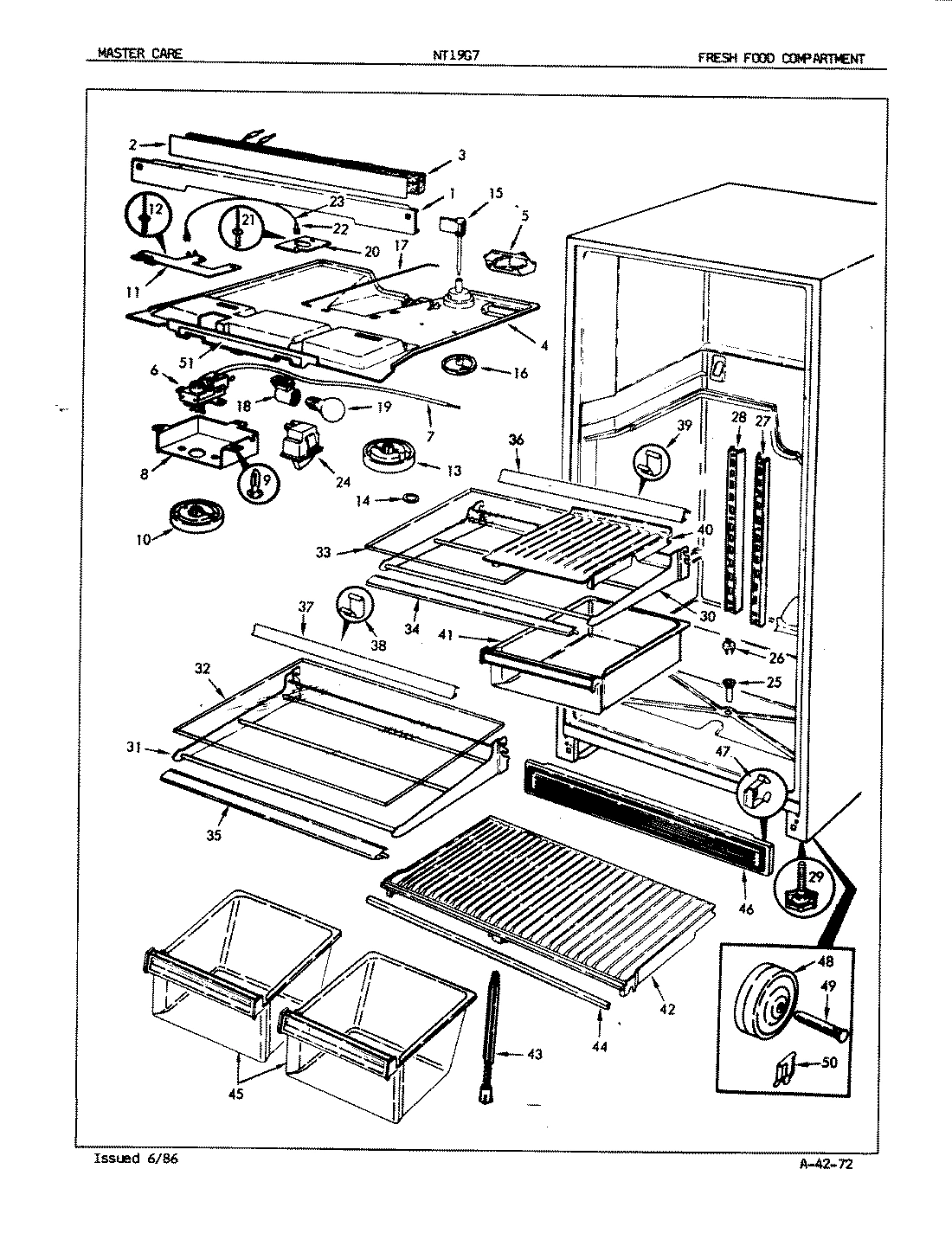

02 - FRESH FOOD COMPARTMENT

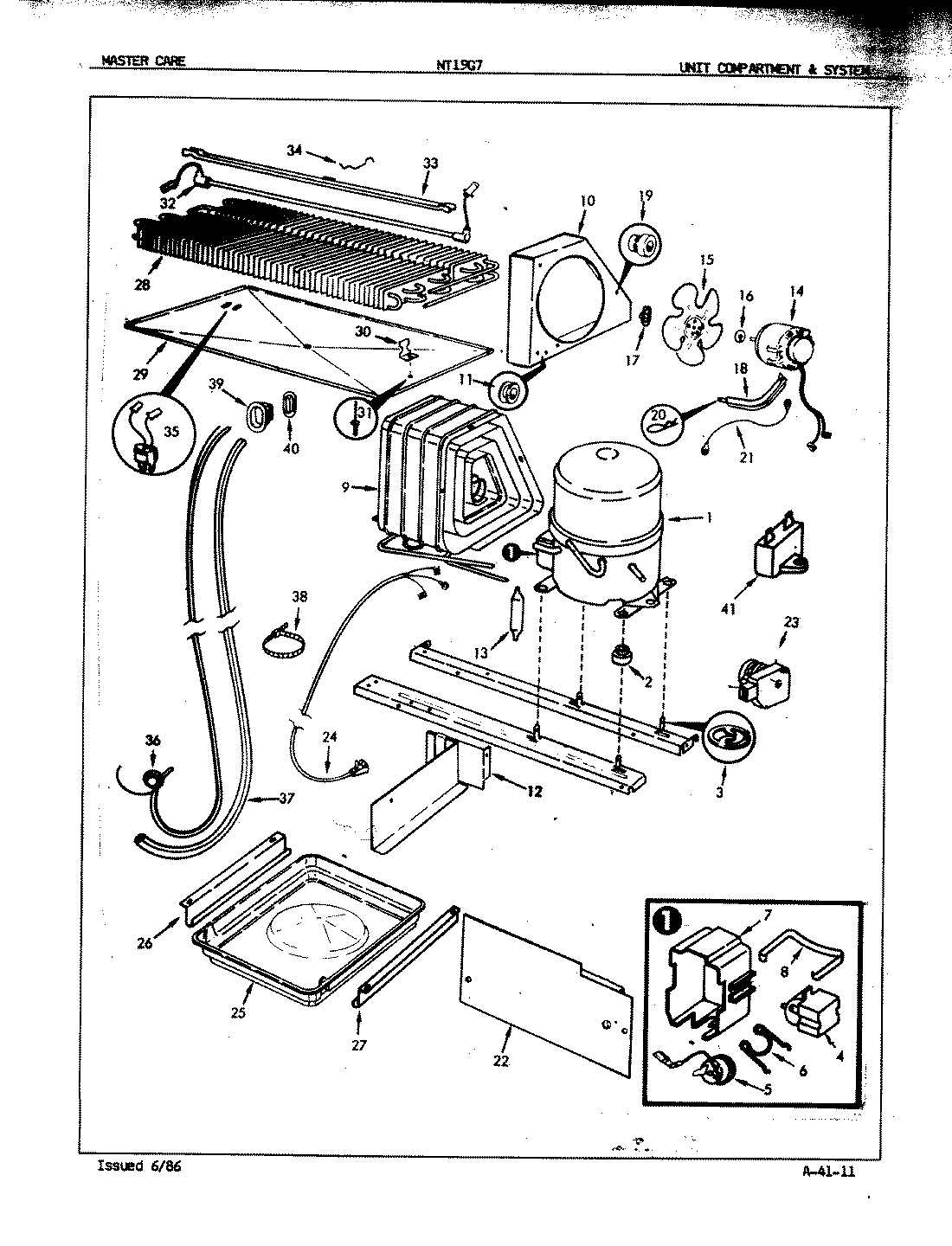

03 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool NT19G7 REFRIGERATOR
1
TRAY, DIVIDER WPL 605762 Contact Us For Availability
1
DIVIDER, MULLION (ALM) WPL 657972AM Contact Us For Availability
1
DIVIDER, MULLION (HW) WPL 657972HW Contact Us For Availability
1
SCREW WPL 9986117 Contact Us For Availability
1
COMPRESSOR WPL RA997 Contact Us For Availability
2
SEAL WPL 663252 Contact Us For Availability
2
HEATER WIRE WPL 601058 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
INSULATION WPL 601402 Contact Us For Availability
3
WIRE HARNESS WPL 605601 Contact Us For Availability
3
SCREW WPL 4140011 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
4
GROUND WIRE WPL 2967530 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
WIRE HARNESS WPL 605651 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 6008536 Contact Us For Availability
4
RELAY, START WPL 658881 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
DEFLECTOR WPL 601202 Contact Us For Availability
5
OVERLOAD WPL 632945 Contact Us For Availability
6
SCREW WPL 4060131 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 5288145 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
PLASTIC TUBE WPL 400812 Contact Us For Availability
7
COVER, TERMINAL WPL 658851 Contact Us For Availability
8
TUNNEL, AIR WPL 660443 Contact Us For Availability
8
SCREW WPL 4050121 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
9
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
10
COVER, EVAPORATOR----NA WPL 605572 Contact Us For Availability
10
KNOB WPL 600611 Contact Us For Availability
10
CONDENSER SHROUD WPL 600212 Contact Us For Availability
11
BOTTOM, FRZ. WPL 604742 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
SHELF WPL 6032322 Contact Us For Availability
12
AIR DIVIDER WPL 606392 Contact Us For Availability
13
SCREW WPL 402017103 Contact Us For Availability
13
FREEZER SHELF CUP WPL 655701 Contact Us For Availability
13
KNOB WPL 600613 Contact Us For Availability
14
WASHER, SPRING WPL 420092900 Contact Us For Availability
14
FAN MOTOR WPL 2805615 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
15
ICE CUBE TRAY WPL 601121 Contact Us For Availability
15
DAMPER WPL 600711 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
16
PAN, ICE WPL 606531 Contact Us For Availability
16
CRANK, FRZR CONTROL WPL 600823 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
17
CUP, SHELF WPL 603131 Contact Us For Availability
17
ROD WPL 600783 Contact Us For Availability
17
CLIP WPL 199140 Contact Us For Availability
18
PLUG WPL 603211 Contact Us For Availability
18
SOCKET, LIGHT WPL 605771 Contact Us For Availability
18
BRACKET WPL 600361 Contact Us For Availability
19
DIVIDER WPL 601165 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
20
SHELF WPL 606551 Contact Us For Availability
20
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
20
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
21
RIVET WPL 263972 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
22
GROUND WIRE WPL 2967522 Contact Us For Availability
22
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
23
GROUND WIRE WPL 2967528 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 653221 Contact Us For Availability
24
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
24
SWITCH, LIGHT WPL 557321 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
25
GROMMET WPL 545318 Contact Us For Availability
25
PAN, DRAIN WPL 298394 Contact Us For Availability
26
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
27
SUPPORT WPL 600965 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
SCREW WPL 4000371 Contact Us For Availability
28
SUPPORT WPL 600964 Contact Us For Availability
28
EVAPORATOR WPL RA4362011 Contact Us For Availability
29
LEG, LEVELING WPL 60128 Contact Us For Availability
29
TRAY, DRIP WPL 601018 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
31
FRAME, SHELF WPL 605707 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
32
GLASS SHELF WPL 655986 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
33
GLASS SHELF WPL 655987 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
34
TRIM WPL 604143 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
35
TRIM WPL 605242 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
37
TRIM WPL 6527633 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
38
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
38
WIRE TIE WPL 662231 Contact Us For Availability
39
CLIP WPL 663332 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
40
COVER WPL 6007510 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
41
PAN, MEAT WPL 60466130 Contact Us For Availability
41
SCREW WPL 4000171 Contact Us For Availability
41
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
41
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
41
CAPACITOR, RUN WPL 658892 Contact Us For Availability
41
WIRE HARNESS WPL 660221 Contact Us For Availability
42
SHELF, CRISPER WPL 600196 Contact Us For Availability
43
SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability
44
TRIM WPL 604542 Contact Us For Availability
45
PAN, CRISPER WPL 60457119 Contact Us For Availability
46
KICKPLATE WPL 6013810 Contact Us For Availability
47
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
48
WHEEL WPL 298342 Contact Us For Availability
49
PIN, WHEEL WPL 298352 Contact Us For Availability
50
CLIP WPL 602161 Contact Us For Availability
51
INSERT WPL 605711 Contact Us For Availability
× ![]()
