Model Whirlpool NT19E53VGA REFRIGERATOR – Common Parts & Diagrams
02 - FREEZER COMPARTMENT
01 - DOORS

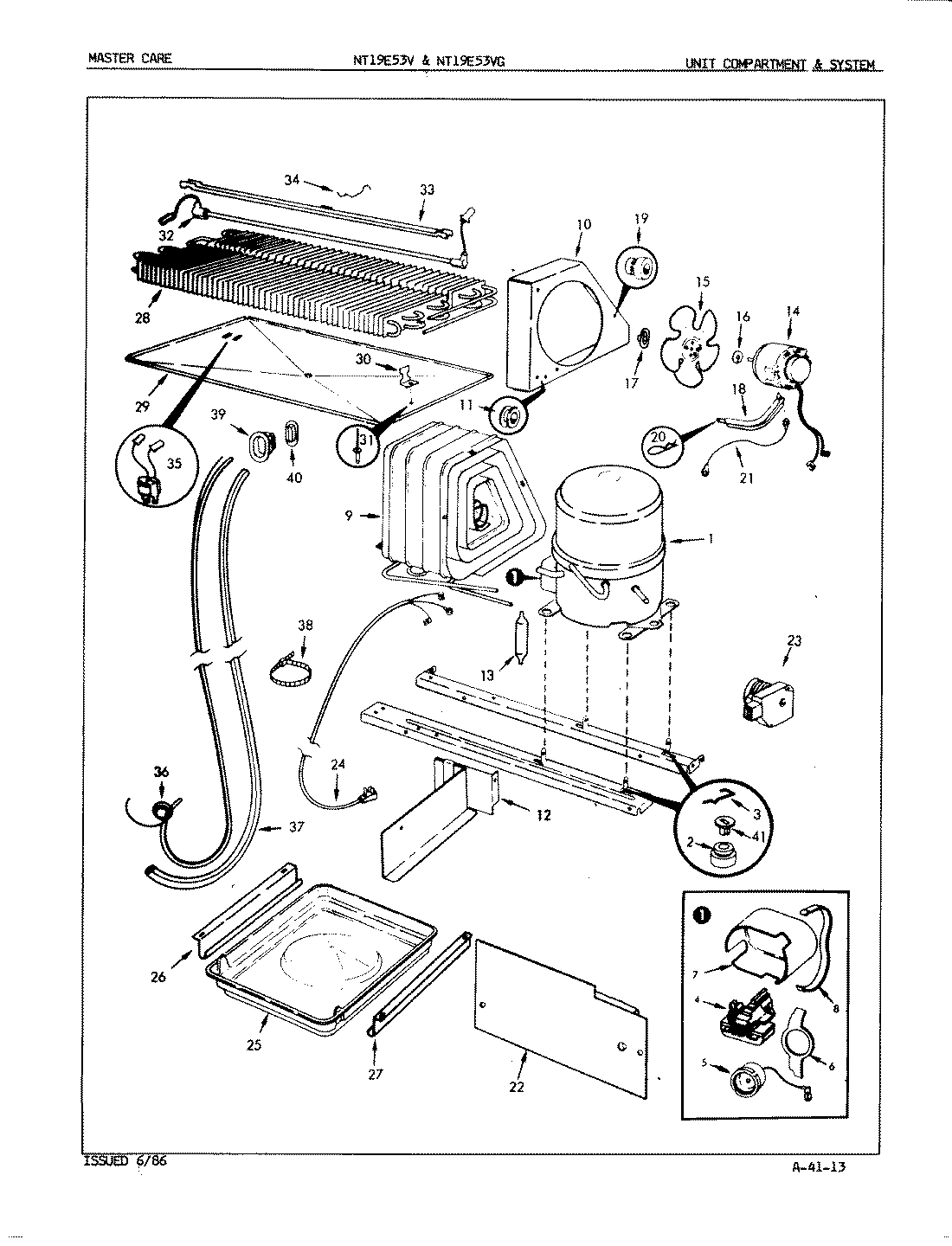

04 - UNIT COMPARTMENT & SYSTEM

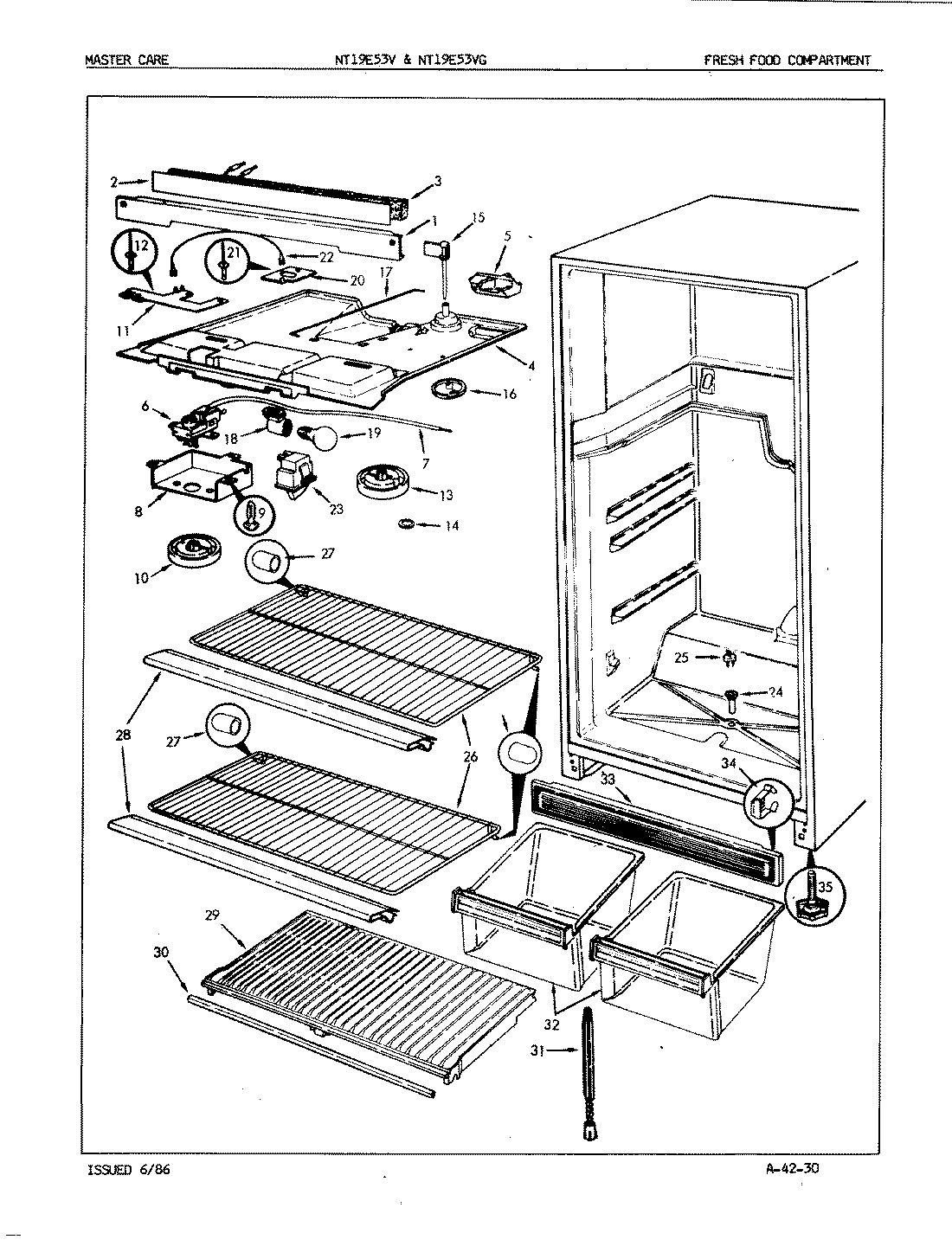

03 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool NT19E53VGA REFRIGERATOR
1
TRAY, DIVIDER WPL 605762 Contact Us For Availability
1
OUTER PANEL WPL 600336AM Contact Us For Availability
1
COMPRESSOR WPL RA993 Contact Us For Availability
1
DIVIDER, MULLION (ALM) WPL 657972AM Contact Us For Availability
1
SCREW WPL 9986117 Contact Us For Availability
2
SEAL WPL 655182 Contact Us For Availability
2
OUTER PANEL WPL 6003253AM Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
HEATER WIRE WPL 6010511 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR WPL 5448211 Contact Us For Availability
3
HANDLE WPL 604435 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
INSULATION WPL 601402 Contact Us For Availability
3
WIRE HARNESS WPL 605601 Contact Us For Availability
4
GROUND WIRE WPL 2967530 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
WIRE HARNESS WPL 605651 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
INSERT, HANDLE WPL 606021 Contact Us For Availability
4
RELAY WPL 9286107 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 6008547 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 537071 Contact Us For Availability
5
OVERLOAD WPL 5306783 Contact Us For Availability
5
DEFLECTOR WPL 601202 Contact Us For Availability
6
INSERT WPL 606037 Contact Us For Availability
6
CLIP WPL 595971 Contact Us For Availability
6
GROUND WIRE WPL 2967522 Contact Us For Availability
6
SCREW WPL 4060131 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 5288145 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
TRAY, EGG WPL 600663 Contact Us For Availability
7
COVER WPL 594961 Contact Us For Availability
7
PLASTIC TUBE WPL 400812 Contact Us For Availability
8
TUNNEL, AIR WPL 660443 Contact Us For Availability
8
HANDLE WPL 604436 Contact Us For Availability
8
SCREW WPL 9986122 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 595961 Contact Us For Availability
8
SCREW WPL 4050121 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
9
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
9
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
9
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
9
INSERT, HANDLE WPL 606022 Contact Us For Availability
9
SCREW WPL 9986112 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
10
COVER, EVAPORATOR----NA WPL 605572 Contact Us For Availability
10
INSERT WPL 604451 Contact Us For Availability
10
CONDENSER SHROUD WPL 600212 Contact Us For Availability
10
KNOB WPL 600611 Contact Us For Availability
11
BOTTOM, FRZ. WPL 604742 Contact Us For Availability
11
INSERT WPL 606036 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
12
SHELF WPL 6043814 Contact Us For Availability
12
SHIM WPL 604561 Contact Us For Availability
12
AIR DIVIDER WPL 606392 Contact Us For Availability
13
SCREW WPL 402017103 Contact Us For Availability
13
STUD WPL 545701 Contact Us For Availability
13
PLUG BUTTON (ALMOND) WPL 557826 Contact Us For Availability
13
KNOB WPL 600613 Contact Us For Availability
14
WASHER, SPRING WPL 420092900 Contact Us For Availability
14
LINER, DOOR WPL 660692 Contact Us For Availability
14
FAN MOTOR WPL 2805610 Contact Us For Availability
14
SCREW WPL 4030141 Contact Us For Availability
15
ICE CUBE TRAY WPL 601121 Contact Us For Availability
15
LINER, DOOR WPL 660725 Contact Us For Availability
15
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
DAMPER WPL 600711 Contact Us For Availability
16
PLUG WPL 603211 Contact Us For Availability
16
GASKET, DOOR WPL 604625 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
CRANK, FRZR CONTROL WPL 600823 Contact Us For Availability
17
CUP, SHELF WPL 603131 Contact Us For Availability
17
GASKET, DOOR WPL 604626 Contact Us For Availability
17
CLIP WPL 199140 Contact Us For Availability
17
ROD WPL 600783 Contact Us For Availability
18
BRACKET WPL 600361 Contact Us For Availability
18
SOCKET, LIGHT WPL 605771 Contact Us For Availability
19
TRIM, DOOR SHELF WPL 65151121 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
BULB, LIGHT (40W-230V) WPL 240821 Contact Us For Availability
20
TRIM, DOOR SHELF WPL 65151132 Contact Us For Availability
20
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
20
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
21
TRIM, DOOR SHELF WPL 65151144 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
RIVET WPL 263972 Contact Us For Availability
22
TRIM, DOOR SHELF WPL 6515156 Contact Us For Availability
22
COVER WPL 660322 Contact Us For Availability
22
GROUND WIRE WPL 2967528 Contact Us For Availability
23
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER WPL 541135 Contact Us For Availability
23
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
23
SWITCH, LIGHT WPL 557321 Contact Us For Availability
24
DOOR, DAIRY WPL 6040616 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
GROMMET WPL 545318 Contact Us For Availability
25
BUMPER, DOOR WPL 282726 Contact Us For Availability
25
PAN, DRAIN WPL 298394 Contact Us For Availability
25
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
26
TRAY, BUTTER WPL 299362 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
SHELF WPL 602234 Contact Us For Availability
27
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
TIP WPL 245803 Contact Us For Availability
28
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
28
EVAPORATOR WPL RA4362011 Contact Us For Availability
28
TRIM WPL 6041417 Contact Us For Availability
29
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
29
TRAY, DRIP WPL 601018 Contact Us For Availability
29
SHELF, CRISPER WPL 600196 Contact Us For Availability
30
BUSHING WPL 557811 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
30
TRIM WPL 604542 Contact Us For Availability
31
WASHER WPL 521851 Contact Us For Availability
31
SCREW WPL 998687 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability
32
DOOR HINGE, CENTER WPL 600312 Contact Us For Availability
32
HEATER, DEFROST WPL 6010638 Contact Us For Availability
32
PAN, CRISPER WPL 60457119 Contact Us For Availability
33
SPACER, CENTER HINGE WPL 600341 Contact Us For Availability
33
SCREW WPL 4000171 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
33
KICKPLATE WPL 601387 Contact Us For Availability
34
TAPPING PLATE WPL 606221 Contact Us For Availability
34
SCREW WPL 9986107 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
34
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
35
PIN, CENTER HINGE WPL 600354 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208525 Contact Us For Availability
35
LEG, LEVELING WPL 60128 Contact Us For Availability
36
PLUG BUTTON, (ALMOND) WPL 561866 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
37
SCREW WPL 4030625 Contact Us For Availability
37
DOOR HINGE, LOWER WPL 606308 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
38
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
38
WIRE TIE WPL 575763 Contact Us For Availability
39
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
40
CUP WPL 554241 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
40
WIRE COVER WPL 601101 Contact Us For Availability
40
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
40
WIRE HARNESS WPL 658951 Contact Us For Availability
41
WASHER WPL 542332 Contact Us For Availability
41
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
42
DOOR STOP WPL 600301 Contact Us For Availability
43
PLUG BUTTON WPL 495042900 Contact Us For Availability
43
DOOR STOP WPL 604191 Contact Us For Availability
43
SCREW WPL 9986108 Contact Us For Availability
× ![]()
