Model Whirlpool NS24F8A REFRIGERATOR – Common Parts & Diagrams

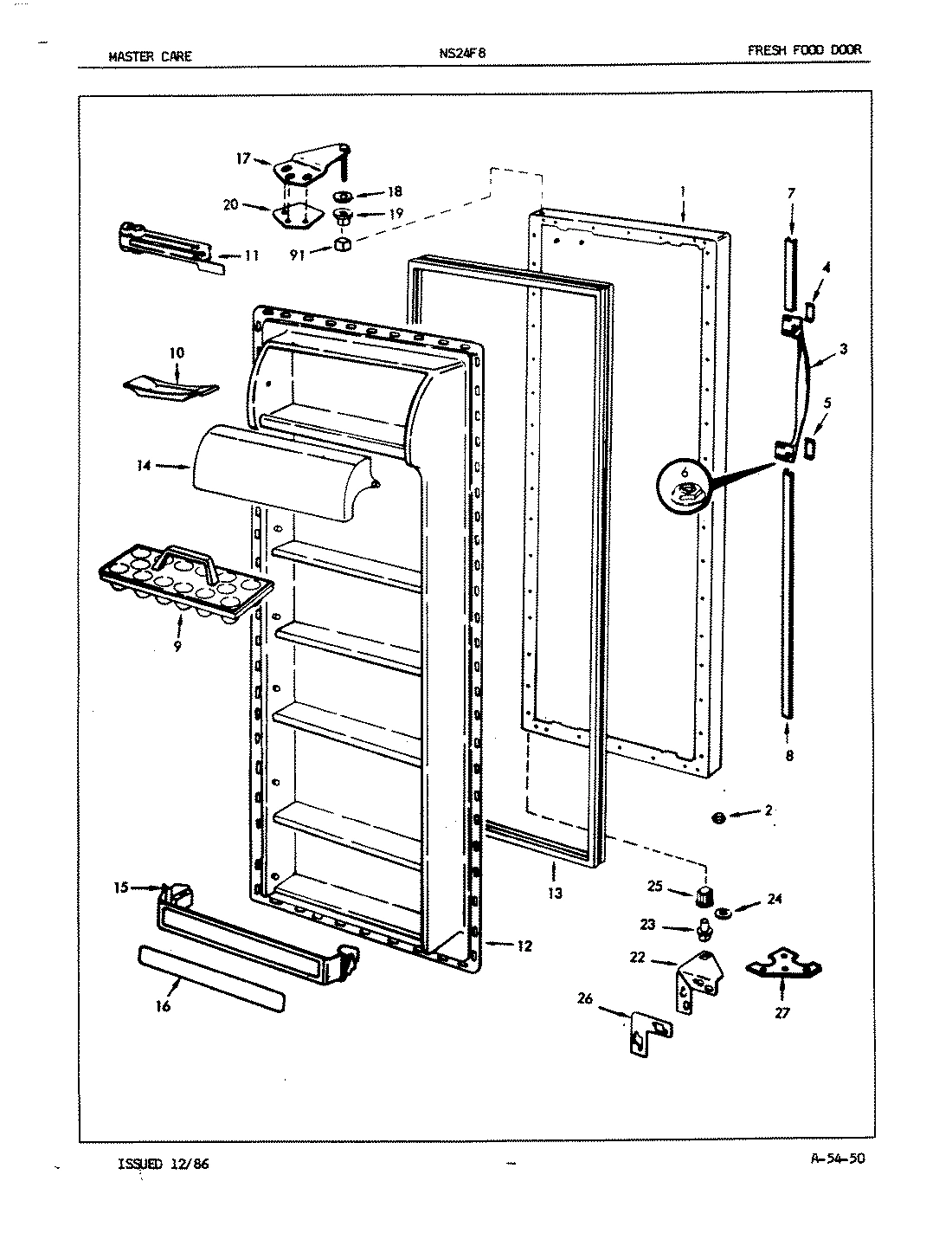

04 - FRESH FOOD DOOR

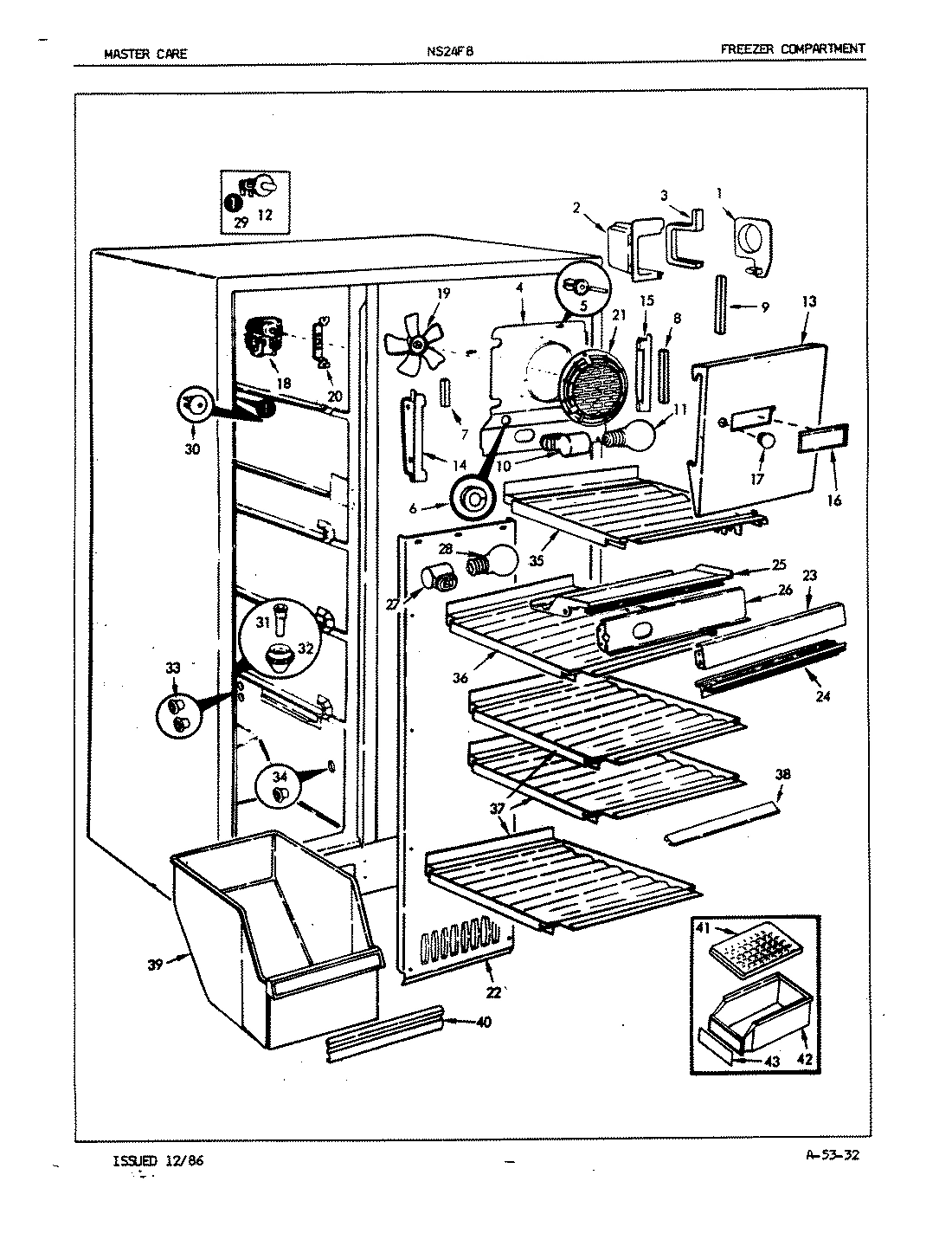

01 - FREEZER COMPARTMENT

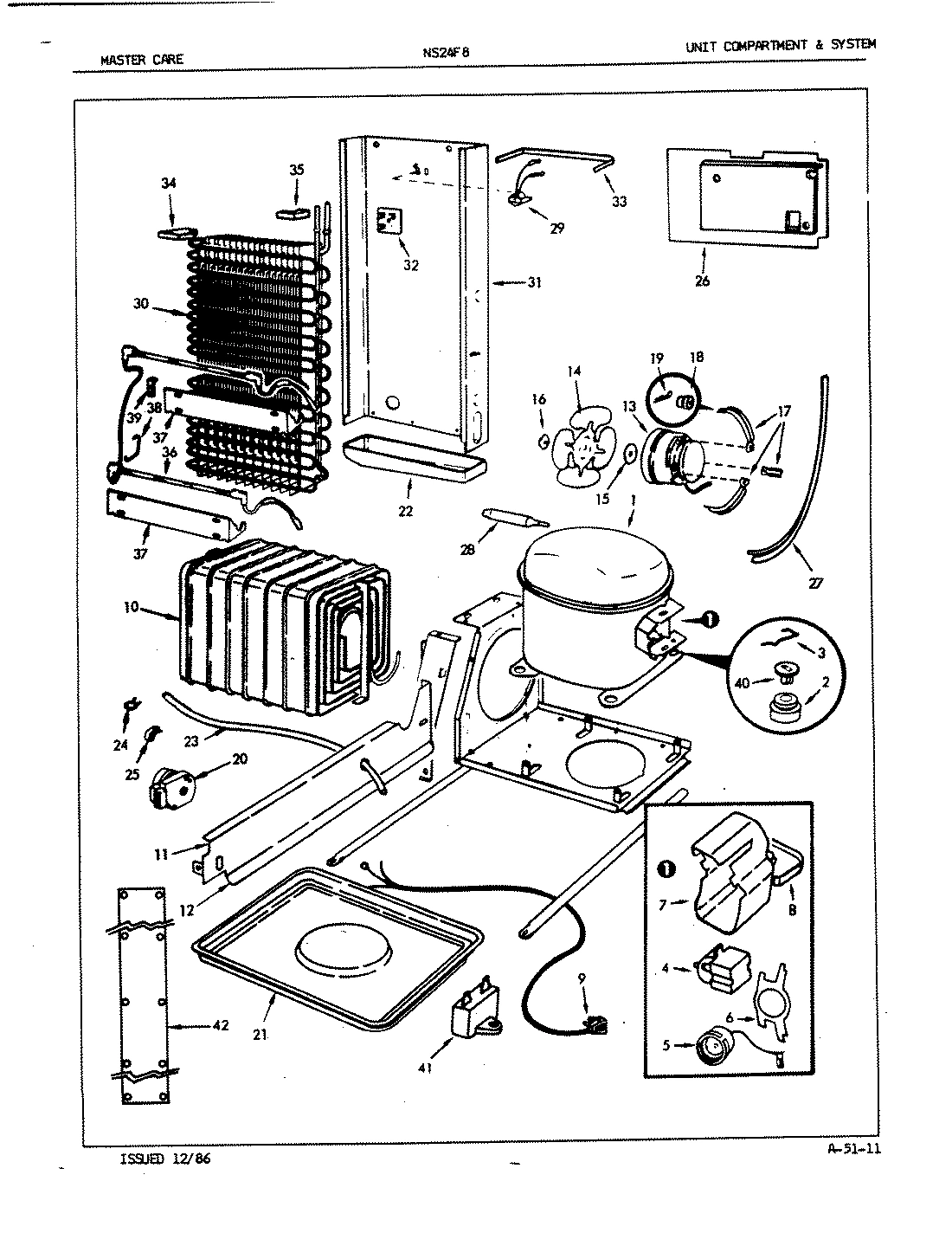

05 - UNIT COMPARTMENT & SYSTEM

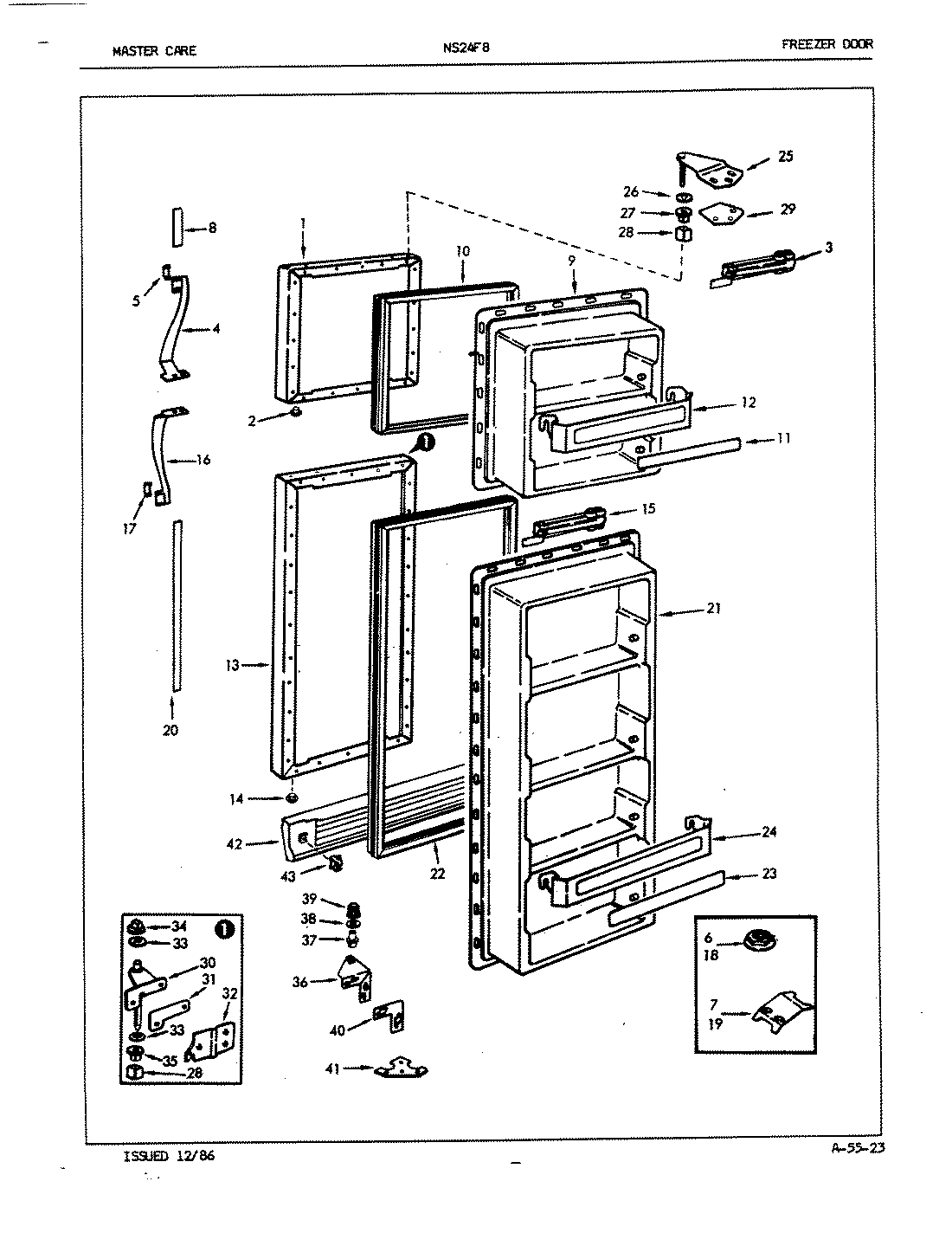

02 - FREEZER DOOR

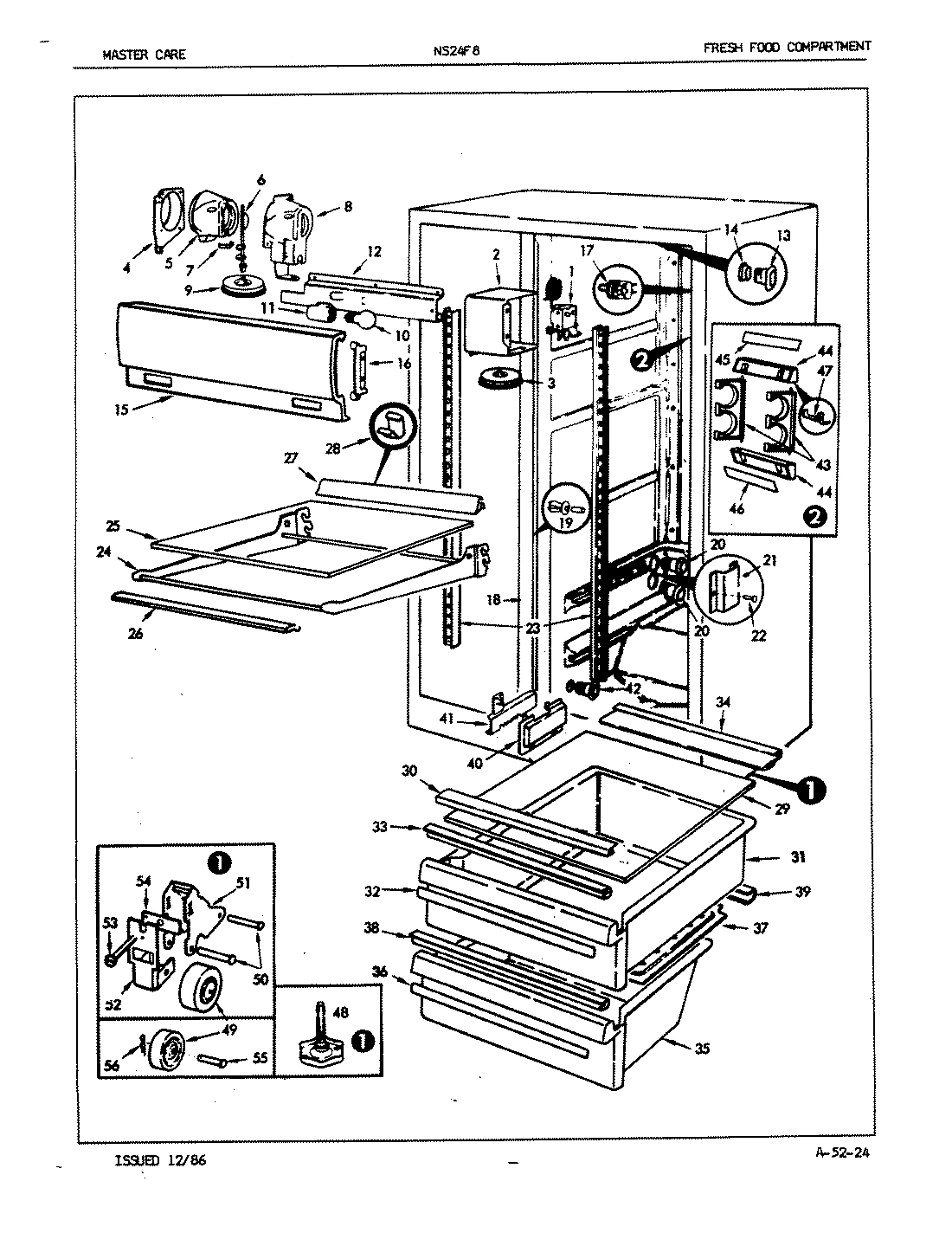

03 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool NS24F8A REFRIGERATOR
1
PANEL, OUTER DOOR WPL 6239113AM Contact Us For Availability
1
INSULATION KIT WPL RA950601 Contact Us For Availability
1
ORIFICE WPL 544231 Contact Us For Availability
1
COMPRESSOR (NET) WPL RA996 Contact Us For Availability
1
OUTER PANEL WPL 664613AM Contact Us For Availability
1
CONTROL, TEMPERATURE WPL 5288141 Contact Us For Availability
2
SHIELD WPL 538371 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
HOUSING, TEMPERATURE CONTROL WPL 5368210 Contact Us For Availability
3
HANDLE WPL 601941 Contact Us For Availability
3
SEAL WPL 5207710 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
KNOB WPL 298935 Contact Us For Availability
4
INSERT WPL 601112 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
COVER, COIL WPL 6269034 Contact Us For Availability
4
RELAY, START WPL 655291 Contact Us For Availability
4
HANDLE WPL 601931 Contact Us For Availability
4
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
5
STUD, MOUNTING COIL COVER WPL 599201 Contact Us For Availability
5
OVERLOAD WPL 5306780 Contact Us For Availability
5
INSERT WPL 601111 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
6
PLUG WPL 539331 Contact Us For Availability
6
CLIP, OVERLOAD WPL 651901 Contact Us For Availability
6
DAMPER WPL 525872 Contact Us For Availability
7
COVER, TERMINAL WPL 651891 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
8
UPR HANDLE EXT WPL 657751 Contact Us For Availability
8
SEAL,UPPER COIL COVER TO LINER WPL 5207719 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 651911 Contact Us For Availability
8
SCREW WPL 4000271 Contact Us For Availability
8
HOUSING, FREEZER CONTROL WPL 587602 Contact Us For Availability
9
TRAY, EGG WPL 600663 Contact Us For Availability
9
COIL SEAL WPL 528246 Contact Us For Availability
9
CORD, POWER WPL 528902 Contact Us For Availability
9
LINER, DOOR WPL 659481 Contact Us For Availability
9
KNOB WPL 298936 Contact Us For Availability
9
SCREW WPL 402005103 Contact Us For Availability
10
TRAY, BUTTER WPL 299362 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
10
CONDENSER WPL RA436441 Contact Us For Availability
10
FLANGE HEATER WPL RA436841 Contact Us For Availability
10
GASKET WPL 5371210 Contact Us For Availability
11
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
11
BAFFLE, AIR DIVIDER WPL 664941 Contact Us For Availability
12
LINER, DOOR WPL 659421 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 654931 Contact Us For Availability
12
SCREW WPL 998645 Contact Us For Availability
12
HOUSING, LIGHT SOCKET & WIRES WPL 597402 Contact Us For Availability
13
GASKET WPL 537122 Contact Us For Availability
13
SHIELD, LIGHT WPL 656542 Contact Us For Availability
13
FAN MOTOR WPL 280569 Contact Us For Availability
13
SCREW WPL 4080151 Contact Us For Availability
13
TUNNEL WPL 574101 Contact Us For Availability
14
PLUG BUTTON, DOOR WPL 495034900 Contact Us For Availability
14
DOOR, DAIRY WPL 66184402 Contact Us For Availability
14
SUPPORT WPL 536872 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 629342 Contact Us For Availability
14
RETAINER WPL 574111 Contact Us For Availability
15
INSULATION, CLOSER WPL 526131 Contact Us For Availability
15
BRACKET, CLOSER WPL 526141 Contact Us For Availability
15
CLOSER, DOOR WPL 544851 Contact Us For Availability
15
SHELF FRONT WPL 657812 Contact Us For Availability
15
SUPPORT WPL 544242 Contact Us For Availability
15
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
15
SHIELD, LIGHT WPL 655782 Contact Us For Availability
16
INSERT WPL 655714 Contact Us For Availability
16
INSERT WPL 657061 Contact Us For Availability
16
SCREW WPL 9986122 Contact Us For Availability
16
HANDLE WPL 601932 Contact Us For Availability
16
SUPPORT WPL 536862 Contact Us For Availability
17
INSERT WPL 601113 Contact Us For Availability
17
PLUG WPL 495032900 Contact Us For Availability
17
SWITCH WPL 564322 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
18
FASTENER WPL 434003506 Contact Us For Availability
18
WASHER WPL 521851 Contact Us For Availability
18
MOTOR WPL 564884 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
18
MULLION WPL 590262AM Contact Us For Availability
19
BUSHING, UPPER HINGE WPL 660362 Contact Us For Availability
19
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
19
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
19
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
19
CLIP WPL 530604 Contact Us For Availability
19
STUD, (ALM) WPL 599209 Contact Us For Availability
20
LWR HANDLE EXT WPL 657752 Contact Us For Availability
20
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
20
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
20
SCREW WPL 4050071 Contact Us For Availability
20
TIMER, DEFROST WPL 657021 Contact Us For Availability
20
AIR TUNNEL WPL 537261 Contact Us For Availability
21
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
21
SCREW WPL 4000221 Contact Us For Availability
21
FAN GRID WPL 626891 Contact Us For Availability
21
PAN, DRAIN WPL 298394 Contact Us For Availability
21
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
21
LINER, DOOR WPL 659491 Contact Us For Availability
21
AIR DEFLECTOR WPL 621281 Contact Us For Availability
22
HINGE, LOWER WPL 6063012 Contact Us For Availability
22
COVER, COIL WPL 652241 Contact Us For Availability
22
TROUGH, DRAIN WPL 535232 Contact Us For Availability
22
GASKET WPL 5371224 Contact Us For Availability
23
HEATER WPL 571178 Contact Us For Availability
23
DIVIDER WPL 574925AM Contact Us For Availability
23
SCREW WPL 9986111 Contact Us For Availability
23
HOSE, DRAIN WPL 2691118 Contact Us For Availability
23
INSERT WPL 655718 Contact Us For Availability
23
SCREW WPL 40003728 Contact Us For Availability
23
RAIL, SHELF SUPPORT WPL 583814 Contact Us For Availability
24
WASHER WPL 542331 Contact Us For Availability
24
GASKET WPL 573692 Contact Us For Availability
24
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
24
SHELF FRONT WPL 657012 Contact Us For Availability
24
FRAME, SHELF WPL 656182 Contact Us For Availability
25
UPPER HINGE,(CHROME) WPL 5370916 Contact Us For Availability
25
SCREW WPL 998687 Contact Us For Availability
25
BREAKER FRAME WPL 540366 Contact Us For Availability
25
NUT, MOTOR BOX WPL 561421 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
25
GLASS SHELF WPL 6559814 Contact Us For Availability
26
SCREW WPL 400017103 Contact Us For Availability
26
COVER WPL 574026 Contact Us For Availability
26
COVER WPL 663391 Contact Us For Availability
26
TRIM WPL 656142 Contact Us For Availability
27
SLEEVE WPL 2608823 Contact Us For Availability
27
HEAT EXCHANGER WPL RA4364510 Contact Us For Availability
27
TRIM WPL 6527614 Contact Us For Availability
28
SEAL SLEEVE WPL 559901 Contact Us For Availability
28
LIGHT BULB (25W,125V) WPL 23861 Contact Us For Availability
28
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
29
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
29
SPACER WPL 655121 Contact Us For Availability
29
THERMOSTAT, DEFROST WPL 5208513 Contact Us For Availability
29
SHELF, CRISPER WPL 656872 Contact Us For Availability
30
NUT WPL 538211 Contact Us For Availability
30
EVAPORATOR WPL RA4364310 Contact Us For Availability
30
HINGE WPL 543906 Contact Us For Availability
30
SCREW WPL 9986110 Contact Us For Availability
31
DRAIN TUBE WPL 265279 Contact Us For Availability
31
HOUSING WPL 650332 Contact Us For Availability
31
SPACER WPL 543864 Contact Us For Availability
31
PAN, CRISPER WPL 665092 Contact Us For Availability
32
GROMMET WPL 525261 Contact Us For Availability
32
BOARD, TERMINAL WPL 558781 Contact Us For Availability
32
TAPPING PLATE WPL 540312 Contact Us For Availability
32
INSERT WPL 6558310 Contact Us For Availability
33
SEAL WPL 5207714 Contact Us For Availability
33
WASHER WPL 521852 Contact Us For Availability
33
SEAL WPL 655932 Contact Us For Availability
34
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
34
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
34
CRISPER SEAL WPL 660922 Contact Us For Availability
35
SHELF, FRZ. WPL 656516 Contact Us For Availability
35
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
35
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
35
PAN, MEAT WPL 665102 Contact Us For Availability
36
SCREW WPL 4030625 Contact Us For Availability
36
SHELF, FRZ. WPL 656515 Contact Us For Availability
36
HEATER, DEFROST WPL 5276415 Contact Us For Availability
36
HINER, LOWER (CHROME) WPL 6063010 Contact Us For Availability
36
INSERT WPL 6558312 Contact Us For Availability
37
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
37
SHELF, FRZ. WPL 656514 Contact Us For Availability
37
SHIELD, DEFROST HEATER WPL 2991513 Contact Us For Availability
37
COVER, MEAT PAN WPL 656082 Contact Us For Availability
38
TRIM WPL 663162 Contact Us For Availability
38
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
38
WASHER WPL 542332 Contact Us For Availability
38
SEAL, MEAT PAN (FRONT) WPL 656482 Contact Us For Availability
39
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
39
DRAWER, FRZ. WPL 665122 Contact Us For Availability
39
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
39
SEAL, MEAT PAN (REAR) WPL 656492 Contact Us For Availability
40
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
40
INSERT WPL 6558316 Contact Us For Availability
40
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
40
WIRE HARNESS WPL 659791 Contact Us For Availability
40
WIRE HARNESS WPL 661861 Contact Us For Availability
40
CONTROL HOUSING WPL 657371 Contact Us For Availability
41
TAPPING PLATE, LOWER HINGE WPL 659641 Contact Us For Availability
41
ICE CUBE TRAY WPL 601121 Contact Us For Availability
41
CAPACITOR, RUN WPL 661211 Contact Us For Availability
41
CLIP WPL 566864 Contact Us For Availability
41
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
42
PAN, ICE WPL 657181 Contact Us For Availability
42
COVER WPL 663811 Contact Us For Availability
42
KICKPLATE WPL 5843721 Contact Us For Availability
42
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
43
INSERT WPL 606143 Contact Us For Availability
43
CLIP, KICKPLATE WPL 528543 Contact Us For Availability
43
SCREW, KICKPLATE MTG. WPL 9986101 Contact Us For Availability
43
RACK, WINE WPL 565194 Contact Us For Availability
44
SUPPORT, WINE RACK WPL 656891 Contact Us For Availability
45
INSERT WPL 657535 Contact Us For Availability
46
INSERT WPL 657536 Contact Us For Availability
47
SPRING, WINE RACK WPL 580571 Contact Us For Availability
48
LEG, LEVELING WPL 60128 Contact Us For Availability
49
WHEEL WPL 298342 Contact Us For Availability
50
PIN, WHEEL WPL 649651 Contact Us For Availability
51
BRACKET, WHEEL WPL 627941 Contact Us For Availability
52
FACEPLATE BRACKET WPL 627951 Contact Us For Availability
53
SCREW, WHEEL ADJUSTMENT WPL 564871 Contact Us For Availability
54
SCREW WPL 4000171 Contact Us For Availability
54
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
55
PIVOT PIN, WHEEL (REAR) WPL 625801 Contact Us For Availability
56
CLIP,FOOD LINER MOUNT.(SLIDES) WPL 574181 Contact Us For Availability
56
CLIP, FOOD LINER MOUNT.TOP&BOT WPL 564381 Contact Us For Availability
56
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
56
WIRE HARNESS WPL 662011 Contact Us For Availability
× ![]()
Login and Registration Form
