Model GE NS23A60MA451 HVAC – Air Conditioner – Common Parts & Diagrams

130
WIRING DIAGRAM-(CTO)
WIRING DIAGRAM-(CTO) GEN 538265-01G Contact Us For Availability
View on Model
250
ASSY-COIL 2 ROW, 22 FPI, 42" x 93.3"-(CT
ASSY-COIL 2 ROW, 22 FPI, 42" x 93.3"-(CT GEN R624257-01 Contact Us For Availability
View on Model

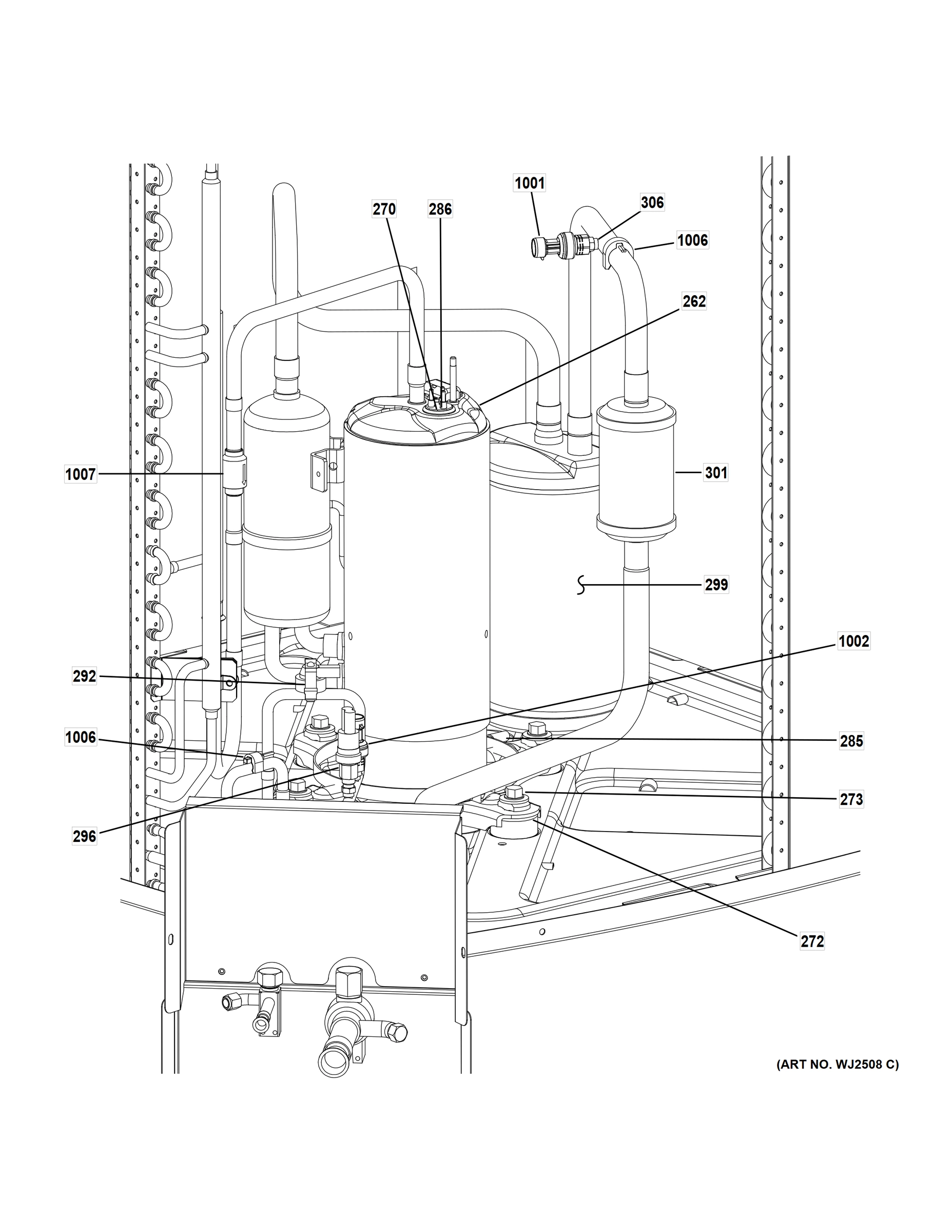

262
103476-08 Comp ABA051AAA VAR SPEED
103476-08 Comp ABA051AAA VAR SPEED GEN 12U81 Contact Us For Availability
View on Model
267
MOTOR-FAN 1/3HP 208/230V 60HZ 1PH PWM
MOTOR-FAN 1/3HP 208/230V 60HZ 1PH PWM GEN R103687-06 Contact Us For Availability
View on Model
269
CONTROL BOARD
CONTROL BOARD GEN 24C84 Contact Us For Availability
View on Model
270
HARN-COMPRESS W/FILTER-(CTO)
HARN-COMPRESS W/FILTER-(CTO) GEN 12Y61 Contact Us For Availability
View on Model
272
GROMMET-COMPRESSOR-(CTO)
GROMMET-COMPRESSOR-(CTO) GEN R100303-01 Contact Us For Availability
View on Model
273
BOLT-SLEEVE COMBINATION-(CTO)
BOLT-SLEEVE COMBINATION-(CTO) GEN R100301-01 Contact Us For Availability
View on Model
278
CONTACTOR-SPST 35FLA/40RES
CONTACTOR-SPST 35FLA/40RES GEN 10F74 Contact Us For Availability
View on Model
285
100499-25 CC HEATER 40W 240V
100499-25 CC HEATER 40W 240V GEN 12U72 Contact Us For Availability
View on Model
286
HARN # FIELD (614076-04 + 614073-05)-(CT
HARN # FIELD (614076-04 + 614073-05)-(CT GEN 19X71 Contact Us For Availability
View on Model
292
100503-13 THERMOSTAT-CC Heater
100503-13 THERMOSTAT-CC Heater GEN 12U74 Contact Us For Availability
View on Model
296
Switch-High Pressure (590PSI)
Switch-High Pressure (590PSI) GEN 55W64 Contact Us For Availability
View on Model
299
ACCUMULATOR:156 oz, 5"dia, 7/8"conn-(CTO
ACCUMULATOR:156 oz, 5"dia, 7/8"conn-(CTO GEN 80M87 Contact Us For Availability
View on Model
304
BALL VALVE 1.131 X 7/8
BALL VALVE 1.131 X 7/8 GEN 19V37 Contact Us For Availability
View on Model
306
Valve Core
Valve Core GEN 95M48 Contact Us For Availability
View on Model
310
ORIFICE RING (26x6 DEEP)
ORIFICE RING (26x6 DEEP) GEN 15Z67 Contact Us For Availability
View on Model
951
MULLION RIGHT-(CTO)
MULLION RIGHT-(CTO) GEN 624538-02E Contact Us For Availability
View on Model
952
PNL ACCESS-(CTO)
PNL ACCESS-(CTO) GEN 624420-02E Contact Us For Availability
View on Model
953
BRKT SVC VLV(ARM GRAY)-(CTO)
BRKT SVC VLV(ARM GRAY)-(CTO) GEN 622069-01E Contact Us For Availability
View on Model
960
PNL CONTROL COVER-(CTO)
PNL CONTROL COVER-(CTO) GEN R613292-01E Contact Us For Availability
View on Model
970
POST - CORNER-(CTO)
POST - CORNER-(CTO) GEN 602300-01E Contact Us For Availability
View on Model
977
BRKT SUPPORT-(CTO)
BRKT SUPPORT-(CTO) GEN 624447-02 Contact Us For Availability
View on Model
978
COMP SOUND COVER KIT (100673-02)-(CTO)
COMP SOUND COVER KIT (100673-02)-(CTO) GEN 14W01 Contact Us For Availability
View on Model

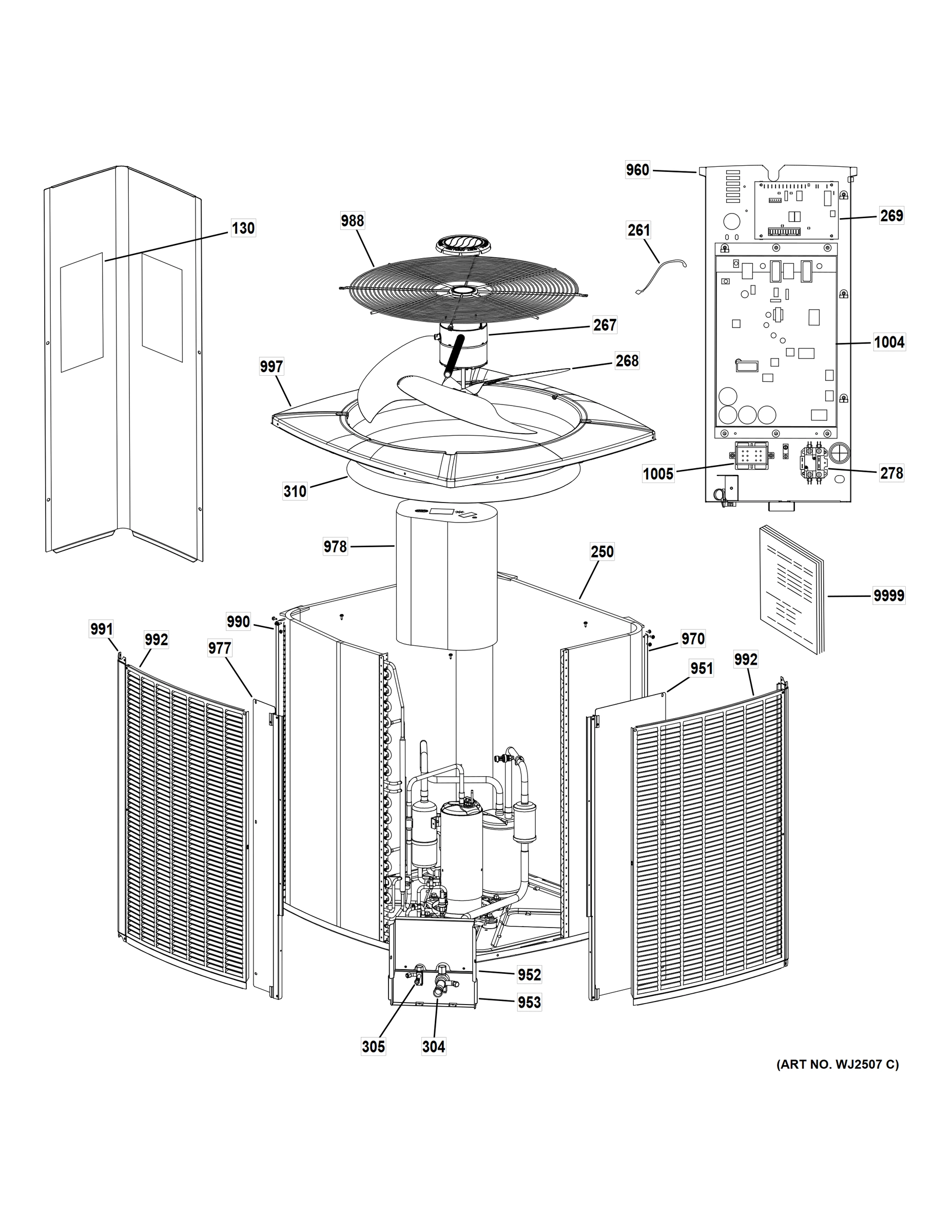

988
GUARD-FAN WIRE BLK DIA-(CTO)
GUARD-FAN WIRE BLK DIA-(CTO) GEN R100305-09 Contact Us For Availability
View on Model
990
MULLION LEFT-(CTO)
MULLION LEFT-(CTO) GEN 624537-02E Contact Us For Availability
View on Model
991
PNL LUVR -CURVED RT/LF-(CTO)
PNL LUVR -CURVED RT/LF-(CTO) GEN 623481-17E Contact Us For Availability
View on Model
992
PNL LUVR -CURVED RT/LF-(CTO)
PNL LUVR -CURVED RT/LF-(CTO) GEN 623481-18E Contact Us For Availability
View on Model
997
ASSY PNL TOP (DRAWN)-(CTO)
ASSY PNL TOP (DRAWN)-(CTO) GEN 614257-04G Contact Us For Availability
View on Model
1001
TRANSDUCER SUCTION PRESSURE (EEV)
TRANSDUCER SUCTION PRESSURE (EEV) GEN R104123-08 Contact Us For Availability
View on Model
1005
105583-01 REACTOR FOR 6KW INVERTER GEN2
105583-01 REACTOR FOR 6KW INVERTER GEN2 GEN 17G87 Contact Us For Availability
View on Model
1006
106202-02 SENSOR TEMPERATURE 7/8
106202-02 SENSOR TEMPERATURE 7/8 GEN 19V56 Contact Us For Availability
View on Model
1007
VALVE-CHECK 1/2"
VALVE-CHECK 1/2" GEN 19V45 Contact Us For Availability
View on Model
9999
PM OTHER
PM OTHER GEN 31-5000644 Contact Us For Availability
View on Model
