Model GE NS23A24MA451A Room Air Conditioner Built In – Common Parts & Diagrams

Common parts from model GE NS23A24MA451A Room Air Conditioner Built In

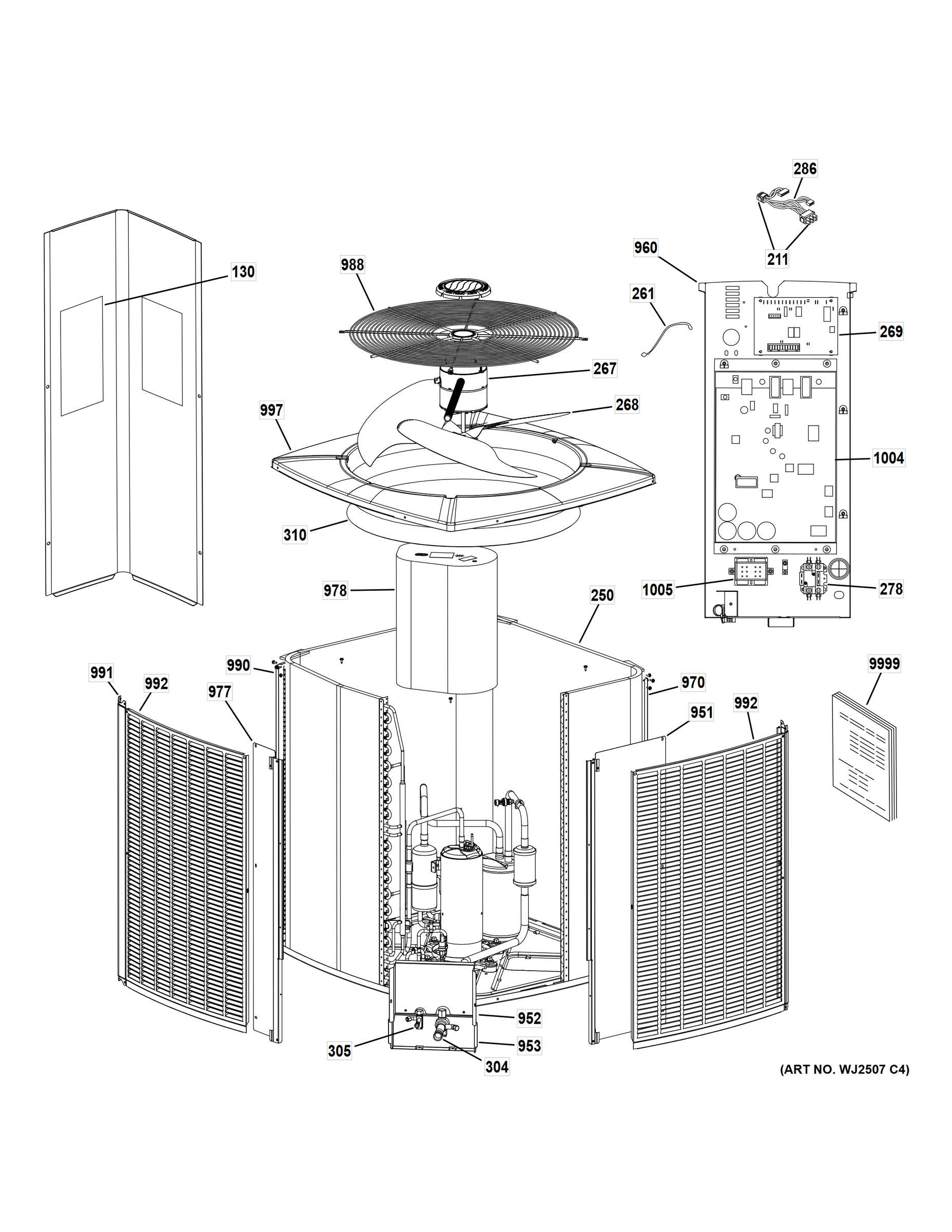

MOTOR & CHASSIS PARTS

Print

• This Diagram
• All Diagrams

130

WIRING DIAGRAM-(CTO) GEN 538265-01G Contact Us For Availability

View on Model

211

RAST CONNECTOR - LOW VOLTAGE Backorder GEN 19X70 View Details $35.01

View on Model

250

ASSY-COIL (1 ROW, 26 FPI, 36" x 93.3")-( GEN R624890-01 Contact Us For Availability

View on Model

261

SENSOR - AMBIENT ONLY Backorder GEN 19V57 View Details $28.37

View on Model

262

619015-04 COMP VAR SPD ROTARY GJT240 GEN 19U48 Contact Us For Availability

View on Model

267

MOTOR-FAN 1/3HP 208/230V 60HZ 1PH PWM GEN R103687-06 Contact Us For Availability

View on Model

268

FAN ASSY GEN 93M97 Contact Us For Availability

View on Model

269

CONTROL BOARD GEN 25B73 Contact Us For Availability

View on Model

270

HARN-COMP VARIABLE SPEED ROTARY-(CTO) GEN R105382-02 Contact Us For Availability

View on Model

272

GROMMET-COMPRESSOR-(CTO) GEN R100303-01 Contact Us For Availability

View on Model

273

BOLT-SLEEVE COMBINATION-(CTO) GEN R100301-01 Contact Us For Availability

View on Model

278

CONTACTOR-SPST 35FLA/40RES GEN 10F74 Contact Us For Availability

View on Model

285

100499-24 CC HEATER 40W 240V GEN 12U71 Contact Us For Availability

View on Model

286

HARN # FIELD (614076-04 + 614073-05)-(CT GEN 19X71 Contact Us For Availability

View on Model

292

100503-13 THERMOSTAT-CC Heater GEN 12U74 Contact Us For Availability

View on Model

296

Switch-High Pressure (590PSI) GEN 55W64 Contact Us For Availability

View on Model

299

SUCTION ACCUMULATOR 3/4"CONN-(CTO) GEN 19V42 Contact Us For Availability

View on Model

301

SUCTION FILTER - 3/4" DRIER-(CTO) GEN 17A19 Contact Us For Availability

View on Model

304

VALVE-BALL 3/4 X 3/4 GEN R104519-01 Contact Us For Availability

View on Model

305

100432-11 VALVE SERVICE 3/8 45 Backorder GEN 17W38 View Details $18.81

View on Model

306

Valve Core GEN 95M48 Contact Us For Availability

View on Model

310

ORIFICE RING (26x6 DEEP) GEN 15Z67 Contact Us For Availability

View on Model

951

MULLION RIGHT-(CTO) GEN 624538-01E Contact Us For Availability

View on Model

952

PNL ACCESS 2/3 TON-(CTO) GEN 624420-01E Contact Us For Availability

View on Model

953

BRKT SVC VLV(ARM GRAY)-(CTO) GEN 622069-01E Contact Us For Availability

View on Model

960

PNL CONTROL COVER-(CTO) GEN R613292-02E Contact Us For Availability

View on Model

970

POST CORNER-(CTO) GEN 602300-02E Contact Us For Availability

View on Model

977

BRKT SUPPORT-(CTO) GEN 624447-01 Contact Us For Availability

View on Model

978

COVER SOUND -ROTARY COMP-(CTO) GEN R105397-07 Contact Us For Availability

View on Model

988

GUARD-FAN WIRE BLK DIA-(CTO) GEN R100305-09 Contact Us For Availability

View on Model

990

MULLION LEFT-(CTO) GEN 624537-01E Contact Us For Availability

View on Model

991

PNL LUVR -CURVED RT/LF-(CTO) GEN 623481-15E Contact Us For Availability

View on Model

992

PNL LUVR -CURVED RT/LF-(CTO) GEN 623481-16E Contact Us For Availability

View on Model

997

PANEL - TOP -(CTO) GEN R48025-003U Contact Us For Availability

View on Model

1001

TRANSDUCER SUCTION PRESSURE (EEV) GEN R104123-05 Contact Us For Availability

View on Model

1002

TRANSDUCER DISCHARGE PRESSURE GEN R104123-06 Contact Us For Availability

View on Model

1004

INVERTER 4KW - GJT240 - 2TON GEN 24C73 Contact Us For Availability

View on Model

1005

105582-01 REACTOR FOR 4KW INVE Backorder GEN 17G86 View Details $116.59

View on Model

1006

106202-01 SENSOR TEMPERATURE 3/4 GEN 19V55 Contact Us For Availability

View on Model

1007

VALVE-CHECK 1/2" GEN 19V45 Contact Us For Availability

View on Model

9999

PM INSTALL INSTRUCTIONS GEN 31-5000754 Contact Us For Availability

View on Model

9999

PM OTHER GEN 31-5000644 Contact Us For Availability

View on Model

×
