Model GE NS22A24MA500A Room Air Conditioner Built In – Common Parts & Diagrams

Common parts from model GE NS22A24MA500A Room Air Conditioner Built In

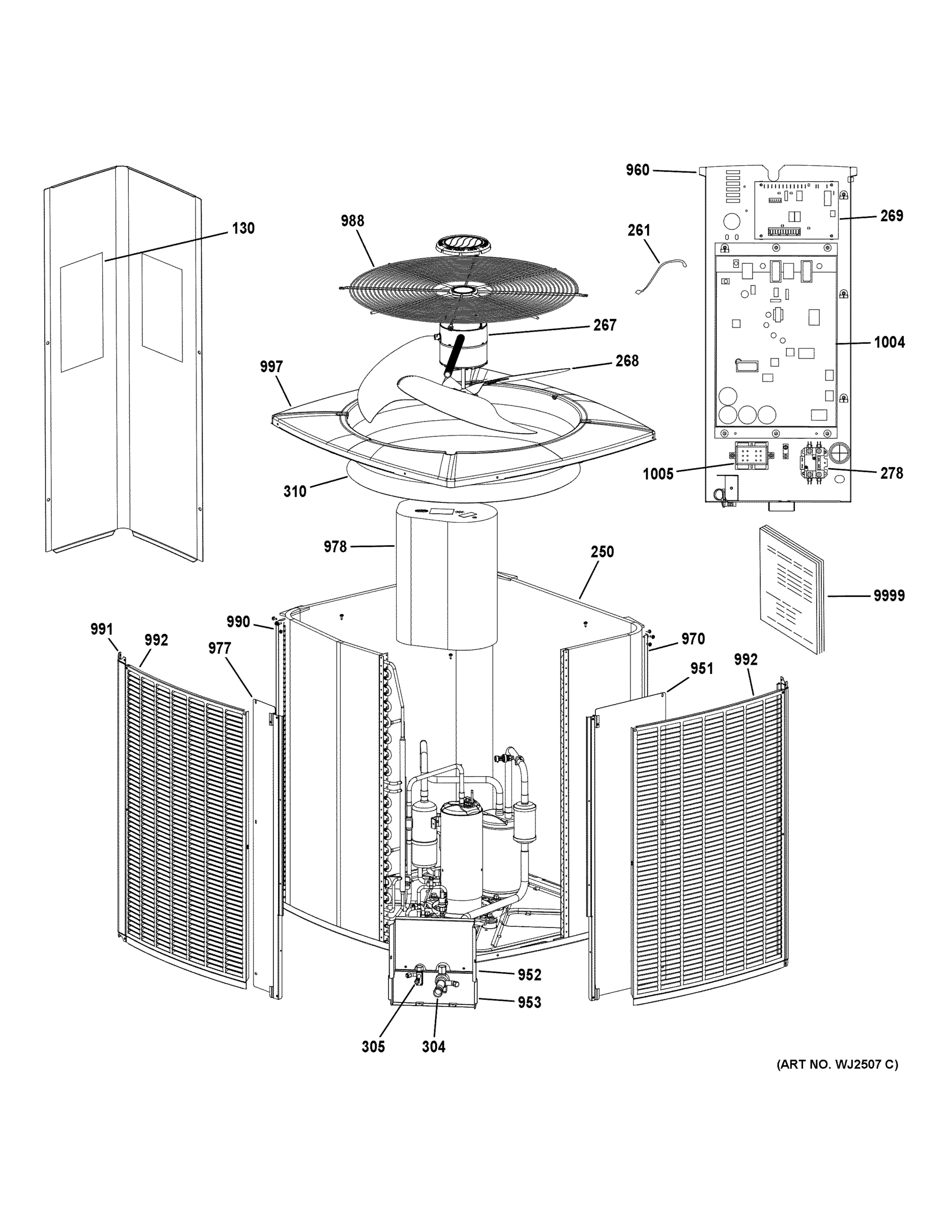

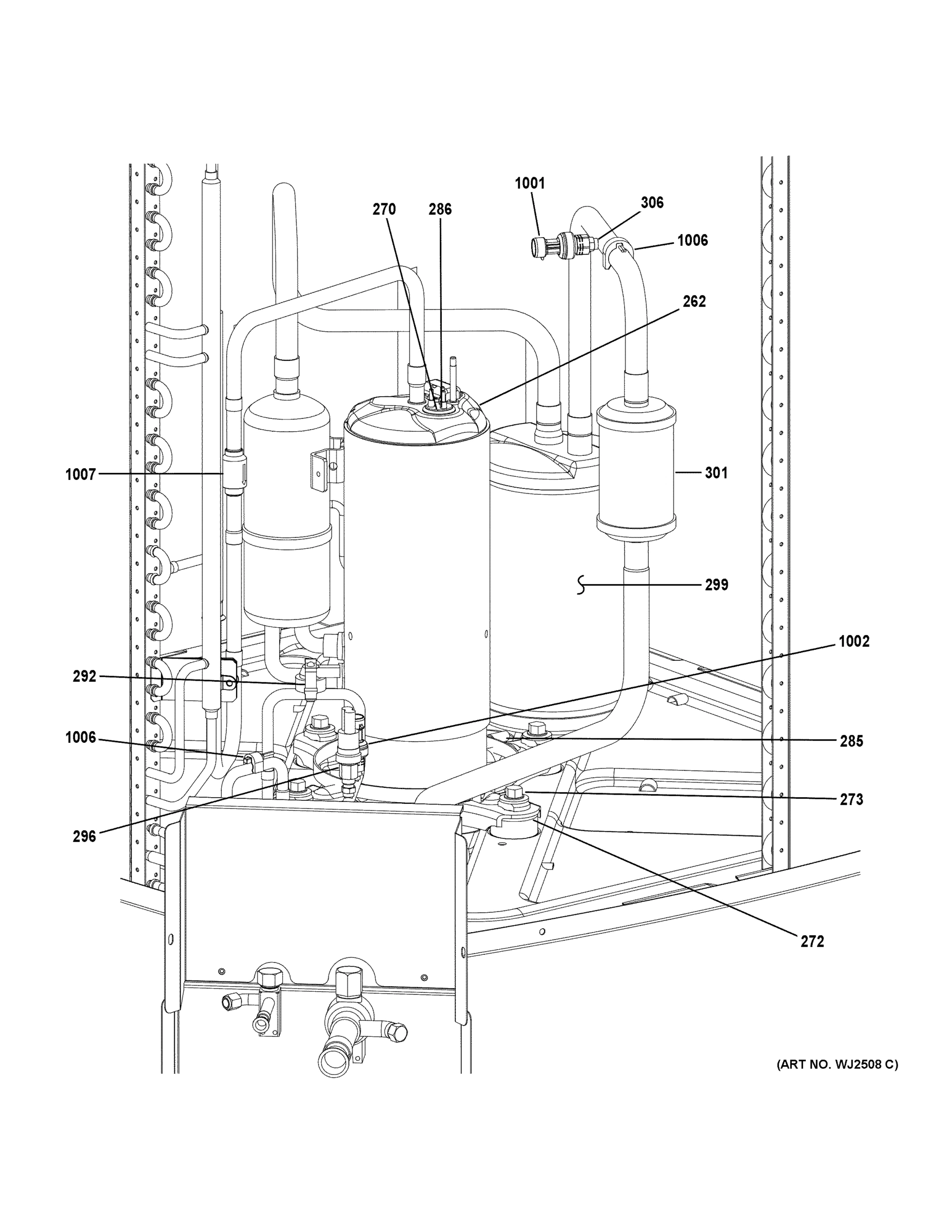

MOTOR & CHASSIS PARTS

Print

• This Diagram
• All Diagrams

130

WIRING DIAGRAM-(CTO) GEN 53826501G Contact Us For Availability

View on Model

250

REPAIR COIL ASSY GEN 28F95 Contact Us For Availability

View on Model

261

SENSOR TEMPERATURE 7/8 Backorder GEN 28F86 View Details $30.10

View on Model

262

COMPRESSOR ROTARY VARI SPEED, KJT240MCA GEN 28F97 Contact Us For Availability

View on Model

267

MOTOR-FAN 1/3HP 208/230V 60HZ Backorder GEN 27V93 View Details $312.80

View on Model

268

FAN 28IN 2 BLADE 26Ì PITCH CC Backorder GEN 27V89 View Details $270.30

View on Model

269

ASSY-P.C.BOARD OMEGA- ST MICRO Backorder GEN 28C08 View Details $71.68

View on Model

270

HARNESS-COMPRESSOR PLUG COMPRESSOR GEN 28F96 Contact Us For Availability

View on Model

272

GROMMET-COMPRESSOR-(CTO) GEN R10030301 Contact Us For Availability

View on Model

273

LB-106528 COMPRESSOR MTG KIT GEN 54M63 Contact Us For Availability

View on Model

278

CONTACTOR 1PST 25A GEN 27P51 Contact Us For Availability

View on Model

285

HEATER-CRANKCASE 25W 240V 4.627 - 5.318 GEN 27V62 Contact Us For Availability

View on Model

286

HARN # FIELD (614076-04 + 614073-05)-(CT GEN 19X71 Contact Us For Availability

View on Model

292

100503-13 THERMOSTAT-CC Heater GEN 12U74 Contact Us For Availability

View on Model

296

SWITCH-HI PRESS AUTO RESET GEN 27V88 Contact Us For Availability

View on Model

299

ACCUMULATOR W/ BRACKET 115 OZ, 5" DIA, GEN 27V60 Contact Us For Availability

View on Model

301

SUCTION FILTER - 3/4" DRIER-(CTO) GEN 17A19 Contact Us For Availability

View on Model

304

VALVE-BALL 3/4 X 3/4 Backorder GEN 28F82 View Details $26.74

View on Model

305

VALVE SERVICE 3/8 GEN 27P56 Contact Us For Availability

View on Model

306

Valve Core GEN 95M48 Contact Us For Availability

View on Model

310

ORIFICE LARGE 26.5 I.D. Backorder GEN 27V71 View Details $80.42

View on Model

952

PNL ACCESS 2/3 TON-(CTO) GEN 62442001E Contact Us For Availability

View on Model

953

BRKT SVC VLV(ARM GRAY)-(CTO) GEN 62206901E Contact Us For Availability

View on Model

960

CNTRL PANEL AC/HP (REPAIR) **S Backorder GEN 26Z77 View Details $122.55

View on Model

970

CORNER POST 36 GEN RMA62502736E Contact Us For Availability

View on Model

977

RAIN SHIELD-(CTO) GEN 12Y63 Contact Us For Availability

View on Model

978

COVER SOUND - ROTARY COMPRESS-(CTO) GEN 17A16 Contact Us For Availability

View on Model

988

GRILLE GRILLE-DISCHARGE (LARGE) GEN 28G02 Contact Us For Availability

View on Model

990

PANEL LOUVER 5 BANK 36 (CTO) GEN R62669536 Contact Us For Availability

View on Model

991

PANEL LOUVER 8 BANK 36 (CTO) GEN R62669836 Contact Us For Availability

View on Model

992

PANEL LOUVER 7 BANK 36 (E) FORMED GEN R62669736 Contact Us For Availability

View on Model

997

ASSY-PANEL TOP GEN R62787901 Contact Us For Availability

View on Model

1001

TRANSDUCER SUCTION PRESSURE Backorder GEN 27V91 View Details $23.90

View on Model

1002

TRANSDUCER DISCHARGE PRESSURE Backorder GEN 27V74 View Details $54.44

View on Model

1004

INVERTER 230V 4KW 2 TON FOR KJ Backorder GEN 28F98 View Details $325.67

View on Model

1005

105582-01 REACTOR FOR 4KW INVE Backorder GEN 17G86 View Details $116.59

View on Model

1006

106202-01 SENSOR TEMPERATURE 3/4 GEN 19V55 Contact Us For Availability

View on Model

1007

VALVE-CHECK 1/2" GEN 19V45 Contact Us For Availability

View on Model

9999

PM SERVICE INSTRUCTIONS GEN 315000644 Contact Us For Availability

View on Model

9999

PM INSTALL INSTRUCTIONS GEN 315000754 Contact Us For Availability

View on Model

×
