Model Whirlpool NS20L7A REFRIGERATOR – Common Parts & Diagrams

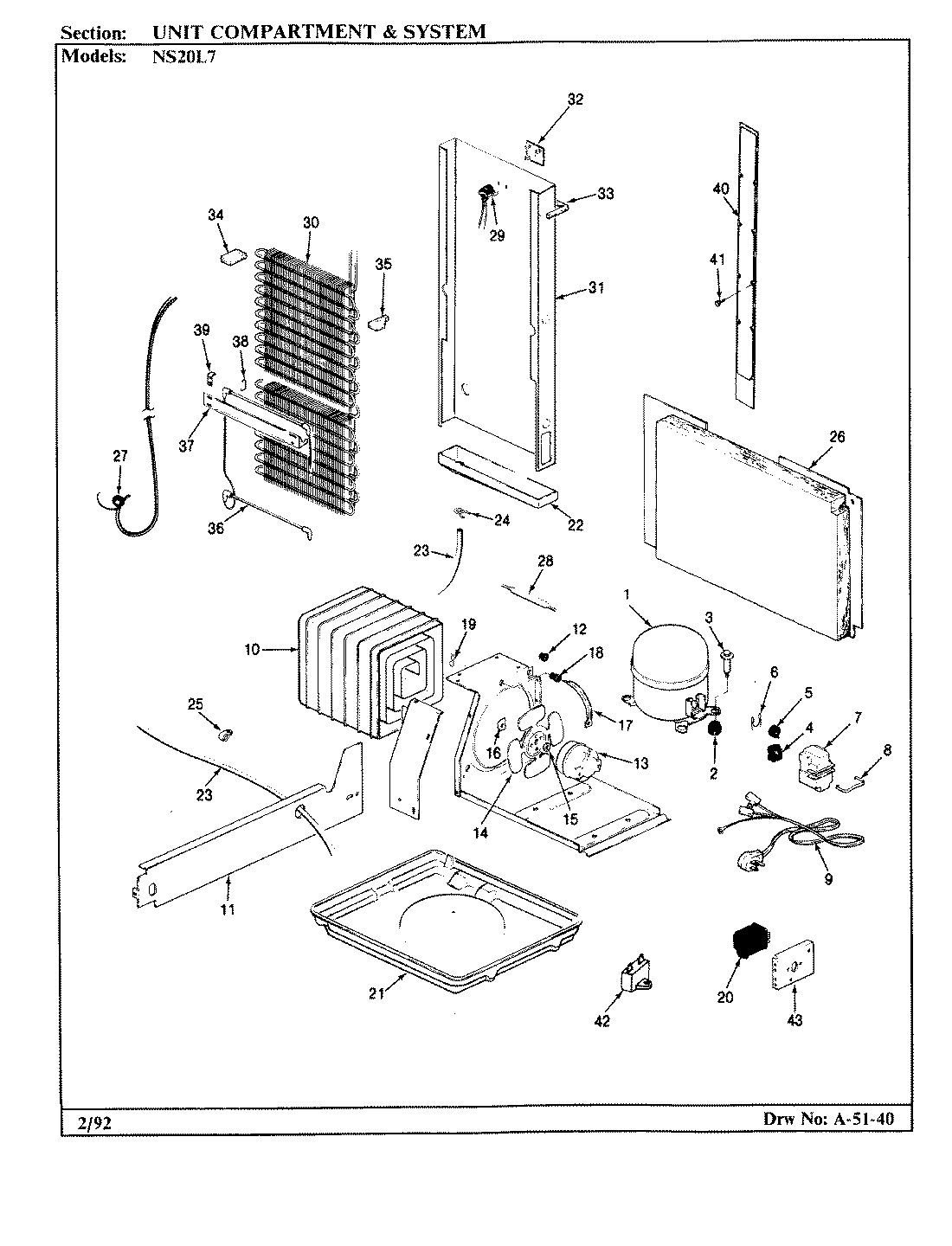

05 - UNIT COMPARTMENT & SYSTEM

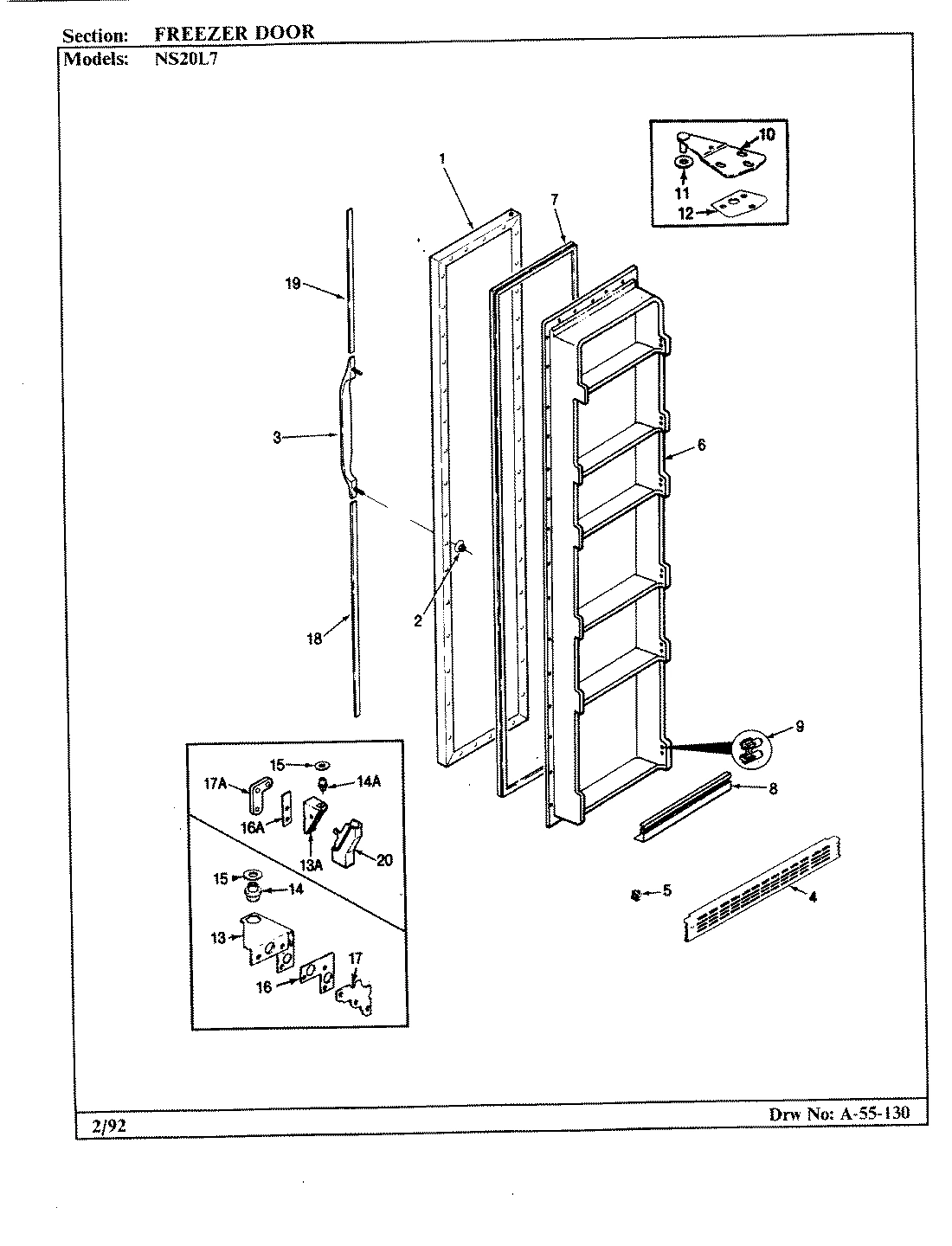

02 - FREEZER DOOR

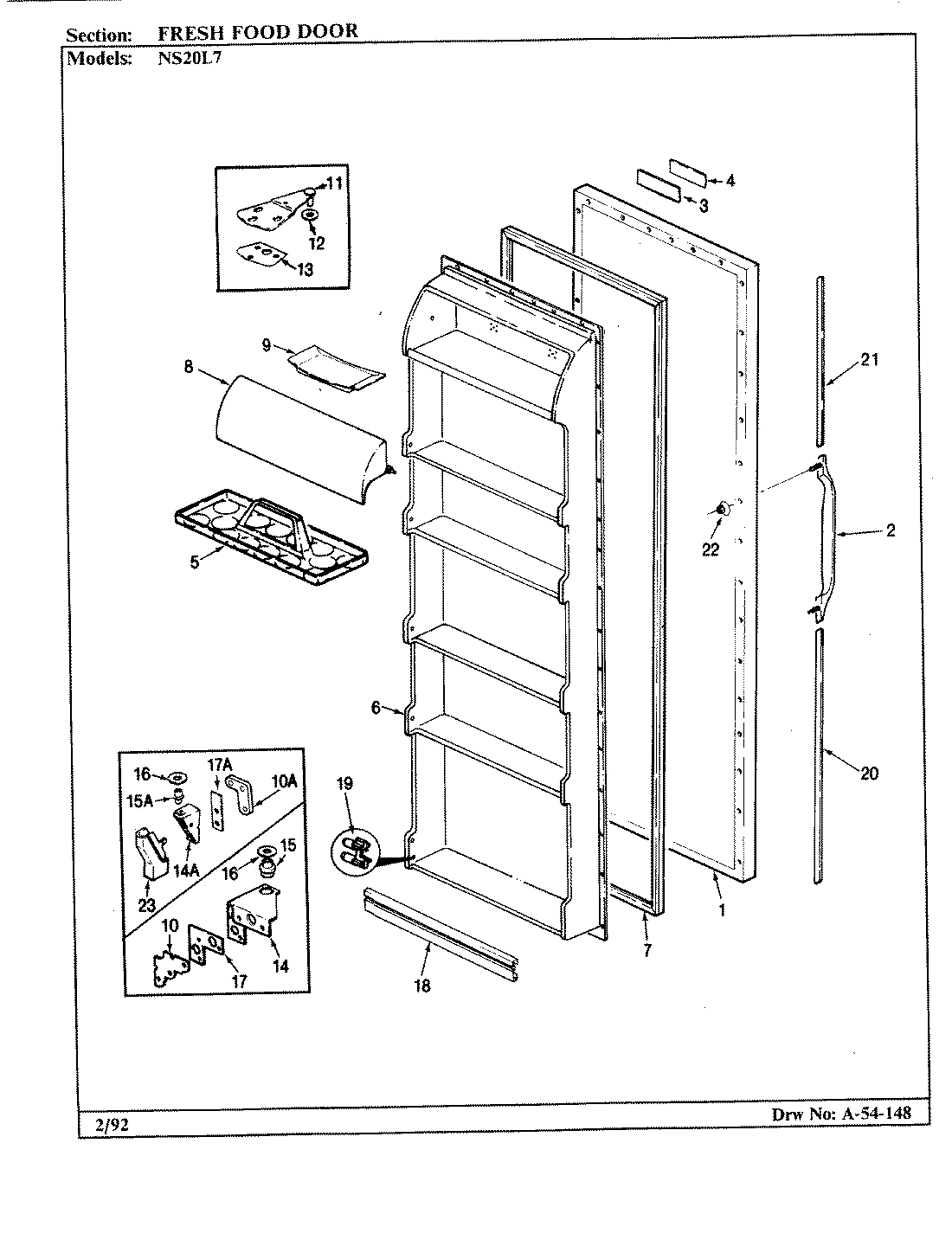

04 - FRESH FOOD DOOR

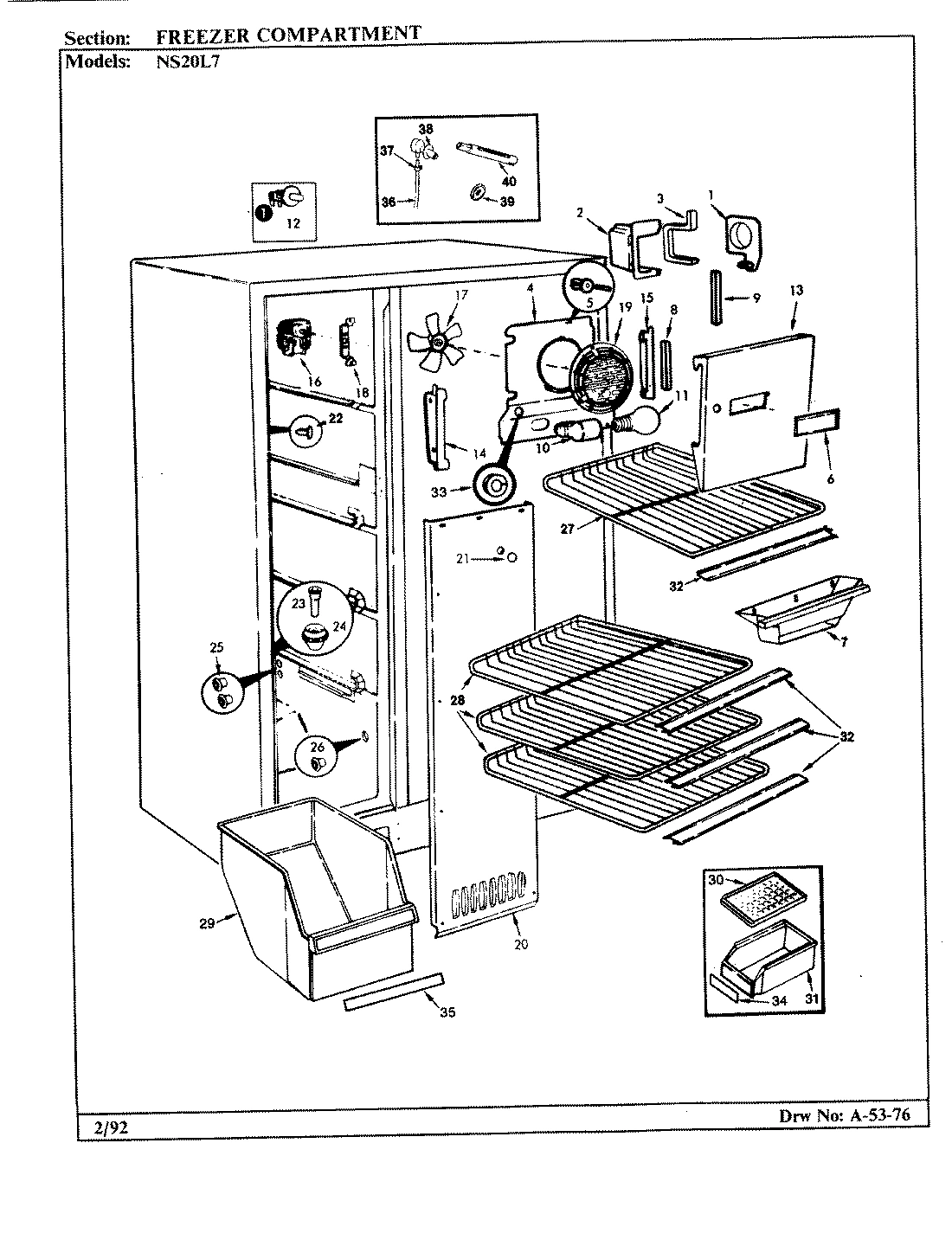

01 - FREEZER COMPARTMENT

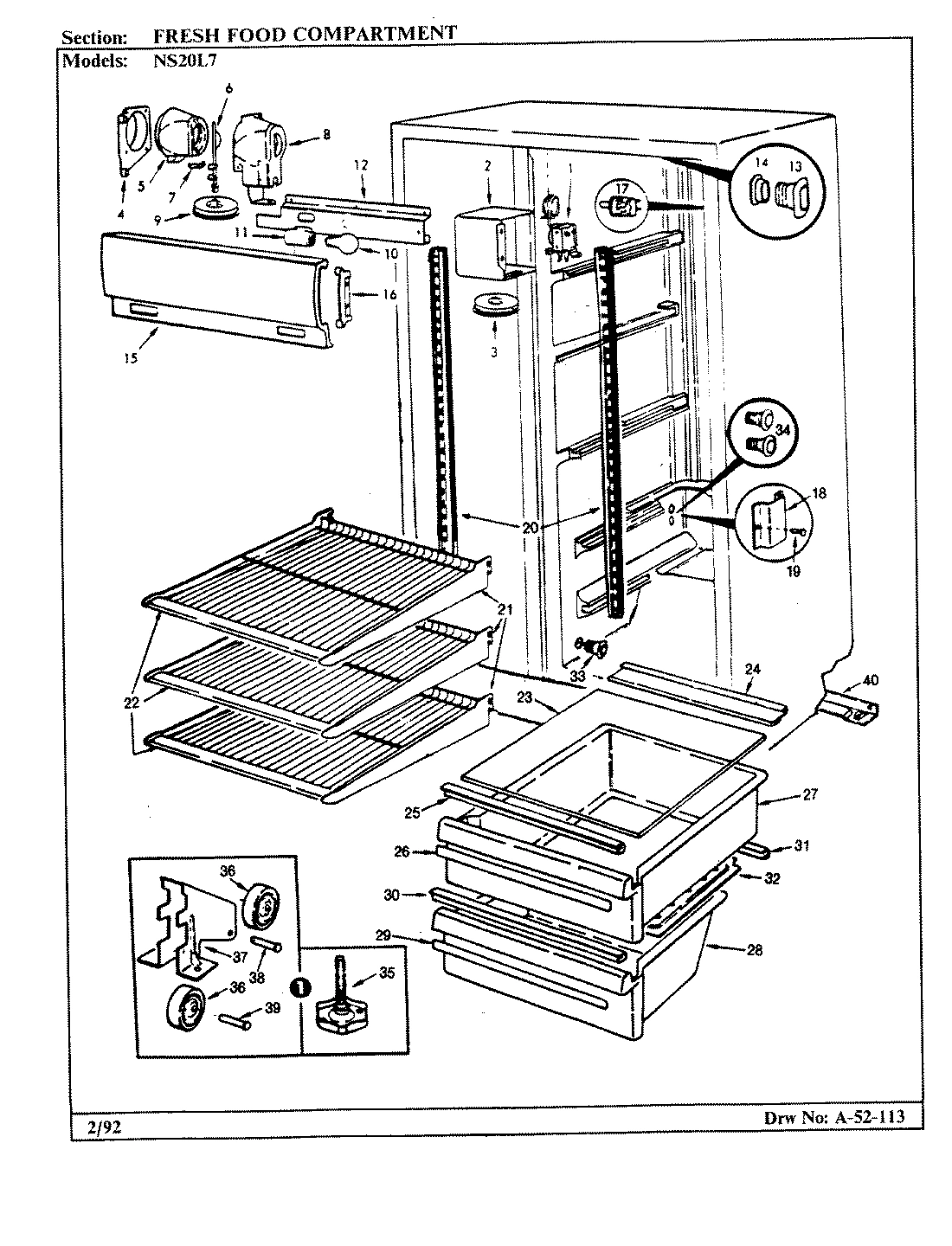

03 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool NS20L7A REFRIGERATOR
1
COMPRESSOR WPL RA1017 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 7204610AM Contact Us For Availability
1
PANEL, F.F. DOOR (ALM) WPL 690292AM Contact Us For Availability
1
INSULATION KIT WPL RA950601 Contact Us For Availability
1
ORIFICE WPL 544231 Contact Us For Availability
1
SCREW, CONTROL MOUNTING WPL 4010121 Contact Us For Availability
1
CONTROL, TEMPERATURE WPL 5288139 Contact Us For Availability
1
INSULATION, CONTROL WPL 676921 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
HANDLE WPL 636865 Contact Us For Availability
2
SHIELD WPL 538371 Contact Us For Availability
2
SCREW WPL 4000531 Contact Us For Availability
2
HOUSING, TEMPERATURE CONTROL WPL 5368210 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
3
WIRE HARNESS, COMPRESSOR WPL 690621 Contact Us For Availability
3
SEAL WPL 5207710 Contact Us For Availability
3
KNOB, TEMP. CONTROL WPL 298937 Contact Us For Availability
4
RELAY, START WPL 665883 Contact Us For Availability
4
KICKPLATE WPL 689811 Contact Us For Availability
4
INSERT WPL 6698216 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
COVER, COIL WPL 6269031 Contact Us For Availability
4
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
5
OVERLOAD WPL 6329418 Contact Us For Availability
5
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
5
TRAY, EGG WPL 600661 Contact Us For Availability
5
STUD, MOUNTING COIL COVER WPL 599201 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
5
SPACER AIR INLET WPL 649581 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
INNER PANEL WPL 59433215 Contact Us For Availability
6
SCREW WPL 652755 Contact Us For Availability
6
LINER, DOOR WPL 659449 Contact Us For Availability
6
INSERT WPL 683252 Contact Us For Availability
6
BAFFLE, FREEZER CONTROL WPL 686102 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
GASKET WPL 6692928 Contact Us For Availability
7
GASKET WPL 6692927 Contact Us For Availability
7
AIR DUCT ASM WPL 656931 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
TRIM WPL 6883213 Contact Us For Availability
8
DOOR, DAIRY WPL 66184181 Contact Us For Availability
8
SEAL WPL 689464 Contact Us For Availability
8
SCREW WPL 4000271 Contact Us For Availability
8
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
9
CORD, POWER WPL 528902 Contact Us For Availability
9
TRAY, BUTTER WPL 299362 Contact Us For Availability
9
SEAL WPL 6632533 Contact Us For Availability
9
KNOB WPL 2989312 Contact Us For Availability
9
SCREW WPL 402005103 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL RA436441 Contact Us For Availability
10
SCREW, TAPPING PLATE WPL 6527510 Contact Us For Availability
10
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
10
BULB, LIGHT (60W) WPL 557712 Contact Us For Availability
11
BAFFLE, AIR DIVIDER WPL 664941 Contact Us For Availability
11
SCREW WPL 998645 Contact Us For Availability
11
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
11
SCREW WPL 6527552 Contact Us For Availability
11
RECEPTACLE, LIGHT WPL 689742 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
WASHER WPL 521851 Contact Us For Availability
12
HOUSING WPL 690811 Contact Us For Availability
13
SCREW WPL 6527533 Contact Us For Availability
13
MOTOR, CONDENSER FAN WPL 684813 Contact Us For Availability
13
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
13
SHIELD, LIGHT WPL 686112 Contact Us For Availability
13
TUNNEL WPL 574101 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 606832 Contact Us For Availability
14
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
14
HINGE, LOWER WPL 689752 Contact Us For Availability
14
SUPPORT WPL 536872 Contact Us For Availability
14
RETAINER WPL 574111 Contact Us For Availability
15
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
15
PIN, HINGE WPL 689771 Contact Us For Availability
15
SUPPORT WPL 544242 Contact Us For Availability
15
SHIELD, LIGHT WPL 6557827 Contact Us For Availability
16
SCREW WPL 4000171 Contact Us For Availability
16
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
16
MOTOR WPL 564884 Contact Us For Availability
16
PLUG WPL 495032900 Contact Us For Availability
16
SUPPORT WPL 536862 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
17
SHIM WPL 690311 Contact Us For Availability
17
SWITCH WPL 564322 Contact Us For Availability
17
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
18
TRIM WPL 6883214 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
18
AIR DEFLECTOR WPL 621281 Contact Us For Availability
19
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
19
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
19
SCREW WPL 4000221 Contact Us For Availability
19
FAN GRID WPL 626891 Contact Us For Availability
20
SCREW WPL 4050071 Contact Us For Availability
20
TIMER, DEFROST WPL 661282 Contact Us For Availability
20
TRIM WPL 686579 Contact Us For Availability
20
COVER, COIL WPL 652244 Contact Us For Availability
20
COIL COVER, GASKET WPL 675621 Contact Us For Availability
20
SCREW WPL 40003728 Contact Us For Availability
20
RAIL, SHELF SUPPORT WPL 583814 Contact Us For Availability
21
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
21
PAN, DRAIN WPL 682361 Contact Us For Availability
21
TRIM WPL 6865710 Contact Us For Availability
21
PLUG BUTTON WPL 495015900 Contact Us For Availability
21
SHELF, WIRE WPL 656067 Contact Us For Availability
22
TROUGH, DRAIN WPL 535231 Contact Us For Availability
22
FASTENER WPL 434003506 Contact Us For Availability
22
PLUG BUTTON WPL 675571 Contact Us For Availability
22
TRIM WPL 666491 Contact Us For Availability
23
HOSE, DRAIN WPL 2691118 Contact Us For Availability
23
COVER, LOWER HINGE (BLK) WPL 689781 Contact Us For Availability
23
DRAIN TUBE WPL 265279 Contact Us For Availability
23
SHELF, CRISPER (GLASS) WPL 656871 Contact Us For Availability
24
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
24
GROMMET WPL 525261 Contact Us For Availability
24
SEAL WPL 660921 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
25
RETAINER WPL 676851 Contact Us For Availability
25
TRIM WPL 666501 Contact Us For Availability
26
COVER WPL 663391 Contact Us For Availability
26
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
27
COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability
27
HEAT EXCHANGER WPL RA950903 Contact Us For Availability
27
SHELF, 1 WPL 6660337 Contact Us For Availability
27
PAN, CRISPER WPL 6663648 Contact Us For Availability
28
SHELF, 2,3, & 4 WPL 6660342 Contact Us For Availability
28
PAN, MEAT WPL 6663649 Contact Us For Availability
29
THERMOSTAT, DEFROST WPL 5208529 Contact Us For Availability
29
DRAWER, FRZ. WPL 6663645 Contact Us For Availability
29
INSERT WPL 6812477 Contact Us For Availability
30
EVAPORATOR WPL RA436431 Contact Us For Availability
30
ICE CUBE TRAY WPL 601121 Contact Us For Availability
30
SEAL, MEAT PAN (FRONT) WPL 656481 Contact Us For Availability
31
HOUSING, FREEZER COIL WPL 650331 Contact Us For Availability
31
PAN WPL 665921 Contact Us For Availability
31
SEAL, MEAT PAN (REAR) WPL 656491 Contact Us For Availability
32
BOARD, TERMINAL WPL 558781 Contact Us For Availability
32
TRIM, SHELF WPL 666494 Contact Us For Availability
32
COVER, MEAT PAN WPL 656083 Contact Us For Availability
33
SEAL WPL 6632517 Contact Us For Availability
33
PLUG WPL 539331 Contact Us For Availability
33
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
34
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
34
INSERT WPL 6813419 Contact Us For Availability
34
TUNNEL, AIR RETURN WPL 676841 Contact Us For Availability
34
INSULATION, AIR RETURN WPL 678371 Contact Us For Availability
35
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
35
INSERT WPL 6812478 Contact Us For Availability
35
LEG, LEVELING WPL 60128 Contact Us For Availability
36
HEATER, DEFROST WPL 5276414 Contact Us For Availability
36
WHEEL WPL 298342 Contact Us For Availability
37
REFLECTOR WPL 2991512 Contact Us For Availability
37
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
37
SCREW WPL 4000621 Contact Us For Availability
37
BRACKET WPL 528461 Contact Us For Availability
38
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
38
GROMMET WPL 683961 Contact Us For Availability
38
PIN, WHEEL (REAR) WPL 649653 Contact Us For Availability
39
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
39
WIRE HARNESS, MAIN WPL 688381 Contact Us For Availability
39
CAP, CONNECTOR WPL 681871 Contact Us For Availability
39
PIN, WHEEL WPL 649651 Contact Us For Availability
40
COVER WPL 663811 Contact Us For Availability
40
EXTENSION,GROMMET TO FILL TUBE WPL 683042 Contact Us For Availability
40
CAP, FILL TUBE WPL 683261 Contact Us For Availability
40
SCREW WPL 6527542 Contact Us For Availability
40
SUPPORT RAIL WPL 672551 Contact Us For Availability
42
CAPACITOR, RUN WPL 658892 Contact Us For Availability
43
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
44
MANUAL, USE & CARE WPL 1071002 Contact Us For Availability
× ![]()
