Model Whirlpool NS20H7H REFRIGERATOR – Common Parts & Diagrams
02 - FREEZER DOOR

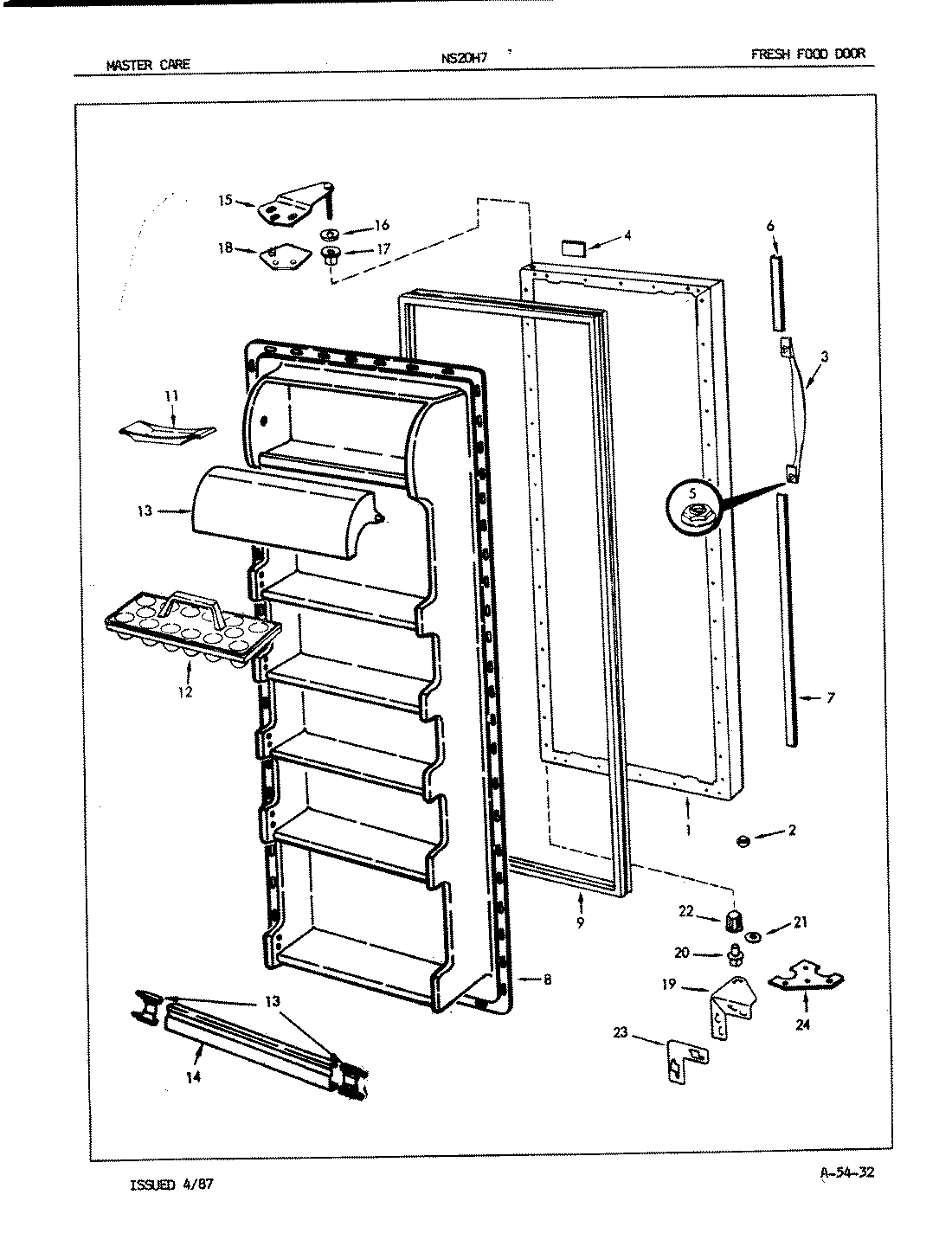

04 - FRESH FOOD DOOR

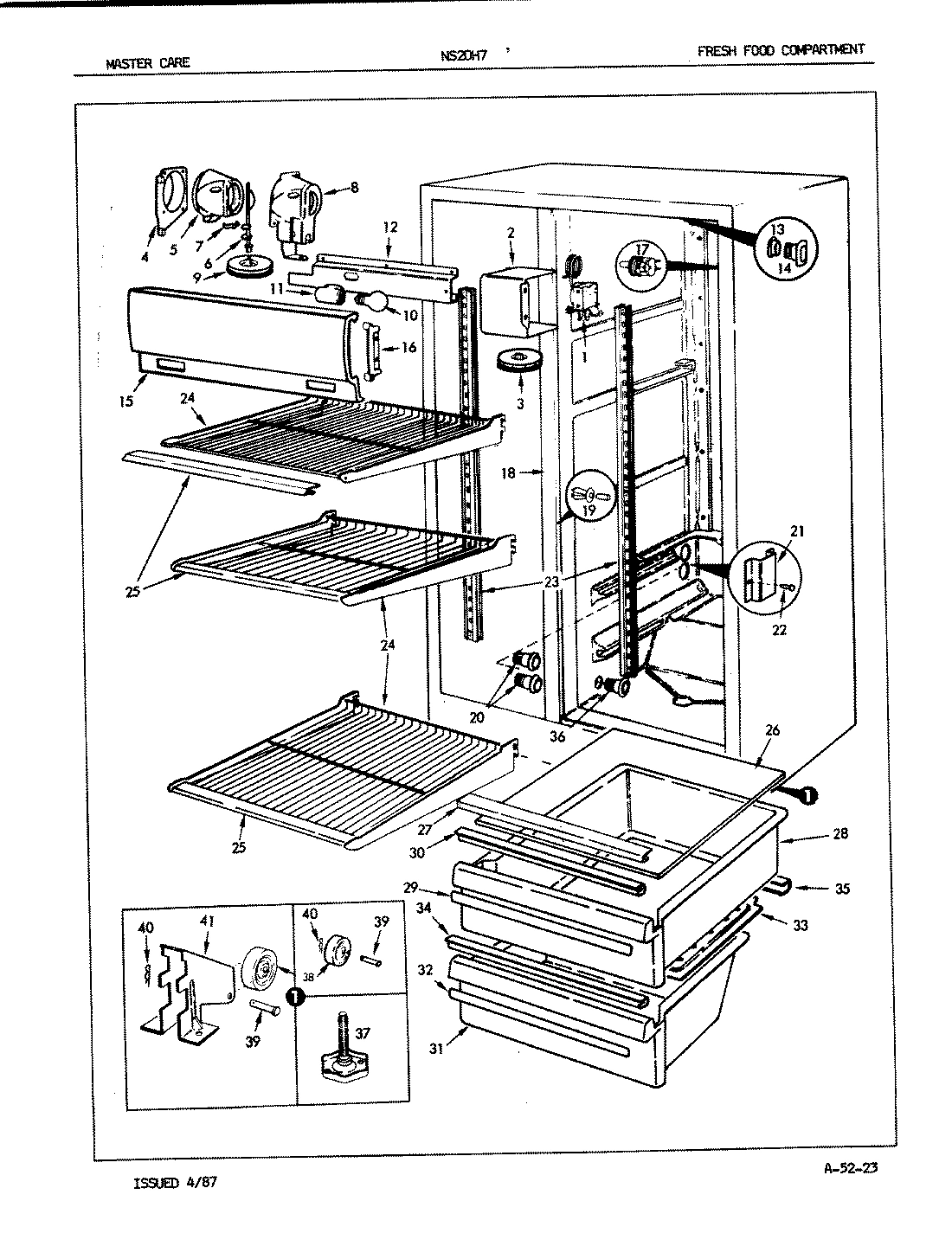

03 - FRESH FOOD COMPARTMENT

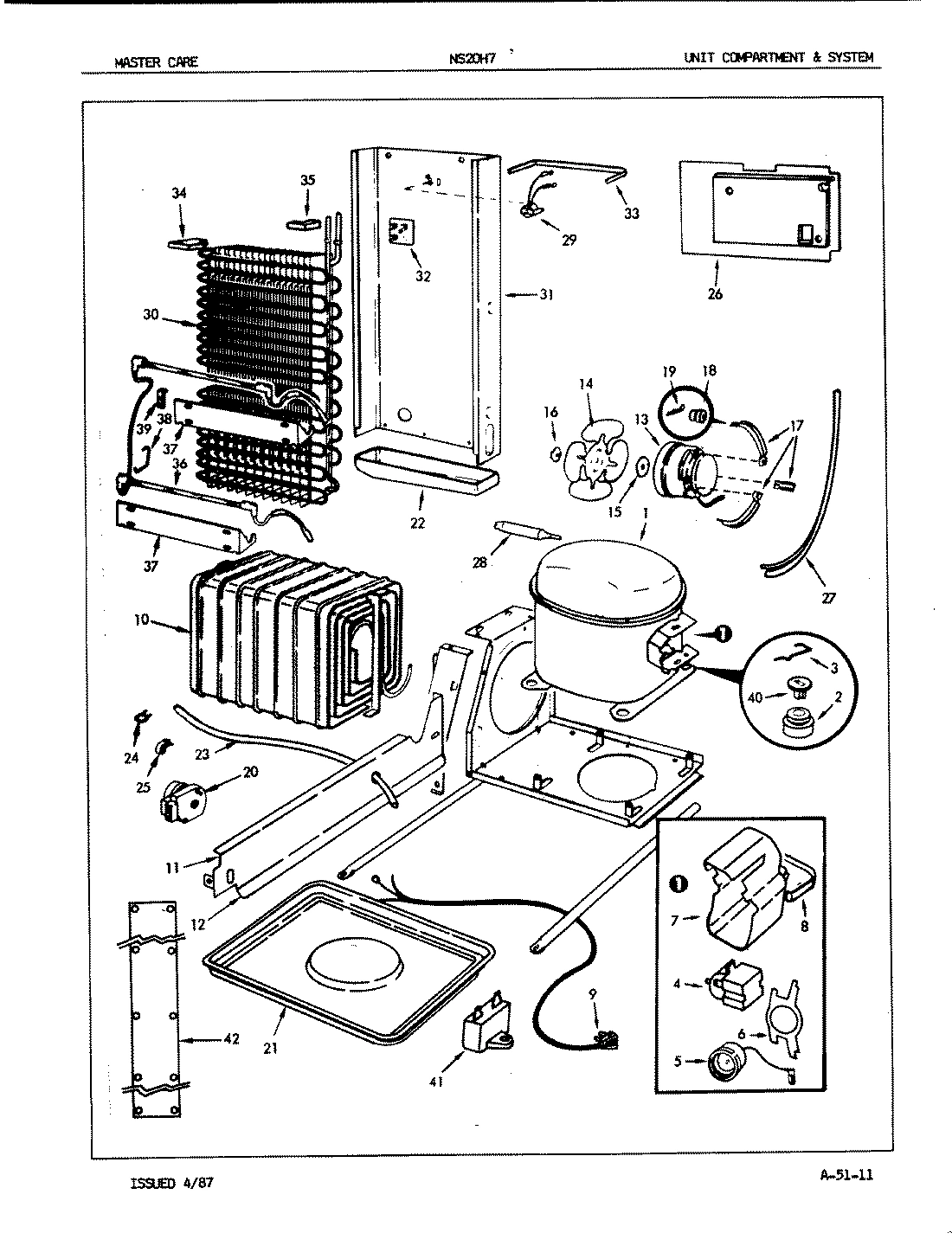

05 - UNIT COMPARTMENT & SYSTEM

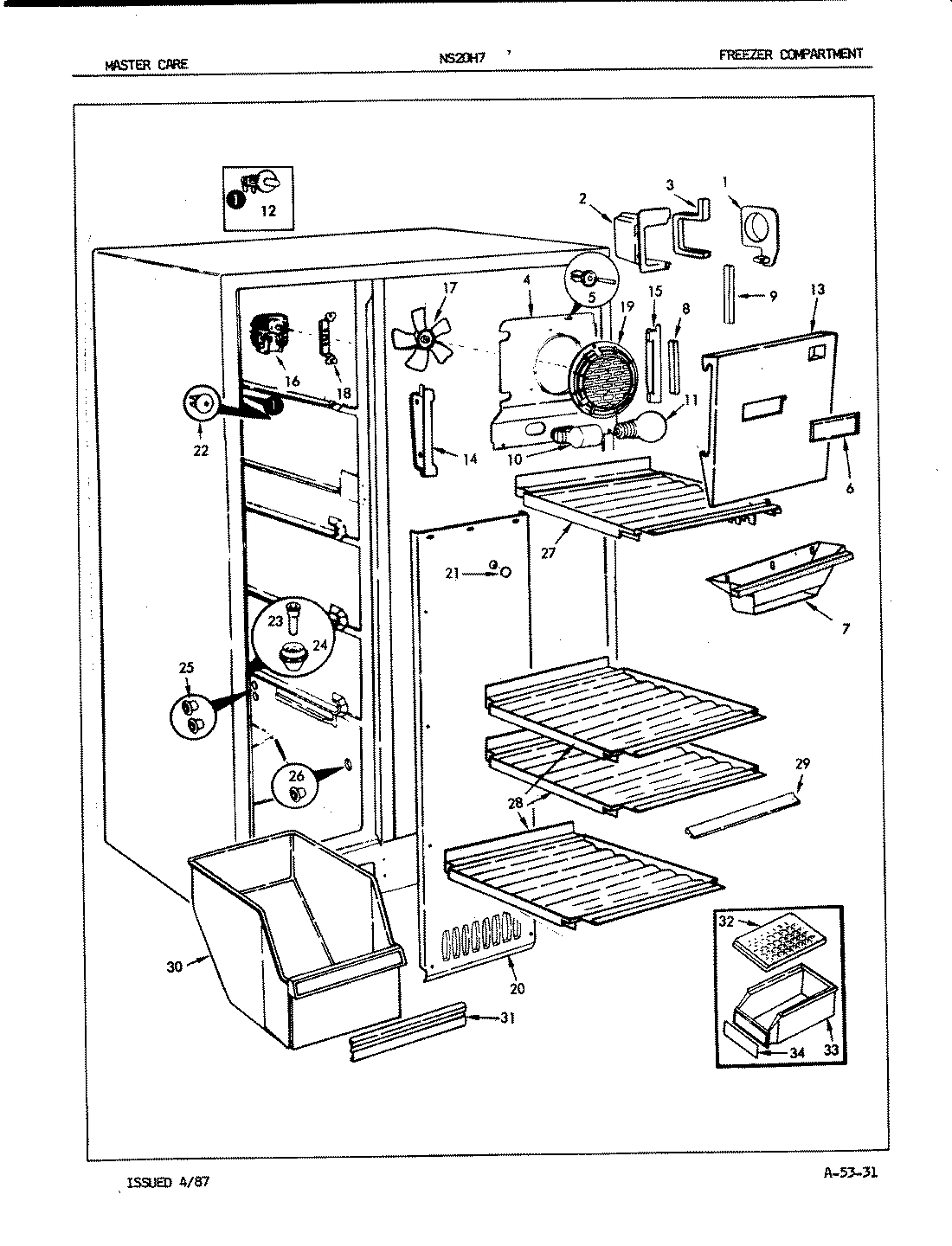

01 - FREEZER COMPARTMENT
Common parts from model Whirlpool NS20H7H REFRIGERATOR
1
INSULATION KIT WPL RA950601 Contact Us For Availability
1
CONTROL, TEMPERATURE WPL 5288123 Contact Us For Availability
1
COMPRESSOR WPL RA1017 Contact Us For Availability
1
ORIFICE WPL 544231 Contact Us For Availability
2
PLUG BUTTON, DOOR WPL 495034900 Contact Us For Availability
2
HOUSING, TEMPERATURE CONTROL WPL 5368210 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SHIELD WPL 538371 Contact Us For Availability
3
HANDLE WPL 636865 Contact Us For Availability
3
KNOB WPL 298935 Contact Us For Availability
3
CLIP WPL 527782 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
3
SEAL WPL 5207710 Contact Us For Availability
4
KICKPLATE WPL 564776 Contact Us For Availability
4
NAMEPLATE WPL 666121 Contact Us For Availability
4
INSERT WPL 667241 Contact Us For Availability
4
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
4
RELAY, START WPL 665883 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
COVER, COIL WPL 6269031 Contact Us For Availability
5
FASTENER WPL 434003506 Contact Us For Availability
5
CLIP, KICKPLATE WPL 528543 Contact Us For Availability
5
SCREW, KICKPLATE MTG. WPL 9986101 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
5
OVERLOAD WPL 6329418 Contact Us For Availability
5
STUD, MOUNTING COIL COVER WPL 599201 Contact Us For Availability
6
HANDLE EXT WPL 6577422 Contact Us For Availability
6
DAMPER WPL 525872 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
INSERT----NA WPL 683251 Contact Us For Availability
6
PLUG BUTTON WPL 684201 Contact Us For Availability
7
HANDLE EXT WPL 6577421 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
8
INNER PANEL WPL 59433216 Contact Us For Availability
8
SCREW WPL 652755 Contact Us For Availability
8
LINER, DOOR WPL 6594410 Contact Us For Availability
8
SCREW WPL 4000271 Contact Us For Availability
8
HOUSING, FREEZER CONTROL WPL 587602 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
SEAL,UPPER COIL COVER TO LINER WPL 5207719 Contact Us For Availability
9
GASKET, DOOR WPL 5371223 Contact Us For Availability
9
GASKET WPL 537127 Contact Us For Availability
9
KNOB WPL 298936 Contact Us For Availability
9
SCREW WPL 402005103 Contact Us For Availability
9
CORD, POWER WPL 528902 Contact Us For Availability
9
COIL SEAL WPL 528246 Contact Us For Availability
10
TRIM, DOOR SHELF WPL 651511 Contact Us For Availability
10
DOOR, DAIRY WPL 66184131 Contact Us For Availability
10
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
10
CLIP, MOUNTING FAN BLADE WPL 550421 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL RA436441 Contact Us For Availability
10
FLANGE HEATER WPL RA436841 Contact Us For Availability
11
TRAY, BUTTER WPL 299362 Contact Us For Availability
11
BAFFLE WPL 298384 Contact Us For Availability
12
TRAY, EGG WPL 600668 Contact Us For Availability
12
HOUSING WPL 597401 Contact Us For Availability
12
SWITCH WPL 564322 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664941 Contact Us For Availability
12
SCREW WPL 998645 Contact Us For Availability
13
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
13
TUNNEL WPL 574101 Contact Us For Availability
13
FAN MOTOR WPL 280569 Contact Us For Availability
13
SCREW WPL 641391 Contact Us For Availability
13
SHIELD, LIGHT WPL 682461 Contact Us For Availability
14
TRIM, DOOR SHELF WPL 65151208 Contact Us For Availability
14
RETAINER WPL 574111 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 629342 Contact Us For Availability
14
SUPPORT WPL 536872 Contact Us For Availability
15
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
15
SCREW WPL 998687 Contact Us For Availability
15
SHIELD, LIGHT WPL 655781 Contact Us For Availability
15
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
15
SUPPORT WPL 544242 Contact Us For Availability
16
WASHER WPL 521851 Contact Us For Availability
16
HINER, LOWER (CHROME) WPL 6063010 Contact Us For Availability
16
SUPPORT WPL 536862 Contact Us For Availability
16
MOTOR WPL 564884 Contact Us For Availability
17
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
17
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
18
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
18
CHANNEL,MULLION DIVID.(WHITE) WPL 590261WW Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
19
SCREW WPL 4030625 Contact Us For Availability
19
HINGE, LOWER WPL 6063012 Contact Us For Availability
19
CLIP WPL 530604 Contact Us For Availability
19
STUD, (WHITE) WPL 5992013 Contact Us For Availability
19
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
19
GRID, FAN WPL 682531 Contact Us For Availability
20
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
20
AIR TUNNEL WPL 537261 Contact Us For Availability
20
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
20
SCREW WPL 4050071 Contact Us For Availability
20
TIMER, DEFROST WPL 661282 Contact Us For Availability
20
COVER, FREEZER COIL (LOWER) WPL 642243 Contact Us For Availability
21
WASHER WPL 542331 Contact Us For Availability
21
AIR DEFLECTOR WPL 621281 Contact Us For Availability
21
MOISTROL PAN WPL 298395 Contact Us For Availability
21
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
21
PLUG BUTTON WPL 495015900 Contact Us For Availability
22
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
22
TROUGH, DRAIN WPL 535231 Contact Us For Availability
23
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
23
SCREW WPL 40003728 Contact Us For Availability
23
RAIL, SHELF SUPPORT WPL 583814 Contact Us For Availability
23
HOSE, DRAIN WPL 2691118 Contact Us For Availability
23
DRAIN TUBE WPL 265279 Contact Us For Availability
24
TAPPING PLATE, LOWER HINGE WPL 659641 Contact Us For Availability
24
SHELF, WIRE WPL 656063 Contact Us For Availability
24
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
24
GROMMET WPL 525261 Contact Us For Availability
25
TRIM WPL 656141 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
26
SHELF, CRISPER (GLASS) WPL 656871 Contact Us For Availability
26
COVER WPL 663391 Contact Us For Availability
26
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
27
SEAL WPL 660921 Contact Us For Availability
27
COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability
27
HEAT EXCHANGER WPL RA4364510 Contact Us For Availability
27
SHELF, FRZ. No.1 WPL 656519 Contact Us For Availability
27
ANCHOR SCREW WPL 670541 Contact Us For Availability
28
PAN, CRISPER WPL 657699 Contact Us For Availability
28
SHELF, FRZ. No.2,3,4 WPL 656511 Contact Us For Availability
29
INSERT, CRISPER PAN WPL 6558370 Contact Us For Availability
29
THERMOSTAT, DEFROST WPL 5208513 Contact Us For Availability
29
TRIM WPL 663161 Contact Us For Availability
30
SEAL WPL 655931 Contact Us For Availability
30
EVAPORATOR WPL RA436431 Contact Us For Availability
30
DRAWER, FRZ. WPL 657714 Contact Us For Availability
31
PAN, MEAT WPL 657706 Contact Us For Availability
31
HOUSING, FREEZER COIL WPL 650331 Contact Us For Availability
31
INSERT, FRZ DRAWER WPL 6558372 Contact Us For Availability
32
INSERT, MEAT KEEPER PAN WPL 6558371 Contact Us For Availability
32
BOARD, TERMINAL WPL 558781 Contact Us For Availability
32
ICE CUBE TRAY WPL 601121 Contact Us For Availability
33
COVER, MEAT PAN WPL 656083 Contact Us For Availability
33
SEAL,HOUSING TO LINER WPL 520779 Contact Us For Availability
33
PAN WPL 665921 Contact Us For Availability
34
SEAL, MEAT PAN (FRONT) WPL 656481 Contact Us For Availability
34
CLIP,FOOD LINER MOUNT.(SLIDES) WPL 574181 Contact Us For Availability
34
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
34
INSERT WPL 6061414 Contact Us For Availability
35
SEAL, MEAT PAN (REAR) WPL 656491 Contact Us For Availability
35
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
36
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
36
HEATER, DEFROST WPL 5276414 Contact Us For Availability
37
LEG, LEVELING WPL 60128 Contact Us For Availability
37
REFLECTOR WPL 2991512 Contact Us For Availability
38
WHEEL WPL 298342 Contact Us For Availability
38
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
39
PIVOT PIN, WHEEL (REAR) WPL 625801 Contact Us For Availability
39
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
40
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
40
WIRE HARNESS WPL 682281 Contact Us For Availability
41
SCREW WPL 4000621 Contact Us For Availability
41
BRACKET WPL 528461 Contact Us For Availability
41
CLIP, FOOD LINER MOUNT.TOP&BOT WPL 564381 Contact Us For Availability
41
WIRE HARNESS WPL 662011 Contact Us For Availability
41
CAPACITOR, RUN WPL 658892 Contact Us For Availability
42
SCREW WPL 4000171 Contact Us For Availability
42
COVER WPL 663811 Contact Us For Availability
× ![]()
