Model GE NS19H60MA500A Room Air Conditioner Built In – Common Parts & Diagrams

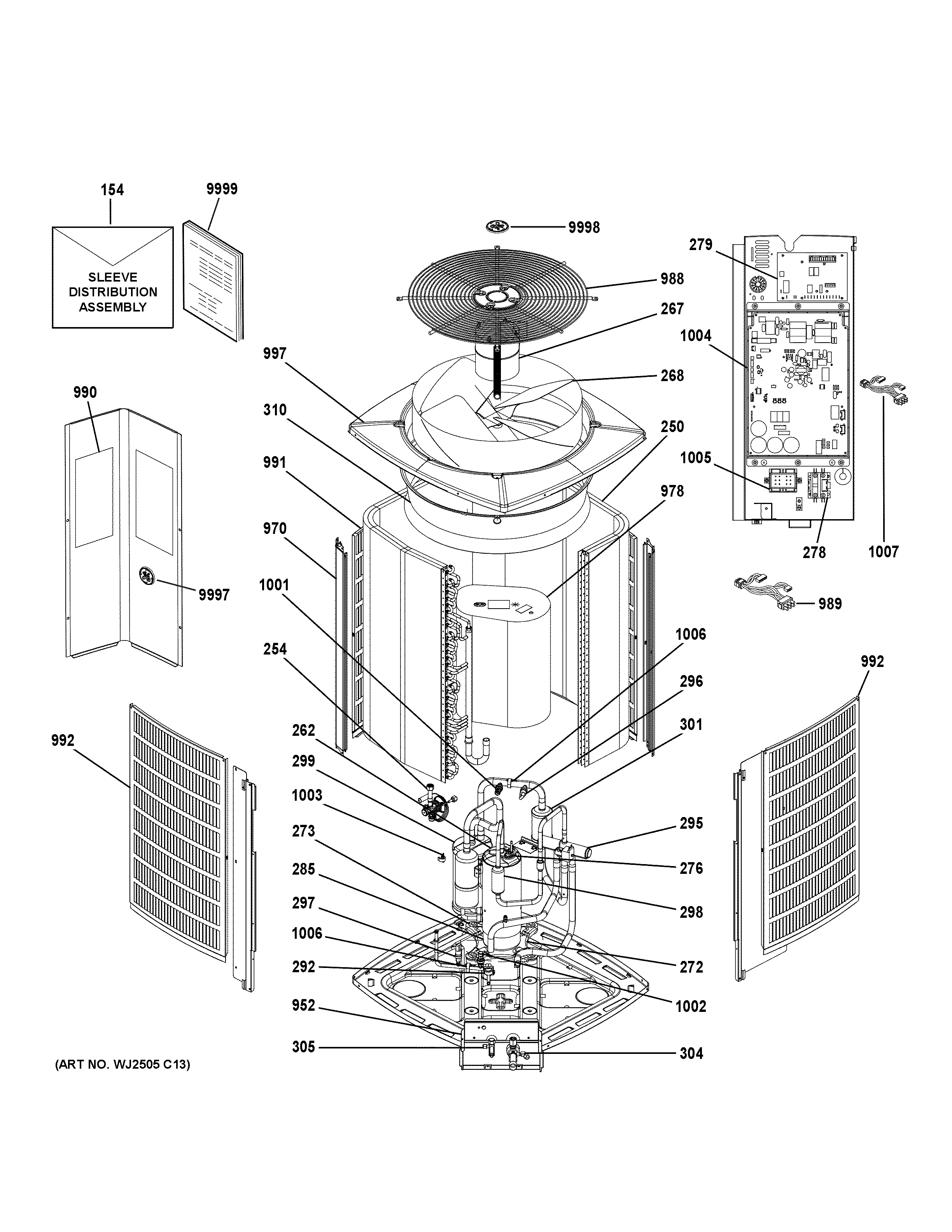

Common parts from model GE NS19H60MA500A Room Air Conditioner Built In

ROOM AIR CONDITIONER

Print

• This Diagram
• All Diagrams

154

DISTRIB ASSY - SLEEVED W/TUBES Backorder GEN 14V54 View Details $79.80

View on Model

250

ASSY-COIL COND 42 X 81, 2R 5/16, 22FPI-( GEN R62207101 Contact Us For Availability

View on Model

254

VALVE-EXPANSION CHECK Backorder GEN 27P54 View Details $75.55

View on Model

262

COMPRESSOR ROTARY VARI SPEED K Backorder GEN 28G04 View Details $537.05

View on Model

267

MOTOR-FAN 1/3HP 208/230V 60HZ 1PH PWM GEN 28Y63 Contact Us For Availability

View on Model

268

100017-09 Fan Assy GEN 27W59 Contact Us For Availability

View on Model

272

GROMMET-COMPRESSOR-(CTO) GEN R10030301 Contact Us For Availability

View on Model

273

BOLT-SLEEVE COMBINATION-(CTO) GEN R10030101 Contact Us For Availability

View on Model

276

HARNESS-COMPR VARI SPD ROTARY-(CTO) GEN 15T35 Contact Us For Availability

View on Model

278

CONTACTOR SPST 40A GEN 27P53 Contact Us For Availability

View on Model

279

ASSY-P.C.BOARD OMEGA- ST MICRO Backorder GEN 28C08 View Details $71.68

View on Model

285

100499-24 CC HEATER 40W 240V GEN 12U71 Contact Us For Availability

View on Model

292

100503-13 THERMOSTAT-CC Heater GEN 12U74 Contact Us For Availability

View on Model

295

VALVE-REVERSING R454B REVERSIN Backorder GEN 25F78 View Details $42.20

View on Model

296

SWITCH-HI PRESS AUTO RESET GEN 27V88 Contact Us For Availability

View on Model

297

Switch - Low Pressure (40psi) GEN 23W26 Contact Us For Availability

View on Model

298

MUFFLER Backorder GEN 17W04 View Details $42.58

View on Model

299

ACCUMULATOR 115 OZ, 5" DIA, 7/8" CONN GEN 19V43 Contact Us For Availability

View on Model

301

SUCTION FILTER 7/8" DRIER-(CTO) GEN 19V44 Contact Us For Availability

View on Model

304

VALVE-BALL 7/8 X 3/4 Backorder GEN 28F83 View Details $27.60

View on Model

305

VALVE-BALL 3/4 X 3/4 GEN R10451901 Contact Us For Availability

View on Model

310

ORIFICE RING (22 I.D. X 6 DEEP) - BLACK GEN 98M16 Contact Us For Availability

View on Model

952

PNL - ACCESS-(CTO) GEN R62199501E Contact Us For Availability

View on Model

970

POST - CORNER-(CTO) GEN R60230001E Contact Us For Availability

View on Model

978

COVER SOUND - ROTARY COMPRESS-(CTO) GEN 17A16 Contact Us For Availability

View on Model

988

GUARD-FAN WIRE BLACK DIA 25.86-CTO GEN R10696502 Contact Us For Availability

View on Model

989

WRNG HARNS REVRSNG VALVE 50 IN-(CTO) GEN 10027315 Contact Us For Availability

View on Model

990

CNTRL PANEL AC/HP (CTO) GEN 27U46 Contact Us For Availability

View on Model

991

PNL LOUVERED (CURVED) WIDE-(CTO) GEN R62348113E Contact Us For Availability

View on Model

992

PNL LOUVERED (CURVED) NARROW-(CTO) GEN R62348114E Contact Us For Availability

View on Model

997

PNL-TOP DRAWN-(CTO) GEN R48025002U Contact Us For Availability

View on Model

1001

TRANSDUCER SUCTION PRESSURE Backorder GEN 27V91 View Details $23.90

View on Model

1002

TRANSDUCER DISCHARGE PRESSURE Backorder GEN 27V74 View Details $54.44

View on Model

1003

SENSOR-DEFROST (HARNESS) GEN 15P86 Contact Us For Availability

View on Model

1004

INVERTER 230V 6KW 5 TON FOR KPT442MAA NO GEN R10620006 Contact Us For Availability

View on Model

1005

105583-01 REACTOR FOR 6KW INVERTER GEN2 GEN 17G87 Contact Us For Availability

View on Model

1006

106202-02 SENSOR TEMPERATURE 7/8 GEN 19V56 Contact Us For Availability

View on Model

1007

HARNESS-WIRING INVERTER HARNESS GEN 28P68 Contact Us For Availability

View on Model

9997

SIDE GE BADGE GEN 10721303 Contact Us For Availability

View on Model

9998

TOP GE BADGE GEN 10721302 Contact Us For Availability

View on Model

9999

PM SERVICE INSTRUCTIONS GEN 315000644 Contact Us For Availability

View on Model

×
