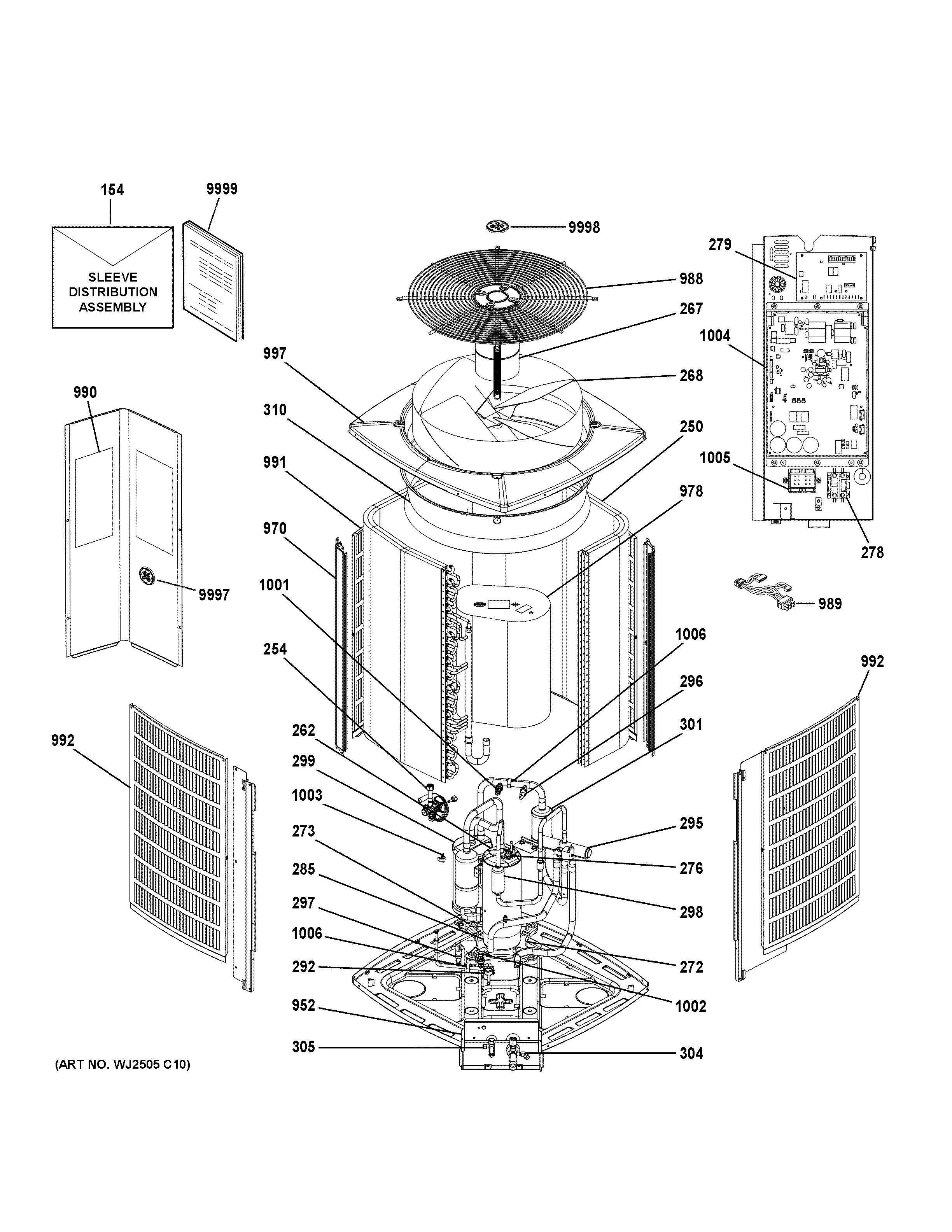

Model GE NS18H36MA450 HVAC – Heat Pump – Common Parts & Diagrams
ROOM AIR CONDITIONER
Common parts from model GE NS18H36MA450 HVAC – Heat Pump
154
DISTRIBUTOR ASSEMBLY - SLEEVED-(CTO) GEN R10108137 Contact Us For Availability
250
ASSY-COIL COND 32 X 73.5, 2R 5/16, 22FPI GEN R62207901 Contact Us For Availability
254
104413-05 Valve-Expansion-(CTO) GEN 24J66 Contact Us For Availability
262
619015-04 COMP VAR SPD ROTARY GJT240 GEN 19U48 Contact Us For Availability
267
MOTOR-FAN 1/3HP 208/230V 60HZ 1PH PWM GEN R10368706 Contact Us For Availability
268
FAN 22 IN-4 BLD 30 PITCH CCW-(CTO) GEN R10006040 Contact Us For Availability
272
GROMMET-COMPRESSOR-(CTO) GEN R10030301 Contact Us For Availability
273
BOLT-SLEEVE COMBINATION-(CTO) GEN R10030101 Contact Us For Availability
276
HARNESS-COMPR VARI SPD ROTARY-(CTO) GEN 15T35 Contact Us For Availability
278
CONTACTOR-SPST 25FLA/35RES GEN 10F73 Contact Us For Availability
279
CONTROL BOARD GEN 25B73 Contact Us For Availability
285
100499-24 CC HEATER 40W 240V GEN 12U71 Contact Us For Availability
292
100503-13 THERMOSTAT-CC Heater GEN 12U74 Contact Us For Availability
295
100145-10 VALVE-REVERSING 1/2 X3/4 GEN 73W83 Contact Us For Availability
296
Switch-High Pressure (590PSI) GEN 55W64 Contact Us For Availability
297
Switch - Low Pressure (40psi) GEN 23W26 Contact Us For Availability
299
SUCTION ACCUMULATOR 3/4"CONN-(CTO) GEN 19V42 Contact Us For Availability
301
SUCTION FILTER - 3/4" DRIER-(CTO) GEN 17A19 Contact Us For Availability
305
VALVE-BALL 3/4 X 3/4 GEN R10451901 Contact Us For Availability
310
ORIFICE RING (22 I.D. X 6) GEN 15Z66 Contact Us For Availability
952
PNL ACCESS-(CTO) GEN R62199502E Contact Us For Availability
970
POST-CORNER-(CTO) GEN R48023003E Contact Us For Availability
978
COVER SOUND - ROTARY COMPRESS-(CTO) GEN 17A16 Contact Us For Availability
988
GUARD-FAN WIRE BLK DIA 25.86-(CTO) GEN R10696501 Contact Us For Availability
989
WRNG HARNS REVRSNG VALVE 50 IN-(CTO) GEN 10027315 Contact Us For Availability
990
PNL CONTROL COVER-(CTO) GEN R61329202E Contact Us For Availability
991
PNL LOUVERED (CURVED) WIDE-(CTO) GEN R62348107E Contact Us For Availability
992
PNL LOUVERED (CURVED) NARROW-(CTO) GEN R62348108E Contact Us For Availability
997
PNL-TOP DRAWN-(CTO) GEN R48025002U Contact Us For Availability
1001
TRANSDUCER SUCTION PRESSURE (EEV) GEN R10412305 Contact Us For Availability
1002
TRANSDUCER DISCHARGE PRESSURE GEN R10412306 Contact Us For Availability
1003
SENSOR-DEFROST (HARNESS) GEN 15P86 Contact Us For Availability
1004
106010-01 INVERTER - 4KW - GJT240 - 3TON GEN 19V47 Contact Us For Availability
1006
106202-01 SENSOR TEMPERATURE 3/4 GEN 19V55 Contact Us For Availability
9997
SIDE GE BADGE GEN 10721303 Contact Us For Availability
9998
TOP GE BADGE GEN 10721302 Contact Us For Availability
9999
PM SERVICE INSTRUCTIONS GEN 315000644 Contact Us For Availability
× ![]()
