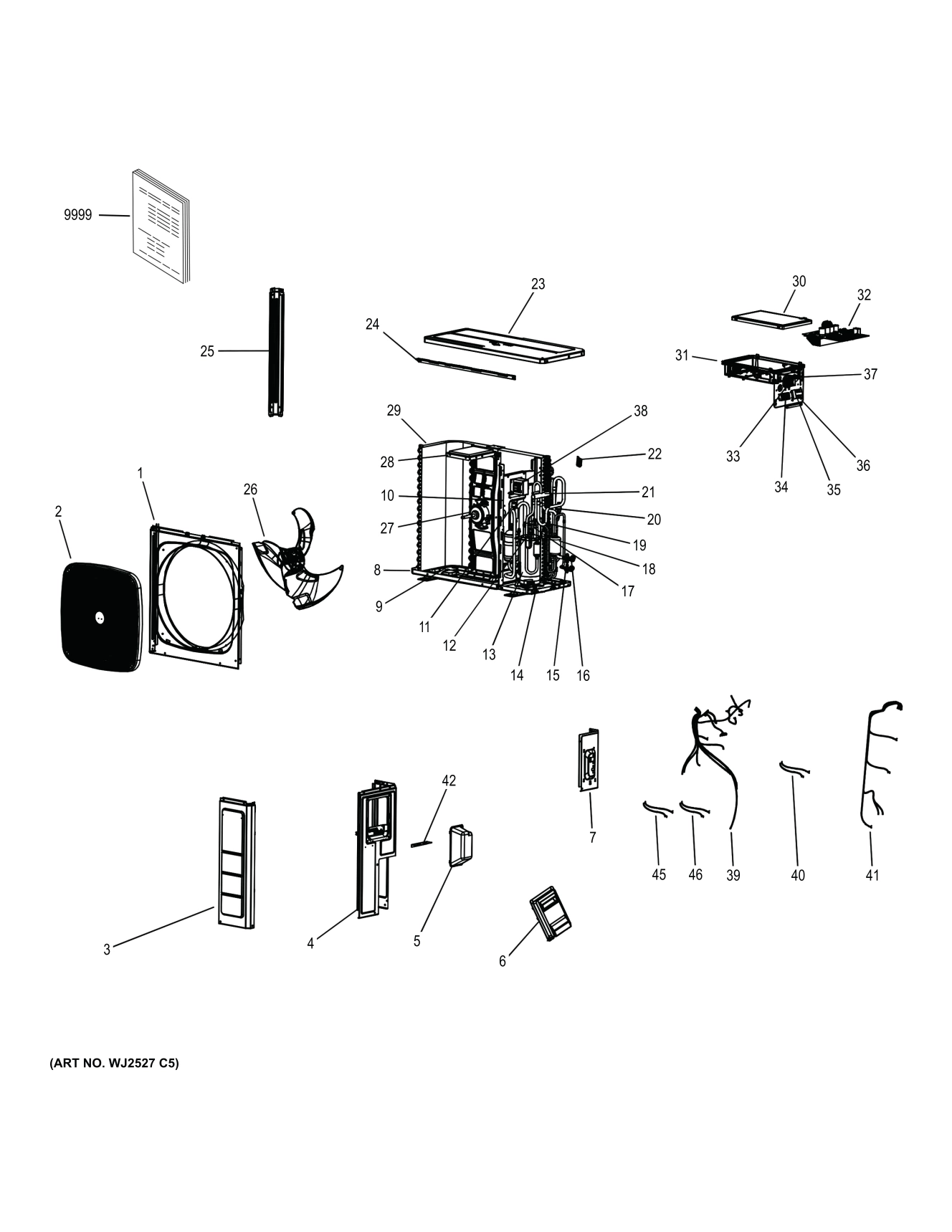

Model GE NS18H24HA5AA1 Room Air Conditioner Built In – Common Parts & Diagrams

1
FRONT PANEL
FRONT PANEL GEN WJ71X34676 Contact Us For Availability
View on Model
2
OUTLET GRILL
OUTLET GRILL GEN WJ71X35604 Contact Us For Availability
View on Model
3
FRONT SERVICE PANEL
FRONT SERVICE PANEL GEN WJ20X34678 Contact Us For Availability
View on Model
5
VALVE COVER
VALVE COVER GEN WJ76X34642 Contact Us For Availability
View on Model
6
HANDLE
HANDLE GEN WJ01X35595 Contact Us For Availability
View on Model
7
VALVE SEAT GROUP
VALVE SEAT GROUP GEN WJ53X35597 Contact Us For Availability
View on Model
8
BOTTOM PLATE ASSEMBLY
BOTTOM PLATE ASSEMBLY GEN WJ71X35654 Contact Us For Availability
View on Model
9
HEATER
HEATER GEN WJ27X34674 Contact Us For Availability
View on Model
10
PARTION PLATE
PARTION PLATE GEN WJ71X35659 Contact Us For Availability
View on Model
13
DC COMPRESSOR
DC COMPRESSOR GEN WJ98X34673 Contact Us For Availability
View on Model
14
CRANK CASE HEATER
CRANK CASE HEATER GEN WJ27X31167 Contact Us For Availability
View on Model
15
LIQUID STOP VALVE
LIQUID STOP VALVE GEN WJ53X34834 Contact Us For Availability
View on Model
16
GAS STOP VALVE
GAS STOP VALVE GEN WJ53X34835 Contact Us For Availability
View on Model
17
GAS LIQUID SEPARATOR
GAS LIQUID SEPARATOR GEN WJ26X29542 Contact Us For Availability
View on Model
19
EXPANSION VALVE
EXPANSION VALVE GEN WJ53X34635 Contact Us For Availability
View on Model
23
TOP COVER
TOP COVER GEN WJ76X34687 Contact Us For Availability
View on Model
24
BEAM
BEAM GEN WJ27X35538 Contact Us For Availability
View on Model
25
STAND COLUMN
STAND COLUMN GEN WJ65X34688 Contact Us For Availability
View on Model
26
FAN BLADE
FAN BLADE GEN WJ73X34639 Contact Us For Availability
View on Model
27
FAN MOTOR DC
FAN MOTOR DC GEN WJ94X34643 Contact Us For Availability
View on Model
28
MOTOR BRACKET
MOTOR BRACKET GEN WJ65X35601 Contact Us For Availability
View on Model
29
CONDENSER ASSY
CONDENSER ASSY GEN WJ88X34686 Contact Us For Availability
View on Model
30
ELECTRICAL BOX COVER
ELECTRICAL BOX COVER GEN WJ76X34637 Contact Us For Availability
View on Model
31
ELECTRIC CONTROL BOX BASE
ELECTRIC CONTROL BOX BASE GEN WJ76X35614 Contact Us For Availability
View on Model
32
MAIN PCB
MAIN PCB GEN WJ26X34689 Contact Us For Availability
View on Model
33
SERVICE POWER CONTROL BOARD
SERVICE POWER CONTROL BOARD GEN WJ26X29336 Contact Us For Availability
View on Model
34
TERMINAL BLOCK
TERMINAL BLOCK GEN WJ35X34645 Contact Us For Availability
View on Model
36
TERMINAL STRIP SHEET METAL
TERMINAL STRIP SHEET METAL GEN WJ76X35620 Contact Us For Availability
View on Model
37
DISPLAY BOARD BASE
DISPLAY BOARD BASE GEN WJ65X34636 Contact Us For Availability
View on Model
39
WIRING HARNESS
WIRING HARNESS GEN WJ35X34647 Contact Us For Availability
View on Model
40
WIRING HARNESS
WIRING HARNESS GEN WJ35X34646 Contact Us For Availability
View on Model
42
SHEET METAL FOR SECURING WIRES
SHEET METAL FOR SECURING WIRES GEN WJ76X35609 Contact Us For Availability
View on Model
45
WIRING HARNESS (Y1 R DEFR)
WIRING HARNESS (Y1 R DEFR) GEN WJ35X36434 Contact Us For Availability
View on Model
46
WIRING HARNESS (GND WIRE)
WIRING HARNESS (GND WIRE) GEN WJ35X36433 Contact Us For Availability
View on Model
9999
PRINTED AND ONLINE INSTALL INSTRUCTIONS
PRINTED AND ONLINE INSTALL INSTRUCTIONS GEN 31-5001053 Contact Us For Availability
View on Model
9999
ONLINE ONLYPRODUCT SPECIFICATION
ONLINE ONLYPRODUCT SPECIFICATION GEN 31-5001098 Contact Us For Availability
