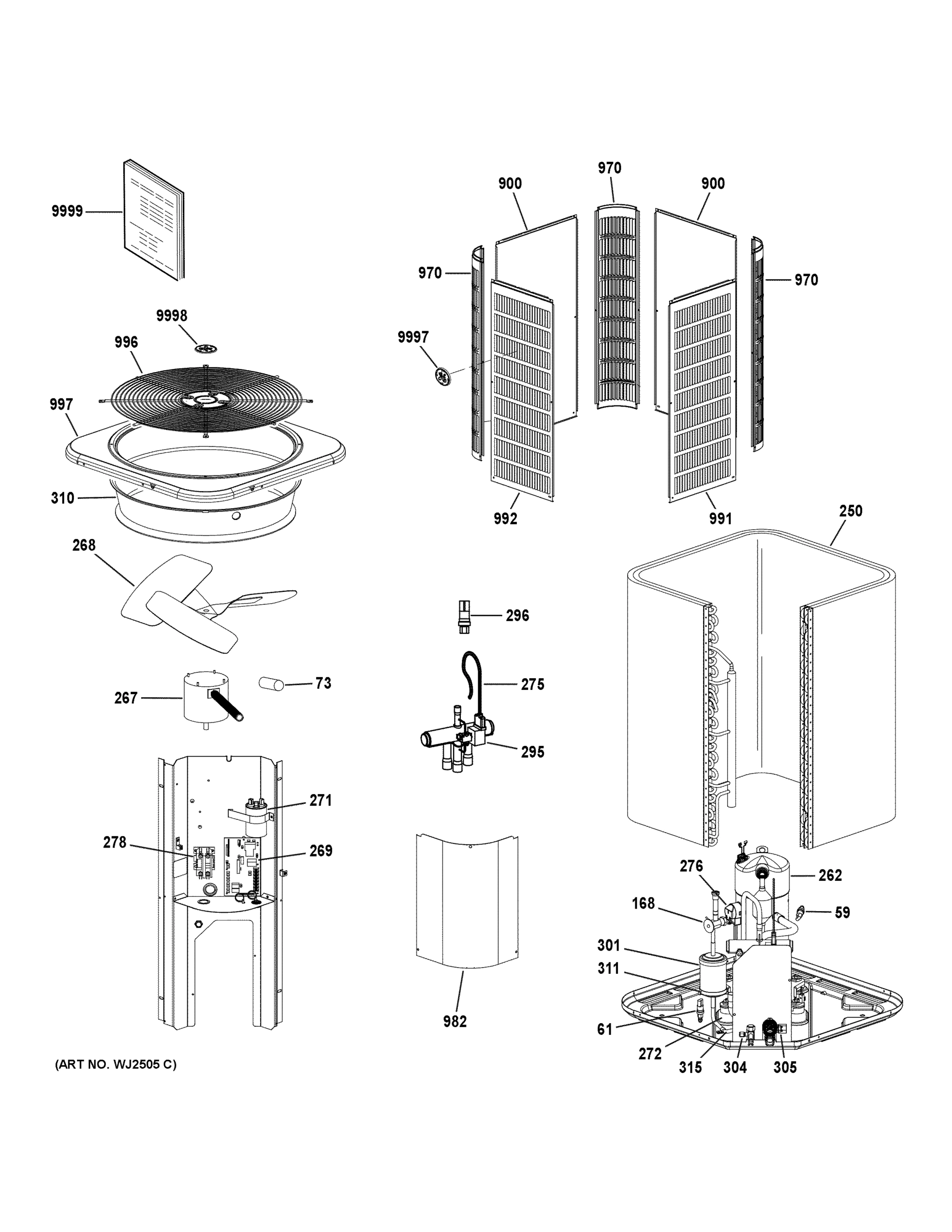

Model GE NS17H60SA451A – Common Parts & Diagrams

5

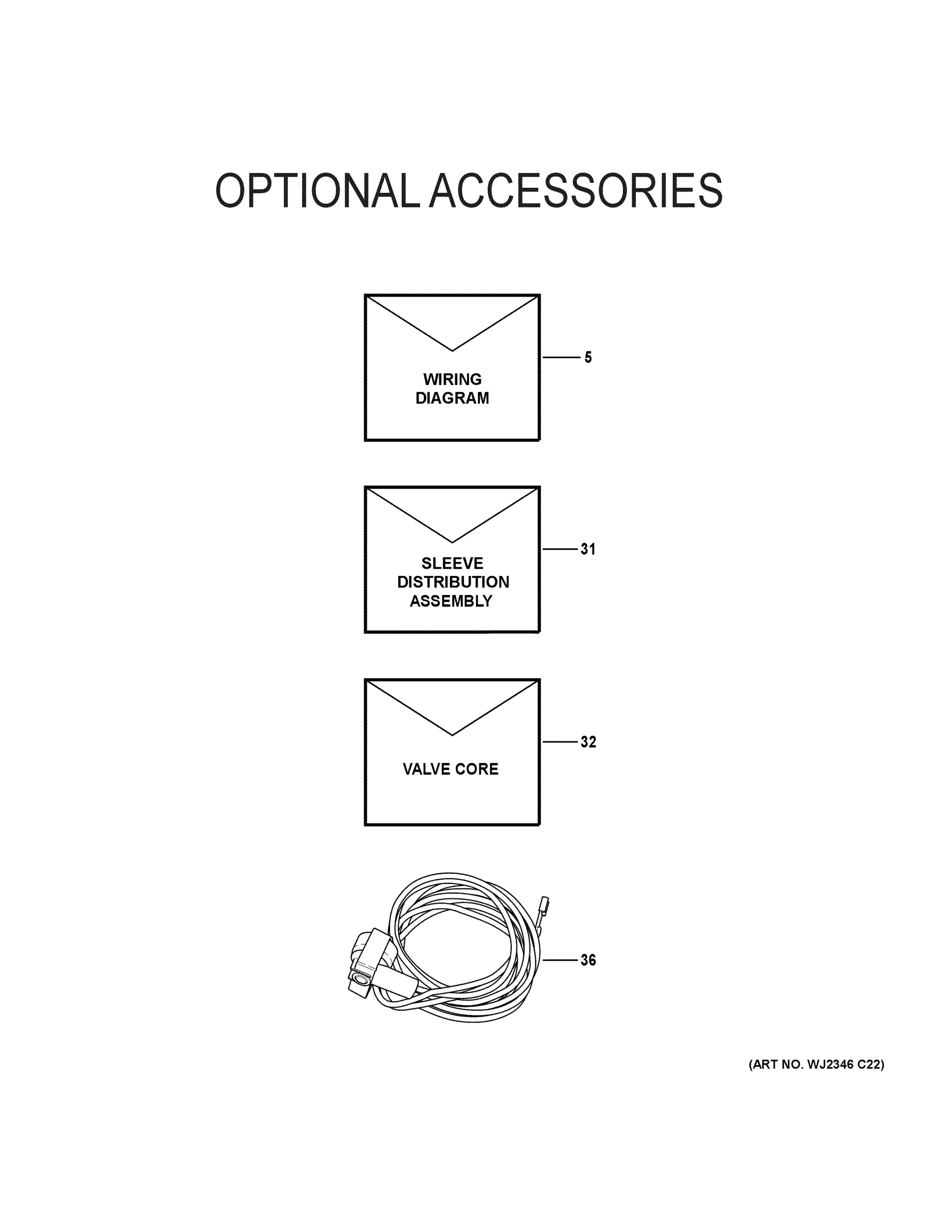

STICKER - WIRING DIAGRAM
STICKER - WIRING DIAGRAM GEN 53824501 Contact Us For Availability
View on Model
32
Valve Core
Valve Core GEN 95M48 Contact Us For Availability
View on Model
36
THERMOSTAT-CC HEATER
THERMOSTAT-CC HEATER GEN 95M54 Contact Us For Availability
View on Model
59
Switch-High Pressure (590PSI)
Switch-High Pressure (590PSI) GEN 55W64 Contact Us For Availability
View on Model
61
Switch - Low Pressure (40psi)
Switch - Low Pressure (40psi) GEN 23W26 Contact Us For Availability
View on Model
73
Bolt Sleeve-(CTO)
Bolt Sleeve-(CTO) GEN 61W00 Contact Us For Availability
View on Model
250
REPAIR COIL ASSY (060
REPAIR COIL ASSY (060 GEN 16H84 Contact Us For Availability
View on Model
262
LG ABH051KAA R410A/230/1
LG ABH051KAA R410A/230/1 GEN 23C41 Contact Us For Availability
View on Model
268
Fan Assy
Fan Assy GEN 21W10 Contact Us For Availability
View on Model
269
CIRCUIT BOARD DEFROST CONTROL
CIRCUIT BOARD DEFROST CONTROL GEN 23X17 Contact Us For Availability
View on Model
271
Dual Run Cap 70+10 @ 440V RND
Dual Run Cap 70+10 @ 440V RND GEN 29W09 Contact Us For Availability
View on Model
272
GROMMET-COMPRESSOR-(CTO)
GROMMET-COMPRESSOR-(CTO) GEN R10030301 Contact Us For Availability
View on Model
275
Harness-Reversing Valve
Harness-Reversing Valve GEN 42W61 Contact Us For Availability
View on Model
276
LG HARNESS-COMP MOLDED PLUG
LG HARNESS-COMP MOLDED PLUG GEN 13U62 Contact Us For Availability
View on Model
278
CONTACTOR-SPST 35FLA/40RES
CONTACTOR-SPST 35FLA/40RES GEN 10F74 Contact Us For Availability
View on Model
295
100145-09 VALVE-REVERSING (1/2 X 7/8)
100145-09 VALVE-REVERSING (1/2 X 7/8) GEN 42W59 Contact Us For Availability
View on Model
296
SENSOR-DEFROST (HARNESS)
SENSOR-DEFROST (HARNESS) GEN 15P86 Contact Us For Availability
View on Model
310
ORIFICE RING (26x6 DEEP)
ORIFICE RING (26x6 DEEP) GEN 15Z67 Contact Us For Availability
View on Model
311
R100215-07 DRIER - BiFlow (R410A)
R100215-07 DRIER - BiFlow (R410A) GEN 49W23 Contact Us For Availability
View on Model
315
CC Heater 40W 240V
CC Heater 40W 240V GEN 15X40 Contact Us For Availability
View on Model
900
PNL LOUVER CENTER 32 X 42-(CTO)
PNL LOUVER CENTER 32 X 42-(CTO) GEN R62345136E Contact Us For Availability
View on Model
970
POST CORNER 42H-(CTO)
POST CORNER 42H-(CTO) GEN 15J93 Contact Us For Availability
View on Model
982
COVER-CONTROL PANEL
COVER-CONTROL PANEL GEN 61W01 Contact Us For Availability
View on Model
991
PNL LOUVER LEFT 32 X 42-(CTO)
PNL LOUVER LEFT 32 X 42-(CTO) GEN R62345132E Contact Us For Availability
View on Model
992
PNL LOUVER RIGHT 32B X 42H-(CTO)
PNL LOUVER RIGHT 32B X 42H-(CTO) GEN R62345123E Contact Us For Availability
View on Model
996
FAN GUARD-(CTO)
FAN GUARD-(CTO) GEN R10738001 Contact Us For Availability
View on Model
997
PNL TOP (32.25 X 32.25)-(CTO)
PNL TOP (32.25 X 32.25)-(CTO) GEN R62350001 Contact Us For Availability
View on Model
9997
SIDE GE BADGE
SIDE GE BADGE GEN 10721303 Contact Us For Availability
View on Model
9998
TOP GE BADGE
TOP GE BADGE GEN 10721302 Contact Us For Availability
View on Model
9999
PM SERVICE INSTRUCTIONS
PM SERVICE INSTRUCTIONS GEN 315000644 Contact Us For Availability
View on Model
