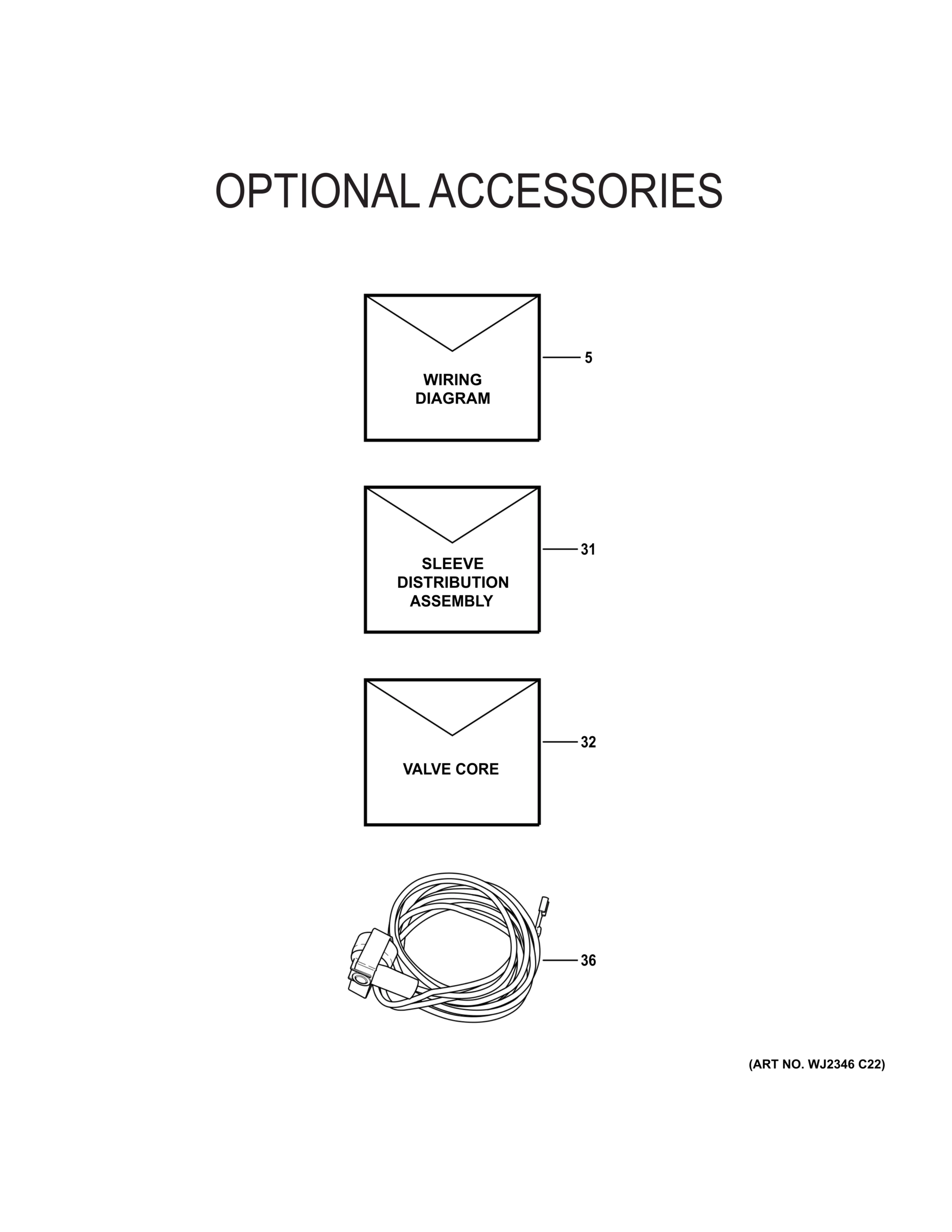

Model GE NS17H36SA400 HVAC – Heat Pump – Common Parts & Diagrams

5
STICKER - WIRING DIAGRAM
STICKER - WIRING DIAGRAM GEN 538243-01 Contact Us For Availability
View on Model
31
101081-34 DISTRIB ASSY - SLEEVED
101081-34 DISTRIB ASSY - SLEEVED GEN 16U12 Contact Us For Availability
View on Model
32
Valve Core
Valve Core GEN 95M48 Contact Us For Availability
View on Model
36
THERMOSTAT-CC HEATER
THERMOSTAT-CC HEATER GEN 95M54 Contact Us For Availability
View on Model
59
Switch-High Pressure (590PSI)
Switch-High Pressure (590PSI) GEN 55W64 Contact Us For Availability
View on Model
61
Switch - Low Pressure (40psi)
Switch - Low Pressure (40psi) GEN 23W26 Contact Us For Availability
View on Model
250
COIL-ASSY ML16XP1-036
COIL-ASSY ML16XP1-036 GEN 17P47 Contact Us For Availability
View on Model
262
LG APH031KAA R410A/230/1
LG APH031KAA R410A/230/1 GEN 23C35 Contact Us For Availability
View on Model
268
100017-13 FAN 26" 3-BLADE 24-PITCH CCW
100017-13 FAN 26" 3-BLADE 24-PITCH CCW GEN 23V42 Contact Us For Availability
View on Model
269
CIRCUIT BOARD DEFROST CONTROL
CIRCUIT BOARD DEFROST CONTROL GEN 23X17 Contact Us For Availability
View on Model
271
Dual Run Cap 45+7.5 MFD 440V
Dual Run Cap 45+7.5 MFD 440V GEN 89M82 Contact Us For Availability
View on Model
272
GROMMET-COMPRESSOR-(CTO)
GROMMET-COMPRESSOR-(CTO) GEN R100303-01 Contact Us For Availability
View on Model
275
Harness-Reversing Valve
Harness-Reversing Valve GEN 42W61 Contact Us For Availability
View on Model
276
LG HARNESS-COMP MOLDED PLUG
LG HARNESS-COMP MOLDED PLUG GEN 13U62 Contact Us For Availability
View on Model
278
CONTACTOR-SPST 25FLA/35RES
CONTACTOR-SPST 25FLA/35RES GEN 10F73 Contact Us For Availability
View on Model
295
Valve-Reversing 1/2 x 7/8(CTO)
Valve-Reversing 1/2 x 7/8(CTO) GEN 19V97 Contact Us For Availability
View on Model
296
SENSOR-DEFROST (HARNESS)
SENSOR-DEFROST (HARNESS) GEN 15P86 Contact Us For Availability
View on Model
310
ORIFICE RING (26x6 DEEP)
ORIFICE RING (26x6 DEEP) GEN 15Z67 Contact Us For Availability
View on Model
311
DRIER - BiFlow (R410A)CTO
DRIER - BiFlow (R410A)CTO GEN 49W23 Contact Us For Availability
View on Model
900
PNL LOUVER CENTER 32 X 32-(CTO)
PNL LOUVER CENTER 32 X 32-(CTO) GEN R623451-34E Contact Us For Availability
View on Model
970
POST CORNER 32H-(CTO)
POST CORNER 32H-(CTO) GEN R608868-03E Contact Us For Availability
View on Model
982
COVER-CONTROL PANEL
COVER-CONTROL PANEL GEN 61W01 Contact Us For Availability
View on Model
991
PNL LOUVER RIGHT 32BX32H-(CTO)
PNL LOUVER RIGHT 32BX32H-(CTO) GEN R623451-30E Contact Us For Availability
View on Model
992
PNL LOUVER LEFT 32 X 32-(CTO)
PNL LOUVER LEFT 32 X 32-(CTO) GEN R623451-21E Contact Us For Availability
View on Model
996
FAN GUARD-(CTO)
FAN GUARD-(CTO) GEN R107380-01 Contact Us For Availability
View on Model
997
PNL TOP (32.25 X 32.25)-(CTO)
PNL TOP (32.25 X 32.25)-(CTO) GEN R623500-01 Contact Us For Availability
View on Model
9997
SIDE GE BADGE
SIDE GE BADGE GEN 107213-03 Contact Us For Availability
View on Model
9998
TOP GE BADGE
TOP GE BADGE GEN 107213-02 Contact Us For Availability
View on Model
9999
PM OTHER
PM OTHER GEN 31-5000644 Contact Us For Availability
View on Model
