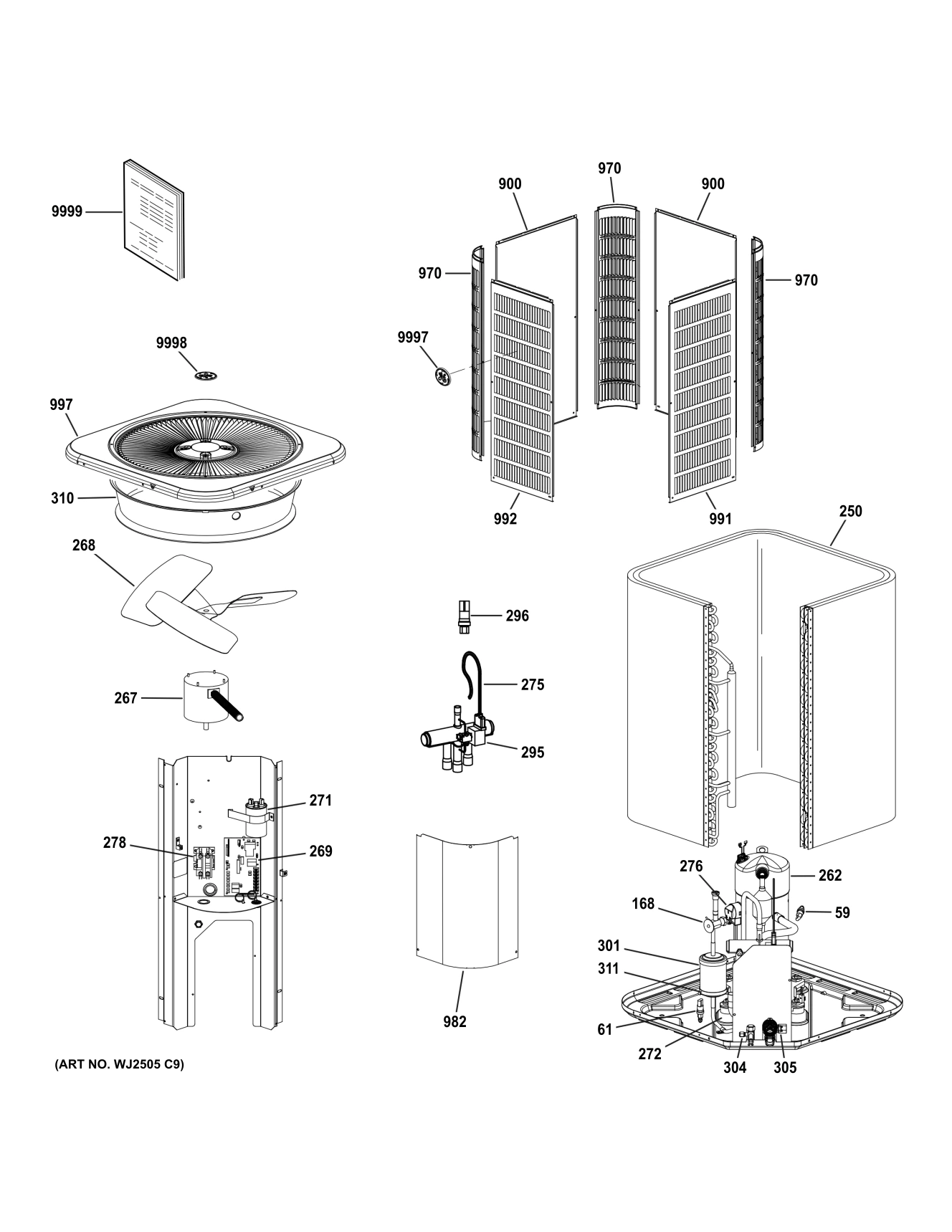

Model GE NS17H24SA400 HVAC – Heat Pump – Common Parts & Diagrams

5

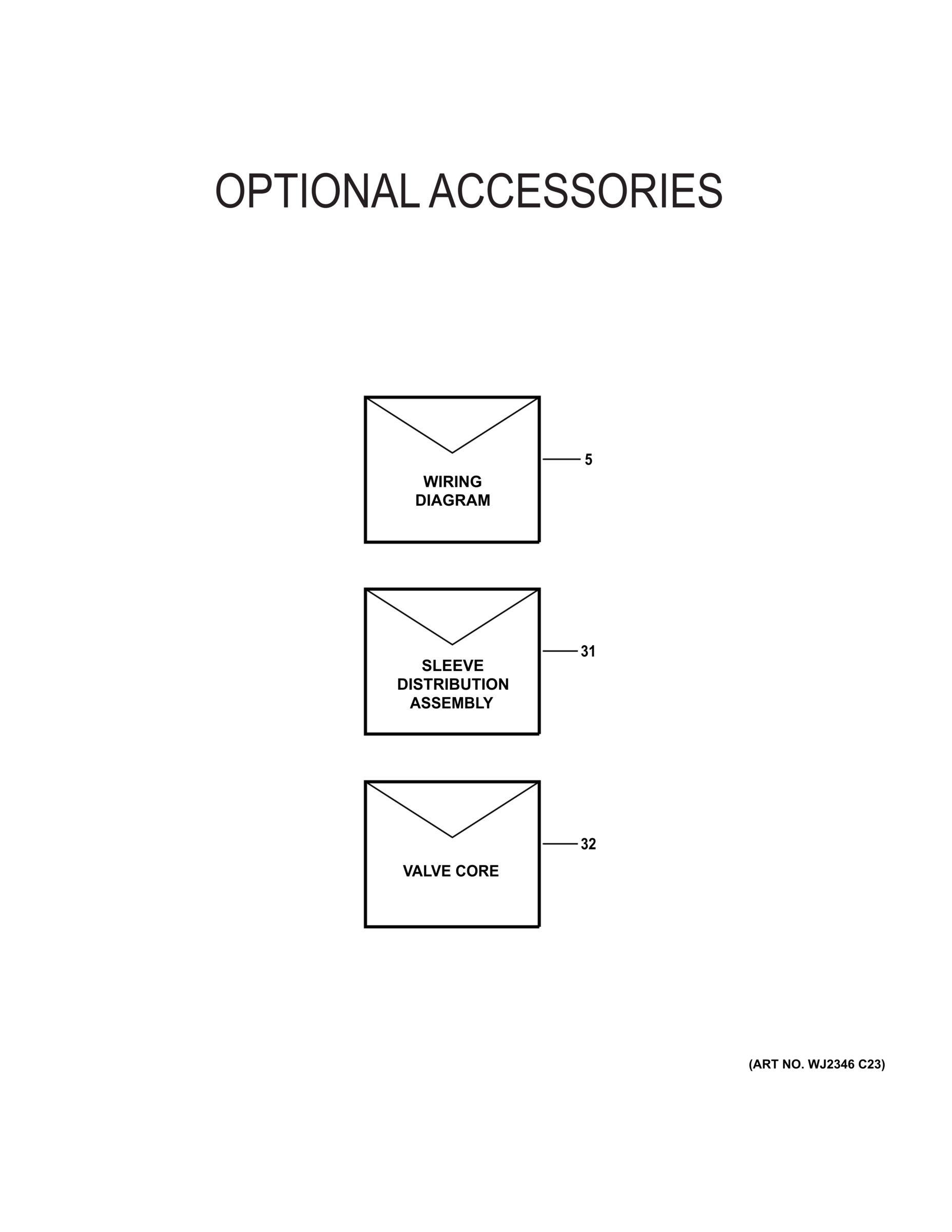

STICKER - WIRING DIAGRAM
STICKER - WIRING DIAGRAM GEN 538243-01 Contact Us For Availability
View on Model
31
101081-34 DISTRIB ASSY - SLEEVED
101081-34 DISTRIB ASSY - SLEEVED GEN 16U12 Contact Us For Availability
View on Model
32
Valve Core
Valve Core GEN 95M48 Contact Us For Availability
View on Model
59
Switch-High Pressure (590PSI)
Switch-High Pressure (590PSI) GEN 55W64 Contact Us For Availability
View on Model
61
Switch - Low Pressure (40psi)
Switch - Low Pressure (40psi) GEN 23W26 Contact Us For Availability
View on Model
250
COIL-ASSY (018/024/030)
COIL-ASSY (018/024/030) GEN 16H70 Contact Us For Availability
View on Model
262
C0 ZP20K7E-PFV R410A/230/1
C0 ZP20K7E-PFV R410A/230/1 GEN 23C09 Contact Us For Availability
View on Model
267
MTR-FAN 1/8HP 230V 60HZ 825RPM
MTR-FAN 1/8HP 230V 60HZ 825RPM GEN 23C07 Contact Us For Availability
View on Model
268
FAN 2 BLADE 24 PITCH CCW
FAN 2 BLADE 24 PITCH CCW GEN 23C06 Contact Us For Availability
View on Model
269
CIRCUIT BOARD DEFROST CONTROL
CIRCUIT BOARD DEFROST CONTROL GEN 23X17 Contact Us For Availability
View on Model
271
Dual Run Cap 35+5 @ 440V ROUND
Dual Run Cap 35+5 @ 440V ROUND GEN 89M74 Contact Us For Availability
View on Model
272
GROMMET-COMPRESSOR-(CTO)
GROMMET-COMPRESSOR-(CTO) GEN R100303-01 Contact Us For Availability
View on Model
278
CONTACTOR-SPST 25FLA/35RES
CONTACTOR-SPST 25FLA/35RES GEN 10F73 Contact Us For Availability
View on Model
295
VALVE-REVERSING 1/2 X 3/4(CTO)
VALVE-REVERSING 1/2 X 3/4(CTO) GEN 34W44 Contact Us For Availability
View on Model
296
SENSOR-DEFROST (HARNESS)
SENSOR-DEFROST (HARNESS) GEN 15P86 Contact Us For Availability
View on Model
310
ORIFICE RING (22 I.D. X 6)
ORIFICE RING (22 I.D. X 6) GEN 15Z66 Contact Us For Availability
View on Model
311
DRIER - BiFlow (R410A)CTO
DRIER - BiFlow (R410A)CTO GEN 49W23 Contact Us For Availability
View on Model
900
PANEL LOUVER CENTER 28 X 42 -(CTO)
PANEL LOUVER CENTER 28 X 42 -(CTO) GEN R623451-28E Contact Us For Availability
View on Model
970
POST-CORNER 42H -(CTO)
POST-CORNER 42H -(CTO) GEN R608868-11E Contact Us For Availability
View on Model
982
COVER-CONTROL PNL-(CTO)
COVER-CONTROL PNL-(CTO) GEN R622353-02E Contact Us For Availability
View on Model
991
PANEL LOUVER RIGHT 28 X 42-(CTO)
PANEL LOUVER RIGHT 28 X 42-(CTO) GEN R623451-19E Contact Us For Availability
View on Model
992
PANEL LOUVER LEFT 28 X 42 -(CTO)
PANEL LOUVER LEFT 28 X 42 -(CTO) GEN R623451-11E Contact Us For Availability
View on Model
997
PNL TOP 28 X 28-(CTO)
PNL TOP 28 X 28-(CTO) GEN R623499-01 Contact Us For Availability
View on Model
9997
SIDE GE BADGE
SIDE GE BADGE GEN 107213-03 Contact Us For Availability
View on Model
9998
TOP GE BADGE
TOP GE BADGE GEN 107213-02 Contact Us For Availability
View on Model
9999
PM OTHER
PM OTHER GEN 31-5000644 Contact Us For Availability
View on Model
