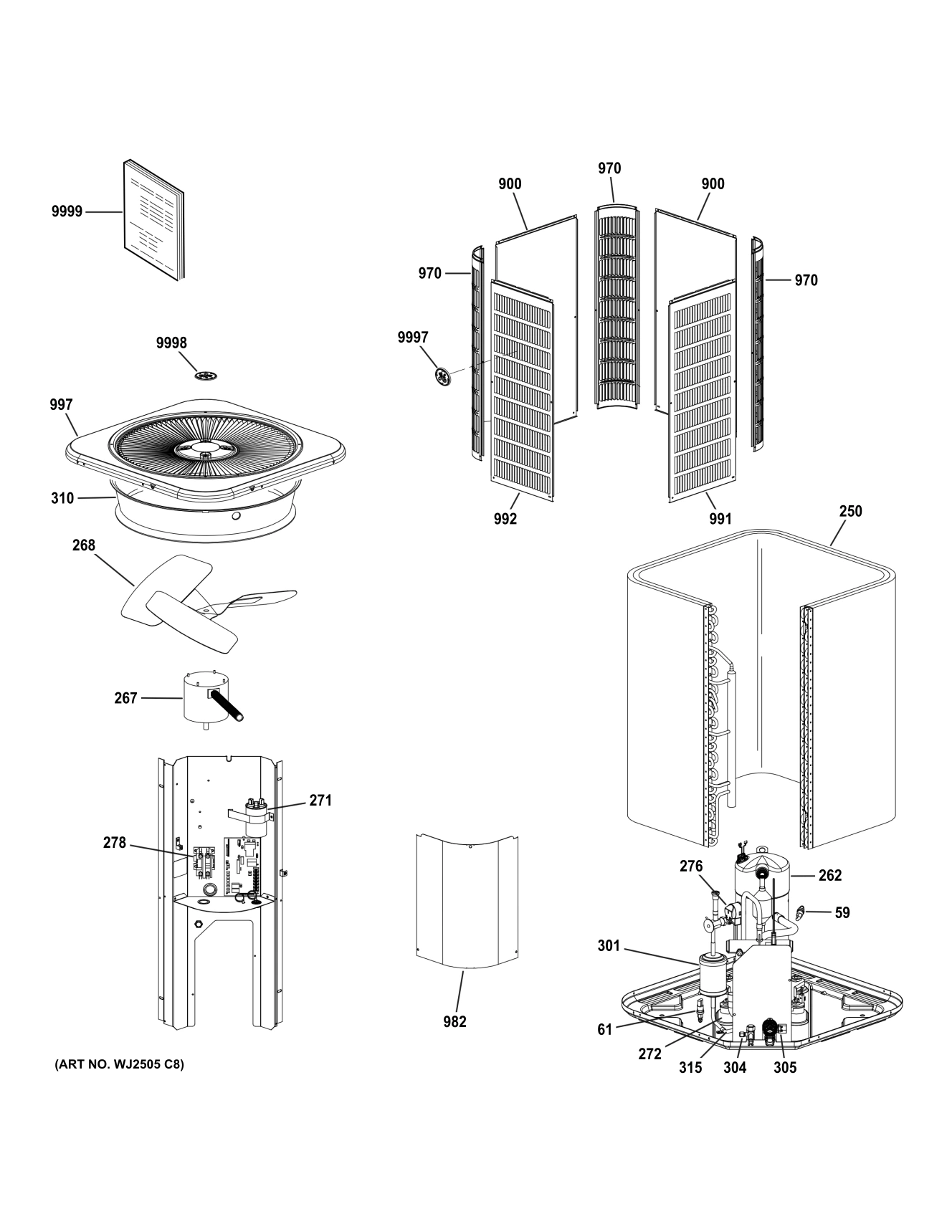

Model GE NS17A48SA400 HVAC – Air Conditioner – Common Parts & Diagrams

5

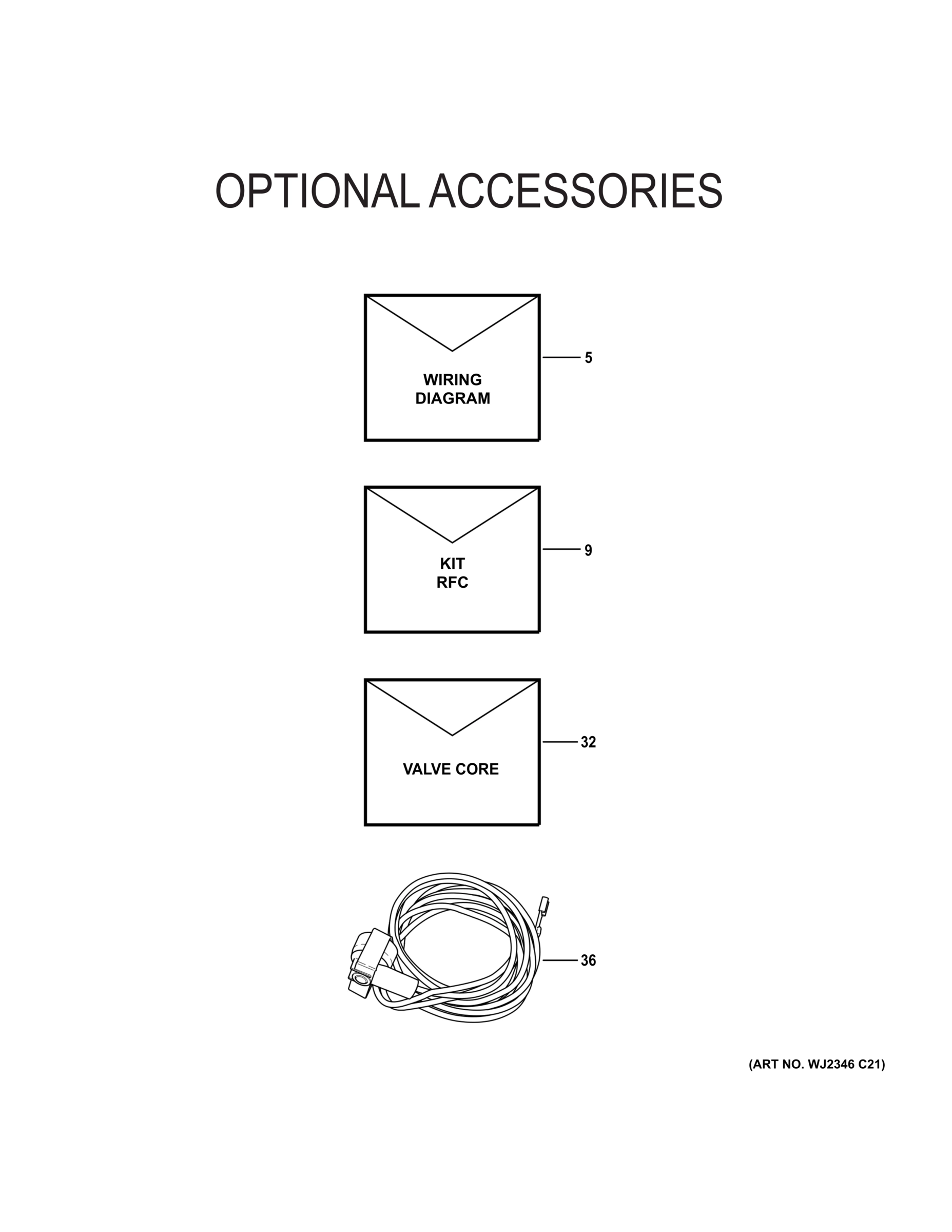

STICKER - WIRING DIAGRAM
STICKER - WIRING DIAGRAM GEN 538261-01 Contact Us For Availability
View on Model
9
100484-32 Kit-RFC (.084)
100484-32 Kit-RFC (.084) GEN 10W87 Contact Us For Availability
View on Model
32
Valve Core
Valve Core GEN 95M48 Contact Us For Availability
View on Model
36
THERMOSTAT-CC HEATER
THERMOSTAT-CC HEATER GEN 95M54 Contact Us For Availability
View on Model
59
100087-12 Switch-High Pressure (590PSI)
100087-12 Switch-High Pressure (590PSI) GEN 93W01 Contact Us For Availability
View on Model
61
SWITCH-LOW PRESSURE (90psi)CTO
SWITCH-LOW PRESSURE (90psi)CTO GEN 15C83 Contact Us For Availability
View on Model
250
619159-08 REPAIR COIL ASSY (623074-02)
619159-08 REPAIR COIL ASSY (623074-02) GEN 23V44 Contact Us For Availability
View on Model
262
ZP42K7E-PFV R410A/230/1
ZP42K7E-PFV R410A/230/1 GEN 23C20 Contact Us For Availability
View on Model
267
100483-43 Cond Fan MTR 1/4HP 208/230-1
100483-43 Cond Fan MTR 1/4HP 208/230-1 GEN 12Y65 Contact Us For Availability
View on Model
268
100060-21 FAN ASSY
100060-21 FAN ASSY GEN 30W24 Contact Us For Availability
View on Model
271
Dual Run Cap 45+10 440V ROUND
Dual Run Cap 45+10 440V ROUND GEN 89M83 Contact Us For Availability
View on Model
272
GROMMET-COMPRESSOR-(CTO)
GROMMET-COMPRESSOR-(CTO) GEN R100303-01 Contact Us For Availability
View on Model
276
HARNESS-COMPRESSOR: MOLDED PLUG
HARNESS-COMPRESSOR: MOLDED PLUG GEN R100213-03 Contact Us For Availability
View on Model
278
CONTACTOR-SPST 35FLA/40RES
CONTACTOR-SPST 35FLA/40RES GEN 10F74 Contact Us For Availability
View on Model
310
ORIFICE RING (22 I.D. X 6)
ORIFICE RING (22 I.D. X 6) GEN 15Z66 Contact Us For Availability
View on Model
315
CC Heater 40W 240V
CC Heater 40W 240V GEN 15X40 Contact Us For Availability
View on Model
900
PNL LOUVER CTR 28X42(GE)-(CTO)
PNL LOUVER CTR 28X42(GE)-(CTO) GEN 623451-28E Contact Us For Availability
View on Model
970
POST CORNER 42H-(CTO)
POST CORNER 42H-(CTO) GEN 608868-05E Contact Us For Availability
View on Model
982
COVER, CTRL PNL(ARMSTRONG)-(CTO)
COVER, CTRL PNL(ARMSTRONG)-(CTO) GEN 622353-02E Contact Us For Availability
View on Model
991
PNL LOUVER RT 28 X 42 (GE)-(CTO)
PNL LOUVER RT 28 X 42 (GE)-(CTO) GEN 623451-19E Contact Us For Availability
View on Model
992
PNL LOUVER LT 28 X 42(GE)-(CTO)
PNL LOUVER LT 28 X 42(GE)-(CTO) GEN 623451-11E Contact Us For Availability
View on Model
997
PNL-TOP MED 28.25X28.25 BLK UMBR-(CTO)
PNL-TOP MED 28.25X28.25 BLK UMBR-(CTO) GEN 623499-01 Contact Us For Availability
View on Model
9997
SIDE GE BADGE
SIDE GE BADGE GEN 107213-03 Contact Us For Availability
View on Model
9998
TOP GE BADGE
TOP GE BADGE GEN 107213-02 Contact Us For Availability
View on Model
9999
PM OTHER
PM OTHER GEN 31-5000644 Contact Us For Availability
View on Model
