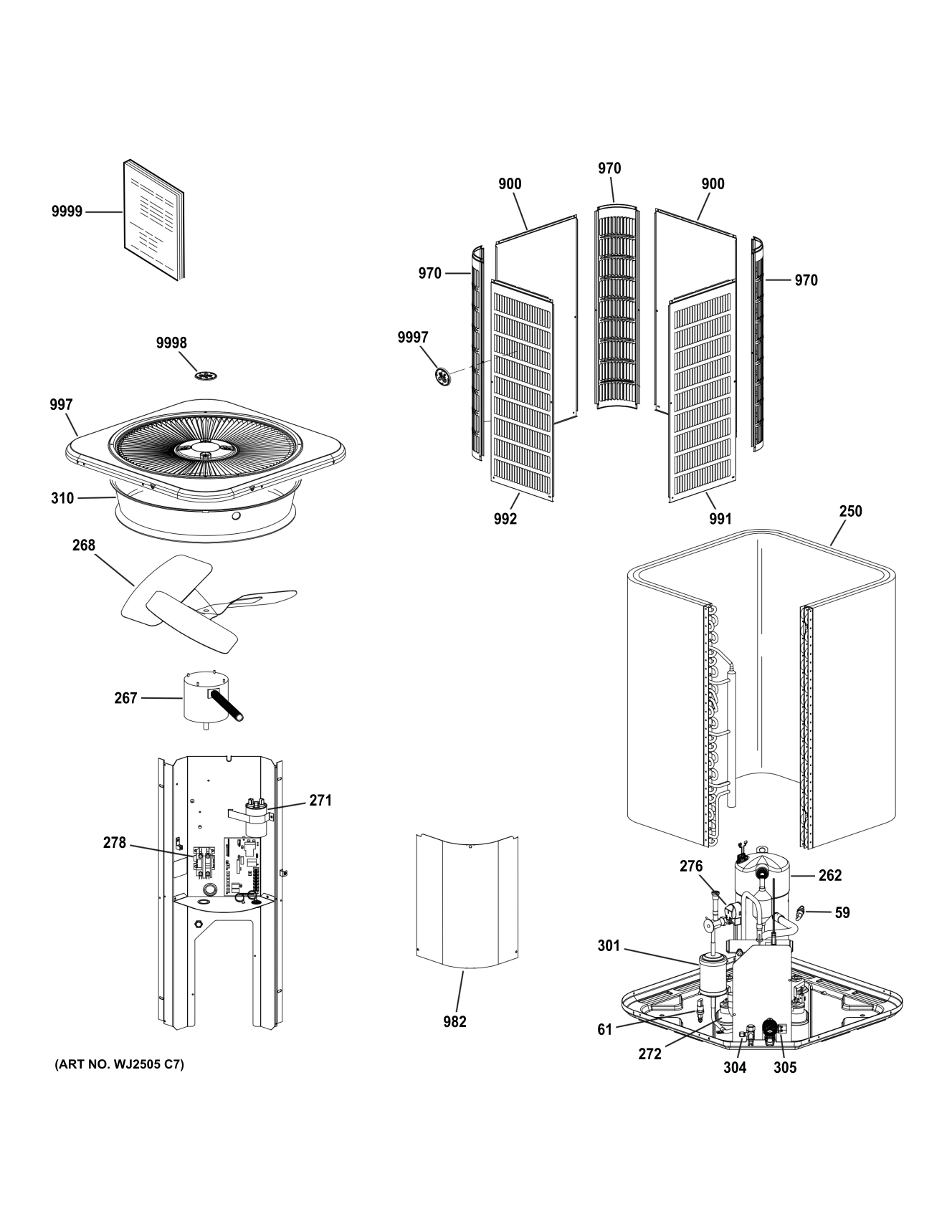

Model GE NS17A30SA400 HVAC – Air Conditioner – Common Parts & Diagrams

5

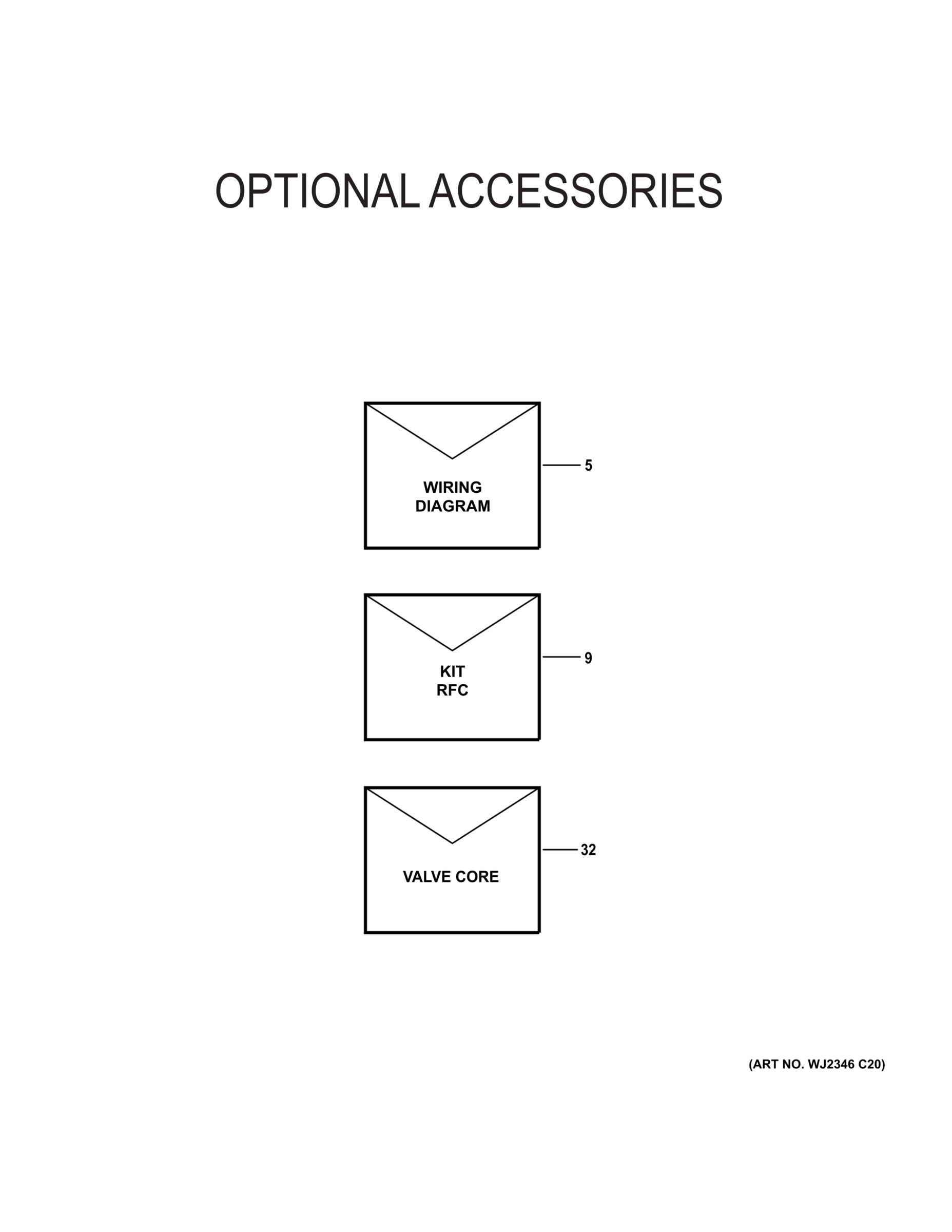

STICKER - WIRING DIAGRAM
STICKER - WIRING DIAGRAM GEN 538261-01 Contact Us For Availability
View on Model
9
100484-16 Kit-RFC (.067)
100484-16 Kit-RFC (.067) GEN 11W00 Contact Us For Availability
View on Model
32
Valve Core
Valve Core GEN 95M48 Contact Us For Availability
View on Model
59
100087-12 Switch-High Pressure (590PSI)
100087-12 Switch-High Pressure (590PSI) GEN 93W01 Contact Us For Availability
View on Model
61
SWITCH-LOW PRESSURE (90psi)CTO
SWITCH-LOW PRESSURE (90psi)CTO GEN 15C83 Contact Us For Availability
View on Model
250
COIL ASSY-(CTO)
COIL ASSY-(CTO) GEN 11Z96 Contact Us For Availability
View on Model
262
107003-06 C0 ZP25K7E-PFV R410A/230/1
107003-06 C0 ZP25K7E-PFV R410A/230/1 GEN 23C10 Contact Us For Availability
View on Model
267
MTR-FAN 1/8HP 230V 60HZ 825RPM
MTR-FAN 1/8HP 230V 60HZ 825RPM GEN 23C07 Contact Us For Availability
View on Model
268
100060-23 Fan Assy
100060-23 Fan Assy GEN 43W37 Contact Us For Availability
View on Model
271
Dual Run Cap 35+5 @ 440V ROUND
Dual Run Cap 35+5 @ 440V ROUND GEN 89M74 Contact Us For Availability
View on Model
272
GROMMET-COMPRESSOR-(CTO)
GROMMET-COMPRESSOR-(CTO) GEN R100303-01 Contact Us For Availability
View on Model
278
CONTACTOR-SPST 25FLA/35RES
CONTACTOR-SPST 25FLA/35RES GEN 10F73 Contact Us For Availability
View on Model
304
VALVE-SERVICE 3/4"-
VALVE-SERVICE 3/4"- GEN 10M24 Contact Us For Availability
View on Model
305
VALVE-SERVICE 3/8"
VALVE-SERVICE 3/8" GEN 10M23 Contact Us For Availability
View on Model
310
ORIFICE RING (22 I.D. X 6)
ORIFICE RING (22 I.D. X 6) GEN 15Z66 Contact Us For Availability
View on Model
900
PNL LOUVER CTR 28 X 28-(CTO)
PNL LOUVER CTR 28 X 28-(CTO) GEN 623451-25E Contact Us For Availability
View on Model
970
POST CORNER 28H-(CTO)
POST CORNER 28H-(CTO) GEN 608868-02E Contact Us For Availability
View on Model
982
COVER, CTRL PNL(ARMSTRONG)-(CTO)
COVER, CTRL PNL(ARMSTRONG)-(CTO) GEN 622354-02E Contact Us For Availability
View on Model
991
PNL LOUVER RT -28B X 28H-(CTO)
PNL LOUVER RT -28B X 28H-(CTO) GEN 623451-16E Contact Us For Availability
View on Model
992
PNL LOUVER LT 28 X 28-(CTO)
PNL LOUVER LT 28 X 28-(CTO) GEN 623451-08E Contact Us For Availability
View on Model
997
PNL-TOP MED 28.25X28.25 BLK UMBR-(CTO)
PNL-TOP MED 28.25X28.25 BLK UMBR-(CTO) GEN 623499-01 Contact Us For Availability
View on Model
9997
SIDE GE BADGE
SIDE GE BADGE GEN 107213-03 Contact Us For Availability
View on Model
9998
TOP GE BADGE
TOP GE BADGE GEN 107213-02 Contact Us For Availability
View on Model
9999
PM OTHER
PM OTHER GEN 31-5000644 Contact Us For Availability
View on Model
