Model GE NS17A24SA452A – Common Parts & Diagrams

5

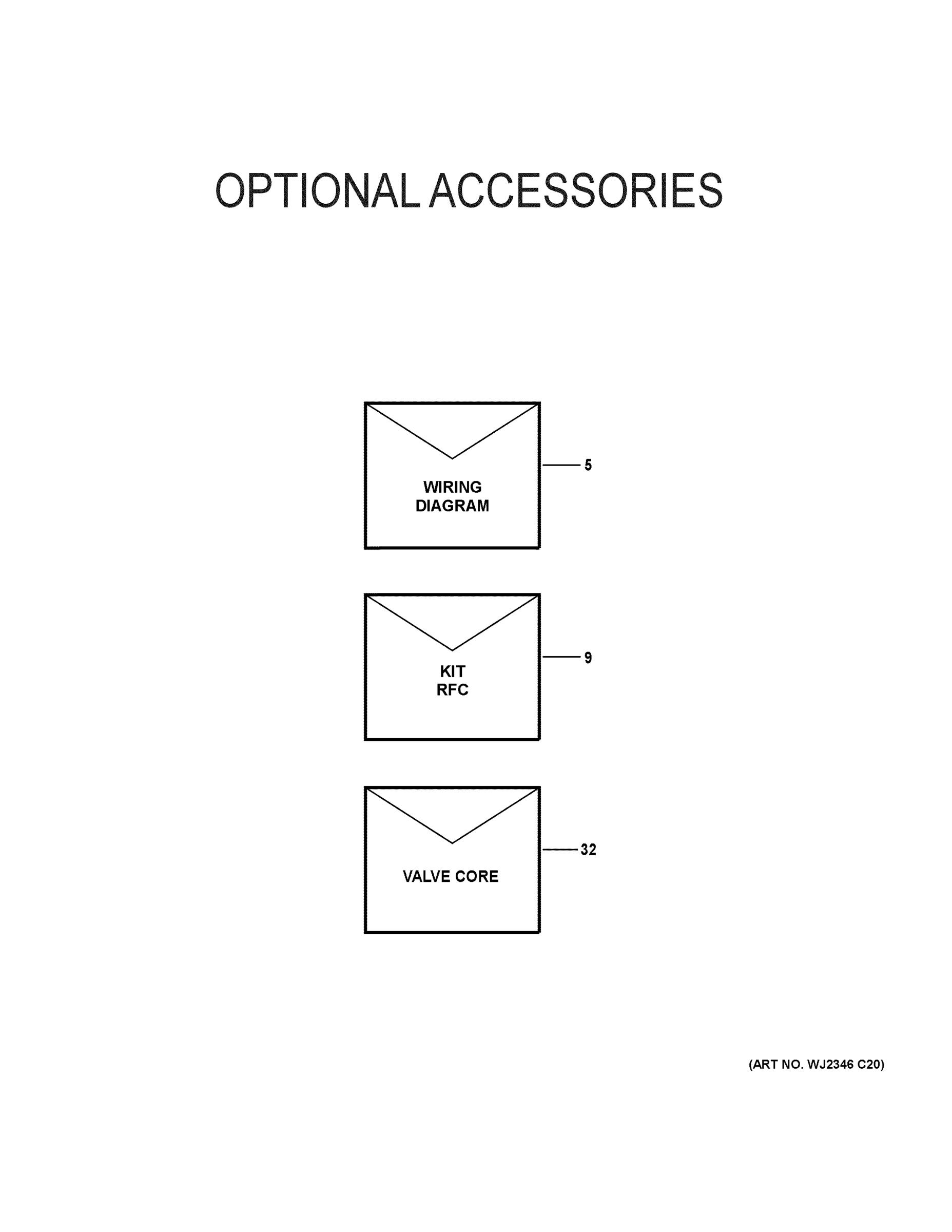

STICKER - WIRING DIAGRAM
STICKER - WIRING DIAGRAM GEN 53826101 Contact Us For Availability
View on Model
9
100484-09 Kit-RFC (.059)
100484-09 Kit-RFC (.059) GEN 10W96 Contact Us For Availability
View on Model
32
Valve Core
Valve Core GEN 95M48 Contact Us For Availability
View on Model
59
100087-12 Switch-High Pressure (590PSI)
100087-12 Switch-High Pressure (590PSI) GEN 93W01 Contact Us For Availability
View on Model
61
100087-17 SWITCH - LOW PRESSURE (90psi)
100087-17 SWITCH - LOW PRESSURE (90psi) GEN 15C83 Contact Us For Availability
View on Model
73
Bolt Sleeve-(CTO)
Bolt Sleeve-(CTO) GEN 61W00 Contact Us For Availability
View on Model
250
COIL ASSY-(CTO)
COIL ASSY-(CTO) GEN 11Z95 Contact Us For Availability
View on Model
262
C0 ZP20K7E-PFV R410A/230/1
C0 ZP20K7E-PFV R410A/230/1 GEN 23C09 Contact Us For Availability
View on Model
267
100483-33 Cond Fan MTR 1/6HP 208-230-1
100483-33 Cond Fan MTR 1/6HP 208-230-1 GEN 92W51 Contact Us For Availability
View on Model
268
100060-23 Fan Assy
100060-23 Fan Assy GEN 43W37 Contact Us For Availability
View on Model
271
Dual Run Cap 35+5 @ 440V ROUND
Dual Run Cap 35+5 @ 440V ROUND GEN 89M74 Contact Us For Availability
View on Model
272
GROMMET-COMPRESSOR-(CTO)
GROMMET-COMPRESSOR-(CTO) GEN R10030301 Contact Us For Availability
View on Model
276
HARNESS - COMPRESSOR: MOLDED PLUG
HARNESS - COMPRESSOR: MOLDED PLUG GEN R10021301 Contact Us For Availability
View on Model
278
CONTACTOR-SPST 25FLA/35RES
CONTACTOR-SPST 25FLA/35RES GEN 10F73 Contact Us For Availability
View on Model
310
ORIFICE RING (22 I.D. X 6)
ORIFICE RING (22 I.D. X 6) GEN 15Z66 Contact Us For Availability
View on Model
900
PNL LOUVER CTR 28 X 36-(CTO)
PNL LOUVER CTR 28 X 36-(CTO) GEN 62345127E Contact Us For Availability
View on Model
970
POST CORNER 36H-(CTO)
POST CORNER 36H-(CTO) GEN 60886804E Contact Us For Availability
View on Model
982
COVER, CTRL PNL(ARMSTRONG)-(CTO)
COVER, CTRL PNL(ARMSTRONG)-(CTO) GEN 62235302E Contact Us For Availability
View on Model
991
PNL LOUVER RT - 28B X 36H-(CTO)
PNL LOUVER RT - 28B X 36H-(CTO) GEN 62345118E Contact Us For Availability
View on Model
992
PNL LOUVER LT 28 X 36-(CTO)
PNL LOUVER LT 28 X 36-(CTO) GEN 62345110E Contact Us For Availability
View on Model
997
PNL-TOP MED 28.25X28.25 BLK UMBR-(CTO)
PNL-TOP MED 28.25X28.25 BLK UMBR-(CTO) GEN 62349901 Contact Us For Availability
View on Model
9997
SIDE GE BADGE
SIDE GE BADGE GEN 10721303 Contact Us For Availability
View on Model
9998
TOP GE BADGE
TOP GE BADGE GEN 10721302 Contact Us For Availability
View on Model
9999
PM SERVICE INSTRUCTIONS
PM SERVICE INSTRUCTIONS GEN 315000644 Contact Us For Availability
View on Model
