Model GE NS16A60SA500A – Common Parts & Diagrams

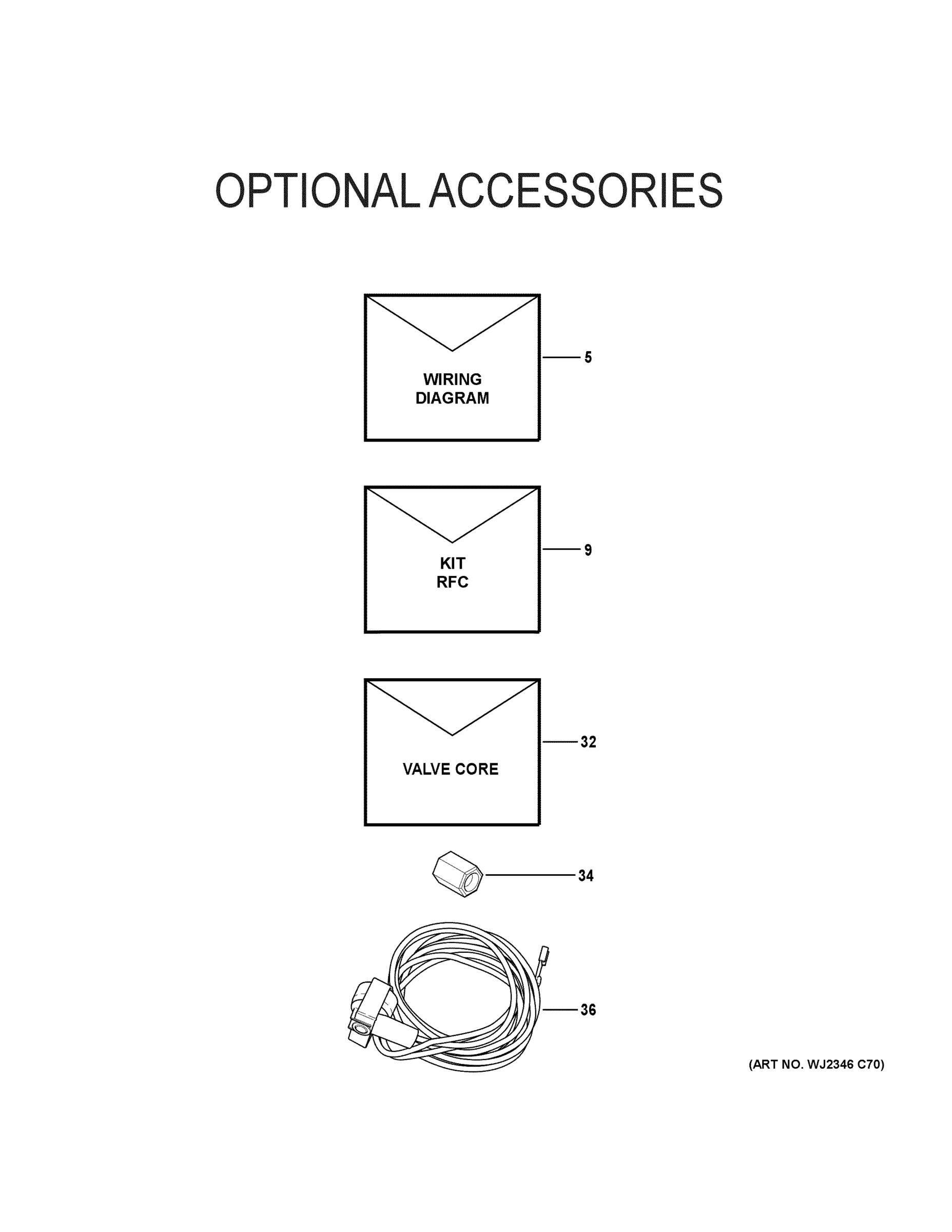

OPTIONAL ACCESSORIES
ROOM AIR CONDITIONER
Common parts from model GE NS16A60SA500A
5
STICKER - WIRING DIAGRAM GEN 53826101 Contact Us For Availability
9
100484-04 Kit-RFC (.051) GEN 10W93 Contact Us For Availability
32
Valve Core GEN 95M48 Contact Us For Availability
34
Nut - Acorn (8-32)-(CTO) GEN 85M56 Contact Us For Availability
36
THERMOSTAT-CC HEATER GEN 95M54 Contact Us For Availability
59
614285-06 KIT - HI PRESSURE SWITCH GEN 13R81 Contact Us For Availability
250
REPAIR COIL PACKAGE ASSY (CTO) GEN 27X26 Contact Us For Availability
268
Fan Assy GEN 21W10 Contact Us For Availability
271
Dual Run Cap 70+10 @ 440V RND GEN 29W09 Contact Us For Availability
272
GROMMET-COMPRESSOR-(CTO) GEN R10030301 Contact Us For Availability
276
HARNESS - COMPRESSOR: MOLDED PLUG GEN 27P50 Contact Us For Availability
278
CONTACTOR SPST 40A GEN 27P53 Contact Us For Availability
305
VALVE SERVICE 3/8 GEN 27P56 Contact Us For Availability
310
ORIFICE RING (26x6 DEEP) GEN 15Z67 Contact Us For Availability
315
Compressor Crank Case Heater GEN 27U16 Contact Us For Availability
900
PNL LOUVER CTR 28 X 28-(CTO) GEN 62345125E Contact Us For Availability
970
POST CORNER 28H-(CTO) GEN 60886802E Contact Us For Availability
982
COVER, CTRL PNL(ARMSTRONG)-(CTO) GEN 62235402E Contact Us For Availability
991
PNL LOUVER RT -28B X 28H-(CTO) GEN 62345116E Contact Us For Availability
992
PNL LOUVER LT 28 X 28-(CTO) GEN 62345108E Contact Us For Availability
997
PNL-TOP MED 28.25X28.25 BLK UMBR-(CTO) GEN 62349901 Contact Us For Availability
9997
SIDE GE BADGE GEN 10721303 Contact Us For Availability
9998
TOP GE BADGE GEN 10721302 Contact Us For Availability
9999
PM SERVICE INSTRUCTIONS GEN 315000644 Contact Us For Availability
× ![]()
