Model GE NS16A60SA500A – Common Parts & Diagrams

5

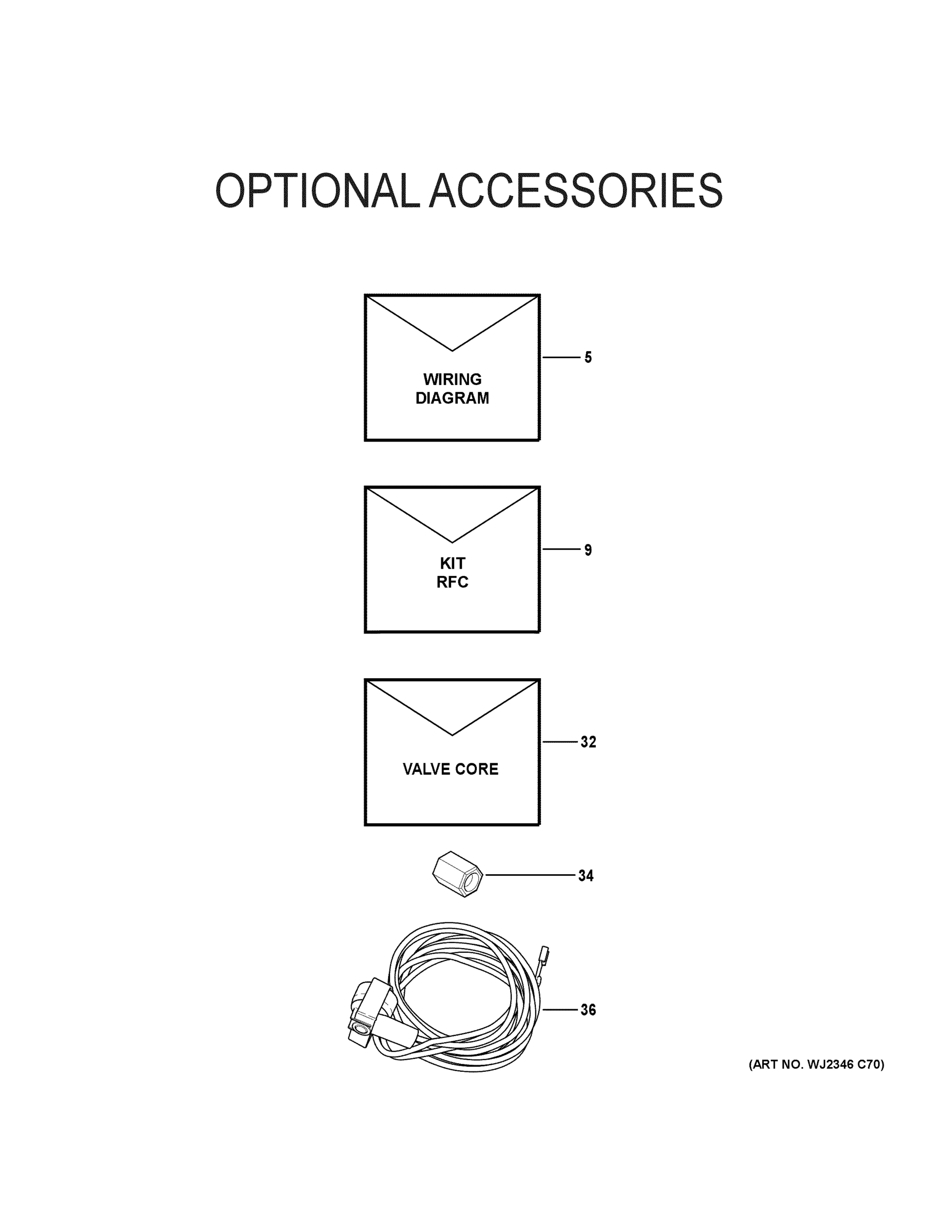

STICKER - WIRING DIAGRAM
STICKER - WIRING DIAGRAM GEN 53826101 Contact Us For Availability
View on Model
9
100484-04 Kit-RFC (.051)
100484-04 Kit-RFC (.051) GEN 10W93 Contact Us For Availability
View on Model
32
Valve Core
Valve Core GEN 95M48 Contact Us For Availability
View on Model
34
Nut - Acorn (8-32)-(CTO)
Nut - Acorn (8-32)-(CTO) GEN 85M56 Contact Us For Availability
View on Model
36
THERMOSTAT-CC HEATER
THERMOSTAT-CC HEATER GEN 95M54 Contact Us For Availability
View on Model
59
614285-06 KIT - HI PRESSURE SWITCH
614285-06 KIT - HI PRESSURE SWITCH GEN 13R81 Contact Us For Availability
View on Model
61
614285-04 KIT - LO PRESSURE SWITCH
614285-04 KIT - LO PRESSURE SWITCH GEN 13R28 Contact Us For Availability
View on Model
250
REPAIR COIL PACKAGE ASSY (CTO)
REPAIR COIL PACKAGE ASSY (CTO) GEN 27X26 Contact Us For Availability
View on Model
262
COMPRESSOR YBH051KAA
COMPRESSOR YBH051KAA GEN 27U06 Contact Us For Availability
View on Model
268
Fan Assy
Fan Assy GEN 21W10 Contact Us For Availability
View on Model
271
Dual Run Cap 70+10 @ 440V RND
Dual Run Cap 70+10 @ 440V RND GEN 29W09 Contact Us For Availability
View on Model
272
GROMMET-COMPRESSOR-(CTO)
GROMMET-COMPRESSOR-(CTO) GEN R10030301 Contact Us For Availability
View on Model
276
HARNESS - COMPRESSOR: MOLDED PLUG
HARNESS - COMPRESSOR: MOLDED PLUG GEN 27P50 Contact Us For Availability
View on Model
278
CONTACTOR SPST 40A
CONTACTOR SPST 40A GEN 27P53 Contact Us For Availability
View on Model
301
100214-08 DRIER R410A - ONE WAY - 55G
100214-08 DRIER R410A - ONE WAY - 55G GEN 22F09 Contact Us For Availability
View on Model
304
VALVE-BALL 1-1/8 X 7/8
VALVE-BALL 1-1/8 X 7/8 GEN 27P58 Contact Us For Availability
View on Model
305
VALVE SERVICE 3/8
VALVE SERVICE 3/8 GEN 27P56 Contact Us For Availability
View on Model
310
ORIFICE RING (26x6 DEEP)
ORIFICE RING (26x6 DEEP) GEN 15Z67 Contact Us For Availability
View on Model
315
Compressor Crank Case Heater
Compressor Crank Case Heater GEN 27U16 Contact Us For Availability
View on Model
900
PNL LOUVER CTR 28 X 28-(CTO)
PNL LOUVER CTR 28 X 28-(CTO) GEN 62345125E Contact Us For Availability
View on Model
970
POST CORNER 28H-(CTO)
POST CORNER 28H-(CTO) GEN 60886802E Contact Us For Availability
View on Model
982
COVER, CTRL PNL(ARMSTRONG)-(CTO)
COVER, CTRL PNL(ARMSTRONG)-(CTO) GEN 62235402E Contact Us For Availability
View on Model
991
PNL LOUVER RT -28B X 28H-(CTO)
PNL LOUVER RT -28B X 28H-(CTO) GEN 62345116E Contact Us For Availability
View on Model
992
PNL LOUVER LT 28 X 28-(CTO)
PNL LOUVER LT 28 X 28-(CTO) GEN 62345108E Contact Us For Availability
View on Model
997
PNL-TOP MED 28.25X28.25 BLK UMBR-(CTO)
PNL-TOP MED 28.25X28.25 BLK UMBR-(CTO) GEN 62349901 Contact Us For Availability
View on Model
9997
SIDE GE BADGE
SIDE GE BADGE GEN 10721303 Contact Us For Availability
View on Model
9998
TOP GE BADGE
TOP GE BADGE GEN 10721302 Contact Us For Availability
View on Model
9999
PM SERVICE INSTRUCTIONS
PM SERVICE INSTRUCTIONS GEN 315000644 Contact Us For Availability
View on Model
