Model Whirlpool NR640A REFRIGERATOR – Common Parts & Diagrams

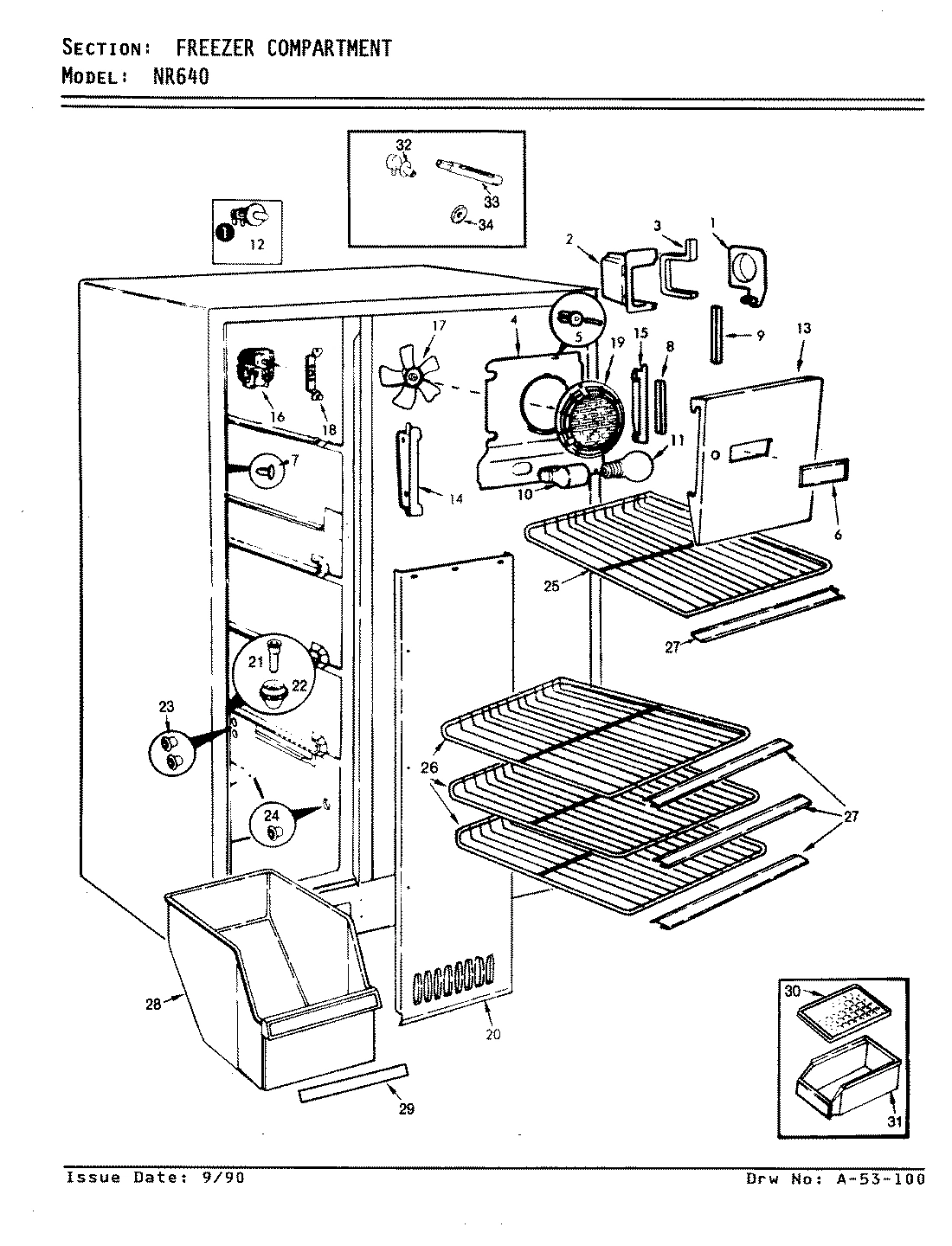

01 - FREEZER COMPARTMENT

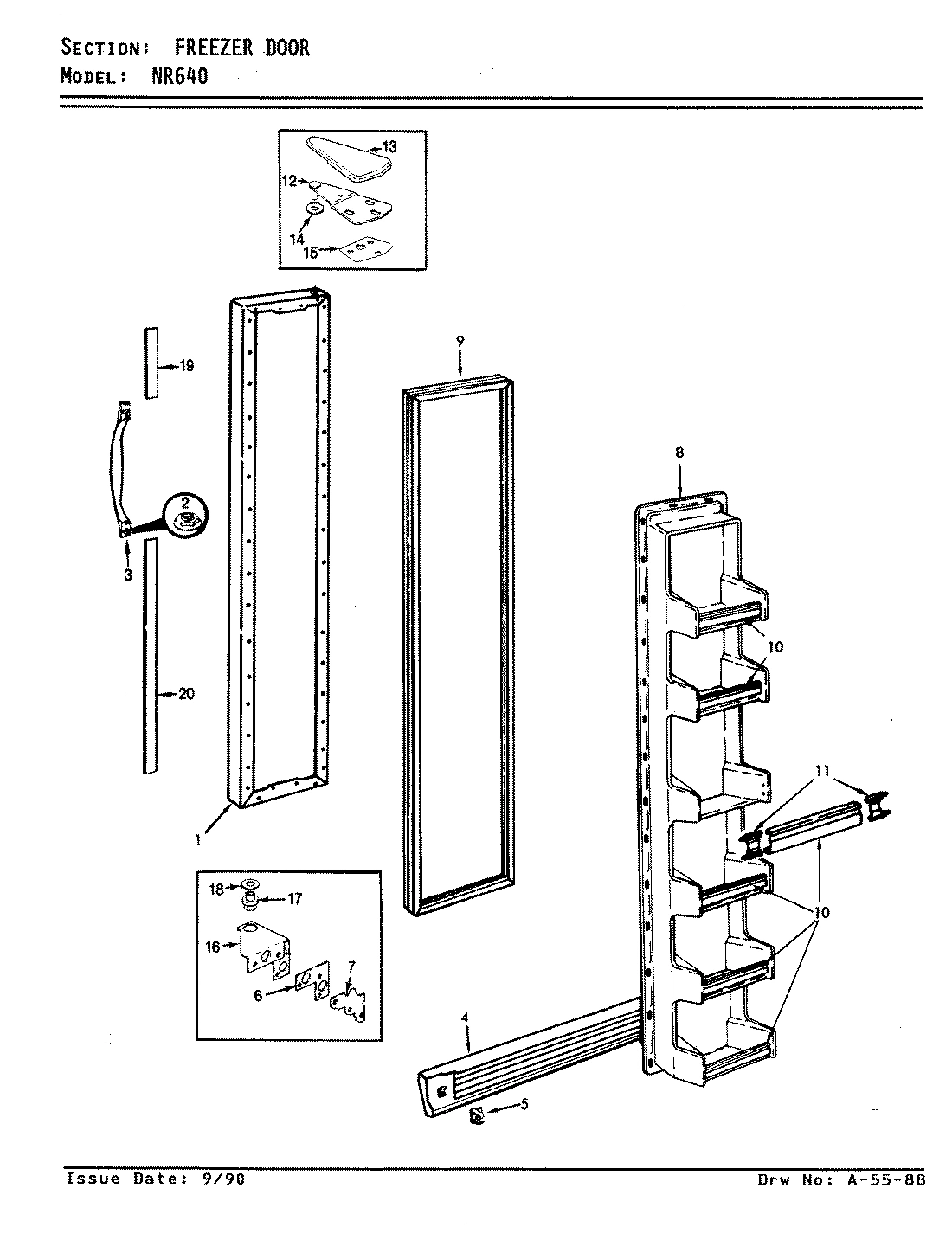

02 - FREEZER DOOR

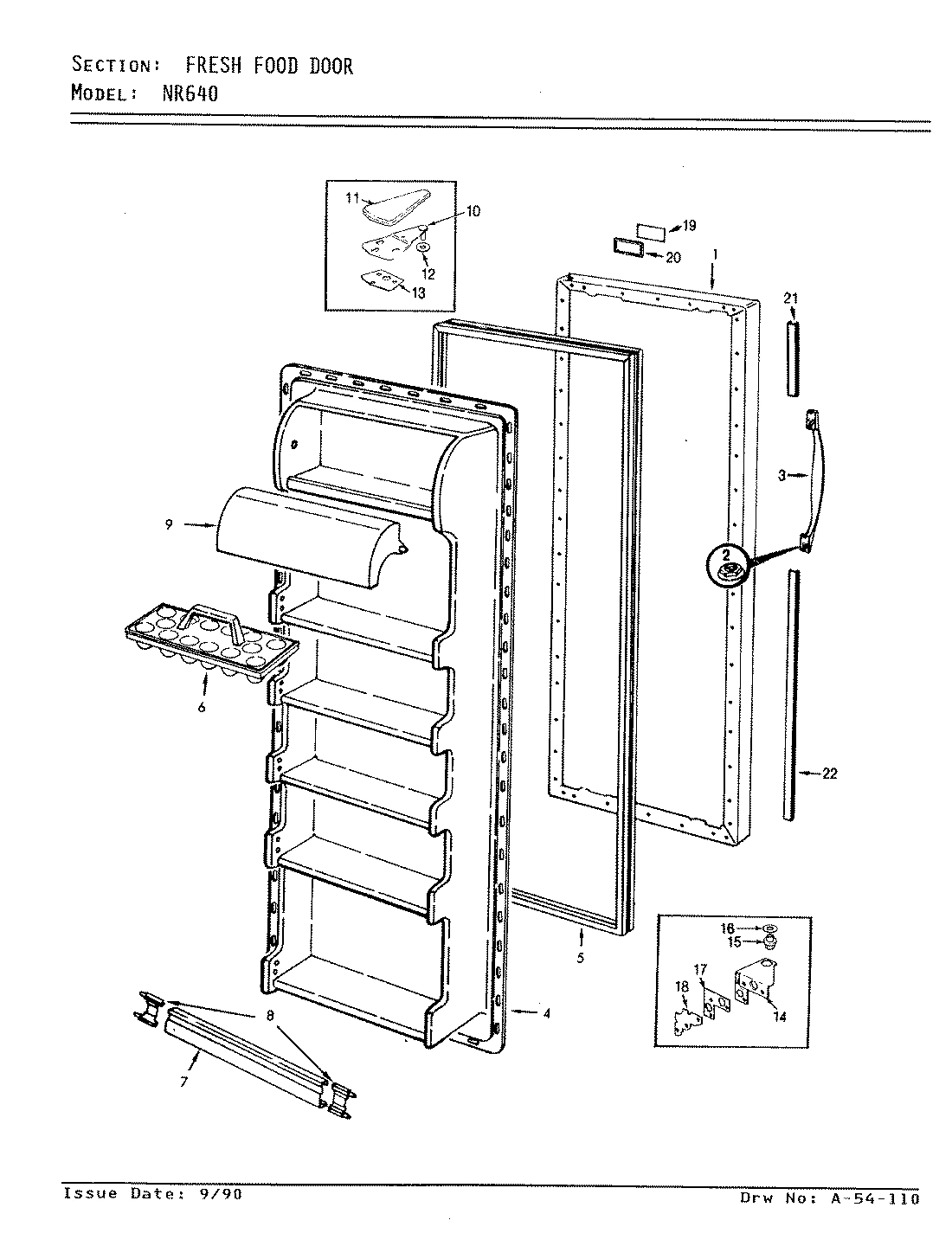

04 - FRESH FOOD DOOR

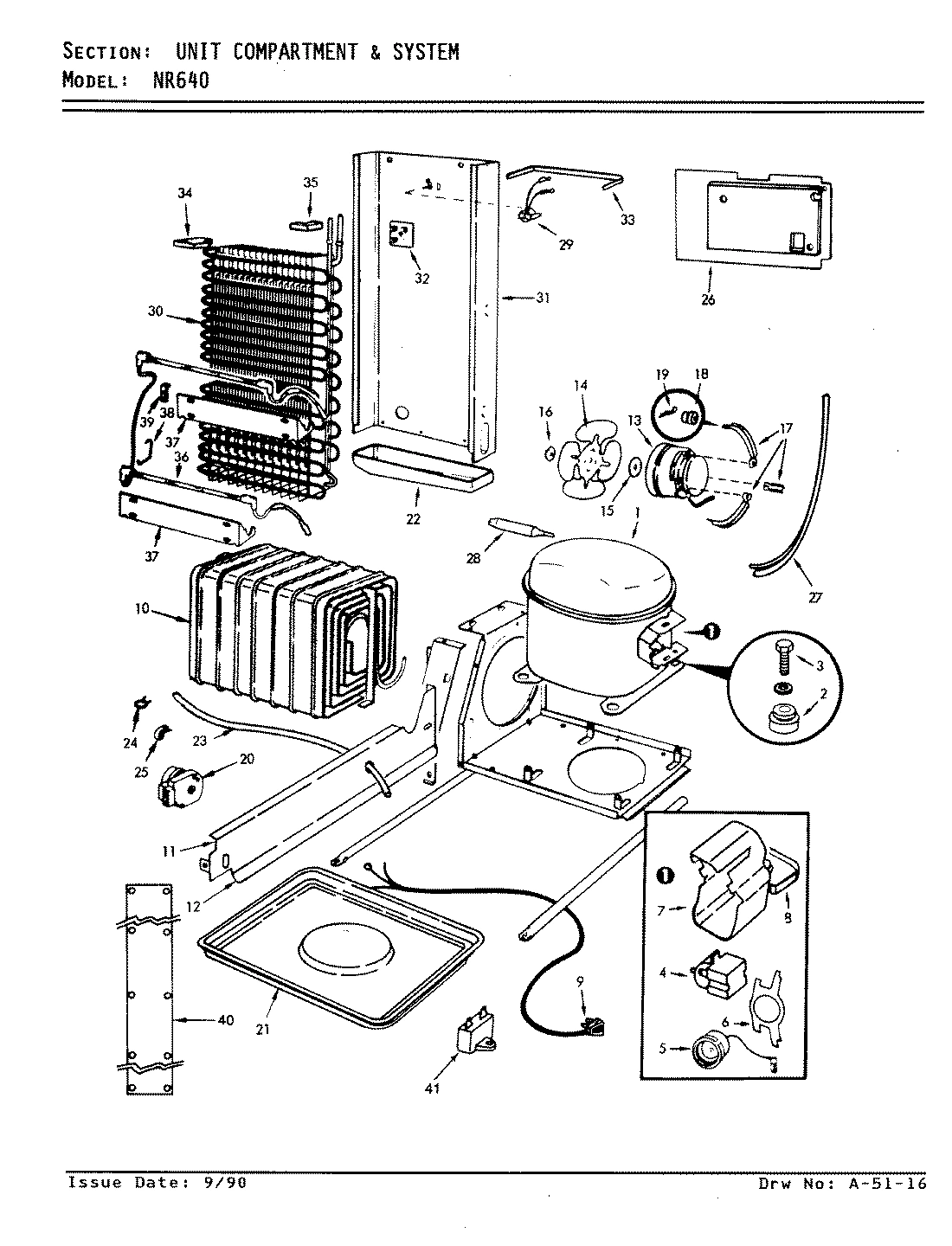

05 - UNIT COMPARTMENT & SYSTEM

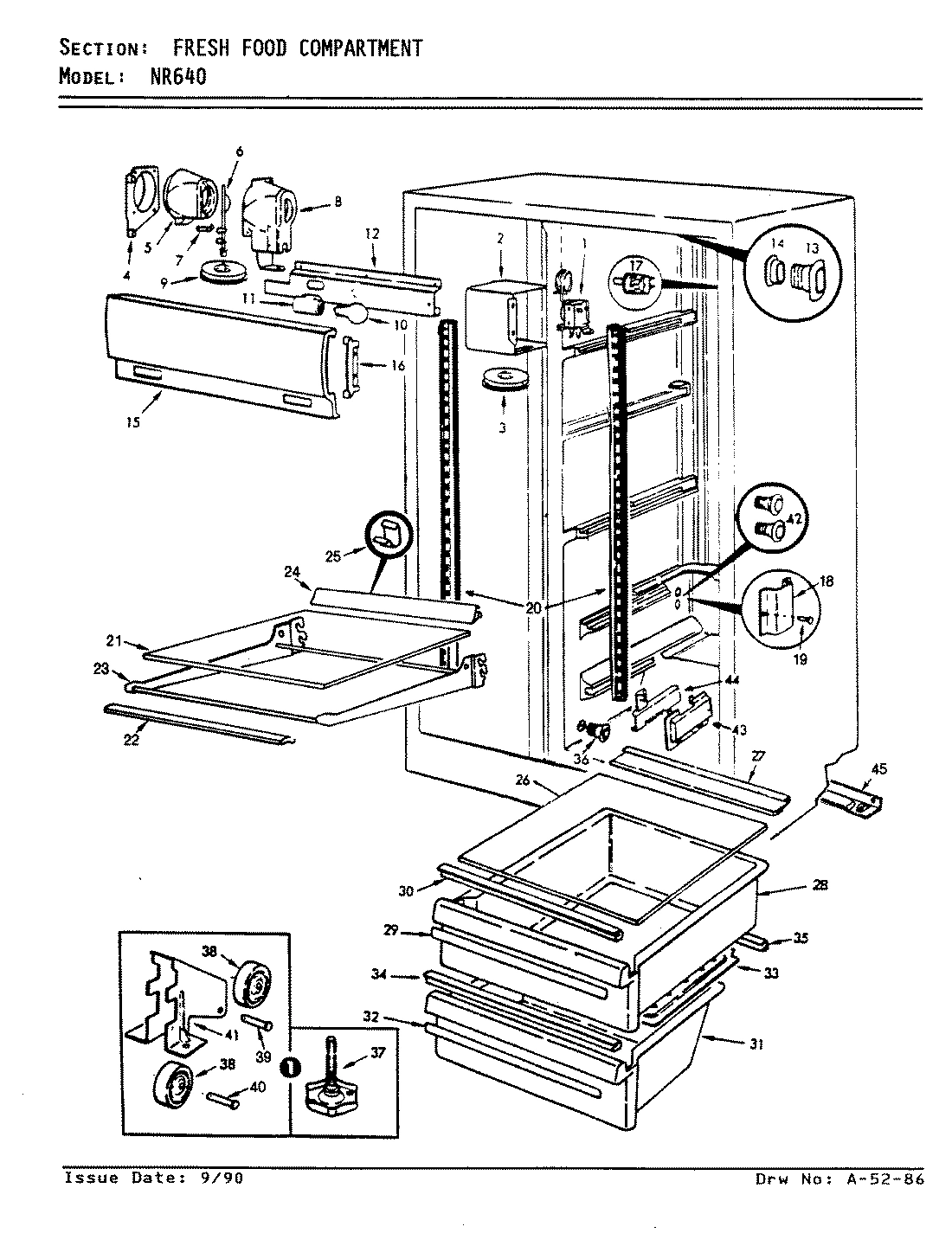

03 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool NR640A REFRIGERATOR
1
ORIFICE WPL 544231 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 720466AM Contact Us For Availability
1
PANEL, F.F. DOOR (ALM) WPL 720473AM Contact Us For Availability
1
COMPRESSOR WPL RA1017 Contact Us For Availability
1
SCREW, CONTROL MOUNTING WPL 4010121 Contact Us For Availability
1
CONTROL, TEMPERATURE WPL 5288139 Contact Us For Availability
2
SHIELD WPL 538371 Contact Us For Availability
2
FASTENER WPL 434003506 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
HOUSING, TEMPERATURE CONTROL WPL 5368210 Contact Us For Availability
3
SEAL WPL 5207710 Contact Us For Availability
3
HANDLE WPL 636869 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
3
KNOB, TEMP. CONTROL WPL 298937 Contact Us For Availability
4
COVER WPL 682472 Contact Us For Availability
4
KICKPLATE WPL 564776 Contact Us For Availability
4
SCREW, KICKPLATE MTG. WPL 9986101 Contact Us For Availability
4
SCREW WPL 652755 Contact Us For Availability
4
LINER, DOOR WPL 6594418 Contact Us For Availability
4
RELAY, START WPL 665883 Contact Us For Availability
4
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
5
STUD, MOUNTING COIL COVER WPL 599201 Contact Us For Availability
5
CLIP, KICKPLATE WPL 528543 Contact Us For Availability
5
GASKET WPL 6692927 Contact Us For Availability
5
OVERLOAD WPL 6329418 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
6
INSERT WPL 683252 Contact Us For Availability
6
TRAY, EGG WPL 6006614 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
SCREW WPL 4000011 Contact Us For Availability
6
BAFFLE WPL 686101 Contact Us For Availability
7
PLUG BUTTON WPL 675571 Contact Us For Availability
7
TRIM, DOOR SHELF WPL 65151208 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
8
SEAL, FOAM TRAY WPL 6632514 Contact Us For Availability
8
INNER PANEL WPL 59433225 Contact Us For Availability
8
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
9
SEAL (44``) WPL 6632521 Contact Us For Availability
9
GASKET WPL 6692928 Contact Us For Availability
9
DOOR, DAIRY WPL 66184368 Contact Us For Availability
9
CORD WPL 296757 Contact Us For Availability
9
KNOB WPL 2989312 Contact Us For Availability
10
TRIM, DOOR SHELF WPL 651511 Contact Us For Availability
10
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
10
SCREW WPL 998687 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
10
CONDENSER WPL RA436441 Contact Us For Availability
10
BULB, LIGHT WPL 557710 Contact Us For Availability
11
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
11
BULB, LIGHT WPL 319560 Contact Us For Availability
11
COVER, UPPER HINGE (ALM) WPL 650033 Contact Us For Availability
11
BAFFLE WPL 298384 Contact Us For Availability
12
WASHER WPL 521851 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664941 Contact Us For Availability
12
HOUSING WPL 597401 Contact Us For Availability
13
PLUG BUTTON WPL 684201 Contact Us For Availability
13
SHIELD WPL 686115 Contact Us For Availability
13
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
13
MOTOR, CONDENSER FAN WPL 684813 Contact Us For Availability
13
TUNNEL WPL 574101 Contact Us For Availability
14
SUPPORT WPL 536872 Contact Us For Availability
14
SCREW WPL 4031001 Contact Us For Availability
14
HINGE, LOWER WPL 6771410 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 606832 Contact Us For Availability
14
RETAINER WPL 574111 Contact Us For Availability
15
SUPPORT WPL 544242 Contact Us For Availability
15
HINGE PIN WPL 687881 Contact Us For Availability
15
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
15
SHIELD, LIGHT WPL 6557810 Contact Us For Availability
16
MOTOR WPL 564884 Contact Us For Availability
16
SCREW WPL 4000171 Contact Us For Availability
16
HINGE, LOWER WPL 677148 Contact Us For Availability
16
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
16
CLIP WPL 199140 Contact Us For Availability
16
SUPPORT WPL 536862 Contact Us For Availability
17
SWITCH WPL 564322 Contact Us For Availability
17
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
17
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
17
SCREW WPL 641391 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
18
TAPPING PLATE, LOWER HINGE WPL 659641 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
18
AIR DEFLECTOR WPL 621281 Contact Us For Availability
19
GRID, FAN WPL 682531 Contact Us For Availability
19
INSERT, NAMEPLATE WPL 655472 Contact Us For Availability
19
CLIP, MOUNTING FAN BLADE WPL 550421 Contact Us For Availability
20
SCREW WPL 40001512 Contact Us For Availability
20
COVER, COIL (LOWER) WPL 673357 Contact Us For Availability
20
GASKET WPL 686121 Contact Us For Availability
20
NAMEPLATE BEZEL WPL 689511 Contact Us For Availability
20
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
20
SCREW WPL 4050071 Contact Us For Availability
20
TIMER, DEFROST WPL 661282 Contact Us For Availability
20
SCREW WPL 40003728 Contact Us For Availability
20
RAIL, SHELF SUPPORT WPL 583814 Contact Us For Availability
21
DRAIN TUBE WPL 265279 Contact Us For Availability
21
TRIM EXT WPL 6865715 Contact Us For Availability
21
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
21
PAN, DRAIN WPL 682361 Contact Us For Availability
21
SHELF, GLASS WPL 6831611 Contact Us For Availability
22
GROMMET WPL 525261 Contact Us For Availability
22
TRIM EXT WPL 6865716 Contact Us For Availability
22
TROUGH, DRAIN WPL 535231 Contact Us For Availability
22
TRIM WPL 656141 Contact Us For Availability
23
HOSE, DRAIN WPL 2691118 Contact Us For Availability
23
FRAME, SHELF WPL 656181 Contact Us For Availability
24
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
24
TRIM WPL 6527629 Contact Us For Availability
25
SHELF, FRZ. 2,3,& 4 WPL 666031 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
25
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
26
SHELF WPL 6660325 Contact Us For Availability
26
SCREW WPL 998645 Contact Us For Availability
26
COVER WPL 663391 Contact Us For Availability
26
SHELF, GLASS WPL 6831612 Contact Us For Availability
27
TRIM WPL 656145 Contact Us For Availability
27
COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability
27
HEAT EXCHANGER WPL RA950903 Contact Us For Availability
27
SEAL, CRISPER PAN (REAR) WPL 681571 Contact Us For Availability
28
DRAWER WPL 6665426 Contact Us For Availability
28
PAN, CRISPER WPL 6665424 Contact Us For Availability
29
INSERT WPL 6812473 Contact Us For Availability
29
THERMOSTAT, DEFROST WPL 5208529 Contact Us For Availability
30
ICE CUBE TRAY WPL 601121 Contact Us For Availability
30
EVAPORATOR WPL RA436431 Contact Us For Availability
30
SEAL WPL 655931 Contact Us For Availability
31
PAN, ICE WPL 606531 Contact Us For Availability
31
HOUSING, EVAPORATOR WPL 688341 Contact Us For Availability
31
PAN, CRISPER WPL 6665434 Contact Us For Availability
32
GROMMET WPL 683961 Contact Us For Availability
32
BOARD, TERMINAL WPL 558781 Contact Us For Availability
32
TRIM WPL 6812475 Contact Us For Availability
33
EXTENSION,GROMMET TO FILL TUBE WPL 683042 Contact Us For Availability
33
CAP, FILL TUBE WPL 683261 Contact Us For Availability
33
SEAL WPL 6632517 Contact Us For Availability
33
COVER, MEAT PAN WPL 656083 Contact Us For Availability
34
CAP, CONNECTOR WPL 681871 Contact Us For Availability
34
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
34
SEAL, MEAT PAN (FRONT) WPL 656481 Contact Us For Availability
35
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
35
SEAL, MEAT PAN (REAR) WPL 656491 Contact Us For Availability
36
HEATER, DEFROST WPL 5276414 Contact Us For Availability
36
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
37
REFLECTOR WPL 2991512 Contact Us For Availability
37
LEG, LEVELING WPL 60128 Contact Us For Availability
38
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
38
WHEEL WPL 298342 Contact Us For Availability
39
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
39
WIRE HARNESS, MAIN WPL 688381 Contact Us For Availability
39
WIRE HARNESS, COMPRESSOR WPL 688411 Contact Us For Availability
39
PIN, WHEEL (REAR) WPL 649653 Contact Us For Availability
40
COVER WPL 663811 Contact Us For Availability
40
PIN, WHEEL WPL 649651 Contact Us For Availability
41
SCREW WPL 652751 Contact Us For Availability
41
CAPACITOR, RUN WPL 658892 Contact Us For Availability
41
SCREW WPL 4000621 Contact Us For Availability
41
BRACKET WPL 528461 Contact Us For Availability
42
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
42
AIR TUNNEL WPL 537261 Contact Us For Availability
43
CONTROL HOUSING WPL 657372 Contact Us For Availability
44
CLIP WPL 566864 Contact Us For Availability
44
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
45
SCREW WPL 6527542 Contact Us For Availability
45
SUPPORT RAIL WPL 672551 Contact Us For Availability
× ![]()
