Model Whirlpool NR460A REFRIGERATOR – Common Parts & Diagrams
02 - FREEZER COMPARTMENT
03 - FRESH FOOD COMPARTMENT
01 - DOORS

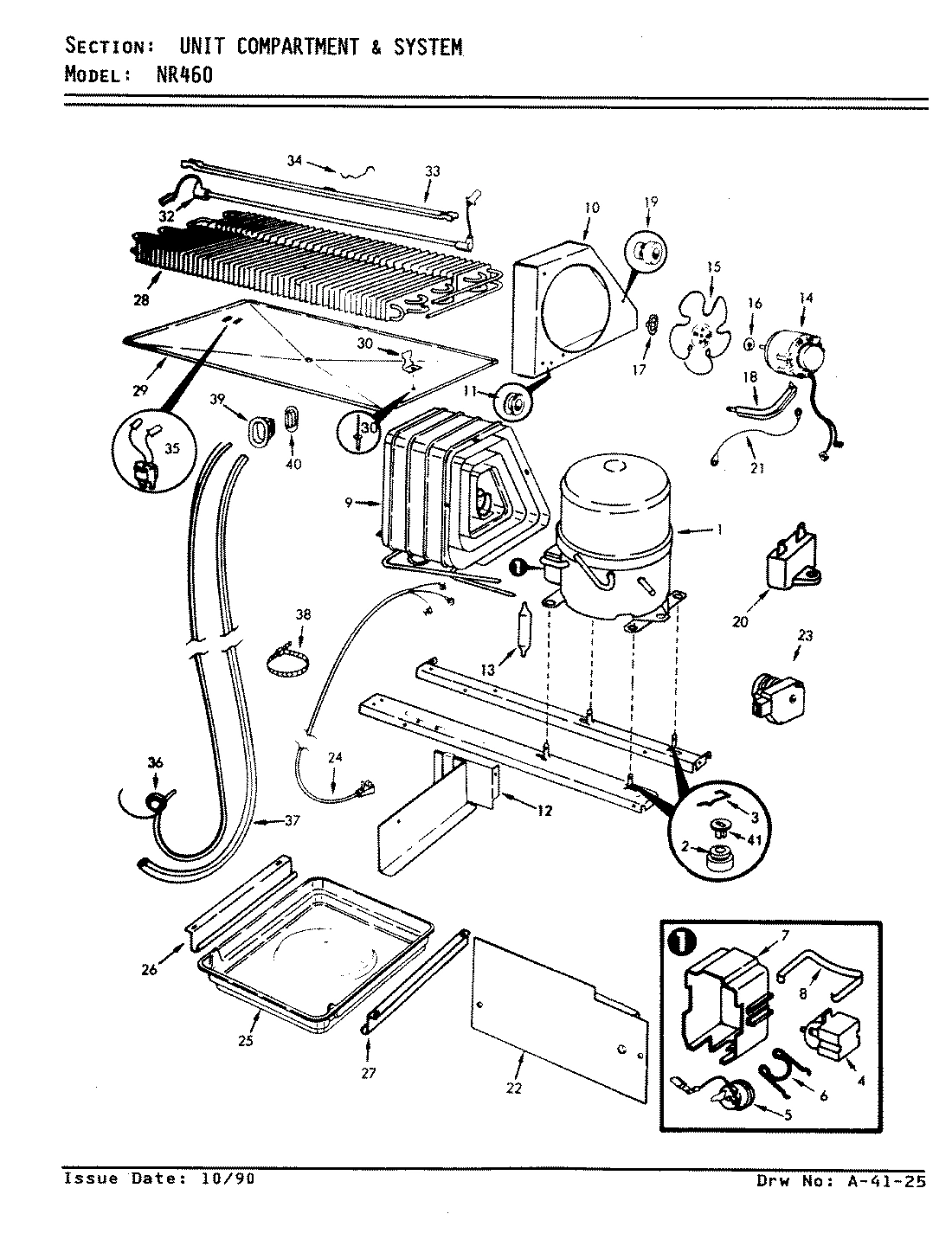

04 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool NR460A REFRIGERATOR
1
MULLION DIVIDER TRAY WPL 675182 Contact Us For Availability
1
GROMMET WPL 545318 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 684701AM Contact Us For Availability
2
SEAL, FRONT CORNER WPL 677301 Contact Us For Availability
2
SEAL WPL 688661 Contact Us For Availability
2
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
2
PANEL, F.F. DOOR (ALM) WPL 684691AM Contact Us For Availability
2
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
TOP, F.F. COMPARTMENT WPL 685302 Contact Us For Availability
3
DOOR HANDLE WPL 662551 Contact Us For Availability
3
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
3
CLIP WPL 527782 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
ROD, FREEZER CONTROL WPL 674993 Contact Us For Availability
4
RELAY, START WPL 668581 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
5
SCREW WPL 6527513 Contact Us For Availability
5
OVERLOAD WPL 6329412 Contact Us For Availability
6
SCREW WPL 405016103 Contact Us For Availability
6
KNOB, FRZ. WPL 686002 Contact Us For Availability
6
SHIM HANDLE----NA WPL 687761 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
7
WASHER, SPRING WPL 420092900 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
8
SEAL, TUNNEL WPL 6632529 Contact Us For Availability
8
TUNNEL, AIR WPL 685921 Contact Us For Availability
8
ORIFICE, DAMPER WPL 675581 Contact Us For Availability
8
DOOR HANDLE WPL 662552 Contact Us For Availability
8
SCREW WPL 9986122 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
9
DEFLECTOR WPL 601202 Contact Us For Availability
9
INSERT WPL 661454 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664031 Contact Us For Availability
10
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
10
INSERT WPL 604452 Contact Us For Availability
10
SCREW WPL 9986112 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664601 Contact Us For Availability
11
SEAL WPL 689461 Contact Us For Availability
11
PLUG BUTTON (ALMOND) WPL 557826 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
ICE CUBE TRAY WPL 601121 Contact Us For Availability
12
SOCKET, LIGHT WPL 605771 Contact Us For Availability
12
LINER, FRZ. DOOR WPL 6593019 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
13
COVER, PLENUM WPL 664801 Contact Us For Availability
13
LINER, DOOR WPL 6593513 Contact Us For Availability
13
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
14
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
14
SWITCH, LIGHT WPL 669871 Contact Us For Availability
14
GASKET, DOOR WPL 661991 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 675601 Contact Us For Availability
15
SCREW WPL 4060131 Contact Us For Availability
15
CONTROL, TEMPERATURE WPL 665452 Contact Us For Availability
15
GASKET, DOOR WPL 661992 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
16
INSERT WPL 6057182 Contact Us For Availability
16
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
17
GROUND WIRE WPL 2967522 Contact Us For Availability
17
BRACKET, CONTROL WPL 601471 Contact Us For Availability
18
RIVET WPL 263972 Contact Us For Availability
18
TRIM, DOOR SHELF WPL 6515193 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
19
KNOB, CONTROL WPL 686001 Contact Us For Availability
19
TRIM, DOOR SHELF WPL 65151111 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
20
SCREW WPL 4050121 Contact Us For Availability
20
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
20
TRIM, DOOR SHELF WPL 6515122 Contact Us For Availability
20
CAPACITOR, RUN WPL 658891 Contact Us For Availability
21
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
22
PLASTIC TUBE WPL 400812 Contact Us For Availability
22
DOOR, DAIRY WPL 66184190 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663381 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
23
GROUND WIRE WPL 2967528 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 665564 Contact Us For Availability
24
SHELF WPL 606541 Contact Us For Availability
24
CLIP WPL 524474 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
25
TIP WPL 245803 Contact Us For Availability
25
INSERT, NAMEPLATE WPL 655472 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
26
SHELF, CRISPER WPL 654243 Contact Us For Availability
26
NAMEPLATE BEZEL WPL 689511 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
27
PAN, CRISPER WPL 6014530 Contact Us For Availability
27
SCREW WPL 4000171 Contact Us For Availability
27
HINGE, UPPER WPL 5370920 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
SCREW WPL 6527523 Contact Us For Availability
28
DIVIDER, MULLION (ALM) WPL 684341AM Contact Us For Availability
28
WIRE HARNESS WPL 688691 Contact Us For Availability
28
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
28
EVAPORATOR WPL RA4362010 Contact Us For Availability
29
HEATER WIRE WPL 688301 Contact Us For Availability
29
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
29
TRAY, DRIP WPL 601017 Contact Us For Availability
30
INSULATION WPL 601401 Contact Us For Availability
30
INSULATION WPL 685771 Contact Us For Availability
30
WASHER WPL 542331 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
31
LEG, LEVELING WPL 60128 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
32
KICKPLATE WPL 6023737 Contact Us For Availability
32
WASHER WPL 542332 Contact Us For Availability
32
SCREW WPL 998687 Contact Us For Availability
32
HEATER, DEFROST WPL 6010634 Contact Us For Availability
33
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
33
HINGE, CENTER WPL 688112 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability
34
BRACKET, SWITCH WPL 605831 Contact Us For Availability
34
WASHER, CENTER HINGE (UPPER) WPL 674831 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
35
SCREW WPL 4020131 Contact Us For Availability
35
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
35
SCREW WPL 6527524 Contact Us For Availability
35
TAPPING PLATE, CENTER HINGE WPL 683771 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability
36
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
36
PIN, CENTER HINGE WPL 673221 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364513 Contact Us For Availability
37
COVER, CRANK WPL 674931 Contact Us For Availability
37
PLUG BUTTON, (ALMOND) WPL 561866 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
38
HINGE, LOWER WPL 677146 Contact Us For Availability
38
WIRE TIE WPL 662231 Contact Us For Availability
39
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
40
SCREW WPL 4031001 Contact Us For Availability
40
TAPPING PLATE WPL 657903 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
40
WIRE COVER WPL 601101 Contact Us For Availability
40
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
40
WIRE HARNESS, MAIN WPL 688821 Contact Us For Availability
41
HINGE PIN WPL 687881 Contact Us For Availability
41
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
42
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
42
WASHER WPL 674834 Contact Us For Availability
× ![]()
