Model GE NP16G48V10803 HVAC – Packaged – Common Parts & Diagrams

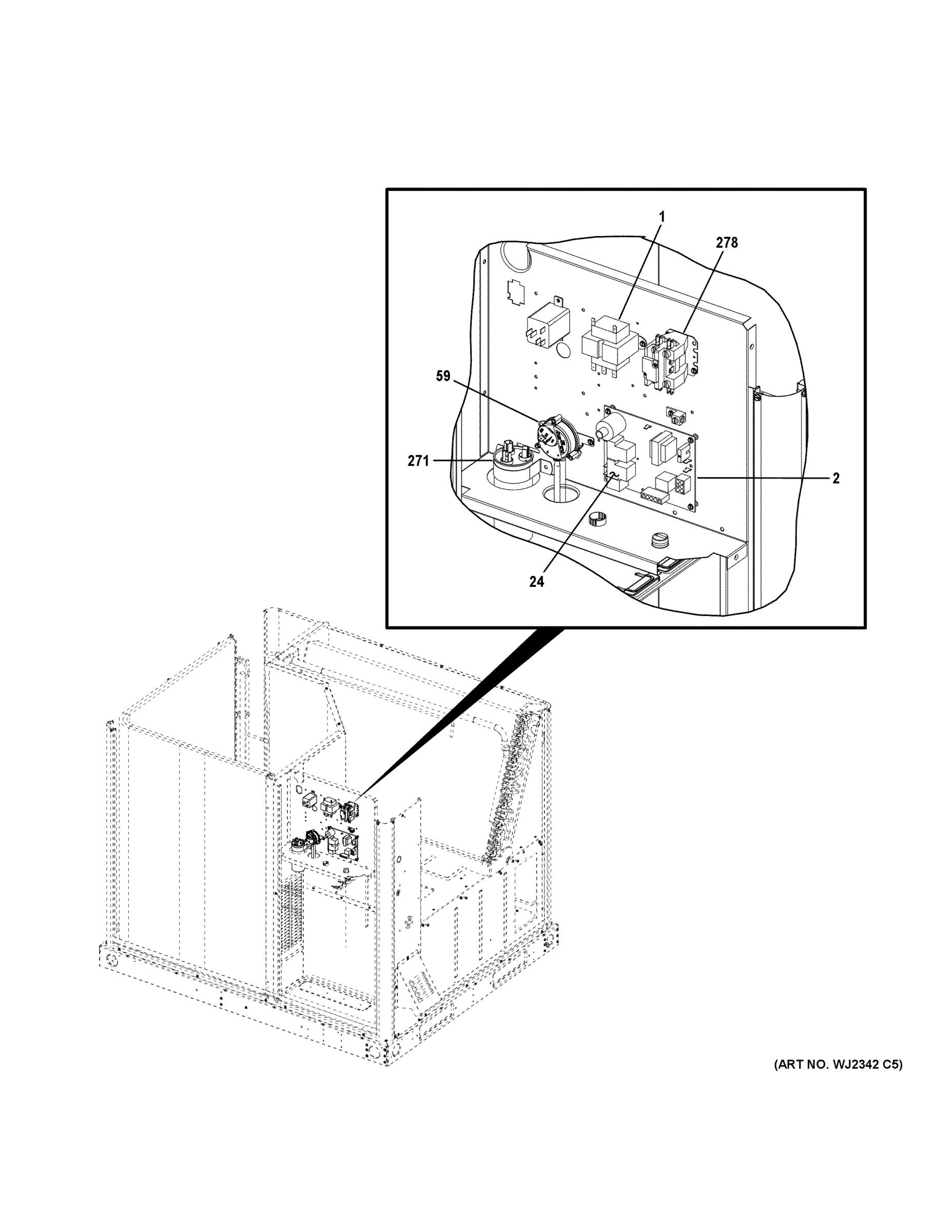

CONTROL PARTS

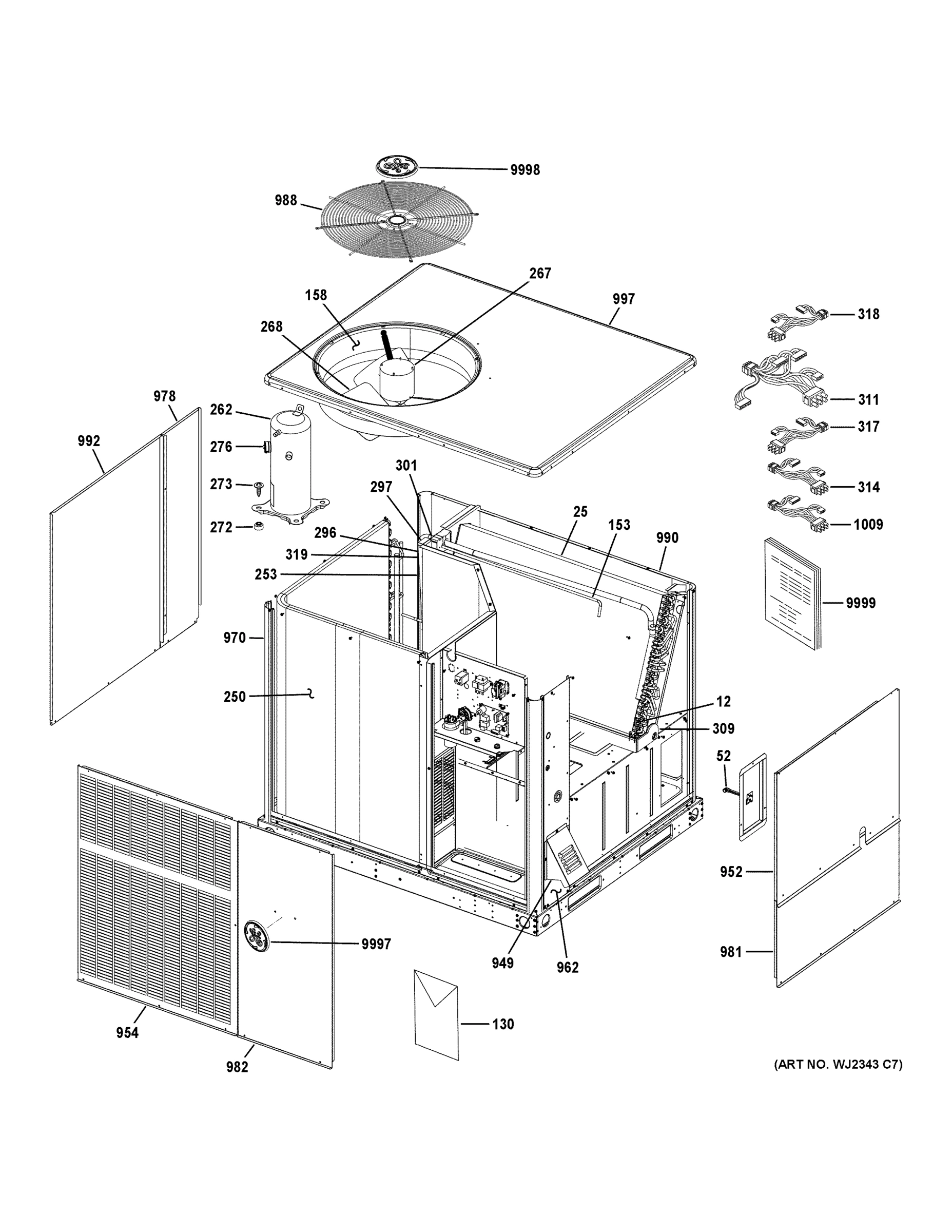

BODY PARTS

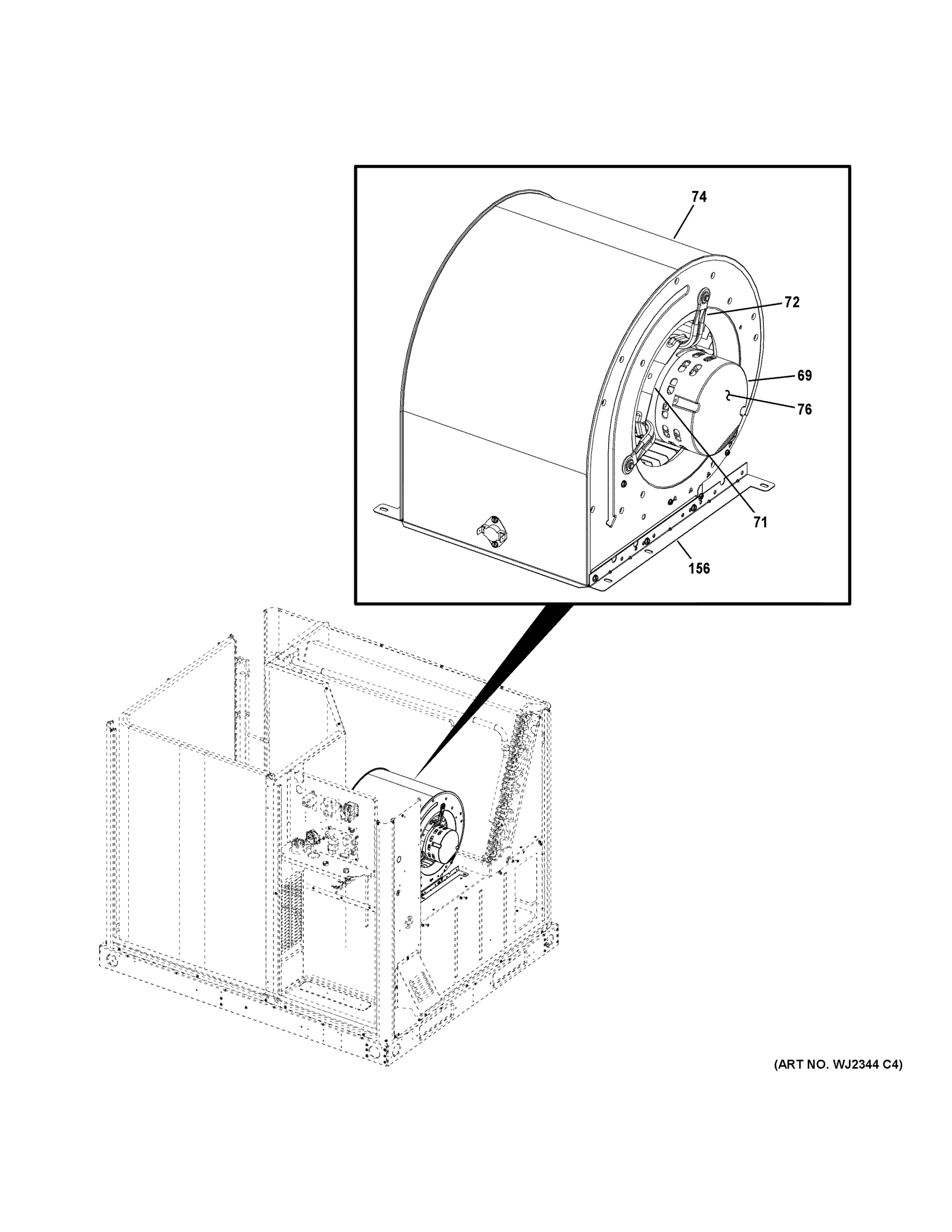

BLOWER & MOTOR

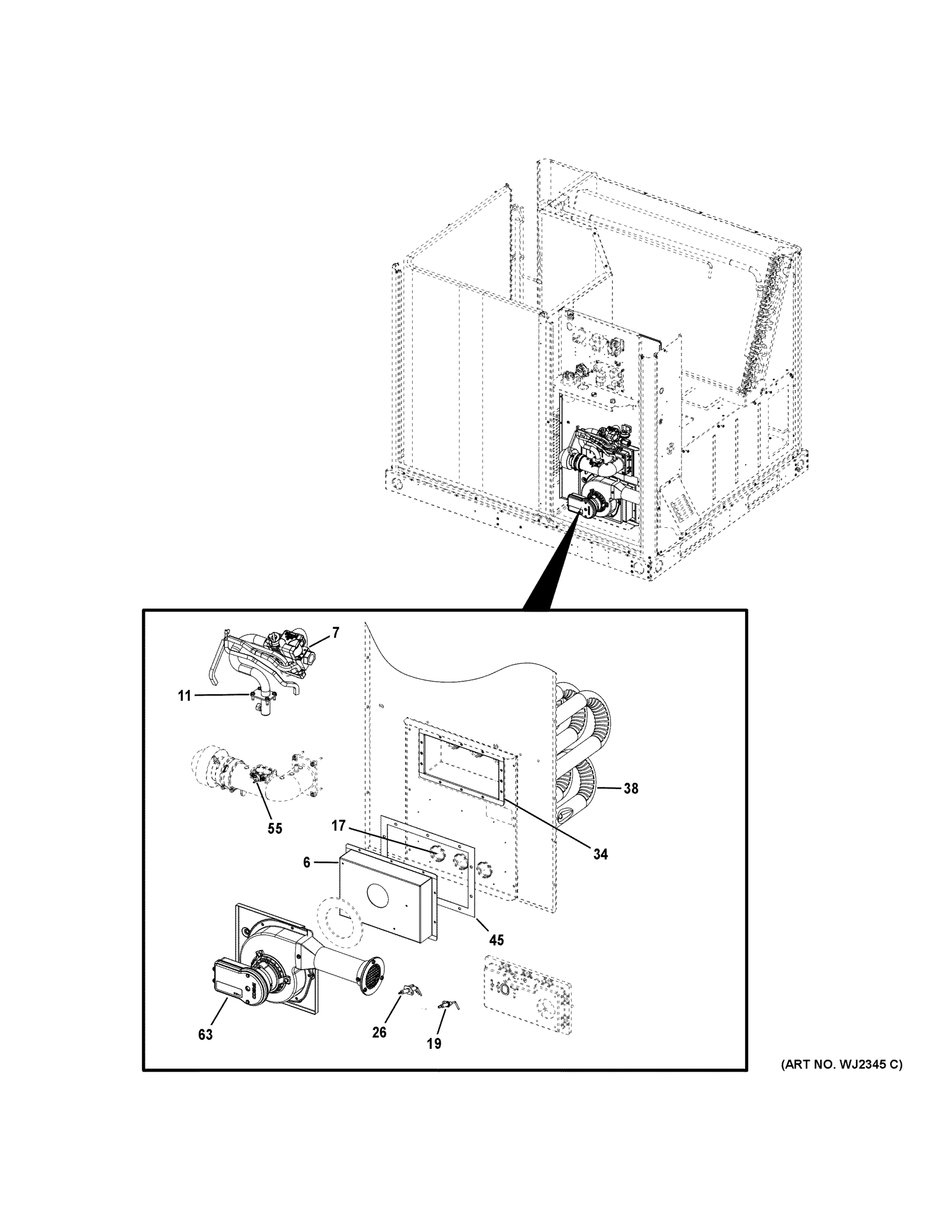

GAS VALVE & BURNER ASSEMBLY
Common parts from model GE NP16G48V10803 HVAC – Packaged
2
R45632-001 BOARD-CIRCUIT GEN 10W57 Contact Us For Availability
6
BOX COLLECTOR (7 BURNER)-(CTO) GEN 12P11 Contact Us For Availability
11
ASSY-MANIFOLD GAS 6 BURNER-(CTO) GEN 12L06 Contact Us For Availability
12
SWITCH-INTERLOCK LEVEL SENSOR NC GEN R10432602 Contact Us For Availability
17
ORIFICE #47 -(CTO) GEN 12L08 Contact Us For Availability
19
104160-01 SENSOR FLAME GEN 12L09 Contact Us For Availability
25
ASSY-COIL EVAP 24X40.5 3 ROW-(CTO) GEN 14Y64 Contact Us For Availability
26
IGNITOR GEN 49M85 Contact Us For Availability
34
BURNER, INSHOT-(CTO) GEN 60M56 Contact Us For Availability
38
HEAT EXCH LG 6TU W/VEST-(CTO) GEN 22B50 Contact Us For Availability
45
GASKET FLUE COVER 6-7 BURNER-(CTO) GEN 12K82 Contact Us For Availability
52
102857-28 LIMIT CONTROL (STILT) 200F GEN 22B75 Contact Us For Availability
59
100684-07 SWITCH-PRESSURE Orange 0.1" wc GEN 65W63 Contact Us For Availability
63
BLWR COMUSTION 2-STAGE-(CTO) GEN 14Y59 Contact Us For Availability
69
MOTOR-BLOWER ONLY (module sold separate) GEN 10B67 Contact Us For Availability
71
P-8-9501 BAND-MOTOR-(CTO) GEN 32866 Contact Us For Availability
72
MOUNT-MTR ARM BRACKET-(CTO) GEN 12X33 Contact Us For Availability
74
BLWR HOUSING & WHEEL 10 X 10-(CTO) GEN 12L17 Contact Us For Availability
130
LABEL-WIRING DIAGRAM 16 GE-(CTO) GEN 53784603 Contact Us For Availability
153
ASSY-DISTRIBUTOR 9 TUBE-(CTO) GEN 14Y62 Contact Us For Availability
156
RAIL BLOWER-(CTO) GEN 12B76 Contact Us For Availability
158
ORIFICE RING 22 I.D. X 6 -(CTO) GEN 12J47 Contact Us For Availability
250
ASSY-COIL 1 ROW J-STYLE-(CTO) GEN 13Y94 Contact Us For Availability
253
103366-16 VALVE-EXP NXT INDOOR 4T GEN 15D33 Contact Us For Availability
262
C0 ZPS40K5E-PFV-830 3T R410A 230V-1 GEN 91W10 Contact Us For Availability
267
100483-43 Cond Fan MTR 1/4HP 208/230-1 GEN 12Y65 Contact Us For Availability
268
FAN 24" 3-BLADE 30-PITCH CCW-(CTO) GEN 14Y56 Contact Us For Availability
272
GROMMET-COMPRESSOR-(CTO) GEN R10030301 Contact Us For Availability
273
BOLT-SLEEVE COMBINATION-(CTO) GEN R10030101 Contact Us For Availability
276
HARNESS-COMP MOLDED PLUG-(CTO) GEN 14N17 Contact Us For Availability
278
CONTACTOR-SPST 25FLA/35RES GEN 10F73 Contact Us For Availability
297
100087-15 SWITCH-LO PRESS GEN 12L21 Contact Us For Availability
301
DRIER R410A - ONE WAY - 55G-(CTO) GEN 12K40 Contact Us For Availability
309
PAN-DRAIN PLST INSUL LG-(CTO) GEN 21V30 Contact Us For Availability
311
W/H SECONDARY ELEC-(CTO) GEN 14Y58 Contact Us For Availability
314
HARNESS-MTR (CONTROL)-(CTO) GEN 10W54 Contact Us For Availability
317
HARNESS-WIRING-(CTO) GEN 15V52 Contact Us For Availability
318
HARNESS (MOLDED PLUG)-(CTO) GEN 49M73 Contact Us For Availability
319
Valve Core GEN 95M48 Contact Us For Availability
949
VENT HOOD-(CTO) GEN 12B75 Contact Us For Availability
952
PNL BLOWER ACCESS LG-(CTO) GEN R62228501E Contact Us For Availability
954
PNL -LOUVER LEFT SIDE LG-(CTO) GEN R62189001E Contact Us For Availability
962
PNL -UTILITY G/E LG-(CTO) GEN R62228802E Contact Us For Availability
970
POST-CORNER LARGE-(CTO) GEN R62189402E Contact Us For Availability
978
PNL -COMPRESSOR ACCESS LG-(CTO) GEN R62188801E Contact Us For Availability
981
PANEL -HEAT EXCHANGER ACCESS-(CTO) GEN R62189201E Contact Us For Availability
982
PNL -CONTROL ACCESS LG-(CTO)-(CTO) GEN R62188901E Contact Us For Availability
988
GUARD-FAN WIRE BLK-(CTO) GEN 22H24 Contact Us For Availability
990
PNL REAR LG 3DR ARM TXT GRAY-(CTO) GEN R62263502 Contact Us For Availability
992
PNL-LOUVER FRONT LARGE-(CTO) GEN R62189101E Contact Us For Availability
997
PNL TOP LG ARM TXT G GEN R61180202E Contact Us For Availability
1009
GEN 22C75 GEN 22C75 Contact Us For Availability
9997
GEN 10721304 GEN 10721304 Contact Us For Availability
9998
GEN 10721306 GEN 10721306 Contact Us For Availability
9999
GEN 315000644 GEN 315000644 Contact Us For Availability
× ![]()
