Model GE NP14X48S07201 HVAC – Packaged – Common Parts & Diagrams
CONTROL PARTS
BODY PARTS

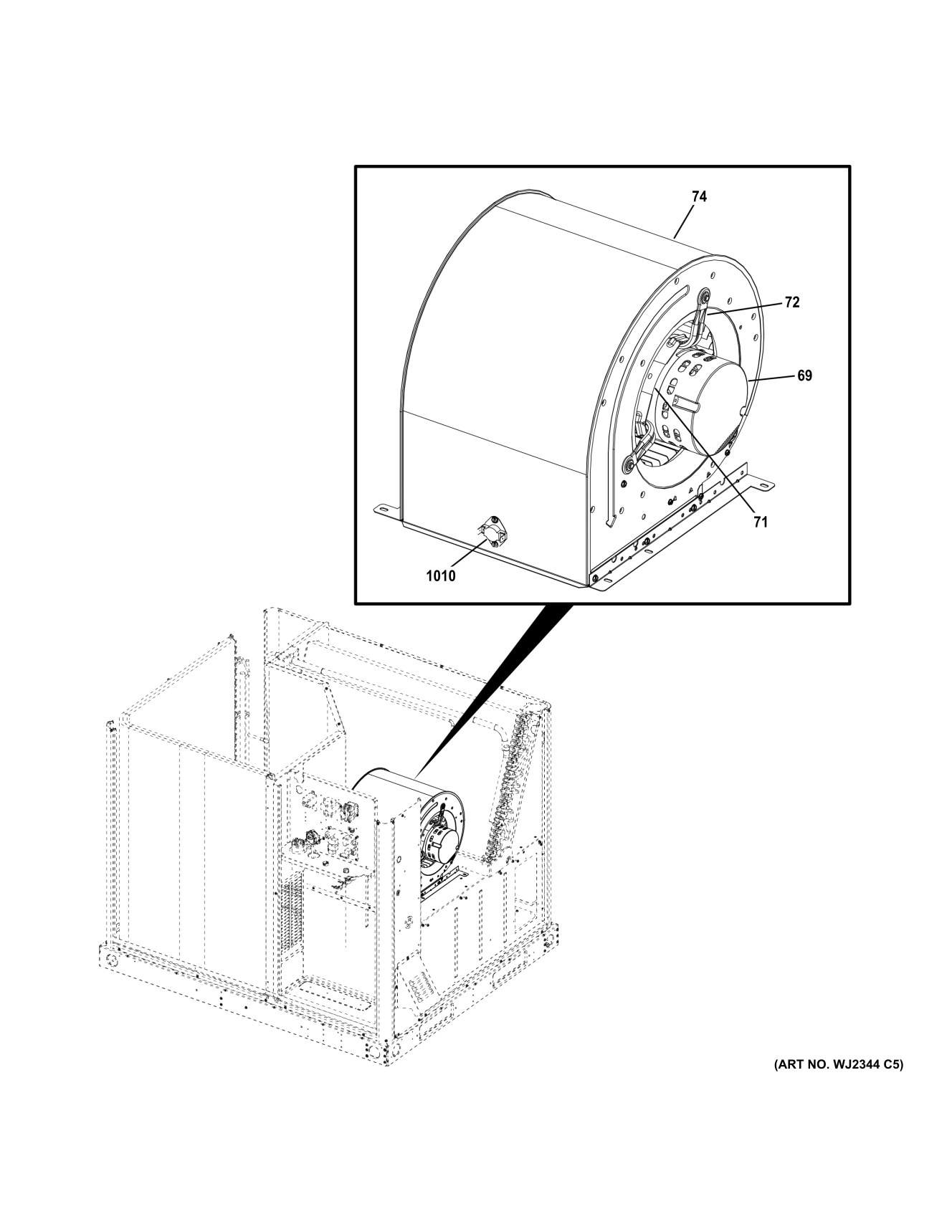

BLOWER & MOTOR
GAS VALVE & BURNER ASSEMBLY
Common parts from model GE NP14X48S07201 HVAC – Packaged
6
BOX-FLUE COLLECTOR-(CTO) GEN R616079-11 Contact Us For Availability
7
103016-03 VALVE-GAS (Modulating) GEN 15D34 Contact Us For Availability
11
ASSY-MANIFOLD NOZZLE ULN-(CTO) GEN 22U26 Contact Us For Availability
12
SWITCH-INTERLOCK LEVEL SENSOR NC GEN R104326-02 Contact Us For Availability
18
SCREEN-INTAKE-(CTO) GEN 16A62 Contact Us For Availability
24
104278-01 CONTROL-IGNITION GEN 12J99 Contact Us For Availability
25
ASSY-COIL EVAP 24 x 40.5, 3ROW-(CTO) GEN 18Y08 Contact Us For Availability
26
106379-01 IGNITOR GEN 20C76 Contact Us For Availability
28
GKT-COLLECTOR BOX, 080-(CTO) GEN 15V91 Contact Us For Availability
34
ASSY-HEAT SHIELD-(CTO) GEN 21A47 Contact Us For Availability
38
ASSY-HEAT EXCH (SS) 72K,ULNOX-(CTO) GEN 22G62 Contact Us For Availability
55
ROLLOUT LIMIT-(CTO) GEN 66J78 Contact Us For Availability
59
105078-04 SWITCH-PRESS SINGLE STAGE ULN GEN 22U24 Contact Us For Availability
69
621175-49 MTR -BLWR PROG 3/4 HP 208/230v GEN 22U66 Contact Us For Availability
71
P-8-9501 BAND-MOTOR-(CTO) GEN 32866 Contact Us For Availability
72
ARM, MOTOR MOUNTING BRACKET-(CTO) GEN R102301-01 Contact Us For Availability
74
BLWR HOUSING & WHEEL 10X10-(CTO) GEN 22U31 Contact Us For Availability
130
LABEL - WIRING DIAGRAM 14 GE-(CTO) GEN 537659-03 Contact Us For Availability
147
LEAD ELECTRODE 21"-(CTO) GEN 22U21 Contact Us For Availability
153
DIST ASSY 9TUBE W/PISTON .072-(CTO) GEN 18Y28 Contact Us For Availability
158
ORIFICE RING 24.596 I.D. X 6-(CTO) GEN 12J46 Contact Us For Availability
167
Valve Core GEN 95M48 Contact Us For Availability
250
ASSY-COIL COND 1 ROW 40 X 70.3-(CTO) GEN 18Y09 Contact Us For Availability
251
BOX-FLUE COLLECTOR-(CTO) GEN 20K67 Contact Us For Availability
262
104161-07 ABG039KAC Comp 230V-1 R410A GEN 13H95 Contact Us For Availability
267
100483-43 Cond Fan MTR 1/4HP 208/230-1 GEN 12Y65 Contact Us For Availability
268
Fan Assy 24" 3Blade 27"PTH CCW-(CTO) GEN 12P56 Contact Us For Availability
271
Dual Run Cap 70+10 @ 440V RND GEN 29W09 Contact Us For Availability
272
GROMMET-COMPRESSOR-(CTO) GEN R100303-01 Contact Us For Availability
273
BOLT-SLEEVE COMBINATION-(CTO) GEN R100301-01 Contact Us For Availability
276
LG W/H-COMP MOLDED PLUG-(CTO) GEN 14N35 Contact Us For Availability
278
CONTACTOR-SPST 25FLA/35RES GEN 10F73 Contact Us For Availability
297
100087-15 SWITCH-LO PRESS GEN 12L21 Contact Us For Availability
301
DRIER R410A - ONE WAY - 55G-(CTO) GEN 12K40 Contact Us For Availability
309
PAN-DRAIN PLST INSUL LG-(CTO) GEN 21V30 Contact Us For Availability
311
BOX-FLUE COLLECTOR-(CTO) GEN 22U22 Contact Us For Availability
314
HARNESS-WIRING LIMIT-(CTO) GEN 22U27 Contact Us For Availability
317
HARNESS-WIRING OD FAN-(CTO) GEN 13K20 Contact Us For Availability
320
Fitting - PressureTap-(CTO) GEN 95M47 Contact Us For Availability
321
Nut - Acorn (8-32)-(CTO) GEN 85M56 Contact Us For Availability
327
RELAY FAN SPDT-(CTO) GEN 25J38 Contact Us For Availability
949
VENT HOOD-(CTO) GEN 12B75 Contact Us For Availability
952
PNL BLOWER ACCESS LG-(CTO) GEN R622285-01E Contact Us For Availability
954
PNL-LOUVER FRONT LARGE-(CTO) GEN R621891-01E Contact Us For Availability
962
PANEL -UTILITY G/E LG ARM-(CTO) GEN R622288-04E Contact Us For Availability
970
POST-CORNER LARGE-(CTO) GEN R621894-02E Contact Us For Availability
978
PNL -COMPRESSOR ACCESS LG-(CTO) GEN R621888-01E Contact Us For Availability
981
PANEL -HEAT EXCHANGER ACCESS-(CTO) GEN R621892-01E Contact Us For Availability
982
PNL -CONTROL ACCESS LG-(CTO)-(CTO) GEN R621889-01E Contact Us For Availability
988
GUARD-FAN WIRE BLK DIA 27.134-(CTO) GEN 12J44 Contact Us For Availability
990
PNL REAR LG 3DR ARM TXT GRAY-(CTO) GEN R622635-02 Contact Us For Availability
992
PNL -LOUVER LEFT SIDE LG-(CTO) GEN R621890-01E Contact Us For Availability
997
PNL TOP LG ARM TXT GRAY-(CTO) GEN R611802-02E Contact Us For Availability
1007
Flue Coupling Service Kit-(CTO) GEN 14K09 Contact Us For Availability
1008
ORIFICE - AIR-(CTO) GEN 22J97 Contact Us For Availability
1009
HARNESS-WIRING SECONDARY LIMIT-(CTO) GEN 22U28 Contact Us For Availability
1010
R01851A007 SWITCH-LIMIT GEN 33H78 Contact Us For Availability
1011
ASSY VAC HOSE-ULN LG BASE-(CTO) GEN 22P53 Contact Us For Availability
1014
PLATE-BURNER PREMIX-(CTO) GEN 20U90 Contact Us For Availability
1015
ELBOW - GAS/AIR-(CTO) GEN 15P55 Contact Us For Availability
1016
GASKET-PLENUM (MED HT)-(CTO) GEN 20U87 Contact Us For Availability
1017
GASKET-BURNER BOX (MED HT-(CTO) GEN 20U84 Contact Us For Availability
1018
GASKET-SENSOR/IGNITER-(CTO) GEN 20B69 Contact Us For Availability
1019
O-RING, ELBOW/PLENUM-(CTO) GEN 15K20 Contact Us For Availability
1020
O-RING,MANIFOLD/ELBOW-(CTO) GEN 15V45 Contact Us For Availability
9997
SIDE GEA BADGE GEN 107213-04 Contact Us For Availability
9999
PM OTHER GEN 31-5000644 Contact Us For Availability
× ![]()
