Model GE NP14X36S07202 HVAC – Packaged – Common Parts & Diagrams
CONTROL PARTS
BODY PARTS
BLOWER & MOTOR
GAS VALVE & BURNER ASSEMBLY

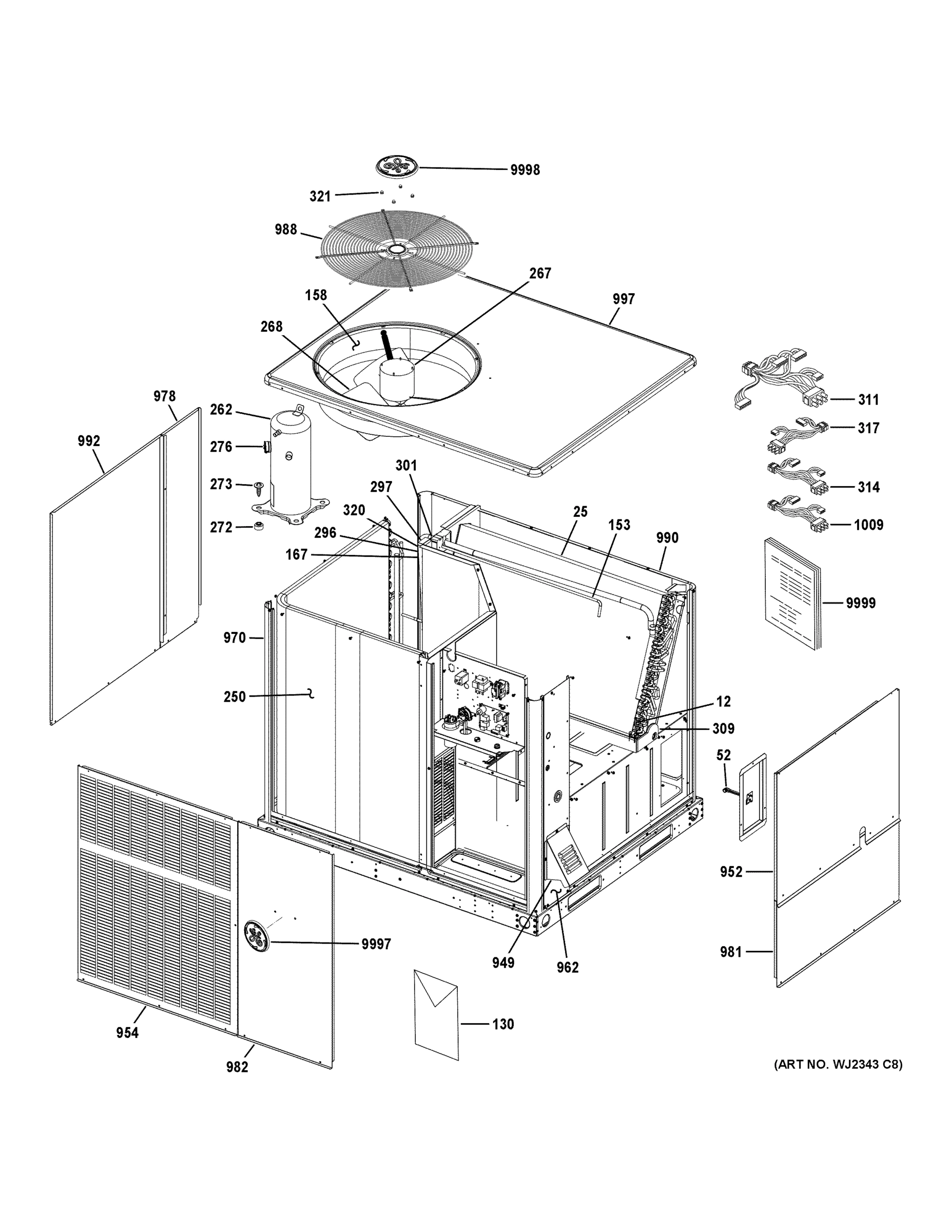

Common parts from model GE NP14X36S07202 HVAC – Packaged
1
R39370B001 TRANSFORMER GEN 47K20 Contact Us For Availability
6
BOX-FLUE COLLECTOR-(CTO) GEN R61607911 Contact Us For Availability
7
103016-03 VALVE-GAS (Modulating) GEN 15D34 Contact Us For Availability
11
ASSY-MANIFOLD NOZZLE ULN-(CTO) GEN 22U26 Contact Us For Availability
12
SWITCH-INTERLOCK LEVEL SENSOR NC GEN R10432602 Contact Us For Availability
18
SCREEN-INTAKE-(CTO) GEN 16A62 Contact Us For Availability
24
104278-01 CONTROL-IGNITION GEN 12J99 Contact Us For Availability
25
ASSY-COIL EVAP 24 x 40.5, 3ROW-(CTO) GEN 18Y07 Contact Us For Availability
26
106379-01 IGNITOR GEN 20C76 Contact Us For Availability
28
GKT-COLLECTOR BOX, 080-(CTO) GEN 15V91 Contact Us For Availability
34
ASSY-HEAT SHIELD-(CTO) GEN 21A47 Contact Us For Availability
38
ASSY-HEAT EXCH (SS) 72K,ULNOX-(CTO) GEN 22G62 Contact Us For Availability
52
Control-Limit (190F) Main-(CTO) GEN 12P55 Contact Us For Availability
55
ROLLOUT LIMIT-(CTO) GEN 66J78 Contact Us For Availability
59
105078-04 SWITCH-PRESS SINGLE STAGE ULN GEN 22U24 Contact Us For Availability
63
615543-06 CAI REPLACEMENT (105035-04) GEN 22J95 Contact Us For Availability
69
621175-48 MTR -BLWR PROG 3/4 HP 208/230v GEN 22U65 Contact Us For Availability
71
P-8-9501 BAND-MOTOR-(CTO) GEN 32866 Contact Us For Availability
72
ARM, MOTOR MOUNTING BRACKET-(CTO) GEN R10230101 Contact Us For Availability
74
BLWR HOUSING & WHEEL 10X10-(CTO) GEN 22U31 Contact Us For Availability
130
LABEL - WIRING DIAGRAM 14 GE-(CTO) GEN 53765903 Contact Us For Availability
147
LEAD ELECTRODE 21"-(CTO) GEN 22U21 Contact Us For Availability
153
DIST ASSY 6TUBE W/PISTON .071-(CTO) GEN 18Y27 Contact Us For Availability
158
ORIFICE RING 24.596 I.D. X 6-(CTO) GEN 12J46 Contact Us For Availability
167
Valve Core GEN 95M48 Contact Us For Availability
250
ASSY-COIL COND 1 ROW 40 X 70.3-(CTO) GEN 18Y09 Contact Us For Availability
251
BOX-FLUE COLLECTOR-(CTO) GEN 20K67 Contact Us For Availability
262
104161-06 Comp ABG034KAC R410A 230V-1 GEN 12X95 Contact Us For Availability
267
100483-43 Cond Fan MTR 1/4HP 208/230-1 GEN 12Y65 Contact Us For Availability
268
Fan Assy 24" 3Blade 27"PTH CCW-(CTO) GEN 12P56 Contact Us For Availability
271
Dual Run Cap 45+10 440V ROUND GEN 89M83 Contact Us For Availability
272
GROMMET-COMPRESSOR-(CTO) GEN R10030301 Contact Us For Availability
273
BOLT-SLEEVE COMBINATION-(CTO) GEN R10030101 Contact Us For Availability
276
LG W/H-COMP MOLDED PLUG-(CTO) GEN 14N35 Contact Us For Availability
278
CONTACTOR-SPST 25FLA/35RES GEN 10F73 Contact Us For Availability
296
100087-14 SWITCH-HI PRESS GEN 12L20 Contact Us For Availability
297
100087-15 SWITCH-LO PRESS GEN 12L21 Contact Us For Availability
301
DRIER R410A - ONE WAY - 55G-(CTO) GEN 12K40 Contact Us For Availability
309
PAN-DRAIN PLST INSUL LG-(CTO) GEN 21V30 Contact Us For Availability
311
BOX-FLUE COLLECTOR-(CTO) GEN 22U22 Contact Us For Availability
314
HARNESS-WIRING LIMIT-(CTO) GEN 22U27 Contact Us For Availability
317
HARNESS-WIRING OD FAN-(CTO) GEN 13K20 Contact Us For Availability
320
Fitting - PressureTap-(CTO) GEN 95M47 Contact Us For Availability
321
Nut - Acorn (8-32)-(CTO) GEN 85M56 Contact Us For Availability
327
RELAY FAN SPDT-(CTO) GEN 25J38 Contact Us For Availability
949
VENT HOOD-(CTO) GEN 12B75 Contact Us For Availability
952
PNL BLOWER ACCESS LG-(CTO) GEN R62228501E Contact Us For Availability
954
PNL-LOUVER FRONT LARGE-(CTO) GEN R62189101E Contact Us For Availability
962
PANEL -UTILITY G/E LG ARM-(CTO) GEN R62228804E Contact Us For Availability
970
POST-CORNER LARGE-(CTO) GEN R62189402E Contact Us For Availability
978
PNL -COMPRESSOR ACCESS LG-(CTO) GEN R62188801E Contact Us For Availability
981
PANEL -HEAT EXCHANGER ACCESS-(CTO) GEN R62189201E Contact Us For Availability
982
PNL -CONTROL ACCESS LG-(CTO)-(CTO) GEN R62188901E Contact Us For Availability
988
GUARD-FAN WIRE BLK DIA 27.134-(CTO) GEN 12J44 Contact Us For Availability
990
PNL REAR LG 3DR ARM TXT GRAY-(CTO) GEN R62263502 Contact Us For Availability
992
PNL -LOUVER LEFT GEN R62189001E Contact Us For Availability
997
GEN R61180202E GEN R61180202E Contact Us For Availability
1007
Flue Coupling Service Kit-(CTO) GEN 14K09 Contact Us For Availability
1008
ORIFICE - AIR-(CTO) GEN 22J97 Contact Us For Availability
1009
GEN 22U28 GEN 22U28 Contact Us For Availability
1010
R01851A007 SWITCH-LIMIT GEN 33H78 Contact Us For Availability
1011
ASSY VAC HOSE-ULN LG BASE-(CTO) GEN 22P53 Contact Us For Availability
1014
PLATE-BURNER PREMIX-(CTO) GEN 20U90 Contact Us For Availability
1015
ELBOW - GAS/AIR-(CTO) GEN 15P55 Contact Us For Availability
1016
GASKET-PLENUM (MED HT)-(CTO) GEN 20U87 Contact Us For Availability
1017
GASKET-BURNER BOX (MED HT-(CTO) GEN 20U84 Contact Us For Availability
1018
GASKET-SENSOR/IGNITER-(CTO) GEN 20B69 Contact Us For Availability
1019
O-RING, ELBOW/PLENUM-(CTO) GEN 15K20 Contact Us For Availability
1020
O-RING,MANIFOLD/ELBOW-(CTO) GEN 15V45 Contact Us For Availability
9997
GEN 10721304 GEN 10721304 Contact Us For Availability
9998
GEN 10721306 GEN 10721306 Contact Us For Availability
9999
GEN 315000644 GEN 315000644 Contact Us For Availability
× ![]()
