Model GE NP14H42S02 HVAC – Packaged – Common Parts & Diagrams

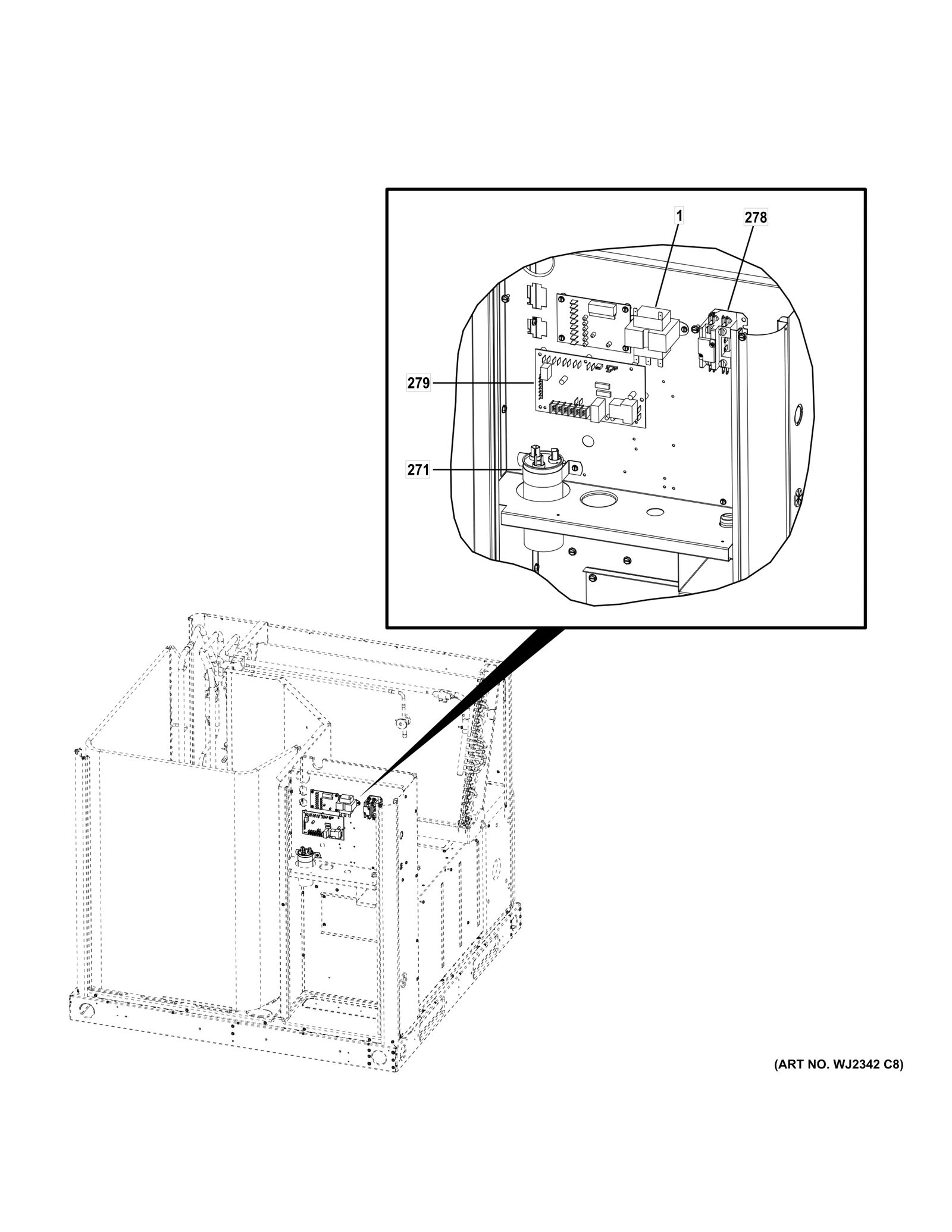

CONTROL PARTS

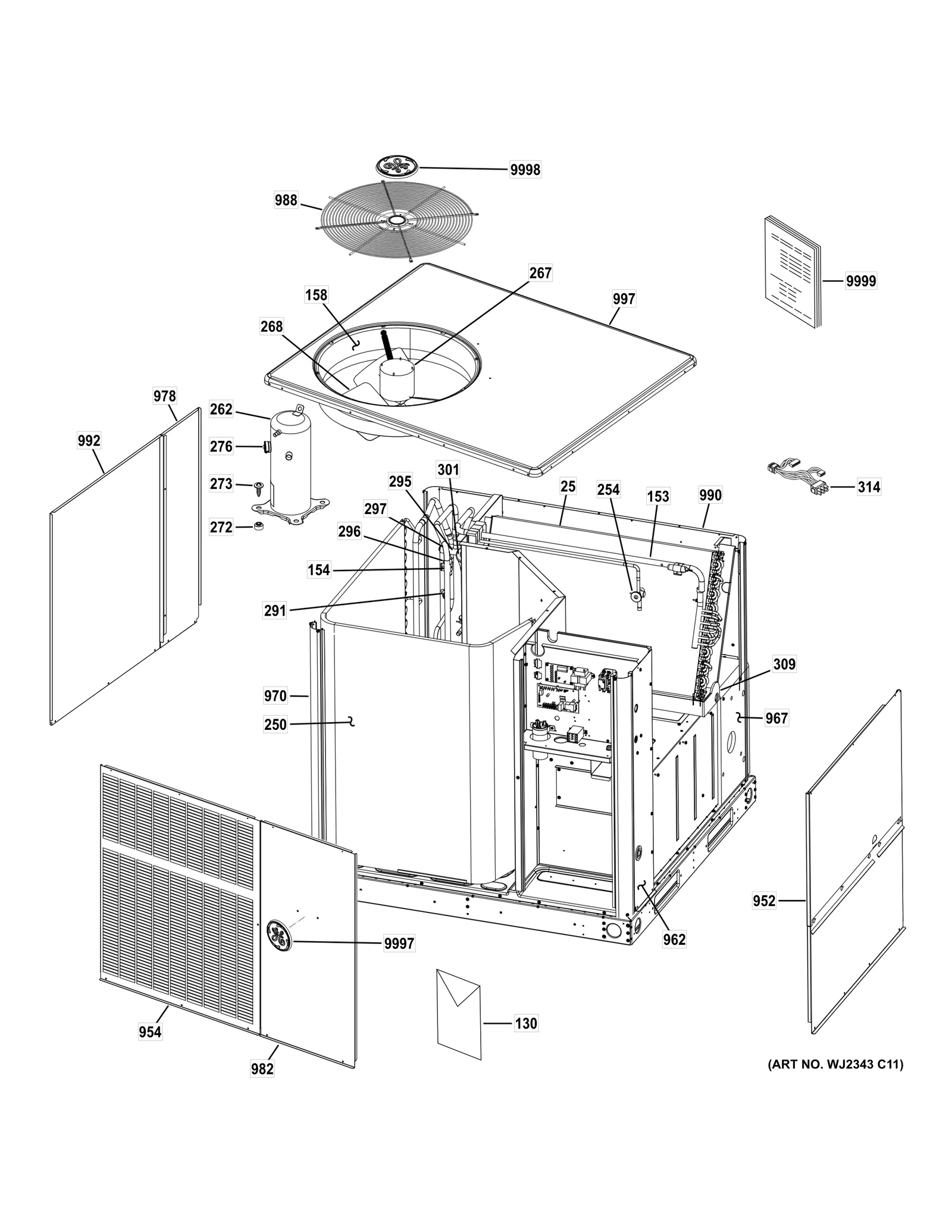

BODY PARTS

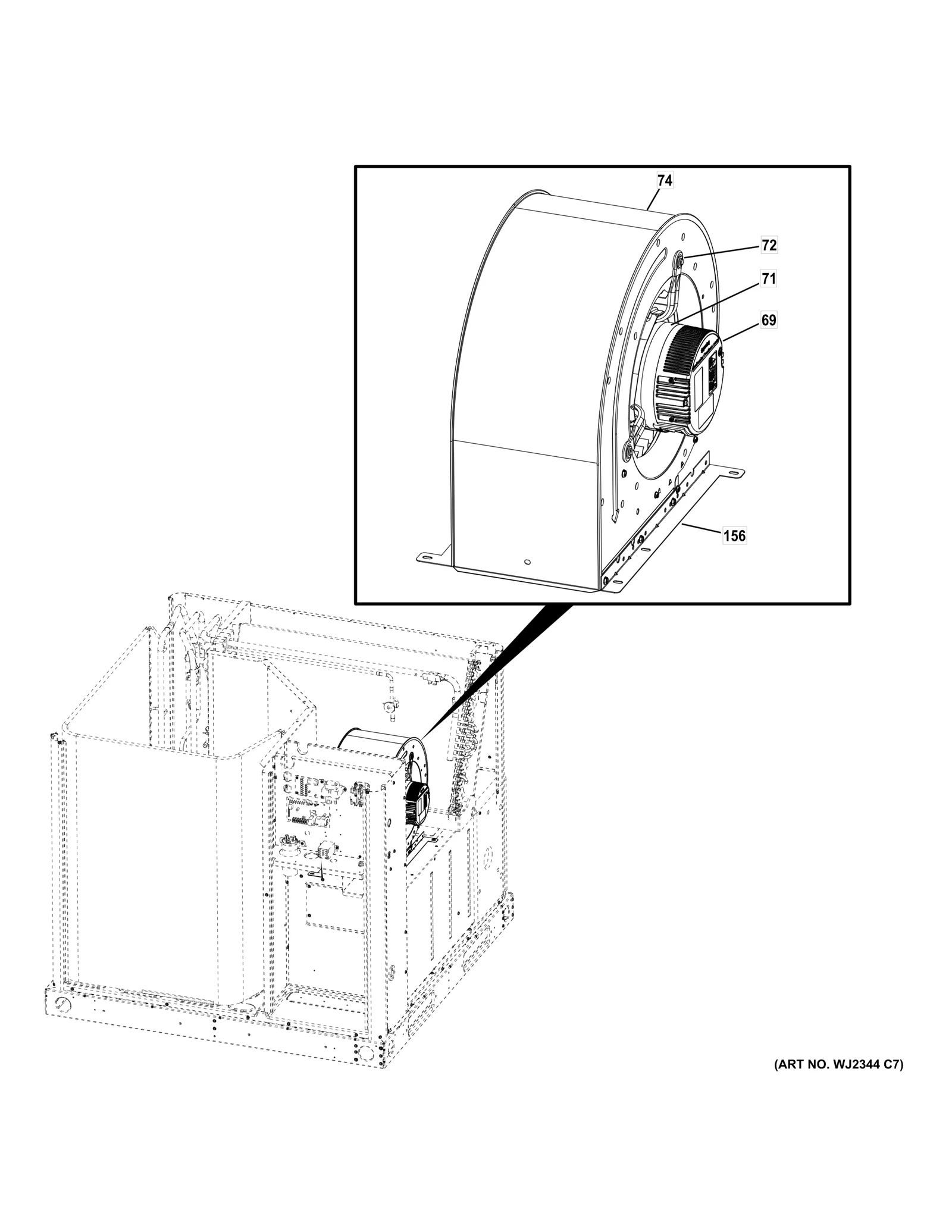

BLOWER & MOTOR
Common parts from model GE NP14H42S02 HVAC – Packaged
25
613139-02A EVAP-COIL 3/8 24X40.5 3R15FPI GEN 12J51 Contact Us For Availability
69
621175-05 MTR-BLWR PROGR 3/4HP 208/230V GEN 18Y37 Contact Us For Availability
71
MOTOR MOUNT BAND KIT-(CTO) GEN 50W89 Contact Us For Availability
72
ARM, MOTOR MOUNTING BRACKET-(CTO) GEN R102301-01 Contact Us For Availability
74
BLWR HOUSING & WHEEL 10 X 10-(CTO) GEN 12L17 Contact Us For Availability
130
LABEL - WIRING DIAGRAM-(CTO) GEN 537661-01 Contact Us For Availability
153
100579-104 DIST ASSY 6TUBE W/PISTON .072 GEN 18Y29 Contact Us For Availability
154
101322-16 ASSY-DISTRIBUTOR 4 TUBE-(CTO) GEN 12J27 Contact Us For Availability
156
RAIL - BLOWER-(CTO) GEN 612961-02 Contact Us For Availability
158
ORIFICE RING 24.596 I.D. X 6-(CTO) GEN 12J46 Contact Us For Availability
250
613204-02 ASSY-COIL COND 2 ROW-(CTO) GEN 12J93 Contact Us For Availability
262
623497-105 LG APH034KAA R410A/230/1 GEN 23C36 Contact Us For Availability
268
Fan Assy 24" 3Blade 27"PTH CCW-(CTO) GEN 12P56 Contact Us For Availability
271
Dual Run Cap 45+10 440V ROUND GEN 89M83 Contact Us For Availability
272
GROMMET-COMPRESSOR-(CTO) GEN R100303-01 Contact Us For Availability
273
BOLT-SLEEVE COMBINATION-(CTO) GEN R100301-01 Contact Us For Availability
276
LG W/H-COMP MOLDED PLUG-(CTO) GEN 14N35 Contact Us For Availability
278
CONTACTOR-SPST 25FLA/35RES GEN 10F73 Contact Us For Availability
279
619559-01 DEFROST CONTROL KIT GEN 16V37 Contact Us For Availability
291
100503-12 THERMOSTAT SPST OP60F CL35F GEN 12J77 Contact Us For Availability
295
Valve-Reversing 1/2 x 7/8(CTO) GEN 19V97 Contact Us For Availability
297
100087-15 SWITCH-LO PRESS GEN 12L21 Contact Us For Availability
301
DRIER - BiFlow (R410A)CTO GEN 49W23 Contact Us For Availability
309
PAN-DRAIN PLST INSUL LG-(CTO) GEN 21V30 Contact Us For Availability
314
104010-02 WIRE HARN PRI 230/460 3P HP-(C GEN 21V37 Contact Us For Availability
952
PNL BLOWER ACCESS LG-(CTO) GEN R622285-01E Contact Us For Availability
954
PNL-LOUVER FRONT LARGE-(CTO) GEN R621891-01E Contact Us For Availability
962
PNL-UTILITY HP-AC LG-(CTO) GEN R621893-01E Contact Us For Availability
967
COVER-DUCT, HORIZONTAL LG-(CTO) GEN R622313-01E Contact Us For Availability
970
POST-CORNER LARGE-(CTO) GEN R621894-02E Contact Us For Availability
978
PNL -COMPRESSOR ACCESS LG-(CTO) GEN R621888-01E Contact Us For Availability
982
PNL -CONTROL ACCESS LG-(CTO)-(CTO) GEN R621889-01E Contact Us For Availability
988
GUARD-FAN WIRE BLK DIA 27.134-(CTO) GEN 12J44 Contact Us For Availability
990
PNL REAR LG 3DR ARM TXT GRAY-(CTO) GEN R622635-02 Contact Us For Availability
992
PNL -LOUVER LEFT SIDE LG-(CTO) GEN R621890-01E Contact Us For Availability
997
PNL TOP LG ARM TXT GRAY-(CTO) GEN R611802-02E Contact Us For Availability
9997
SIDE GEA BADGE GEN 107213-04 Contact Us For Availability
9998
TOP GEA BADGE GEN 107213-01 Contact Us For Availability
9999
PM OTHER GEN 31-5000644 Contact Us For Availability
× ![]()
