Model GE NP14G60S12603 HVAC – Packaged – Common Parts & Diagrams
CONTROL PARTS
BODY PARTS

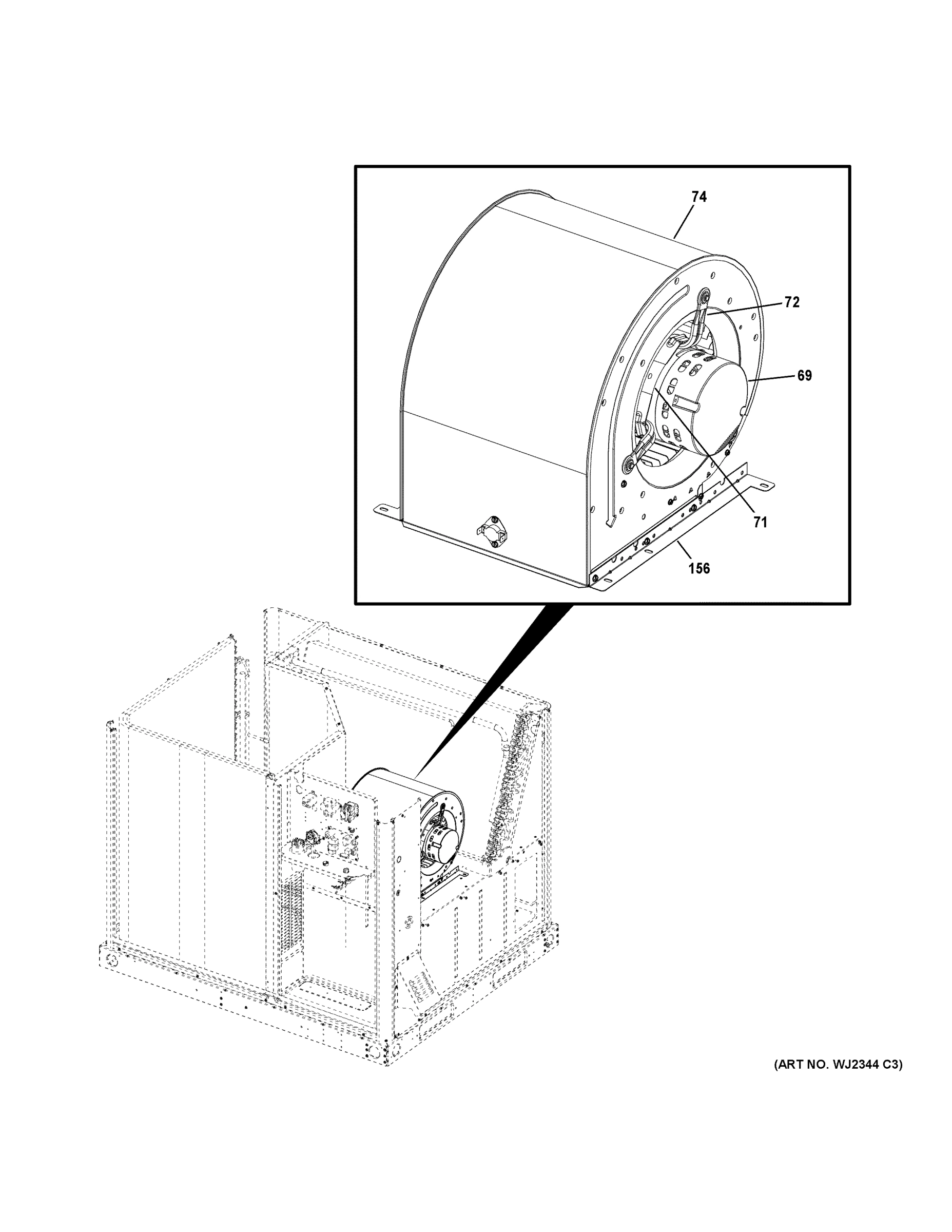

BLOWER & MOTOR

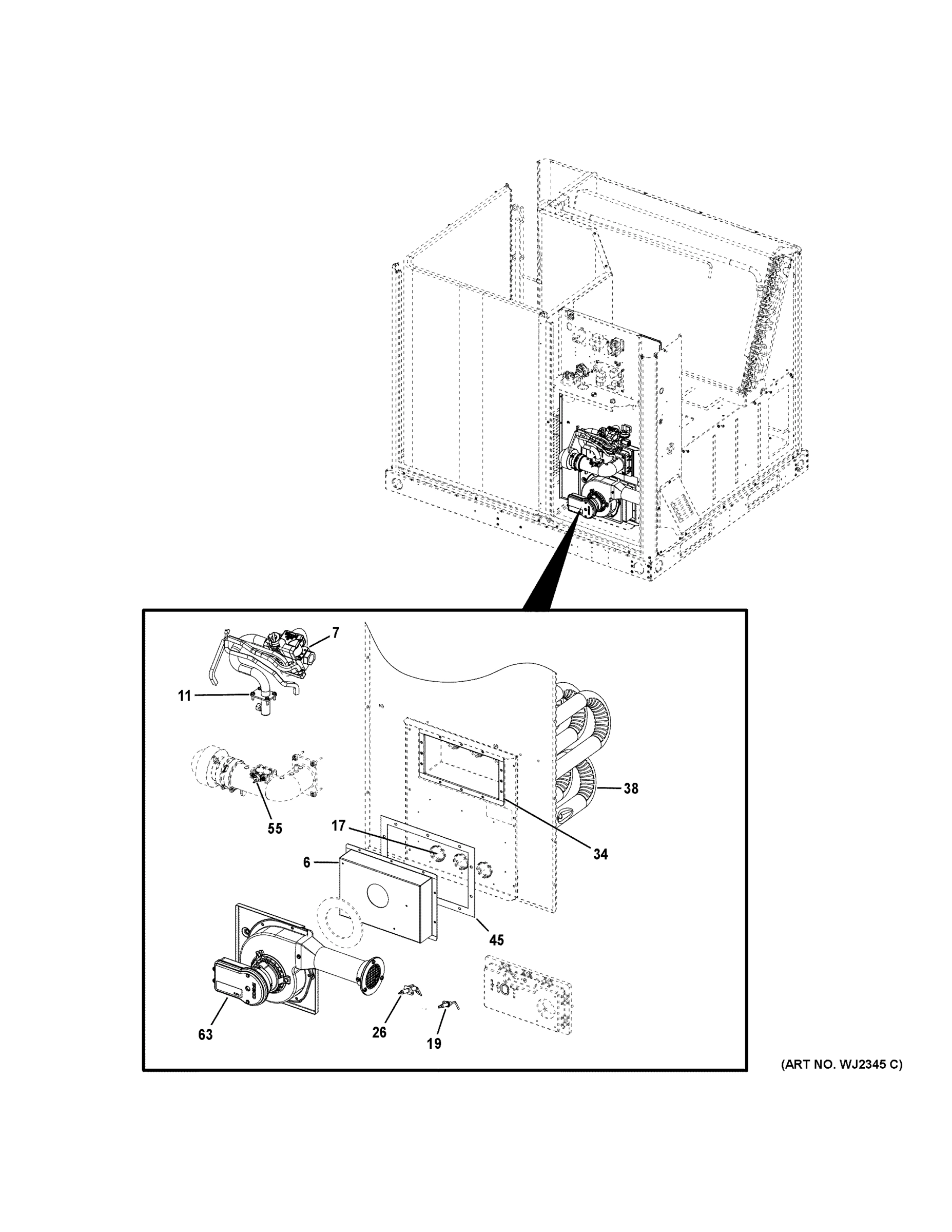

GAS VALVE & BURNER ASSEMBLY
Common parts from model GE NP14G60S12603 HVAC – Packaged
1
R39370B001 TRANSFORMER GEN 47K20 Contact Us For Availability
6
BOX-COLLECTOR-(CTO) GEN 12L02 Contact Us For Availability
11
ASSY-MANIFOLD GAS 7 BURN-(CTO) GEN 12L07 Contact Us For Availability
17
ORIFICE #47 -(CTO) GEN 12L08 Contact Us For Availability
19
104160-01 SENSOR FLAME GEN 12L09 Contact Us For Availability
24
104278-01 CONTROL-IGNITION GEN 12J99 Contact Us For Availability
25
ASSY-COIL COND 2 ROW-(CTO) GEN 12J92 Contact Us For Availability
26
IGNITOR GEN 49M85 Contact Us For Availability
34
BURNER, INSHOT-(CTO) GEN 60M56 Contact Us For Availability
38
HEAT EXCH LG 7TU W/VEST-(CTO) GEN 22B51 Contact Us For Availability
45
GASKET FLUE COVER 6-7 BURNER-(CTO) GEN 12K82 Contact Us For Availability
52
102857-27 LIMIT CONTROL (195F) GEN 22B74 Contact Us For Availability
59
100684-07 SWITCH-PRESSURE Orange 0.1" wc GEN 65W63 Contact Us For Availability
69
MTR-BLWR PROGR 1HP 208/230V-(CTO) GEN 18Y48 Contact Us For Availability
71
BAND MOTOR MTG - 4 ARM-(CTO) GEN 10461004 Contact Us For Availability
72
ARM MOTOR MTG BRKT-(CTO) GEN 12X34 Contact Us For Availability
74
BLWR HOUSING & WHEEL 12 X 9-(CTO) GEN 12L18 Contact Us For Availability
130
LABEL - WIRING DIAGRAM 14 GE-(CTO) GEN 53765902 Contact Us For Availability
153
ASSY-DISTRIBUTOR 9 TUBE-(CTO) GEN 12J62 Contact Us For Availability
156
RAIL BLOWER-(CTO) GEN 12B76 Contact Us For Availability
158
ORIFICE RING 24.596 I.D. X 6-(CTO) GEN 12J46 Contact Us For Availability
250
COIL EVAP 24X40.5 3/8 3R15FPI-(CTO) GEN 12J31 Contact Us For Availability
262
104112-13 ZP49K6E-PFV-830 Comp 230V-1 GEN 12J58 Contact Us For Availability
267
100483-43 Cond Fan MTR 1/4HP 208/230-1 GEN 12Y65 Contact Us For Availability
268
Fan Assy 4 BLD 24 PITCH CCW-(CTO) GEN 10W78 Contact Us For Availability
271
100335-22 Dual Run Cap 70+10@370V ROUND GEN 89M90 Contact Us For Availability
272
GROMMET-COMPRESSOR-(CTO) GEN R10030301 Contact Us For Availability
273
BOLT-SLEEVE COMBINATION-(CTO) GEN R10030101 Contact Us For Availability
276
HARNESS-COMP MOLDED PLUG-(CTO) GEN 14N17 Contact Us For Availability
278
CONTACTOR-SPST 35FLA/40RES GEN 10F74 Contact Us For Availability
296
100087-14 SWITCH-HI PRESS GEN 12L20 Contact Us For Availability
297
100087-15 SWITCH-LO PRESS GEN 12L21 Contact Us For Availability
301
DRIER R410A - ONE WAY - 55G-(CTO) GEN 12K40 Contact Us For Availability
309
PAN-DRAIN PLST INSUL LG-(CTO) GEN 21V30 Contact Us For Availability
314
WIRE HARN PRI 230/460 3P GE-(CTO) GEN 21V36 Contact Us For Availability
949
VENT HOOD-(CTO) GEN 12B75 Contact Us For Availability
952
PNL BLOWER ACCESS LG-(CTO) GEN R62228501E Contact Us For Availability
954
PNL-LOUVER FRONT LARGE-(CTO) GEN R62189101E Contact Us For Availability
962
PNL -UTILITY G/E LG-(CTO) GEN R62228802E Contact Us For Availability
967
COVER-DUCT, HORIZONTAL LG-(CTO) GEN R62231301E Contact Us For Availability
970
POST-CORNER LARGE-(CTO) GEN R62189402E Contact Us For Availability
978
PNL -COMPRESSOR ACCESS LG-(CTO) GEN R62188801E Contact Us For Availability
981
PNL -CONTROL ACCESS LG-(CTO)-(CTO) GEN R62188901E Contact Us For Availability
988
GUARD-FAN WIRE BLK DIA 27.134-(CTO) GEN 12J44 Contact Us For Availability
990
PNL REAR LG 3DR ARM TXT GRAY-(CTO) GEN R62263502 Contact Us For Availability
992
PNL -LOUVER LEFT SIDE LG-(CTO) GEN R62189001E Contact Us For Availability
997
PNL TOP LG ARM TXT GRAY-(CTO) GEN R61180202E Contact Us For Availability
9997
SIDE GEA BADGE GEN 10721304 Contact Us For Availability
9998
TOP GEA BADGE GEN 10721301 Contact Us For Availability
9999
PM SERVICE INSTRUCTIONS GEN 315000644 Contact Us For Availability
× ![]()
