Model GE NP14A48S03 HVAC – Packaged – Common Parts & Diagrams

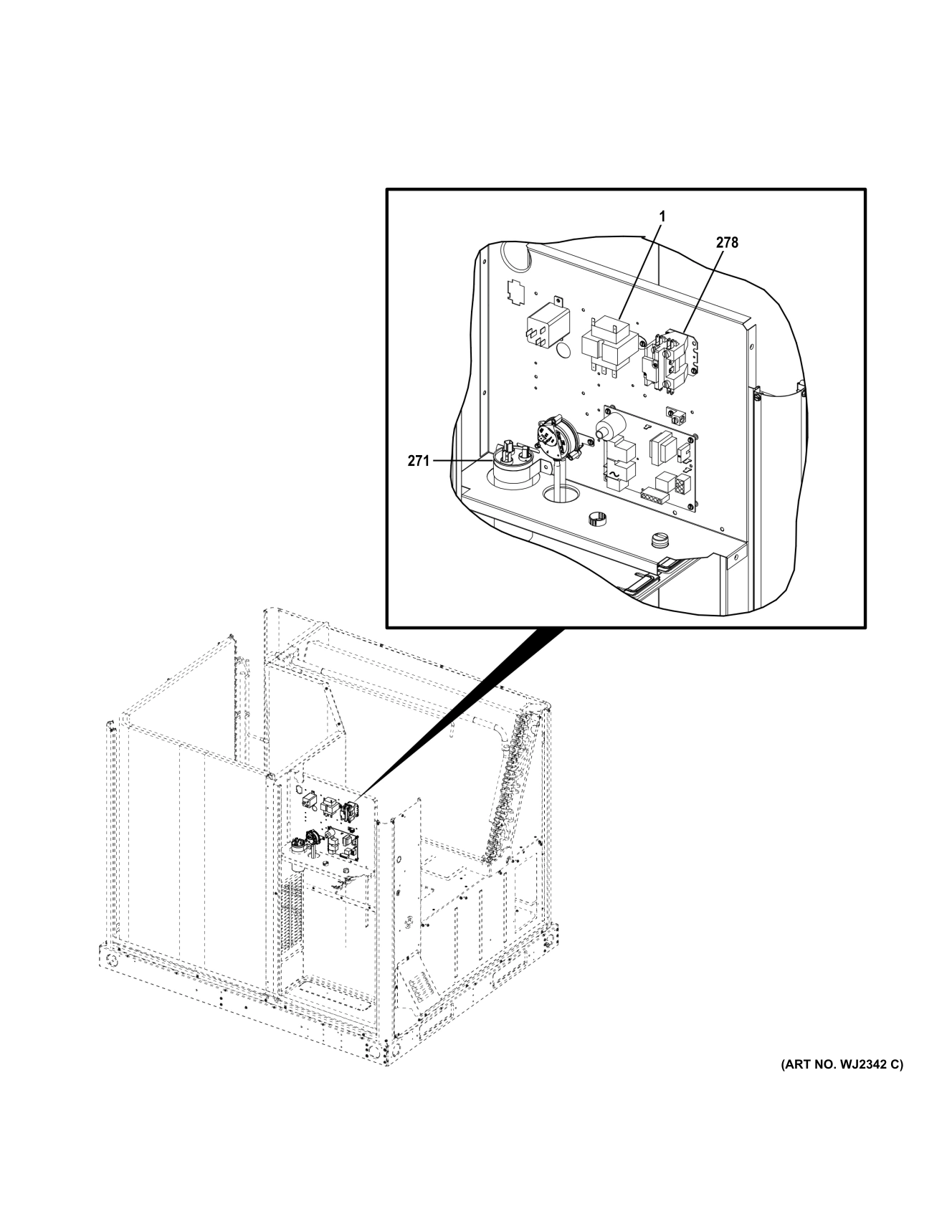

CONTROL PARTS

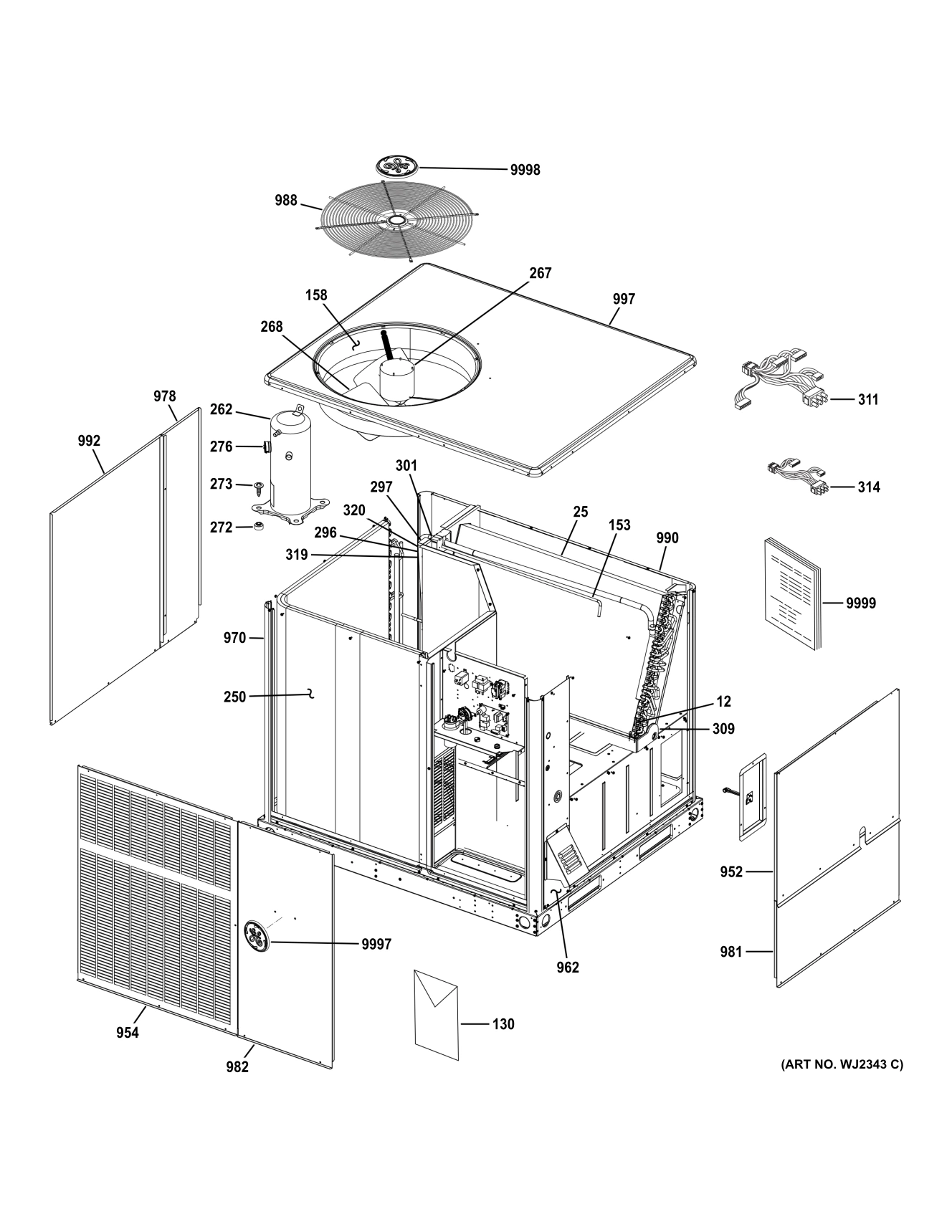

BODY PARTS

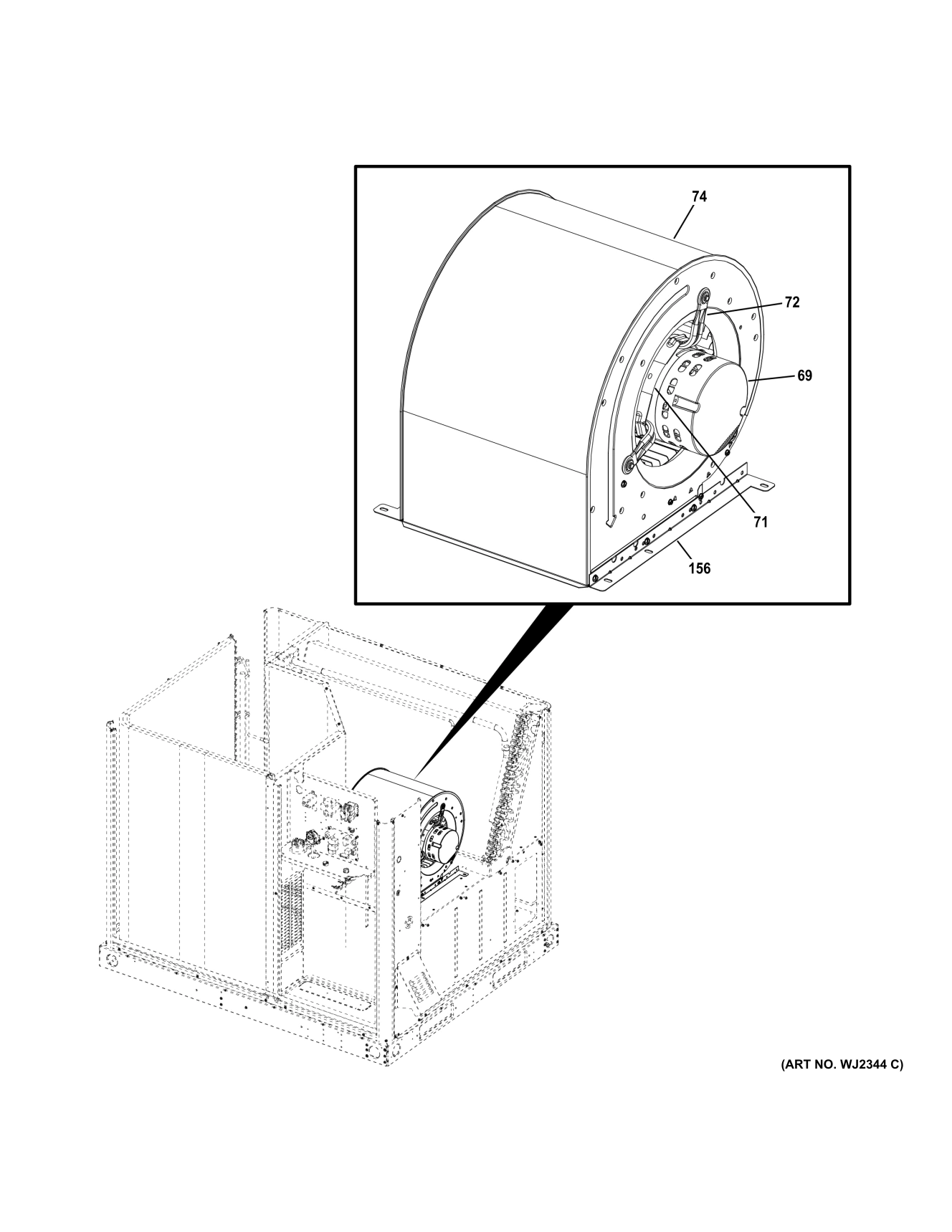

BLOWER & MOTOR
Common parts from model GE NP14A48S03 HVAC – Packaged
12
SWITCH-INTERLOCK LEVEL SENSOR NC GEN R104326-02 Contact Us For Availability
25
ASSY-COIL EVAP 24 x 40.5, 3ROW-(CTO) GEN 18Y08 Contact Us For Availability
71
MOTOR MOUNT BAND KIT-(CTO) GEN 50W89 Contact Us For Availability
72
ARM, MOTOR MOUNTING BRACKET-(CTO) GEN R102301-01 Contact Us For Availability
74
BLWR HOUSING & WHEEL 10 X 10-(CTO) GEN 12L17 Contact Us For Availability
130
LABEL - WIRING DIAGRAM-(CTO) GEN 537663-01 Contact Us For Availability
153
DIST ASSY 9TUBE W/PISTON .072-(CTO) GEN 18Y28 Contact Us For Availability
156
RAIL - BLOWER-(CTO) GEN 612961-02 Contact Us For Availability
158
ORIFICE RING 24.596 I.D. X 6-(CTO) GEN 12J46 Contact Us For Availability
250
ASSY-COIL COND 1 ROW 40 X 70.3-(CTO) GEN 18Y09 Contact Us For Availability
262
LG COMP ABG039KBC R410A 230V-1 GEN 24X48 Contact Us For Availability
267
100483-43 Cond Fan MTR 1/4HP 208/230-1 GEN 12Y65 Contact Us For Availability
268
Fan Assy 24" 3Blade 27"PTH CCW-(CTO) GEN 12P56 Contact Us For Availability
271
Dual Run Cap 70+10 @ 440V RND GEN 29W09 Contact Us For Availability
272
GROMMET-COMPRESSOR-(CTO) GEN R100303-01 Contact Us For Availability
273
BOLT-SLEEVE COMBINATION-(CTO) GEN R100301-01 Contact Us For Availability
276
LG W/H-COMP MOLDED PLUG-(CTO) GEN 14N35 Contact Us For Availability
278
CONTACTOR-SPST 25FLA/35RES GEN 10F73 Contact Us For Availability
297
100087-15 SWITCH-LO PRESS GEN 12L21 Contact Us For Availability
301
DRIER R410A - ONE WAY - 55G-(CTO) GEN 12K40 Contact Us For Availability
309
PAN-DRAIN PLST INSUL LG-(CTO) GEN 21V30 Contact Us For Availability
311
HARNESS-WIRING OD FAN-(CTO) GEN 13K20 Contact Us For Availability
314
WIRE HARN PRI 230/460 3P AC GE-(CTO) GEN 21V38 Contact Us For Availability
319
Valve Core GEN 95M48 Contact Us For Availability
320
Fitting - PressureTap-(CTO) GEN 95M47 Contact Us For Availability
952
PNL BLOWER ACCESS LG-(CTO) GEN R622285-01E Contact Us For Availability
954
PNL-LOUVER FRONT LARGE-(CTO) GEN R621891-01E Contact Us For Availability
962
PNL-UTILITY HP-AC LG-(CTO) GEN R621893-01E Contact Us For Availability
970
POST-CORNER LARGE-(CTO) GEN R621894-02E Contact Us For Availability
978
PNL -COMPRESSOR ACCESS LG-(CTO) GEN R621888-01E Contact Us For Availability
981
PANEL -HEAT EXCHANGER ACCESS-(CTO) GEN R621892-01E Contact Us For Availability
982
PNL -CONTROL ACCESS LG-(CTO)-(CTO) GEN R621889-01E Contact Us For Availability
988
GUARD-FAN WIRE BLK DIA 27.134-(CTO) GEN 12J44 Contact Us For Availability
990
PNL REAR LG 3DR ARM TXT GRAY-(CTO) GEN R622635-02 Contact Us For Availability
992
PNL -LOUVER LEFT SIDE LG-(CTO) GEN R621890-01E Contact Us For Availability
997
PNL TOP LG ARM TXT GRAY-(CTO) GEN R611802-02E Contact Us For Availability
9997
SIDE GEA BADGE GEN 107213-04 Contact Us For Availability
9998
TOP GEA BADGE GEN 107213-01 Contact Us For Availability
9999
PM OTHER GEN 31-5000644 Contact Us For Availability
× ![]()
